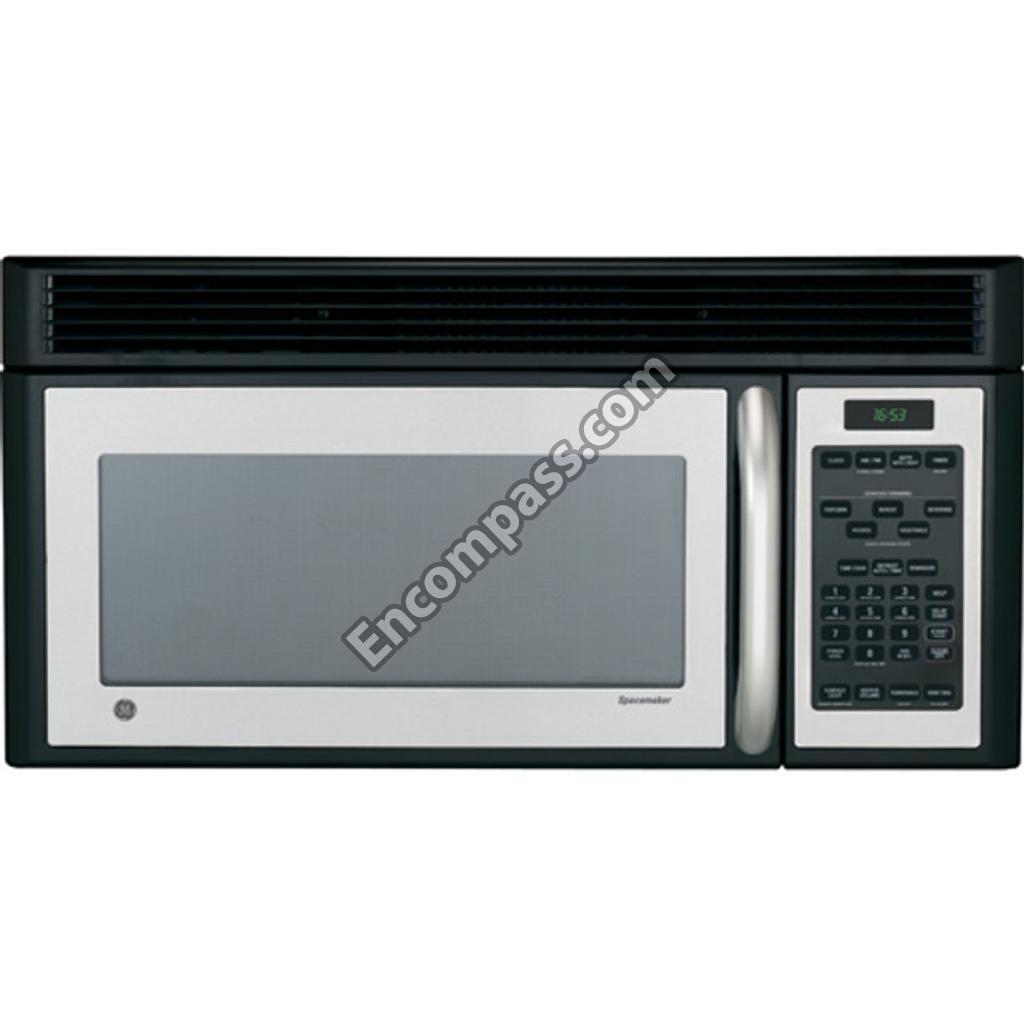

Model Image
Manufacturer

GE

Model Number

JVM1653BH05

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB27X10880 WB27X10880 ASM-MAGNETRON
WB06X10171 WB06X10171 ASSEMBLY-BKT C/PANEL
WB56X10679 WB56X10679 BASE-BOTTOM
WB56X10678 WB56X10678 BASE-BOTTOM
WB56X10212 WB56X10212 BASE-PLATE
WB01X10180 WB01X10180 BOLT-FLAT CAB MOUNTING
WB02X11265 WB02X11265 BRACKET LAMP
WB06X10147 WB06X10147 BRACKET-AIR GUIDE A
WB06X10434 WB06X10434 BRACKET-BARRIER
WB06X10148 WB06X10148 BRACKET-DUCT UPPER ASSEMBLY
WB06X10118 WB06X10118 BRACKET-H V C
WB06X10122 WB06X10122 BRACKET-POWER CORD
WB06X10165 WB06X10165 BRACKET-V/T MOTOR
WB06X10126 WB06X10126 BUTTON-LOCK
WB27X10011 WB27X10011 CAPACITOR 2100V/0.91 MICROF
WB27X10170 WB27X10170 CAPACITOR- MOTOR
WB56X10271 WB56X10271 CASE OUTER
WB56X10269 WB56X10269 CASE OUTER
WB2X9883 WB2X9883 CHARCOAL FILTER
WB55X10538 WB55X10538 CHOKE COVER
WB55X10532 WB55X10532 CHOKE COVER
WB55X10535 WB55X10535 CHOKE COVER

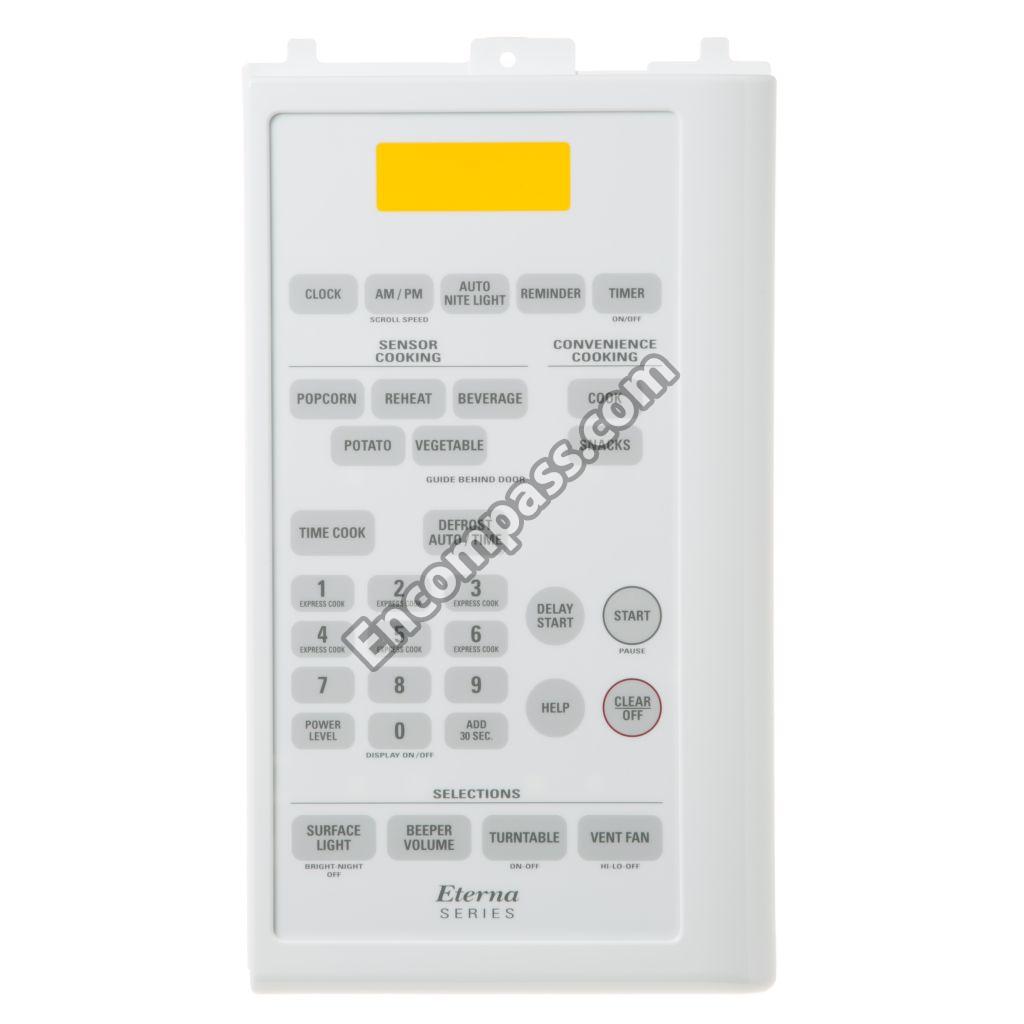

WB07X10960 WB07X10960 CONTORL PANEL ASM
WB07X10957 WB07X10957 CONTROL PANEL ASM
WB07X10958 WB07X10958 CONTROL PANEL ASM
WB07X10964 WB07X10964 CONTROL PANEL ASM
WB07X10966 WB07X10966 CONTROL PANEL ASM
WB06X10420 WB06X10420 COUPLER TT
WB06X10129 WB06X10129 COVER-DAMPER
WB06X10132 WB06X10132 COVER-FRONT
WB36X10217 WB36X10217 COVER-GLASS
WB36X10216 WB36X10216 COVER-GLASS
WB06X10130 WB06X10130 COVER-STIRRER
WB36X10070 WB36X10070 DISPLAY WINDOW
WB56X10511 WB56X10511 DOOR ASM BLK
WB56X10512 WB56X10512 DOOR ASM BQ
WB56X10514 WB56X10514 DOOR ASM WHT
WB55X10534 WB55X10534 DOOR MAIN ASM
WB55X10537 WB55X10537 DOOR MAIN ASM
WB55X10531 WB55X10531 DOOR MAIN ASM
WB55X10533 WB55X10533 DOOR OUTER FRAME
WB55X10536 WB55X10536 DOOR OUTER FRAME
WB55X10530 WB55X10530 DOOR OUTER FRAME
WB36X10068 WB36X10068 FILM DOOR
WB02X9883 WB02X9883 FILTER CH 11 1/8 X 6 1/8
WB06X10596 WB06X10596 FILTER-AIR
WB07X10529 WB07X10529 FRAME CONTROL PANEL
WB07X10532 WB07X10532 FRAME CONTROL PANEL
WB07X10535 WB07X10535 FRAME CONTROL PANEL
WB27X10388 WB27X10388 FUSE
WB27X10928 WB27X10928 FUSE
WB36X10071 WB36X10071 GLASS COOKTOP LAMP
WB07X10525 WB07X10525 GRILLE
WB07X10528 WB07X10528 GRILLE
WB07X10549 WB07X10549 GRILLE
WB27X10868 WB27X10868 H.V. TRANSFORMER
WB15X10144 WB15X10144 HANDLE BLK
WB15X10153 WB15X10153 HANDLE BQ
WB15X10154 WB15X10154 HANDLE WHT
WB06X10435 WB06X10435 HARDWARE BAG ASSEMBLY
WB06X10467 WB06X10467 HOLDER-RACK-A
WB06X10468 WB06X10468 HOLDER-RACK-B
WB06X10286 WB06X10286 HOLDER-STIRRER
WB06X10436 WB06X10436 HOOD DAMPER ASSEMBLY
WB27X10869 WB27X10869 HUMIDITY SENSOR
49-40247 49-40247 INSTALLATION INSTRUCTION
49-40272 49-40272 LABEL-COOKING GUIDE
WB36X10003 WB36X10003 LAMP-INCANDESCENT
WB05X10005 WB05X10005 LATCH PAWL
WB05X10007 WB05X10007 LATCH PAWL
WB06X10676 WB06X10676 LATCH-BODY
WB06X10128 WB06X10128 LEVER-S/W
49-40268 49-40268 LITERATURE
WB27X10597 WB27X10597 MICROWAVE DIODE
WB39X10003 WB39X10003 MICROWAVE GLASS TRAY
31-40046 31-40046 MINI MANUAL
WB26X10105 WB26X10105 MOTOR MAG FAN ASSEMBLY
WB26X10037 WB26X10037 MOTOR-DRIVE
WB26X10038 WB26X10038 MOTOR-SYNCHRONOUS
WB26X10042 WB26X10042 MOTOR-VENTILATION
WB01X10181 WB01X10181 MOUNTING HARDWARE ASM
WB56X10862 WB56X10862 MOUNTING PLATE W\MANUAL
WB02X11200 WB02X11200 NOISE FILTER ASM
WB01X10065 WB01X10065 NUT MAGNETRON
WB01X10071 WB01X10071 NUT TOP MOUNTING
49-40366-1 49-40366-1 OWNERS MANUAL
WB56X10267 WB56X10267 PANEL-OUTER
WB4X175 WB4X175 PCB SUPPORT
WB04X0175 WB04X0175 PCB SUPPORT.
WB06X10060 WB06X10060 PIN-HINGE
WB18X10200 WB18X10200 POWER CORD ASSEMBLY
WB48X10053 WB48X10053 RACK WIRE
49-40239-1 49-40239-1 REAR WALL TEMPLATE
WB06X10139 WB06X10139 ROLLER GUIDE RING
WB27X10195 WB27X10195 S/W THERMO
WB36X10282 WB36X10282 SCREEN-DOOR(B)
WB36X10283 WB36X10283 SCREEN-DOOR(B)
WB36X10285 WB36X10285 SCREEN-DOOR(B)
WB01X10062 WB01X10062 SCREW - GRILLE
WB01X10084 WB01X10084 SCREW WASHER
WB27X10872 WB27X10872 SMART BOARD
WB08X10016 WB08X10016 SOCKET LAMP
WB05X10006 WB05X10006 SPRING-KEY
WB06X10416 WB06X10416 STIRRER ASSEMBLY
WB24X830 WB24X830 SW-MONITOR
WB24X829 WB24X829 SW-SECONDARY
WB21X0535 WB21X0535 TCO -BOTTOM
WB27X10194 WB27X10194 TCO HOOD
WB27X1127 WB27X1127 THERMO SW-TCO SENSE TEMP
WB27X10166 WB27X10166 THERMOSTAT
WB27X10422 WB27X10422 UPPER DUCT ASSEMBLY
WB18X10122 WB18X10122 WIRE GND PCB
WB18X10334 WB18X10334 WIRE HARNESS-A
