Model Image
Manufacturer

GE

Model Number

JVM1790CK01

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB24X25397 WB24X25397 "SWITCH,MICRO"
WB26X10226 WB26X10226 AC SYNCHRONOUS MOTOR
WB02X11239 WB02X11239 AIR TUNNEL
WB02X33930 WB02X33930 AIR TUNNEL
WB56X10641 WB56X10641 BASE PLATE
WB02X32720 WB02X32720 BOARD - LATCH
WB02X32593 WB02X32593 BRACKET CAPACITOR
WB07X10930 WB07X10930 BRACKET CONTROL PANEL
WB34X35371 WB34X35371 BRACKET DAMPER
WB02X11235 WB02X11235 BRACKET DAMPER
WB02X32716 WB02X32716 BRACKET LAMP
WB06X10655 WB06X10655 CANOPY MICA
WB27X10808 WB27X10808 CAPACITOR
WB27X10329 WB27X10329 CAPACITOR
WB27X11031 WB27X11031 CAPACITOR H.V.
WB27X10862 WB27X10862 CAPACITOR H.V.
WB56X32812 WB56X32812 CASE FLAT
WB56X10856 WB56X10856 CASE FLAT
WB56X10857 WB56X10857 CASE FLAT
WB06X10865 WB06X10865 CHAMBER
WB55X10790 WB55X10790 CHOKE COVER

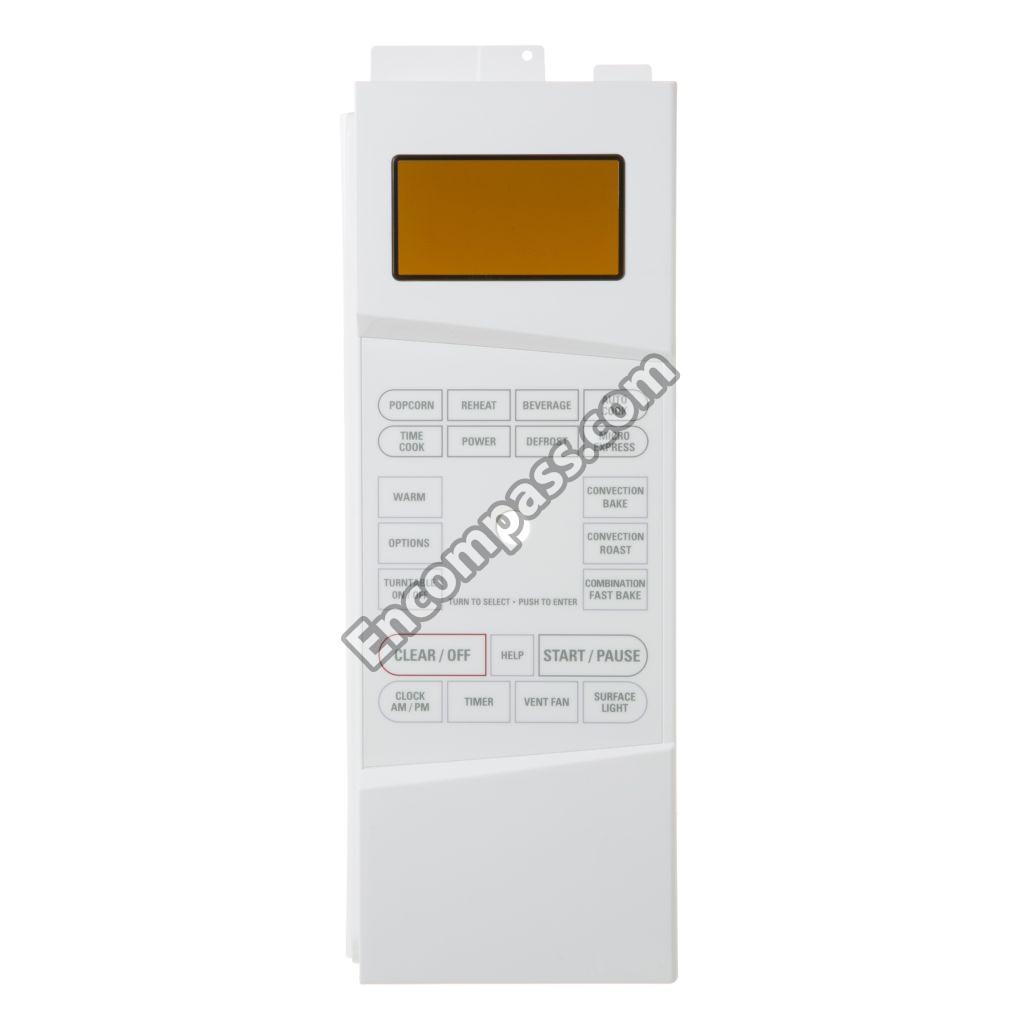

WB07X10976 WB07X10976 CONTROL PANEL ASM

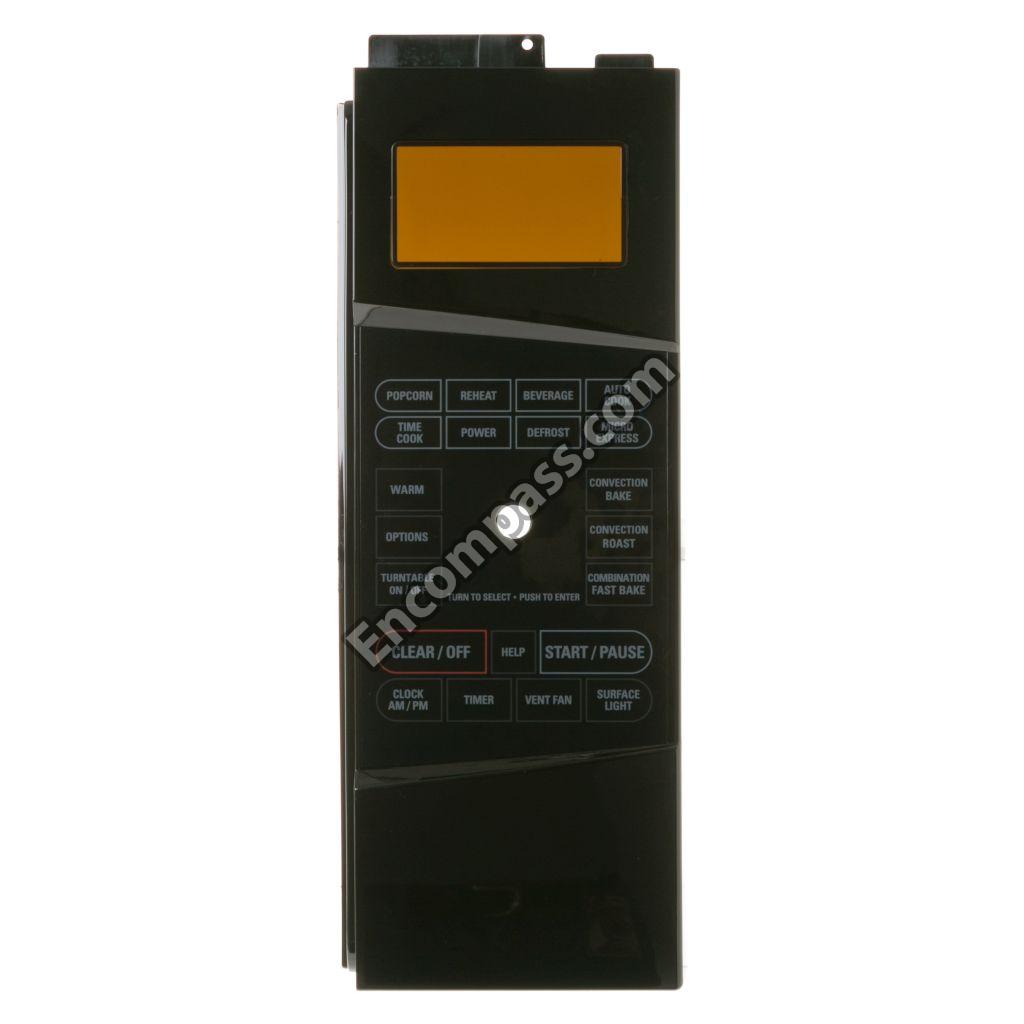

WB07X11190 WB07X11190 CONTROL PANEL ASM
WB07X11191 WB07X11191 CONTROL PANEL ASM

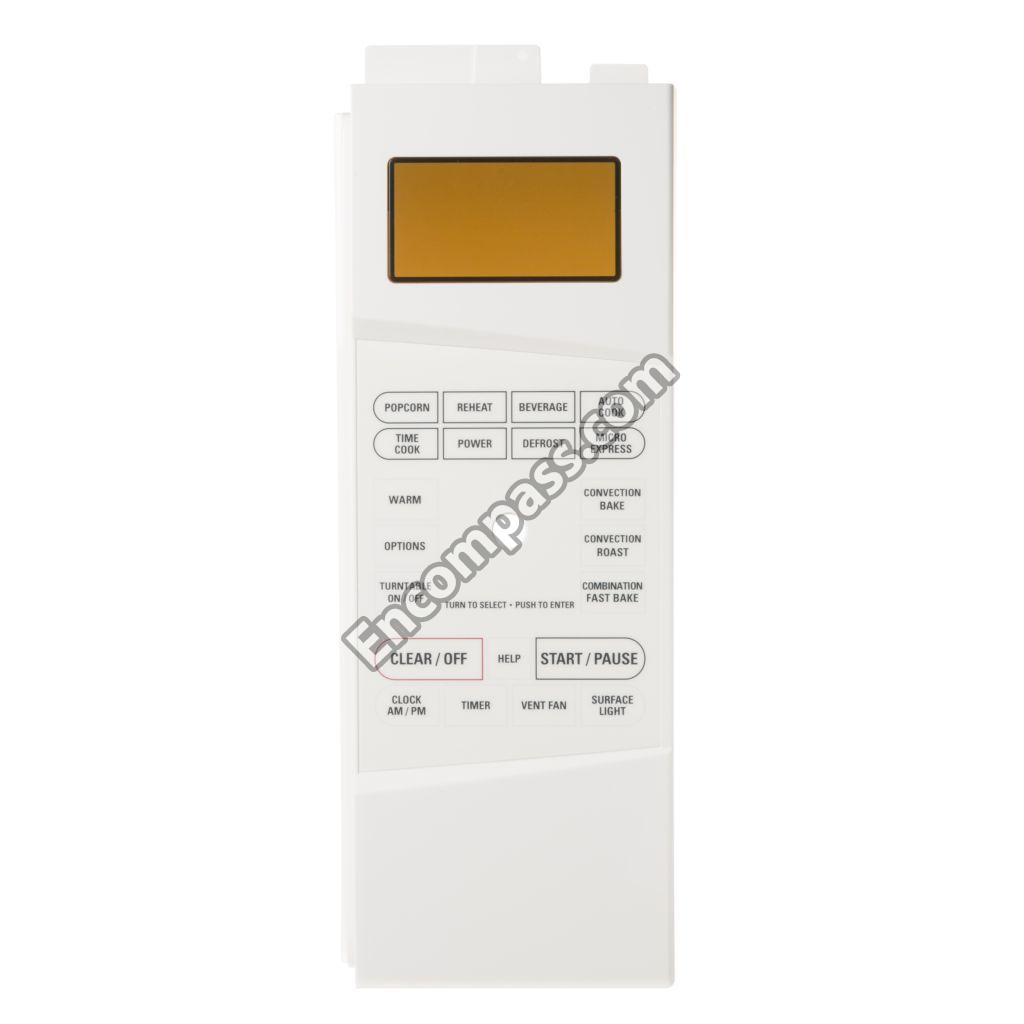

WB07X10934 WB07X10934 CONTROL PANEL ASM
WB56X32728 WB56X32728 COVER ASM BACK
WB02X32719 WB02X32719 COVER ASM STIRRER FAN
WB02X11291 WB02X11291 COVER LAMP
WB06X10308 WB06X10308 COVER POWER CORD
WB27X10037 WB27X10037 DIODE-CABLE ASM
WB55X10791 WB55X10791 DOOR ASM BK
WB55X10795 WB55X10795 DOOR ASM BQ
WB55X10793 WB55X10793 DOOR ASM WH
WB56X21097 WB56X21097 DOOR FRAME ASM
WB55X10792 WB55X10792 DOOR PANEL ASM
WB55X10794 WB55X10794 DOOR PANEL ASM
WB55X10796 WB55X10796 DOOR PANEL ASM
WB02X11238 WB02X11238 DUCT
WB02X32715 WB02X32715 EXHAUST ADAPTER
WB06X0466 WB06X0466 FAN
WB02X32727 WB02X32727 FAN
WB38X10099 WB38X10099 FAN ASM
WB38X10005 WB38X10005 FAN BLADE
WB27X10519 WB27X10519 FILTER ASSEMBLY NOISE
WB06X10654 WB06X10654 FILTER(MECH) GREASE
WB27X10928 WB27X10928 FUSE
WB36X10345 WB36X10345 GLASS
WB36X10314 WB36X10314 GLASS
WB06X10664 WB06X10664 GLASS WOOL

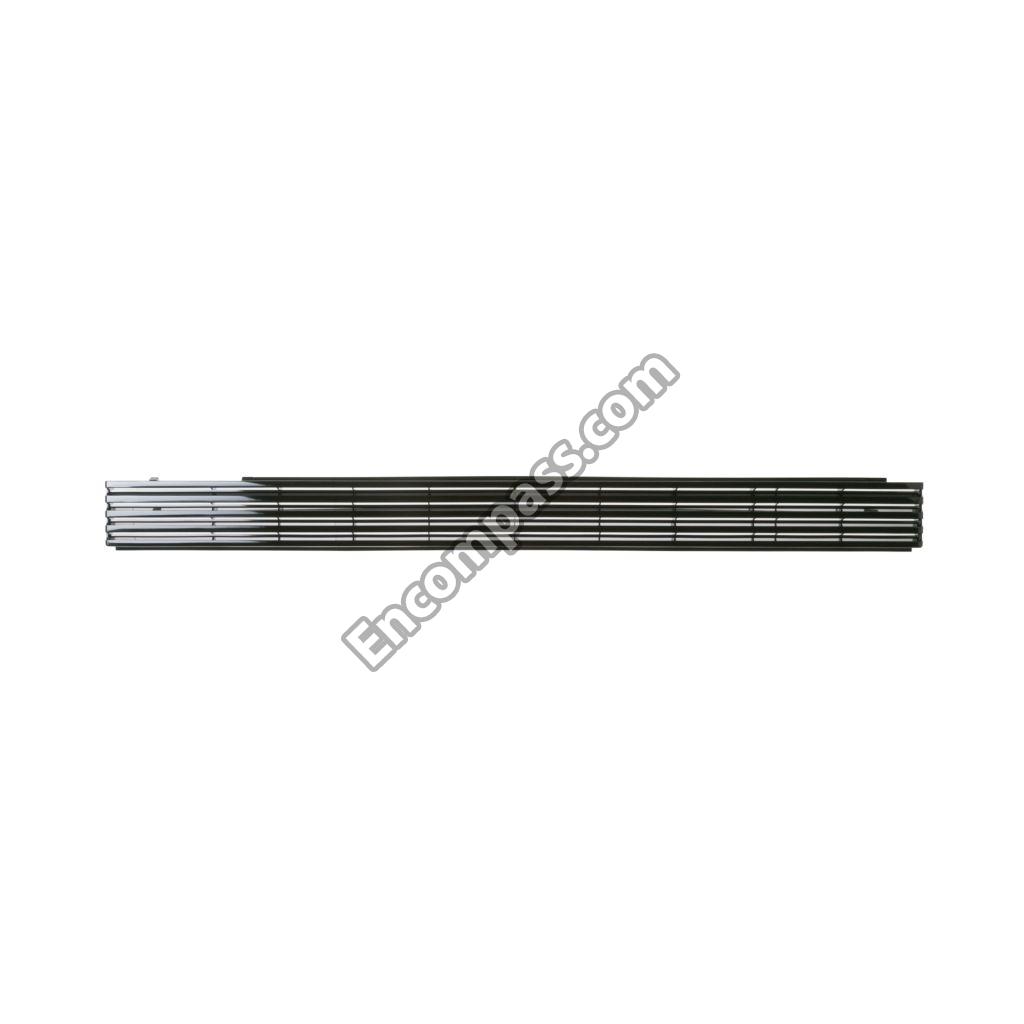

WB07X10928 WB07X10928 GRILLE VENT

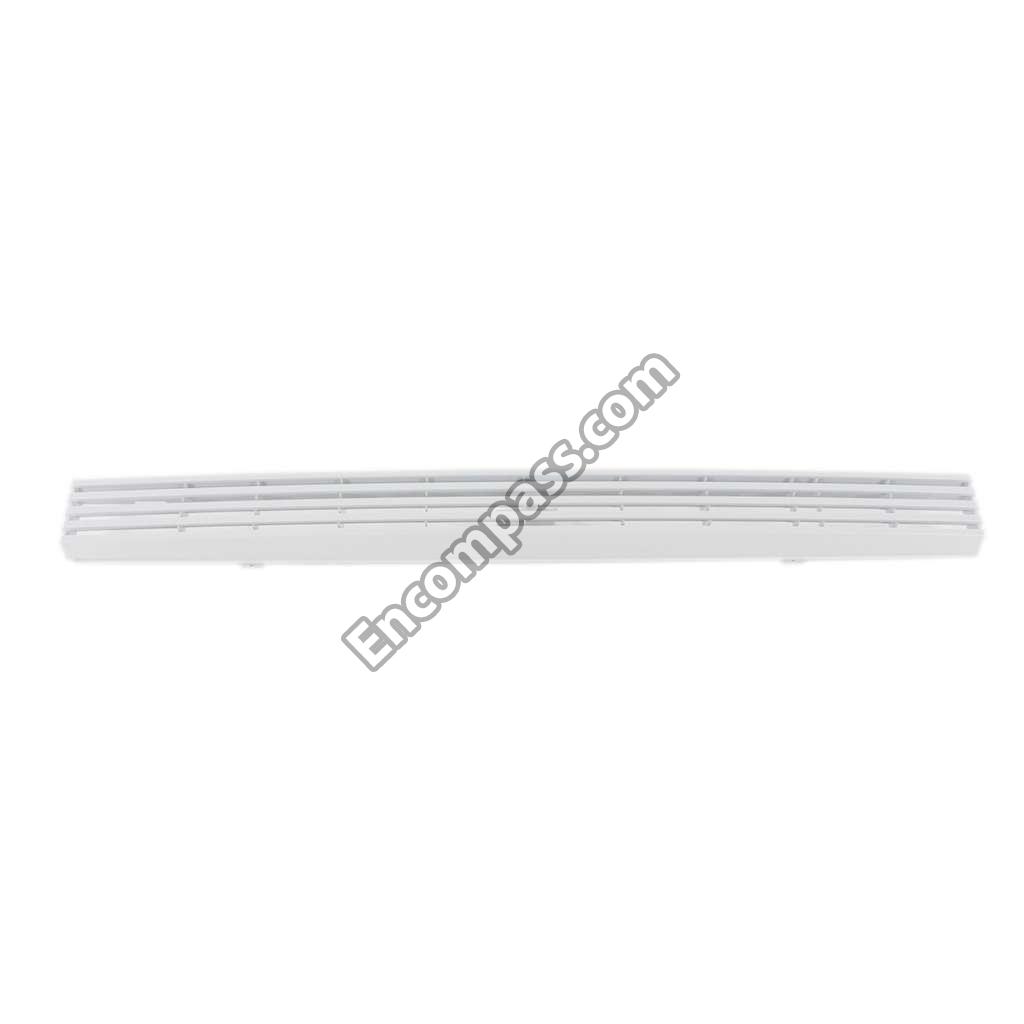

WB07X10931 WB07X10931 GRILLE VENT
WB07X10933 WB07X10933 GRILLE VENT
WB34X32729 WB34X32729 GUIDE AIR
WB38X10096 WB38X10096 GUIDE AIR
WB39X32800 WB39X32800 GUIDE SUCTION
WB25X10019 WB25X10019 HALOGEN LAMP
WB15X10188 WB15X10188 HANDLE DOOR BK
WB15X10189 WB15X10189 HANDLE DOOR BK
WB15X10192 WB15X10192 HANDLE DOOR BQ
WB15X10193 WB15X10193 HANDLE DOOR BQ
WB15X10190 WB15X10190 HANDLE DOOR WH
WB15X10191 WB15X10191 HANDLE DOOR WH
WB18X10294 WB18X10294 HARNESS
WB18X10295 WB18X10295 HARNESS
WB44X10046 WB44X10046 HEATER SHEATH
WB02X32605 WB02X32605 HOLDER - HEATER
WB06X10554 WB06X10554 HOLDER ASM
WB06X10783 WB06X10783 HOLDER ASM
WB06X10660 WB06X10660 HOLDER ASM
WB01X22142 WB01X22142 INSTALLATION H/W BAG
49-40453 49-40453 INSTRUCTIONS INSTALL
WB06X10661 WB06X10661 INSULATOR
WB06X10662 WB06X10662 INSULATOR ASSEMBLY
WB06X10663 WB06X10663 INSULATOR ASSEMBLY
WB03X10131 WB03X10131 KNOB BLACK
WB03X10278 WB03X10278 KNOB BQ
WB03X10133 WB03X10133 KNOB CC
WB03X10129 WB03X10129 KNOB WHITE
WB08X10057 WB08X10057 LAMP HALOGEN
WB02X35488 WB02X35488 LAMP HALOGEN
WB02X11096 WB02X11096 LATCH
WB06X10559 WB06X10559 LEVER SWITCH-LOWER
WB27X32766 WB27X32766 MAGNETRON
WB27X44106 WB27X44106 MAGNETRON
WB06X10565 WB06X10565 MICROWAVE EXHAUST DAMPER
WB06X10705 WB06X10705 MICROWAVE TRAY ROLLER ASSEMBLY
WB26X36106 WB26X36106 MICROWAVE VENTILATION MOTOR
30-40422-1 30-40422-1 MINI MANUAL
WB26X10248 WB26X10248 MOTOR
WB26X10270 WB26X10270 MOTOR(CIRC) CIRCULATION
WB26X10247 WB26X10247 MOTOR(CIRC) FAN
WB26X10185 WB26X10185 MOTOR(CIRC) SYNCHRONOUS
WB02X32725 WB02X32725 MOUNT VENT MOTOR COVER
WB2X9052 WB2X9052 MOUNTING BOLTS
WB56X35363 WB56X35363 MOUNTING PLATE ASM
WB01X10124 WB01X10124 NUT ASM
WB01X1520 WB01X1520 NUT COMMON
WB1X1520 WB1X1520 NUT HEXAGON
WB02X32722 WB02X32722 OTR HARDWARE ASM BAG
WB56X10645 WB56X10645 OUT CASE U-BENDING
WB56X10640 WB56X10640 PLATE BOTTOM
WB56X32723 WB56X32723 PLATE SIDE HEATER
49-40454 49-40454 PM COOKING GUIDE
WB20X10030 WB20X10030 POWER CORD ASSEMBLY
WB06X10657 WB06X10657 PROTECTOR (MECH)
WB27X10866 WB27X10866 PWB(PCB) ASM SUB
WB02X10750 WB02X10750 RACK HOLDER
WB1X1514 WB1X1514 SCREW
WB02X10728 WB02X10728 SCREW - HAND
WB02X10729 WB02X10729 SCREW -PCB
WB01X1514 WB01X1514 SCREW TAPPING
WB02X10720 WB02X10720 SCREW TAPPING TRUSS HEAD
WB27X10857 WB27X10857 SENSOR ASM
WB06X45595 WB06X45595 SHAFT TURN TABLE
WB48X10064 WB48X10064 SHELF
WB09X10017 WB09X10017 SPRING LATCH DOOR
WB24X10047 WB24X10047 SWITCH MICRO
WB18X10126 WB18X10126 THERMISTOR
WB21X10148 WB21X10148 THERMOSTAT
WB27X10864 WB27X10864 THERMOSTAT
WB27X11034 WB27X11034 THERMOSTAT(PLATE)
WB26X21108 WB26X21108 TRANSFORMER H.V.
WB49X10176 WB49X10176 TRAY,GLASS
49-40452 49-40452 USE & CARE
WB01X1522 WB01X1522 WASHER COMMON
WB1X1522 WB1X1522 WASHER SPLK
WB27X10863 WB27X10863 WINDOW DIGITRON
