Model Image
Manufacturer

GE

Model Number

JVM1850BH05

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB56X10681 WB56X10681 BASE BOTTOM SUB ASM
WB56X10680 WB56X10680 BASE BOTTOM SUB ASM
WB56X10191 WB56X10191 BASE PLATE ASSEMBLY
WB06X10446 WB06X10446 BKT DUCT UPPER ASSEMBLY
WB02X10955 WB02X10955 BKT-BARRIER
WB26X10090 WB26X10090 BLADE-FAN
WB02X11265 WB02X11265 BRACKET LAMP
WB06X10287 WB06X10287 BRACKET-HVC
WB06X10325 WB06X10325 BRACKET-MGT
WB06X10122 WB06X10122 BRACKET-POWER CORD
WB06X10165 WB06X10165 BRACKET-V/T MOTOR
WB25X10019 WB25X10019 BULB HALOGEN (120V 20W)
WB36X10213 WB36X10213 BULB HALOGEN (120V 20W)
WB06X10126 WB06X10126 BUTTON-LOCK
WB27X10011 WB27X10011 CAPACITOR 2100V/0.91 MICROF
WB27X10170 WB27X10170 CAPACITOR- MOTOR
WB56X10195 WB56X10195 CASE OUTER
WB56X10190 WB56X10190 CASE OUTER
WB56X10196 WB56X10196 CASE OUTER
WB02X10733 WB02X10733 CHARCOAL FILTER
WB55X10439 WB55X10439 CHOKE COVER
WB55X10445 WB55X10445 CHOKE COVER
WB55X10442 WB55X10442 CHOKE COVER
WB07X10785 WB07X10785 CONTROL PANEL ASM BLK

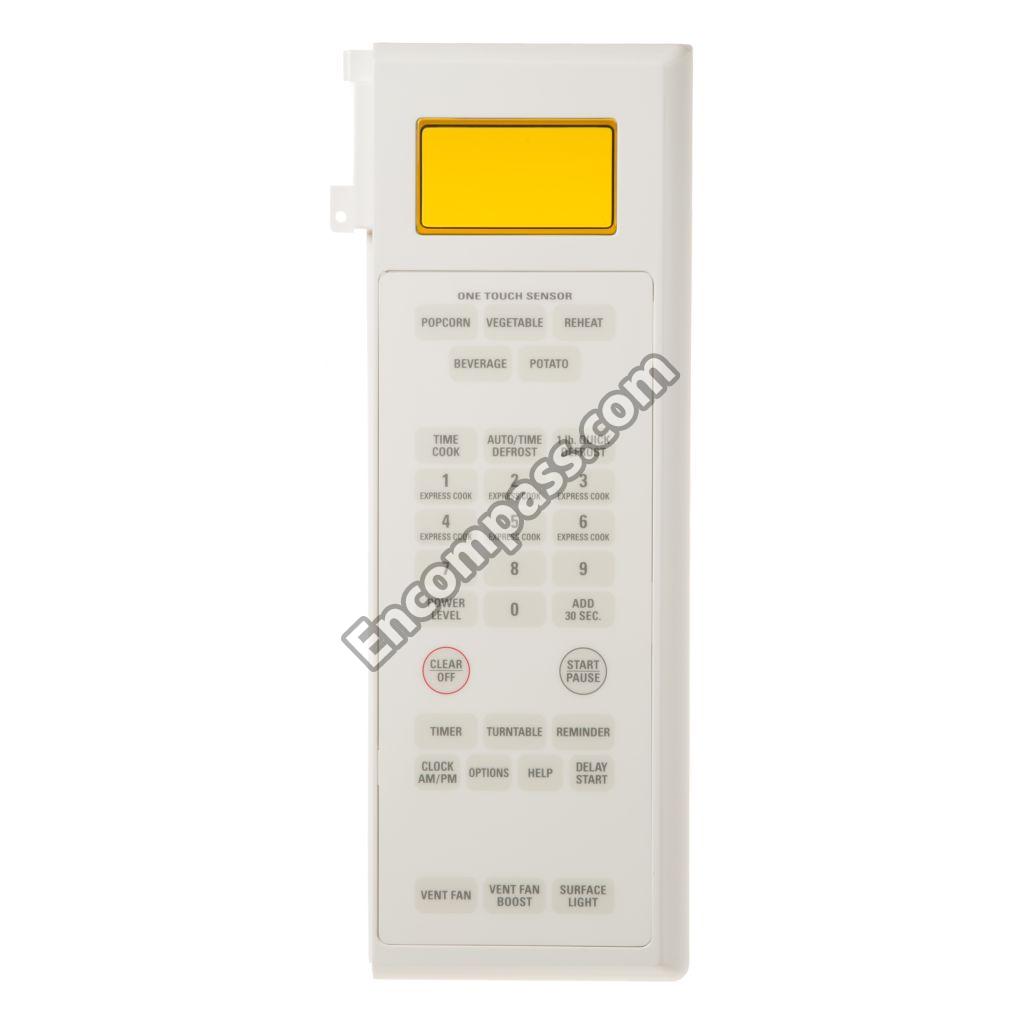

WB07X10786 WB07X10786 CONTROL PANEL ASM CC

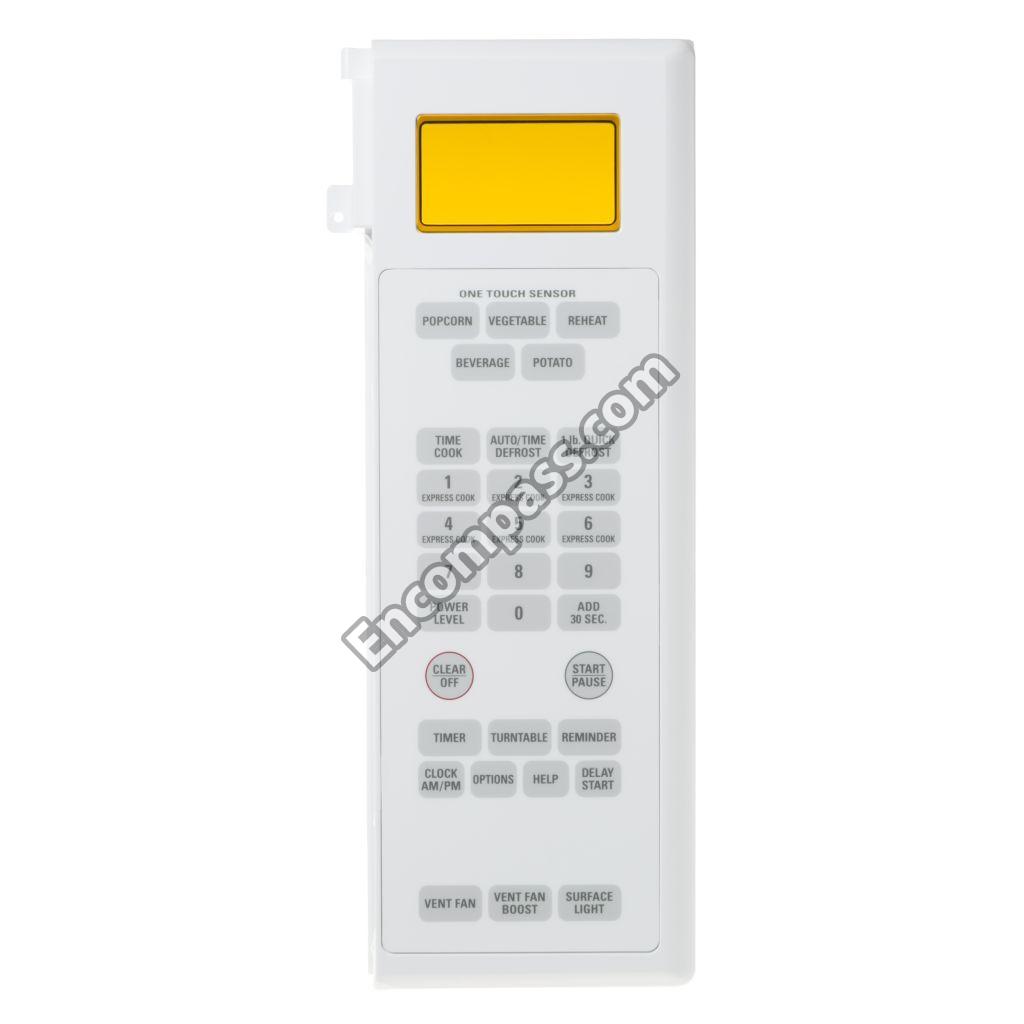

WB07X10787 WB07X10787 CONTROL PANEL ASM WHT
WB06X10144 WB06X10144 COUPLER-TT
WB06X10464 WB06X10464 COVER MOTOR ASSEMBLY
WB06X10290 WB06X10290 COVER-FRONT
WB36X10217 WB36X10217 COVER-GLASS
WB36X10216 WB36X10216 COVER-GLASS
WB06X10447 WB06X10447 COVER-HALOGEN LAMP
WB06X10130 WB06X10130 COVER-STIRRER
WB27X1160 WB27X1160 DIODE ASSEMBLY
WB55X10441 WB55X10441 DOOR - E ASSEMBLY
WB56X10501 WB56X10501 DOOR ASM BLK
WB56X10503 WB56X10503 DOOR MAIN ASSEMBLY
WB55X10444 WB55X10444 DOOR MAIN ASSEMBLY
WB55X10475 WB55X10475 DOOR OUTER FRAME
WB55X10474 WB55X10474 DOOR OUTER FRAME
WB55X10476 WB55X10476 DOOR OUTER FRAME
WB26X10092 WB26X10092 DUCT REAR ASSEMBLY
WB26X10091 WB26X10091 DUCT-UPPER
WB06X10332 WB06X10332 FILM-DOOR
WB06X10596 WB06X10596 FILTER-AIR
WB27X10388 WB27X10388 FUSE
WB27X10928 WB27X10928 FUSE
WB36X10071 WB36X10071 GLASS COOKTOP LAMP
WB07X10421 WB07X10421 GRILLE ASSEMBLY
WB07X10423 WB07X10423 GRILLE ASSEMBLY
WB07X10422 WB07X10422 GRILLE ASSEMBLY
WB06X10295 WB06X10295 GUIDE AIR ASSEMBLY
WB06X10001 WB06X10001 GUIDE ROLLER ASSEMBLY

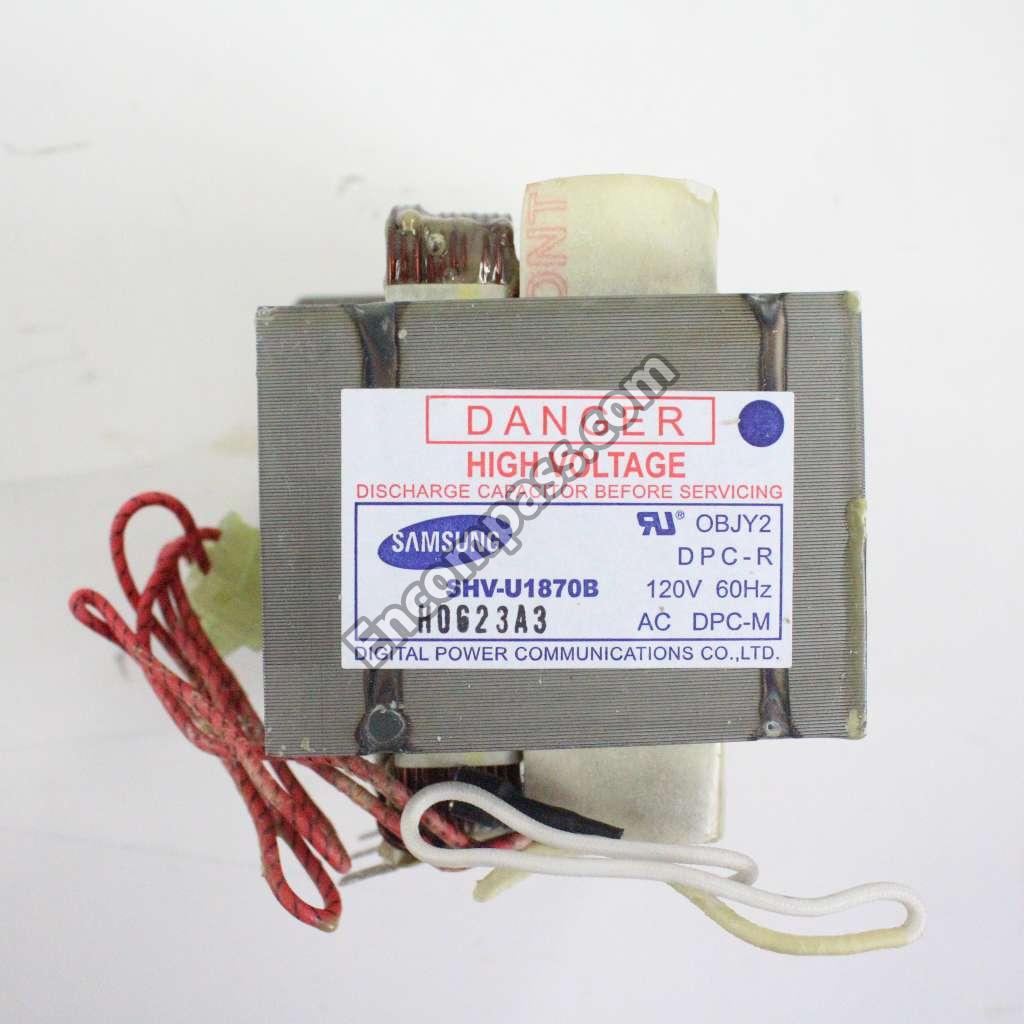

WB27X10867 WB27X10867 H.V. TRANSFORMER
WB15X10144 WB15X10144 HANDLE BLK
WB01X10183 WB01X10183 HARDWARE BAG
WB06X10521 WB06X10521 HOLDER-RACK
WB06X0549 WB06X0549 HOLDER-SENSOR
WB6X549 WB6X549 HOLDER-SENSR
WB06X10436 WB06X10436 HOOD DAMPER ASSEMBLY
49-40174-1 49-40174-1 LABEL-COOKING GUIDE
WB36X10003 WB36X10003 LAMP-INCANDESCENT
WB05X10007 WB05X10007 LATCH PAWL
WB05X10005 WB05X10005 LATCH PAWL
WB06X10289 WB06X10289 LATCH-BODY
WB06X10128 WB06X10128 LEVER-S/W
WB27X10017 WB27X10017 MICROWAVE MAGNETRON
31-40051 31-40051 MINI MANUAL
WB26X10224 WB26X10224 MOTOR VENTILATION
WB26X10037 WB26X10037 MOTOR-DRIVE
WB26X10089 WB26X10089 MOTOR-FAN
WB26X10038 WB26X10038 MOTOR-SYNCHRONOUS
WB01X10181 WB01X10181 MOUNTING HARDWARE ASM
WB56X10862 WB56X10862 MOUNTING PLATE W\MANUAL

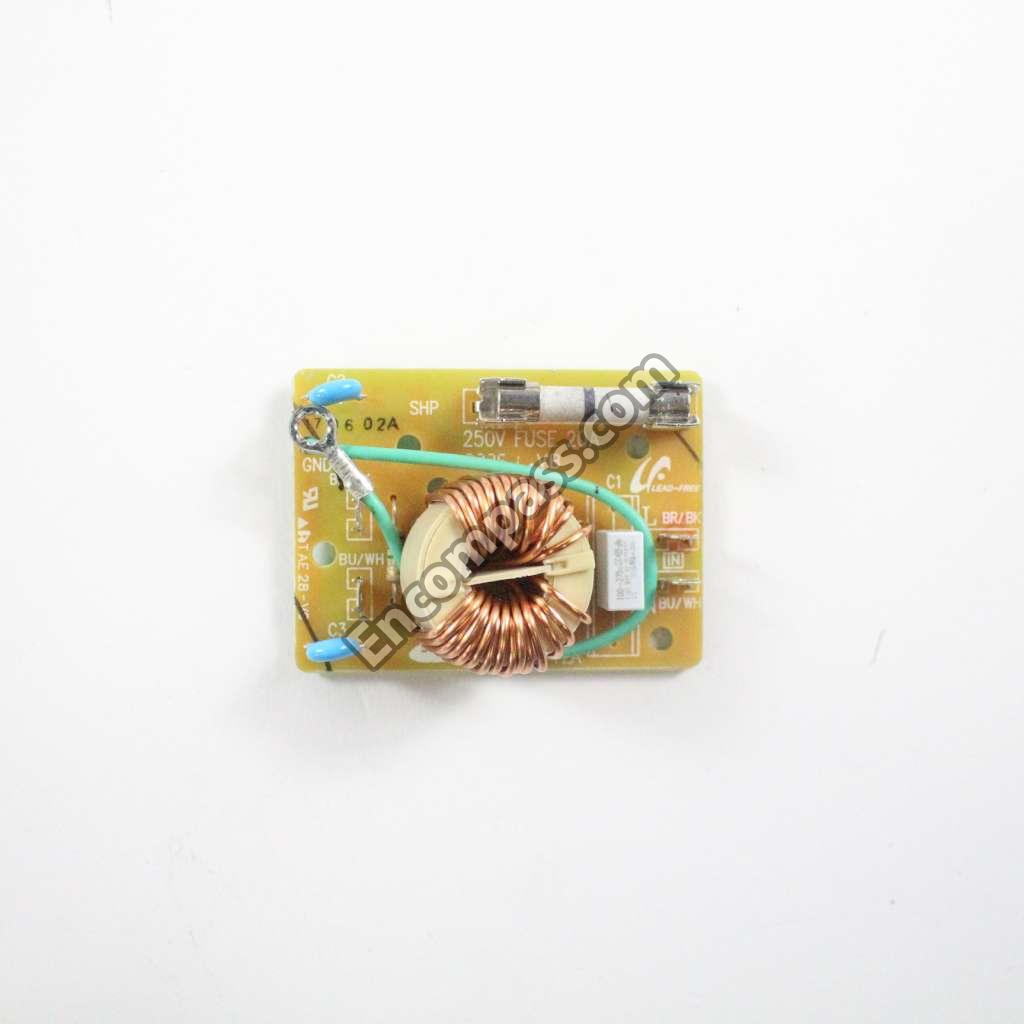

WB02X11244 WB02X11244 NOISE FILTER
WB01X10065 WB01X10065 NUT MAGNETRON
WB01X10071 WB01X10071 NUT TOP MOUNTING
WB06X10060 WB06X10060 PIN-HINGE
WB18X10200 WB18X10200 POWER CORD ASSEMBLY
WB36X10279 WB36X10279 SCREEN-DOOR(B)
WB36X10280 WB36X10280 SCREEN-DOOR(B)
WB36X10281 WB36X10281 SCREEN-DOOR(B)
WB27X1170 WB27X1170 SENSOR HUMIDITY
WB27X10874 WB27X10874 SMART BOARD

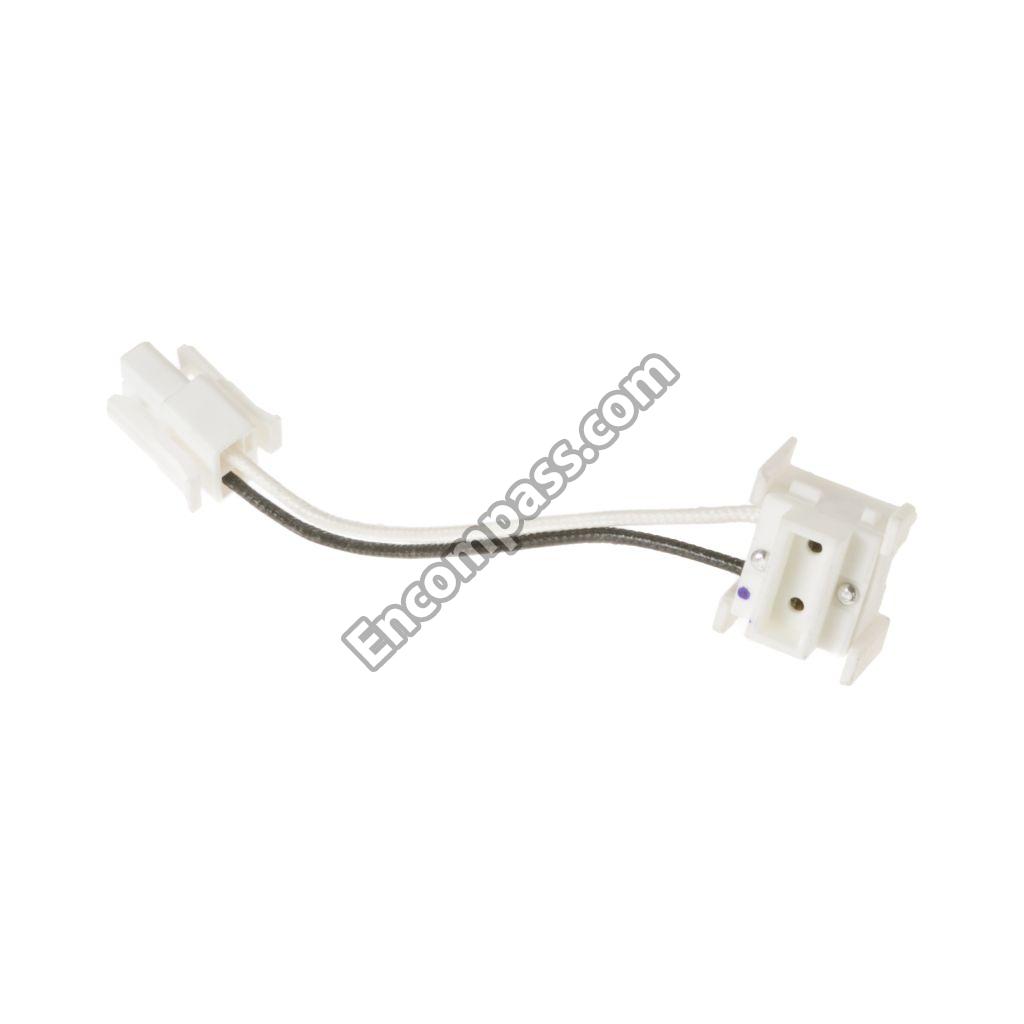

WB08X10027 WB08X10027 SOCKET HAL/LAMP ASSEMBLY
WB08X10016 WB08X10016 SOCKET LAMP
WB05X10006 WB05X10006 SPRING-KEY
WB06X10331 WB06X10331 STIRRER ASSEMBLY
WB06X10284 WB06X10284 SUPPORTER-CAVITY
WB24X830 WB24X830 SW-MONITOR
WB24X829 WB24X829 SW-SECONDARY
WB21X0535 WB21X0535 TCO -BOTTOM
WB27X10194 WB27X10194 TCO HOOD
WB27X1127 WB27X1127 THERMO SW-TCO SENSE TEMP
WB27X10810 WB27X10810 THERMOSTAT
WB27X10166 WB27X10166 THERMOSTAT
WB49X10063 WB49X10063 TRAY-COOKING
49-40395-1 49-40395-1 USE & CARE
WB18X10139 WB18X10139 WIRE GND PCB
WB18X10348 WB18X10348 WIRE HARNESS - A
WB18X10057 WB18X10057 WIRE HARNESS S

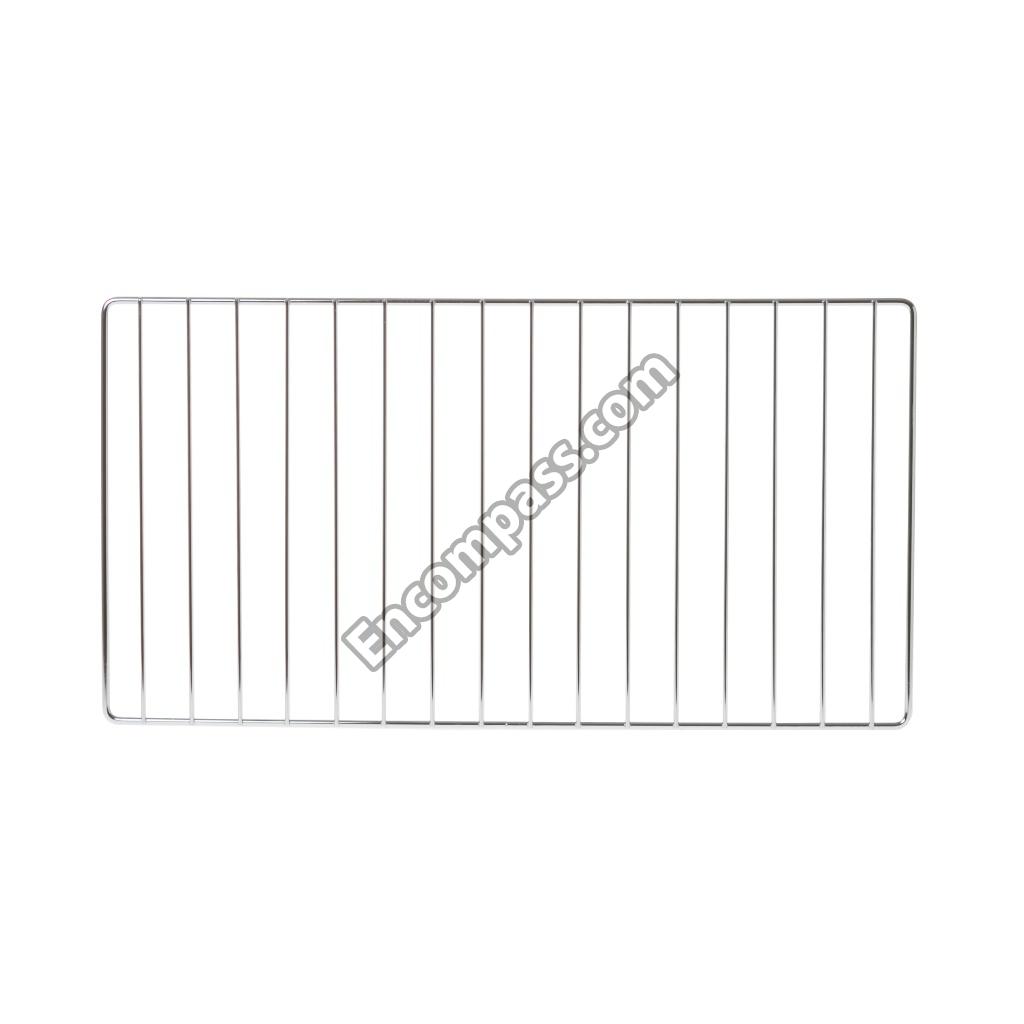

WB48X10052 WB48X10052 WIRE RACK ASM
