Model Image
Manufacturer

GE

Model Number

JVM1850SM3SS

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB55X10830 WB55X10830 GE ASM DOOR E
WB06X10826 WB06X10826 GE ASM HOOD DAMPER
WB27X10880 WB27X10880 GE ASM-MAGNETRON
WB56X10708 WB56X10708 GE BASE BOTTOM
WB25X10022 WB25X10022 GE BASE PLATE ASM
WB07X11378 WB07X11378 GE BB GRILLE
WB06X10446 WB06X10446 GE BKT DUCT UPPER ASSEMBLY
WB26X10090 WB26X10090 GE BLADE-FAN
WB01X10180 WB01X10180 GE BOLT-FLAT CAB MOUNTING
WB02X11297 WB02X11297 GE BRACKET BARRIER
WB02X11265 WB02X11265 GE BRACKET LAMP
WB06X10287 WB06X10287 GE BRACKET-HVC
WB06X10759 WB06X10759 GE BRACKET-MGT
WB06X10122 WB06X10122 GE BRACKET-POWER CORD
WB06X10714 WB06X10714 GE BRACKET-V/T MOTOR
WB25X10019 WB25X10019 GE BULB HALOGEN (120V 20W)
WB36X10213 WB36X10213 GE BULB HALOGEN (120V 20W)
WB06X10126 WB06X10126 GE BUTTON-LOCK
WB27X10011 WB27X10011 GE CAPACITOR 2100V/0.91 MICROF
WB27X10170 WB27X10170 GE CAPACITOR- MOTOR
WB56X10709 WB56X10709 GE CASE OUTER
WB02X10733 WB02X10733 GE CHARCOAL FILTER

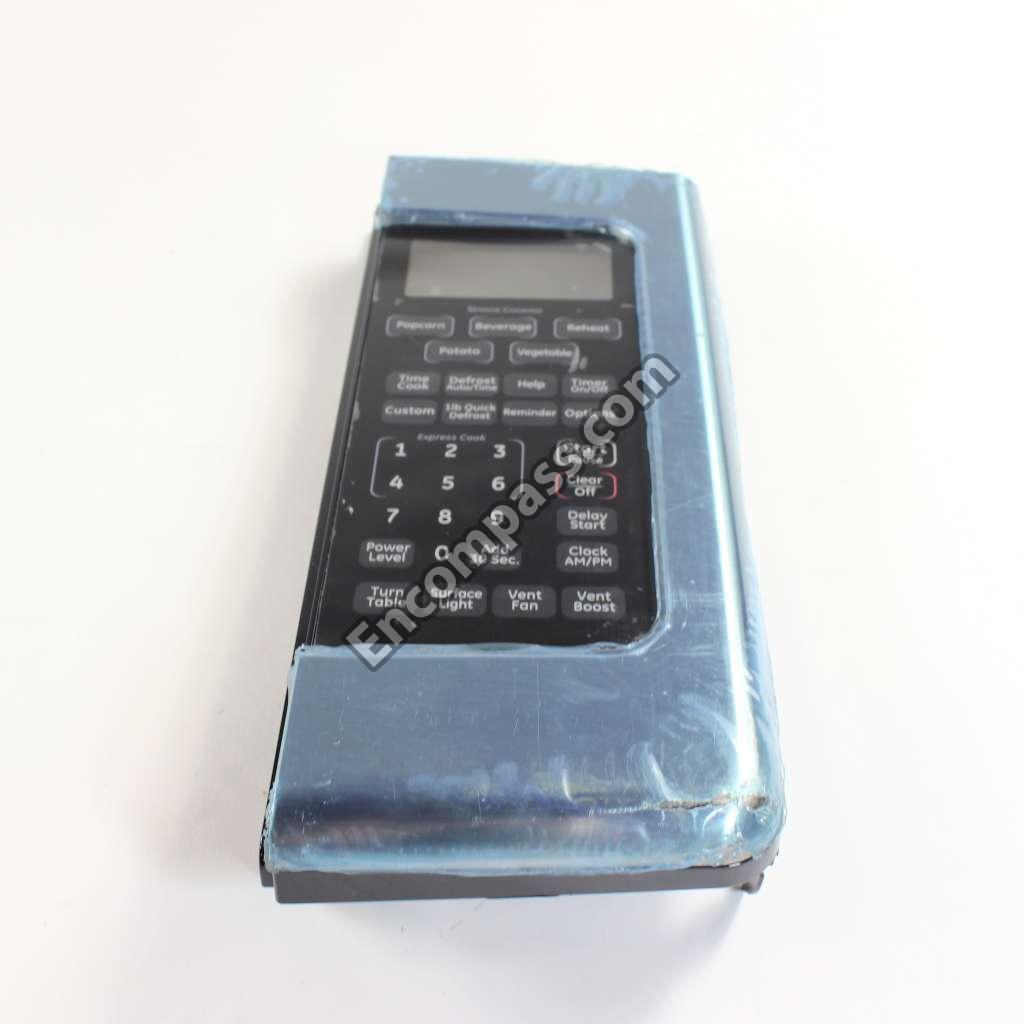

WB07X11032 WB07X11032 GE CONTOL PANEL ASM SS
WB07X11029 WB07X11029 GE CONTOL PANEL SS
WB06X10144 WB06X10144 GE COUPLER-TT
WB06X10464 WB06X10464 GE COVER MOTOR ASSEMBLY
WB06X10715 WB06X10715 GE COVER-DAMPER
WB06X10760 WB06X10760 GE COVER-FRONT
WB36X10216 WB36X10216 GE COVER-GLASS
WB06X10447 WB06X10447 GE COVER-HALOGEN LAMP
WB06X10130 WB06X10130 GE COVER-STIRRER
WB55X10850 WB55X10850 GE DOOR A
WB56X10717 WB56X10717 GE DOOR ASM SS
WB55X10851 WB55X10851 GE DOOR C
WB26X10092 WB26X10092 GE DUCT REAR ASSEMBLY
WB26X10091 WB26X10091 GE DUCT-UPPER
WB01X10374 WB01X10374 GE EARTH SPRING
WB24X799 WB24X799 GE EXPANDED PART
WB06X10332 WB06X10332 GE FILM-DOOR
WB06X10596 WB06X10596 GE FILTER-AIR
WB36X10071 WB36X10071 GE GLASS COOKTOP LAMP
WB06X10295 WB06X10295 GE GUIDE AIR ASSEMBLY
WB06X10001 WB06X10001 GE GUIDE ROLLER ASSEMBLY

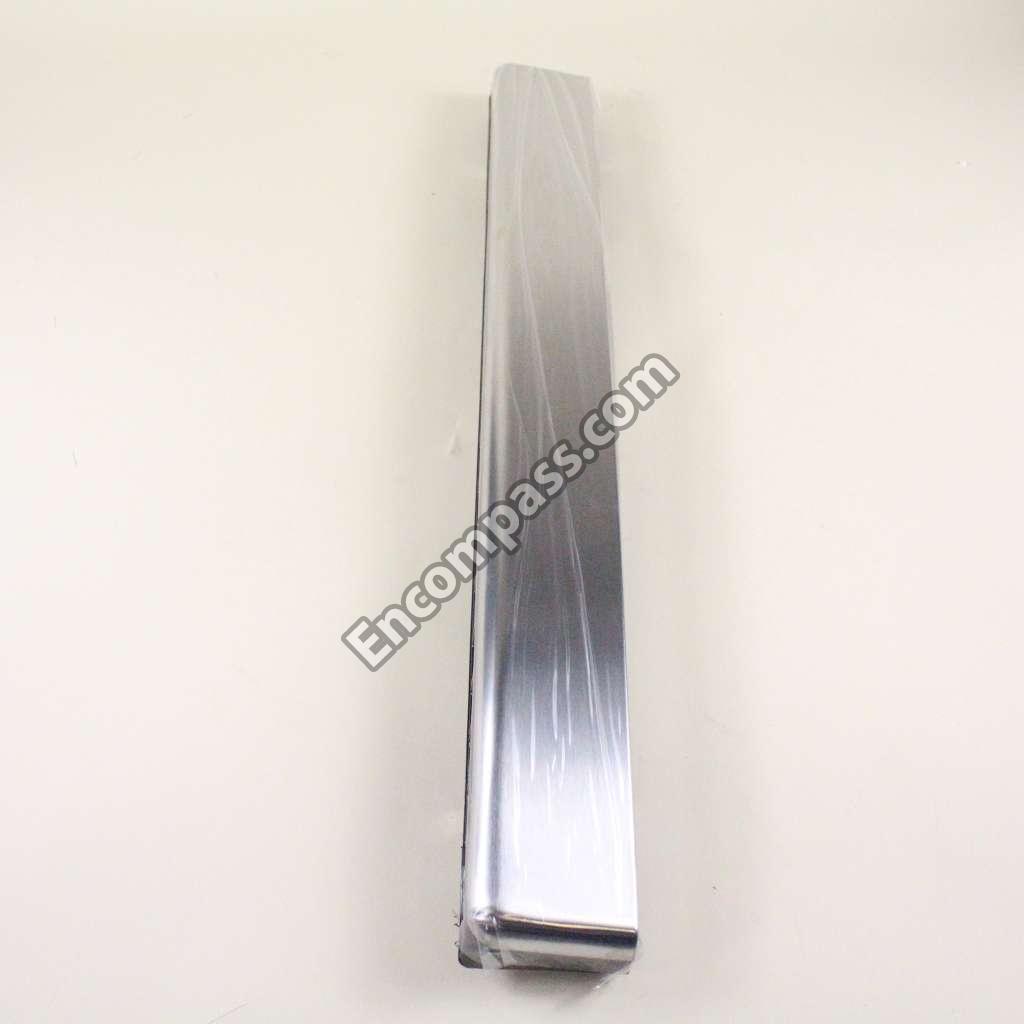

WB15X10222 WB15X10222 GE HANDLE ASM SS
WB06X10521 WB06X10521 GE HOLDER-RACK
WB06X0549 WB06X0549 GE HOLDER-SENSOR
WB6X549 WB6X549 GE HOLDER-SENSR
WB06X10286 WB06X10286 GE HOLDER-STIRRER
WB07X11392 WB07X11392 GE INLAY GRILLE
49-40538 49-40538 GE INSTRUCTIONS INSTALL
49-40174-1 49-40174-1 GE LABEL-COOKING GUIDE
WB36X10003 WB36X10003 GE LAMP-INCANDESCENT
WB05X10007 WB05X10007 GE LATCH PAWL
WB06X10676 WB06X10676 GE LATCH-BODY
WB06X10128 WB06X10128 GE LEVER-S/W
WB27X10597 WB27X10597 GE MICROWAVE DIODE
WB01X10344 WB01X10344 GE MICROWAVE DOOR
WB06X10436 WB06X10436 GE MICROWAVE HOOD DAMPER ASSEMBLY
WB06X10124 WB06X10124 GE MICROWAVE TIP HOLDER
31-41022 31-41022 GE MINI MANUAL
WB26X10210 WB26X10210 GE MOTOR VENTILATION
WB26X10037 WB26X10037 GE MOTOR-DRIVE
WB26X10089 WB26X10089 GE MOTOR-FAN
WB01X10181 WB01X10181 GE MOUNTING HARDWARE ASM
WB56X10862 WB56X10862 GE MOUNTING PLATE W\MANUAL
WB02X11244 WB02X11244 GE NOISE FILTER
WB01X10065 WB01X10065 GE NUT MAGNETRON
WB01X10071 WB01X10071 GE NUT TOP MOUNTING
WB4X175 WB4X175 GE PCB SUPPORT
WB04X0175 WB04X0175 GE PCB SUPPORT.
WB06X10060 WB06X10060 GE PIN-HINGE
WB18X10200 WB18X10200 GE POWER CORD ASSEMBLY
49-40336 49-40336 GE REAR WALL TEMPLATE
WB36X10331 WB36X10331 GE SCREEN DOOR(B)
WB01X10406 WB01X10406 GE SCREW GRILLE MOUNT
WB01X10084 WB01X10084 GE SCREW WASHER
WB27X11070 WB27X11070 GE SMART BOARD
WB08X10027 WB08X10027 GE SOCKET HAL/LAMP ASSEMBLY
WB08X10016 WB08X10016 GE SOCKET LAMP
WB05X10006 WB05X10006 GE SPRING-KEY
WB06X10331 WB06X10331 GE STIRRER ASSEMBLY
WB06X10284 WB06X10284 GE SUPPORTER-CAVITY
WB24X830 WB24X830 GE SW-MONITOR
WB24X829 WB24X829 GE SW-SECONDARY
WB21X0535 WB21X0535 GE TCO -BOTTOM
WB27X10194 WB27X10194 GE TCO HOOD
49-40137-1 49-40137-1 GE TEMPLATE TOP
WB27X1127 WB27X1127 GE THERMO SW-TCO SENSE TEMP
WB27X10810 WB27X10810 GE THERMOSTAT
WB27X10166 WB27X10166 GE THERMOSTAT
WB27X10910 WB27X10910 GE TRANS H.V
WB49X10063 WB49X10063 GE TRAY-COOKING
WB26X10233 WB26X10233 GE TURNTABLE MOTOR
49-40537 49-40537 GE USE & CARE
WB18X10340 WB18X10340 GE WIRE HARNESS - A
WB18X10057 WB18X10057 GE WIRE HARNESS S
WB48X10052 WB48X10052 GE WIRE RACK ASM
