Model Image
Manufacturer

GE

Model Number

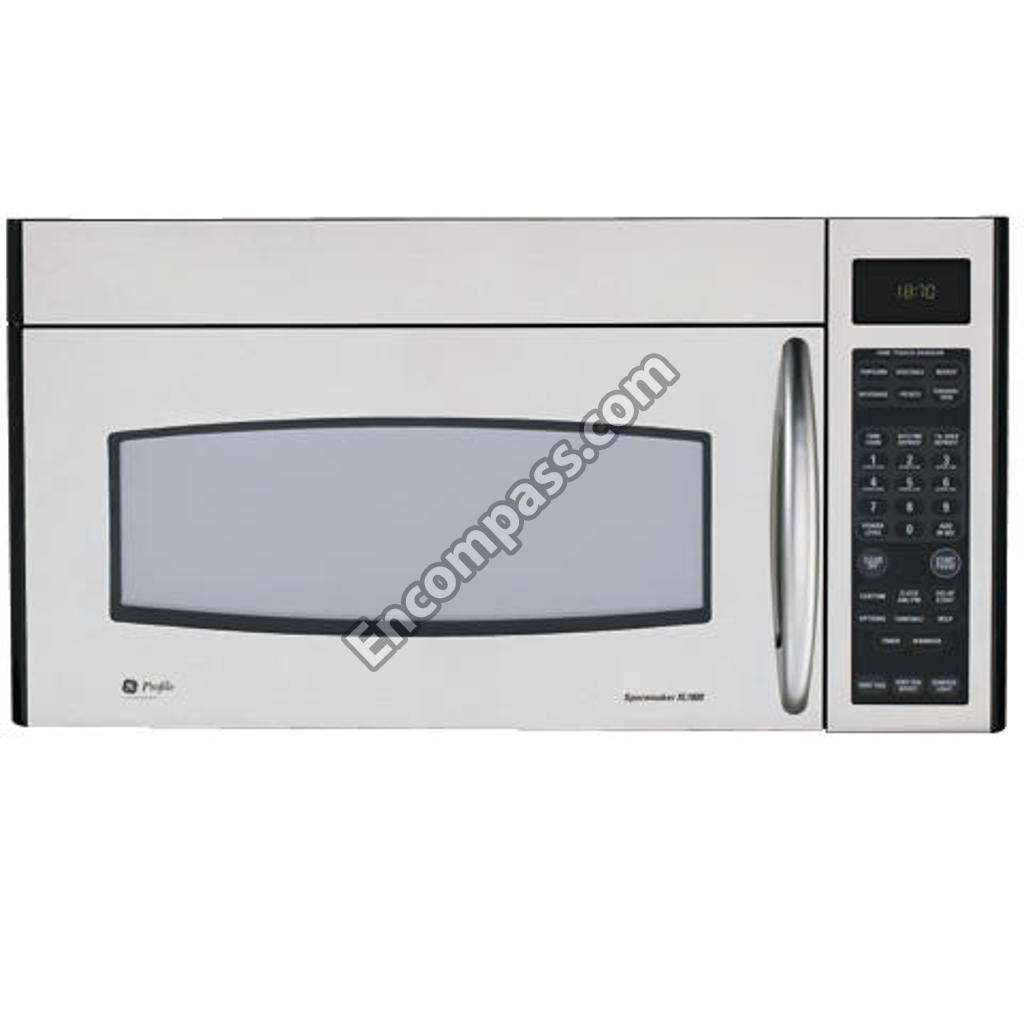

JVM1871SK01

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB07X10416 WB07X10416 ASSEMBLY-CAM LOUVER
WB56X10286 WB56X10286 BASE BOTTOM SUB ASSEMBLY
WB56X10191 WB56X10191 BASE PLATE ASSEMBLY
WB06X10446 WB06X10446 BKT DUCT UPPER ASSEMBLY
WB02X10955 WB02X10955 BKT-BARRIER
WB26X10090 WB26X10090 BLADE-FAN
WB06X10449 WB06X10449 BRACKET-BARRIER GRILLE
WB06X10450 WB06X10450 BRACKET-BOTTOM LAMP
WB06X10283 WB06X10283 BRACKET-CAM PLATE
WB06X10444 WB06X10444 BRACKET-ENCLOSURE
WB06X10287 WB06X10287 BRACKET-HVC
WB06X10280 WB06X10280 BRACKET-MGT
WB06X10122 WB06X10122 BRACKET-POWER CORD
WB06X10165 WB06X10165 BRACKET-V/T MOTOR
WB25X10019 WB25X10019 BULB HALOGEN (120V 20W)
WB36X10213 WB36X10213 BULB HALOGEN (120V 20W)
WB06X10126 WB06X10126 BUTTON-LOCK
WB38X10057 WB38X10057 CAM-LOUVER
WB27X10011 WB27X10011 CAPACITOR 2100V/0.91 MICROF
WB27X10170 WB27X10170 CAPACITOR- MOTOR
WB56X10195 WB56X10195 CASE OUTER
WB02X10733 WB02X10733 CHARCOAL FILTER
WB55X10442 WB55X10442 CHOKE COVER
WB07X10629 WB07X10629 CONTROL PANEL ASM
WB06X10144 WB06X10144 COUPLER-TT
WB36X10200 WB36X10200 COVER GRILLE ASSEMBLY
WB06X10464 WB06X10464 COVER MOTOR ASSEMBLY
WB06X10281 WB06X10281 COVER TCO-BOTTOM
WB06X10290 WB06X10290 COVER-FRONT
WB36X10216 WB36X10216 COVER-GLASS
WB06X10447 WB06X10447 COVER-HALOGEN LAMP
WB06X10130 WB06X10130 COVER-STIRRER
WB27X1160 WB27X1160 DIODE ASSEMBLY
WB55X10441 WB55X10441 DOOR - E ASSEMBLY
WB56X10661 WB56X10661 DOOR ASM SS
WB55X10600 WB55X10600 DOOR OUTER FRAME
WB26X10092 WB26X10092 DUCT REAR ASSEMBLY
WB26X10091 WB26X10091 DUCT-UPPER
WB06X10332 WB06X10332 FILM-DOOR
WB06X10288 WB06X10288 FILTER GREASE
WB27X10388 WB27X10388 FUSE
WB27X10928 WB27X10928 FUSE
WB06X10034 WB06X10034 FUSE-HOLDER
WB36X10071 WB36X10071 GLASS COOKTOP LAMP
WB07X10475 WB07X10475 GRILLE SUB ASSEMBLY
WB06X10295 WB06X10295 GUIDE AIR ASSEMBLY
WB06X10001 WB06X10001 GUIDE ROLLER ASSEMBLY
WB27X10867 WB27X10867 H.V. TRANSFORMER
WB15X10203 WB15X10203 HANDLE SS
WB01X10183 WB01X10183 HARDWARE BAG
WB02X10753 WB02X10753 HINGE-GRILLE (R)
WB02X10755 WB02X10755 HINGE-GRILLE L
WB06X10521 WB06X10521 HOLDER-RACK
WB06X0549 WB06X0549 HOLDER-SENSOR
WB6X549 WB6X549 HOLDER-SENSR
WB06X10436 WB06X10436 HOOD DAMPER ASSEMBLY
40-40175-1 40-40175-1 LABEL-COOKING GUIDE
WB05X10007 WB05X10007 LATCH PAWL
WB06X10289 WB06X10289 LATCH-BODY
WB06X10128 WB06X10128 LEVER-S/W
WB27X10017 WB27X10017 MICROWAVE MAGNETRON
31-40035 31-40035 MINI MANUAL

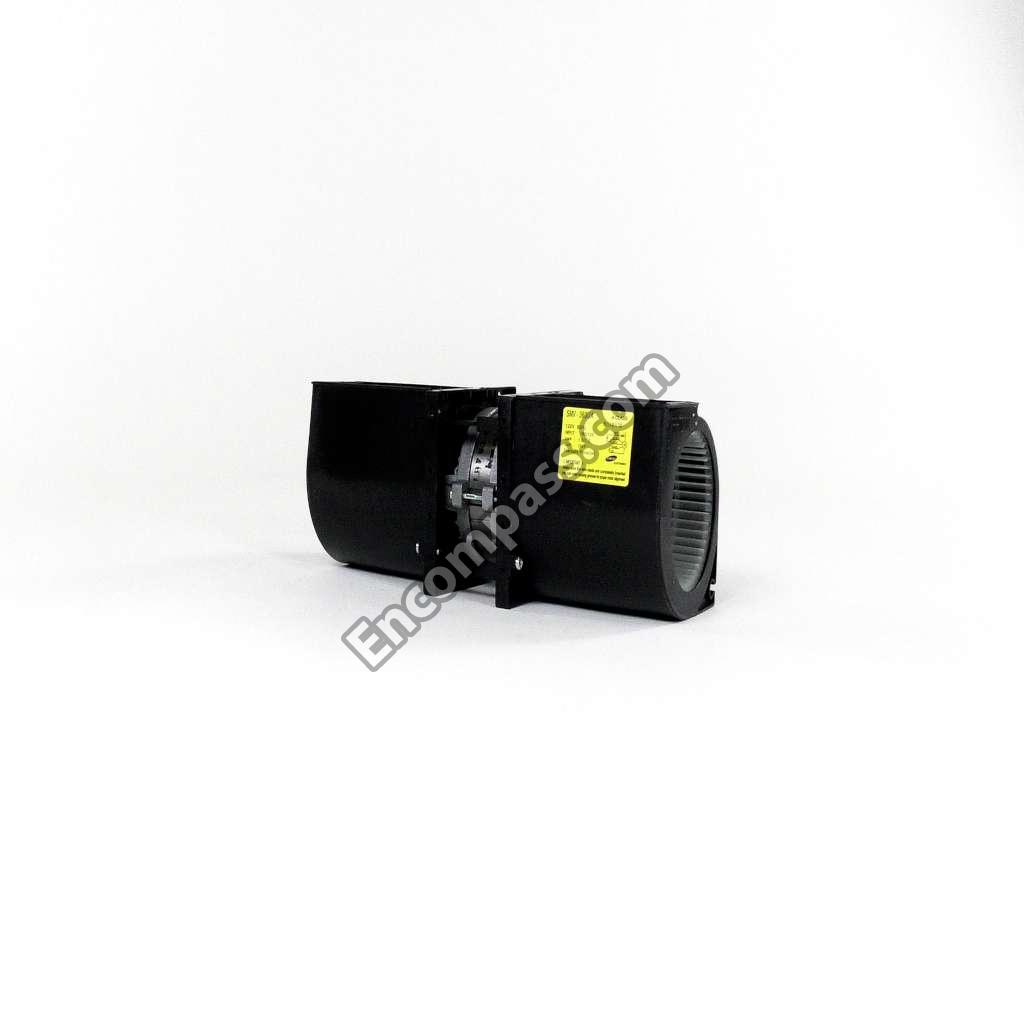

WB26X10191 WB26X10191 MOTOR VENTILATION
WB26X10112 WB26X10112 MOTOR-DRIVE
WB26X10037 WB26X10037 MOTOR-DRIVE
WB26X10089 WB26X10089 MOTOR-FAN
WB26X10038 WB26X10038 MOTOR-SYNCHRONOUS
WB01X10181 WB01X10181 MOUNTING HARDWARE ASM
WB01X10071 WB01X10071 NUT TOP MOUNTING
WB06X10060 WB06X10060 PIN-HINGE
WB56X10192 WB56X10192 PLATE MOUNTING ASSEMBLY
WB18X10200 WB18X10200 POWER CORD ASSEMBLY
WB49X10098 WB49X10098 RACK-DEFROST
WB01X10119 WB01X10119 SCREW-TAPPING
WB27X1170 WB27X1170 SENSOR HUMIDITY

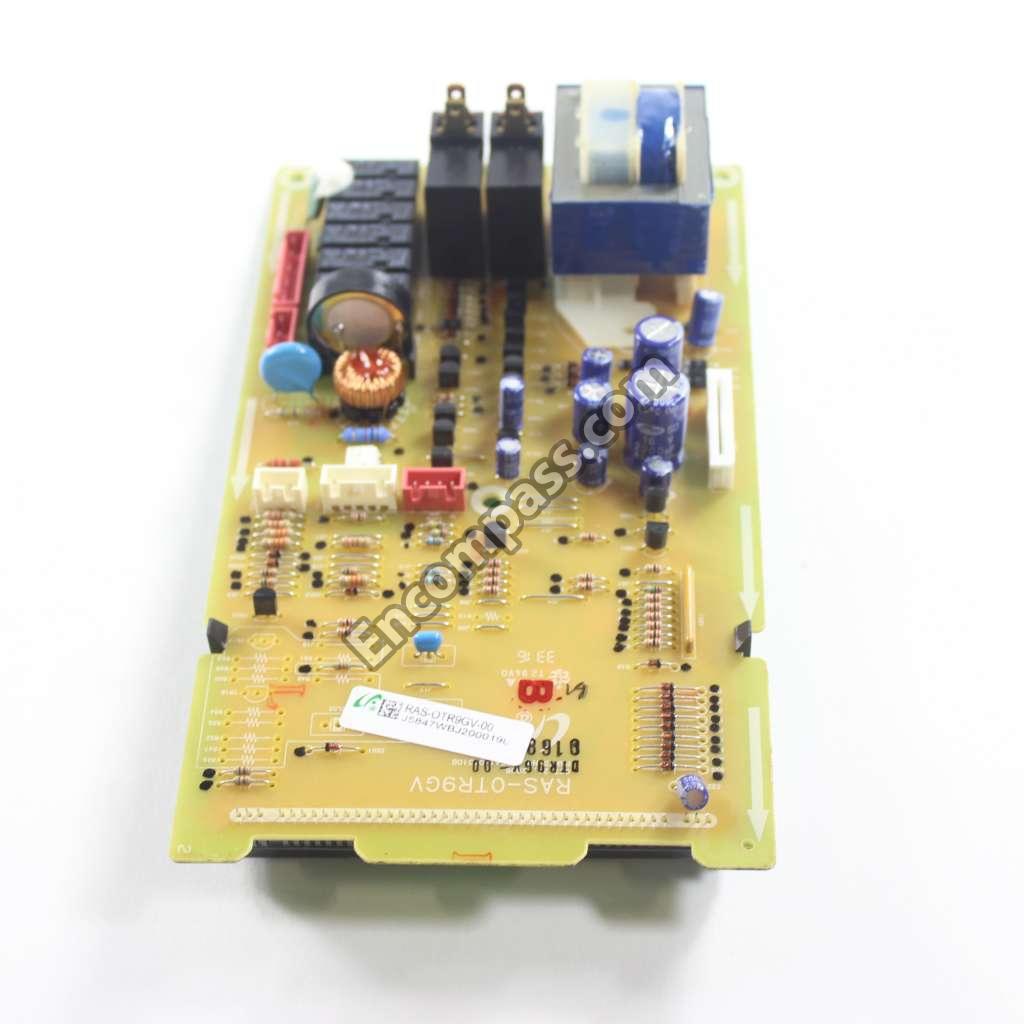

WB27X10873 WB27X10873 SMART BOARD
WB08X10027 WB08X10027 SOCKET HAL/LAMP ASSEMBLY
WB08X10026 WB08X10026 SOCKET LAMP
WB05X10006 WB05X10006 SPRING-KEY
WB01X10246 WB01X10246 SPRING-LOUVER
WB06X10331 WB06X10331 STIRRER ASSEMBLY
WB06X10284 WB06X10284 SUPPORTER-CAVITY
WB24X830 WB24X830 SW-MONITOR
WB24X829 WB24X829 SW-SECONDARY
WB24X10069 WB24X10069 SWITCH-MICRO
WB24X10070 WB24X10070 SWITCH-MICRO
WB21X0535 WB21X0535 TCO -BOTTOM
WB27X10194 WB27X10194 TCO HOOD
WB27X1127 WB27X1127 THERMO SW-TCO SENSE TEMP
WB27X10166 WB27X10166 THERMOSTAT
WB27X10810 WB27X10810 THERMOSTAT
WB49X10063 WB49X10063 TRAY-COOKING
49-40395-1 49-40395-1 USE & CARE
WB18X10139 WB18X10139 WIRE GND PCB
WB18X10336 WB18X10336 WIRE HARNESS - A
WB18X10057 WB18X10057 WIRE HARNESS S
WB18X10203 WB18X10203 WIRE HARNESS-CAM
WB18X10140 WB18X10140 WIRE HARNESS-H
WB48X10052 WB48X10052 WIRE RACK ASM
WB01X10135 WB01X10135 WIRE SADDLE
