Model Image
Manufacturer

GE

Model Number

JVM2052DN1WW

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB06X10800 WB06X10800 GE BAFFLE
WB06X10710 WB06X10710 GE BRACKET ASSEMBLY
WB06X10806 WB06X10806 GE BRACKET CONTROL PANEL
WB06X10808 WB06X10808 GE BRACKET LAMP
WB02X32715 WB02X32715 GE BRACKET MISC
WB27X10808 WB27X10808 GE CAPACITOR
WB06X10804 WB06X10804 GE CAPACITOR BRACKET
WB27X11011 WB27X11011 GE CAPACITOR HIGH VOLTAGE
WB56X10863 WB56X10863 GE CASE U BENDING
WB56X10867 WB56X10867 GE CASE U BENDING
WB02X35607 WB02X35607 GE CHARCOAL FILTER(OPTION)
WB27X11047 WB27X11047 GE CONTROL DOOR
WB06X10803 WB06X10803 GE COVER ASM STIRRER
WB55X10943 WB55X10943 GE COVER CHOKE
WB06X10556 WB06X10556 GE COVER LAMP
WB06X10680 WB06X10680 GE COVER POWER CORD

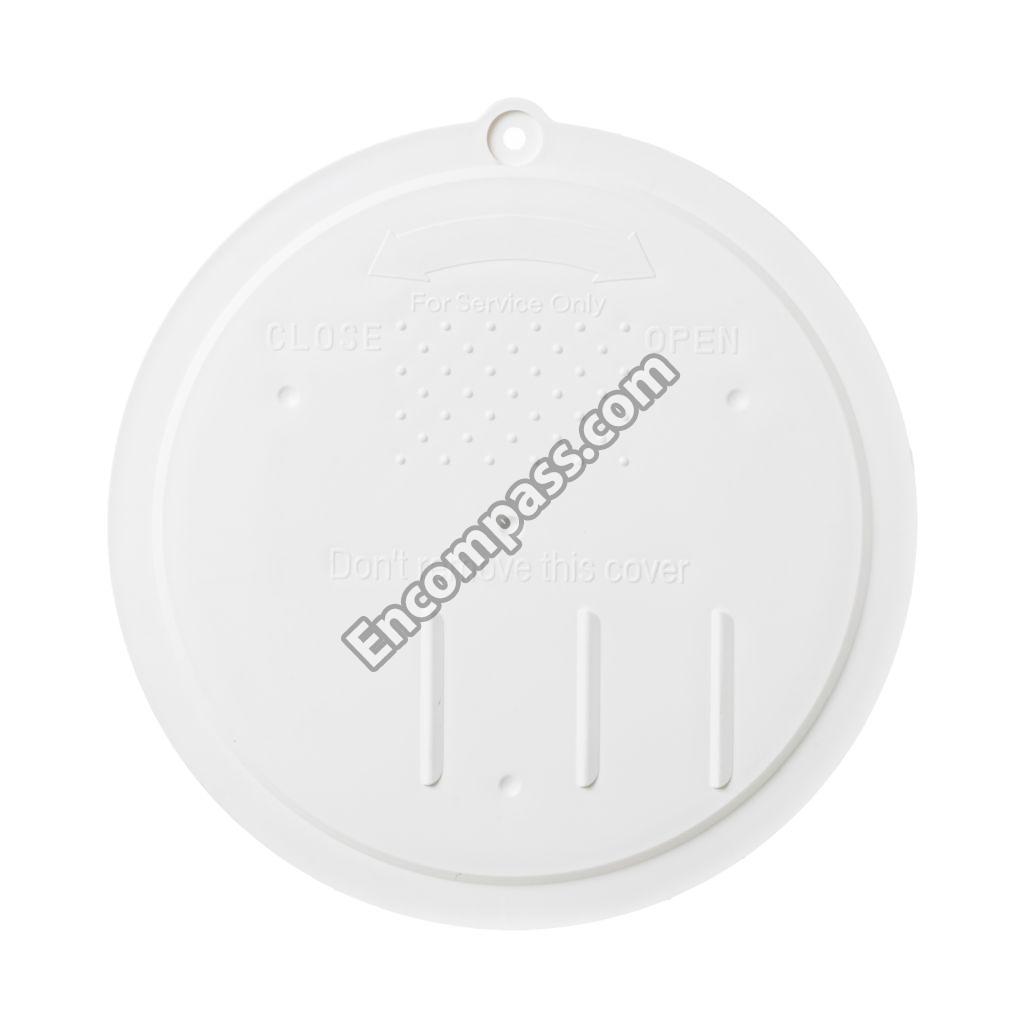

WB06X10682 WB06X10682 GE COVER STIRRER FAN
WB01X10375 WB01X10375 GE CUSTOMIZED NUT
WB06X10686 WB06X10686 GE DAMPER
WB27X10930 WB27X10930 GE DIODE
WB27X35382 WB27X35382 GE DIODE
WB56X10865 WB56X10865 GE DOOR ASM BB
WB56X27609 WB56X27609 GE DOOR ASM SS
WB56X10866 WB56X10866 GE DOOR ASM WW
WB55X10944 WB55X10944 GE DOOR PANEL ASM
WB55X10946 WB55X10946 GE DOOR SUB ASM
WB38X37514 WB38X37514 GE FAN
WB27X10519 WB27X10519 GE FILTER ASSEMBLY NOISE
WB06X10802 WB06X10802 GE FILTER GREASE
WB55X10941 WB55X10941 GE FRAME ASM DOOR
WB55X10945 WB55X10945 GE FRAME ASM DOOR
WB27X10928 WB27X10928 GE FUSE
WB07X11214 WB07X11214 GE GRILLE ASSEMBLY
WB07X11219 WB07X11219 GE GRILLE VENT
WB07X11217 WB07X11217 GE GRILLE VENT
WB39X10023 WB39X10023 GE GUIDE AIR
WB39X10024 WB39X10024 GE GUIDE AIR
WB02X35488 WB02X35488 GE HALOGEN LAMP
WB15X10240 WB15X10240 GE HANDLE

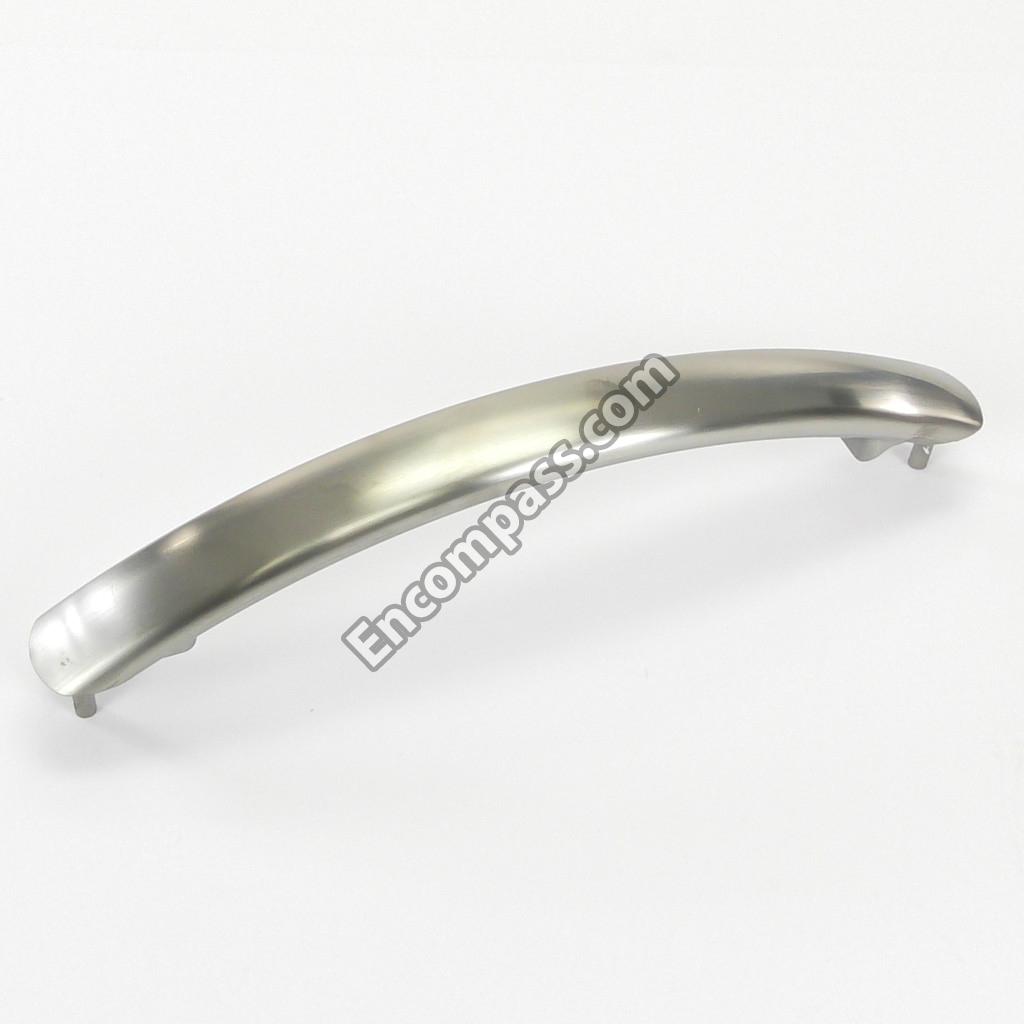

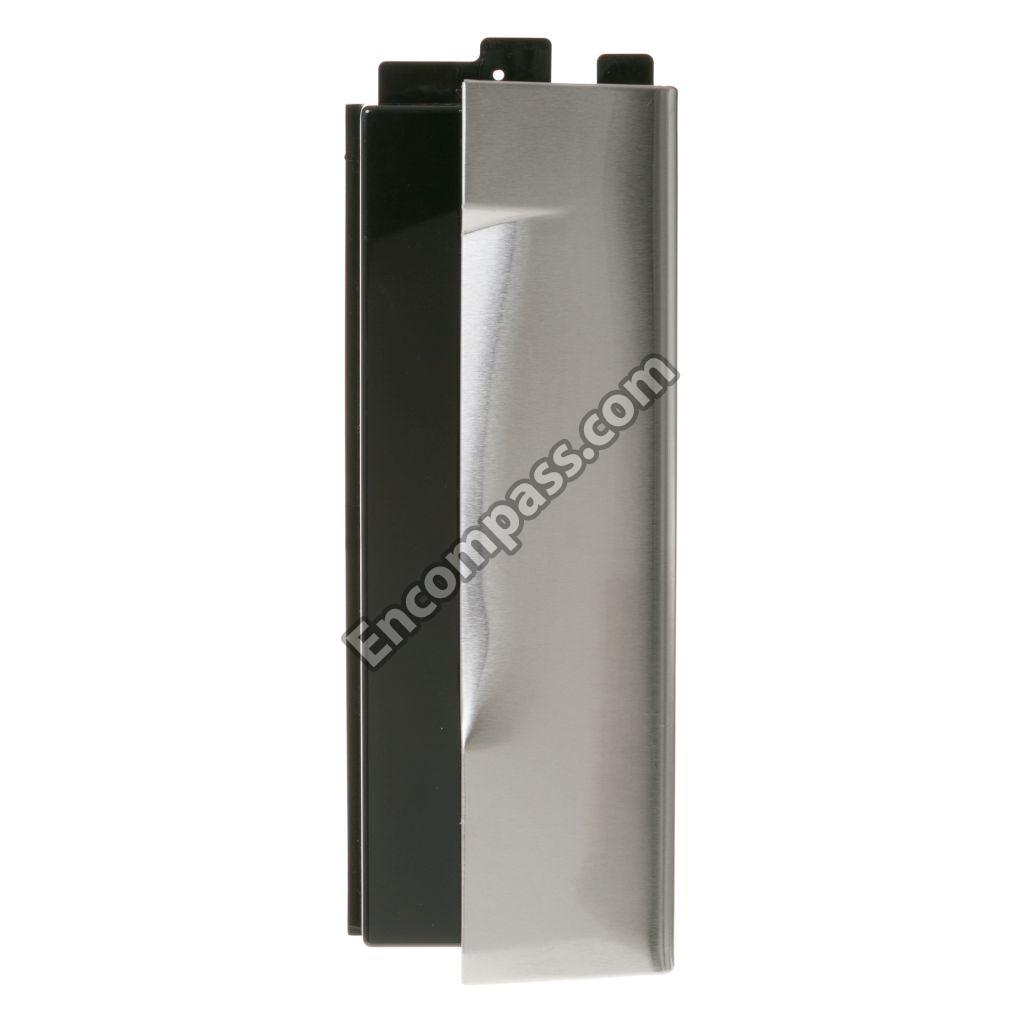

WB15X27608 WB15X27608 GE HANDLE DOOR
WB15X10239 WB15X10239 GE HANDLE WW
WB01X10380 WB01X10380 GE HARDWARE ASM KIT
WB02X29926 WB02X29926 GE HOLDER COOK AUXILIARY
49-40587 49-40587 GE INSTALLATION INSTRUCTION
WB36X10328 WB36X10328 GE LAMP DRAWING
WB08X10059 WB08X10059 GE LAMP HOLDER
WB02X11096 WB02X11096 GE LATCH
WB06X10684 WB06X10684 GE LEVER
WB27X10611 WB27X10611 GE MAGNETRON
WB18X10429 WB18X10429 GE MAIN HARNESS
WB07X11221 WB07X11221 GE MICROWAVE DOOR PIECE - WHITE
WB02X21661 WB02X21661 GE MICROWAVE LATCH BOARD
31-41051 31-41051 GE MINI MANUAL
WB26X10226 WB26X10226 GE MOTOR AC SYNCHRONOUS
WB26X10227 WB26X10227 GE MOTOR AC VENTILATION
WB26X10194 WB26X10194 GE MOTOR(CIRC) FAN
WB06X10687 WB06X10687 GE MOUNT

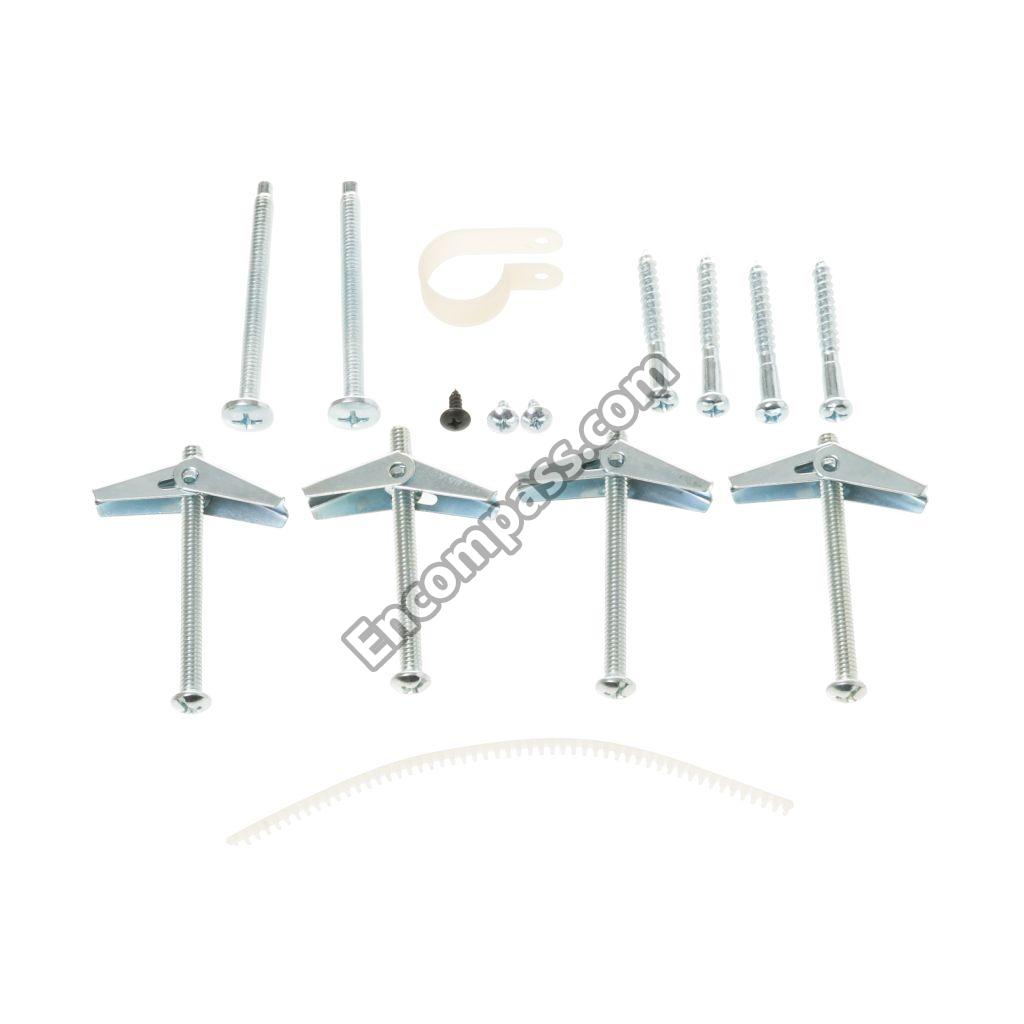

WB02X32722 WB02X32722 GE OTR HARDWARE ASM BAG
WB07X11216 WB07X11216 GE PANEL ASM CONTROL
WB55X10942 WB55X10942 GE PANEL ASM DOOR
WB07X11218 WB07X11218 GE PANEL CONTROL BB
WB07X11220 WB07X11220 GE PANEL CONTROL WW

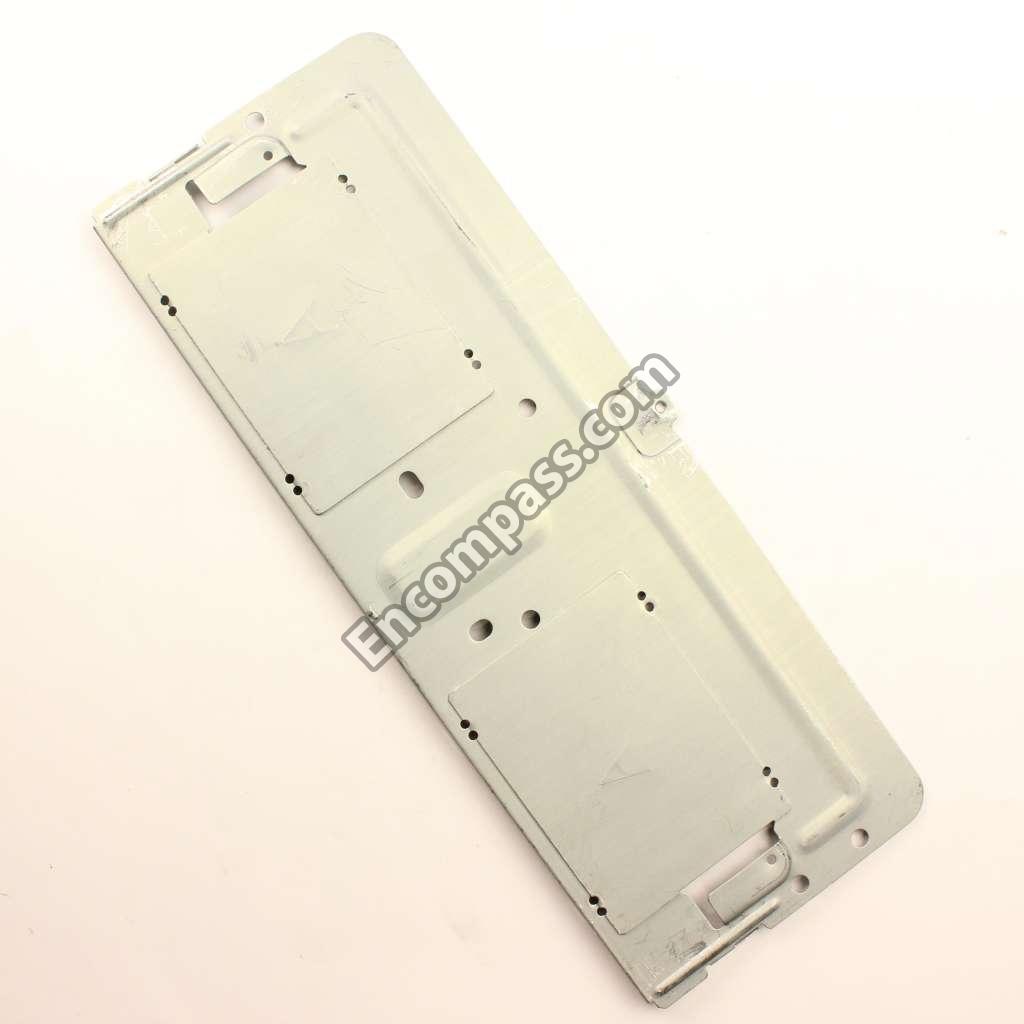

WB56X35363 WB56X35363 GE PLATE MOUNTING
WB56X10669 WB56X10669 GE PLATE MOUNTING
WB18X10430 WB18X10430 GE POWER CORD ASM
WB06X10801 WB06X10801 GE REFLECTOR
WB01X10055 WB01X10055 GE RIVET ASSEMBLY ALL
WB27X10857 WB27X10857 GE SENSOR ASM
WB06X10564 WB06X10564 GE SHAFT TURN TABLE
WB49X10211 WB49X10211 GE SHELF WIRE
WB18X10505 WB18X10505 GE SINGLE HARNESS

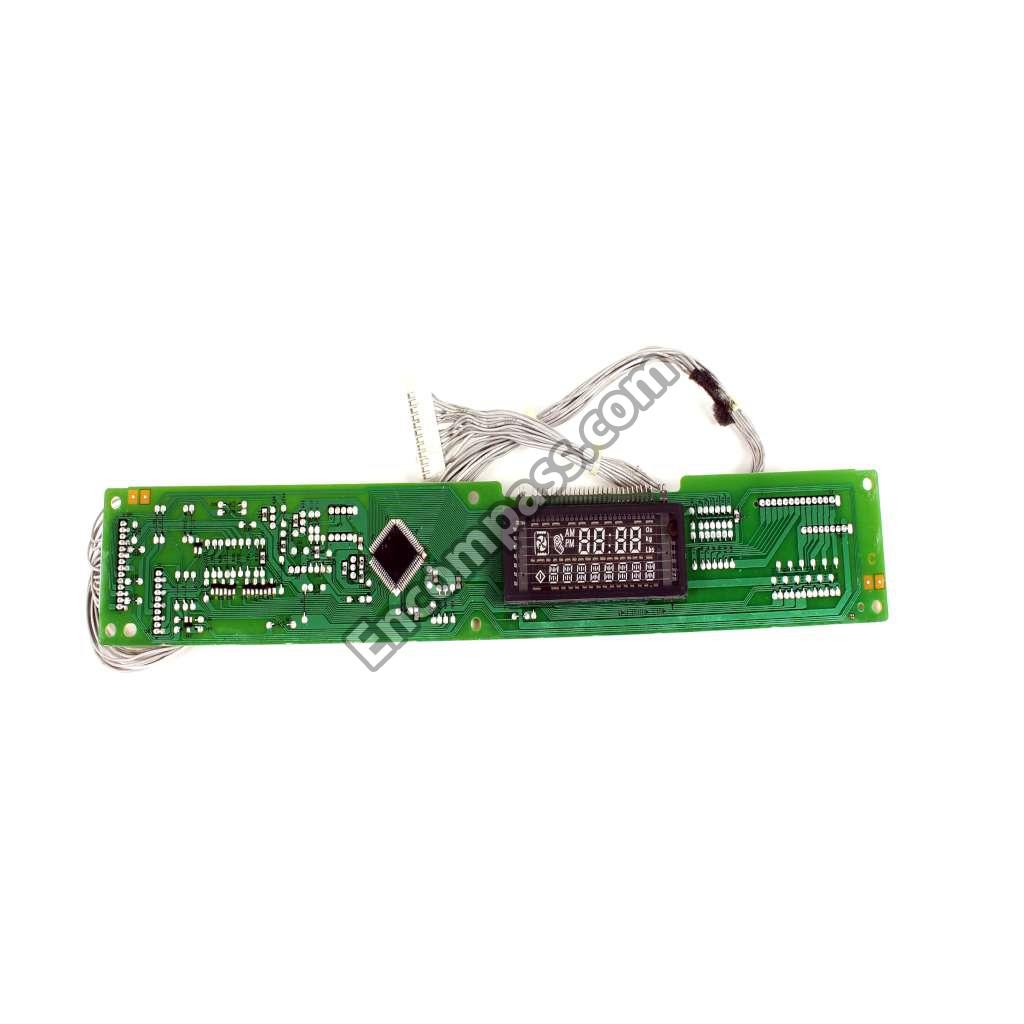

WB27X11048 WB27X11048 GE SMART BOARD
WB09X10017 WB09X10017 GE SPRING LATCH DOOR
WB24X10047 WB24X10047 GE SW PRIM INTERLOCK & DOOR
WB24X0817 WB24X0817 GE SWITCH MICRO
WB24X25397 WB24X25397 GE SWITCH MONITOR INTERLOCK
WB36X10349 WB36X10349 GE TAPE SEALING
WB27X10895 WB27X10895 GE THERMOSTAT
WB21X10148 WB21X10148 GE THERMOSTAT
WB20X10041 WB20X10041 GE TRANSFORMER HIGH VOLTAGE
WB49X10212 WB49X10212 GE TRAY GLASS
WB49X10210 WB49X10210 GE TURNTABLE ASM
49-40586-1 49-40586-1 GE USE & CARE MANUAL
WB06X10764 WB06X10764 GE WAVE GUIDE - MICA COVER
WB36X10350 WB36X10350 GE WINDOW GLASS
WB36X10351 WB36X10351 GE WINDOW GLASS
WB36X10348 WB36X10348 GE WINDOW GLASS
