Model Image
Manufacturer

GE

Model Number

JVM3670WF06

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB07X10882 WB07X10882 ASSEMBLY-CONTROL PANEL
WB07X10883 WB07X10883 ASSEMBLY-CONTROL PANEL
WB26X10103 WB26X10103 ASSEMBLY-DUCT REAR
WB56X10289 WB56X10289 BASE BOTTOM SUB ASSEMBLY
WB56X10293 WB56X10293 BASE BOTTOM SUB ASSEMBLY
WB56X10214 WB56X10214 BASE PLATE-SUB ASSEMBLY
WB06X10326 WB06X10326 BKT DUCT UPPER ASSEMBLY
WB02X10955 WB02X10955 BKT-BARRIER
WB26X10090 WB26X10090 BLADE-FAN
WB06X10465 WB06X10465 BRACKET-BOTTOM LAMP
WB06X10323 WB06X10323 BRACKET-ENCLOSURE(L)
WB06X10330 WB06X10330 BRACKET-ENCLOSURE(R)
WB06X10287 WB06X10287 BRACKET-HVC
WB06X10325 WB06X10325 BRACKET-MGT
WB06X10122 WB06X10122 BRACKET-POWER CORD
WB06X10165 WB06X10165 BRACKET-V/T MOTOR
WB36X10213 WB36X10213 BULB HALOGEN (120V 20W)
WB25X10019 WB25X10019 BULB HALOGEN (120V 20W)
WB06X10126 WB06X10126 BUTTON-LOCK
WB07X10442 WB07X10442 CAM LOUVER ASSEMBLY
WB27X10011 WB27X10011 CAPACITOR 2100V/0.91 MICROF
WB27X10170 WB27X10170 CAPACITOR- MOTOR
WB56X10225 WB56X10225 CASE OUTER(LEFT)
WB56X10290 WB56X10290 CASE OUTER(LEFT)
WB56X10227 WB56X10227 CASE OUTER(RIGHT)
WB56X10292 WB56X10292 CASE OUTER(RIGHT)
WB56X10218 WB56X10218 CASE OUTER(RIGHT)
WB56X10291 WB56X10291 CASE OUTER(TOP)
WB56X10223 WB56X10223 CASE OUTER(TOP)
WB56X10226 WB56X10226 CASE OUTER(TOP)
WB55X10439 WB55X10439 CHOKE COVER
WB55X10442 WB55X10442 CHOKE COVER
WB55X10445 WB55X10445 CHOKE COVER
WB06X10144 WB06X10144 COUPLER-TT
WB36X10188 WB36X10188 COVER GRILLE ASSEMBLY
WB36X10184 WB36X10184 COVER GRILLE ASSEMBLY
WB36X10187 WB36X10187 COVER GRILLE ASSEMBLY
WB36X10168 WB36X10168 COVER LAMP
WB36X10171 WB36X10171 COVER LAMP
WB06X10464 WB06X10464 COVER MOTOR ASSEMBLY
WB06X10281 WB06X10281 COVER TCO-BOTTOM
WB06X10290 WB06X10290 COVER-FRONT
WB36X10186 WB36X10186 COVER-GLASS HALOGEN
WB06X10130 WB06X10130 COVER-STIRRER
WB06X10334 WB06X10334 DECORATION ASSEMBLY
WB06X10335 WB06X10335 DECORATION ASSEMBLY
WB06X10327 WB06X10327 DECORATION ASSEMBLY
WB27X1160 WB27X1160 DIODE ASSEMBLY
WB56X10350 WB56X10350 DOOR ASM
WB56X10347 WB56X10347 DOOR ASM
WB56X10348 WB56X10348 DOOR ASM
WB26X10102 WB26X10102 DUCT-UPPER
WB06X10332 WB06X10332 FILM-DOOR
WB06X10288 WB06X10288 FILTER GREASE
WB27X10928 WB27X10928 FUSE
WB36X10167 WB36X10167 GLASS-COOK TOP LAMP
WB36X10185 WB36X10185 GLASS-HALOGEN LAMP
WB07X10445 WB07X10445 GRILLE ASSEMBLY
WB07X10448 WB07X10448 GRILLE ASSEMBLY
WB07X10441 WB07X10441 GRILLE ASSEMBLY
WB07X10444 WB07X10444 GRILLE SUB ASSEMBLY
WB07X10446 WB07X10446 GRILLE SUB ASSEMBLY
WB06X10295 WB06X10295 GUIDE AIR ASSEMBLY
WB06X10001 WB06X10001 GUIDE ROLLER ASSEMBLY
WB27X10867 WB27X10867 H.V. TRANSFORMER
WB15X10100 WB15X10100 HANDLE
WB15X10101 WB15X10101 HANDLE
WB15X10102 WB15X10102 HANDLE
WB01X10128 WB01X10128 HARDWARE ASSEMBLY
WB01X10183 WB01X10183 HARDWARE BAG
WB02X10753 WB02X10753 HINGE-GRILLE (R)
WB02X10755 WB02X10755 HINGE-GRILLE L
WB02X10754 WB02X10754 HINGE-GRILLE M
WB06X10521 WB06X10521 HOLDER-RACK
WB06X0549 WB06X0549 HOLDER-SENSOR
WB6X549 WB6X549 HOLDER-SENSR
WB06X10436 WB06X10436 HOOD DAMPER ASSEMBLY
49-40179-2 49-40179-2 INSTALLATION INSTRUCTION
WB49X10145 WB49X10145 KIT 110DEG TCO/ BKT/SCR
40-40175-1 40-40175-1 LABEL-COOKING GUIDE
WB05X10005 WB05X10005 LATCH PAWL
WB05X10007 WB05X10007 LATCH PAWL
WB06X10289 WB06X10289 LATCH-BODY
WB06X10128 WB06X10128 LEVER-S/W
WB27X10017 WB27X10017 MICROWAVE MAGNETRON

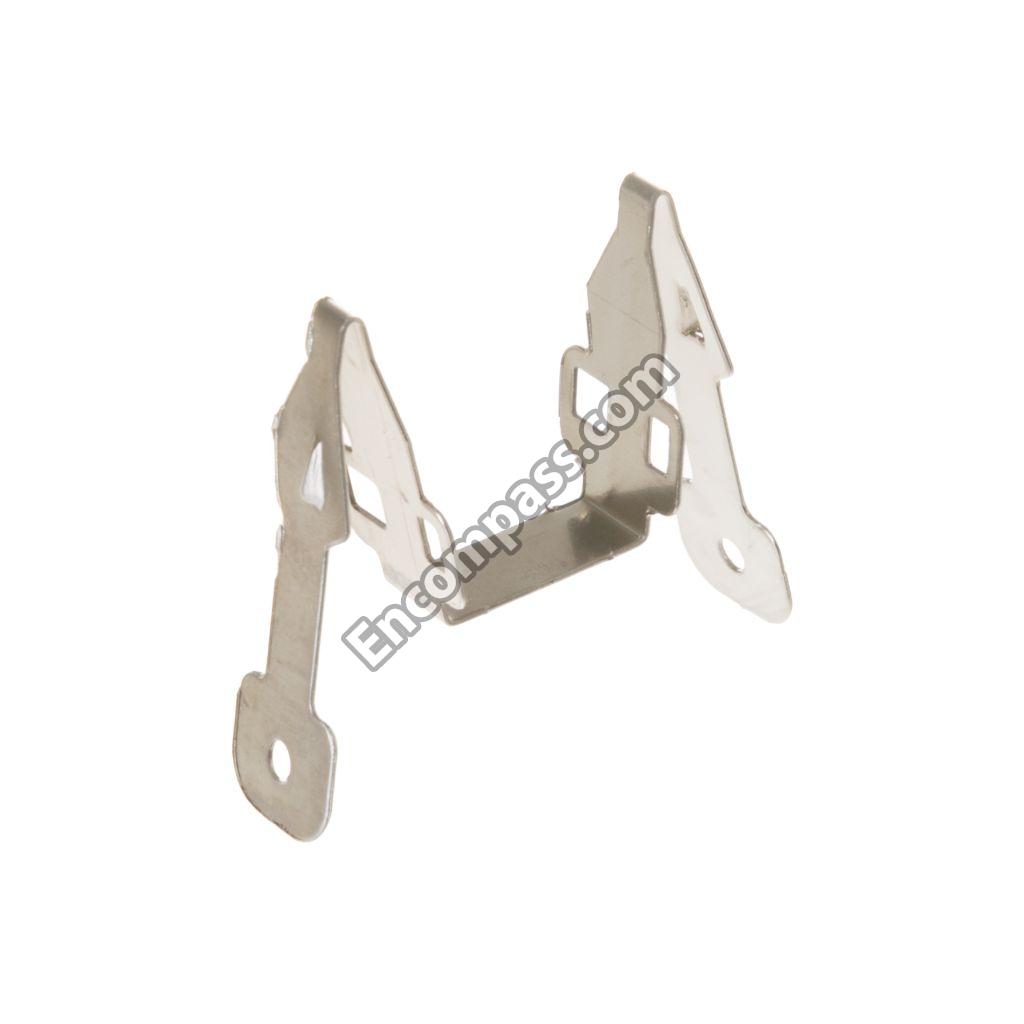

WB01X10334 WB01X10334 MICROWAVE SPRING STOPPER
31-40044 31-40044 MINI MANUAL
WB26X10191 WB26X10191 MOTOR VENTILATION
WB26X10112 WB26X10112 MOTOR-DRIVE
WB26X10037 WB26X10037 MOTOR-DRIVE
WB26X10089 WB26X10089 MOTOR-FAN
WB26X10038 WB26X10038 MOTOR-SYNCHRONOUS
WB56X10215 WB56X10215 MOUNTING PLATE ASSEMBLY
WB02X11244 WB02X11244 NOISE FILTER
WB01X10071 WB01X10071 NUT TOP MOUNTING
WB56X10222 WB56X10222 PANEL-OUTER(LEFT)
WB06X10060 WB06X10060 PIN-HINGE
WB18X10200 WB18X10200 POWER CORD ASSEMBLY
WB49X10098 WB49X10098 RACK-DEFROST
WB27X10195 WB27X10195 S/W THERMO
WB01X10119 WB01X10119 SCREW-TAPPING
WB27X1170 WB27X1170 SENSOR HUMIDITY
WB27X10873 WB27X10873 SMART BOARD
WB08X10027 WB08X10027 SOCKET HAL/LAMP ASSEMBLY
WB08X10026 WB08X10026 SOCKET LAMP
WB05X10006 WB05X10006 SPRING-KEY
WB01X10246 WB01X10246 SPRING-LOUVER
WB06X10331 WB06X10331 STIRRER ASSEMBLY
WB06X10284 WB06X10284 SUPPORTER-CAVITY
WB06X10329 WB06X10329 SUPPORTER-SIDE BACK
WB06X10328 WB06X10328 SUPPORTER-SIDE FRONT
WB24X830 WB24X830 SW-MONITOR
WB24X829 WB24X829 SW-SECONDARY
WB24X10069 WB24X10069 SWITCH-MICRO
WB24X10070 WB24X10070 SWITCH-MICRO
WB21X0535 WB21X0535 TCO -BOTTOM
WB27X10194 WB27X10194 TCO HOOD
WB27X1127 WB27X1127 THERMO SW-TCO SENSE TEMP
WB27X10166 WB27X10166 THERMOSTAT
WB49X10063 WB49X10063 TRAY-COOKING
49-40344 49-40344 USE & CARE
WB36X10169 WB36X10169 WB36X10169
WB18X10139 WB18X10139 WIRE GND PCB
WB18X10341 WB18X10341 WIRE HARNESS - A
WB18X10057 WB18X10057 WIRE HARNESS S
WB18X10204 WB18X10204 WIRE HARNESS-CAM
WB18X10140 WB18X10140 WIRE HARNESS-H
WB48X10052 WB48X10052 WIRE RACK ASM
WB01X10135 WB01X10135 WIRE SADDLE
