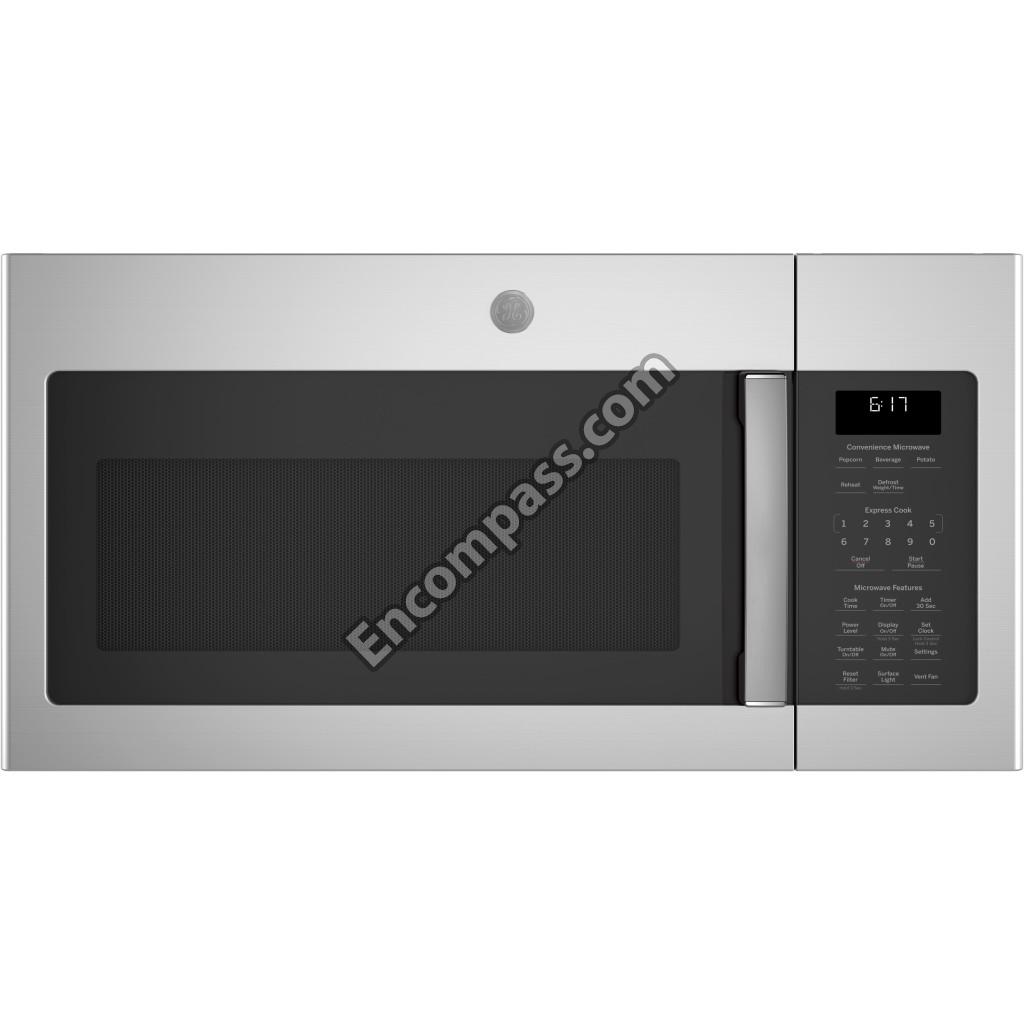

Model Image
Manufacturer

GE

Model Number

JVM6172SK4SS

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB16X26782 WB16X26782 BASE BOTTOM
WB06X10450 WB06X10450 BRACKET
WB36X10213 WB36X10213 BULB HALOGEN (120V 20W)
WB06X10947 WB06X10947 END CAP, DOO
WB26X10254 WB26X10254 FAN BLADE
WB27X10928 WB27X10928 FUSE
WB07X26775 WB07X26775 GRILLE ASSEMBLY
WB06X10713 WB06X10713 HIGH-VOLTAGE CAPACITOR BRACKET
WB6X549 WB6X549 HOLDER-SE
WB27X36365 WB27X36365 MAIN BOARD
WB18X36368 WB18X36368 MAIN HARNESS WIRE
WB56X26779 WB56X26779 MICROWAVE CABINET (STAINLESS)
WB02X11536 WB02X11536 MICROWAVE CHARCOAL FILTER
WB26X10262 WB26X10262 MICROWAVE COOLING FAN MOTOR
WB24X830 WB24X830 MICROWAVE DOOR INTERLOCK SWITCH
WB06X10128 WB06X10128 MICROWAVE DOOR INTERLOCK SWITCH LEVER
WB24X799 WB24X799 MICROWAVE GAS SENSOR
WB49X10224 WB49X10224 MICROWAVE GLASS TURNTABLE TRAY
WB06X10596 WB06X10596 MICROWAVE GREASE FILTER
WB25X10019 WB25X10019 MICROWAVE HALOGEN LIGHT BULB
WB27X10011 WB27X10011 MICROWAVE HIGH-VOLTAGE CAPACITOR
WB27X1160 WB27X1160 MICROWAVE HIGH-VOLTAGE DIODE
WB20X10043 WB20X10043 MICROWAVE HIGH-VOLTAGE TRANSFORMER
WB06X10676 WB06X10676 MICROWAVE LATCH BODY
WB36X10003 WB36X10003 MICROWAVE LIGHT BULB
WB36X10216 WB36X10216 MICROWAVE LIGHT LENS BRACKET
WB08X10016 WB08X10016 MICROWAVE LIGHT SOCKET
WB08X10066 WB08X10066 MICROWAVE LIGHT SOCKET AND HARNESS ASSEMBLY
WB27X11079 WB27X11079 MICROWAVE MAGNETRON
WB06X10822 WB06X10822 MICROWAVE MAGNETRON COVER
WB24X829 WB24X829 MICROWAVE MICRO-SWITCH
WB06X10889 WB06X10889 MICROWAVE MOUNTING BOLT
WB01X10071 WB01X10071 MICROWAVE MOUNTING NUT
WB56X10446 WB56X10446 MICROWAVE MOUNTING PLATE
WB02X11200 WB02X11200 MICROWAVE NOISE FILTER
WB06X10813 WB06X10813 MICROWAVE STIRRER FAN BLADE RETAINER CLIP
WB06X10126 WB06X10126 MICROWAVE STIRRER FAN COVER CLIP
WB36X10071 WB36X10071 MICROWAVE SURFACE LIGHT LENS
WB24X29270 WB24X29270 MICROWAVE THERMAL CUT-OFF
WB24X26785 WB24X26785 MICROWAVE THERMAL CUT-OFF
WB21X10162 WB21X10162 MICROWAVE THERMAL CUT-OFF
WB27X11094 WB27X11094 MICROWAVE THERMOSTAT
WB27X709 WB27X709 MICROWAVE THERMOSTAT
WB26X10233 WB26X10233 MICROWAVE TURNTABLE MOTOR
WB06X10815 WB06X10815 MICROWAVE TURNTABLE MOTOR COUPLER
WB06X10818 WB06X10818 MICROWAVE TURNTABLE TRAY SUPPORT
WB06X10920 WB06X10920 MICROWAVE VENT DAMPER
WB27X10170 WB27X10170 MICROWAVE VENT MOTOR CAPACITOR
WB06X10816 WB06X10816 MICROWAVE/HOOD COVER
WB06X10817 WB06X10817 MICROWAVE/HOOD LAMP COVER
WB34X21786 WB34X21786 MOTOR COVER
WB4X175 WB4X175 PCB SUPPO
49-40765 49-40765 PM INSTALLATION INSTRUCTION
31-30787 31-30787 PM MINI MANUAL
49-40734 49-40734 PM QUICK REF OTR N-CONV
49-40764 49-40764 PM USERS MANUAL
WB18X10442 WB18X10442 POWER CORD
49-40336 49-40336 REAR WALL TEMPLATE
WB09X10042 WB09X10042 SPRING BLADE
WB56X30186 WB56X30186 STAINLESS STEEL CONTROL PANEL WHITE LED
WB56X34801 WB56X34801 STAINLESS STEEL DOOR
WB06X10812 WB06X10812 STIRRER BLADE
WB06X10814 WB06X10814 STIRRER COVER
31-41078 31-41078 TEMPLATE TOP
WB39X10043 WB39X10043 UPPER DUCT
WB26X36367 WB26X36367 VENTILATION MOTOR
WB18X10122 WB18X10122 WIRE GND PCB
WB18X10494 WB18X10494 WIRE HARNESS
