Model Image
Manufacturer

GE

Model Number

MCBS524K1WW

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WB31T10014 WB31T10014 6 INCH BLACK PORCELAIN BURNER
WB31T10015 WB31T10015 8 INCH BLACK PORCELAIN BURNER
WB63K10045 WB63K10045 BACK OVEN
WB2K27 WB2K27 BAIL
WB44K10005 WB44K10005 BAKE ELEMENT
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASM
WB37K10008 WB37K10008 BRACKET COVER SLOT
WB02K10025 WB02K10025 BRACKET MOUNTING DRAWER
WB02K10029 WB02K10029 BRACKET MTG TERMINAL
WB02K10027 WB02K10027 BRACKET TIMER
WB44K10002 WB44K10002 BROIL ELEMENT
WB02K10070 WB02K10070 CARTON COVER THERMOSTAT
WB37K10010 WB37K10010 CIRCUIT BREAKER
WB2K50 WB2K50 CLIP CRYSTAL
WB2X8228 WB2X8228 CLIP RECEPT
WB34K10031 WB34K10031 COVER BACK
WB34K10034 WB34K10034 COVER DRAWER
WB07K10002 WB07K10002 COVER END LT (WHITE)
WB07K10001 WB07K10001 COVER END RT (WHITE)
WB06K10003 WB06K10003 COVER LIMITER
WB37K10011 WB37K10011 COVER THERMOSTAT
WB57K18 WB57K18 CRYSTAL WIND
WB58K10004 WB58K10004 DRAWER BODY
WB02K10158 WB02K10158 DRAWER SUPPORT
WB07K10007 WB07K10007 END CAP LT (WHITE)
WB07K10005 WB07K10005 END CAP RT (WHITE)
WB35X29720 WB35X29720 GASKET DOOR ASM
WB2K66 WB2K66 GD SUPT RGTP
WB02K10062 WB02K10062 GLIDER DRAWER LEFT
WB02K10061 WB02K10061 GLIDER DRAWER RIGHT
WB2X646 WB2X646 GROUND PLATE
WB56K10032 WB56K10032 GUARD INSULATION
WB63K10009 WB63K10009 GUARD INSULATION BOTTOM
WB34K10029 WB34K10029 GUARD TERMINAL
WB15X10048 WB15X10048 HANDLE DOOR (WHITE)
WB49K10004 WB49K10004 HEATSINK SIDE PANEL
WB10K12 WB10K12 HINGE ASM GD
WB2X6195 WB2X6195 HINGE PIN
WB09K10001 WB09K10001 HOOK DOOR SPRING
WB8K1 WB8K1 HOUS RECEPTL
WB24T10027 WB24T10027 INF SW CTN (2100W)
WB24T10022 WB24T10022 INF SWITCH CONTROL 1250W
WB03T10076 WB03T10076 INFINITE KNOB GE (WHITE)
WB35K5 WB35K5 INSUL DOOR
WB35K10108 WB35K10108 INSULATION OVEN WRAP

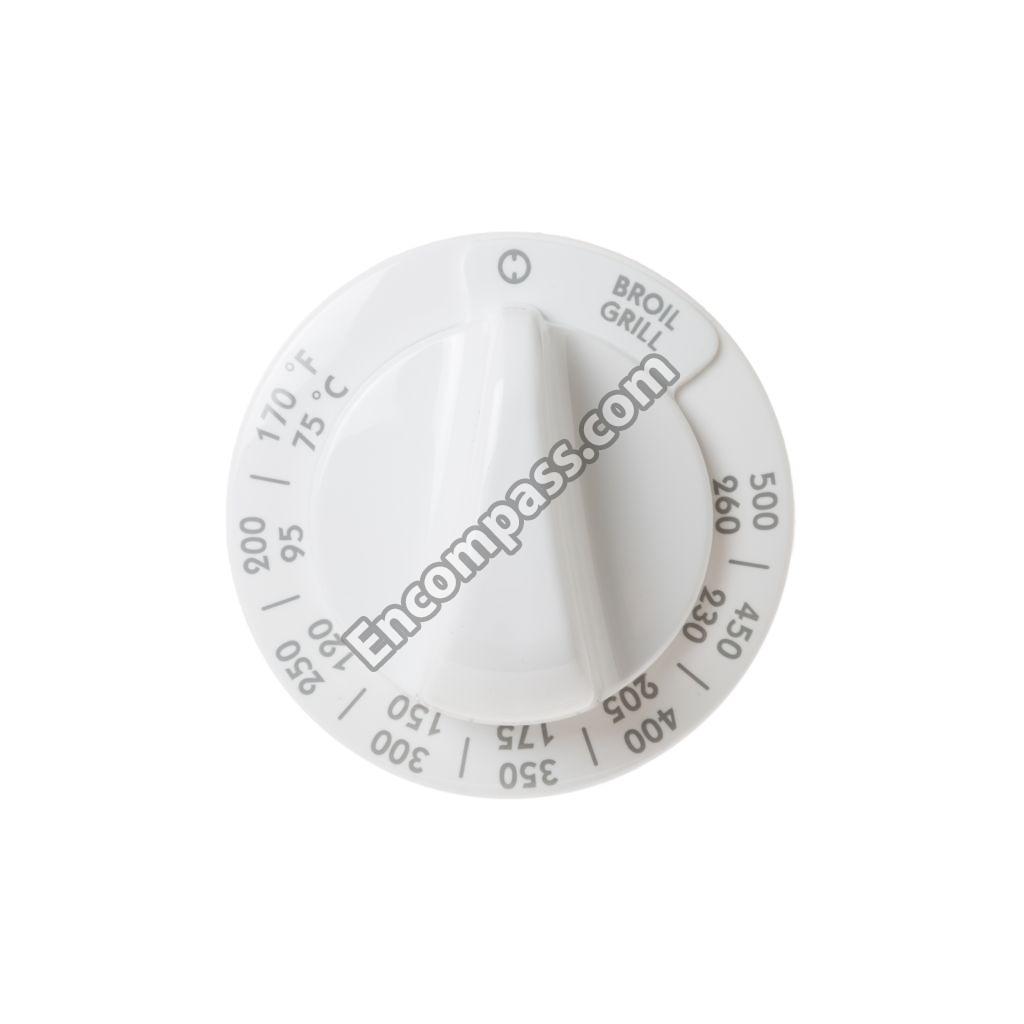

WB03K10188 WB03K10188 KNOB SKIRT ASM
WB25K10002 WB25K10002 LAMP PILOT
WB02X10521 WB02X10521 LEG LEVELER
WB25T10041 WB25T10041 LENS
WB18K10014 WB18K10014 LINE CORD KIT
WB55K21 WB55K21 LINER DOOR
WB1K3 WB1K3 NUT SPEED
WB63K10011 WB63K10011 OVEN SIDE LEFT
WB63K10010 WB63K10010 OVEN SIDE RIGHT
WB63K10013 WB63K10013 PANEL SIDE (WHITE)
WB14K5 WB14K5 PIN HINGE
WB02K10075 WB02K10075 PIN LOCATOR
WB2K17 WB2K17 PIN LOCATOR
WB37K18 WB37K18 PLATE END LT
WB37K17 WB37K17 PLATE END RT
WB37K10006 WB37K10006 POWER OUTLET
WB48T10095 WB48T10095 RACK OVEN
WB39K16 WB39K16 RAIL DRAWER
WB62K10080 WB62K10080 RANGE TOP
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB2X1082 WB2X1082 RETAINER
WB02K10026 WB02K10026 ROD SUPPORT
WB01X23501 WB01X23501 SCR 832 TT FLP 270
WB1K5119 WB1K5119 SCREW
WB1K5062 WB1K5062 SCREW
WB1X536 WB1X536 SCREW
WB01K10091 WB01K10091 SCREW
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREW-PKG 12
WB49K10005 WB49K10005 SHIELD HEAT
WB2K2 WB2K2 SPACER
WB63K10232 WB63K10232 SUPPORT BASE
WB63K10233 WB63K10233 SUPPORT BASE
WB02K10028 WB02K10028 SUPPORT BROIL
WB10K10002 WB10K10002 SUPPORT HINGE CKTP LT
WB10K10001 WB10K10001 SUPPORT HINGE CKTP RT
WB10K13 WB10K13 SUPT RIVET
WB30T10071 WB30T10071 SURFACE ELEMENT 8
WB30K10002 WB30K10002 SURFACE UNIT ASSEMBLY 6
WB20K10016 WB20K10016 TEMPERTURE LIMITER
WB17T10011 WB17T10011 TERMINAL BLOCK ASM
WB20K10004 WB20K10004 THERMOSTAT TOP HEAT SP
WB27T10469 WB27T10469 TIMER TOD LED
WB38K10002 WB38K10002 TUBE-VENT
WB04K10002 WB04K10002 VENT COVER
WB1X119D WB1X119D WASHR-PKG 12
WB56K19 WB56K19 WIND PACK SM
