Model Image
Manufacturer

GE

Model Number

NVL333EY0AA

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description
49-9996 49-9996 49-9996-1
WE02X10071 WE02X10071 8-18AB X0.44 SCREW QUAD
WE14X202 WE14X202 BAFFLE HEAT
WE14X0202 WE14X0202 BAFFLE-HEATER
WE01X1152 WE01X1152 BALL
WE1X1152 WE1X1152 BALL
WE3X70 WE3X70 BEARING
WE03X0070 WE03X0070 BEARING-SHAFT
WE12X10009 WE12X10009 BELT
WE04X10027 WE04X10027 BLOCK TERM HEATER HSNG
WE04X0716 WE04X0716 BLOCK-TERMINAL
WE14X10025 WE14X10025 BLOWER HOUSING ASSEMBLY
WE13X28680 WE13X28680 BRACKET BEARING
WE13X10010 WE13X10010 BRACKET CORD
WE13X10006 WE13X10006 BRACKET MOTOR
WE13X10008 WE13X10008 BRACKET-BELT SWITCH
WE2X358 WE2X358 CLIP
WE02X0358 WE02X0358 CLIP BALL
WE02X10015 WE02X10015 CLIP BLOWER HOUSING
WE02X10013 WE02X10013 CLIP CABINET BTM
WE2X361 WE2X361 CLIP GUIDE
WE02X0361 WE02X0361 CLIP-GUIDE
WE02X10009 WE02X10009 CLIP-TOP FRONT/PANEL
WE02X10010 WE02X10010 CLIP-WIRING
WE19X10023 WE19X10023 CONSOLE BOTTOM
WE20X10005 WE20X10005 COVER TERM BLOCK
WE18X10001 WE18X10001 COVER-LINT TRAP
WE01X10034 WE01X10034 COVER-PLATE
WE01X10023 WE01X10023 DOOR CATCH
WE01X10041 WE01X10041 DOOR HANDLE ALMOND
WE10X10010 WE10X10010 DOOR INNER ALMOND
WE10X10011 WE10X10011 DOOR OUTER ALMOND
WE10X10008 WE10X10008 DOOR-INNER WHITE
WE21X10003 WE21X10003 DRUM-DRYER GALVANIZED BA
WE14X10102 WE14X10102 DUCT-AIR
WE19X10022 WE19X10022 END CAP L H WHITE
WE19X10026 WE19X10026 END CAP RH ALMOND
WE19X10027 WE19X10027 END CAPL H ALMOND
WE09X0107 WE09X0107 GASKET DOOR
WE9X107 WE9X107 GASKET DOOR
WE03X10001 WE03X10001 GLIDE DRUM
WE03X0073 WE03X0073 GLIDE-DRUM
WE08X10006 WE08X10006 GROUND WIRE
WE01X10013 WE01X10013 HANDLE-DOOR WH
WE08X10048 WE08X10048 HARNESS - MAIN
WE08X10011 WE08X10011 HARNESS-MAIN
WE14X10017 WE14X10017 HEATER HOUSING
WE14X10015 WE14X10015 HEATER-HOUSING ASSEMBLY
WE01X10012 WE01X10012 HINGE-DOOR
WE01X10027 WE01X10027 IDLER SPRING
WE04X10026 WE04X10026 INSULATOR HTR HSNG
WE25X10011 WE25X10011 KIT - AIR FLOW/THERMOSTAT
WE25X10001 WE25X10001 KIT REAR BEARING
WE01X10045 WE01X10045 KNOB ROTARY ALMOND
WE01X10047 WE01X10047 KNOB ROTARY WH
WE01X10046 WE01X10046 KNOB TIMER ALMOND
WE02X10012 WE02X10012 LEVELING FOOT
WE18X10002 WE18X10002 LINT TRAP
WE01X10016 WE01X10016 LOCKFAN HOUSING
WE9X105 WE9X105 LOWER FELT
31-15407 31-15407 MINI MANUAL
WE17X23466 WE17X23466 MOTOR & PULLEY
WE01X10003 WE01X10003 MOTOR CLAMP
WE20X10009 WE20X10009 PANEL ACCESS
WE20X10010 WE20X10010 PANEL BACK
WE20X10014 WE20X10014 PANEL FRONT ALMOND
WE20X10013 WE20X10013 PANEL TOP AD
WE20X10012 WE20X10012 PANEL-FRONT WHITE
WE01X10035 WE01X10035 PIN LOCATING
WE01X10040 WE01X10040 PLUG ALMOND
WE01X10042 WE01X10042 PLUG WHITE
WE01X10011 WE01X10011 PLUG WHITE
WE01X10010 WE01X10010 PLUG-DOME WHITE
WE4X752 WE4X752 RESISTER POWER
WE4X744 WE4X744 RESISTOR
WE04X0744 WE04X0744 RESISTOR,3.0K
WE04X0752 WE04X0752 RESISTOR-POWER, 4.4K
WE02X10007 WE02X10007 SCREW 10-14 X 1 00
WR2X9494 WR2X9494 SCREW 10-16 X 375
WE02X10008 WE02X10008 SCREW 6-20 X 19
WH02X10013 WH02X10013 SCREW 8-18 X 1/2
WE02X10011 WE02X10011 SCREW 8-18 X 375
WE02X10021 WE02X10021 SCREW 8-18 X 50
WH01X10004 WH01X10004 SCREW 8-18AB X 375
WR02X9494 WR02X9494 SCREW 8-18B X 0.31
WE02X10020 WE02X10020 SCREW GND 10-32T X 37
WE02X10014 WE02X10014 SCREW-
WE02X10005 WE02X10005 SCREW-BRACKET
WE02X10017 WE02X10017 SCREW-DOOR 10-16X 75
WH02X10009 WH02X10009 SCREW-LOCK 10-16X 50
WE02X10022 WE02X10022 SCREW-STOP
WE09X0105 WE09X0105 SEAL BASKET LOWER
WE09X10003 WE09X10003 SEAL EXHAUST TUBE
WE09X10004 WE09X10004 SEAL-HEATER HOUSING
WE11X10002 WE11X10002 SHIELD-HEAT
WE01X10029 WE01X10029 SPACER-IDLER
WE01X1158 WE01X1158 STRIKE DOOR
WE1X1158 WE1X1158 STRIKE DOOR
WE13X10011 WE13X10011 SUPPORT SHAFT
WE4X881 WE4X881 SW ROTARY ST
WE19X10031 WE19X10031 SWITCH TRIM
WE04X10096 WE04X10096 SWITCH-BELT
WE04X10034 WE04X10034 SWITCH-DOOR W/O LITE
WE4X716 WE4X716 TERM BLOCK
WE04X0774 WE04X0774 THERMAL LIMITER
WE04X10044 WE04X10044 THERMOSTAT-CONTROL
WE04X10028 WE04X10028 THERMOSTAT-CONTROL

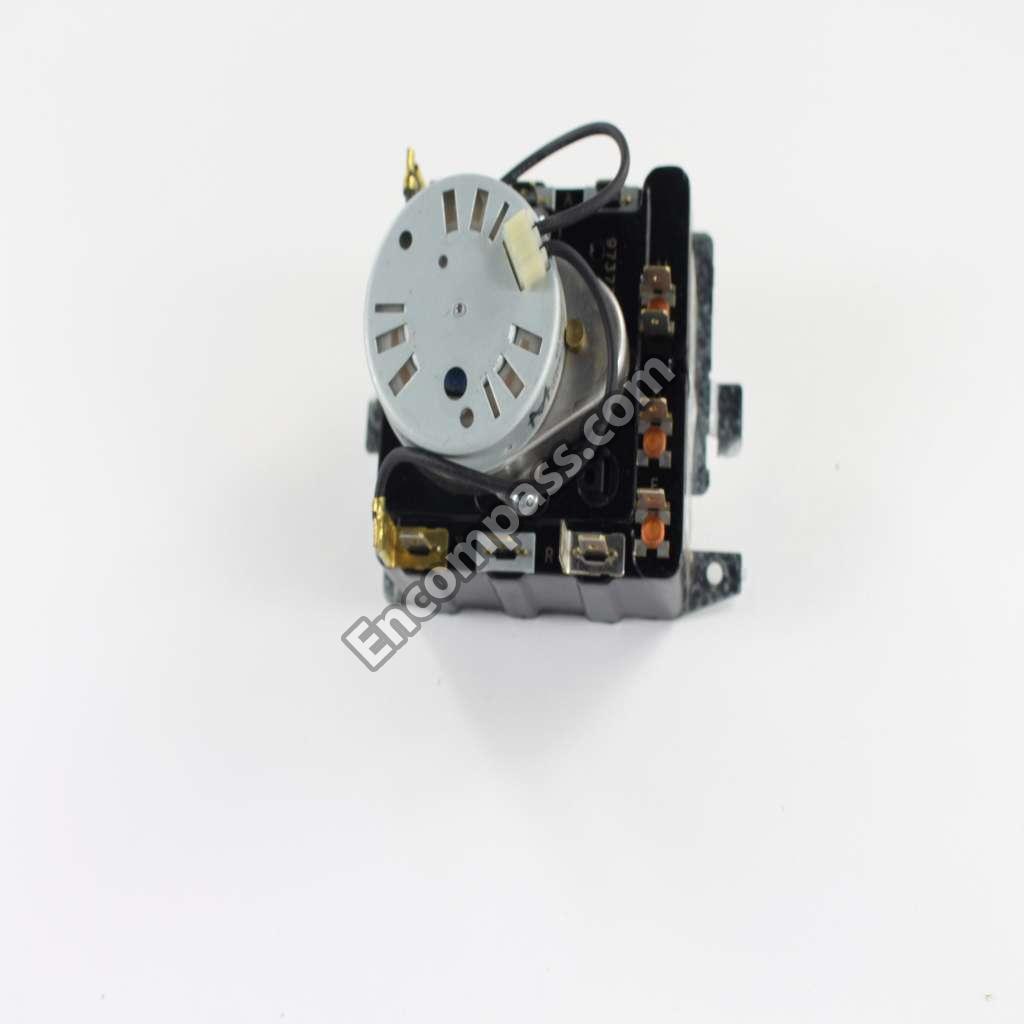

WE04X10043 WE04X10043 TIMER
WE04X10042 WE04X10042 TIMER
WE4X757 WE4X757 TSTAT SAFETY
WE14X10007 WE14X10007 TUBE EXHAUST ASM
WE21X0069 WE21X0069 VANE
WE21X69 WE21X69 VANE DRUM
WE01X10218 WE01X10218 W/PULLEY IDLER ARM ASSEMBLY
WH2X1118 WH2X1118 WH2X1118
