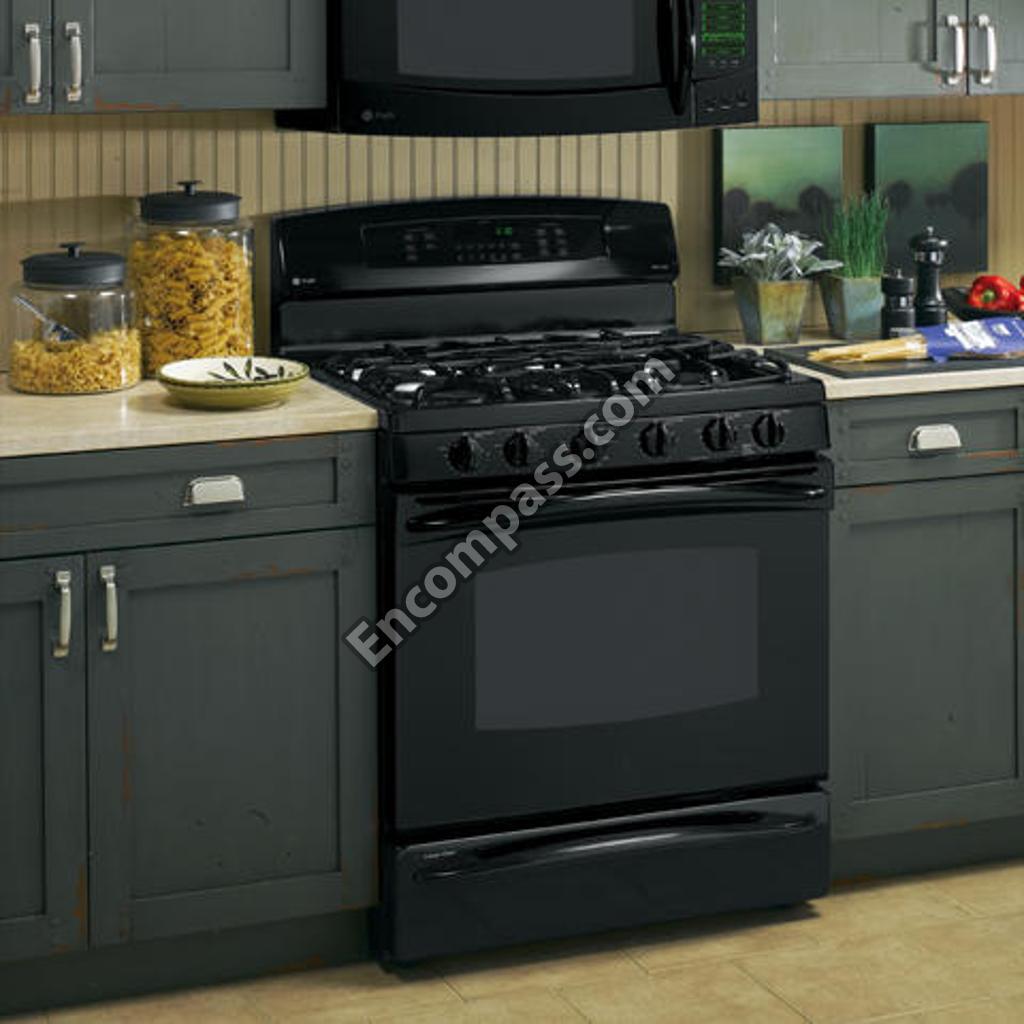

Model Image
Manufacturer

GE

Model Number

P2B918DEM3BB

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB63K10167 WB63K10167 BACK DRAWER
WB02K0027 WB02K0027 BAIL
WB2K27 WB2K27 BAIL
WB30X46987 WB30X46987 BAKE ELEMENT
WB07K10339 WB07K10339 BARRIER DOOR
WB2X8351 WB2X8351 BLADE FAN
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K10060 WB63K10060 BOTTOM RANGE
WB63K10143 WB63K10143 BOX BURNER SP
WB63K0005 WB63K0005 BRACE BOTTOM
WB63K5 WB63K5 BRACE BOTTOM
WB38K0002 WB38K0002 BRACE VENT
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASM
WB02K10152 WB02K10152 BRACKET CONTROL
WB02K10082 WB02K10082 BRACKET COOKTOP XL
WB02K10151 WB02K10151 BRACKET DOOR
WB63K10062 WB63K10062 BRACKET DRAWER
WB39K0020 WB39K0020 BRACKET MOUNTING DRAWER
WB02K10052 WB02K10052 BRACKET MTG TERMINAL
WB30X46986 WB30X46986 BROIL ELEMENT
WB02K10179 WB02K10179 BUMPER
WB02K10180 WB02K10180 BUMPER
WB02K10178 WB02K10178 BUMPER
WB2K15 WB2K15 BUMPER BLACK
WB02K10112 WB02K10112 BUMPER BLUE
WB02K0015 WB02K0015 BUMPER, BLACK
WB16T10046 WB16T10046 BURNER 12K
WB29K10007 WB29K10007 BURNER CAP (GRAY) LARGE
WB29K10004 WB29K10004 BURNER CAP (GRAY) MED
WB29K10002 WB29K10002 BURNER CAP (GRAY) SMALL
WB16K10055 WB16K10055 BURNER MEDIUM (9500)
WB16K10070 WB16K10070 BURNER-SMALL
WB28K10223 WB28K10223 CAP BURNER ASM (15K)
WB28K10221 WB28K10221 CAP BURNER ASM (15K)
WB28K10213 WB28K10213 CAP BURNER ASM (15K)
WB29K10005 WB29K10005 CAP-BURNER (TAUPE)
WB29K10006 WB29K10006 CAP-BURNER LARGE (BLACK)
WB29X36765 WB29X36765 CAP-BURNER LARGE (TAUPE)
WB29K10001 WB29K10001 CAP-BURNER MED (BLACK)
WB29K10009 WB29K10009 CAP-BURNER SMALL (BLACK)
WB29K10003 WB29K10003 CAP-BURNER SMALL (TAUPE)
WB02K10110 WB02K10110 CATCH
WB16K10059 WB16K10059 CENTRAL BURNER & CAP ASM
WB16K10052 WB16K10052 CENTRAL BURNER & CAP ASM
WB16K10029 WB16K10029 CENTRAL BURNER & CAP ASSEMBLY
WB02K10362 WB02K10362 CKT BRACKET MDM AND LGE
WB02K10361 WB02K10361 CKT BRACKET MEDIUM
WB02K10360 WB02K10360 CKT BRACKET SMALL
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02K0010 WB02K0010 CLIP CAPILLARY
WB02K10073 WB02K10073 CLIP CAPILLARY
WB02K0052 WB02K0052 CLIP RANGETOP
WB2K52 WB2K52 CLIP RNGETOP
WB02K0038 WB02K0038 CLIP WIRE
WB02X7066 WB02X7066 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER
WB27K10123 WB27K10123 CONTROL OVN ASM
31-21397 31-21397 CONVERSION STEPS SHEET
WB28K10562 WB28K10562 CONVERTION KIT ASM
WB02K10109 WB02K10109 COVER ACCESS SPRING
WB34K10068 WB34K10068 COVER BACK
WB34K10091 WB34K10091 COVER BACK LOWER
WB34K10115 WB34K10115 COVER BACK UPPER
WB63K10063 WB63K10063 COVER BURNER BOX
WB34K10071 WB34K10071 COVER HEATING ELEMENT
WB37K10012 WB37K10012 COVER THERMOSTAT
WB02K0024 WB02K0024 COVER VALVE
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB49K10011 WB49K10011 DEFLECTOR BOTTOM
WB35K10048 WB35K10048 DEFLECTOR SIDE
WB49K10012 WB49K10012 DEFLECTOR TOP
WB38K10022 WB38K10022 DIFFUSER VENT
WB01K10037 WB01K10037 ECONOMIC NUT
WB13K10014 WB13K10014 ELECTRODE TOP
WB07K10277 WB07K10277 END SUPPORT LF
WB07K10235 WB07K10235 END SUPPORT LF
WB07K10257 WB07K10257 END SUPPORT LF WH
WB07K10234 WB07K10234 END SUPPORT RT
WB07K10276 WB07K10276 END SUPPORT RT
WB07K10256 WB07K10256 END SUPPORT RT WH
WB02X8351 WB02X8351 FAN BLADE
WB34K10038 WB34K10038 FAN COVER BACK
WB34K10037 WB34K10037 FAN COVER FRONT
WB35K10013 WB35K10013 FAN INSULATION
WB26K10004 WB26K10004 FAN MOTOR CONVECT-1SPEED
WB02K10034 WB02K10034 FAN SUPPORT
WB58K10010 WB58K10010 FRAME DRAWER
WB63K10175 WB63K10175 FRAME WELD ASM.
WB35X29668 WB35X29668 GASKET ASM DOOR
WB04K10017 WB04K10017 GASKET DRAWER ASM
WB04K10018 WB04K10018 GASKET LOWER
WB32K0005 WB32K0005 GASKET OVEN LIGHT
WB32K10037 WB32K10037 GASKET OVEN SEAL
WB35K10019 WB35K10019 GASKET VENT
WB27K10274 WB27K10274 GLASS AND BOARD ASM
WB27K10273 WB27K10273 GLASS AND BOARD ASM
WB27K10258 WB27K10258 GLASS AND BOARD ASM
WB57K10076 WB57K10076 GLASS DOOR (BLK)
WB57K10077 WB57K10077 GLASS DOOR (BSQT)
WB57K10078 WB57K10078 GLASS DOOR (WH)
WB08K0005 WB08K0005 GLASS OVEN LAMP
WB31K10210 WB31K10210 GRATE CAST (DD) LF
WB31K10207 WB31K10207 GRATE CAST (DD) LF
WB31K10213 WB31K10213 GRATE CAST (DD) LF
WB31K10211 WB31K10211 GRATE CAST (DD) RT
WB31K10208 WB31K10208 GRATE CAST (DD) RT
WB31K10214 WB31K10214 GRATE CAST (DD) RT
WB31K10212 WB31K10212 GRATE CAST MID (DD)
WB31K10209 WB31K10209 GRATE CAST MID (DD)
WB31K10215 WB31K10215 GRATE CAST MID (DD)
WB2K8 WB2K8 GROMMET
WB2X646 WB2X646 GROUND PLATE
WB56K12 WB56K12 GUARD INSUL
WB56K0012 WB56K0012 GUARD INSULATION
WB34K0031 WB34K0031 GUARD RADIATION LFT
WB34K0030 WB34K0030 GUARD RADIATION RT
WB34K10029 WB34K10029 GUARD TERMINAL
WB34K10054 WB34K10054 GUARD TERMINAL COMP
WB15T10141 WB15T10141 HANDLE PRF DOOR (WH)
WB15T10139 WB15T10139 HANDLE PRF DOOR BK
WB15T10137 WB15T10137 HANDLE PRF DRAWER (BQ)
WB15T10138 WB15T10138 HANDLE PRF DRAWER (WH)
WB15T10136 WB15T10136 HANDLE PRF DRAWER BK
WB18K10037 WB18K10037 HARNESS HV
WB18K10020 WB18K10020 HARNESS INTERFACE
WB44K10015 WB44K10015 HEATING ELEMENT BOTTOM
WB44K10014 WB44K10014 HEATING ELEMENT TOP
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB2X6195 WB2X6195 HINGE PIN
WB14K10003 WB14K10003 HINGE RANGE TOP
WB02K0011 WB02K0011 HOOK DOOR SPRING
WB2K11 WB2K11 HOOK DR SPRG
WB8K1 WB8K1 HOUS RECEPTL
WB08K0001 WB08K0001 HOUSING RECEPTACLE
WB27X33086 WB27X33086 INDUCTION CONTROL ASM KIT
WB35K10150 WB35K10150 INSULATION BOTTOM DOOR
WB35K10026 WB35K10026 INSULATION BURNER BOX
WB35K10053 WB35K10053 INSULATION DRAWER FRONT
WB35K10054 WB35K10054 INSULATION DRAWER TOP
WB35K10055 WB35K10055 INSULATION FOIL
WB35K10168 WB35K10168 INSULATION OVEN BACK
WB35K10159 WB35K10159 INSULATION OVEN WRAP
WB35K10149 WB35K10149 INSULATION SIDE DOOR
WB35K10218 WB35K10218 INSULATION VENT
WB2K101 WB2K101 KIT FEET-RUB
WB02K0101 WB02K0101 KIT-RUBBER FEET
WB03K10194 WB03K10194 KNOB THERMOSTAT
WB03K10196 WB03K10196 KNOB THERMOSTAT
WB03K10195 WB03K10195 KNOB THERMOSTAT
WB03K10135 WB03K10135 KNOB-TOP BURNERS (BLK)
WB03K10136 WB03K10136 KNOB-TOP BURNERS (BSQT)
WB03K10137 WB03K10137 KNOB-TOP BURNERS (WH)
WB25K10009 WB25K10009 LENS
WB25K10010 WB25K10010 LIGHT INDICATOR PILOT
WB18K10014 WB18K10014 LINE CORD KIT
WB55K10034 WB55K10034 LINER ASM WELD DOOR
WB55K10024 WB55K10024 LINER DRAWER
WB36K10702 WB36K10702 MANIFOLD PANEL
WB36K10661 WB36K10661 MANIFOLD PANEL
WB28K10867 WB28K10867 NG ORIFICE AND TUBE CNTRAL
WB02T10017 WB02T10017 NUT
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K10388 WB28K10388 ORIFICE HOLDER LF
WB28K10389 WB28K10389 ORIFICE HOLDER LR
WB28K10424 WB28K10424 ORIFICE HOLDER RF
WB28K10390 WB28K10390 ORIFICE HOLDER RR
WB28K10288 WB28K10288 ORIFICE SPUD
WB28K10839 WB28K10839 ORIFICE SPUD LP
WB28K10215 WB28K10215 ORIFICE SPUD LP 86L
WB28K10214 WB28K10214 ORIFICE SPUD LP 88L
WB28K10031 WB28K10031 ORIFICE-LP 63MM
WB53K10013 WB53K10013 OVEN BACK
WB63K10006 WB63K10006 OVEN BOTTOM
WB63K10146 WB63K10146 OVEN SIDE RT
WB53K10017 WB53K10017 OVEN TOP
WB48K10009 WB48K10009 PAN DRAWER
WB55K0013 WB55K0013 PANEL ASM WELD INNER
WB55K10026 WB55K10026 PANEL DRAWER
WB55K10023 WB55K10023 PANEL DRAWER
WB55K10025 WB55K10025 PANEL DRAWER
WB02K10064 WB02K10064 PANEL DRAWER SPACER
WB63K10203 WB63K10203 PANEL REAR BROIL
WB63K10122 WB63K10122 PANEL SIDE
WB63K10124 WB63K10124 PANEL SIDE
WB63K10119 WB63K10119 PANEL SIDE BK
WB63K10056 WB63K10056 PANEL SIDE BROIL
WB63K10055 WB63K10055 PANEL SIDE BROIL
WB02X6195 WB02X6195 PIN HINGE DOOR
WB14K10004 WB14K10004 PIN LOCATOR
WB14K10005 WB14K10005 PIN LOCATOR
WB02X0646 WB02X0646 PLATE-GROUND
WB24K10068 WB24K10068 PLUNGER SWITCH
31-21345 31-21345 PM MINI-MANUAL ELECT
49-85168 49-85168 PM USE & CARE MANUAL
WB55K13 WB55K13 PNL ASM WELD
WB19K10018 WB19K10018 PRESSURE REGULATOR
WB20T10024 WB20T10024 PROBE
WB34K10121 WB34K10121 PROBE RECEPTACLE & HARNESS
WB20X5050 WB20X5050 PROBE THERMISTOR
WB48K10010 WB48K10010 RACK BAKING DRAWER
WB48T10095 WB48T10095 RACK OVEN
WB02K10108 WB02K10108 RANGE ACCESS SPRING COVER
WB62K10068 WB62K10068 RANGE BACK
WB63K10233 WB63K10233 RANGE BASE SUPPORT
WB10K12 WB10K12 RANGE DOOR HINGE ASSEMBLY
WB39K20 WB39K20 RANGE DRAWER MOUNTING BRACKET
WB01K10112 WB01K10112 RANGE ELECTRODE CLIP
WB31K10217 WB31K10217 RANGE GRIDDLE
WB02K10182 WB02K10182 RANGE LEVELING LEG
WB36X192 WB36X192 RANGE OVEN BULB COVER
WB32K5 WB32K5 RANGE OVEN GASKET
WB34K31 WB34K31 RANGE RADIATION GUARD
WB34K30 WB34K30 RANGE RADIATION GUARD
WB13X26360 WB13X26360 RANGE SPARK MODULE 6+0
WB38K2 WB38K2 RANGE VENT BRACE
WB62K10111 WB62K10111 RANGETOP & BRKT ASM
WB62K10110 WB62K10110 RANGETOP & BRKT ASM
WB62K10112 WB62K10112 RANGETOP & BRKT ASM
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB35K33 WB35K33 REFLECTOR
WB35K10041 WB35K10041 REFLECTOR
WB35K0022 WB35K0022 REFLECTOR 9.5 INCH
WB2X1082 WB2X1082 RETAINER
WB2X2030 WB2X2030 RETAINER
WB02K0030 WB02K0030 RETAINER-INSULATION VENT
WB02X1082 WB02X1082 RING RETAINING
WB28K10584 WB28K10584 ROUND MANIFOLD PIPE
WB1K44 WB1K44 SCEW LATCH
WR01X10389 WR01X10389 SCR 8-18 AB PHR 1/2 S
WB01K0063 WB01K0063 SCREW
WB01K0001 WB01K0001 SCREW
WB1K5119 WB1K5119 SCREW
WB1X536 WB1X536 SCREW
WB1X5716 WB1X5716 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5062 WB1K5062 SCREW
WB01K10091 WB01K10091 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5716 WB01X5716 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB1K63 WB1K63 SCREW 10-16 X 0.95 TYPE B
WB01K10018 WB01K10018 SCREW 8-18 (BISQUE)
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB1K5 WB1K5 SCREW 8-18 X 1/2 -INCH
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB01K10012 WB01K10012 SCREW 8-22 PL 1HX 71
WB01K10002 WB01K10002 SCREW 8-32
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB01K10008 WB01K10008 SCREW CKTP 6-32X12
WB01K0044 WB01K0044 SCREW DOOR LATCH
WB01X1261 WB01X1261 SCREW GROUND
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01X0558 WB01X0558 SCREW NAIL POINT
WB01K10080 WB01K10080 SCREW THERMOSTAT
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB23X5340 WB23X5340 SENSOR-OVEN
WB63K10244 WB63K10244 SIDE OVEN
WB63K10179 WB63K10179 SIDE OVEN LEFT
WB39K10026 WB39K10026 SLIDE & BEARING ASM
WB39K10025 WB39K10025 SLIDE & BEARING ASM
WB39K10027 WB39K10027 SLIDE INTERNAL
WB02K10104 WB02K10104 SPACER BASE
WB02K10154 WB02K10154 SPACER BASE
WB02K10153 WB02K10153 SPACER BASE
WB01K0002 WB01K0002 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB01K10093 WB01K10093 SPEEDNUT
WB09K0005 WB09K0005 SPRING DOOR
WB9K5 WB9K5 SPRING DOOR
WB02K10111 WB02K10111 STRIKE
WB10K10009 WB10K10009 SUPPORT ASM RIVET LF
WB10K10010 WB10K10010 SUPPORT ASM RIVET RT
WB63K10232 WB63K10232 SUPPORT BASE
WB02K10028 WB02K10028 SUPPORT BROIL
WB35K10028 WB35K10028 SUPPORT CATALYST
WB38K10004 WB38K10004 SUPPORT SMOKE ELIMINATOR
WB02K10297 WB02K10297 SUPPORT VALVE
WB24K10024 WB24K10024 SW VALVE SERVICE 270 1WI
WB24K10023 WB24K10023 SW VALVE SERVICE 270 2WI
WB17T10011 WB17T10011 TERMINAL BLOCK ASM
WB20K10017 WB20K10017 THERMOSTAT
WB63K10058 WB63K10058 TOP DRAWER
WB07K10250 WB07K10250 TRIM BOTTOM ASM
WB07K10232 WB07K10232 TRIM BOTTOM ASM
WB07K10269 WB07K10269 TRIM BOTTOM ASM
WB36K10703 WB36K10703 TRIM CONTROL
WB36K10704 WB36K10704 TRIM CONTROL
WB07K10245 WB07K10245 TRIM LOWER DRAWER
WB07K10258 WB07K10258 TRIM POST LF
WB07K10236 WB07K10236 TRIM POST LF
WB07K10259 WB07K10259 TRIM POST RT
WB07K10237 WB07K10237 TRIM POST RT
WB07K10233 WB07K10233 TRIM VENT
WB07K10255 WB07K10255 TRIM VENT
WB28X24772 WB28X24772 TUBE MANIFOLD SUPPLY
WB28K10477 WB28K10477 TUBE MANIFOLD SUPPLY ASM
WB02K10137 WB02K10137 TWO SWITCH MOTOR LATCH
WB21K10122 WB21K10122 VALVE BURNER 270
WB21K10114 WB21K10114 VALVE BURNER 270
WB21K10113 WB21K10113 VALVE BURNER 270
WB21K10112 WB21K10112 VALVE BURNER 270
WB21K10117 WB21K10117 VALVE BURNER 270 HI-CAP
WB2K24 WB2K24 VALVE COVER
WB38K10008 WB38K10008 VENT ASSEMBLY
WB16K10046 WB16K10046 VENTURI 15K LP
WB16K10062 WB16K10062 VISION BURNER XL
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB56K20 WB56K20 WIND PACK LG
WB34K10087 WB34K10087 WINDOW SPACER ASM
Main Menu x
