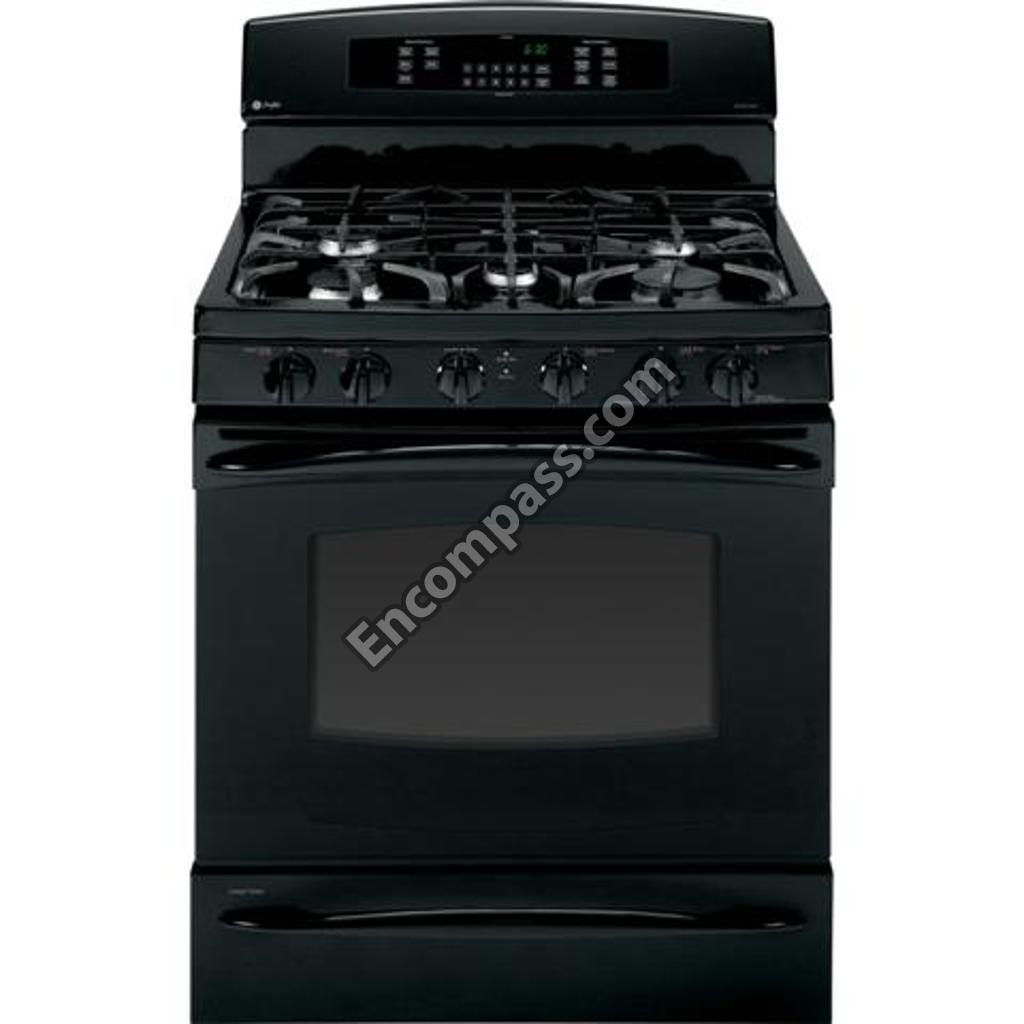

Model Image
Manufacturer

GE

Model Number

P2B930DET1BB

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB29K10024 WB29K10024 ASM BURNER CAP (12000)
WB29K10022 WB29K10022 ASM BURNER CAP (5000)
WB29K10023 WB29K10023 ASM BURNER CAP (9500)
WB63K10167 WB63K10167 BACK DRAWER
WB30X46987 WB30X46987 BAKE ELEMENT
WB07K10378 WB07K10378 BARRIER DOOR
WB07K10342 WB07K10342 BARRIER DOOR
WB2X8351 WB2X8351 BLADE FAN
WB35K10209 WB35K10209 BOTTOM OVEN
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K10060 WB63K10060 BOTTOM RANGE
WB63K10193 WB63K10193 BOX BURNER SP
WB63K0005 WB63K0005 BRACE BOTTOM
WB63K5 WB63K5 BRACE BOTTOM
WB38K0002 WB38K0002 BRACE VENT
WB02K10341 WB02K10341 BRACKET
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASM
WB02K10152 WB02K10152 BRACKET CONTROL
WB02K10082 WB02K10082 BRACKET COOKTOP XL
WB63K10062 WB63K10062 BRACKET DRAWER
WB02K10350 WB02K10350 BRACKET GLASS
WB39K0020 WB39K0020 BRACKET MOUNTING DRAWER
WB02K10052 WB02K10052 BRACKET MTG TERMINAL
WB30X46986 WB30X46986 BROIL ELEMENT
WB02K10178 WB02K10178 BUMPER
WB02K10179 WB02K10179 BUMPER
WB02K10180 WB02K10180 BUMPER
WB2K15 WB2K15 BUMPER BLACK
WB02K10112 WB02K10112 BUMPER BLUE
WB02X28737 WB02X28737 BUMPER DOOR
WB02K0015 WB02K0015 BUMPER, BLACK
WB16T10046 WB16T10046 BURNER 12K
WB16K10055 WB16K10055 BURNER MEDIUM (9500)
WB28K10222 WB28K10222 CAP BURNER ASM (15K)
WB02K10110 WB02K10110 CATCH
WB16K10053 WB16K10053 CENTRAL BURNER & CAP ASM
WB16K10047 WB16K10047 CENTRAL BURNER VISION
WB02K10362 WB02K10362 CKT BRACKET MDM AND LGE
WB02K10361 WB02K10361 CKT BRACKET MEDIUM
WB02K10360 WB02K10360 CKT BRACKET SMALL
WB01K10106 WB01K10106 CKT SCREW
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02K0010 WB02K0010 CLIP CAPILLARY
WB02K10073 WB02K10073 CLIP CAPILLARY
WB01K10112 WB01K10112 CLIP ELECTRODE
WB02K0052 WB02K0052 CLIP RANGETOP
WB2K52 WB2K52 CLIP RNGETOP
WB02K0038 WB02K0038 CLIP WIRE
WB02X7066 WB02X7066 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER
WB27K10123 WB27K10123 CONTROL OVN ASM
WB27K10437 WB27K10437 CONTROL OVN ERC3HP
31-21397 31-21397 CONVERSION STEPS SHEET
WB02K10109 WB02K10109 COVER ACCESS SPRING
WB34K10140 WB34K10140 COVER BACK
WB34K10068 WB34K10068 COVER BACK
WB34K10115 WB34K10115 COVER BACK UPPER
WB63K10063 WB63K10063 COVER BURNER BOX
WB08K10018 WB08K10018 COVER LAMP
WB37K10012 WB37K10012 COVER THERMOSTAT
WB02K0024 WB02K0024 COVER VALVE
WB34K10129 WB34K10129 COVERBACKLOWER
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB57K10174 WB57K10174 CRYSTAL WINDOW
WB56K10021 WB56K10021 CRYSTAL WINDOW
WB34K13 WB34K13 CVR B PNL SP
WB49K10011 WB49K10011 DEFLECTOR BOTTOM
WB35K10048 WB35K10048 DEFLECTOR SIDE
WB49K10012 WB49K10012 DEFLECTOR TOP
WB38K10022 WB38K10022 DIFFUSER VENT
WB01K10037 WB01K10037 ECONOMIC NUT
WB13K10014 WB13K10014 ELECTRODE TOP
WB07K10277 WB07K10277 END SUPPORT LF
WB07K10235 WB07K10235 END SUPPORT LF
WB07K10257 WB07K10257 END SUPPORT LF WH
WB07K10234 WB07K10234 END SUPPORT RT
WB07K10276 WB07K10276 END SUPPORT RT
WB07K10256 WB07K10256 END SUPPORT RT WH
WB02X8351 WB02X8351 FAN BLADE
WB34K10038 WB34K10038 FAN COVER BACK
WB35K10013 WB35K10013 FAN INSULATION
WB26K10004 WB26K10004 FAN MOTOR CONVECT-1SPEED
WB02K10034 WB02K10034 FAN SUPPORT
WB01X1378 WB01X1378 FLAT WASHER-M4
WB58K10010 WB58K10010 FRAME DRAWER
WB63K10221 WB63K10221 FRAME WELD ASM
WB63K10261 WB63K10261 FRAME WELD ASSEMBLY
WB34K10141 WB34K10141 FRAME WINDOW PACK ASM
WB04K10017 WB04K10017 GASKET DRAWER ASM
WB04K10018 WB04K10018 GASKET LOWER
WB32K10052 WB32K10052 GASKET OVEN ASM
WB32K10044 WB32K10044 GASKET OVEN LIGHT
WB35K10019 WB35K10019 GASKET VENT

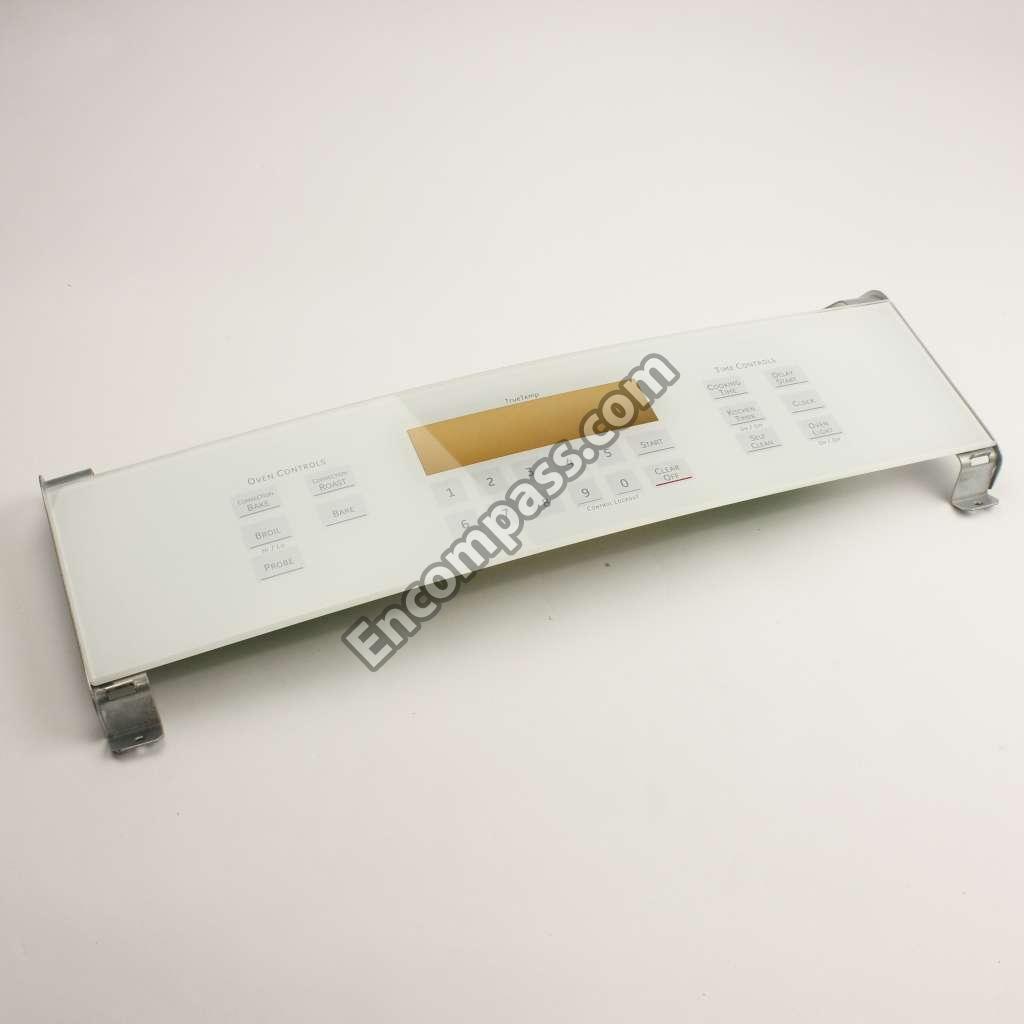

WB27K10273 WB27K10273 GLASS AND BOARD ASM
WB27K10274 WB27K10274 GLASS AND BOARD ASM
WB27K10390 WB27K10390 GLASS AND BOARD ASM
WB27K10395 WB27K10395 GLASS AND BOARD ASM
WB57K10076 WB57K10076 GLASS DOOR (BLK)
WB57K10078 WB57K10078 GLASS DOOR (WH)
WB57K10118 WB57K10118 GLASS DOOR ASM
WB31K10246 WB31K10246 GRATE CAST
WB31K10247 WB31K10247 GRATE CAST
WB31K10250 WB31K10250 GRATE-CAST (LEFT)
WB31K10248 WB31K10248 GRATEMIDDLE
WB31K10251 WB31K10251 GRATERIGHT
WB2K8 WB2K8 GROMMET
WB2X646 WB2X646 GROUND PLATE
WB34K0031 WB34K0031 GUARD RADIATION LFT
WB34K0030 WB34K0030 GUARD RADIATION RT
WB34K10029 WB34K10029 GUARD TERMINAL
WB34K10054 WB34K10054 GUARD TERMINAL COMP
WB53K10030 WB53K10030 GUARD TOP INSULATION
WB15T10141 WB15T10141 HANDLE PRF DOOR (WH)
WB15T10139 WB15T10139 HANDLE PRF DOOR BK
WB15T10137 WB15T10137 HANDLE PRF DRAWER (BQ)
WB15T10138 WB15T10138 HANDLE PRF DRAWER (WH)
WB15T10136 WB15T10136 HANDLE PRF DRAWER BK
WB18K10056 WB18K10056 HARNESS GROUND
WB18K10037 WB18K10037 HARNESS HV
WB18K10020 WB18K10020 HARNESS INTERFACE
WB18K10027 WB18K10027 HARNESS MODULE
WB18T10386 WB18T10386 HARNESS WIRE GLASS TOUCH
WB44K10015 WB44K10015 HEATING ELEMENT BOTTOM
WB44K10014 WB44K10014 HEATING ELEMENT TOP
WB10K10037 WB10K10037 HINGE DOOR
WB10K10036 WB10K10036 HINGE DOOR
WB10K10039 WB10K10039 HINGE DOOR
WB10K10040 WB10K10040 HINGE DOOR
WB14K10003 WB14K10003 HINGE RANGE TOP
WB24K10076 WB24K10076 IGNIT SWITCHES & HARNESS
WB24K10077 WB24K10077 IGNIT SWITCHES AND HARNESS
WB35K10222 WB35K10222 INSULATION
WB35K10053 WB35K10053 INSULATION DRAWER FRONT
WB35K10054 WB35K10054 INSULATION DRAWER TOP
WB35K10055 WB35K10055 INSULATION FOIL
WB35K10159 WB35K10159 INSULATION OVEN WRAP
WB02K10354 WB02K10354 INSULATION RANGE BACK
WB35K10212 WB35K10212 INSULATION VENT
WB35K10218 WB35K10218 INSULATION VENT
WB28K10831 WB28K10831 KIT CONVERSION LP
WB03K10320 WB03K10320 KNOB
WB03K10325 WB03K10325 KNOB
WB03K10350 WB03K10350 KNOB

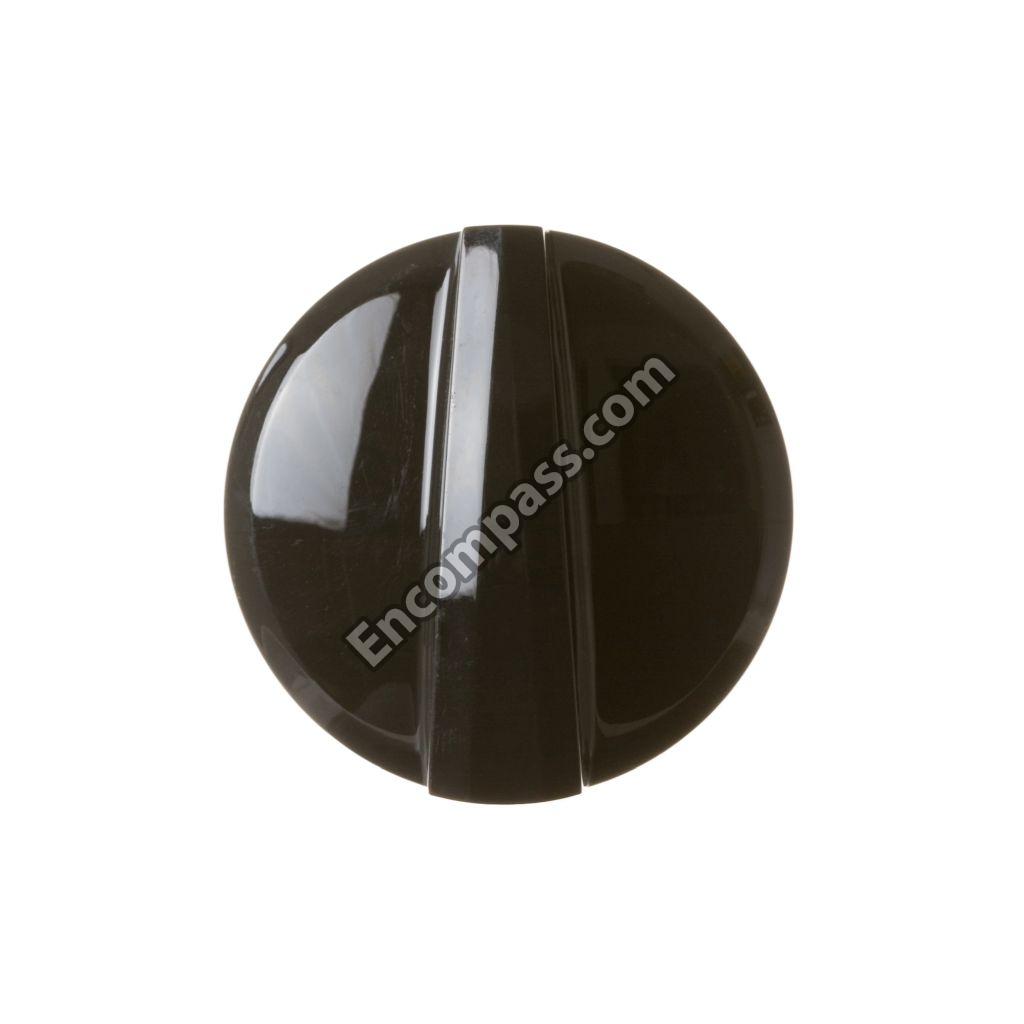

WB03K10326 WB03K10326 KNOB COVER ASM
WB03K10321 WB03K10321 KNOB COVER ASM
WB03K10334 WB03K10334 KNOB GE PROFILE ASM
WB03K10348 WB03K10348 KNOB GE PROFILE ASM
WB03K10333 WB03K10333 KNOB GE PROFILE ASM
WB03K10322 WB03K10322 KNOW
WB02K10349 WB02K10349 LAMP INSULATION
WB02K10358 WB02K10358 LATCH AUTOMATIC
WB25K10009 WB25K10009 LENS
WB25K10010 WB25K10010 LIGHT INDICATOR PILOT
WB18K10014 WB18K10014 LINE CORD KIT
WB55K10084 WB55K10084 LINER DOOR WELD ASSEMBLY
WB55K10024 WB55K10024 LINER DRAWER
31-10773 31-10773 LP INSTALL INSTRUCTIONS
WB36K10946 WB36K10946 MANIFOLD PANEL
WB36K10947 WB36K10947 MANIFOLD PANEL
WB02T10017 WB02T10017 NUT
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K10596 WB28K10596 ORIFICE HOLDER ASM
WB28K10388 WB28K10388 ORIFICE HOLDER LF
WB28K10389 WB28K10389 ORIFICE HOLDER LR
WB28K10735 WB28K10735 ORIFICE HOLDER RF
WB28K10424 WB28K10424 ORIFICE HOLDER RF
WB28K10390 WB28K10390 ORIFICE HOLDER RR
WB28K10839 WB28K10839 ORIFICE SPUD
WB28K10732 WB28K10732 ORIFICE SPUD
WB28K10734 WB28K10734 ORIFICE SPUD
WB28K10834 WB28K10834 ORIFICE SPUD
WB28K10733 WB28K10733 ORIFICE SPUD
WB28K10742 WB28K10742 ORIFICE SPUD
WB28K10287 WB28K10287 ORIFICE SPUD
WB28K10835 WB28K10835 ORIFICE SPUD LP
WB28K10215 WB28K10215 ORIFICE SPUD LP 86L
WB28K10214 WB28K10214 ORIFICE SPUD LP 88L
WB28K10737 WB28K10737 ORIFICE TUBING
WB28K10743 WB28K10743 ORIFICE TUBING
WB28K10736 WB28K10736 ORIFICE TUBING
WB28K10031 WB28K10031 ORIFICE-LP 63MM
WB28K10023 WB28K10023 ORIFICE-LP 89MM
WB16K10076 WB16K10076 OVAL BURNER ASSEMBLY
WB63K10224 WB63K10224 OVEN BACK BK
WB08T10002 WB08T10002 OVEN LAMP HO
WB53K10017 WB53K10017 OVEN TOP
WB48K10033 WB48K10033 PAN DRAWER
WB55K10025 WB55K10025 PANEL DRAWER
WB55K10026 WB55K10026 PANEL DRAWER
WB55K10023 WB55K10023 PANEL DRAWER
WB02K10064 WB02K10064 PANEL DRAWER SPACER
WB63K10203 WB63K10203 PANEL REAR BROIL
WB63K10124 WB63K10124 PANEL SIDE
WB63K10122 WB63K10122 PANEL SIDE
WB63K10119 WB63K10119 PANEL SIDE BK
WB63K10056 WB63K10056 PANEL SIDE BROIL
WB63K10055 WB63K10055 PANEL SIDE BROIL
WB14K10005 WB14K10005 PIN LOCATOR
WB14K10004 WB14K10004 PIN LOCATOR
WB02X0646 WB02X0646 PLATE-GROUND
WB24K10068 WB24K10068 PLUNGER SWITCH
31-14977 31-14977 PM MINI MANUAL
49-85188 49-85188 PM OWNERS AND INSTALL
49-85182 49-85182 PM OWNERS AND INSTALL
WB2X8309 WB2X8309 PR0BE COVER
WB19K10018 WB19K10018 PRESSURE REGULATOR
WB20T10024 WB20T10024 PROBE
WB34K10121 WB34K10121 PROBE RECEPTACLE & HARNESS
WB20X5050 WB20X5050 PROBE THERMISTOR
WB48K10010 WB48K10010 RACK BAKING DRAWER
WB48T10095 WB48T10095 RACK OVEN
WB02K10108 WB02K10108 RANGE ACCESS SPRING COVER
WB63K10229 WB63K10229 RANGE BACK
WB34K10137 WB34K10137 RANGE DOOR INSULATION GUARD
WB39K20 WB39K20 RANGE DRAWER MOUNTING BRACKET
WB34K10142 WB34K10142 RANGE FAN COVER
WB34K10128 WB34K10128 RANGE HEATING ELEMENT COVER
WB35K10221 WB35K10221 RANGE INSULATION
WB02K10182 WB02K10182 RANGE LEVELING LEG
WB48X20249 WB48X20249 RANGE OVEN RACK
WB34K30 WB34K30 RANGE RADIATION GUARD
WB34K31 WB34K31 RANGE RADIATION GUARD
WB13X26360 WB13X26360 RANGE SPARK MODULE 6+0
WB38K2 WB38K2 RANGE VENT BRACE
WB62K10127 WB62K10127 RANGETOP & BRKT ASM
WB62K10128 WB62K10128 RANGETOP & BRKT ASM
WB62K10126 WB62K10126 RANGETOP & BRKT ASM
WB10K10029 WB10K10029 RECEIVER HINGE
WB2X2030 WB2X2030 RETAINER
WB02K0030 WB02K0030 RETAINER-INSULATION VENT
WB31X23201 WB31X23201 REVERSIBLE GRIDDLE
WB28K10760 WB28K10760 ROUND MANIFOLD PIPE
WB1K44 WB1K44 SCEW LATCH
WB01K10047 WB01K10047 SCR 10-32 HXW 9/16 DWR
WB01K10042 WB01K10042 SCR 8-18 AB IHW 3/8 SN
WB01K0084 WB01K0084 SCREW
WB01K0001 WB01K0001 SCREW
WB1K5119 WB1K5119 SCREW
WB01K10091 WB01K10091 SCREW
WB1K5062 WB1K5062 SCREW
WB1X1261 WB1X1261 SCREW
WB1X5716 WB1X5716 SCREW
WB1X536 WB1X536 SCREW
WB1K84 WB1K84 SCREW & WASH
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5716 WB01X5716 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB01K0031 WB01K0031 SCREW 10-16 PL PNT 2.5 S
WB01K10009 WB01K10009 SCREW 10-32 MTG HANDLE
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB1K78 WB1K78 SCREW 12-14
WB01K0078 WB01K0078 SCREW 12-14, 5/8S
WB01K10018 WB01K10018 SCREW 8-18 (BISQUE)
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB1K5 WB1K5 SCREW 8-18 X 1/2 -INCH
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB01K10012 WB01K10012 SCREW 8-22 PL 1HX 71
WB01K10002 WB01K10002 SCREW 8-32
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB01K0044 WB01K0044 SCREW DOOR LATCH
WB01X1261 WB01X1261 SCREW GROUND
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K10080 WB01K10080 SCREW THERMOSTAT
WB1X5731D WB1X5731D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB23X5340 WB23X5340 SENSOR-OVEN
WB34K0013 WB34K0013 SHIELD HEAT INNER
WB63K10248 WB63K10248 SIDE OVEN
WB63K10249 WB63K10249 SIDE OVEN
WB63K10247 WB63K10247 SIDE OVEN
WB53K10056 WB53K10056 SIDE OVEN
WB53K10057 WB53K10057 SIDE OVEN
WB39K10025 WB39K10025 SLIDE & BEARING ASM
WB39K10026 WB39K10026 SLIDE & BEARING ASM
WB39K10027 WB39K10027 SLIDE INTERNAL
WB16K10070 WB16K10070 SMALL BURNER V 5K
WB02K10104 WB02K10104 SPACER BASE
WB02K10270 WB02K10270 SPACER BASE
WB01K0002 WB01K0002 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB02K10111 WB02K10111 STRIKE
WB63K10232 WB63K10232 SUPPORT BASE
WB63K10233 WB63K10233 SUPPORT BASE
WB63K10255 WB63K10255 SUPPORT BASE
WB63K10256 WB63K10256 SUPPORT BASE
WB63K10230 WB63K10230 SUPPORT BASE
WB63K10231 WB63K10231 SUPPORT BASE
WB02K10028 WB02K10028 SUPPORT BROIL
WB35K10028 WB35K10028 SUPPORT CATALYST
WB38K10004 WB38K10004 SUPPORT SMOKE ELIMINATOR
WB02K10297 WB02K10297 SUPPORT VALVE
WB17T10011 WB17T10011 TERMINAL BLOCK ASM
WB20K10017 WB20K10017 THERMOSTAT
WB63K10234 WB63K10234 TOP DRAWER
WB07K10250 WB07K10250 TRIM BOTTOM ASM
WB07K10232 WB07K10232 TRIM BOTTOM ASM
WB36K10703 WB36K10703 TRIM CONTROL
WB36K10704 WB36K10704 TRIM CONTROL
WB07K10258 WB07K10258 TRIM POST LF
WB07K10236 WB07K10236 TRIM POST LF
WB07K10457 WB07K10457 TRIM POST LF
WB07K10237 WB07K10237 TRIM POST RT
WB07K10259 WB07K10259 TRIM POST RT
WB07K10458 WB07K10458 TRIM POST RT
WB07K10417 WB07K10417 TRIM SIDE
WB28X24772 WB28X24772 TUBE MANIFOLD SUPPLY
WB21K10113 WB21K10113 VALVE BURNER 270
WB21K10114 WB21K10114 VALVE BURNER 270
WB21K10122 WB21K10122 VALVE BURNER 270
WB21K10117 WB21K10117 VALVE BURNER 270 HI-CAP
WB2K24 WB2K24 VALVE COVER
WB38K10008 WB38K10008 VENT ASSEMBLY
WB07K10420 WB07K10420 VENT TRIM
WB07K10421 WB07K10421 VENT TRIM
WB07K10345 WB07K10345 VENT TRIM SS
WB16K10046 WB16K10046 VENTURI 15K LP
WB16K10062 WB16K10062 VISION BURNER XL
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB56K20 WB56K20 WIND PACK LG
Main Menu x
