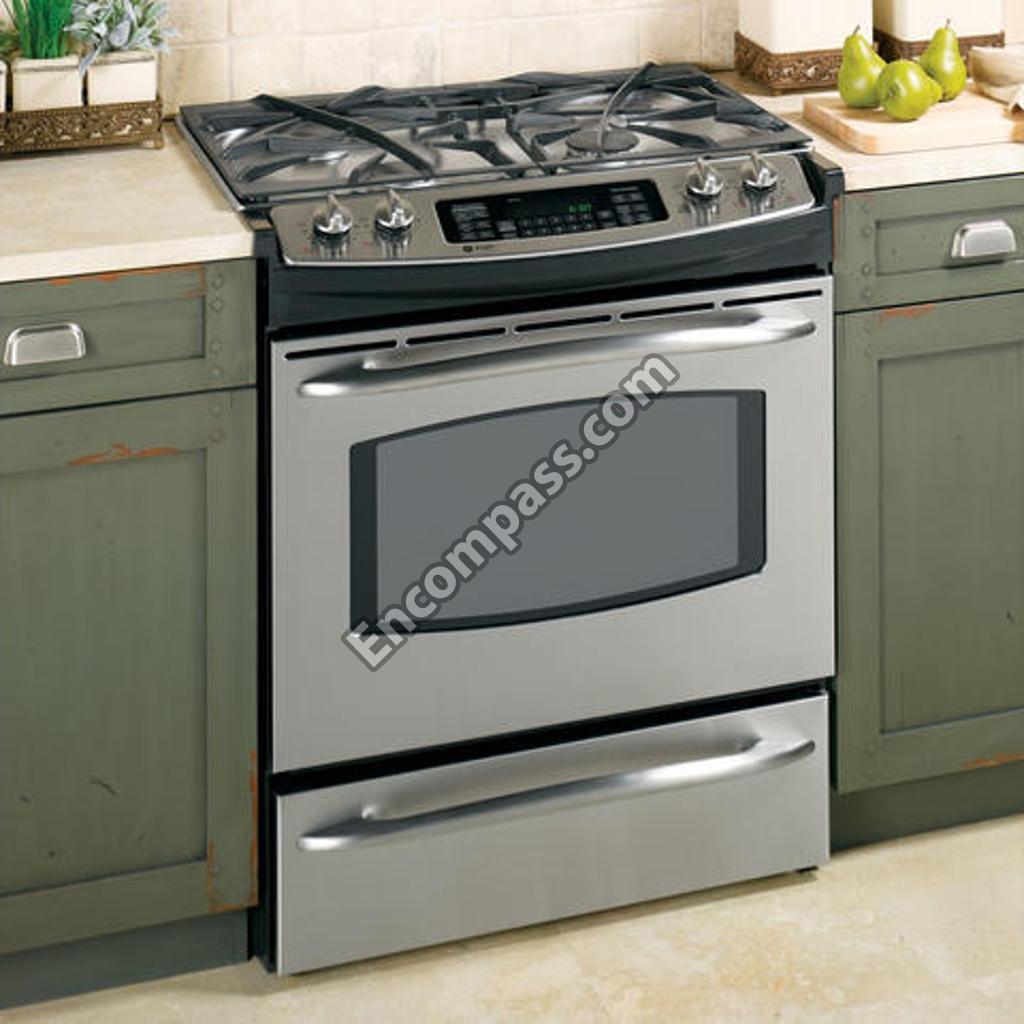

Model Image
Manufacturer

GE

Model Number

P2S975SEM3SS

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB29K10024 WB29K10024 ASM BURNER CAP (12000)
WB29K10022 WB29K10022 ASM BURNER CAP (5000)
WB29K10023 WB29K10023 ASM BURNER CAP (9500)
WB36K10239 WB36K10239 BACKSPLASH FILLER-BLACK
WB16T10047 WB16T10047 BASE BURNER 18K-SIMMER
WB39T10012 WB39T10012 BASE RIVET ASM
WB26T10041 WB26T10041 BLOWER TANGENTIAL 60MM
WB26T10042 WB26T10042 BLOWER TANGENTIAL 60MM
WB64T10066 WB64T10066 BOTTOM BURN BOX
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB02T10242 WB02T10242 BRACKET
WB02T10137 WB02T10137 BRACKET ASM ANTI TIP
WB02T10341 WB02T10341 BRACKET BLOWER
WB02T10152 WB02T10152 BRACKET CAPACITOR MTR
WB02T10348 WB02T10348 BRACKET MAINTOP
WB02T10190 WB02T10190 BRACKET REGULATOR
WB02T10270 WB02T10270 BRACKET SWITCH
WB16T10046 WB16T10046 BURNER 12K
WB16K10055 WB16K10055 BURNER MEDIUM (9500)
WB16K10070 WB16K10070 BURNER-SMALL
WB13T10067 WB13T10067 CAP BURNER
WB27T10503 WB27T10503 CAPACITOR MOTOR
WB02K10362 WB02K10362 CKT BRACKET MDM AND LGE
WB02K10361 WB02K10361 CKT BRACKET MEDIUM
WB02K10360 WB02K10360 CKT BRACKET SMALL
WB02T10261 WB02T10261 CLAMP
WB6X93 WB6X93 CLAMP
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB27T10831 WB27T10831 CONTROL OVN (ERC3HP)
WB02X10742 WB02X10742 CONTROL PANEL GASKET
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB02T10347 WB02T10347 COVER DUCT
WB02T10224 WB02T10224 COVER FAN (CONVEX) UPPER
WB2X8309 WB2X8309 COVER PROBE
WB01T10022 WB01T10022 DOOR BUMPER
WB02X9037 WB02X9037 DOOR HANDLE SPACER-BLACK
WB57T10353 WB57T10353 DOOR OTR ASM 30 (SS)
WB55T10178 WB55T10178 DRAWER BODY ASM MECH
WB48T10013 WB48T10013 DRAWER SUPPORT FRT
WB01K10037 WB01K10037 ECONOMIC NUT
WB28T10091 WB28T10091 ELBOW
WB13K10014 WB13K10014 ELECTRODE TOP
WB13T10065 WB13T10065 ELECTRODE TOP
WB44K10008 WB44K10008 ELEMENT BAKE
WB44T10053 WB44T10053 ELEMENT CONVX
WB07T10535 WB07T10535 EXTENSION REAR
WB07T10537 WB07T10537 EXTENSION SIDE
WB07T10536 WB07T10536 EXTENSION SIDE
WB63T10034 WB63T10034 FALSE BOTTOM
WB63T10083 WB63T10083 FRAME FRT LOWER
WB02T10466 WB02T10466 GASKET MAINTOP
WB02T10320 WB02T10320 GASKET MAINTOP LH
WB02T10319 WB02T10319 GASKET MAINTOP RH
WB04T10050 WB04T10050 GASKET OVEN DOOR
WB27T11046 WB27T11046 GLASS TOUCH ASM (SS)
WB31T10135 WB31T10135 GRATE CAST ASSEMBLY LEFT
WB31T10134 WB31T10134 GRATE CAST ASSEMBLY RIGHT
WB02T10461 WB02T10461 GRATE FOOT
WB02T10489 WB02T10489 GROMMET
WB15T10190 WB15T10190 HANDLE 30 ASSEMBLY (PRF-SS)
WB18T10389 WB18T10389 HARNESS SWITCH
WB18T10393 WB18T10393 HARNESS WIRE BURNER
WB18T10390 WB18T10390 HARNESS WIRE PROBE
WB16T10038 WB16T10038 HEAD BURNER MAIN
WB10T10085 WB10T10085 HINGE DOOR LT
WB10T10084 WB10T10084 HINGE DOOR RT
WB10T10097 WB10T10097 HINGE MAINTOP LEFT
WB10T10096 WB10T10096 HINGE MAINTOP RT
WB02T10289 WB02T10289 HUB BLADE ASM
WB28T10114 WB28T10114 INJET BURNER 18K
WB36T10661 WB36T10661 INSERT PNL CNTL
31-10482 31-10482 INSTRUCTION INSTALL
31-10643 31-10643 INSTRUCTION LP
31-10651 31-10651 INSTRUCTIONS INSTALL
31-10641 31-10641 INSTRUCTIONS INSTALL
WB35T10162 WB35T10162 INSULATION BACK
WB35T10090 WB35T10090 INSULATION BACK & BTM
WB35T10161 WB35T10161 INSULATION BBB
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10187 WB35T10187 INSULATION TOP
WB35T10089 WB35T10089 INSULATION TOP & SDS OTR
WB03T10262 WB03T10262 KNOB ASM
WB25T10096 WB25T10096 LAMP HALOGEN ASM
WB49X29679 WB49X29679 LAMP HALOGEN UPPR 50W
WB14T10069 WB14T10069 LATCH OVN
WB02X10521 WB02X10521 LEG LEVELER
WB25T10027 WB25T10027 LENS OVEN LAMP
WB55T10179 WB55T10179 LINING OVN DR ASM
WB01K5046 WB01K5046 LOCKWASHER
WB61T10142 WB61T10142 MAINTOP (SS)
WB61T10168 WB61T10168 MAINTOP SS (FORMED)
WB28T10201 WB28T10201 MANIFOLD PIPE
31-14515 31-14515 MANUAL MINI & WD ASM
49-80526 49-80526 MANUAL USE & CARE
WB13T10046 WB13T10046 MODULE SPARK (4+0)
WB26T10033 WB26T10033 MOTOR PSC CONV
WB17T10021 WB17T10021 MOUNT TERMINAL BLOCK
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB28T10202 WB28T10202 ORIFICE SPUD (NG MAIN)
WB28T10196 WB28T10196 ORIFICE SPUD 130 NG
WB28T10197 WB28T10197 ORIFICE SPUD 145 NG
WB28T10198 WB28T10198 ORIFICE SPUD 65 LP
WB28T10199 WB28T10199 ORIFICE SPUD 85 LP
WB28T10200 WB28T10200 ORIFICE SPUD 90 LP
WB28T10195 WB28T10195 ORIFICE SPUD 95 NG
WB28T10117 WB28T10117 ORIFICE SPUD LP MAIN
WB28T10116 WB28T10116 ORIFICE SPUD NG SIMMER
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB02T10234 WB02T10234 PANEL ACCESS WIRE
WB36T11009 WB36T11009 PANEL CONTROL ASM (BK)
WB56T10176 WB56T10176 PANEL DRAWER ASM
WB02X8309 WB02X8309 PROBE COVER
WB20T10024 WB20T10024 PROBE THERMISTOR
WB48T10092 WB48T10092 RACK OVEN (SC)
WX09X10035 WX09X10035 RANGE CORD 4' 3 PRONG
WB01K10112 WB01K10112 RANGE ELECTRODE CLIP
WB07T10631 WB07T10631 RANGE SIDE TRIM - RIGHT - BLACK
WB10T10083 WB10T10083 RECEIVER HINGE
WB19T10075 WB19T10075 REGULATOR CONVERT PRESS
WB02T10184 WB02T10184 RETAINER GLASS (BLK)
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB02T10342 WB02T10342 RETAINER INSLN BACK
WB02T10372 WB02T10372 RETAINER INSLN BTM
WB02T10371 WB02T10371 RETAINER INSLN OVN DR
WB02T10284 WB02T10284 RETAINER INSLN SDE
WB02T10343 WB02T10343 RETAINER INSLN TOP
WB18T10370 WB18T10370 RIBBON CONNECTOR GLS TCH
WB02T10346 WB02T10346 RING RETAINING
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI
WB01T10106 WB01T10106 SCR 6-32 CA OVT-15 5/8
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01T10110 WB01T10110 SCR 8-18X.450 AB FLT20 S
WB01M0001 WB01M0001 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01X1178 WB01X1178 SCREW
WB01K5029 WB01K5029 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1428 WB01X1428 SCREW
WB01X1141 WB01X1141 SCREW
WB01K5028 WB01K5028 SCREW
WB1K5029 WB1K5029 SCREW
WB1X1178 WB1X1178 SCREW
WH2X1186 WH2X1186 SCREW
WB01T10091 WB01T10091 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10048 WB01T10048 SCREW 10-16 SHLDR TYPE A
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB1X5364 WB1X5364 SCREW MTG
WB01T10092 WB01T10092 SCREW SIMMER MAIN HD
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB01X1118 WB01X1118 SCREW-NICKEL
WH2X941D WH2X941D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB23T10015 WB23T10015 SENSOR ASM
WB34T10079 WB34T10079 SHIELD VENT ASSEMBLY
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB02T10452 WB02T10452 SPACER REINFORCEMENT
WB2X9037 WB2X9037 SPACER-HNDL
WB09T10011 WB09T10011 SPRING IGNITER
WB02T10455 WB02T10455 STUD COMPOSITE
WB26T10015 WB26T10015 SUPPORT OVN CAV
WB02X33180 WB02X33180 SUPPORT REAR
WB2K5238 WB2K5238 SW BRACKET
WB02K5238 WB02K5238 SWITCH BRACKET
WB24T10140 WB24T10140 SWITCH LIMIT (L1)
WB24T10141 WB24T10141 SWITCH LIMIT BIMETAL
WB24T10142 WB24T10142 SWITCH LIMIT BIMETAL
WB24T10160 WB24T10160 SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 TAPE FOAM
WB17T10011 WB17T10011 TERMINAL BLOCK ASM
WB07T10499 WB07T10499 TRIM ASSEMBLY
WB07T10521 WB07T10521 TRIM VERT SDE LT (BK)
WB07T10520 WB07T10520 TRIM VERT SDE RT (BK)
WB07T10632 WB07T10632 TRIM VERT SIDE LT (BK)
WB28T10191 WB28T10191 TUBE
WB28T10192 WB28T10192 TUBE
WB28T10189 WB28T10189 TUBE BURNER ASM
WB28T10188 WB28T10188 TUBE BURNER ASM
WB28T10190 WB28T10190 TUBE BURNER ASM
WB28T10193 WB28T10193 TUBE BURNER MAIN
WB28T10194 WB28T10194 TUBE BURNER SIMMER
WB38X33650 WB38X33650 TUBE VENT
WB44T10043 WB44T10043 UNIT BROIL ASM (DLX)
WB06X0093 WB06X0093 VALVE CLAMP
WB19T10070 WB19T10070 VALVE GAS
WB21X22079 WB21X22079 VALVE KIT
WB21X22071 WB21X22071 VALVE KIT
WB19T10068 WB19T10068 VALVE LOCKOUT MOTORIZED
WB28T10075 WB28T10075 VENT INLET DUCT
WB01X5573 WB01X5573 WASHER
WB1K5046 WB1K5046 WASHER
WB1X5573 WB1X5573 WASHER
WB02T10323 WB02T10323 WASHER IGNITER
WB48T10068 WB48T10068 WEDGE DRAWER
WB63T10084 WB63T10084 WRAPPER OVEN CAV ASSEMBLY LO
