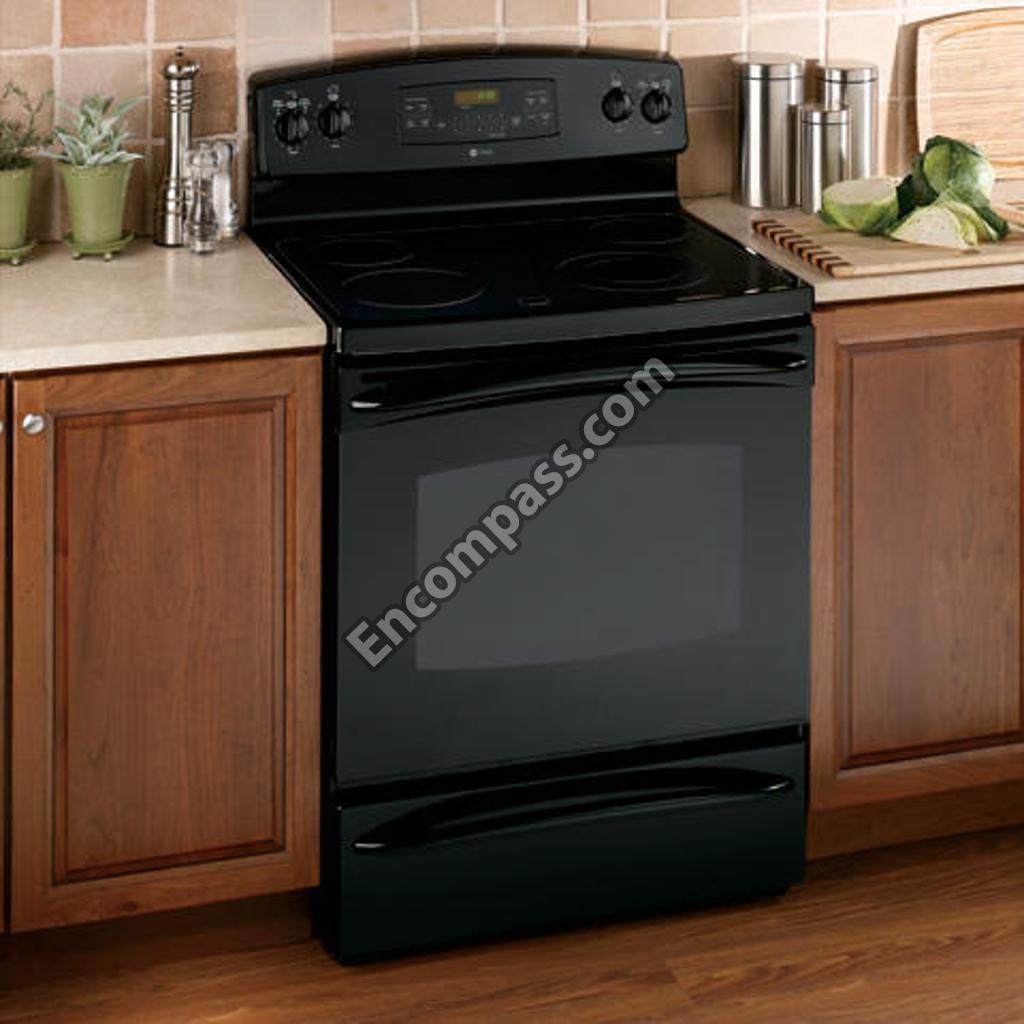

Model Image
Manufacturer

GE

Model Number

PB750DN1BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02T10415 WB02T10415 ANTI TIP BKT
WB63T10147 WB63T10147 BACK MAIN
WB2X7694 WB2X7694 BAIL
WB63X28540 WB63X28540 BASE RIVET ASM
WB63X25881 WB63X25881 BASE RIVET ASM
WB02T10133 WB02T10133 BRACE CHASSIS (RAD)
WB02T10132 WB02T10132 BRACE CHASSIS (RAD)
WB34X26004 WB34X26004 BRACE CHASSIS RADIANT LT
WB02T10463 WB02T10463 BRACE CHASSIS RADIANT RT
WB02T10279 WB02T10279 BRACKET RADIANT ELEMENT
WB02T10280 WB02T10280 BRACKET RADIANT ELEMENT
WB01T10021 WB01T10021 BUMPER RANGETOP
WB02X45146 WB02X45146 CLIP CABLE
WB01X0119 WB01X0119 CONTOURED WASHER
WB27T10502 WB27T10502 CONTROL OVN ERC3B
WB34T10128 WB34T10128 COVER BACK
WB02T10532 WB02T10532 COVER CONTROL
WB37T10007 WB37T10007 COVER CONTROL
WB34T10011 WB34T10011 COVER RECEPTACLE
WB02T10047 WB02T10047 CRYSTAL MOUNT
WB02T10046 WB02T10046 CRYSTAL RETAINER
WB56T10063 WB56T10063 DOOR FRAME
WB01T10026 WB01T10026 DOOR PAD
WB55T10178 WB55T10178 DRAWER BODY ASSEMBLY MECH
WB48T10013 WB48T10013 DRAWER SUPPORT FRT
WB30T10133 WB30T10133 ELEMENT RADIANT 9 DUAL
WB34T10083 WB34T10083 ENCLOSURE RANGETOP
WB36T10220 WB36T10220 END CAP LT BLACK
WB36T10233 WB36T10233 END CAP LT/WHITE
WB36T10219 WB36T10219 END CAP RT/BLACK
WB36T10232 WB36T10232 END CAP RT/WHITE
WB63T10096 WB63T10096 FRAME FRONT
WB02T10027 WB02T10027 GASKET OVEN LIGHT
WB64X0093 WB64X0093 GLASS CLEANER
WB56T10190 WB56T10190 GLASS OVN DR (BK)
WB56T10192 WB56T10192 GLASS OVN DR (WH)
WB15T10141 WB15T10141 HANDLE PRF DOOR (WH)
WB15T10139 WB15T10139 HANDLE PRF DOOR BK
WB15T10136 WB15T10136 HANDLE PRF DRAWER BK
WB10T10067 WB10T10067 HINGE DOOR
WB10T10068 WB10T10068 HINGE RECEIVER
WB24T10026 WB24T10026 INF SWITCH CONTROL (2000W)
WB24T10028 WB24T10028 INFINITE SWITCH CONTROL
31-10620 31-10620 INSTRUCTION INSTALL
31-10619 31-10619 INSTRUCTION INSTALL
31-10574 31-10574 INSTRUCTIONS INSTALL
WB35T10077 WB35T10077 INSULATION DOOR
WB35T10114 WB35T10114 INSULATION DOOR
WB35T10113 WB35T10113 INSULATION OVN BACK/BTTM
WB35T10209 WB35T10209 INSULATION OVN WRPR
WB03T10078 WB03T10078 KNOB
WB03T10079 WB03T10079 KNOB PROFILE SU
WB36X192 WB36X192 LAMP COV ASM
WB14T10045 WB14T10045 LATCH ASM MOTORIZED
WB02X10521 WB02X10521 LEG LEVELER
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB25T10031 WB25T10031 LIGHT INDICATOR ASM LT
WB25T10034 WB25T10034 LIGHT INDICATOR ASM RT
WB55T10174 WB55T10174 LINER OVEN DOOR ASM
WB10T10002 WB10T10002 MAINTOP HINGE
WB02T10026 WB02T10026 MAINTOP STRIKE
31-14723 31-14723 MANUAL MINI & WD ASM
49-80489 49-80489 MANUAL USE & CARE
WB25T10050 WB25T10050 MODULE INDICATOR LIGHT
WB17T10021 WB17T10021 MOUNT TERMINAL BLOCK
WB04T10086 WB04T10086 OVEN DOOR GASKET
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB02T10037 WB02T10037 OVEN LIGHT CUP
WB48T10011 WB48T10011 OVEN RACK
WB27T11064 WB27T11064 OVERLAY SUPPORT ASM
WB27T11063 WB27T11063 OVERLAY SUPPORT ASSEMBLY
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB56T10267 WB56T10267 PANEL DRAWER
WB56T10268 WB56T10268 PANEL DRAWER
WB56T10173 WB56T10173 PANEL DRAWER
WB56X28881 WB56X28881 PANEL SIDE (BK)
WB56X28884 WB56X28884 PANEL SIDE (WH)
WB48T10061 WB48T10061 RACK OVEN (SC)
WB02T10041 WB02T10041 RADIANT ELEMENT BRACKET
WB09T10002 WB09T10002 RADIANT SPRING ELEMENT
WB30T10129 WB30T10129 RANGE 6-INCH RADIANT SURFACE ELEMENT
WB30T10132 WB30T10132 RANGE 8-INCH RADIANT SURFACE ELEMENT
WB24T10147 WB24T10147 RANGE HIGH AMP SWITCH
WB36X0389 WB36X0389 RANGE OVEN BULB COVER
WB62T10709 WB62T10709 RANGETOP GLASS ASM BK
WB62T10710 WB62T10710 RANGETOP GLASS ASM WH
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB56T10178 WB56T10178 RETAINER OVN DR INSLN
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01K5156 WB01K5156 SCREW
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01K5200 WB01K5200 SCREW
WB1K5156 WB1K5156 SCREW
WD2X432 WD2X432 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10018 WB01T10018 SCREW 10-16 PL PNT 2 5 S
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB1K5167 WB1K5167 SCREW 8-18 X 3/8
WB01K5167 WB01K5167 SCREW 8-18 X 3/8""
WD02X0432 WD02X0432 SCREW 8-18 X 5/16 BK
WB01T10053 WB01T10053 SCREW 8-32 TPT FLR 270
WB01X1261 WB01X1261 SCREW GROUND
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 SCREW-10AB
WH2X941D WH2X941D SCREW-PKG 12
WZ4X245D WZ4X245D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB02T10306 WB02T10306 SHIELD HEAT (BKGD)
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB02T10175 WB02T10175 SPACER
WB02X33180 WB02X33180 SUPPORT REAR
WB24T10063 WB24T10063 SWITCH INF CONTROL (DUAL)
WB24T10125 WB24T10125 SWITCH INFINITE
WB01T10052 WB01T10052 TAPE FOAM
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB07T10485 WB07T10485 TRIM CONTROL (BLACK)
WB36T10844 WB36T10844 TRIM CONTROL (WH)
WB07X32930 WB07X32930 TRIM DR BTM CHNL
WB07X42948 WB07X42948 TRIM DR BTM CHNL
WB07X42966 WB07X42966 TRIM DR BTM CHNL
WB07T10517 WB07T10517 TRIM LATCH
WB07T10488 WB07T10488 TRIM VENT DOOR (PRF-BK)
WB07T10490 WB07T10490 TRIM VENT DOOR (PRF-WH)
WB38T10022 WB38T10022 TUBE VENT RADIANT
WB44T10011 WB44T10011 UNIT BAKE AS
WB44T10012 WB44T10012 UNIT BROIL A
WB38X33648 WB38X33648 VENT TUBE
WB38T10012 WB38T10012 VENT TUBE ASSEMBLY
WB35T10017 WB35T10017 VENT TUBE INSULATION
WB01T10112 WB01T10112 WASHER ALUM SHAPED
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB48T10068 WB48T10068 WEDGE DRAWER
WB63X20942 WB63X20942 WRAPPER OVEN CAVITY
