Model Image
Manufacturer

GE

Model Number

PB905DT1BB

Description

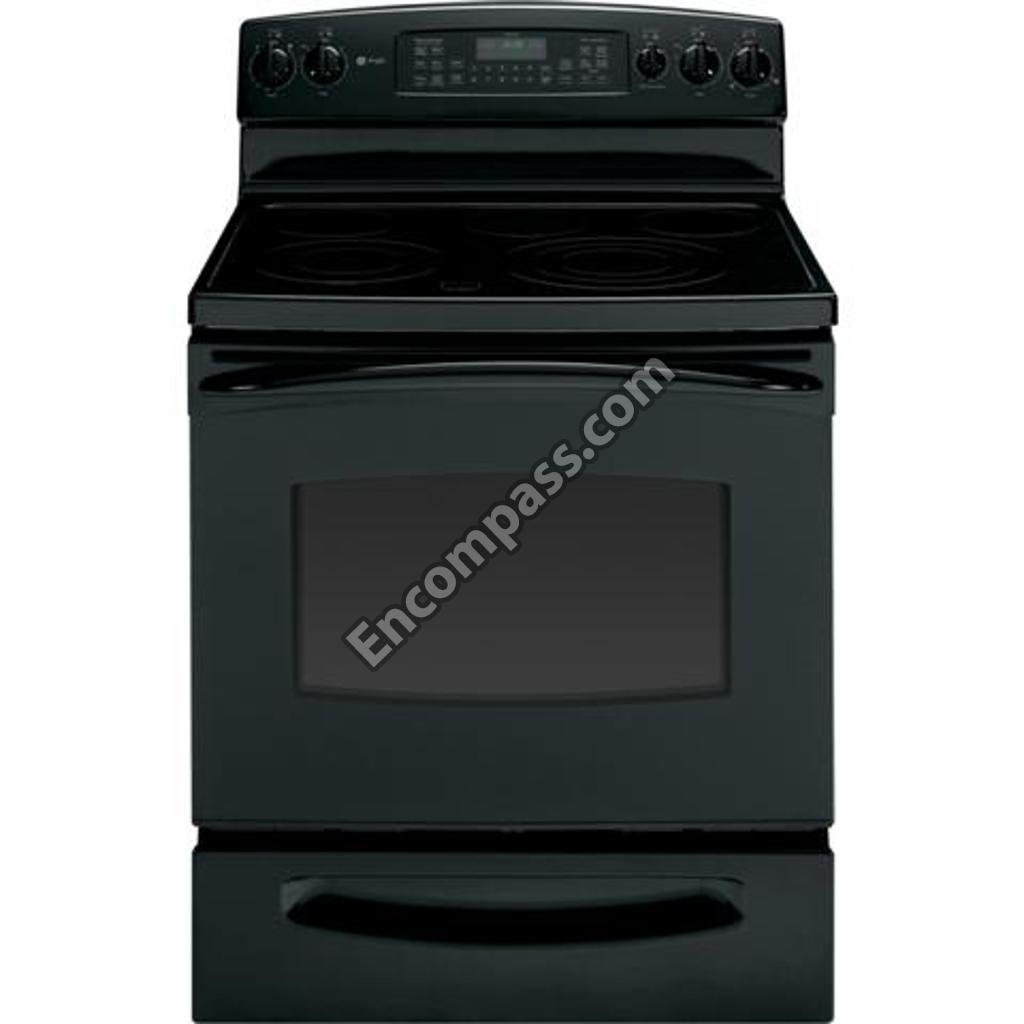

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
WB63T10147 WB63T10147 BACK MAIN
WB63X28540 WB63X28540 BASE RIVET ASM
WB63X25881 WB63X25881 BASE RIVET ASM
WB63T10164 WB63T10164 BODY OVEN WELD ASM
WB02T10463 WB02T10463 BRACE CHASSIS RADIANT RT
WB02T10578 WB02T10578 BRACKET ANTITIP ASM
WB02T10194 WB02T10194 BRACKET CAPACITOR
WB02T10471 WB02T10471 BRACKET CONV FAN
WB27T11394 WB27T11394 BRACKET GLASS ASM
WB21X22134 WB21X22134 BRACKET GLASS ASM
WB02T10464 WB02T10464 BRACKET RADIANT ELEMENT
WB01T10021 WB01T10021 BUMPER RANGETOP
WB27T10662 WB27T10662 CAPACITOR MOTOR
WB02X45146 WB02X45146 CLIP CABLE
WB01X0119 WB01X0119 CONTOURED WASHER

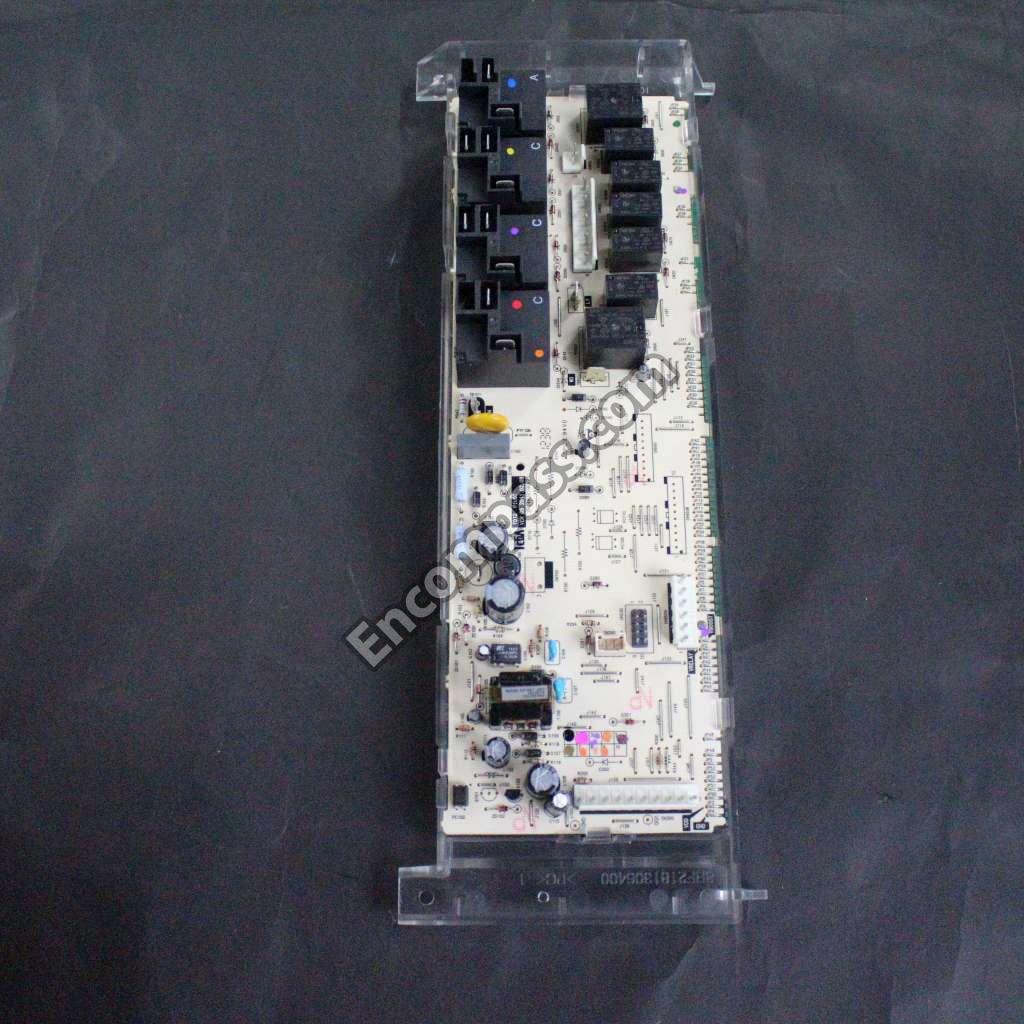

WB27T11352 WB27T11352 CONTROL BOARD T012
WB24T10145 WB24T10145 CONTROL SURF ELEM
WB34T10128 WB34T10128 COVER BACK
WB02T10532 WB02T10532 COVER CONTROL
WB34X20082 WB34X20082 COVER FAN CONV
WB2X8309 WB2X8309 COVER PROBE
WB34T10011 WB34T10011 COVER RECEPTACLE
WB01T10026 WB01T10026 DOOR PAD
WB55T10178 WB55T10178 DRAWER BODY ASM MECH
WB48T10013 WB48T10013 DRAWER SUPPORT FRT
WB44T10086 WB44T10086 ELEMENT CONVX ASM
WB44X31764 WB44X31764 ELEMENT CONVX ASM
WB30T10126 WB30T10126 ELEMENT HALIANT 12 TRPL
WB30T10129 WB30T10129 ELEMENT RADIANT 6 IN
WB30T10124 WB30T10124 ELEMENT RADIANT 6 WARMER
WB30T10133 WB30T10133 ELEMENT RADIANT 9 DUAL
WB34T10127 WB34T10127 ENCLOSURE RANGETOP
WB56T10287 WB56T10287 FRAME DOOR SIDE (BK)
WB56T10290 WB56T10290 FRAME DOOR SIDE (WH)
WB63T10165 WB63T10165 FRAME FRONT 5.0
WB01T10079 WB01T10079 GASKET CONV FAN
WB04T10086 WB04T10086 GASKET OVEN
WB64X0093 WB64X0093 GLASS CLEANER
WB56T10190 WB56T10190 GLASS OVN DR (BK)
WB56T10192 WB56T10192 GLASS OVN DR (WH)
WB15T10141 WB15T10141 HANDLE PRF DOOR (WH)
WB15T10139 WB15T10139 HANDLE PRF DOOR BK
WB18T10498 WB18T10498 HARNESS WIRE HB
WB18T10569 WB18T10569 HARNESS WIRE INFINITE
WB18T10513 WB18T10513 HARNESS WIRE MAINTOP
WB18T10394 WB18T10394 HARNESS WIRE PROBE
WB18T10542 WB18T10542 HARNESS WIRE T012 GT
WB10T10067 WB10T10067 HINGE DOOR
WB10T10068 WB10T10068 HINGE RECEIVER
WB02T10289 WB02T10289 HUB BLADE ASM
WB35T10210 WB35T10210 INSULATION CONV
WB35T10077 WB35T10077 INSULATION DOOR
WB35T10114 WB35T10114 INSULATION DOOR
WB35T10022 WB35T10022 INSULATION HIDDEN BAKE
WB35T10251 WB35T10251 INSULATION LOCK
WB35T10209 WB35T10209 INSULATION OVN WRPR
WB18X30704 WB18X30704 JUMPER
WB03T10332 WB03T10332 KNOB ASM
WB03T10333 WB03T10333 KNOB ASM
WB03T10335 WB03T10335 KNOB ASM
WB03T10334 WB03T10334 KNOB ASM
WB25T10097 WB25T10097 LAMP HALOGEN ASM
WB08T10045 WB08T10045 LAMP HALOGEN G9
WB14T10086 WB14T10086 LATCH ASSEMBLY MOTORIZED
WB02X10521 WB02X10521 LEG LEVELER
WB25T10042 WB25T10042 LENS
WB25X22800 WB25X22800 LIGHT INDICATOR ASM LT
WB25T10090 WB25T10090 LIGHT INDICATOR ASM RT
WB55T10190 WB55T10190 LINER OVEN DOOR ASSEMBLY
WB62T10758 WB62T10758 MAINTOP & GLASS ASM
WB62T10748 WB62T10748 MAINTOP & GLASS ASM
WB02T10026 WB02T10026 MAINTOP STRIKE
WB26T10037 WB26T10037 MOTOR PSC CONV
WB17T10021 WB17T10021 MOUNT TERMINAL BLOCK
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB25T10013 WB25T10013 OV LAMP LENS
WB35T10023 WB35T10023 OVEN BACK INSULATION
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB48T10083 WB48T10083 OVEN RACK
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB56T10267 WB56T10267 PANEL DRAWER
WB56T10268 WB56T10268 PANEL DRAWER
WB56X28881 WB56X28881 PANEL SIDE (BK)
WB56X28884 WB56X28884 PANEL SIDE (WH)
WB10T10125 WB10T10125 PIN RANGETOP HINGE
WB10T10116 WB10T10116 PIN RANGETOP HINGE
WB02T10551 WB02T10551 PLATE COVER
WB07X27823 WB07X27823 PLATE END LT
WB36T11207 WB36T11207 PLATE END LT
WB36T11204 WB36T11204 PLATE END RT
WB36T11206 WB36T11206 PLATE END RT
31-10816 31-10816 PM INSTRUCTIONS INSTALL
31-15001 31-15001 PM MANUAL MINI & WD ASM
49-80633 49-80633 PM OWNERS MANUAL
WB02X8309 WB02X8309 PROBE COVER
WB20T10024 WB20T10024 PROBE THERMISTOR
WB34X26004 WB34X26004 RANGE RADIANT LEFT CHASSIS BRACE
WB02X29562 WB02X29562 RANGETOP BUMPER
WB02T10509 WB02T10509 REFECTOR PAN FOR BAKE ELEMENT
WB56T10320 WB56T10320 RETAINER GLASS OVN DR
WB56T10321 WB56T10321 RETAINER GLASS OVN DR
WB56T10178 WB56T10178 RETAINER OVN DR INSLN
WB01T10103 WB01T10103 SCR 10-16 AB HXW .532
WB01T10072 WB01T10072 SCR 10-16 AB IHW .625 NI
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB01T10124 WB01T10124 SCR 8-18 AB SKT25 3/4 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WR01X10602 WR01X10602 SCR 8-32 AB IHWS 3/8 S
WB01X1253 WB01X1253 SCREW
WB01K5156 WB01K5156 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WZ04X0044 WZ04X0044 SCREW
WD2X432 WD2X432 SCREW
WB1K5156 WB1K5156 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10018 WB01T10018 SCREW 10-16 PL PNT 2 5 S
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB01T10019 WB01T10019 SCREW 8-18 AB TRT 7/16 SN
WD02X0432 WD02X0432 SCREW 8-18 X 5/16 BK
WB01T10053 WB01T10053 SCREW 8-32 TPT FLR 270
WB01T10047 WB01T10047 SCREW 8-32 X 625 M HXW S
WB01X1261 WB01X1261 SCREW GROUND
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WH2X941D WH2X941D SCREW-PKG 12
WZ4X245D WZ4X245D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB02X28994 WB02X28994 SHIELD HEAT BKGD
WB02T10468 WB02T10468 SHIELD HEAT BKGD
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB49T10007 WB49T10007 SIDE REFLECTOR
WB02T10175 WB02T10175 SPACER
WB09X40389 WB09X40389 SPRING RADIANT ELEMENT
WB02X33180 WB02X33180 SUPPORT REAR
WB24T10162 WB24T10162 SWITCH INFINITE CONTROL
WB24T10058 WB24T10058 SWITCH INFINITE CONTROL
WB24T10153 WB24T10153 SWITCH INFINITE CONTROL
WB24T10147 WB24T10147 SWITCH SPDT HIGH AMP
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB36T11388 WB36T11388 TRIM CNTL ASM PRF
WB36T11387 WB36T11387 TRIM CNTL ASM PRF
WB07X32930 WB07X32930 TRIM DR BTM CHNL
WB07X42948 WB07X42948 TRIM DR BTM CHNL
WB07X42966 WB07X42966 TRIM DR BTM CHNL
WB07T10517 WB07T10517 TRIM LATCH
WB07T10488 WB07T10488 TRIM VENT DOOR (PRF-BK)
WB07T10490 WB07T10490 TRIM VENT DOOR (PRF-WH)
WB28T10217 WB28T10217 TUBE VNT RADIANT
WB44T10104 WB44T10104 UNIT ASM
WB44T10094 WB44T10094 UNIT BROIL ASM
WB38X33648 WB38X33648 VENT TUBE
WB38T10012 WB38T10012 VENT TUBE ASSEMBLY
WB35T10017 WB35T10017 VENT TUBE INSULATION
WB01X5573 WB01X5573 WASHER
WB1X5573 WB1X5573 WASHER
WB01T10112 WB01T10112 WASHER ALUM SHAPED
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB48T10068 WB48T10068 WEDGE DRAWER
