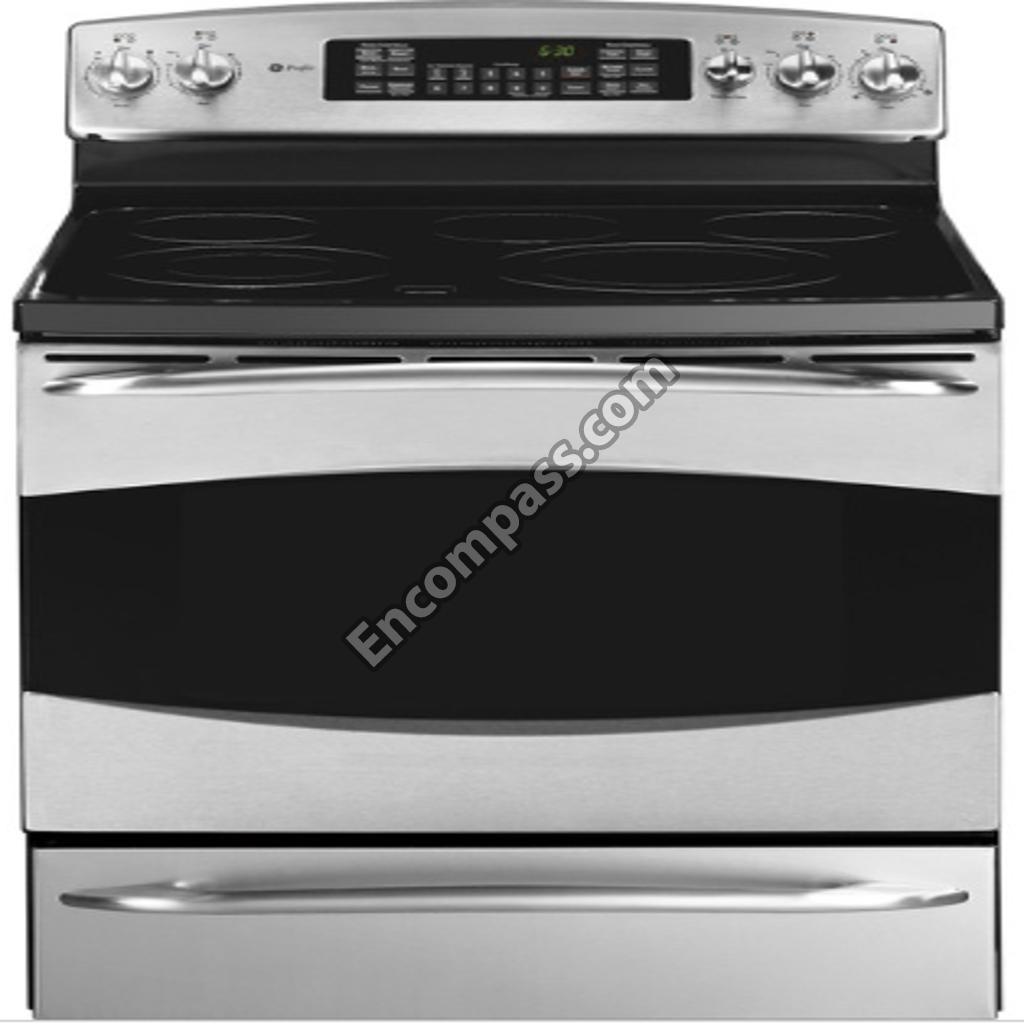

Model Image
Manufacturer

GE

Model Number

PB909SP2SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
WB08T10023 WB08T10023 35W RANGE HALOGEN BULB
WB63T10147 WB63T10147 BACK MAIN
WB63X28540 WB63X28540 BASE RIVET ASM
WB63X25881 WB63X25881 BASE RIVET ASM
WB63T10145 WB63T10145 BODY OVEN WELD ASM
WB02T10463 WB02T10463 BRACE CHASSIS RADIANT RT
WB02T10415 WB02T10415 BRACKET ANTI-TIP ASM
WB02T10194 WB02T10194 BRACKET CAPACITOR
WB02T10471 WB02T10471 BRACKET CONV FAN
WB02T10491 WB02T10491 BRACKET MEMBRANCE
WB02T10464 WB02T10464 BRACKET RADIANT ELEMENT
WB01T10021 WB01T10021 BUMPER RANGETOP
WB27T10662 WB27T10662 CAPACITOR MOTOR
WB02X45146 WB02X45146 CLIP CABLE
WB01X0119 WB01X0119 CONTOURED WASHER
WB27T11150 WB27T11150 CONTROL ERC
WB24T10145 WB24T10145 CONTROL SURF ELEM
WB02T10532 WB02T10532 COVER CONTROL
WB26T10058 WB26T10058 COVER FAN CONV
WB2X8309 WB2X8309 COVER PROBE
WB34T10011 WB34T10011 COVER RECEPTACLE
WB01T10026 WB01T10026 DOOR PAD
WB55T10178 WB55T10178 DRAWER BODY ASM MECH
WB48T10013 WB48T10013 DRAWER SUPPORT FRT
WB44T10086 WB44T10086 ELEMENT CONVX ASM
WB44X31764 WB44X31764 ELEMENT CONVX ASM
WB30T10130 WB30T10130 ELEMENT HALIANT 12 IN
WB30T10129 WB30T10129 ELEMENT RADIANT 6 IN
WB30T10124 WB30T10124 ELEMENT RADIANT 6 WARMER
WB30T10133 WB30T10133 ELEMENT RADIANT 9 DUAL
WB34T10083 WB34T10083 ENCLOSURE RANGETOP
WB56T10287 WB56T10287 FRAME DOOR SIDE (BK)
WB63T10096 WB63T10096 FRAME FRONT
WB64X0093 WB64X0093 GLASS CLEANER
WB56T10288 WB56T10288 GLASS OVEN DOOR (BK)
WB25T10075 WB25T10075 HALOGEN LAMP ASM LWR

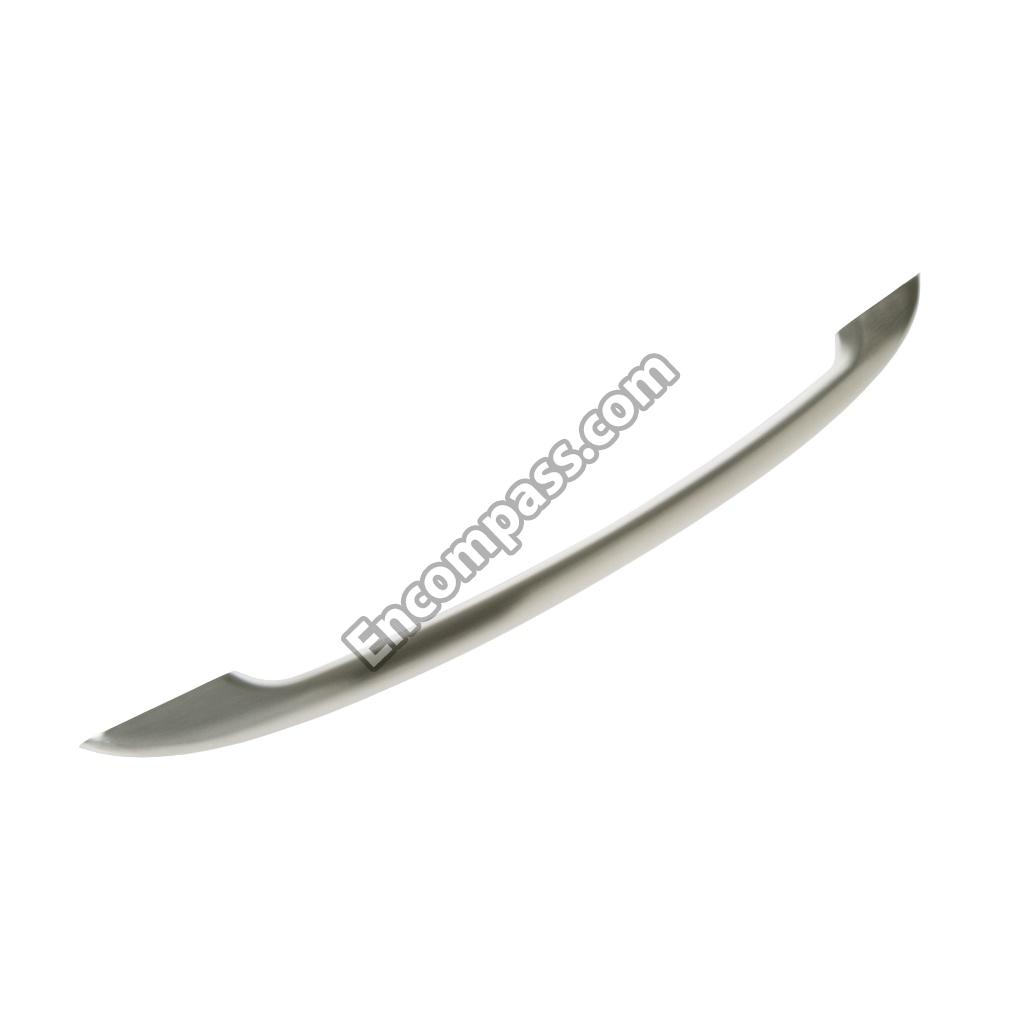

WB15T10190 WB15T10190 HANDLE 30 ASM
WB15T10193 WB15T10193 HANDLE 30 ASM (PRF-SS)
WB35T10022 WB35T10022 HIDDEN BAKE INSULATION

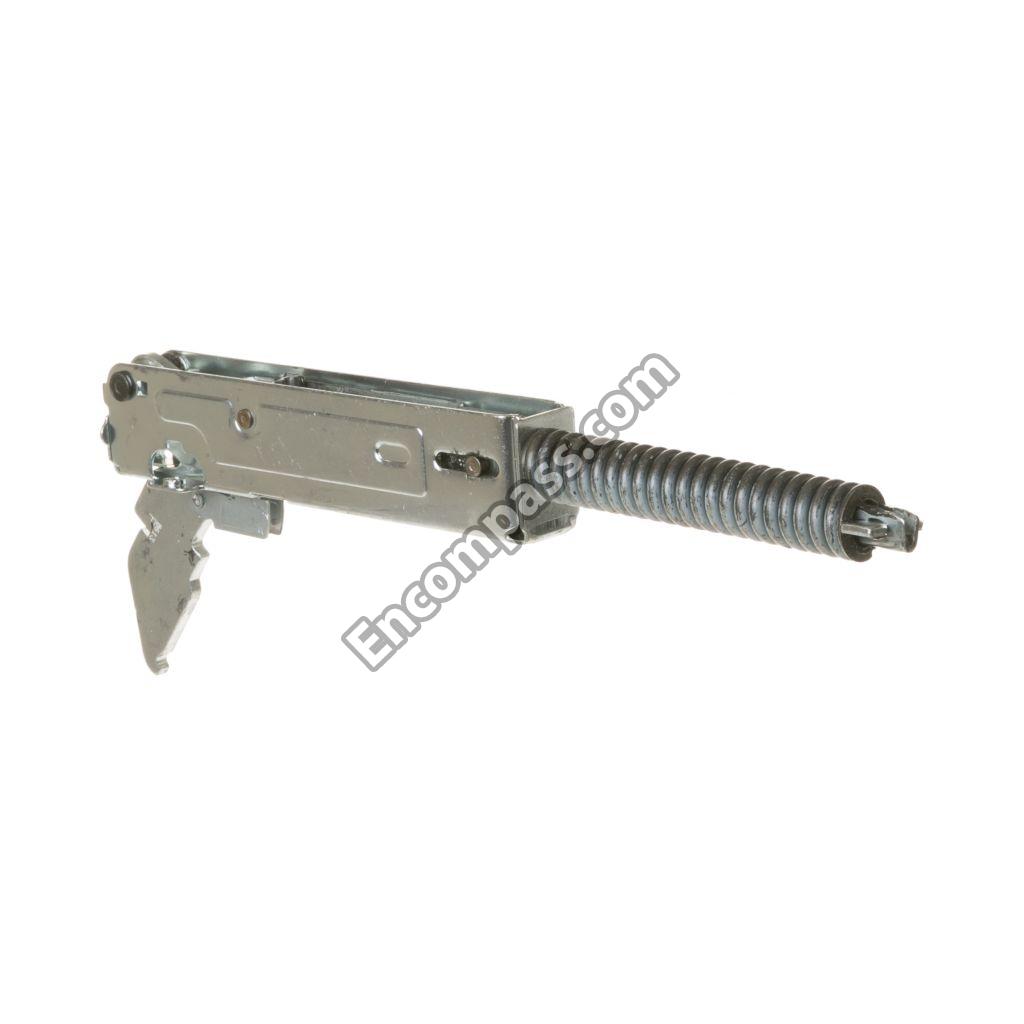

WB10T10072 WB10T10072 HINGE ASM
WB10T10068 WB10T10068 HINGE RECEIVER
WB02T10289 WB02T10289 HUB BLADE ASM
31-10677 31-10677 INSTRUCTION INSTALL
31-10619 31-10619 INSTRUCTION INSTALL
WB35T10210 WB35T10210 INSULATION CONV
WB35T10077 WB35T10077 INSULATION DOOR
WB35T10114 WB35T10114 INSULATION DOOR
WB35T10115 WB35T10115 INSULATION DOOR
WB35T10211 WB35T10211 INSULATION OVEN

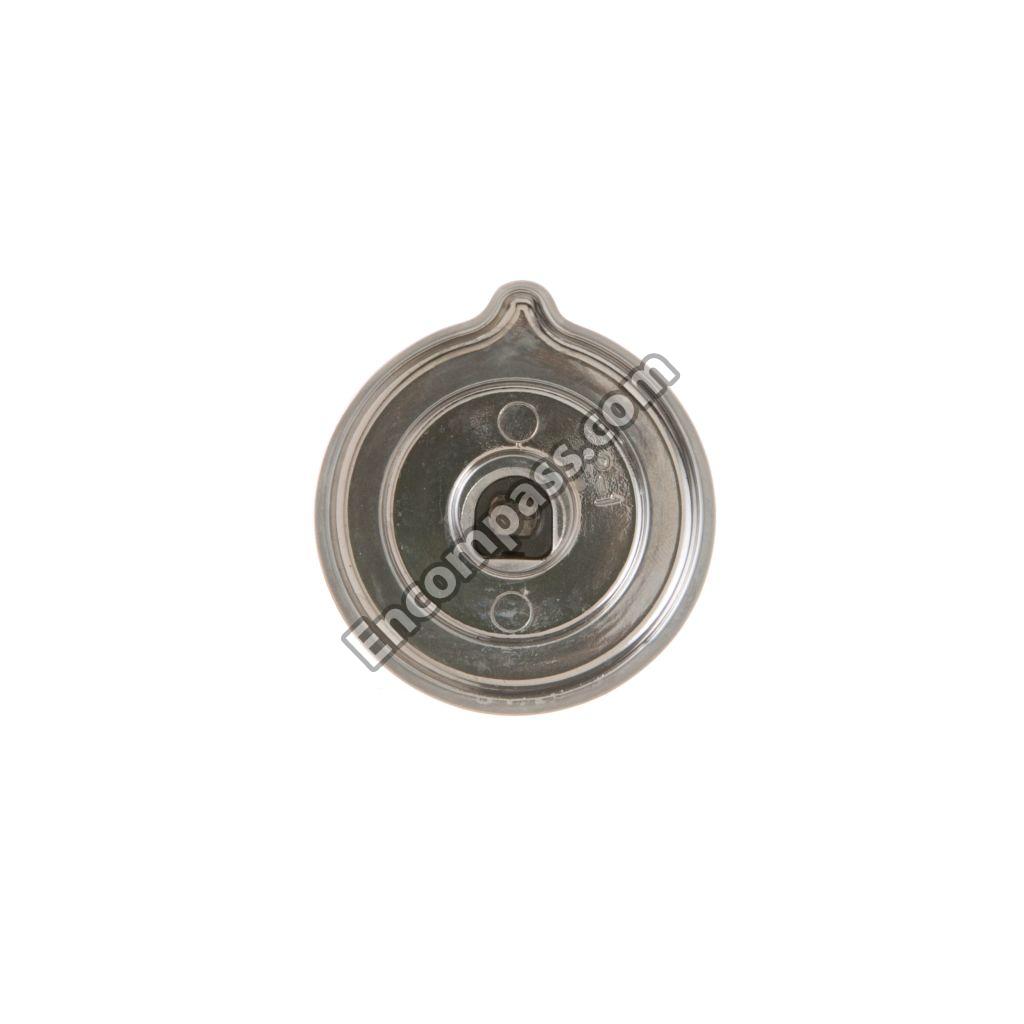

WB03T10266 WB03T10266 KNOB ASM
WB03T10257 WB03T10257 KNOB PROFILE S/U

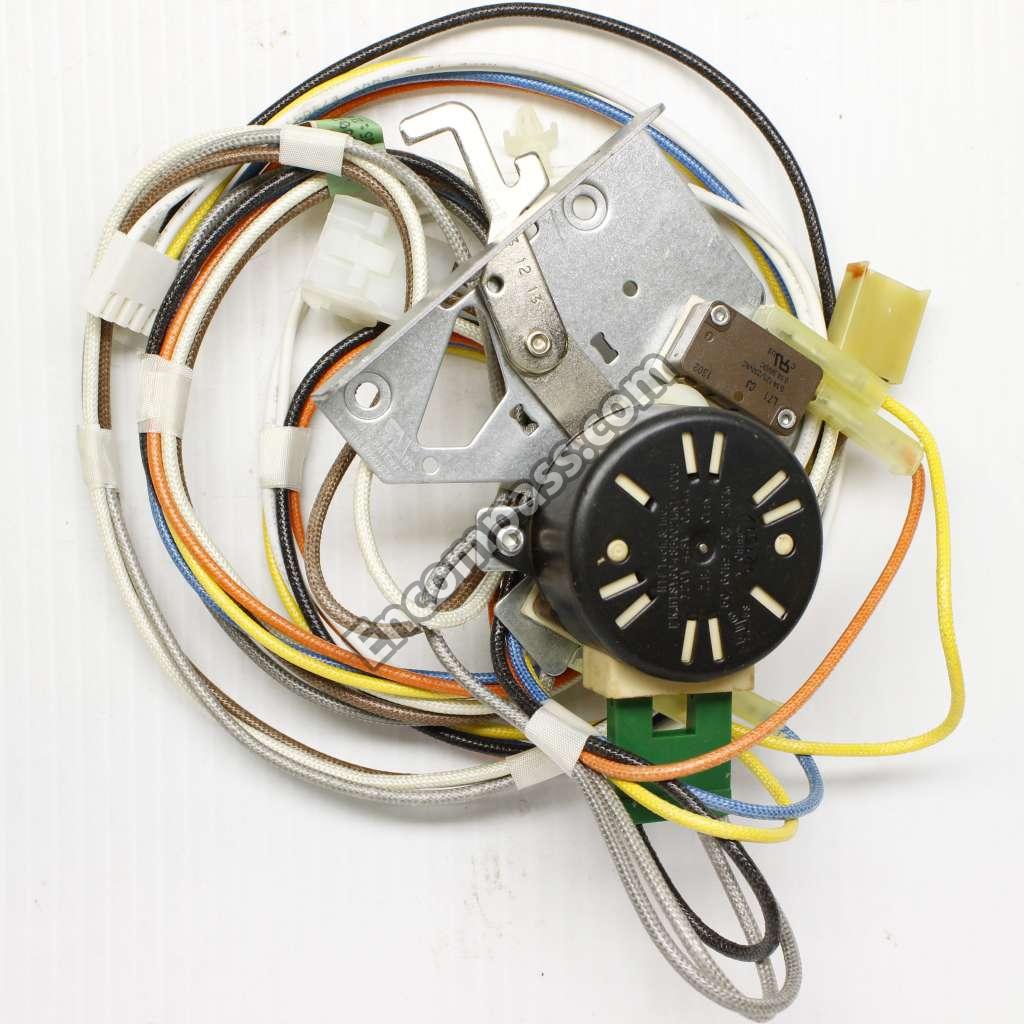

WB14T10062 WB14T10062 LATCH ASM MOTORIZED
WB02X10521 WB02X10521 LEG LEVELER
WB25T10042 WB25T10042 LENS
WB25T10086 WB25T10086 LIGHT INDICATOR ASM LT
WB25T10087 WB25T10087 LIGHT INDICATOR ASM RT
WB55T10174 WB55T10174 LINER OVEN DOOR ASM
WB62T10762 WB62T10762 MAINTOP & GLASS ASM
WB02T10026 WB02T10026 MAINTOP STRIKE
31-14852 31-14852 MANUAL MINI & WD ASM
49-80602 49-80602 MANUAL USE & CARE
WB27T11267 WB27T11267 MEMBRANE AND BRACKET ASM
WB25T10050 WB25T10050 MODULE INDICATOR LIGHT
WB26T10037 WB26T10037 MOTOR PSC CONV
WB17T10021 WB17T10021 MOUNT TERMINAL BLOCK
WB34T10128 WB34T10128 MULTIPLE SUPERCEDURES
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB25T10013 WB25T10013 OV LAMP LENS
WB35T10023 WB35T10023 OVEN BACK INSULATION
WB04T10086 WB04T10086 OVEN DOOR GASKET
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB56T10176 WB56T10176 PANEL DRAWER ASM
WB56X28881 WB56X28881 PANEL SIDE (BK)
WB10T10125 WB10T10125 PIN RANGETOP HINGE
WB07X27823 WB07X27823 PLATE END LT
WB36T11204 WB36T11204 PLATE END RT
WB02X8309 WB02X8309 PROBE COVER
WB20T10024 WB20T10024 PROBE THERMISTOR
WB48T10082 WB48T10082 RACK OVEN (SC)
WB34X26004 WB34X26004 RANGE RADIANT LEFT CHASSIS BRACE
WB02X29562 WB02X29562 RANGETOP BUMPER
WB08T10040 WB08T10040 RECEPTACLE JACK
WB02T10509 WB02T10509 REFECTOR PAN FOR BAKE ELEMENT
WB56T10320 WB56T10320 RETAINER GLASS OVN DR
WB56T10321 WB56T10321 RETAINER GLASS OVN DR
WB56T10178 WB56T10178 RETAINER OVN DR INSLN

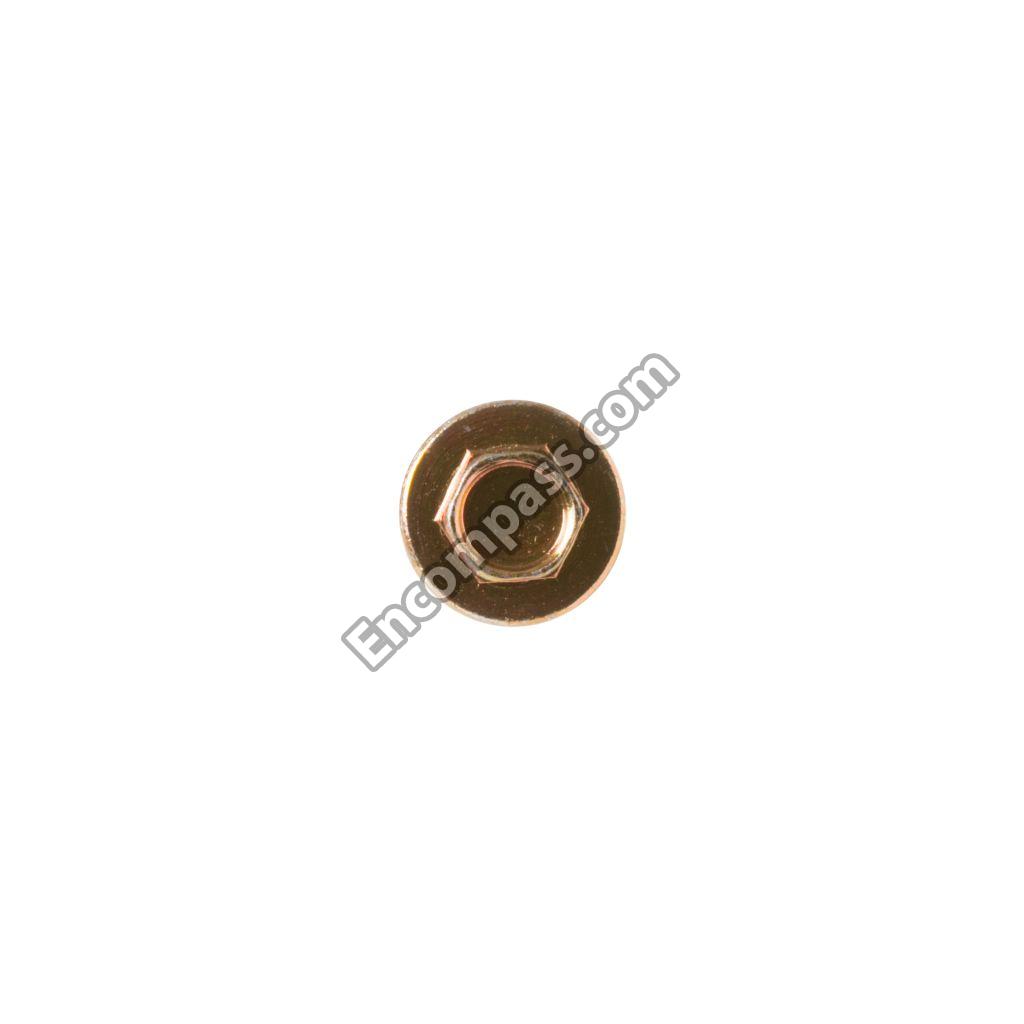

WB01T10103 WB01T10103 SCR 10-16 AB HXW .532
WB01T10072 WB01T10072 SCR 10-16 AB IHW .625 NI
WD02X0433 WD02X0433 SCR 10-32 CA IHW 7/16S8H

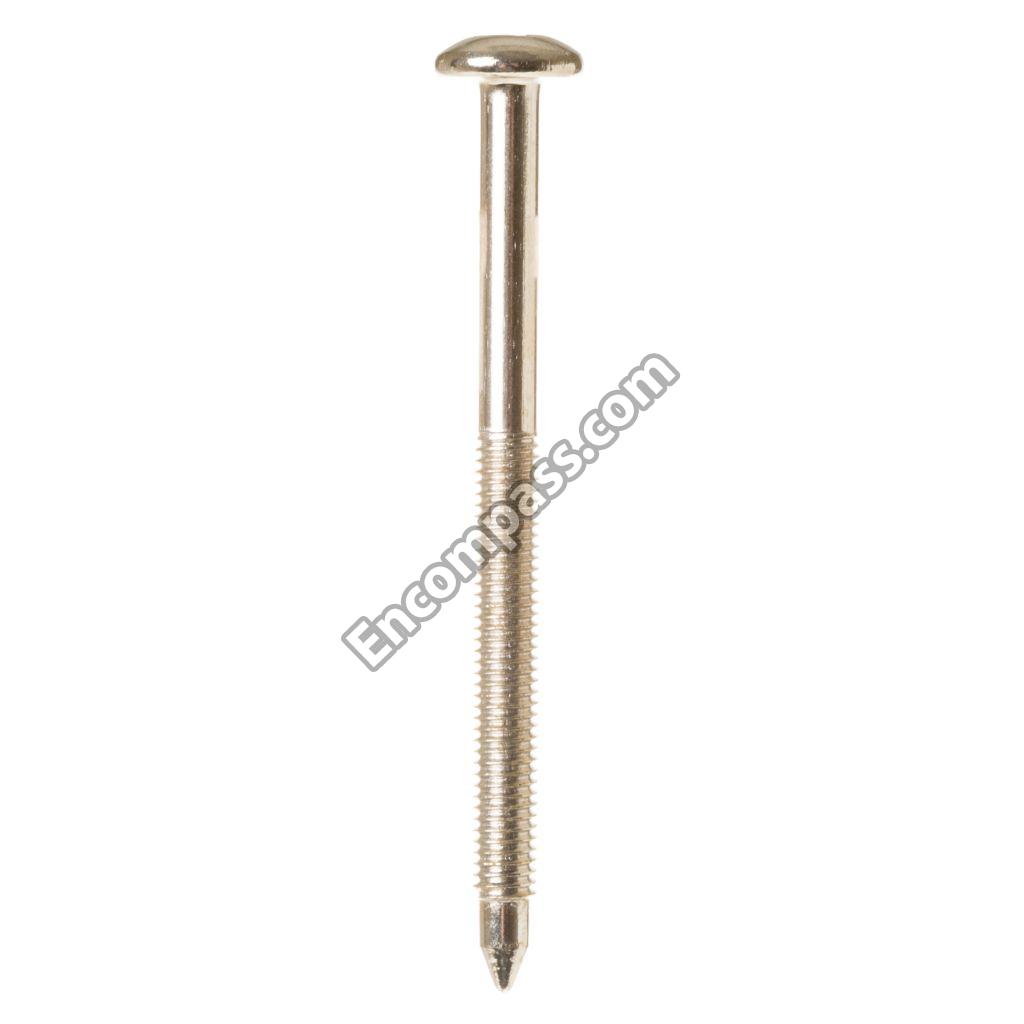

WB01T10113 WB01T10113 SCR 10-32 DG PNQ2 2.58 S
WB01T10108 WB01T10108 SCR 6-32 X1 HEX
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WZ04X0044 WZ04X0044 SCREW
WD2X430 WD2X430 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10008 WB01T10008 SCREW 10-32 TR T
WD02X0430 WD02X0430 SCREW 8-18 5/16 PH
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB01T10047 WB01T10047 SCREW 8-32 X 625 M HXW S
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1425 WB01X1425 SCREW ST8ABX.250RD NI
WB1X1137 WB1X1137 SCREW-10AB
WB1K5157 WB1K5157 SCREW-BLK
WH2X941D WH2X941D SCREW-PKG 12
WZ4X245D WZ4X245D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB1X1425 WB1X1425 SCW 8ABX.250
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB02X28994 WB02X28994 SHIELD HEAT BKGD
WB02T10468 WB02T10468 SHIELD HEAT BKGD
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB49T10007 WB49T10007 SIDE REFLECTOR
WB02T10175 WB02T10175 SPACER
WB02T10065 WB02T10065 SPACER DR HANDLE
WB09X40389 WB09X40389 SPRING RADIANT ELEMENT
WB02X33180 WB02X33180 SUPPORT REAR
WB24T10058 WB24T10058 SWITCH INFINITE CONTROL
WB24T10153 WB24T10153 SWITCH INFINITE CONTROL
WB24T10147 WB24T10147 SWITCH SPDT HIGH AMP
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB07T10688 WB07T10688 TRIM
WB36T11219 WB36T11219 TRIM & BRACKET ASM
WB07T10686 WB07T10686 TRIM BOWED ASM
WB07T10517 WB07T10517 TRIM LATCH
WD2X433 WD2X433 TRIM SCREW
WB28T10217 WB28T10217 TUBE VNT RADIANT
WB44T10104 WB44T10104 UNIT ASM
WB44T10094 WB44T10094 UNIT BROIL ASM
WB38X33648 WB38X33648 VENT TUBE
WB38T10012 WB38T10012 VENT TUBE ASSEMBLY
WB35T10017 WB35T10017 VENT TUBE INSULATION
WB01X5573 WB01X5573 WASHER
WB1X5573 WB1X5573 WASHER
WB01T10112 WB01T10112 WASHER ALUM SHAPED
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB48T10068 WB48T10068 WEDGE DRAWER
