Model Image
Manufacturer

GE

Model Number

PB911FJ7DS

Description

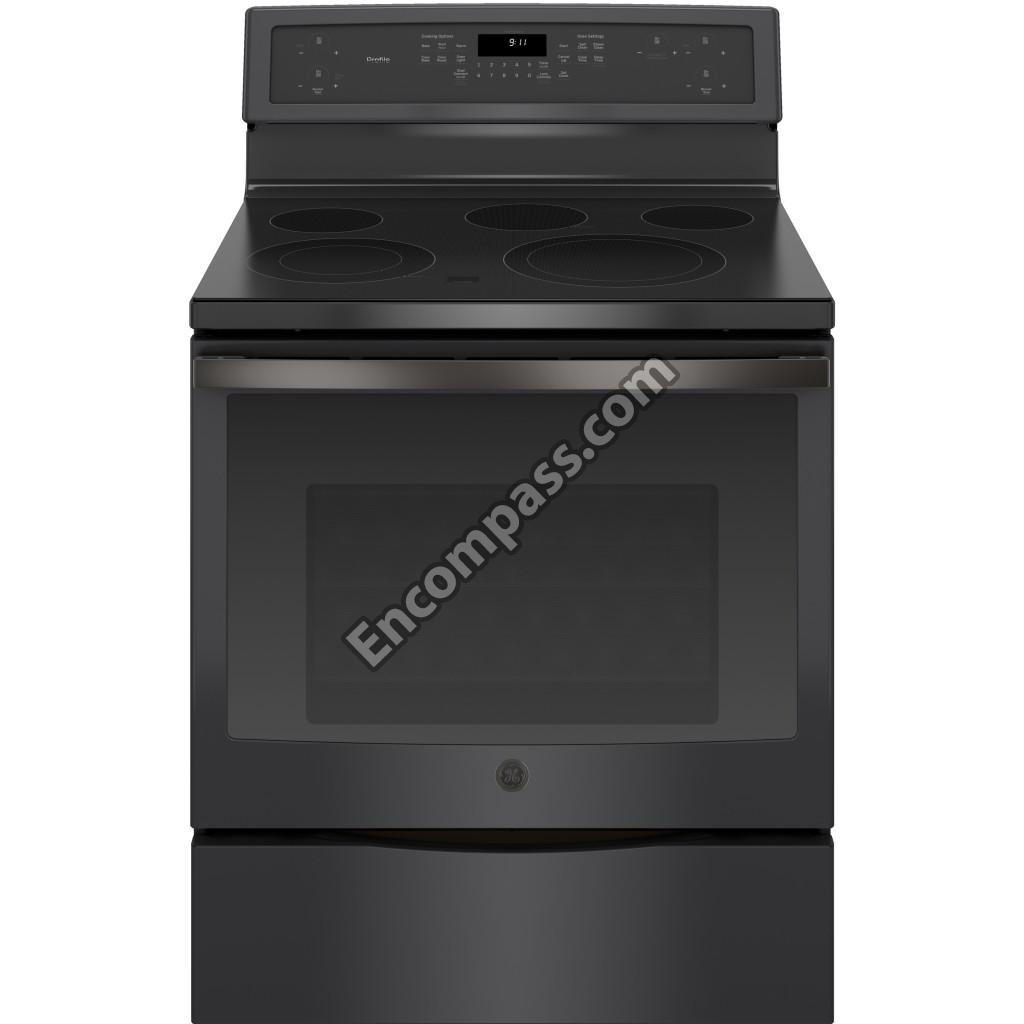

Free-standing Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 GE 28 CERAMA BR
WB1K5200 WB1K5200 GE 340531
WB34X28565 WB34X28565 GE BACKGUARD SHIELD HEAT
WB02X29637 WB02X29637 GE BADGE ASSEMBLY
WB02T10463 WB02T10463 GE BRACE CHASSIS RADIANT RT
WB02T10194 WB02T10194 GE BRACKET CAPACITOR
WB34X42670 WB34X42670 GE BRACKET OVN HDL VNT TRM
WB34X25221 WB34X25221 GE BRACKET OVN HDL VNT TRM
WB44X45498 WB44X45498 GE BROIL UNIT ASSEMBLY
WB02X25982 WB02X25982 GE CABLE CLIP
WB27T10662 WB27T10662 GE CAPACITOR MOTOR
WB34X30702 WB34X30702 GE CHASSIS BRACE RADIANT LH
WB34X30703 WB34X30703 GE CHASSIS BRACE RADIANT RH
WB01X0119 WB01X0119 GE CONTOURED WASHER
WB34X29576 WB34X29576 GE CONTROL PANEL BACK COVER
WB07X32021 WB07X32021 GE CONTROL PANEL TRIM ASSEMBLY DS
WB44X29154 WB44X29154 GE CONVECTION ELEMENT
WB26X29157 WB26X29157 GE CONVECTION MOTOR
WB02X29181 WB02X29181 GE CONVECTION MOTOR BRACKET
WB02K5365 WB02K5365 GE COVER
WB2K5365 WB2K5365 GE COVER
WB34X20082 WB34X20082 GE COVER FAN CONVX (BLACK)
WB02X28578 WB02X28578 GE DOOR GLASS BRACKET
WB56X30263 WB56X30263 GE DRAWER PANEL DS
WB02X29072 WB02X29072 GE DRAWER WEDGE
WB30X20871 WB30X20871 GE ELEMENT RADIANT 6 WARMER
WB07X29534 WB07X29534 GE END PLATE LH DG
WB07X29535 WB07X29535 GE END PLATE RH DG
WB56T10287 WB56T10287 GE FRAME DOOR SIDE (BLACK)
WB64X0093 WB64X0093 GE GLASS CLEANER
WB15X29162 WB15X29162 GE HANDLE AND END CAP ASSEMBLY
WB18X32668 WB18X32668 GE HARNESS WIRE COM
WB18X25097 WB18X25097 GE HARNESS WIRE COM
WB18X30074 WB18X30074 GE HARNESS WIRE HB
WB18X32661 WB18X32661 GE HIDDEN BAKE HARNESS
WB10T10071 WB10T10071 GE HINGE DOOR
WB10X29566 WB10X29566 GE HINGE RECEIVER
31-10617 31-10617 GE INSTRUCTION INSTALL
WB35T10255 WB35T10255 GE INSULATION DOOR
WB35T10077 WB35T10077 GE INSULATION DOOR
WB35T10114 WB35T10114 GE INSULATION DOOR
WB18X30704 WB18X30704 GE JUMPER
229C6460P001 229C6460P001 GE LABEL WIRE DIAGRAM
WB25X24909 WB25X24909 GE LAMP HALOGEN ASM
WB25X33021 WB25X33021 GE LAMP HALOGEN ASSEMBLY
WB08T10045 WB08T10045 GE LAMP HALOGEN G9
WB10X25007 WB10X25007 GE LATCH ASSEMBLY
WB18X30717 WB18X30717 GE LEAD WIRE 14 GA GN
WB18X25098 WB18X25098 GE LEAD WIRE 14 GA GN
WB27T10668 WB27T10668 GE LIGHT INDICATOR
WB55T10203 WB55T10203 GE LINER OVEN DOOR ASSEMBLY (BLACK)
WB34X29560 WB34X29560 GE MAIN BACK COVER
WB34X31190 WB34X31190 GE MAIN BACK COVER
WB18X32733 WB18X32733 GE MAINTOP HARNESS
WB02T10026 WB02T10026 GE MAINTOP STRIKE
49-80597 49-80597 GE MANUAL U&C TIP SHEET
WB02X35585 WB02X35585 GE NUT HEX
WB56X30726 WB56X30726 GE OUTER DOOR PANEL ASSEMBLY DS
WB25T10013 WB25T10013 GE OV LAMP LENS
WB35X29571 WB35X29571 GE OVEN BACK INSULATION
WB35X29572 WB35X29572 GE OVEN CAVITY INSULATION
WB27X33134 WB27X33134 GE OVEN CONTROL AND OVERLAY ASM WHITE LED
WB10T10116 WB10T10116 GE PIN RANGETOP HINGE
31-10781 31-10781 GE PM INSTALL INSTRUCTIONS
31-17221 31-17221 GE PM MANUAL MINI & WD ASM
49-80770 49-80770 GE PM QUICK GUIDE
WB48T10083 WB48T10083 GE RACK OVEN
WB30T10130 WB30T10130 GE RANGE 12-INCH HALIANT SURFACE ELEMENT
WB02T10578 WB02T10578 GE RANGE ANTI-TIP BRACKET
WB02X26501 WB02X26501 GE RANGE CONVECTION FAN BLADE
WB04T10080 WB04T10080 GE RANGE CONVECTION FAN GASKET
WB02X21423 WB02X21423 GE RANGE COVER PLATE
WB63X29070 WB63X29070 GE RANGE DRAWER BODY
WB48T10013 WB48T10013 GE RANGE DRAWER SUPPORT - FRONT
WB02T10509 WB02T10509 GE RANGE HEAT SHIELD FOR BAKE ELEMENT
WB07X21459 WB07X21459 GE RANGE LATCH TRIM
WB02X10521 WB02X10521 GE RANGE LEVELING LEG
WB02T10118 WB02T10118 GE RANGE OVEN CLIP SEAM
WB04T10086 WB04T10086 GE RANGE OVEN DOOR GASKET
WB56X22160 WB56X22160 GE RANGE OVEN INNER DOOR GLASS
WB02T10034 WB02T10034 GE RANGE PANEL SIDE SUPORT
WB30T10145 WB30T10145 GE RANGE RADIANT ELEMENT - 5.5-INCH
WB30X24111 WB30X24111 GE RANGE RADIANT ELEMENT - 9-INCH
WB02X20902 WB02X20902 GE RANGE RADIANT ELEMENT BRACKET
WB02X25089 WB02X25089 GE RANGE RADIANT ELEMENT BRACKET
WB34X26004 WB34X26004 GE RANGE RADIANT LEFT CHASSIS BRACE
WB02X33180 WB02X33180 GE RANGE REAR DRAWER SUPPORT
WB02X29562 WB02X29562 GE RANGETOP BUMPER
WB34X30165 WB34X30165 GE RANGETOP ENCLOSURE
WB62X28602 WB62X28602 GE RANGETOP GLASS ASSEMBLY
WB56T10178 WB56T10178 GE RETAINER OVN DR INSLN
WB27X30706 WB27X30706 GE RJ45 CONNECTOR AND HARNESS
WB01T10103 WB01T10103 GE SCR 10-16 AB HXW .532
WH02X0941 WH02X0941 GE SCR 8-15 A HXW 7/8 S
WB01T10126 WB01T10126 GE SCR 8-18 AB HXW 1/2 S
WB1X5904 WB1X5904 GE SCR 8-18 BA
WB01X5904 WB01X5904 GE SCR 8-18 BA POR 3/4 SN
WB01T10072 WB01T10072 GE SCR 8-32 1HW .312 NI
WB01K5200 WB01K5200 GE SCREW
WB01M10002 WB01M10002 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB1M1 WB1M1 GE SCREW
WB02X24268 WB02X24268 GE SCREW 10-32 CA TRT15 3.06
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01T10017 WB01T10017 GE SCREW 8-18 AB IHW 3/8 S NS
WB01X1261 WB01X1261 GE SCREW GROUND
WB1X5364 WB1X5364 GE SCREW MTG
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WZ4X245D WZ4X245D GE SCREW-PKG 12
WH2X941D WH2X941D GE SCREW-PKG 12
WB21X22134 WB21X22134 GE SENSOR ASSEMBLY
WB63X28679 WB63X28679 GE SIDE PANEL DG
WB49T10007 WB49T10007 GE SIDE REFLECTOR
WB02X38986 WB02X38986 GE SPACER
WB09X40389 WB09X40389 GE SPRING RADIANT ELEMENT
WB18X32662 WB18X32662 GE TEMPERATURE SENSOR HARNESS
WB17T10011 WB17T10011 GE TERMINAL BLOCK ASSEMBLY
WB34X29565 WB34X29565 GE TERMINAL BLOCK MOUNT
WB07T10516 WB07T10516 GE TRIM FRT FRM (BLACK)
WB44X45499 WB44X45499 GE UNIT ASSEMBLY
WB38X33648 WB38X33648 GE VENT TUBE
WB34X29573 WB34X29573 GE VENT TUBE
WB35T10017 WB35T10017 GE VENT TUBE INSULATION
WB02X32440 WB02X32440 GE WASHER CONTOURED
WB1X119D WB1X119D GE WASHR-PKG 12
WB34X29563 WB34X29563 GE WIRE COVER BACK
WZ4X416 WZ4X416 GE WZ04X0408
