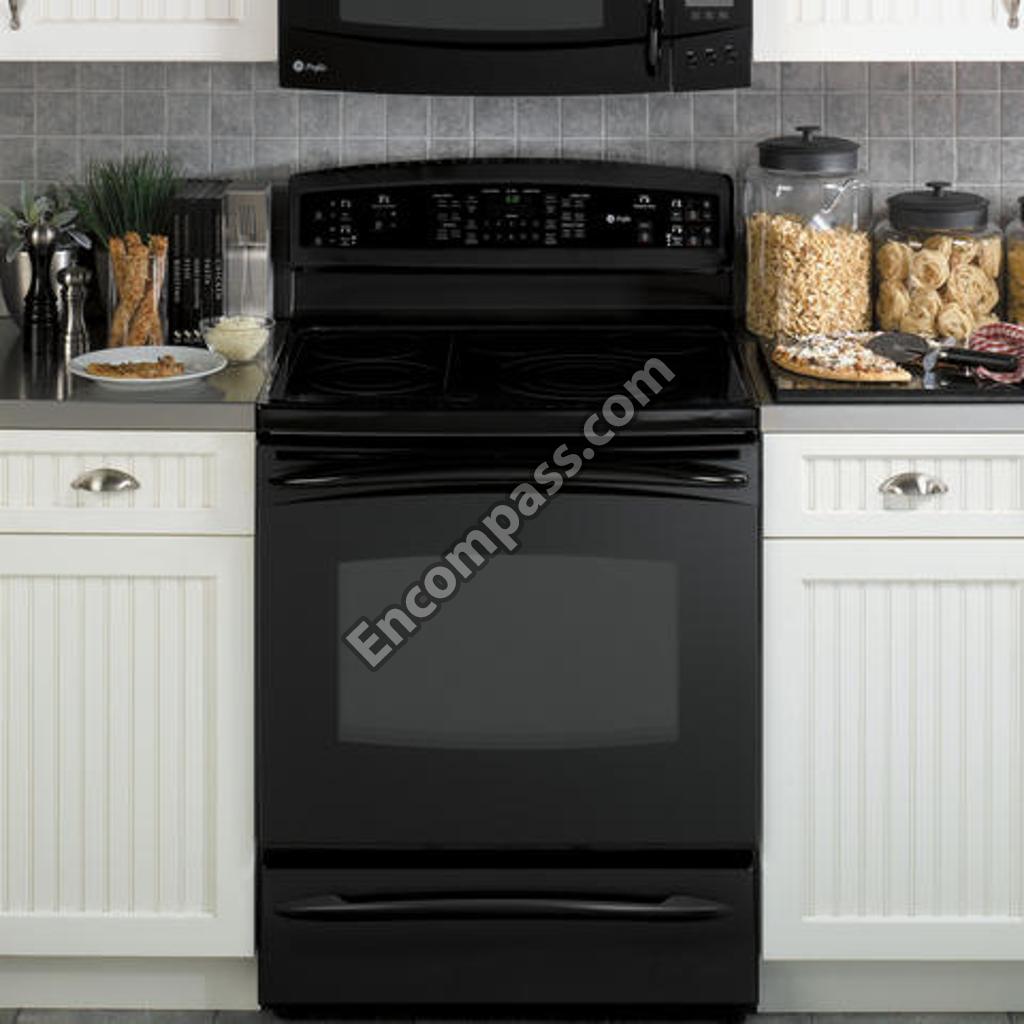

Model Image
Manufacturer

GE

Model Number

PB920DP2BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 GE 28 CERAMA BR
WB1K5200 WB1K5200 GE 340531
WB08T10023 WB08T10023 GE 35W RANGE HALOGEN BULB
WB01T10112 WB01T10112 GE ALUMINUM WASHER
WB02T10485 WB02T10485 GE BACK MAIN (P014)
WB63T10145 WB63T10145 GE BODY OVEN WELD ASM
WB02T10463 WB02T10463 GE BRACE CHASSIS RADIANT RT
WB02T10194 WB02T10194 GE BRACKET CAPACITOR
WB02T10501 WB02T10501 GE BRACKET CONTROL BOARD
WB02T10471 WB02T10471 GE BRACKET CONV FAN
WB02T10479 WB02T10479 GE BRACKET RADIANT ELEMENT
WB27T10662 WB27T10662 GE CAPACITOR MOTOR
WB58T10011 WB58T10011 GE CAVITY WARMING DRW ASSEMBLY
WB27T11316 WB27T11316 GE CONTROL UI ASSEMBLY
WB34T10128 WB34T10128 GE COVER BACK
WB02T10532 WB02T10532 GE COVER CONTROL
WB26T10058 WB26T10058 GE COVER FAN CONV
WB2X8309 WB2X8309 GE COVER PROBE
WB02T10478 WB02T10478 GE COVER WIRE MAIN
WB01T10026 WB01T10026 GE DOOR PAD
WB56T10180 WB56T10180 GE DRAWER FRT INNER
WB49T10011 WB49T10011 GE DRAWER PAN
WB44T10086 WB44T10086 GE ELEMENT CONVX ASM
WB44X31764 WB44X31764 GE ELEMENT CONVX ASSEMBLY
WB30T10131 WB30T10131 GE ELEMENT HALIANT 8 IN
WB30T10144 WB30T10144 GE ELEMENT HEATING (WARM)
WB30T10124 WB30T10124 GE ELEMENT RADIANT 6 WARMER
WB34T10083 WB34T10083 GE ENCLOSURE RANGETOP
WB27T11116 WB27T11116 GE FILTER CLOCK DISPLAY
WB27T11086 WB27T11086 GE FRAME BOARD ASSEMBLY
WB27T11085 WB27T11085 GE FRAME BOARD ASSEMBLY
WB56T10287 WB56T10287 GE FRAME DOOR SIDE (BLACK)
WB63T10146 WB63T10146 GE FRAME DWR AND BRACKET ASSEMBLY
WB63T10096 WB63T10096 GE FRAME FRONT
WB64X0093 WB64X0093 GE GLASS CLEANER
WB27T11122 WB27T11122 GE GLASS CRYSTAL ASSEMBLY
WB56T10190 WB56T10190 GE GLASS OVN DR (BLACK)
WB48T10066 WB48T10066 GE GRIDDLE ASSEMBLY
WB27T11121 WB27T11121 GE GUIDE AND OVERLAY ASSEMBLY
WB63X23859 WB63X23859 GE GUIDE- SLIDE DRAWER
WB25T10075 WB25T10075 GE HALOGEN LAMP ASSEMBLY LWR
WB15T10139 WB15T10139 GE HANDLE PRF DOOR BK
WB15T10136 WB15T10136 GE HANDLE PRF DRAWER BK
WB18T10394 WB18T10394 GE HARNESS WIRE PROBE
WB35T10022 WB35T10022 GE HIDDEN BAKE INSULATION
WB10T10067 WB10T10067 GE HINGE DOOR
WB10T10068 WB10T10068 GE HINGE RECEIVER
WB02T10289 WB02T10289 GE HUB BLADE ASSEMBLY
31-10677 31-10677 GE INSTRUCTION INSTALL
31-10619 31-10619 GE INSTRUCTION INSTALL
WB35T10210 WB35T10210 GE INSULATION CONV
WB35T10114 WB35T10114 GE INSULATION DOOR
WB35T10077 WB35T10077 GE INSULATION DOOR
WB35T10209 WB35T10209 GE INSULATION OVN WRPR
WB14T10072 WB14T10072 GE LATCH ASSEMBLY MOTORIZED
WB55T10174 WB55T10174 GE LINER OVEN DOOR ASSEMBLY
WB62T10757 WB62T10757 GE MAINTOP & GLASS ASM
WB62T10756 WB62T10756 GE MAINTOP & GLASS ASM
WB02T10026 WB02T10026 GE MAINTOP STRIKE
31-14844 31-14844 GE MANUAL MINI & WD ASM
49-80602 49-80602 GE MANUAL USE & CARE
WB25T10050 WB25T10050 GE MODULE INDICATOR LIGHT
WB17T10020 WB17T10020 GE MOUNT TERMINAL BLOCK
WB1X5572 WB1X5572 GE NUT
WB02T10017 WB02T10017 GE NUT
WB01X5572 WB01X5572 GE NUT MEAT PROBE
WB25T10013 WB25T10013 GE OV LAMP LENS
WB35T10023 WB35T10023 GE OVEN BACK INSULATION
WB57K5230 WB57K5230 GE OVEN DOOR GLASS-INNER
WB56X22160 WB56X22160 GE PACK WINDOW ASSEMBLY
WB56T10173 WB56T10173 GE PANEL DRAWER
WB56X28881 WB56X28881 GE PANEL SIDE (BK)
WB56X28884 WB56X28884 GE PANEL SIDE (WH)
WB10T10125 WB10T10125 GE PIN RANGETOP HINGE
WB07X27823 WB07X27823 GE PLATE END LEFT
WB36T11204 WB36T11204 GE PLATE END RT
WD21X10233 WD21X10233 GE PLUG ASM MODEL SELECTOR
WB02X8309 WB02X8309 GE PROBE COVER
WB20T10024 WB20T10024 GE PROBE THERMISTOR
WB48T10082 WB48T10082 GE RACK OVEN (SC)
WB30T10126 WB30T10126 GE RANGE 12-INCH RADIANT SURFACE ELEMENT
WB30T10129 WB30T10129 GE RANGE 6-INCH RADIANT SURFACE ELEMENT
WB30T10132 WB30T10132 GE RANGE 8-INCH RADIANT SURFACE ELEMENT
WB02T10415 WB02T10415 GE RANGE ANTI-TIP BRACKET
WB01T10021 WB01T10021 GE RANGE BUMPER
WB02X45146 WB02X45146 GE RANGE CABLE CLIP
WB26T10037 WB26T10037 GE RANGE CONVECTION MOTOR
WB02T10468 WB02T10468 GE RANGE HEAT SHIELD
WB24T10147 WB24T10147 GE RANGE HIGH AMP SWITCH
WB02X10521 WB02X10521 GE RANGE LEVELING LEG
WB04T10086 WB04T10086 GE RANGE OVEN DOOR GASKET
WB02T10034 WB02T10034 GE RANGE PANEL SIDE SUPORT
WB34X26004 WB34X26004 GE RANGE RADIANT LEFT CHASSIS BRACE
WB02X29562 WB02X29562 GE RANGETOP BUMPER
WB02T10509 WB02T10509 GE REFECTOR PAN FOR BAKE ELEMENT
WB56T10320 WB56T10320 GE RETAINER GLASS OVN DR
WB56T10321 WB56T10321 GE RETAINER GLASS OVN DR
WB56T10178 WB56T10178 GE RETAINER OVN DR INSLN
WB18T10437 WB18T10437 GE RIBBON CABLE WING BOARD
WB01T10103 WB01T10103 GE SCR 10-16 AB HXW .532
WH02X1186 WH02X1186 GE SCR 8-18 AB IHW 5/8 S
WB1X5904 WB1X5904 GE SCR 8-18 BA
WB01X5904 WB01X5904 GE SCR 8-18 BA POR 3/4 SN
WB01T10072 WB01T10072 GE SCR 8-32 1HW .312 NI
WB01K5156 WB01K5156 GE SCREW
WB01X0537 WB01X0537 GE SCREW
WB01X1137 WB01X1137 GE SCREW
WB01M0001 WB01M0001 GE SCREW
WB01K5028 WB01K5028 GE SCREW
WB01K5200 WB01K5200 GE SCREW
WZ04X0044 WZ04X0044 GE SCREW
WB1X537 WB1X537 GE SCREW
WD2X432 WD2X432 GE SCREW
WB1K5156 WB1K5156 GE SCREW
WH2X1186 WH2X1186 GE SCREW
WB1M1 WB1M1 GE SCREW
WB1X536 WB1X536 GE SCREW
WH2X930 WH2X930 GE SCREW
WB01T10058 WB01T10058 GE SCREW 10-16 AB HXW 750 S N
WB01T10018 WB01T10018 GE SCREW 10-16 PL PNT 2 5 S
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01T10016 WB01T10016 GE SCREW 8-18 AB HXW 5/8 S
WB01T10017 WB01T10017 GE SCREW 8-18 AB IHW 3/8 S NS
WD02X0432 WD02X0432 GE SCREW 8-18 X 5/16 BK
WB01T10047 WB01T10047 GE SCREW 8-32 X 625 M HXW S
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB01X1425 WB01X1425 GE SCREW ST8ABX.250RD NI
WB1X1137 WB1X1137 GE SCREW-10AB
WB1K5157 WB1K5157 GE SCREW-BLK
WZ4X245D WZ4X245D GE SCREW-PKG 12
WZ4X44D WZ4X44D GE SCREW-PKG 12
WB1X1425 WB1X1425 GE SCW 8ABX.250
WB21X22134 WB21X22134 GE SENSOR ASSEMBLY
WB02X28994 WB02X28994 GE SHIELD HEAT BKGD
WB49T10007 WB49T10007 GE SIDE REFLECTOR
WB02T10175 WB02T10175 GE SPACER
WB09X40389 WB09X40389 GE SPRING RADIANT ELEMENT
WB17T10011 WB17T10011 GE TERMINAL BLOCK ASSEMBLY
WB07T10685 WB07T10685 GE TRIM CONTROL (BLACK)
WB07X32930 WB07X32930 GE TRIM DR BTM CHNL
WB07X42966 WB07X42966 GE TRIM DR BTM CHNL
WB07T10516 WB07T10516 GE TRIM FRT FRM (BLACK)
WB07T10517 WB07T10517 GE TRIM LATCH
WB07T10488 WB07T10488 GE TRIM VENT DOOR (PRF-BK)
WB28T10217 WB28T10217 GE TUBE VNT RADIANT
WB44T10104 WB44T10104 GE UNIT ASSEMBLY
WB44T10094 WB44T10094 GE UNIT BROIL ASSEMBLY
WB38X33648 WB38X33648 GE VENT TUBE
WB38T10012 WB38T10012 GE VENT TUBE ASSEMBLY
WB35T10017 WB35T10017 GE VENT TUBE INSULATION
WB01X5573 WB01X5573 GE WASHER
WB1K5117 WB1K5117 GE WASHER
WB1X5573 WB1X5573 GE WASHER
WB01K5117 WB01K5117 GE WASHER .250 ID X .812 OD
