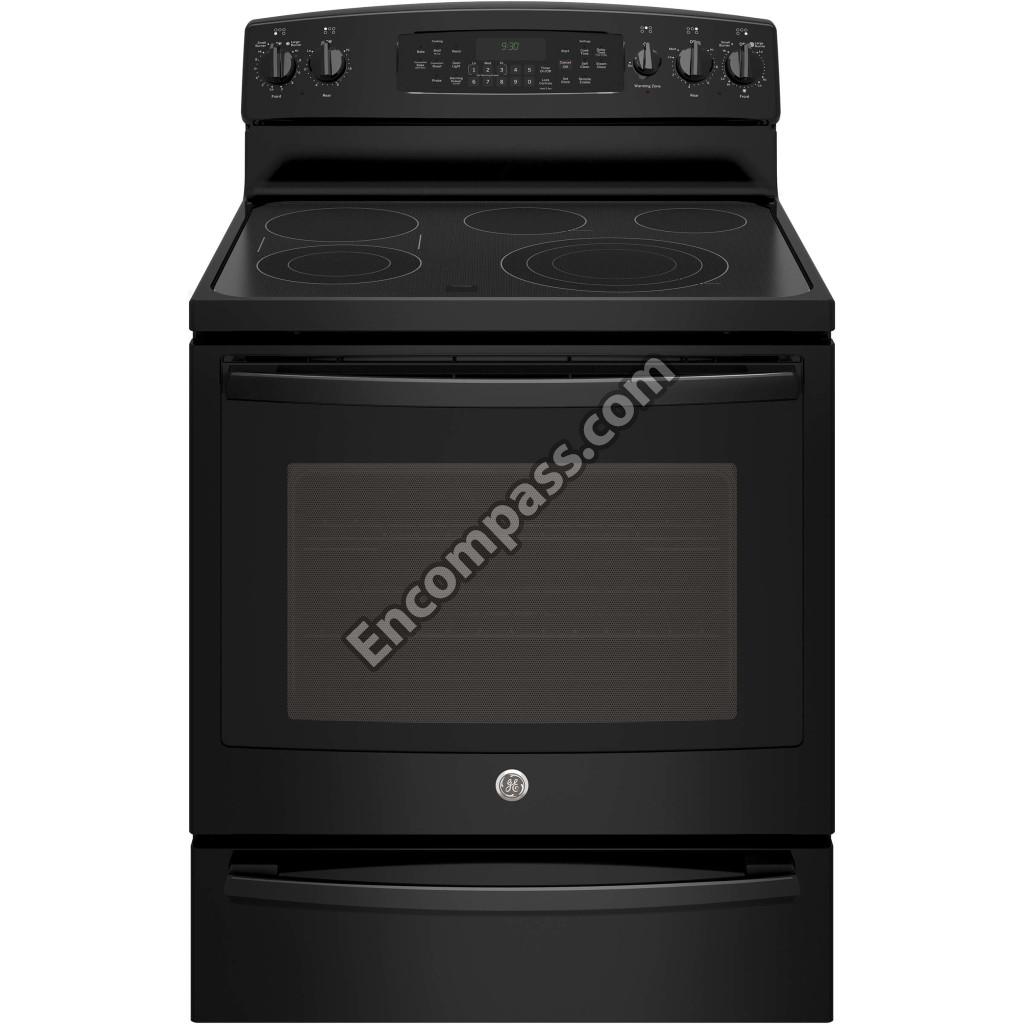

Model Image
Manufacturer

GE

Model Number

PB930DH2BB

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 GE 28 CERAMA BR
WB1K5200 WB1K5200 GE 340531
WB63T10176 WB63T10176 GE BACK MAIN
WB02T10589 WB02T10589 GE BADGE GE
WB63X28540 WB63X28540 GE BASE RIVET ASM
WB27X31514 WB27X31514 GE BOARD WIFI CAT MODULE
WB27X33353 WB27X33353 GE BOARD WIFI CAT MODULE
WB63X20923 WB63X20923 GE BODY OVN WELD ASM BK
WB02T10463 WB02T10463 GE BRACE CHASSIS RADIANT RT
WB02T10194 WB02T10194 GE BRACKET CAPACITOR
WB02T10471 WB02T10471 GE BRACKET CONV FAN
WB07X22480 WB07X22480 GE BRACKET GLS ASSEMBLY (T012-BK
WB02T10574 WB02T10574 GE BRACKET RADIANT ELEMENT
WB27T10662 WB27T10662 GE CAPACITOR MOTOR
WB63X25155 WB63X25155 GE CAVITY WARMING DRW ASSEMBLY
WB27X24037 WB27X24037 GE CONTROL BOARD T012 ELE
WB27X25333 WB27X25333 GE CONTROL BOARD T012 ELE
WB34T10128 WB34T10128 GE COVER BACK
WB34X20934 WB34X20934 GE COVER CONTROL (P008)
WB34X20082 WB34X20082 GE COVER FAN CONVX (BLACK)
WB2X8309 WB2X8309 GE COVER PROBE
WB34T10011 WB34T10011 GE COVER RECEPTACLE
WB34T10108 WB34T10108 GE COVER WIRE DRW
WB56T10331 WB56T10331 GE DRAWER FRONT INNER
WB49T10076 WB49T10076 GE DRAWER PAN
WB24T10153 WB24T10153 GE ELECTRIC RANGE SURFACE ELEMENT CONTROL
WB44T10086 WB44T10086 GE ELEMENT CONVX ASM
WB44X45496 WB44X45496 GE ELEMENT CONVX ASSEMBLY
WB30T10135 WB30T10135 GE ELEMENT HALIANT (DUAL)
WB30T10155 WB30T10155 GE ELEMENT HALIANT 12 TRPL
WB30T10144 WB30T10144 GE ELEMENT HEATING (WARM)
WB30X20871 WB30X20871 GE ELEMENT RADIANT 6 WARMER
WB34T10125 WB34T10125 GE ENCLOSURE RANGETOP
WB27T11116 WB27T11116 GE FILTER CLOCK DISPLAY
WB56T10287 WB56T10287 GE FRAME DOOR SIDE (BLACK)
WB63T10146 WB63T10146 GE FRAME DWR AND BRKT ASM
WB63X20870 WB63X20870 GE FRAME FRONT 5.0
WB64X0093 WB64X0093 GE GLASS CLEANER
WB63X23859 WB63X23859 GE GUIDE- SLIDE DRAWER
WB15X21771 WB15X21771 GE HANDLE (BLACK)
WB15T10206 WB15T10206 GE HANDLE BLACK
WB18X22482 WB18X22482 GE HARNESS WIRE CAT MODULE
WB18X20123 WB18X20123 GE HARNESS WIRE INF
WB18X20041 WB18X20041 GE HARNESS WIRE INFINITE
WB18X20045 WB18X20045 GE HARNESS WIRE MAINTOP
WB18T10394 WB18T10394 GE HARNESS WIRE PROBE
WB18X20865 WB18X20865 GE HARNESS WIRE T012 GT
WB18X20896 WB18X20896 GE HARNESS WIRE WARMING DRW
WB10T10067 WB10T10067 GE HINGE DOOR
WB10T10068 WB10T10068 GE HINGE RECEIVER
WB27X20933 WB27X20933 GE HOUSING RJ45 ASSEMBLY
WB02T10289 WB02T10289 GE HUB BLADE ASSEMBLY
WB35X25290 WB35X25290 GE INSULATION CONV
WB35T10255 WB35T10255 GE INSULATION DOOR
WB35T10077 WB35T10077 GE INSULATION DOOR
WB35T10114 WB35T10114 GE INSULATION DOOR
WB35T10022 WB35T10022 GE INSULATION HIDDEN BAKE
WB35X21424 WB35X21424 GE INSULATION OVN BCK AND BTM
WB35X21443 WB35X21443 GE INSULATION OVN WRPR
WB18X30704 WB18X30704 GE JUMPER
WB03T10332 WB03T10332 GE KNOB ASSEMBLY
229C6246P002 229C6246P002 GE LABEL WIRE DIAGRAM
WB25T10097 WB25T10097 GE LAMP HALOGEN ASSEMBLY
WB08T10045 WB08T10045 GE LAMP HALOGEN G9
WB10X23272 WB10X23272 GE LATCH OVEN
WB18T10466 WB18T10466 GE LEAD WIRE 18 GA Y
WB25X24023 WB25X24023 GE LENS
WB25K10010 WB25K10010 GE LIGHT INDICATOR PILOT
WB25X20005 WB25X20005 GE LIGHT INDICATOR PILOT
WB55T10203 WB55T10203 GE LINER OVEN DOOR ASSEMBLY (BLACK)
WB02T10303 WB02T10303 GE LUBRICANT CLEANER
WB02T10026 WB02T10026 GE MAINTOP STRIKE
49-80597 49-80597 GE MANUAL U&C TIP SHEET
WB25T10050 WB25T10050 GE MODULE INDICATOR LIGHT
WB17T10020 WB17T10020 GE MOUNT TERMINAL BLOCK
WB02T10017 WB02T10017 GE NUT
WB1X5572 WB1X5572 GE NUT
WB01X5572 WB01X5572 GE NUT MEAT PROBE
WB25T10013 WB25T10013 GE OV LAMP LENS
WB57K5230 WB57K5230 GE OVEN DOOR GLASS-INNER
WB56X20104 WB56X20104 GE PANEL ASSEMBLY BONDED (BLACK)
WB56X20128 WB56X20128 GE PANEL DRAWER (BLACK)
WB56X28881 WB56X28881 GE PANEL SIDE (BK)
WB10T10116 WB10T10116 GE PIN RANGETOP HINGE
WB07X27823 WB07X27823 GE PLATE END LEFT
WB36T11204 WB36T11204 GE PLATE END RT
31-10816 31-10816 GE PM INSTRUCTIONS INSTALL
31-17132 31-17132 GE PM MANUAL MINI & WD ASM
49-80690 49-80690 GE PM OWNERS MANUAL
WB02X8309 WB02X8309 GE PROBE COVER
WB20T10024 WB20T10024 GE PROBE THERMISTOR
WB48T10082 WB48T10082 GE RANGE (ELECTRIC) SELF-CLEAN OVEN RACK
WB30T10132 WB30T10132 GE RANGE 8-INCH RADIANT SURFACE ELEMENT
WB02T10578 WB02T10578 GE RANGE ANTI-TIP BRACKET
WB02T10611 WB02T10611 GE RANGE BRACKET
WB26T10037 WB26T10037 GE RANGE CONVECTION MOTOR
WB02X21423 WB02X21423 GE RANGE COVER PLATE
WB02T10065 WB02T10065 GE RANGE DOOR HANDLE SPACER
WB01T10079 WB01T10079 GE RANGE GASKET
WB02X21494 WB02X21494 GE RANGE GLASS DOOR BRACKET
WB02X28994 WB02X28994 GE RANGE HEAT SHIELD
WB02T10509 WB02T10509 GE RANGE HEAT SHIELD FOR BAKE ELEMENT
WB03T10333 WB03T10333 GE RANGE KNOB - BLACK
WB07X21459 WB07X21459 GE RANGE LATCH TRIM
WB02X10521 WB02X10521 GE RANGE LEVELING LEG
WB02T10118 WB02T10118 GE RANGE OVEN CLIP SEAM
WB04T10086 WB04T10086 GE RANGE OVEN DOOR GASKET
WB56X22160 WB56X22160 GE RANGE OVEN INNER DOOR GLASS
WB48X20881 WB48X20881 GE RANGE OVEN RACK SLIDE ASSEMBLY
WB02T10034 WB02T10034 GE RANGE PANEL SIDE SUPORT
WB30T10145 WB30T10145 GE RANGE RADIANT ELEMENT - 5.5-INCH
WB02X20902 WB02X20902 GE RANGE RADIANT ELEMENT BRACKET
WB34X26004 WB34X26004 GE RANGE RADIANT LEFT CHASSIS BRACE
WB24X21736 WB24X21736 GE RANGE ROTARY SWITCH
WB24T10029 WB24T10029 GE RANGE SURFACE BURNER CONTROL SWITCH
WB24T10146 WB24T10146 GE RANGE SURFACE ELEMENT CONTROL
WB02X20265 WB02X20265 GE RANGE TRANSCEIVER HOUSING
WB62X22221 WB62X22221 GE RANGETOP GLASS ASSEMBLY (BLACK)
WB56T10321 WB56T10321 GE RETAINER GLASS OVN DR
WB56T10320 WB56T10320 GE RETAINER GLASS OVN DR
WB56T10178 WB56T10178 GE RETAINER OVN DR INSLN
WB01T10103 WB01T10103 GE SCR 10-16 AB HXW .532
WB01X0500 WB01X0500 GE SCR 8-18 B HXW 1/4 S
WB1X5904 WB1X5904 GE SCR 8-18 BA
WB01X5904 WB01X5904 GE SCR 8-18 BA POR 3/4 SN
WB01T10072 WB01T10072 GE SCR 8-32 1HW .312 NI
WB01X0537 WB01X0537 GE SCREW
WB01M0001 WB01M0001 GE SCREW
WB01K5028 WB01K5028 GE SCREW
WZ04X0044 WZ04X0044 GE SCREW
WB01K5200 WB01K5200 GE SCREW
WH2X930 WH2X930 GE SCREW
WB1X536 WB1X536 GE SCREW
WB1M1 WB1M1 GE SCREW
WD2X432 WD2X432 GE SCREW
WB1X537 WB1X537 GE SCREW
WB01T10066 WB01T10066 GE SCREW 10-16 X 1.000 HWH
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01T10017 WB01T10017 GE SCREW 8-18 AB IHW 3/8 S NS
WD02X0432 WD02X0432 GE SCREW 8-18 X 5/16 BK
WB01X23501 WB01X23501 GE SCREW 8-32 TT FLP .270
WR1X1635 WR1X1635 GE SCREW 8-32 X 625 M HXW S
WB1K5157 WB1K5157 GE SCREW-BLK
WZ4X44D WZ4X44D GE SCREW-PKG 12
WB1X500D WB1X500D GE SCREW-PKG 12
WZ4X245D WZ4X245D GE SCREW-PKG 12
WB21X22134 WB21X22134 GE SENSOR ASSEMBLY
WB44X20882 WB44X20882 GE SHIELD BROIL ASSEMBLY
WB34T10107 WB34T10107 GE SHIELD HEAT DRW BCK
WB49T10007 WB49T10007 GE SIDE REFLECTOR
WB09X40389 WB09X40389 GE SPRING RADIANT ELEMENT
WB24T10162 WB24T10162 GE SWITCH INFINITE CONTROL
WB17T10011 WB17T10011 GE TERMINAL BLOCK ASSEMBLY
WB07X24070 WB07X24070 GE TRIM CONTROL ASSEMBLY
WB07T10516 WB07T10516 GE TRIM FRT FRM (BLACK)
WB28T10217 WB28T10217 GE TUBE VNT RADIANT
WB44X45499 WB44X45499 GE UNIT ASSEMBLY
WB38X33648 WB38X33648 GE VENT TUBE
WB01X5573 WB01X5573 GE WASHER
WB1X5573 WB1X5573 GE WASHER
