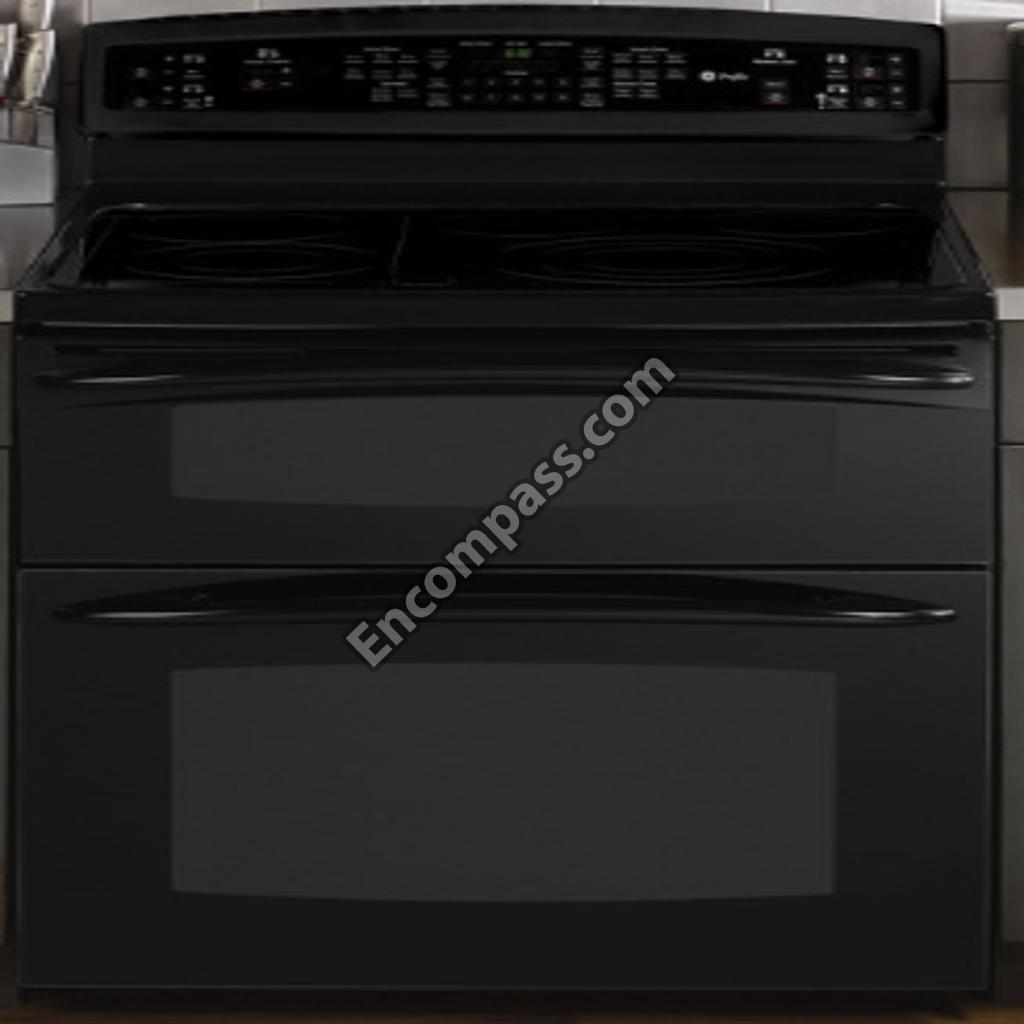

Model Image
Manufacturer

GE

Model Number

PB978DP4BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB39T10015 WB39T10015 BASE DUAL CAVITY
WB02T10353 WB02T10353 BASE RAIL
WB02T10352 WB02T10352 BASE RAIL

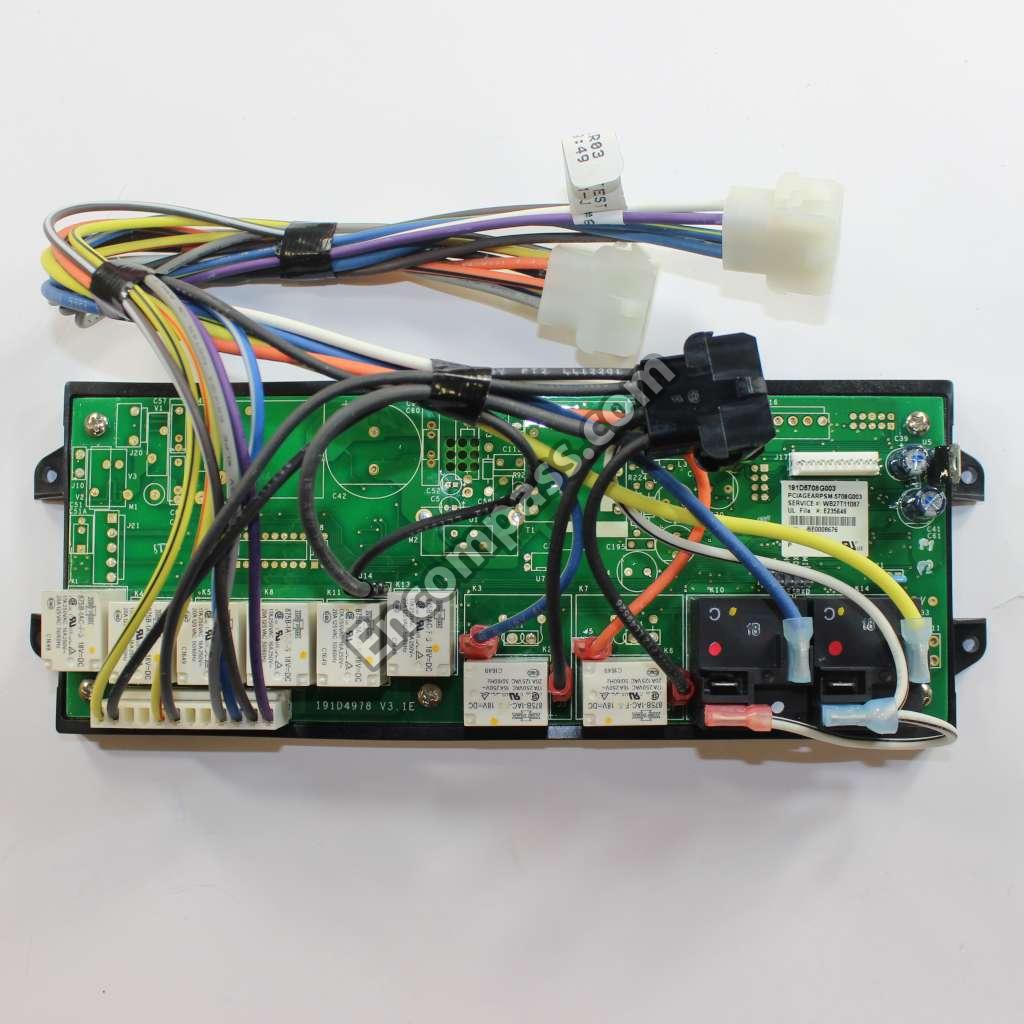

WB27X26503 WB27X26503 BOARD RLY DAUGHTER ASSEMBLY
WB02T10463 WB02T10463 BRACE CHASSIS RADIANT RT
WB02T10194 WB02T10194 BRACKET CAPACITOR

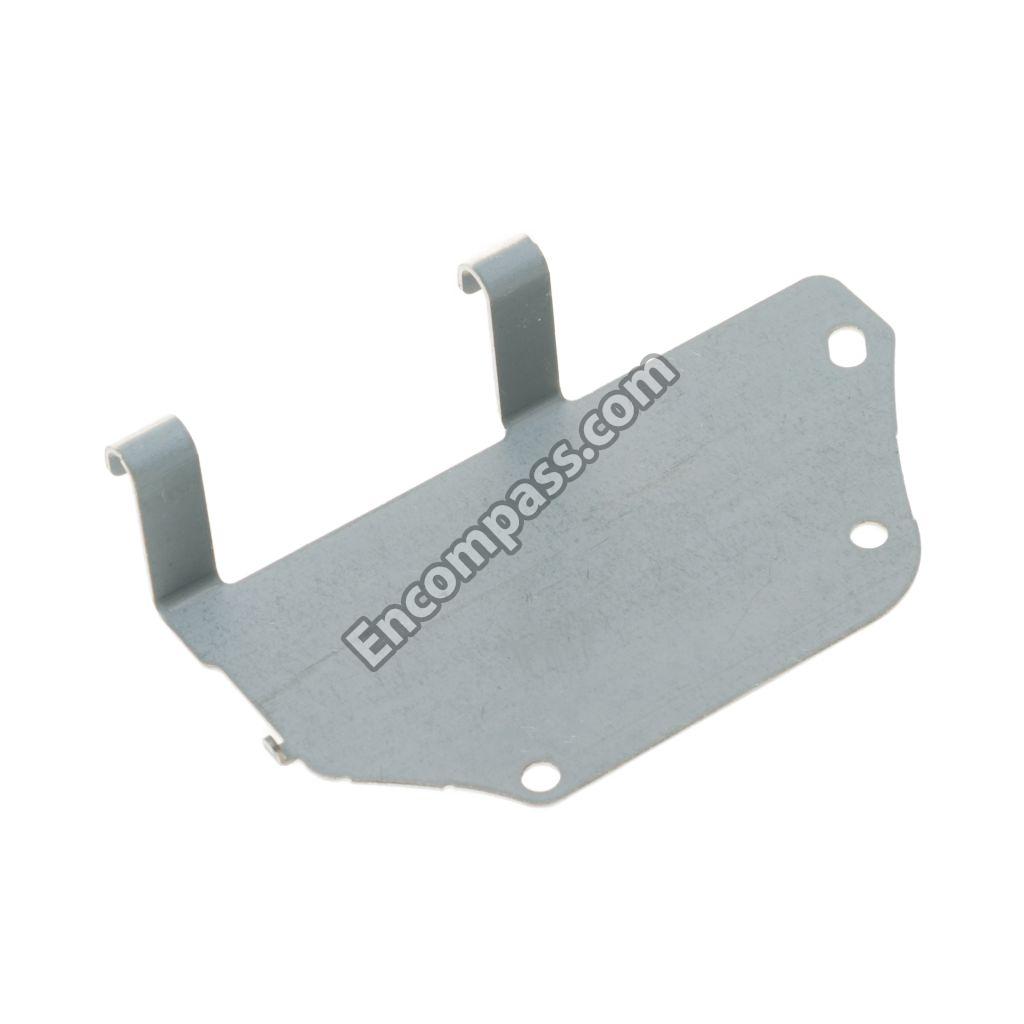

WB02T10479 WB02T10479 BRACKET RADIANT ELEMENT
WB27T10662 WB27T10662 CAPACITOR MOTOR
WB02T10294 WB02T10294 CHANNEL DOOR AIR
WB02T10497 WB02T10497 CLIP SPACER DOOR
WB27T11327 WB27T11327 CONTROL
WB34T10128 WB34T10128 COVER BACK
WB02T10532 WB02T10532 COVER CONTROL
WB26T10058 WB26T10058 COVER FAN CONV
WB02T10370 WB02T10370 COVER FRONT
WB02T10487 WB02T10487 COVER HOLE
WB02T10355 WB02T10355 COVER TERMINAL BLOCK
WB02T10476 WB02T10476 COVER WIRE MAIN
WB01T10022 WB01T10022 DOOR BUMPER
WB01T10026 WB01T10026 DOOR PAD
WB44T10086 WB44T10086 ELEMENT CONVX ASM
WB44X31764 WB44X31764 ELEMENT CONVX ASSEMBLY
WB30T10131 WB30T10131 ELEMENT HALIANT 8 IN
WB44T10082 WB44T10082 ELEMENT HIDDEN BAKE ASSEMBLY
WB30T10124 WB30T10124 ELEMENT RADIANT 6 WARMER
WB38T10033 WB38T10033 ELIMINATOR SMOKE
WB34T10083 WB34T10083 ENCLOSURE RANGETOP
WB27T11116 WB27T11116 FILTER CLOCK DISPLAY

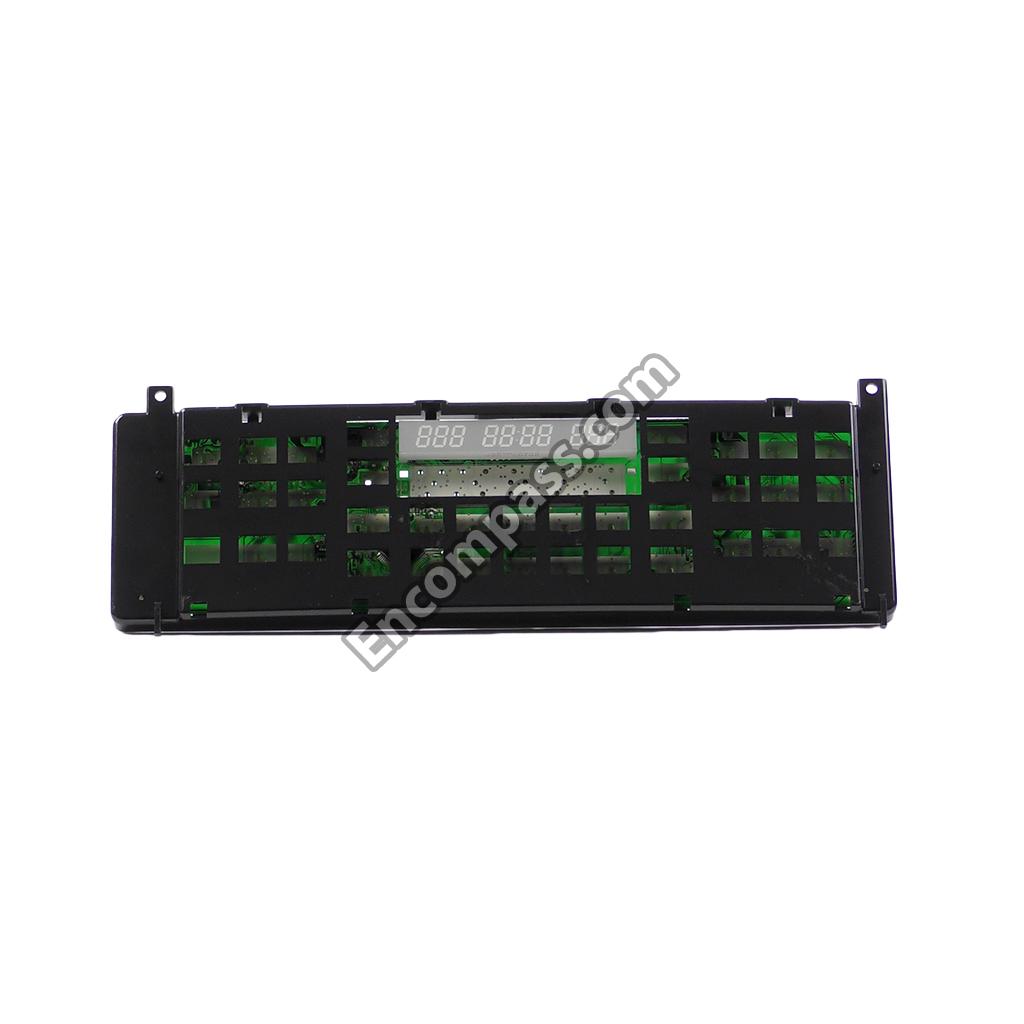

WB27T11087 WB27T11087 FRAME BOARD ASSEMBLY
WB27T11085 WB27T11085 FRAME BOARD ASSEMBLY
WB56T10313 WB56T10313 FRAME DOOR SIDE
WB56T10312 WB56T10312 FRAME DOOR SIDE
WB63T10131 WB63T10131 FRAME FRONT
WB04T10021 WB04T10021 GASKET OVEN LIGHT
WB64X0093 WB64X0093 GLASS CLEANER
WB48T10066 WB48T10066 GRIDDLE ASSEMBLY

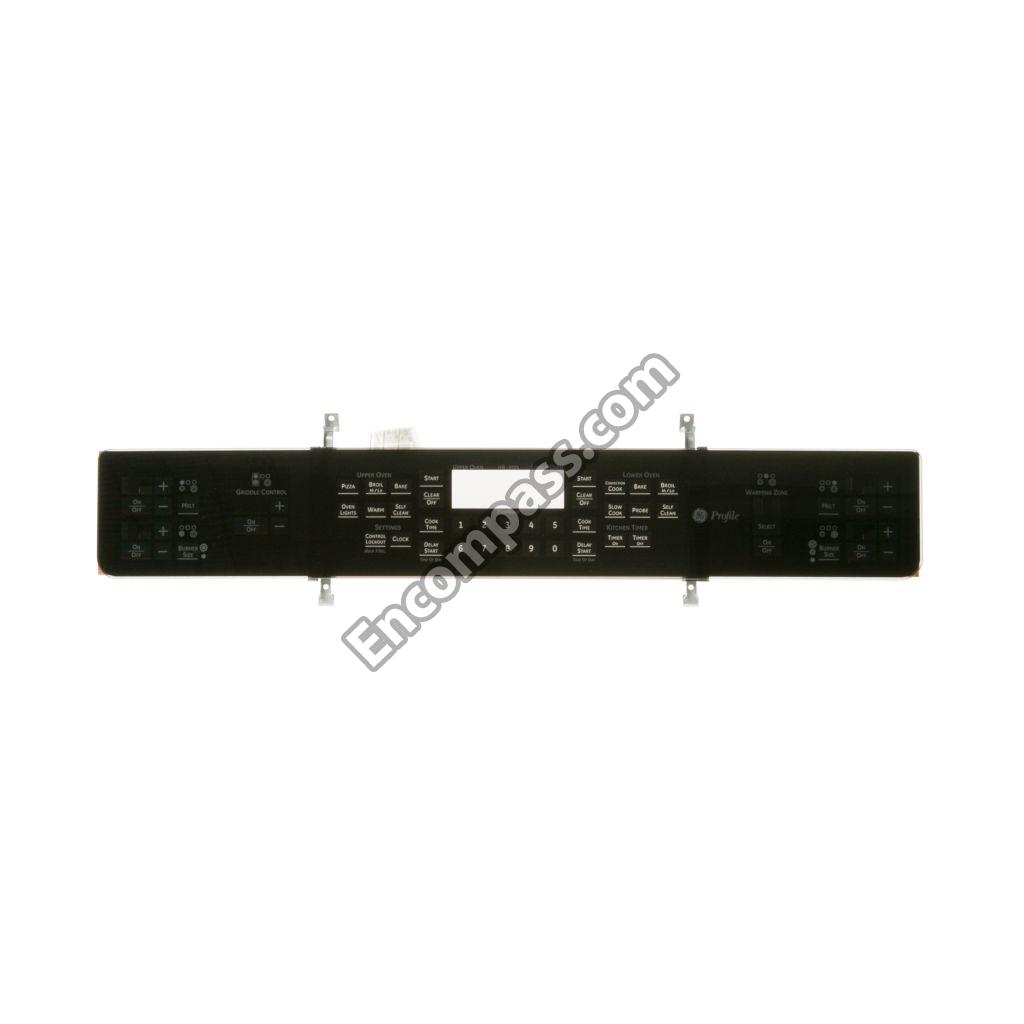

WB27T11115 WB27T11115 GUIDE AND OVERLAY ASSEMBLY

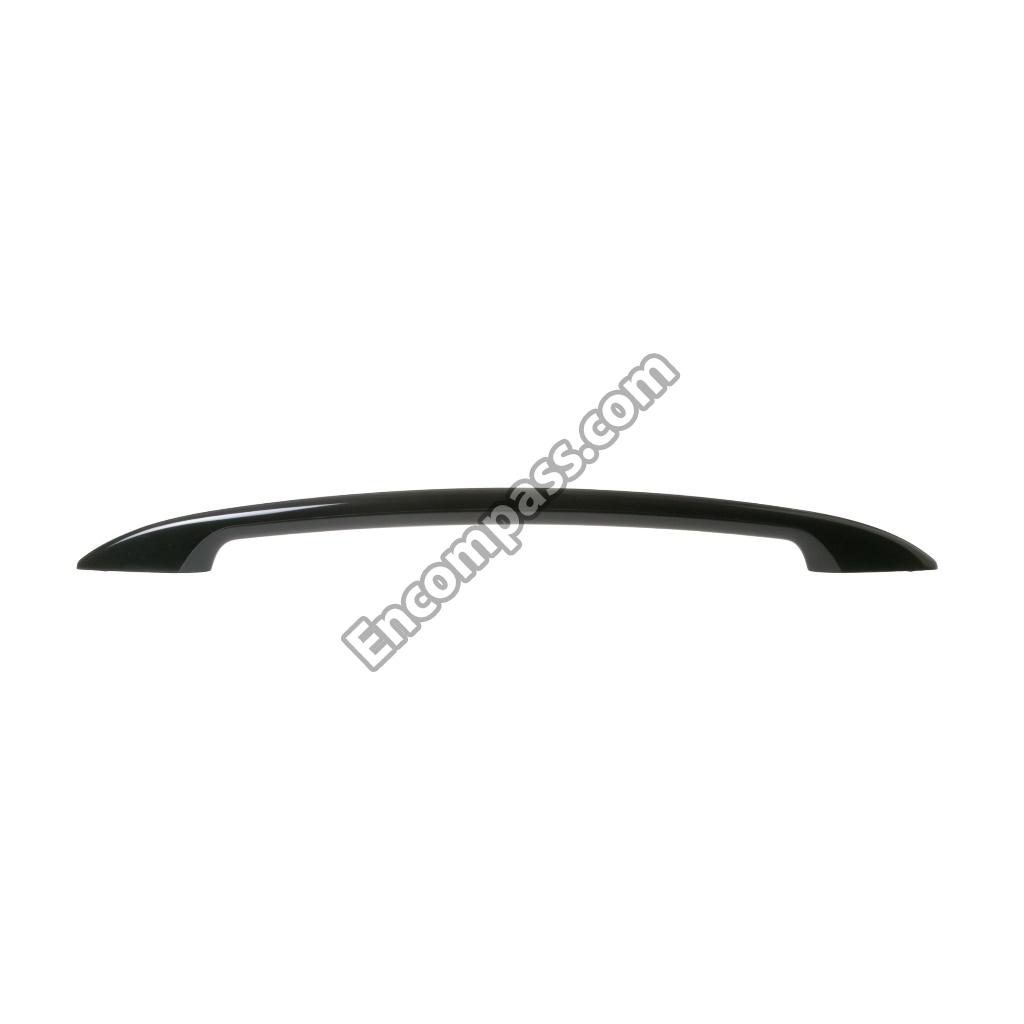

WB15T10139 WB15T10139 HANDLE PRF DOOR BK
WB15T10136 WB15T10136 HANDLE PRF DRAWER BK
WB18T10441 WB18T10441 HARNESS WIRE DC AUX
WB18T10462 WB18T10462 HARNESS WIRE HB
WB18T10472 WB18T10472 HARNESS WIRE MAINTOP
WB18T10394 WB18T10394 HARNESS WIRE PROBE

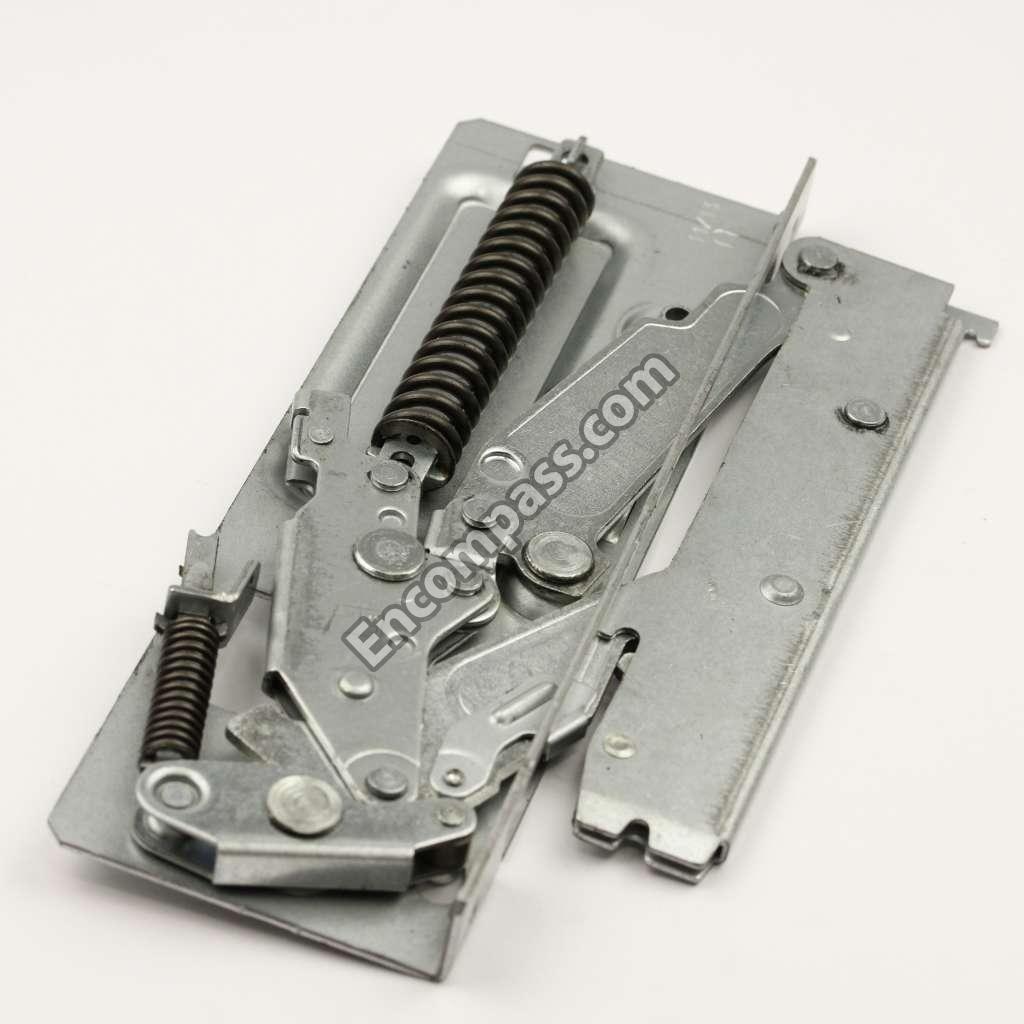

WB10T10105 WB10T10105 HINGE ASSEMBLY (LT)
WB10T10104 WB10T10104 HINGE ASSEMBLY (RT)
WB10T10107 WB10T10107 HINGE DOOR LEFT
WB10T10106 WB10T10106 HINGE DOOR RT
WB02T10289 WB02T10289 HUB BLADE ASSEMBLY
31-10671 31-10671 INSTR INSTALL OVN DOOR
31-10677 31-10677 INSTRUCTION INSTALL
WB35X25122 WB35X25122 INSULATION BACK
WB35T10223 WB35T10223 INSULATION BACK
WB35X25048 WB35X25048 INSULATION BACK
WB35T10230 WB35T10230 INSULATION BACK
WB35T10180 WB35T10180 INSULATION BACK
WB35X25077 WB35X25077 INSULATION BOTTOM
WB35T10235 WB35T10235 INSULATION MIDDLE
WB35T10168 WB35T10168 INSULATION OV DR UPRSIDE
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10167 WB35T10167 INSULATION OVN DR TOP UP
WB35T10170 WB35T10170 INSULATION WRAPPER
WB35T10236 WB35T10236 INSULATION WRAPPER UPR
WB25T10097 WB25T10097 LAMP HALOGEN ASSEMBLY
WB25T10093 WB25T10093 LAMP HALOGEN ASSEMBLY
WB08T10045 WB08T10045 LAMP HALOGEN G9

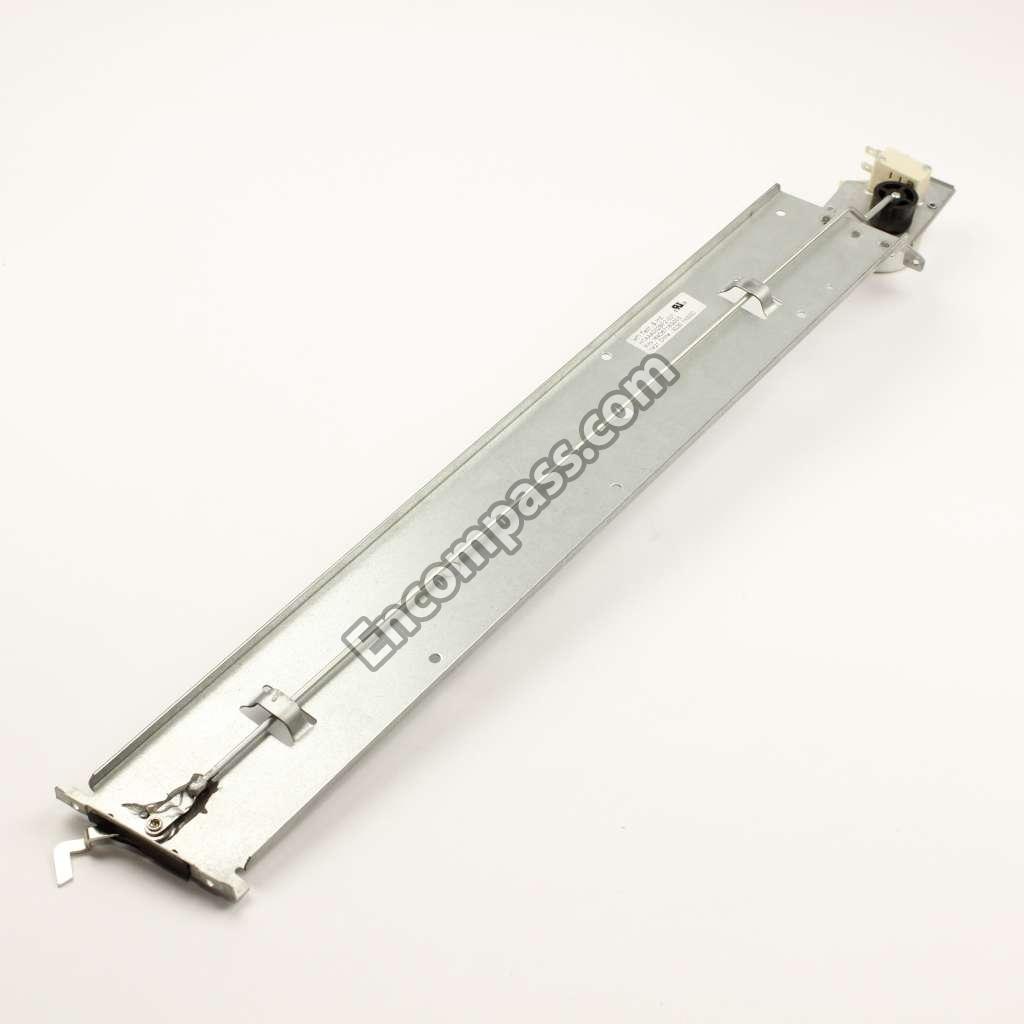

WB14T10083 WB14T10083 LATCH AND HARNESS ASSEMBLY
WB14T10088 WB14T10088 LATCH ASSEMBLY
WB55T10148 WB55T10148 LINER OVEN DR ASSEMBLY
WB55T10186 WB55T10186 LINING OVEN DOOR ASSEMBLY
WB62T10756 WB62T10756 MAINTOP & GLASS ASM
WB62T10757 WB62T10757 MAINTOP & GLASS ASM
WB02T10026 WB02T10026 MAINTOP STRIKE
49-80602 49-80602 MANUAL USE & CARE
WB25T10050 WB25T10050 MODULE INDICATOR LIGHT
WB26T10043 WB26T10043 MOTOR PSC CONV
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT

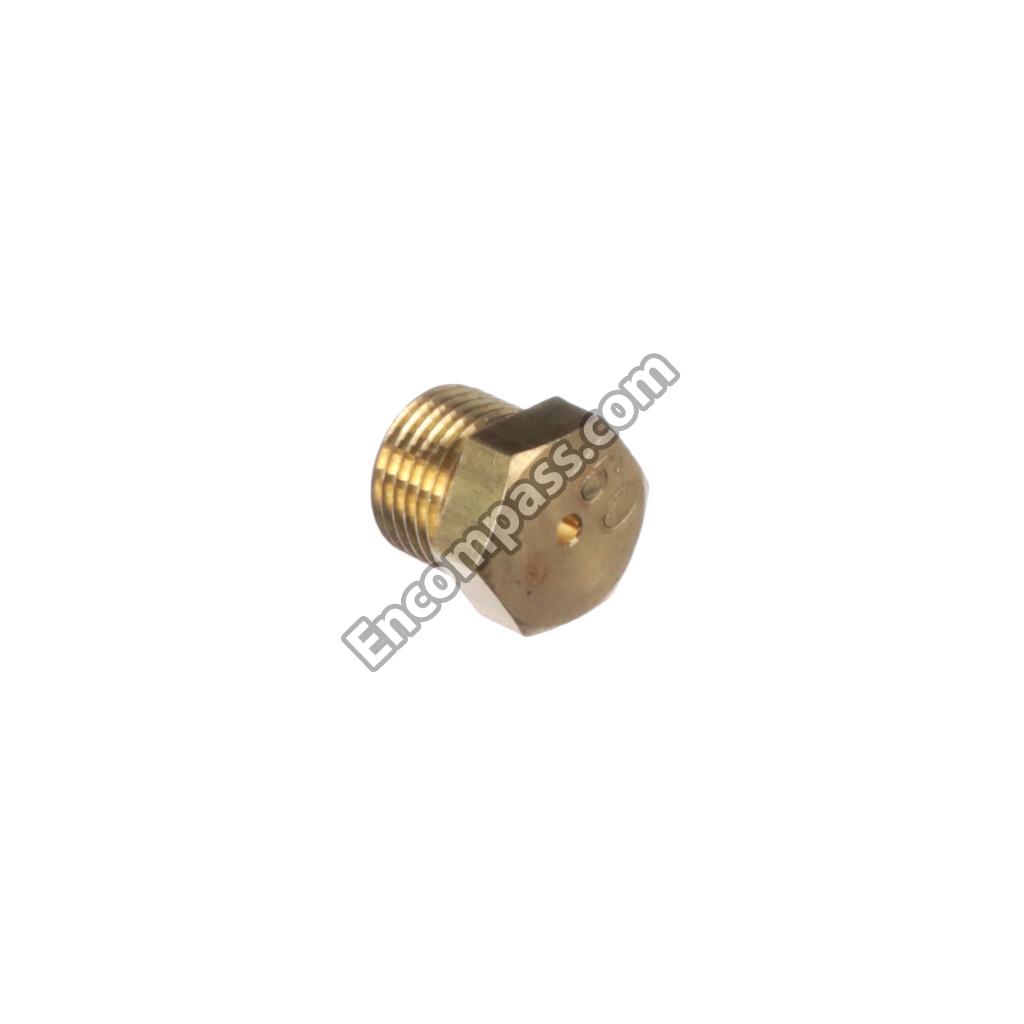

WB01X5572 WB01X5572 NUT MEAT PROBE
WB25T10013 WB25T10013 OV LAMP LENS
WB25T10002 WB25T10002 OVEN BULB LENS COVER-GLASS
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB49T10071 WB49T10071 PAN REFLECTOR
WB56T10250 WB56T10250 PANEL ASM BONDED
WB56T10249 WB56T10249 PANEL ASSEMBLY BONDED UPR
WB56X28881 WB56X28881 PANEL SIDE (BK)
WB56X28884 WB56X28884 PANEL SIDE (WH)

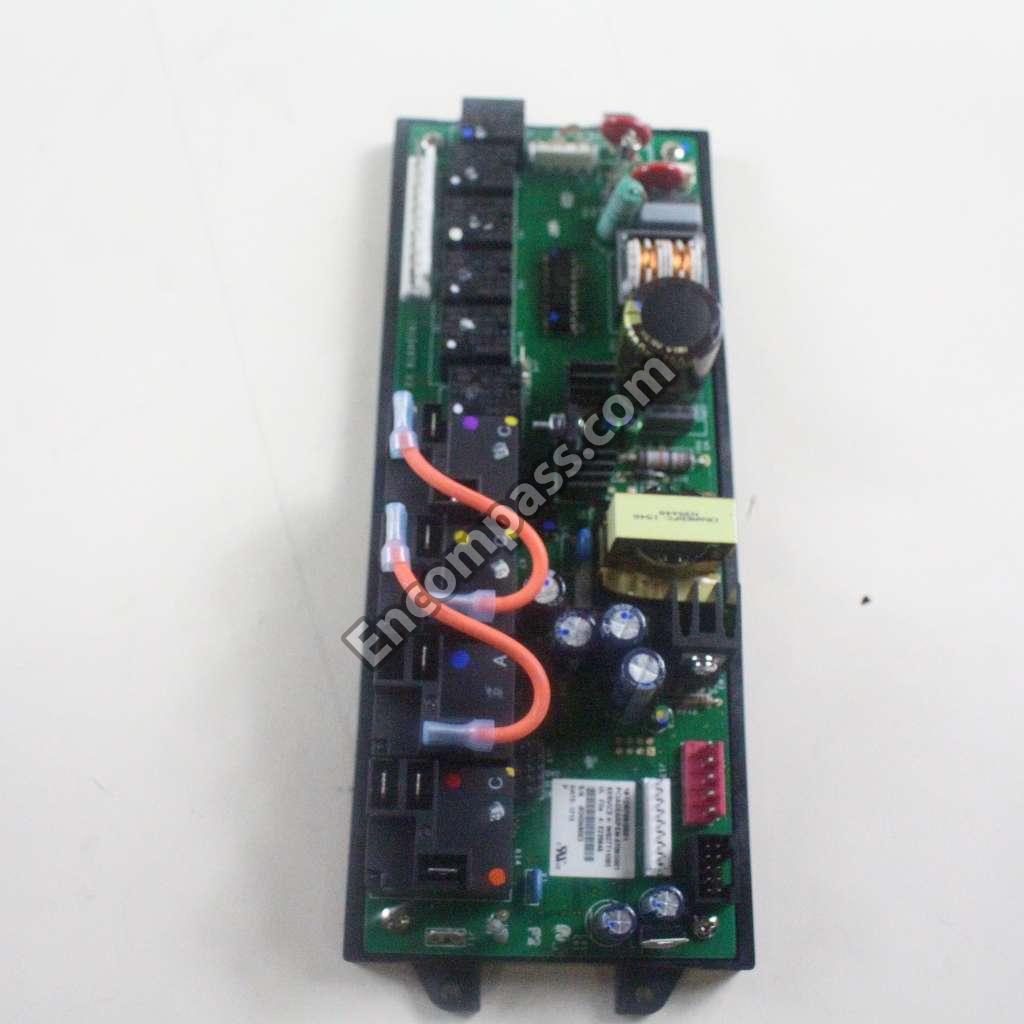

WB02T10477 WB02T10477 PCB ST AND OFF
WB10T10125 WB10T10125 PIN RANGETOP HINGE
WB07X27823 WB07X27823 PLATE END LEFT
WB36T11204 WB36T11204 PLATE END RT
WD21X10231 WD21X10231 PLUG ASM MODEL SELECTOR
31-14868 31-14868 PM MANUAL MINI & WD ASM
WB2X8309 WB2X8309 PR0BE COVER
WB20T10024 WB20T10024 PROBE THERMISTOR
WB48T10042 WB48T10042 RACK OVEN
WB48T10059 WB48T10059 RACK OVEN (GY)

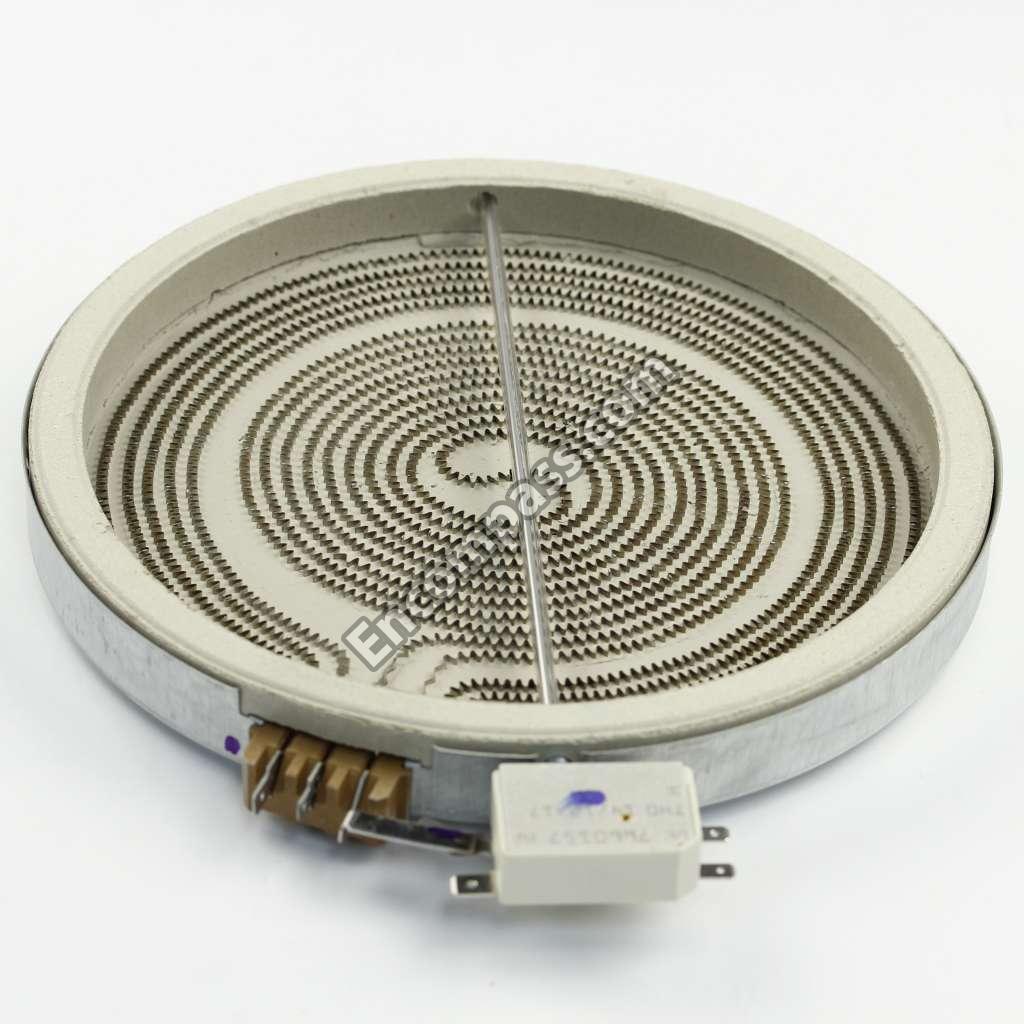

WB30T10126 WB30T10126 RANGE 12-INCH RADIANT SURFACE ELEMENT
WB30T10129 WB30T10129 RANGE 6-INCH RADIANT SURFACE ELEMENT
WB30T10132 WB30T10132 RANGE 8-INCH RADIANT SURFACE ELEMENT
WB02T10415 WB02T10415 RANGE ANTI-TIP BRACKET

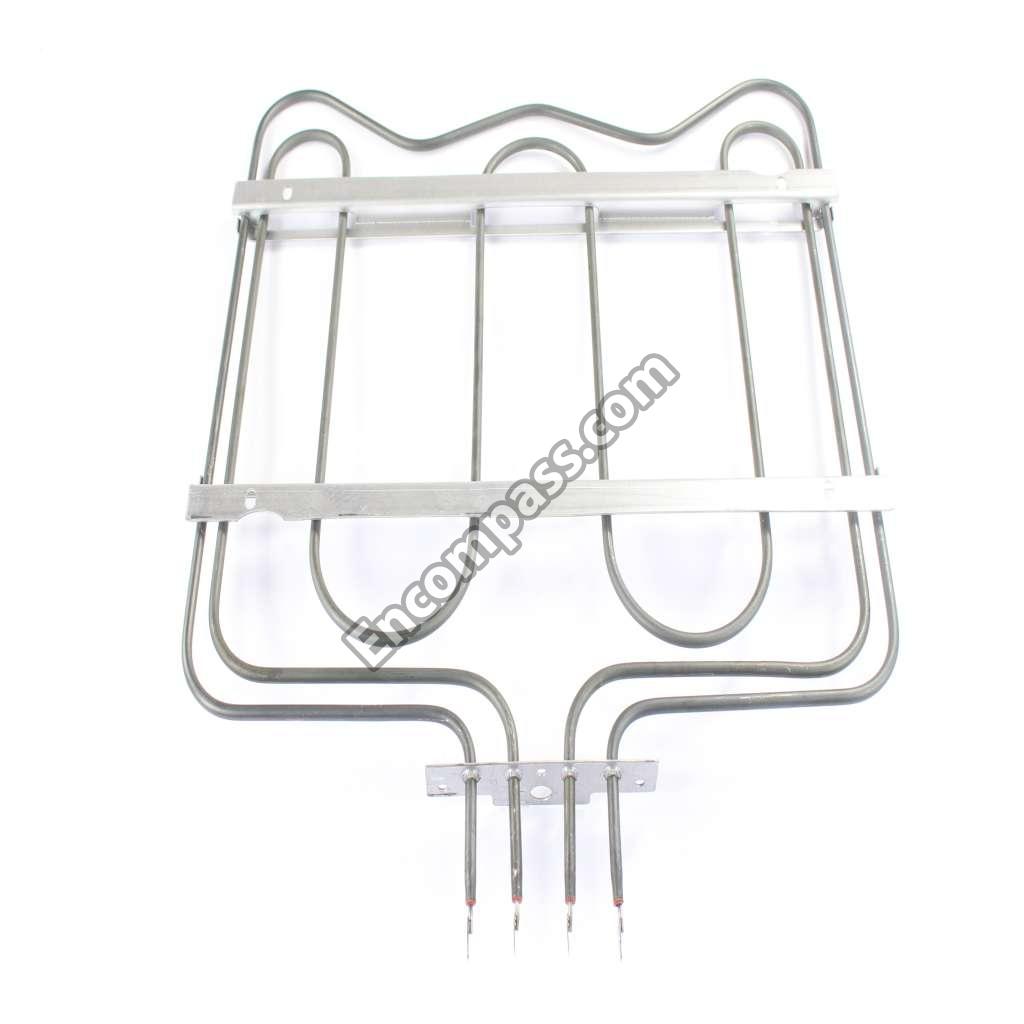

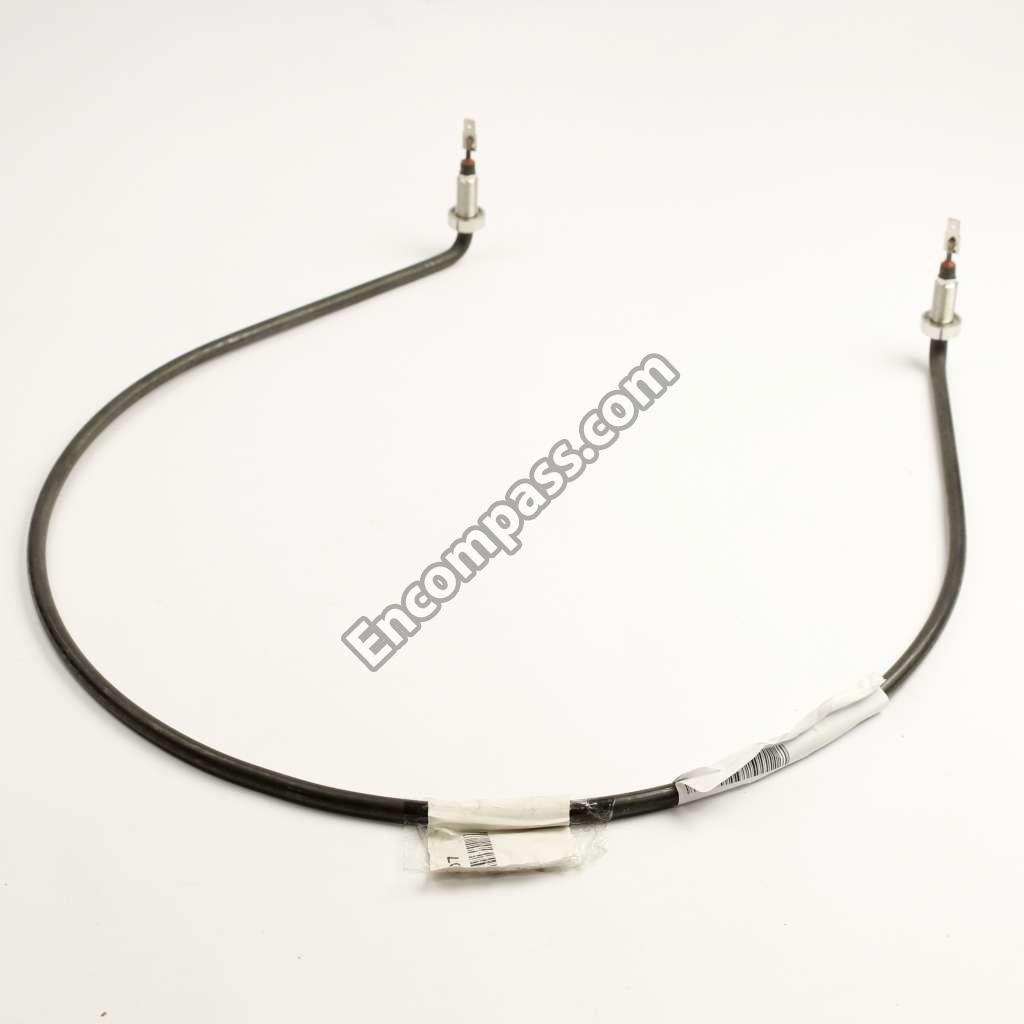

WB44X45487 WB44X45487 RANGE BAKE ELEMENT
WB01T10021 WB01T10021 RANGE BUMPER
WB27T11125 WB27T11125 RANGE GLASS
WB02T10349 WB02T10349 RANGE HANDLE BRACKET
WB02T10468 WB02T10468 RANGE HEAT SHIELD
WB24T10160 WB24T10160 RANGE HIGH AMP SWITCH
WB02T10371 WB02T10371 RANGE INSULATION RETAINER
WB02X10521 WB02X10521 RANGE LEVELING LEG
WB02T10507 WB02T10507 RANGE MAIN BACK PANEL

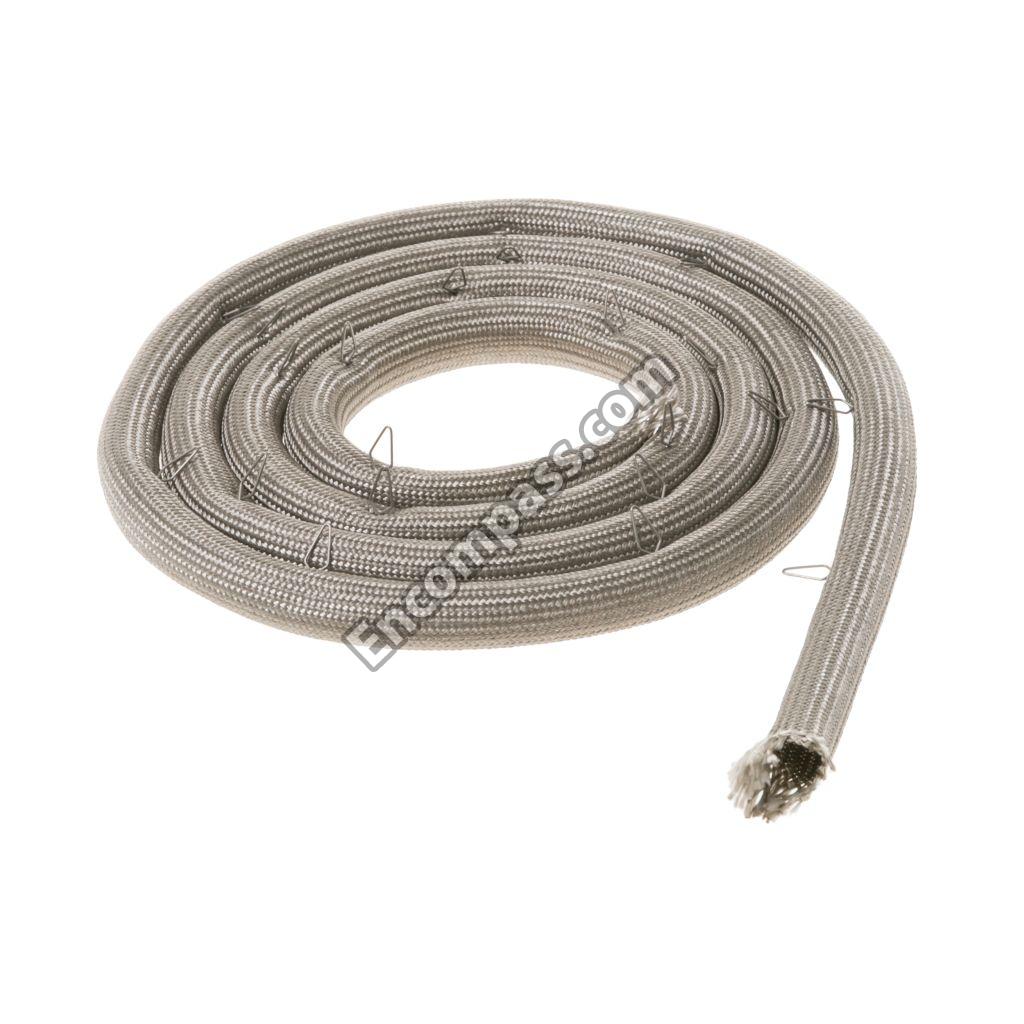

WB04T10073 WB04T10073 RANGE OVEN DOOR GASKET
WB04T10050 WB04T10050 RANGE OVEN GASKET
WB08T10002 WB08T10002 RANGE OVEN LAMP ASSEMBLY
WB23T10015 WB23T10015 RANGE OVEN SENSOR
WB02T10034 WB02T10034 RANGE PANEL SIDE SUPORT
WB34X26004 WB34X26004 RANGE RADIANT LEFT CHASSIS BRACE
WB02T10492 WB02T10492 RANGE STRAIN RELIEF BRACKET
WB02X29562 WB02X29562 RANGETOP BUMPER
WB10T10083 WB10T10083 RECEIVER HINGE
WB10T10101 WB10T10101 RECEIVER HINGE UPR ( LEFT)
WB10T10100 WB10T10100 RECEIVER HINGE UPR (RT)
WB56T10318 WB56T10318 RETAINER INSLN OVEN DR
WB18T10437 WB18T10437 RIBBON CABLE WING BOARD
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01X1178 WB01X1178 SCREW
WB01K5156 WB01K5156 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5028 WB01K5028 SCREW
WB01X1253 WB01X1253 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5200 WB01K5200 SCREW
WD2X432 WD2X432 SCREW
WB1K5156 WB1K5156 SCREW
WB1X1178 WB1X1178 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10066 WB01T10066 SCREW 10-16 X 1.000 HWH
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WD02X0432 WD02X0432 SCREW 8-18 X 5/16 BK
WB01X1261 WB01X1261 SCREW GROUND
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1K5165 WB1K5165 SCREW-BLACK
WB01K5165 WB01K5165 SCREW-BLK
WB1K5157 WB1K5157 SCREW-BLK
WZ4X245D WZ4X245D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB44X45488 WB44X45488 SHIELD BROIL ASSEMBLY
WB44T10095 WB44T10095 SHIELD BROIL ASSEMBLY LWR
WB02X28994 WB02X28994 SHIELD HEAT BKGD
WB02T10351 WB02T10351 SPACER BRACKET H AND LE
WB09X40389 WB09X40389 SPRING RADIANT ELEMENT
WB26T10015 WB26T10015 SUPPORT OVEN CAVITY
WB24T10105 WB24T10105 TCO RUNAWAY
WB07T10685 WB07T10685 TRIM CONTROL (BLACK)
WB07T10488 WB07T10488 TRIM VENT DOOR (PRF-BK)
WB07T10621 WB07T10621 TRIM VERTICAL SIDES
WB38T10035 WB38T10035 TUBE VENT ASSEMBLY
WB38T10034 WB38T10034 TUBE VNT ASSEMBLY LWR
WB38X33648 WB38X33648 VENT TUBE
WB38T10012 WB38T10012 VENT TUBE ASSEMBLY
WB01X5573 WB01X5573 WASHER
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1X5573 WB1X5573 WASHER
WB56T10244 WB56T10244 WINDOW PACK ASSEMBLY UPR
WB63T10148 WB63T10148 WRAPPER OVN CAV ASM
