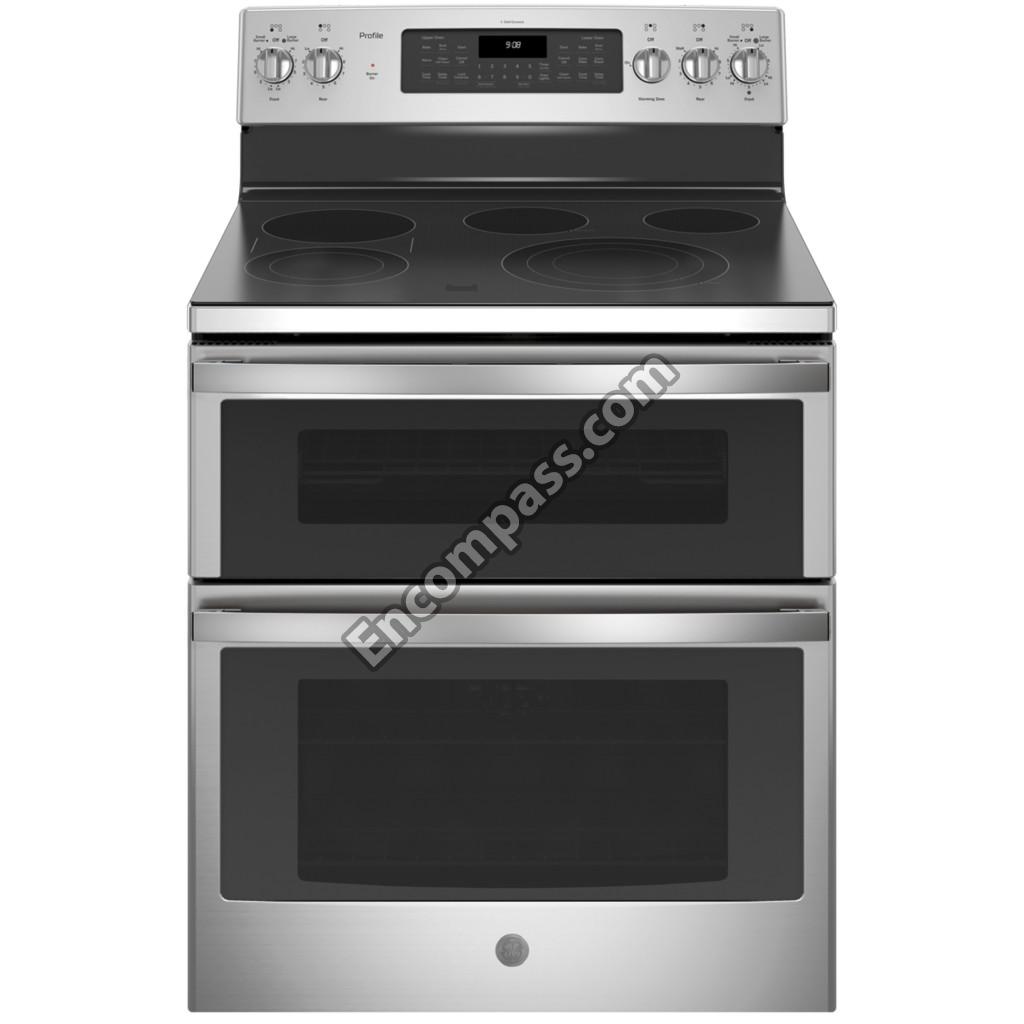

Model Image
Manufacturer

GE

Model Number

PB980SJ4SS

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB34X28565 WB34X28565 BACKGUARD SHIELD HEAT
WB02X29479 WB02X29479 BADGE ASSEMBLY
WB63X25990 WB63X25990 BASE DUAL CAVITY
WB02T10353 WB02T10353 BASE RAIL
WB02T10352 WB02T10352 BASE RAIL
WB34X26004 WB34X26004 BRACE
WB02T10463 WB02T10463 BRACE CHASSI
WB34X42670 WB34X42670 BRACKET OVN HDL VNT TRM
WB34X25221 WB34X25221 BRACKET OVN HDL VNT TRM
WB02X25142 WB02X25142 BRACKET RADIANT ELEMENT
WB02T10542 WB02T10542 BRACKET STRAIN RELIEF
WB02X25982 WB02X25982 CABLE CLIP
WB02T10533 WB02T10533 CAPACITOR BRACKET
WB34X30702 WB34X30702 CHASSIS BRACE RADIANT LH
WB34X30703 WB34X30703 CHASSIS BRACE RADIANT RH
WB34X20082 WB34X20082 COMPLETE FAN COVER
WB34X25565 WB34X25565 CONTROL COVER
WB07X25287 WB07X25287 CONTROL TRIM
WB01T10079 WB01T10079 CONVERSION GASKET
WB02K5365 WB02K5365 COVER
WB34X42993 WB34X42993 COVER
WB34X20970 WB34X20970 COVER PLATE
WB02T10575 WB02T10575 COVER WIRE M
WB34X25638 WB34X25638 DOOR BRACKET
WB01T10022 WB01T10022 DOOR BUMPER
WB56X21404 WB56X21404 DOOR FRAME
WB10X30491 WB10X30491 DOOR HINGE L
WB10X30492 WB10X30492 DOOR HINGE RT
WB02X25272 WB02X25272 DOOR SPACER
WH2X930 WH2X930 DRYER SCREW
WB44X45496 WB44X45496 ELEMENT
WB44T10086 WB44T10086 ELEMENT CONVX ASM
WB38T10033 WB38T10033 ELIMINATOR S
WB07X29534 WB07X29534 END PLATE LH DG
WB07X29535 WB07X29535 END PLATE RH DG
WB63X20010 WB63X20010 FRAME
WB63X20864 WB63X20864 FRAME
WB64X0093 WB64X0093 GLASS CLEANER
WB08T10045 WB08T10045 HALOGEN LAMP
WB25X40248 WB25X40248 HALOGEN LAMP ASSEMBLY
WB25X33021 WB25X33021 HALOGEN LAMP ASSEMBLY
WB15X24967 WB15X24967 HANDLE
WB10X25237 WB10X25237 HARNESS LATCH
WB18X32738 WB18X32738 HARNESS WIRE INFINITE
WB02X20855 WB02X20855 HEAT SHIELD
WB18X32735 WB18X32735 HIDDEN BAKE HARNESS WIRE
WB18X32736 WB18X32736 HIDDEN BAKE UPPER HARNESS WIRE
WB10T10104 WB10T10104 HINGE ASSEMBLY
WB10T10105 WB10T10105 HINGE ASSEMBLY
WB10T10100 WB10T10100 HINGE RECEIVER
WB10T10101 WB10T10101 HINGE RECEIVER
WB10X30495 WB10X30495 HINGE RECEIVER
WB34X20009 WB34X20009 HOLE COVER
WB02T10487 WB02T10487 HOLE COVER
WB25X20005 WB25X20005 INDICATOR LIGHT
WB25T10050 WB25T10050 INDICATOR MODULE
WB24X25013 WB24X25013 INFINITE SWITCH
WB24X25152 WB24X25152 INFINITE SWITCH
31-10816 31-10816 INSTALLATION INSTRUCTIONS
31-10781 31-10781 INSTALLATION INSTRUCTIONS
31-10661 31-10661 INSTRUCTION INSTALL
WB35X25049 WB35X25049 INSULATION
WB35X25122 WB35X25122 INSULATION
WB35T10170 WB35T10170 INSULATION
WB35X25048 WB35X25048 INSULATION
WB35T10180 WB35T10180 INSULATION B
WB35X25301 WB35X25301 INSULATION BACK
WB35X25077 WB35X25077 INSULATION BOTTOM
WB35T10235 WB35T10235 INSULATION M
WB18X30704 WB18X30704 JUMPER
WB03X34871 WB03X34871 KNOB
229C6463P001 229C6463P001 LABEL WIRE DIAGRAM
WB25X24909 WB25X24909 LAMP HALOGEN ASM
WB10X25238 WB10X25238 LATCH ASSEMBLY
WB25X24023 WB25X24023 LENS
WB02T10303 WB02T10303 LUBRICANT CLEANER
WB34X31226 WB34X31226 MAIN BACK COVER
WB02T10026 WB02T10026 MAIN TOP STRIP
WB18X32733 WB18X32733 MAINTOP HARNESS WIRE
WB18X30760 WB18X30760 MAINTOP HARNESS WIRE
49-80597 49-80597 MANUAL U&C TIP SHEET
WB02T10289 WB02T10289 MICROWAVE STIRRER FAN BLADE
WB26X24910 WB26X24910 MOTOR PSC CO
WB02T10017 WB02T10017 NUT
WB2X8454 WB2X8454 NUT

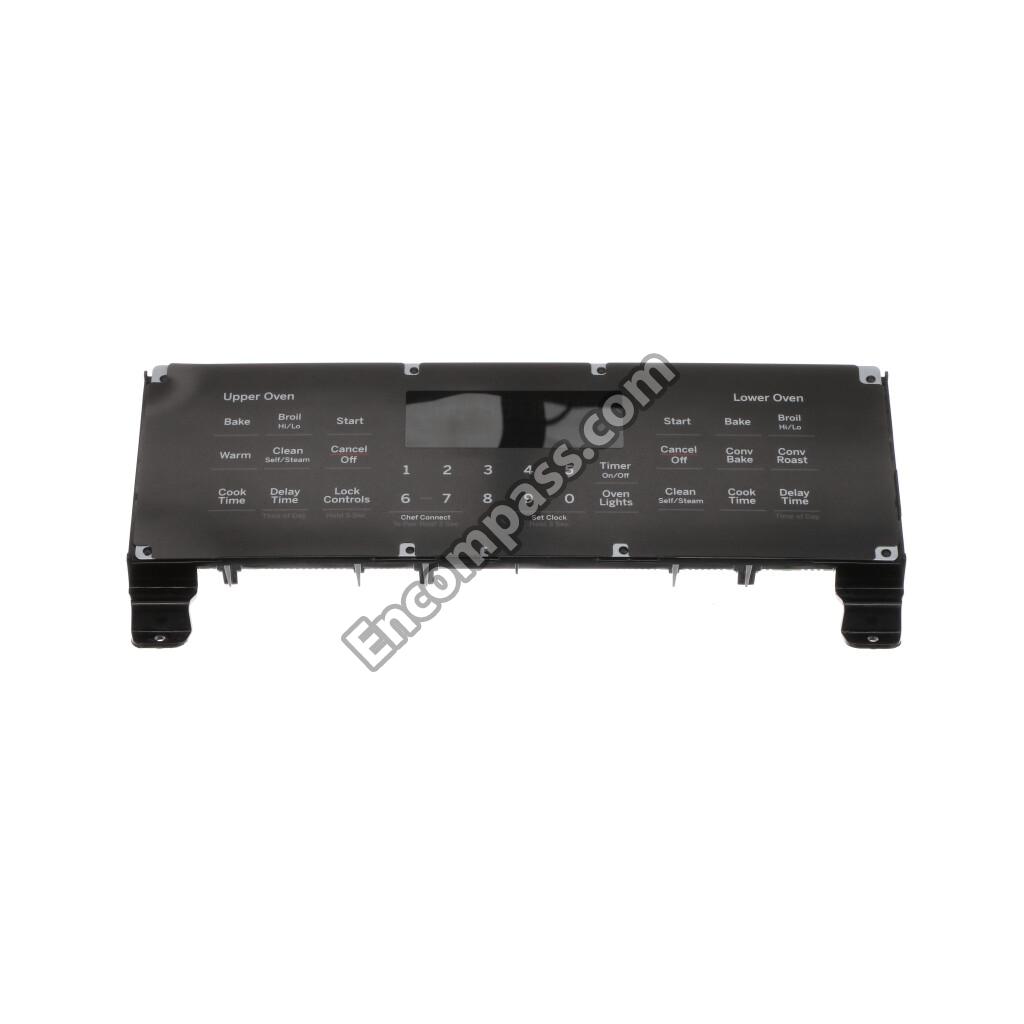

WB27X33132 WB27X33132 OVEN CONTROL AND OVERLAY ASM WHITE LED
WB2K5365 WB2K5365 OVEN COVER
WB56X21397 WB56X21397 OVEN DOOR FRAME
WB04T10077 WB04T10077 OVEN DOOR GASKET
WB04T10021 WB04T10021 OVEN DOOR GASKET
WB04T10076 WB04T10076 OVEN DOOR GASKET
WB35X30050 WB35X30050 OVEN DOOR INSULATION
WB35X30052 WB35X30052 OVEN DOOR INSULATION
WB35X30051 WB35X30051 OVEN DOOR INSULATION SIDE
WB35X30053 WB35X30053 OVEN DOOR INSULATION SIDE
WB25T10013 WB25T10013 OVEN LAMP LENS
WB63X20854 WB63X20854 OVEN LINER
WB63X20852 WB63X20852 OVEN LINER
WB02X20947 WB02X20947 OVEN SUPPORT
WB56T10244 WB56T10244 OVEN UPPER WINDOW PACK ASSEMBLY
WB63T10162 WB63T10162 OVEN WRAPPER
WB63X21468 WB63X21468 OVEN WRAPPER
WB49T10075 WB49T10075 PAN REFLECTOR
WB49T10071 WB49T10071 PAN REFLECTOR
WB56X39770 WB56X39770 PANEL ASM BONDED LWR (SS)
WB02T10477 WB02T10477 PCB STANDOFF
31-17193 31-17193 PM MANUAL MINI & WD ASM
49-80767 49-80767 PM QUICK GUIDE
WB02X20902 WB02X20902 RADIANT BRACKET
WB09X40389 WB09X40389 RADIANT SPRING
WB02T10578 WB02T10578 RANGE ANTI-TIP BRACKET
WB44T10082 WB44T10082 RANGE BAKE ELEMENT
WB27T10662 WB27T10662 RANGE CONVECTION FAN MOTOR START CAPACITOR
WB44X45488 WB44X45488 RANGE DRIP PAN
WB02X10521 WB02X10521 RANGE LEVELING LEG
WB62X26628 WB62X26628 RANGE MAIN TOP
WB56X22160 WB56X22160 RANGE OVEN DOOR INNER GLASS
WB24T10147 WB24T10147 RANGE OVEN DOOR SWITCH
WB48X20862 WB48X20862 RANGE OVEN EXTENSION RACK
WB48T10059 WB48T10059 RANGE OVEN RACK
WB21X22134 WB21X22134 RANGE OVEN TEMPERATURE SENSOR
WB10T10116 WB10T10116 RANGE PIN
WB30X20871 WB30X20871 RANGE RADIANT SURFACE ELEMENT
WB30T10132 WB30T10132 RANGE RADIANT SURFACE ELEMENT
WB30T10155 WB30T10155 RANGE RADIANT SURFACE ELEMENT
WB1M1 WB1M1 RANGE SCREW
WB1X536 WB1X536 RANGE SCREW
WB01M10002 WB01M10002 RANGE SCREW
WB1X1261 WB1X1261 RANGE SCREW
WB30T10145 WB30T10145 RANGE SURFACE ELEMENT
WB30T10135 WB30T10135 RANGE SURFACE ELEMENT
WB24T10146 WB24T10146 RANGE SURFACE ELEMENT CONTROL SWITCH
WB24T10029 WB24T10029 RANGE SURFACE ELEMENT CONTROL SWITCH, 1,500-WATT
WB17T10011 WB17T10011 RANGE TERMINAL BLOCK
WB34X30165 WB34X30165 RANGE TOP ENCLOSURE
WB27X25594 WB27X25594 RELAY BOARD
WB18T10352 WB18T10352 RELAY SWITCH
WB56T10318 WB56T10318 RETAINER INSERT
WB27X30706 WB27X30706 RJ45 CONNECTOR AND HARNESS
WB01X27933 WB01X27933 SCR 10-32 CA TRT20 3.30
WB01T10137 WB01T10137 SCR 10-32 TR
WB01T10008 WB01T10008 SCR 10-32 TR
WB01T10084 WB01T10084 SCR 8 - 32 X
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB1X5904 WB1X5904 SCR 8-18
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01X1178 WB01X1178 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WB1K5200 WB1K5200 SCREW
WB1X1178 WB1X1178 SCREW
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X26365 WB01X26365 SCREW, #8-18
WB01X21650 WB01X21650 SCREW, #8-18
WB01T10126 WB01T10126 SCREW, #8-18
WH2X941D WH2X941D SCREW, 2-PACK
WB44X21400 WB44X21400 SHIELD BROIL
WB63X28679 WB63X28679 SIDE PANEL DG
WB56X39767 WB56X39767 STAINLESS UPPER OUTER DOOR
WB02T10034 WB02T10034 SUPPORT
WB24X25302 WB24X25302 SWITCH
WB02T10564 WB02T10564 TERMINAL COVER
WB24T10105 WB24T10105 THERMAL CONTROL RUNAWAY
WB07X28582 WB07X28582 TOP TRIM ASM
WB07T10621 WB07T10621 TRIM VERTICA
WB34X25232 WB34X25232 TUBE VNT ASM LWR
WB18X32734 WB18X32734 UI COM HARNESS WIRE
WB18X30748 WB18X30748 UI COM HARNESS WIRE
WB38T10035 WB38T10035 VENT TUBE
WB38X33648 WB38X33648 VENT TUBE
WB02T10371 WB02T10371 WALL OVEN DOOR INSULATION RETAINER PANEL
WB08T10002 WB08T10002 WALL OVEN LIGHT ASSEMBLY
WB25T10002 WB25T10002 WALL OVEN LIGHT LENS
WB23T10015 WB23T10015 WALL OVEN TEMPERATURE SENSOR
WB00X6723 WB00X6723 WASHER
