Model Image
Manufacturer

GE

Model Number

PCB975SN1SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB08T10023 WB08T10023 35W RANGE HALOGEN BULB
WB39T10013 WB39T10013 BASE ASSEMBLY

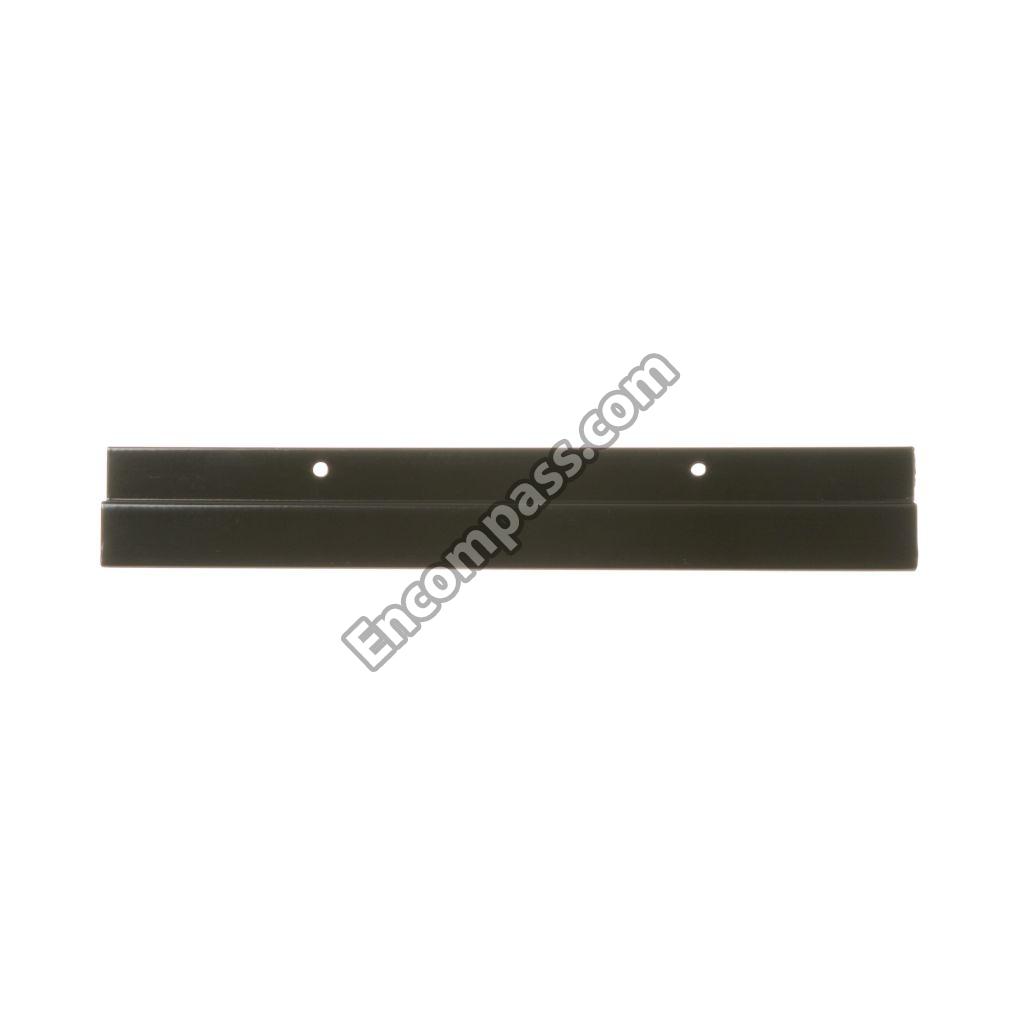

WB02T10353 WB02T10353 BASE RAIL
WB02T10352 WB02T10352 BASE RAIL
WB02T10133 WB02T10133 BRACE CHASSIS (RAD)
WB02T10132 WB02T10132 BRACE CHASSIS (RAD)
WB34X26004 WB34X26004 BRACE CHASSIS RADIANT LT
WB02T10463 WB02T10463 BRACE CHASSIS RADIANT RT
WB02T10137 WB02T10137 BRACKET ASSEMBLY ANTI TIP
WB02T10194 WB02T10194 BRACKET CAPACITOR
WB17T10022 WB17T10022 BRACKET STRAIN RELIEF
WB27T10662 WB27T10662 CAPACITOR MOTOR
WB63T10120 WB63T10120 CAVITY ASM UPR
PM10X310 PM10X310 CERAMABRYTE COOKTOP CLEANER - 28 OZ.
WX10X300 WX10X300 CLEANER GLASS
WB02X9573 WB02X9573 CLIP
WB2X9573 WB2X9573 CLIP
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB37T10007 WB37T10007 COVER CONTROL
WB26T10058 WB26T10058 COVER FAN CONV
WB26T10051 WB26T10051 COVER FAN CONV
WB02T10370 WB02T10370 COVER FRONT
WB02T10350 WB02T10350 COVER MAIN WIRE
WB02T10355 WB02T10355 COVER TERMINAL BLOCK
WB02T10046 WB02T10046 CRYSTAL RETAINER
WB01T10022 WB01T10022 DOOR BUMPER
WB01T10026 WB01T10026 DOOR PAD
WB44T10086 WB44T10086 ELEMENT CONVX ASM
WB44X31764 WB44X31764 ELEMENT CONVX ASSEMBLY
WB44T10082 WB44T10082 ELEMENT HIDDEN BAKE ASSEMBLY
WB30T10124 WB30T10124 ELEMENT RADIANT 6 WARMER
WB30T10140 WB30T10140 ELEMENT RADNT BRIDGE.
WB38T10033 WB38T10033 ELIMINATOR SMOKE
WB34T10083 WB34T10083 ENCLOSURE RANGETOP
WB36T10220 WB36T10220 END CAP LEFT BLACK
WB36T10219 WB36T10219 END CAP RT/BLACK

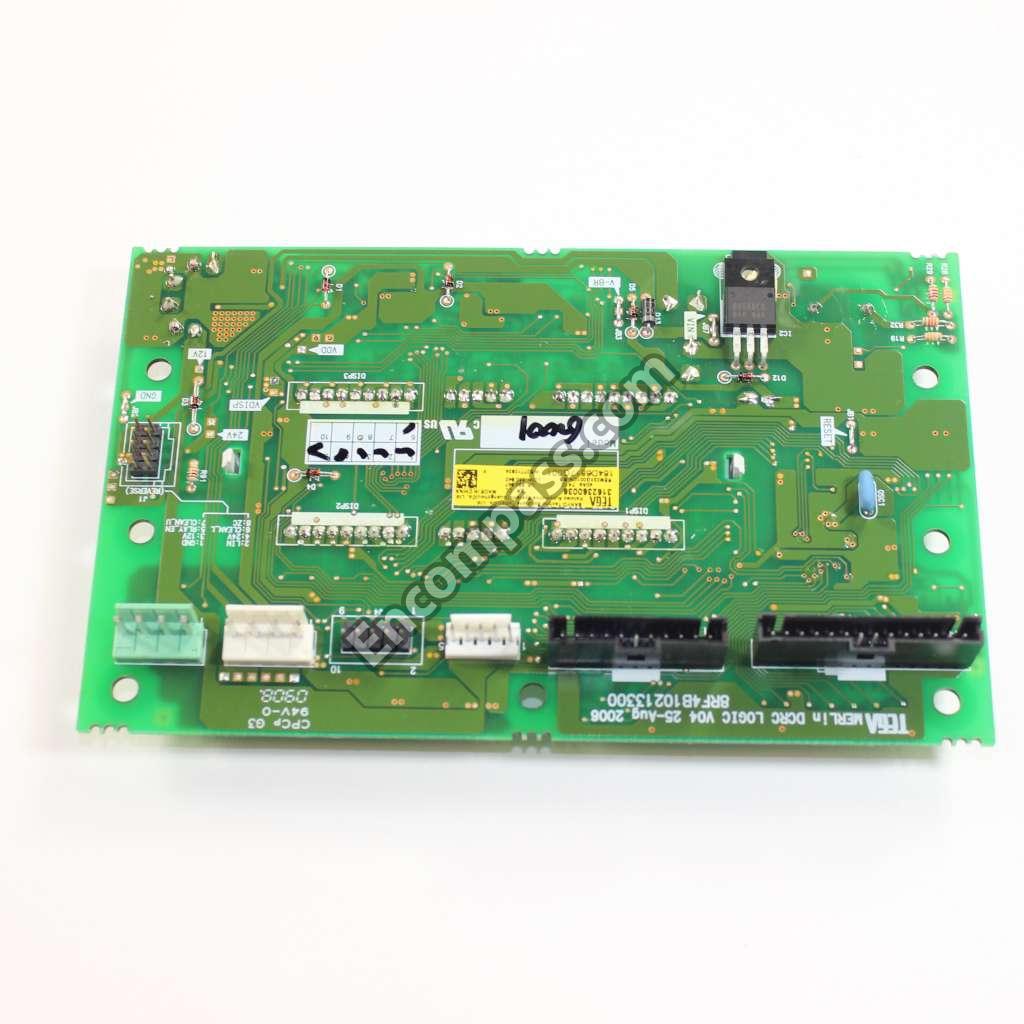

WB27T10971 WB27T10971 ERC / LWR OVN RELAY BRD
WB27T10933 WB27T10933 FACEPLATE CRYSTAL ASSEMBLY
WB63T10131 WB63T10131 FRAME FRONT
WB35X27911 WB35X27911 GASKET OVEN DOOR
WB55T10186 WB55T10186 GASKET OVEN DOOR UPR
WB57T10233 WB57T10233 GLASS OVN DR INR
WB57T10295 WB57T10295 GLASS OVN UPR DR INR
WB25T10075 WB25T10075 HALOGEN LAMP ASSEMBLY LWR
WB25T10025 WB25T10025 HALOGEN LAMP ASSEMBLY LWR
WB15T10193 WB15T10193 HANDLE 30 ASSEMBLY (PRF-SS)
WB15T10190 WB15T10190 HANDLE 30 ASSEMBLY (PRF-SS)
WB18T10395 WB18T10395 HARNESS WIRE GLASS TOUCH
WB18T10394 WB18T10394 HARNESS WIRE PROBE

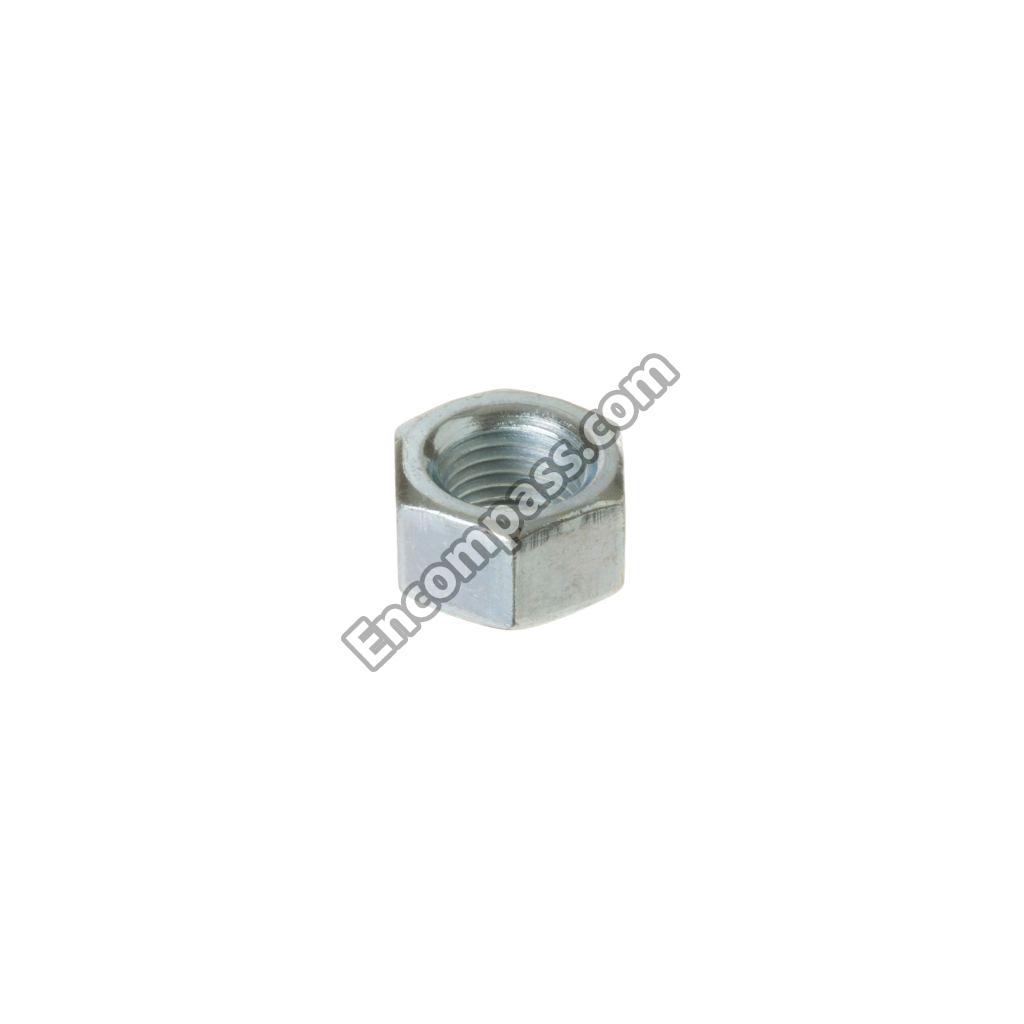

WB01T10109 WB01T10109 HEX NUT 3/8-24
WB10T10099 WB10T10099 HINGE ASSEMBLY UPPER (LT)
WB10T10098 WB10T10098 HINGE ASSEMBLY UPPER (RT)
WB10T10103 WB10T10103 HINGE DOOR LOWER LEFT
WB10T10102 WB10T10102 HINGE DOOR LOWER RT
WB08T10006 WB08T10006 HOUSING RECEPTACLE
WB02T10289 WB02T10289 HUB BLADE ASSEMBLY

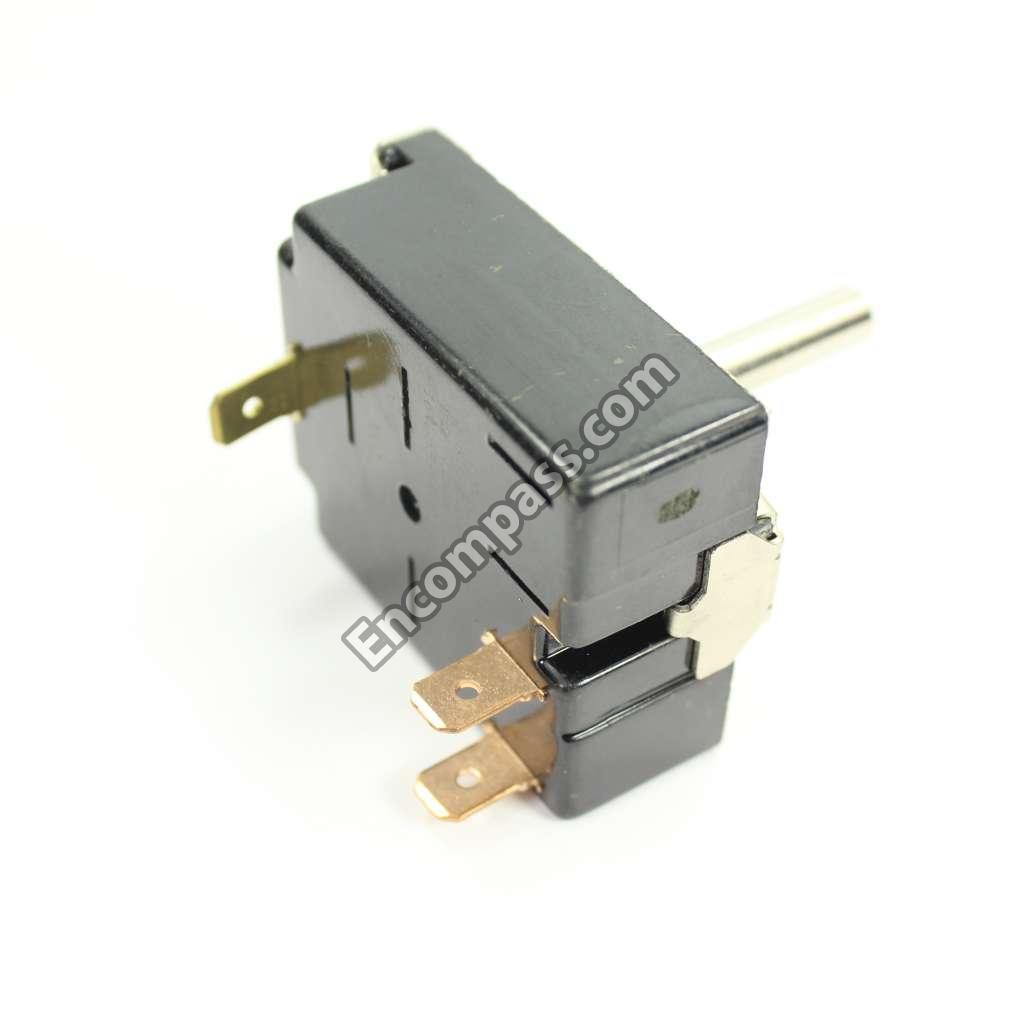

WB24T10028 WB24T10028 INFINITE SWITCH CONTROL
31-10482 31-10482 INSTRUCTION INSTALL
WB35T10185 WB35T10185 INSULATION BACK
WB35T10179 WB35T10179 INSULATION BACK
WB35T10223 WB35T10223 INSULATION BACK
WB35T10180 WB35T10180 INSULATION BACK
WB35T10169 WB35T10169 INSULATION BOTTOM
WB35T10173 WB35T10173 INSULATION HINGE
WB35T10178 WB35T10178 INSULATION MAINBACK
WB35T10168 WB35T10168 INSULATION OV DR UPRSIDE
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10167 WB35T10167 INSULATION OVN DR TOP UP
WB35T10172 WB35T10172 INSULATION WRAPPER
WB35T10170 WB35T10170 INSULATION WRAPPER
WB03T10257 WB03T10257 KNOB PROFILE S/U

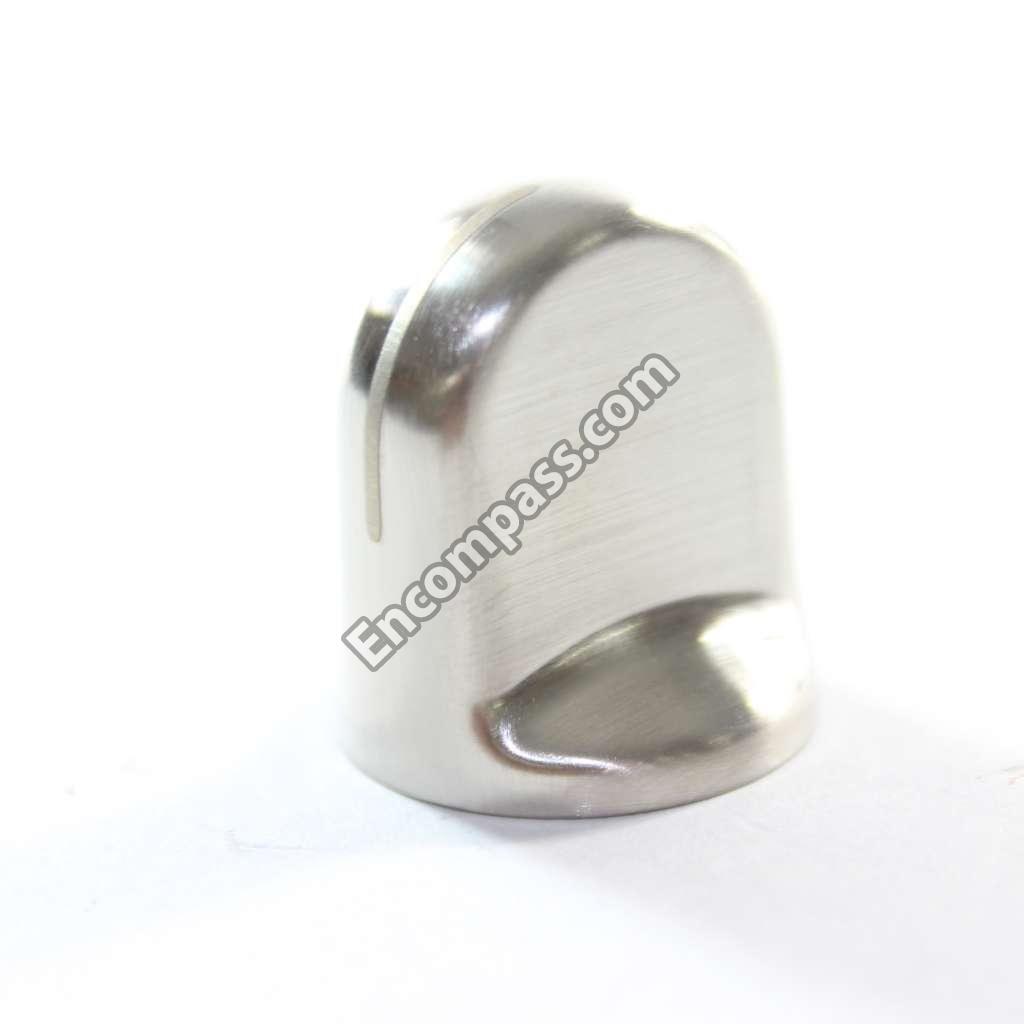

WB03T10272 WB03T10272 KNOB SELECTOR (STAINLESS STEEL)
WB14T10061 WB14T10061 LATCH AND HARNESS ASSEMBLY
WB14T10088 WB14T10088 LATCH ASM
WB14T10058 WB14T10058 LATCH ASSEMBLY
WB25T10031 WB25T10031 LIGHT INDICATOR ASSEMBLY LEFT
WB25T10032 WB25T10032 LIGHT INDICATOR ASSEMBLY RT
WB55T10148 WB55T10148 LINER OVEN DR ASSEMBLY
WB02T10354 WB02T10354 MAINBACK ASSEMBLY
WB10T10002 WB10T10002 MAINTOP HINGE
WB02T10026 WB02T10026 MAINTOP STRIKE
31-14729 31-14729 MANUAL MINI & WD ASM
29-5635 29-5635 MANUAL USE & CARE
WB25T10050 WB25T10050 MODULE INDICATOR LIGHT
WB26T10043 WB26T10043 MOTOR PSC CONV
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB25T10013 WB25T10013 OV LAMP LENS
WB56T10373 WB56T10373 OVEN DOOR RETAINER KIT
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB49T10015 WB49T10015 PAN REFLECTOR
WB56T10243 WB56T10243 PANEL LOWER DOOR ASSEMBLY
WB56X28881 WB56X28881 PANEL SIDE (BK)
WB56T10242 WB56T10242 PANEL UPPER DOOR ASSEMBLY
WB2X8309 WB2X8309 PR0BE COVER
WB02X8309 WB02X8309 PROBE COVER
WB20T10024 WB20T10024 PROBE THERMISTOR
WB48T10042 WB48T10042 RACK OVEN
WB48T10059 WB48T10059 RACK OVEN (GY)
WB09T10002 WB09T10002 RADIANT SPRING ELEMENT
WB30T10126 WB30T10126 RANGE 12-INCH RADIANT SURFACE ELEMENT
WB30T10129 WB30T10129 RANGE 6-INCH RADIANT SURFACE ELEMENT
WB44X45487 WB44X45487 RANGE BAKE ELEMENT
WB01T10021 WB01T10021 RANGE BUMPER
WX09X10035 WX09X10035 RANGE CORD 4' 3 PRONG
WB02T10047 WB02T10047 RANGE CRYSTAL MOUNT
WB02T10349 WB02T10349 RANGE HANDLE BRACKET
WB24T10160 WB24T10160 RANGE HIGH AMP SWITCH
WB02T10371 WB02T10371 RANGE INSULATION RETAINER
WB02X10521 WB02X10521 RANGE LEVELING LEG
WB04T10050 WB04T10050 RANGE OVEN GASKET
WB23T10015 WB23T10015 RANGE OVEN SENSOR
WB02T10034 WB02T10034 RANGE PANEL SIDE SUPORT
WB03T10266 WB03T10266 RANGE TRI-CHROME-PLATED KNOB (STAINLESS
WB02X29562 WB02X29562 RANGETOP BUMPER
WB62T10469 WB62T10469 RANGETOP GLASS ASSEMBLY
WB10T10083 WB10T10083 RECEIVER HINGE
WB10T10101 WB10T10101 RECEIVER HINGE UPR ( LEFT)
WB10T10100 WB10T10100 RECEIVER HINGE UPR (RT)
WB18T10352 WB18T10352 RELAY

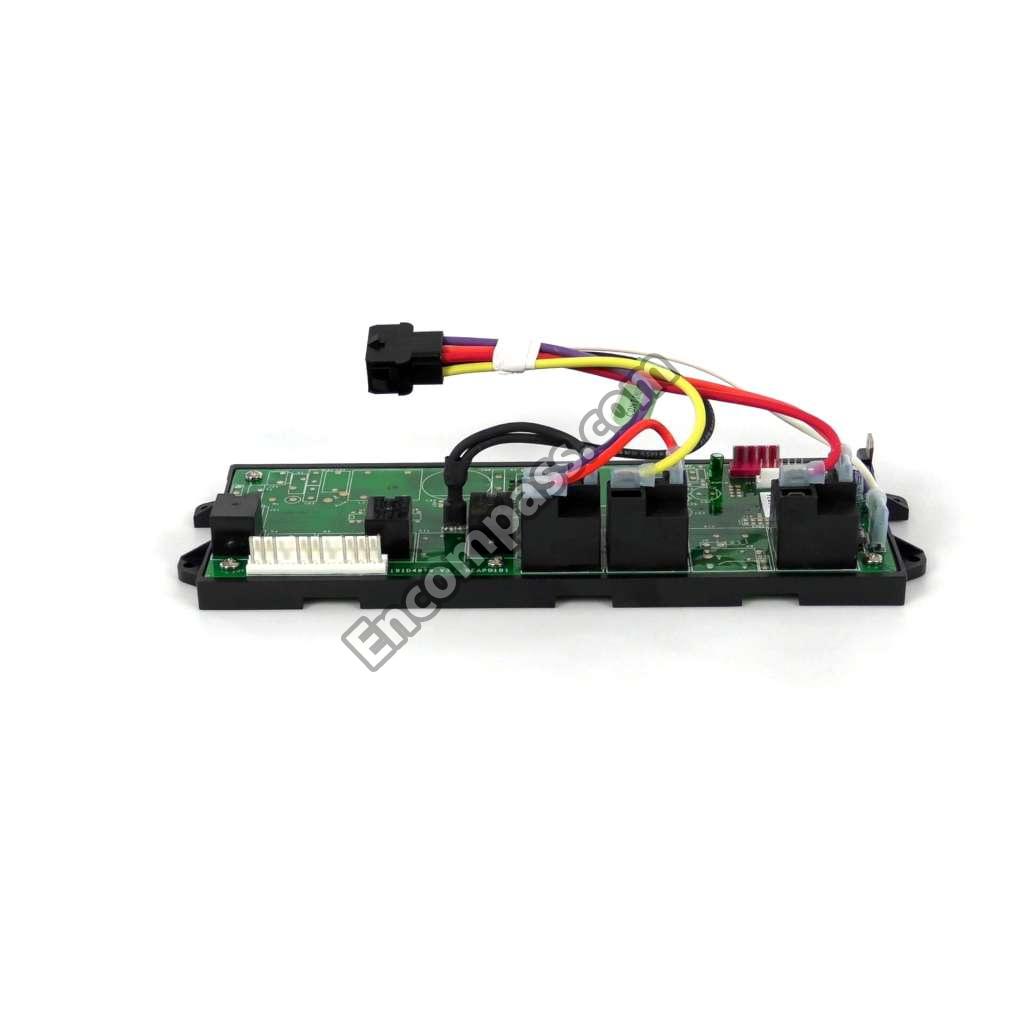

WB27T11081 WB27T11081 RELAY BOARD UPPER
WB02T10318 WB02T10318 RETAINER CRYSTAL
WB56T10245 WB56T10245 RETAINER GLASS OVEN DR
WB56T10248 WB56T10248 RETAINER INSULATION ASSEMBLY
WB01T10108 WB01T10108 SCR 6-32 X1 HEX
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01X1178 WB01X1178 SCREW
WB01K5210 WB01K5210 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5028 WB01K5028 SCREW
WB01X1253 WB01X1253 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5200 WB01K5200 SCREW
WD2X432 WD2X432 SCREW
WB1X1178 WB1X1178 SCREW
WB1K5210 WB1K5210 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB1K5167 WB1K5167 SCREW 8-18 X 3/8
WB01K5167 WB01K5167 SCREW 8-18 X 3/8""
WD02X0432 WD02X0432 SCREW 8-18 X 5/16 BK
WB01T10053 WB01T10053 SCREW 8-32 TPT FLR 270
WB01X1261 WB01X1261 SCREW GROUND
WB1X5364 WB1X5364 SCREW MTG
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1K5165 WB1K5165 SCREW-BLACK
WB01K5165 WB01K5165 SCREW-BLK
WB01X1118 WB01X1118 SCREW-NICKEL
WZ4X245D WZ4X245D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB44T10088 WB44T10088 SHIELD BROIL ASSEMBLY
WB44T10083 WB44T10083 SHIELD BROIL ASSEMBLY
WB02T10306 WB02T10306 SHIELD HEAT (BKGD)
WB02T10351 WB02T10351 SPACER BRACKET H AND LE
WB26T10015 WB26T10015 SUPPORT OVEN CAVITY
WB24T10063 WB24T10063 SWITCH INF CONTROL (DUAL).
WB24T10119 WB24T10119 SWITCH INFINITE CONTROL
WB24T10124 WB24T10124 SWITCH SELECTOR
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB36T10852 WB36T10852 TRIM CONTROL (BLACK)
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB56T10247 WB56T10247 TRIM SIDE DOOR ASSEMBLY LWR
WB56T10246 WB56T10246 TRIM SIDE DOOR ASSEMBLY UPR

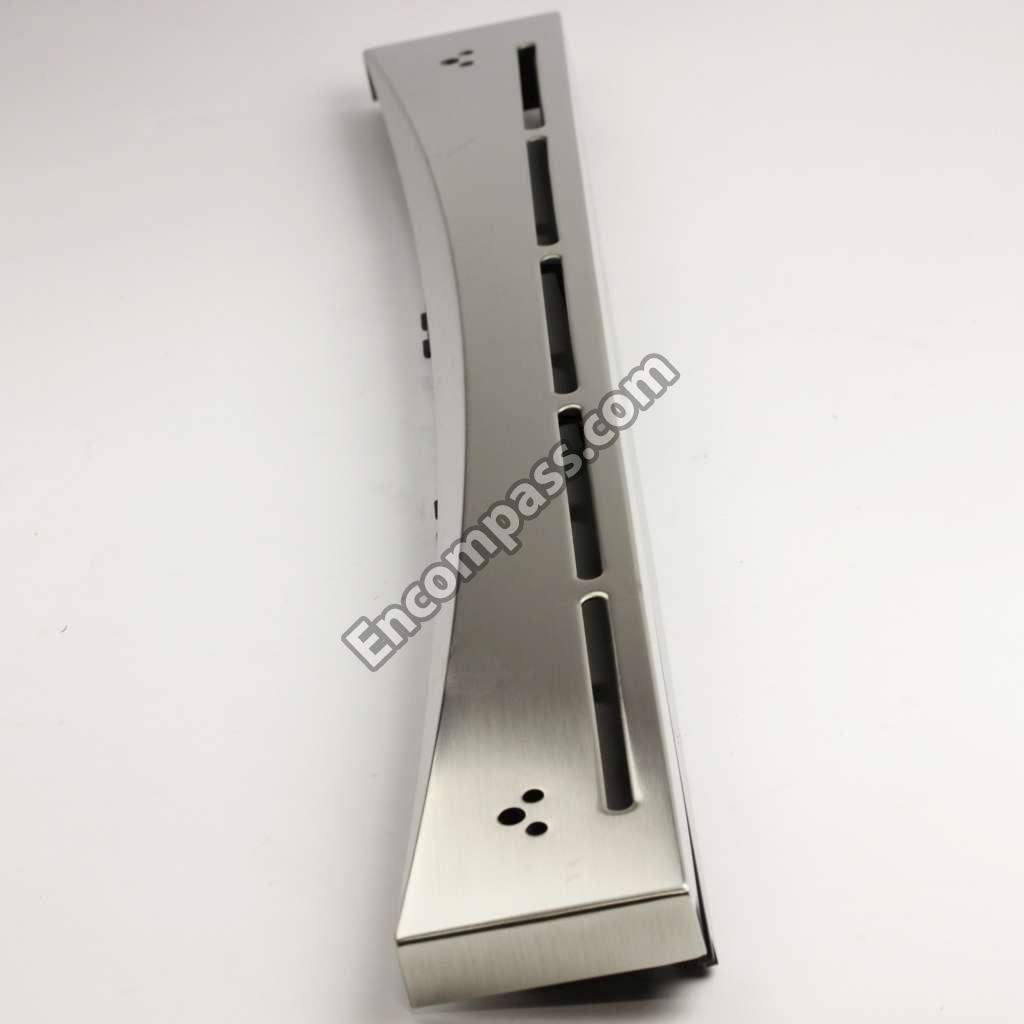

WB07T10649 WB07T10649 TRIM VENT DOOR ASM
WB07T10690 WB07T10690 TRIM VENT DOOR ASSEMBLY
WB07T10621 WB07T10621 TRIM VERTICAL SIDES
WB38T10031 WB38T10031 TUBE VENT ASSEMBLY
WB38X33648 WB38X33648 VENT TUBE
WB38T10032 WB38T10032 VENT TUBE ASSEMBLY
WB38T10012 WB38T10012 VENT TUBE ASSEMBLY
WB01X5573 WB01X5573 WASHER
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1X5573 WB1X5573 WASHER
WB56T10244 WB56T10244 WINDOW PACK ASSEMBLY UPR
