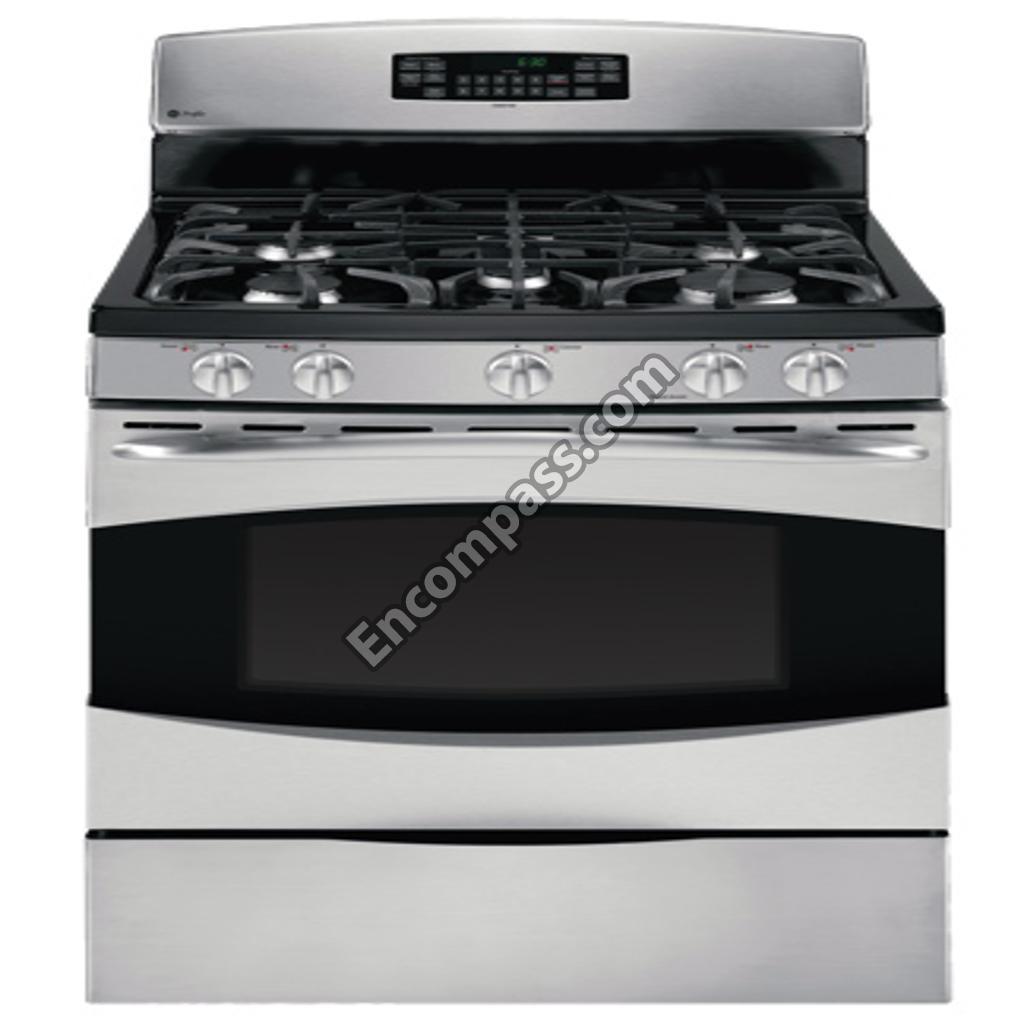

Model Image
Manufacturer

GE

Model Number

PCGB910SET3SS

Description

Range

Interactive Exploded View

Parts List

Part Number Description
WB29K10024 WB29K10024 ASM BURNER CAP (12000)
WB29K10022 WB29K10022 ASM BURNER CAP (5000)
WB29K10023 WB29K10023 ASM BURNER CAP (9500)
WB2K27 WB2K27 BAIL
WB07K10342 WB07K10342 BARRIER DOOR
WB2K32 WB2K32 BCKT SUPPORT
WB2X8351 WB2X8351 BLADE FAN
WB63K10187 WB63K10187 BOTTOM INNER GUARD
WB35X37967 WB35X37967 BOTTOM OVEN AND DEFLECTOR ASM
WB63K10190 WB63K10190 BOX BURNER SP
WB02K10360 WB02K10360 BRACKET
WB02K10341 WB02K10341 BRACKET
WB02K10150 WB02K10150 BRACKET CONTROL
WB02K10082 WB02K10082 BRACKET COOKTOP XL
WB02K10376 WB02K10376 BRACKET DOOR
WB02K10350 WB02K10350 BRACKET GLASS
WB2K41 WB2K41 BRACKET OVEN
WB39K20 WB39K20 BRKT MTG DRW
WB02K10178 WB02K10178 BUMPER
WB16K10080 WB16K10080 BURNER BAKE
WB16K10056 WB16K10056 BURNER LARGE (12000)
WB16K10055 WB16K10055 BURNER MEDIUM (9500)
WB28K10222 WB28K10222 CAP BURNER ASM (15K)
WB02K10361 WB02K10361 CKT BRACKET MDM & LGE
WB02K10362 WB02K10362 CKT BRACKET MDM LGE
WB01K10106 WB01K10106 CKT SCREW
WB01K10112 WB01K10112 CLIP ELECTRODE
WB2K52 WB2K52 CLIP RNGETOP
WB2K22 WB2K22 CLIP WIRE
WB02X21679 WB02X21679 CLIP WIRE
WB27K10379 WB27K10379 CONTROL
WB28K10828 WB28K10828 CONV KIT
WB34K10124 WB34K10124 COVER BACK LAMP
WB34K10125 WB34K10125 COVER MOTOR
WB63K10054 WB63K10054 COVER TERMINALS
WB2K24 WB2K24 COVER VALVE
WB34K10129 WB34K10129 COVERBACKLOWER
WB57K10174 WB57K10174 CRYSTAL WINDOW
WB2K4 WB2K4 CVR ACC SPRG
WB34K14 WB34K14 CVR IGNITOR
WB49K10025 WB49K10025 DEFLECTOR
WB49K10037 WB49K10037 DEFLECTOR OVER
WB35K10048 WB35K10048 DEFLECTOR SIDE
WB38K10022 WB38K10022 DIFFUSER VENT
WB39K10021 WB39K10021 DRAWER SLIDE ASSEMBLY LEFT
WB39K10020 WB39K10020 DRAWER SLIDE ASSEMBLY RIGHT
WB01K10037 WB01K10037 ECONOMIC NUT
WB28K10798 WB28K10798 ELBOW DUAL CAVITY
WB13K10003 WB13K10003 ELECTRODE
WB34K10142 WB34K10142 FAN COVER
WB34K10038 WB34K10038 FAN COVER BACK
WB26K10003 WB26K10003 FAN MOTOR CONVECT-2SPEED
WB02X28737 WB02X28737 FRAME FRONT BUMPER
WB34K10141 WB34K10141 FRAME WINDOW PACK ASM
WB32K5 WB32K5 GASKET OV LT
WB32K10052 WB32K10052 GASKET OVEN ASM
WB32K10051 WB32K10051 GASKET VENT
WB57K10118 WB57K10118 GLASS DOOR ASM
WB31K10250 WB31K10250 GRATE-CAST (LEFT)
WB31K10248 WB31K10248 GRATEMIDDLE
WB31K10251 WB31K10251 GRATERIGHT
WB63K16 WB63K16 GUARD BOTTOM
WB34K10137 WB34K10137 GUARD INSULATION DOOR
WB63X23859 WB63X23859 GUIDE SLIDE DRAWER
WB15T10193 WB15T10193 HANDLE 30 ASM (PRF-SS)
WB18K10056 WB18K10056 HARNESS GROUND
WB18K10037 WB18K10037 HARNESS HV
WB14K10003 WB14K10003 HINGE RANGE TOP
WB8K1 WB8K1 HOUS RECEPTL
WB24K10077 WB24K10077 IGNIT SWITCHES AND HARNESS
WB13X25261 WB13X25261 IGNITER GLOWBAR BROIL
WB13K21 WB13K21 IGNITER OVEN
WB35K10222 WB35K10222 INSULATION
WB35K10221 WB35K10221 INSULATION
WB35K10168 WB35K10168 INSULATION OVEN BACK
WB35K10158 WB35K10158 INSULATION OVEN WRAP
WB03K10320 WB03K10320 KNOB
WB03K10351 WB03K10351 KNOB GE PROFILE ASM
WB03K10330 WB03K10330 KNOB GE PROFILE ASM
WB03K10329 WB03K10329 KNOBBURNER
WB02K10339 WB02K10339 LATCH AUTOMATIC
WB02K10182 WB02K10182 LEG LEVELER
WB18K10081 WB18K10081 LINE CORD
WB55K10068 WB55K10068 LINER DRAWER
WB34K10086 WB34K10086 LOWER HEAT SHIELD
WB2X8454 WB2X8454 NUT
WB1K3 WB1K3 NUT SPEED
WB28K10786 WB28K10786 ORIFICE HOLDER ASM
WB28K10389 WB28K10389 ORIFICE HOLDER LR
WB28K10215 WB28K10215 ORIFICE SPUD LP 86L
WB28K10214 WB28K10214 ORIFICE SPUD LP 88L
WB28K10736 WB28K10736 ORIFICE TUBING
WB28K10023 WB28K10023 ORIFICE-LP 89MM
WB16K10076 WB16K10076 OVAL BURNER ASSEMBLY
WB48X20249 WB48X20249 OVEN RACK
WB53K10017 WB53K10017 OVEN TOP
WB27K10406 WB27K10406 OVERLAY
WB63K10119 WB63K10119 PANEL SIDE BK
WB55K10077 WB55K10077 PANEL VENT BACKER
WB14K10005 WB14K10005 PIN LOCATOR
WB14K10004 WB14K10004 PIN LOCATOR
WB24K10068 WB24K10068 PLUNGER SWITCH
WB63K2 WB63K2 PNL SD BRO R
WB49K10045 WB49K10045 RANGE BROIL SHIELD
WB10K10029 WB10K10029 RECEIVER HINGE
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB31X23201 WB31X23201 REVERSIBLE GRIDDLE
WB28K10761 WB28K10761 ROUND MANIFOLD PIPE
WB1K44 WB1K44 SCEW LATCH
WB01K10047 WB01K10047 SCR 10-32 HXW 9/16 DWR
WB01K10116 WB01K10116 SCR 1016 AB TRW20 1/2
WB01K10042 WB01K10042 SCR 8-18 AB IHW 3/8 SN
WR01X10389 WR01X10389 SCR 8-18 AB PHR 1/2 S
WB01K10111 WB01K10111 SCREW
WB1K5119 WB1K5119 SCREW
WB1X1293 WB1X1293 SCREW
WB1X536 WB1X536 SCREW
WB01K10091 WB01K10091 SCREW
WB1K84 WB1K84 SCREW & WASH
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB1K78 WB1K78 SCREW 12-14
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01K10002 WB01K10002 SCREW 8-32
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K10080 WB01K10080 SCREW THERMOSTAT
WZ4X345D WZ4X345D SCREW-PKG 12
WB16K10070 WB16K10070 SMALL BURNER V 5K
WB02K10270 WB02K10270 SPACER BASE
WB02K10104 WB02K10104 SPACER BASE
WB13X26360 WB13X26360 SPARK MODULE SET
WB1K2 WB1K2 SPEEDNUT
WB63K10256 WB63K10256 SUPPORT BASE
WB63K10255 WB63K10255 SUPPORT BASE
WB20K10027 WB20K10027 TEMPERATURE SENSOR
WB36K10650 WB36K10650 TRIM CONTROL
WB01K10072 WB01K10072 TRIM FRONT BOTTOM
WB07K10287 WB07K10287 TRIM LOWER SS
WB07K10417 WB07K10417 TRIM SIDE
WB28K10587 WB28K10587 TUBE BURNER SUPPLY ASM.
WB28X24772 WB28X24772 TUBE MANIFOLD SUPPLY
WB21K10114 WB21K10114 VALVE BURNER 270
WB21K10122 WB21K10122 VALVE BURNER 270
WB21K10113 WB21K10113 VALVE BURNER 270
WB21K10117 WB21K10117 VALVE BURNER 270 HI-CAP
WB38K10008 WB38K10008 VENT ASSEMBLY
WB07K10345 WB07K10345 VENT TRIM SS
WB16K10046 WB16K10046 VENTURI 15K LP
WB16K10062 WB16K10062 VISION BURNER XL
WB1X119D WB1X119D WASHR-PKG 12
WB34K10087 WB34K10087 WINDOW SPACER ASM
