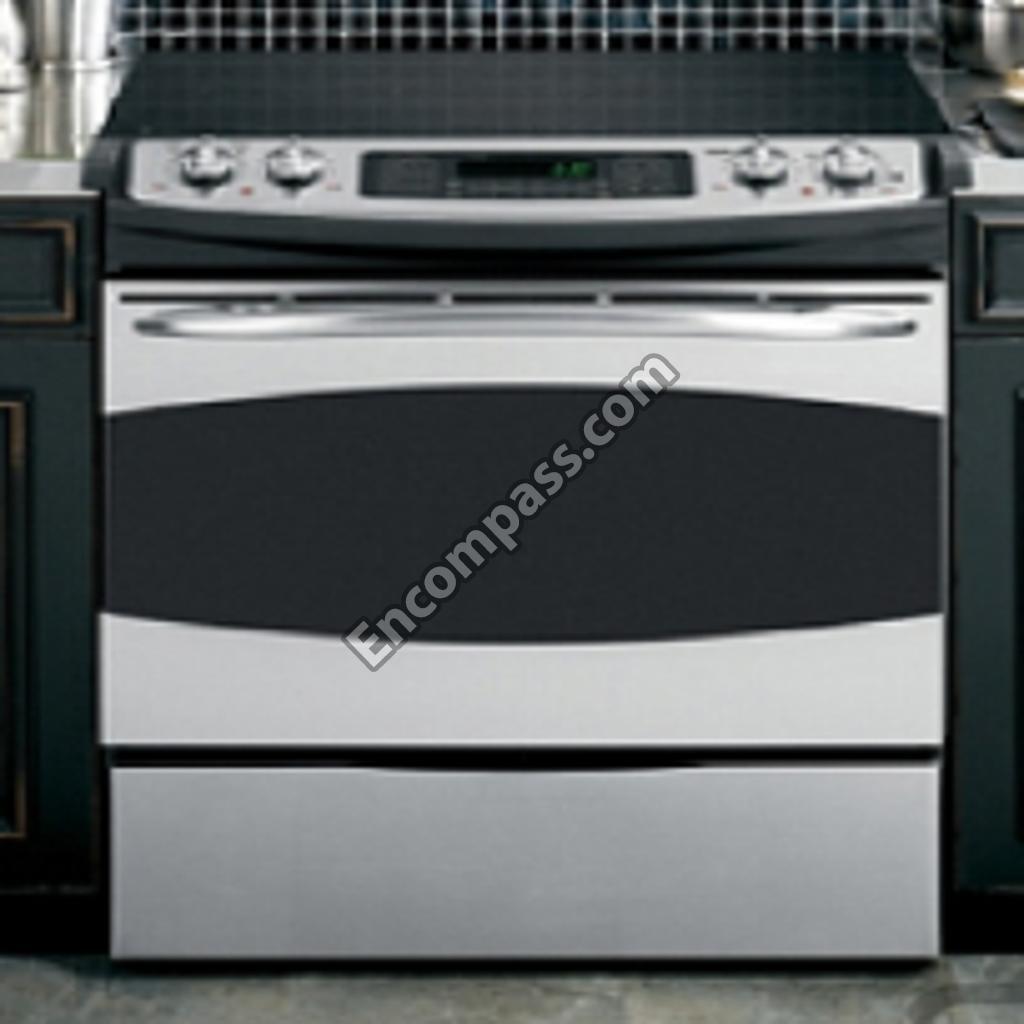

Model Image
Manufacturer

GE

Model Number

PCS968SP1SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB49X29679 WB49X29679 50W RANGE HALOGEN BULB
WB63X28540 WB63X28540 BASE RIVET ASM
WB63X25881 WB63X25881 BASE RIVET ASSEMBLY
WB26T10039 WB26T10039 BLOWER ASSEMBLY
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB02T10416 WB02T10416 BRACKET ANTI-TIP ASSEMBLY
WB61K10010 WB61K10010 BURNER BOX BOTTOM
WB27T10662 WB27T10662 CAPACITOR MOTOR
PM10X310 PM10X310 CERAMABRYTE COOKTOP CLEANER - 28 OZ.
WX10X300 WX10X300 CLEANER GLASS
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB02T10455 WB02T10455 COMPOSITE STUD
WB27T11151 WB27T11151 CONTROL OVN ERC
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB26T10058 WB26T10058 COVER FAN CONV
WB2X8309 WB2X8309 COVER PROBE
WB34K10049 WB34K10049 COVER WIRE REAR
WB34T10054 WB34T10054 COVER WIRE RR LWR
WB02T10046 WB02T10046 CRYSTAL RETAINER
WB01T10022 WB01T10022 DOOR BUMPER
WB57T10358 WB57T10358 DOOR OTR ASSEMBLY 30 (STAINLESS STEEL)
WB55T10180 WB55T10180 DRAWER BODY ASSEMBLY MECH
WB44K10008 WB44K10008 ELEMENT BAKE
WB44T10086 WB44T10086 ELEMENT CONVX ASM
WB44X31764 WB44X31764 ELEMENT CONVX ASSEMBLY
WB30T10124 WB30T10124 ELEMENT RADIANT 6 WARMER
WB30T10141 WB30T10141 ELEMENT RADNT BRIDGE.
WB07K10155 WB07K10155 EXTENSION REAR
WB07T10498 WB07T10498 EXTENSION SIDE LEFT
WB07T10497 WB07T10497 EXTENSION SIDE RT
WB63T10034 WB63T10034 FALSE BOTTOM
WR02X10562 WR02X10562 FASTENER PUSH
WB63T10083 WB63T10083 FRAME FRT LOWER
WB02T10320 WB02T10320 GASKET MAINTOP LH
WB02T10511 WB02T10511 GASKET MAINTOP OTR
WB02T10319 WB02T10319 GASKET MAINTOP RH
WB57T10233 WB57T10233 GLASS OVN DR INR
WB27T11192 WB27T11192 GLASS TOUCH ASSEMBLY (STAINLESS STEEL)
WB15T10190 WB15T10190 HANDLE 30 ASSEMBLY (PRF-SS)
WB18T10386 WB18T10386 HARNESS WIRE GLASS TOUCH.
WB10T10085 WB10T10085 HINGE DOOR LEFT
WB10T10084 WB10T10084 HINGE DOOR RT
WB02T10289 WB02T10289 HUB BLADE ASSEMBLY
WB24T10012 WB24T10012 INF SWITCH CONTROL (WM)
WB36T10570 WB36T10570 INSERT CONTROL PNL
31-10674 31-10674 INSTRUCTIONS INSTALL
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35T10090 WB35T10090 INSULATION BACK AND BTM
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35T10226 WB35T10226 INSULATION OVN DR SDE
WB35T10126 WB35T10126 INSULATION TOP
WB03T10263 WB03T10263 KNOB ASSEMBLY
WB25T10026 WB25T10026 LAMP HALOGEN ASSEMBLY
WB14T10068 WB14T10068 LATCH OVN
WB25T10027 WB25T10027 LENS OVEN LAMP
WB25T10022 WB25T10022 LENS SNAP-IN
WB25T10056 WB25T10056 LIGHT INDICATOR
WB55T10179 WB55T10179 LINING OVN DR ASSEMBLY
WB01K5046 WB01K5046 LOCKWASHER
WB62T10771 WB62T10771 MAINTOP GLASS ASM (BK)
31-14741 31-14741 MANUAL MINI & WD ASM
29-5632 29-5632 MANUAL USE & CARE
WB20T10024 WB20T10024 MEAT PROBE
WB02T10152 WB02T10152 MICROWAVE CAPACITOR MOTOR BRACKET
WB18T10349 WB18T10349 MODULE INDICATOR LIGHT
WB26T10043 WB26T10043 MOTOR PSC CONV
WB17T10021 WB17T10021 MOUNT TERMINAL BLOCK
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB56T10373 WB56T10373 OVEN DOOR RETAINER KIT
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB36T10666 WB36T10666 PANEL CONTROL ASSEMBLY
WB56T10286 WB56T10286 PANEL DRAWER SS
WB02X8309 WB02X8309 PROBE COVER
WB48T10059 WB48T10059 RACK OVEN (GY)
WB30T10126 WB30T10126 RANGE 12-INCH RADIANT SURFACE ELEMENT
WB02X20948 WB02X20948 RANGE BACK INSULATION RETAINER
WB02T10242 WB02T10242 RANGE BRACKET
WB44T10043 WB44T10043 RANGE BROIL ELEMENT
WB02X10742 WB02X10742 RANGE CONTROL PANEL GASKET
WX09X10035 WX09X10035 RANGE CORD 4' 3 PRONG
WB02T10047 WB02T10047 RANGE CRYSTAL MOUNT
WB48T10013 WB48T10013 RANGE DRAWER SUPPORT - FRONT
WB24T10160 WB24T10160 RANGE HIGH AMP SWITCH
WB02T10371 WB02T10371 RANGE INSULATION RETAINER
WB02T10343 WB02T10343 RANGE INSULATION RETAINER - LOWER TOP
WB02X10521 WB02X10521 RANGE LEVELING LEG
WB07T10680 WB07T10680 RANGE OVEN BACKSPLASH KIT (BLACK)
WB04T10050 WB04T10050 RANGE OVEN GASKET
WB23T10015 WB23T10015 RANGE OVEN SENSOR
WB02T10034 WB02T10034 RANGE PANEL SIDE SUPORT
WB30T10145 WB30T10145 RANGE RADIANT ELEMENT - 5.5-INCH
WB02X33180 WB02X33180 RANGE REAR DRAWER SUPPORT
WB07T10631 WB07T10631 RANGE SIDE TRIM - RIGHT - BLACK
WB24T10060 WB24T10060 RANGE THERMAL FUSE
WB07T10632 WB07T10632 RANGE VERTICAL SIDE TRIM - LEFT - BLACK
WB10T10083 WB10T10083 RECEIVER HINGE
WB08T10041 WB08T10041 RECEPTACLE JACK
WB18T10352 WB18T10352 RELAY
WB02T10372 WB02T10372 RETAINER INSLN BTM
WB02T10284 WB02T10284 RETAINER INSLN SDE
WB02T10068 WB02T10068 RETAINER SS PANEL
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01T10110 WB01T10110 SCR 8-18X.450 AB FLT20 S
WB01M0001 WB01M0001 SCREW
WB01X1137 WB01X1137 SCREW
WB01X1178 WB01X1178 SCREW
WB01K5029 WB01K5029 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1141 WB01X1141 SCREW
WB01K5028 WB01K5028 SCREW
WB1X1178 WB1X1178 SCREW
WB1K5029 WB1K5029 SCREW
WB1K5062 WB1K5062 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10048 WB01T10048 SCREW 10-16 SHLDR TYPE A
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB01T10053 WB01T10053 SCREW 8-32 TPT FLR 270
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB01X1118 WB01X1118 SCREW-NICKEL
WH2X941D WH2X941D SCREW-PKG 12
WZ4X245D WZ4X245D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB34T10059 WB34T10059 SHIELD VENT ASSEMBLY
WB02T10452 WB02T10452 SPACER REINFORCEMENT
WB09X40389 WB09X40389 SPRING RADIANT ELEMENT
WB01T10057 WB01T10057 STAINLESS STEEL WASHER
WB26T10015 WB26T10015 SUPPORT OVEN CAVITY
WB2K5238 WB2K5238 SW BRACKET
WB02K5238 WB02K5238 SWITCH BRACKET
WB24T10134 WB24T10134 SWITCH INF CONTROL
WB24T10139 WB24T10139 SWITCH INFINITE CONTROL
WB24T10119 WB24T10119 SWITCH INFINITE CONTROL
WB24T10079 WB24T10079 SWITCH LIMIT
WB01T10052 WB01T10052 TAPE FOAM
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB07T10496 WB07T10496 TRIM ASSEMBLY
WB07T10516 WB07T10516 TRIM FRT FRM (BLACK)
WB07T10521 WB07T10521 TRIM VERT SDE LEFT (BLACK)
WB07T10520 WB07T10520 TRIM VERT SDE RT (BLACK)
WB38X33650 WB38X33650 TUBE VENT
WB28T10075 WB28T10075 VENT INLET DUCT
WB01X5573 WB01X5573 WASHER
WB1K5046 WB1K5046 WASHER
WB1X5573 WB1X5573 WASHER
WB48T10068 WB48T10068 WEDGE DRAWER
WB63T10149 WB63T10149 WRAPPER OVN CAV ASM
