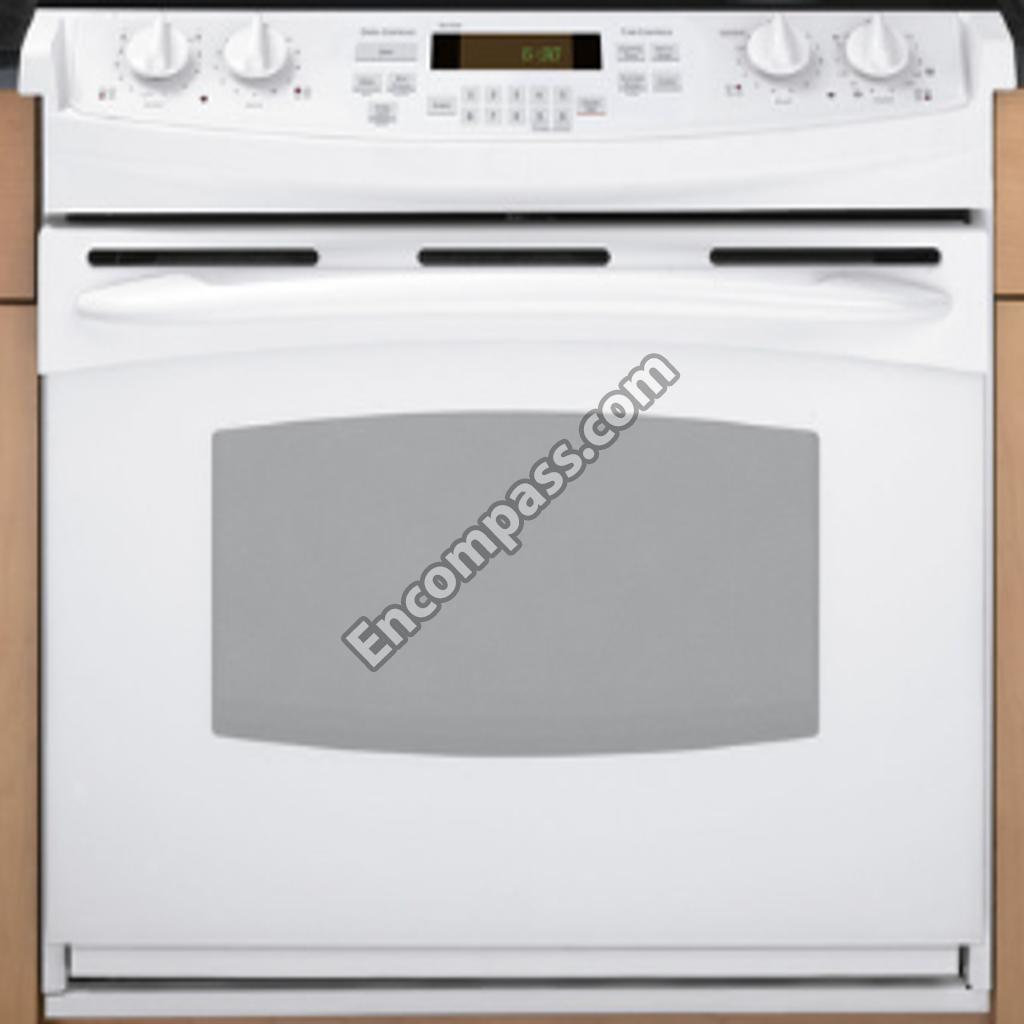

Model Image
Manufacturer

GE

Model Number

PD900DP2WW

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB44T10065 WB44T10065 BAKE ELEMENT
WB02K10048 WB02K10048 BASE RAIL
WB17K10001 WB17K10001 BLOCK TERMINAL
WB26T10039 WB26T10039 BLOWER ASSEMBLY
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB44T10071 WB44T10071 BROIL ELEMENT
WB61K10010 WB61K10010 BURNER BOX BOTTOM
WB02X9573 WB02X9573 CLIP
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB2X9573 WB2X9573 CLIP
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K10012 WB18K10012 CONDUIT WIRE ASSEMBLY
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB34K10046 WB34K10046 COVER WIRE REAR
WB02T10046 WB02T10046 CRYSTAL RETAINER
WB01T10022 WB01T10022 DOOR BUMPER
WB57T10350 WB57T10350 DOOR OTR ASSEMBLY 30 (WHITE)
WB07K10137 WB07K10137 EXTENSION REAR
WB07T10498 WB07T10498 EXTENSION SIDE LEFT
WB07T10497 WB07T10497 EXTENSION SIDE RT
WB27T11198 WB27T11198 FACEPLATE (SCR-WH)
WR02X10562 WR02X10562 FASTENER PUSH
WB63T10083 WB63T10083 FRAME FRT LOWER
WB02T10320 WB02T10320 GASKET MAINTOP LH
WB02T10511 WB02T10511 GASKET MAINTOP OTR
WB02T10319 WB02T10319 GASKET MAINTOP RH
WB64X0093 WB64X0093 GLASS CLEANER
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15T10138 WB15T10138 HANDLE PRF DRAWER (WHITE)
WB01X1259 WB01X1259 HEX NUT
WB1X1259 WB1X1259 HEX NUT
WB10X30494 WB10X30494 HINGE DOOR LEFT
WB10X24381 WB10X24381 HINGE DOOR LT
WB10X20965 WB10X20965 HINGE DOOR RT
WB24T10026 WB24T10026 INF SWITCH CONTROL (2000W)
WB24T10012 WB24T10012 INF SWITCH CONTROL (WM)
WB36T10568 WB36T10568 INSERT CONTROL PNL
31-10622 31-10622 INSTRUCTIONS INSTALL
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35T10090 WB35T10090 INSULATION BACK AND BTM
WB35K10024 WB35K10024 INSULATION BASE
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35T10226 WB35T10226 INSULATION OVN DR SDE
WB35T10126 WB35T10126 INSULATION TOP
WB27T11197 WB27T11197 KEYPANEL SUPT ASSEMBLY (WHITE)
WB07T10681 WB07T10681 KIT BACKSPALSH (WHITE)
WB03T10079 WB03T10079 KNOB PROFILE SU
WB14T10069 WB14T10069 LATCH OVN
WB25T10022 WB25T10022 LENS SNAP-IN
WB25T10056 WB25T10056 LIGHT INDICATOR
WB55T10179 WB55T10179 LINING OVN DR ASSEMBLY
WB01K5046 WB01K5046 LOCKWASHER
WB62T10773 WB62T10773 MAINTOP GLASS ASM (BK)
WB62T10774 WB62T10774 MAINTOP GLASS ASM (BQ)
WB62T10775 WB62T10775 MAINTOP GLASS ASM (WH)
31-14347 31-14347 MANUAL MINI & WD ASM
49-80602 49-80602 MANUAL USE & CARE
WB18T10349 WB18T10349 MODULE INDICATOR LIGHT
WB25T10002 WB25T10002 OVEN BULB LENS COVER-GLASS

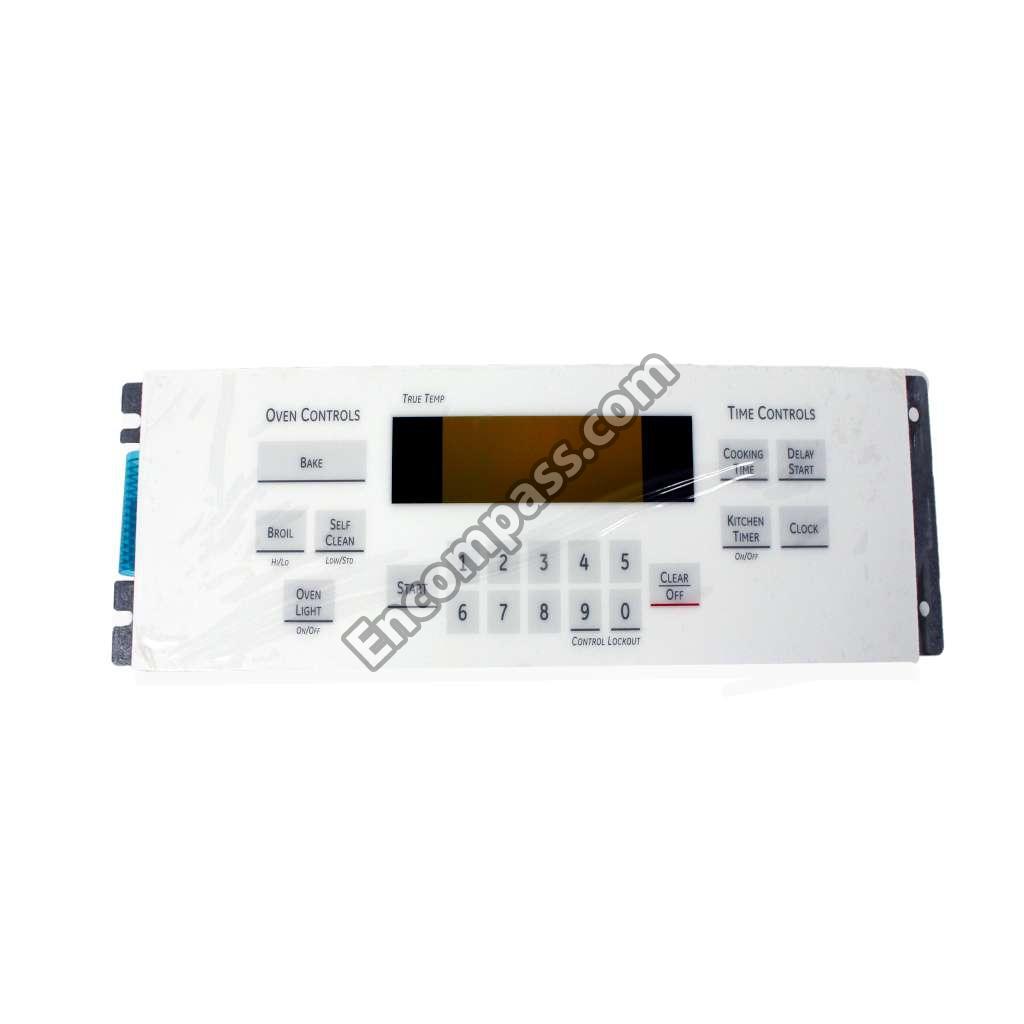

WB27T10416 WB27T10416 OVEN CONTROL (ERC3B)
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB36T10668 WB36T10668 PANEL CONTROL ASSEMBLY
WB48T10095 WB48T10095 RACK OVEN
WB30T10129 WB30T10129 RANGE 6-INCH RADIANT SURFACE ELEMENT
WB30T10132 WB30T10132 RANGE 8-INCH RADIANT SURFACE ELEMENT
WB02X10739 WB02X10739 RANGE ANTI-TIP BRACKET
WB02X20948 WB02X20948 RANGE BACK INSULATION RETAINER
WB02X10742 WB02X10742 RANGE CONTROL PANEL GASKET
WB02T10047 WB02T10047 RANGE CRYSTAL MOUNT
WB30T10133 WB30T10133 RANGE DUAL RADIANT ELEMENT - 9-INCH
WB02X10744 WB02X10744 RANGE FACEPLATE GASKET
WB24T10160 WB24T10160 RANGE HIGH AMP SWITCH
WB02T10371 WB02T10371 RANGE INSULATION RETAINER
WB02T10343 WB02T10343 RANGE INSULATION RETAINER - LOWER TOP
WB04T10050 WB04T10050 RANGE OVEN GASKET
WB08T10002 WB08T10002 RANGE OVEN LAMP ASSEMBLY
WB23T10015 WB23T10015 RANGE OVEN SENSOR
WB24T10060 WB24T10060 RANGE THERMAL FUSE
WB10T10083 WB10T10083 RECEIVER HINGE
WB56T10320 WB56T10320 RETAINER GLASS OVN DR
WB56T10321 WB56T10321 RETAINER GLASS OVN DR
WB02T10372 WB02T10372 RETAINER INSLN BTM
WB02T10284 WB02T10284 RETAINER INSLN SDE
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI.
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB01T10110 WB01T10110 SCR 8-18X.450 AB FLT20 S
WB01X1178 WB01X1178 SCREW
WB01M0001 WB01M0001 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1141 WB01X1141 SCREW
WB01K5028 WB01K5028 SCREW
WB1X1178 WB1X1178 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB1K5167 WB1K5167 SCREW 8-18 X 3/8
WB01K5167 WB01K5167 SCREW 8-18 X 3/8""
WB01T10053 WB01T10053 SCREW 8-32 TPT FLR 270
WB01X1261 WB01X1261 SCREW GROUND
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 SCREW-10AB
WB1X1141 WB1X1141 SCREW-8-32
WH2X941D WH2X941D SCREW-PKG 12
WZ4X245D WZ4X245D SCREW-PKG 12
WB34T10059 WB34T10059 SHIELD VENT ASSEMBLY
WB02T10452 WB02T10452 SPACER REINFORCEMENT
WB09X40389 WB09X40389 SPRING RADIANT ELEMENT
WB02T10453 WB02T10453 STUD COMPOSITE
WB26T10015 WB26T10015 SUPPORT OVEN CAVITY
WB2K5238 WB2K5238 SW BRACKET
WB02K5238 WB02K5238 SWITCH BRACKET
WB24T10134 WB24T10134 SWITCH INF CONTROL
WB24T10079 WB24T10079 SWITCH LIMIT
WB01T10052 WB01T10052 TAPE FOAM
WB07T10496 WB07T10496 TRIM ASSEMBLY
WB07T10693 WB07T10693 TRIM LOWER (WHITE)
WB07T10523 WB07T10523 TRIM VERT SDE LEFT (WHITE)
WB07T10522 WB07T10522 TRIM VERT SDE RT (WHITE)
WB38X33650 WB38X33650 TUBE VENT
WB28T10075 WB28T10075 VENT INLET DUCT
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB63T10085 WB63T10085 WRAPPER OVEN CAV
