Model Image
Manufacturer

GE

Model Number

PDF820SGJ5BB

Description

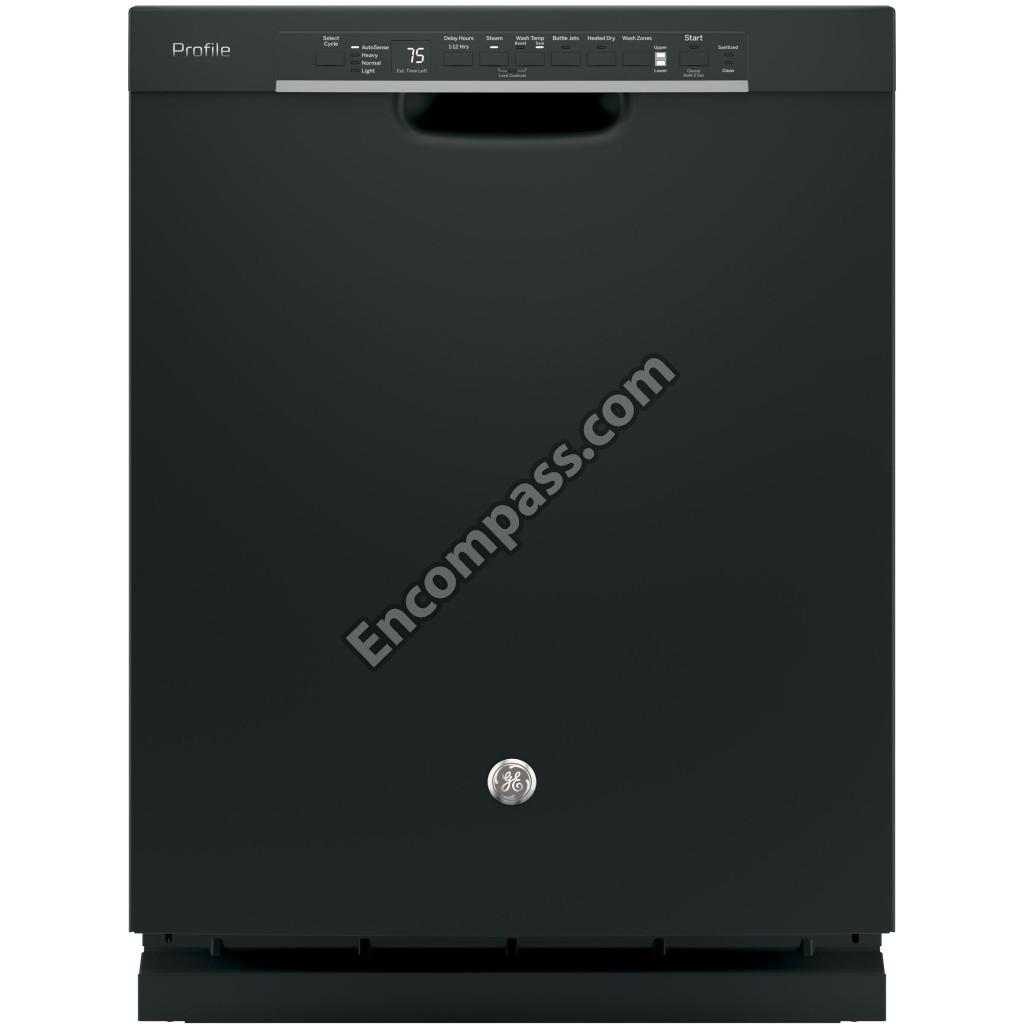

Built-in Dishwasher

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WZ5X158D WZ5X158D GE 13.4 SCREW 8-32 D HXW 3/8 S
WD02X10220 WD02X10220 GE 3/8-INCH HEX HEAD SCREW 10-32
WD09X21684 WD09X21684 GE 8 BUTTON TREE
WD18X22865 WD18X22865 GE ADAPTER CONDUIT
WD12X10419 WD12X10419 GE ADAPTOR FILTER
WD14X23739 WD14X23739 GE ARM HINGE ASSEMBLY LH
WD14X23738 WD14X23738 GE ARM HINGE ASSEMBLY RH
WD22X22857 WD22X22857 GE ARM SPRAY LOWER ASSEMBLY
WD22X22853 WD22X22853 GE ARM SPRAY MID ASSEMBLY
WD01X23983 WD01X23983 GE BAG INSULATION ASSEMBLY
WD28X22867 WD28X22867 GE BASKET ASSEMBLY SIDE
WD01X22866 WD01X22866 GE BELLOW SILVERWARE
WD34X25748 WD34X25748 GE BLACK OUTER DOOR SERVICE ASSEM
WD22X22863 WD22X22863 GE BLASTER SILVERWARE ASSEMBLY
WD01X10585 WD01X10585 GE BLOCK FOAM DOOR
WD22X25478 WD22X25478 GE BOTTLE BLASTER ASM
WD22X25300 WD22X25300 GE BOTTLE BLASTER ASSEMBLY
WD12X25301 WD12X25301 GE BOTTLE WASHER CLIP
WD12X20109 WD12X20109 GE BRACKET ASSEMBLY UPPER RACK
WD12X20108 WD12X20108 GE BRACKET ASSEMBLY UPPER RACK
WD12X20113 WD12X20113 GE BRACKET FIXED
WD12X20112 WD12X20112 GE BRACKET FIXED
WD12X25060 WD12X25060 GE BRACKET JUNCTION BOX
WD49X30778 WD49X30778 GE CABLE ASM PULLEY
WD01X35298 WD01X35298 GE CARRIER ROLLER
WD35X10382 WD35X10382 GE CLAMP
WD01X24246 WD01X24246 GE CLAMP
WD01X21975 WD01X21975 GE CLIP CONTROL BOARD
WD01X22855 WD01X22855 GE CLIP HOSE SIDE BLASTER
WD12X20171 WD12X20171 GE CLIP LOWER RACK
WD12X21681 WD12X21681 GE CONDUIT MAIN
WD12X34182 WD12X34182 GE CONDUIT MID BLASTER ASSEMBLY
WD12X22862 WD12X22862 GE CONDUIT SILVERWARE
WD21X32161 WD21X32161 GE CONFIGURED MACHINE CONTROL BOARD
WD21X31907 WD21X31907 GE CONFIGURED UI BOARD
WD21X25696 WD21X25696 GE CONTROL BOARD FUSE 3.1A
WD30X24239 WD30X24239 GE CONTROL BOX BOTTOM
WD24X20263 WD24X20263 GE COVER BOTTLE BLASTER
WD12X10412 WD12X10412 GE COVER JUNCTION BOX
WD12X32798 WD12X32798 GE DETERGENT DISP NO SENSOR
WD01X34879 WD01X34879 GE DISHWASHER ATTACH STRIP - LH
WD01X22836 WD01X22836 GE DISHWASHER ATTACH STRIP - RH
WD01X23777 WD01X23777 GE DISHWASHER BRACKET CABLE - LEFT
WD01X23776 WD01X23776 GE DISHWASHER BRACKET CABLE - RIGHT
WD01X23982 WD01X23982 GE DISHWASHER CONDUIT CLIP
WD27X32298 WD27X32298 GE DISHWASHER CONTROL BOX TOP
WD01X21740 WD01X21740 GE DISHWASHER COUNTERTOP BRACKET
WD35X10383 WD35X10383 GE DISHWASHER COUNTERTOP SCREW AND BUTTONPLUG
WD21X21664 WD21X21664 GE DISHWASHER DOOR HARNESS
WD01X26419 WD01X26419 GE DISHWASHER DOOR TRIM - LEFT
WD24X10062 WD24X10062 GE DISHWASHER DRAIN HOSE
WD21X22822 WD21X22822 GE DISHWASHER FLOOD FLOAT
WD21X22838 WD21X22838 GE DISHWASHER FLOOD STEM
WD21X23498 WD21X23498 GE DISHWASHER FLOOD SWITCH
WD01X23496 WD01X23496 GE DISHWASHER FLOOD SWITCH HOUSING
WD01X22786 WD01X22786 GE DISHWASHER HOSE CLAMP
WD30X20110 WD30X20110 GE DISHWASHER INNER RAIL UPPER RACK ASSMBLY
WD21X23559 WD21X23559 GE DISHWASHER JUMPER HARNESS
WD21X10490 WD21X10490 GE DISHWASHER LATCH AND SWITCH ASSEMBLY
WD01X10632 WD01X10632 GE DISHWASHER LATCH CAM
WD18X22842 WD18X22842 GE DISHWASHER LEAK PAN
WD28X34743 WD28X34743 GE DISHWASHER LOWER RACK
WD01X22825 WD01X22825 GE DISHWASHER O RING
WD01X10101 WD01X10101 GE DISHWASHER PUMP GROMMET
WD09X22840 WD09X22840 GE DISHWASHER RACK HANDLE COVER
WD21X22830 WD21X22830 GE DISHWASHER SENSOR
WD18X22782 WD18X22782 GE DISHWASHER SUMP MANIFOLD
WD27X21334 WD27X21334 GE DISHWASHER TOE KICK INSULATION
WD13X22837 WD13X22837 GE DISHWASHER TOP STRIP ATTACHMENT
WD01X23558 WD01X23558 GE DISHWASHER TUB FRONT SPACER
WD24X20586 WD24X20586 GE DISHWASHER VENT COVER
WD08X10092 WD08X10092 GE DISHWASHER VENT DOOR SEAL
WD24X20256 WD24X20256 GE DISHWASHER VENT FAN
WD18X23220 WD18X23220 GE DIVERTER PASSIVE ASSEMBLY
WD12X35640 WD12X35640 GE DOCKING PORT SS
WD31X29644 WD31X29644 GE DOOR INNER SS
WD01X26418 WD01X26418 GE DOOR TRIM RH
WD01X25218 WD01X25218 GE DRAIN PUMP HANGER
WD19X24829 WD19X24829 GE DRAIN PUMP KIT
WD28X20193 WD28X20193 GE FDT ASSEMBLY UPPER COATED
WD28X20194 WD28X20194 GE FDT ASSEMBLY UPPER COATED
WD28X20311 WD28X20311 GE FDT CLIP FLAT RACK
WD28X20310 WD28X20310 GE FDT CLIP FLAT RACK
WD28X20164 WD28X20164 GE FDT COATED LOWER RACK
WD28X20165 WD28X20165 GE FDT COATED LOWER RACK
WD12X25419 WD12X25419 GE FILL ELBOW
WD12X25080 WD12X25080 GE FILL FUNNEL CAP
WD22X10093 WD22X10093 GE FILTER COARSE SS
WD16X23497 WD16X23497 GE FLOOD SWITCH LEVER
WD01X20593 WD01X20593 GE FRICTION WASHER
WD49X25081 WD49X25081 GE FUNNEL AND GASKET ASM
WD08X22758 WD08X22758 GE GASKET SUMP MANIFOLD
WD08X22095 WD08X22095 GE GASKET TUB SS
WD08X23477 WD08X23477 GE GASKET TUB SS
WR04X28513 WR04X28513 GE GE BADGE BLACK STAINLESS
WD21X25082 WD21X25082 GE HARNESS ASSEMBLY AC
WD21X25084 WD21X25084 GE HARNESS ASSEMBLY DC
WD05X30818 WD05X30818 GE HEATING ELEMENT
WD24X29378 WD24X29378 GE HIGH LOOP DRAIN HOSE
WD24X20262 WD24X20262 GE HOSE BOTTLE BLASTER
WD24X10064 WD24X10064 GE HOSE FILL
WD21X20339 WD21X20339 GE HOSE FILL
WD24X23177 WD24X23177 GE HOSE WASH PUMP OUTLET
WD22X20688 WD22X20688 GE HUB
WD12X22852 WD12X22852 GE HUB SPRAY ARM
WD22X20689 WD22X20689 GE IMPELLER
WD28X20166 WD28X20166 GE INDEXER
WD30X25140 WD30X25140 GE INNER DOOR INSULATION
WD30X35300 WD30X35300 GE INSULATION TUB
WD01X10575 WD01X10575 GE LATCH CAM
WD02X31882 WD02X31882 GE LEVELING SCREW
WD01X10070 WD01X10070 GE NUT TOWER HEATER
WD34X22859 WD34X22859 GE PANEL CONTROL ASSEMBLY BB
WD12X10462 WD12X10462 GE PLATE DETERGENT
WD12X21677 WD12X21677 GE PLATE FLOOR MANUAL
31-31560 31-31560 GE PM INSTALL INSTRUCTIONS
31-30898 31-30898 GE PM MINI-MANUAL
49-55102 49-55102 GE PM OWNERS MANUAL
WD12X22787 WD12X22787 GE POCKET H AND LE
WD16X21836 WD16X21836 GE PULLEY HINGE
WD26X23258 WD26X23258 GE PUMP WASH KIT
WD28X30221 WD28X30221 GE RACK LOWER ASM COATED
WD28X30227 WD28X30227 GE RACK UPPER ASM COATED
WD28X35784 WD28X35784 GE RACK UPPER ASM COATED
WD12X26146 WD12X26146 GE ROLLER LOWER RACK
WB01T10103 WB01T10103 GE SCR 10-16 AB HXW .532
WD02X22781 WD02X22781 GE SCR 10-18 X 5/8
WD01X22514 WD01X22514 GE SCR 10-32 GX IHXW 9/16 S
WB02T10324 WB02T10324 GE SCR 6-20 GXB IHXW 3/8 NI.
WR01X10380 WR01X10380 GE SCR 8-18 AB TSQ 5/8 SS
WD02X10160 WD02X10160 GE SCR 8-18 B HXW .480 S
WD02X22736 WD02X22736 GE SCR10 - 16 AB HXW 3/4 SS
WD01X21837 WD01X21837 GE SCREW 10-32
WD02X10067 WD02X10067 GE SCREW 8-16 HXW 1/2 SS
WD02X22628 WD02X22628 GE SCREW T15 8-16 PLASTITE
WD28X20177 WD28X20177 GE SHELF CUP
WD01X21974 WD01X21974 GE SHIELD DIELECTRIC
WD01X22864 WD01X22864 GE SHIELD HEAT CONDUIT
WD22X21034 WD22X21034 GE SIDE BLASTER ASSEMBLY
WD12X22778 WD12X22778 GE SILICONE LIGHT PIPE
WD01X10104 WD01X10104 GE SPRING CLAMP
WD03X20446 WD03X20446 GE SPRING DOOR
WD13X10071 WD13X10071 GE STRIKER LATCH
WD01X20120 WD01X20120 GE SUPPORT HEATER SS
WD27X34579 WD27X34579 GE TOE KICK ASSEMBLY BB
WD12X23557 WD12X23557 GE TRANSITION PIECE ASSEMBLY
WD01X31858 WD01X31858 GE TRIM TUB
WD49X24057 WD49X24057 GE ULTRA FINE FILTER KIT
WD22X25463 WD22X25463 GE USER CLEANABLE FINE FILTER
WD15X22948 WD15X22948 GE VALVE WATER ASSEMBLY
WD12X20218 WD12X20218 GE VENT CONDUIT ASSEMBLY
WD24X10057 WD24X10057 GE VENT FILTER
