Model Image
Manufacturer

GE

Model Number

PDS18SBMLBS

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR17X11100 WR17X11100 BAFFLE CONDENSER
WR17X11104 WR17X11104 BASEPLATE COMP
WR71X10367 WR71X10367 BASKET LOWER
WR71X10366 WR71X10366 BASKET UPPER
WR71X10365 WR71X10365 BASKET UPPER HH
WR60X24484 WR60X24484 BLADE COND FAN ASSEMBLY
WR2M3557 WR2M3557 BLADE EVAP FAN ASSEMBLY
WR02X9255 WR02X9255 BRACKET
WR2X9255 WR2X9255 BRACKET
WR02X11863 WR02X11863 BRACKET COND FAN (MTG)
WR02X11085 WR02X11085 BRACKET CONDENSER
WR02X11084 WR02X11084 BRACKET FAN BACK
WR02X11032 WR02X11032 BRACKET FAN MOTOR
WR02X11031 WR02X11031 BRACKET FAN MTR(REAR)
WR02X10288 WR02X10288 BRIDGE EVAPORATOR HSGN
WR71X10364 WR71X10364 BRITA BIN COMPLETE
WR30X10003 WR30X10003 BUCKET ICE
WR2M3543 WR2M3543 BUMPER
WR02X10246 WR02X10246 CAP CORNER (BLACK)
WR02X11038 WR02X11038 CAP CORNER (BLACK)
WR79X10024 WR79X10024 CAP KICKPLATE -L H (BLACK)
WR02X9296 WR02X9296 CAP SHLF FRNT RH
WR2X9295 WR2X9295 CAP SHLF LH
WR2X9296 WR2X9296 CAP SHLF RH
WR62X10012 WR62X10012 CAPACITOR
WR72X10025 WR72X10025 CHANNEL
WR02X11046 WR02X11046 CLAMP, DRAIN HOSE
WR2X8203 WR2X8203 CLIP
WR02X11014 WR02X11014 CLIP
WR02X10076 WR02X10076 CLIP CORD SET
WR02X11063 WR02X11063 CLIP KICKPLATE
WR87X20798 WR87X20798 COMPRESSOR
WR84X10032 WR84X10032 CONDENSER
WR02X11036 WR02X11036 CONTROL TEMP
WR02X11043 WR02X11043 COVER
WR17X11622 WR17X11622 COVER ACCESS
WR02X11073 WR02X11073 COVER ELECTRICAL
WR02X11030 WR02X11030 COVER EVAPORATOR
WR02X11037 WR02X11037 COVER HOUSING
WR02X11012 WR02X11012 COVER IMK PLUG
WR02X11018 WR02X11018 COVER RELAY
WR02X11071 WR02X11071 COVER SWITCH
WR02X11034 WR02X11034 CROSSPIECE MULLION (BLACK)
WR02X11070 WR02X11070 CVR LAMP
WR19X10003 WR19X10003 DISH BUTTER
WR38X10258 WR38X10258 DOOR DAIRY (CLEAR)
WR78X10568 WR78X10568 DOOR FF SS
WR78X10569 WR78X10569 DOOR FF SS
WR78X10567 WR78X10567 DOOR FZ SS
WR13X10252 WR13X10252 DOOR STOP-LH
WR13X10219 WR13X10219 DOOR STOP-RH
WR17X2647 WR17X2647 DRAIN TUBE
WR86X10018 WR86X10018 DRYER
WR02X11082 WR02X11082 E RING
WR02X9295 WR02X9295 END CAP - L. H (WIDE)

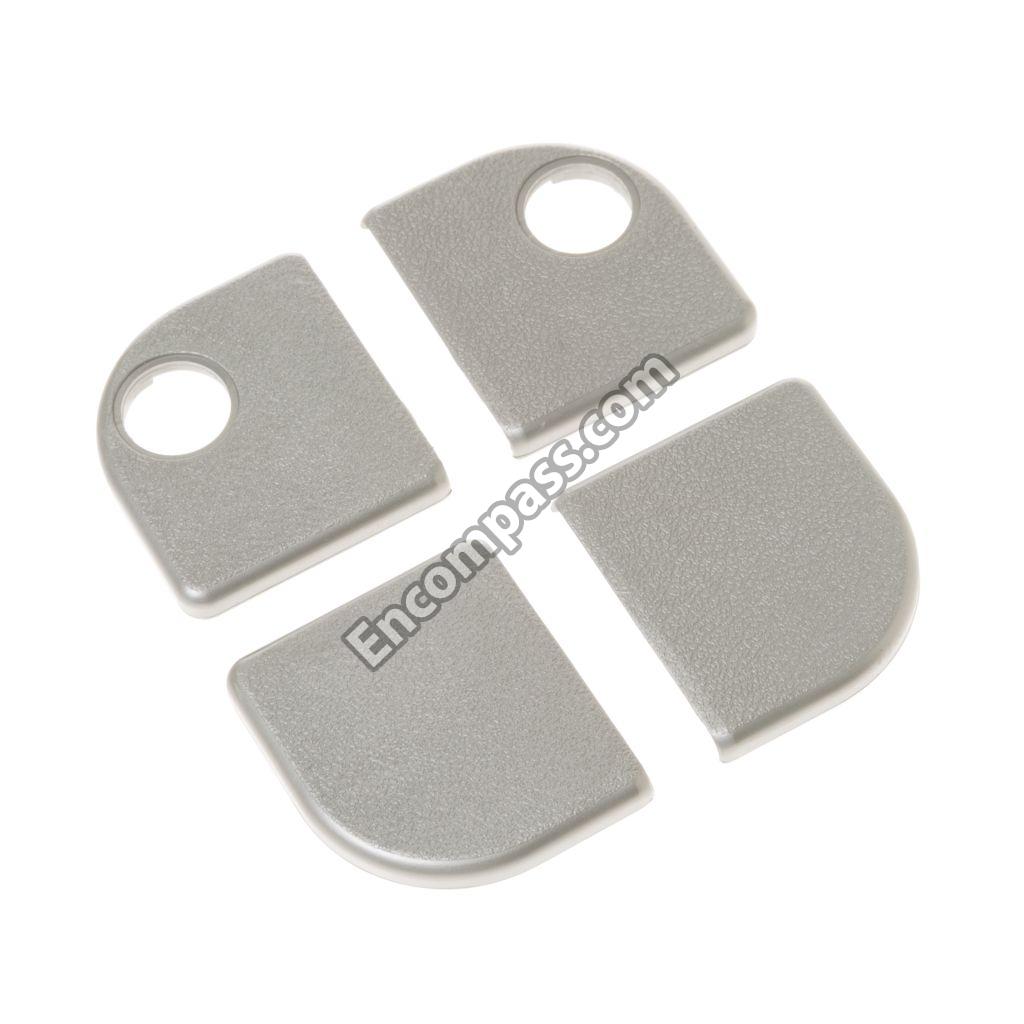

WR02X11117 WR02X11117 EPAULET DOOR CORNER LH S
WR02X11846 WR02X11846 EPAULET DOOR CORNER LH S
WR02X11116 WR02X11116 EPAULET DOOR CORNER RH S
WR02X11115 WR02X11115 EPAULET DOOR CORNER RH S
WR85X10034 WR85X10034 EVAPORATOR
WR02X11060 WR02X11060 FILTER BRITA 4PACK
WR14X10020 WR14X10020 GASKET CENTER
WR14X10122 WR14X10122 GASKET DIFFUSER
WR24X10101 WR24X10101 GASKET DOOR (BLACK)
WR14X10023 WR14X10023 GASKET FRONT
WR14X10022 WR14X10022 GASKET REAR
WR24X10100 WR24X10100 GASKET, DOOR FF BK
WR32X10276 WR32X10276 GLASS CRISPER COVER
WR02X11062 WR02X11062 GLIDE - RS UPPER BASKET
WR02X11035 WR02X11035 GRILL
WR02X11044 WR02X11044 GROMMET
WR02X10520 WR02X10520 GROMMET FAN MOTOR
WB15M378 WB15M378 HANDLE ASSEMBLY STN STL
WR23X10240 WR23X10240 HARNESS CONTROL
WR23X10243 WR23X10243 HARNESS DIVIDER
WR51X10027 WR51X10027 HEATER DEFROST
WR02X11029 WR02X11029 HEATER SHIELD EVAP KIT
WR2S72 WR2S72 HINGE COVER - BLACK
WR13X10220 WR13X10220 HINGE MID (BLACK)
WR13X10218 WR13X10218 HINGE TOP
WR17X11103 WR17X11103 HOUSING CONTROL
WR02X11068 WR02X11068 HOUSING CONTROL LIGHT
WR30S1 WR30S1 ICE BUCKET - LARGE
WR30X311 WR30X311 ICE TRAY WHITE

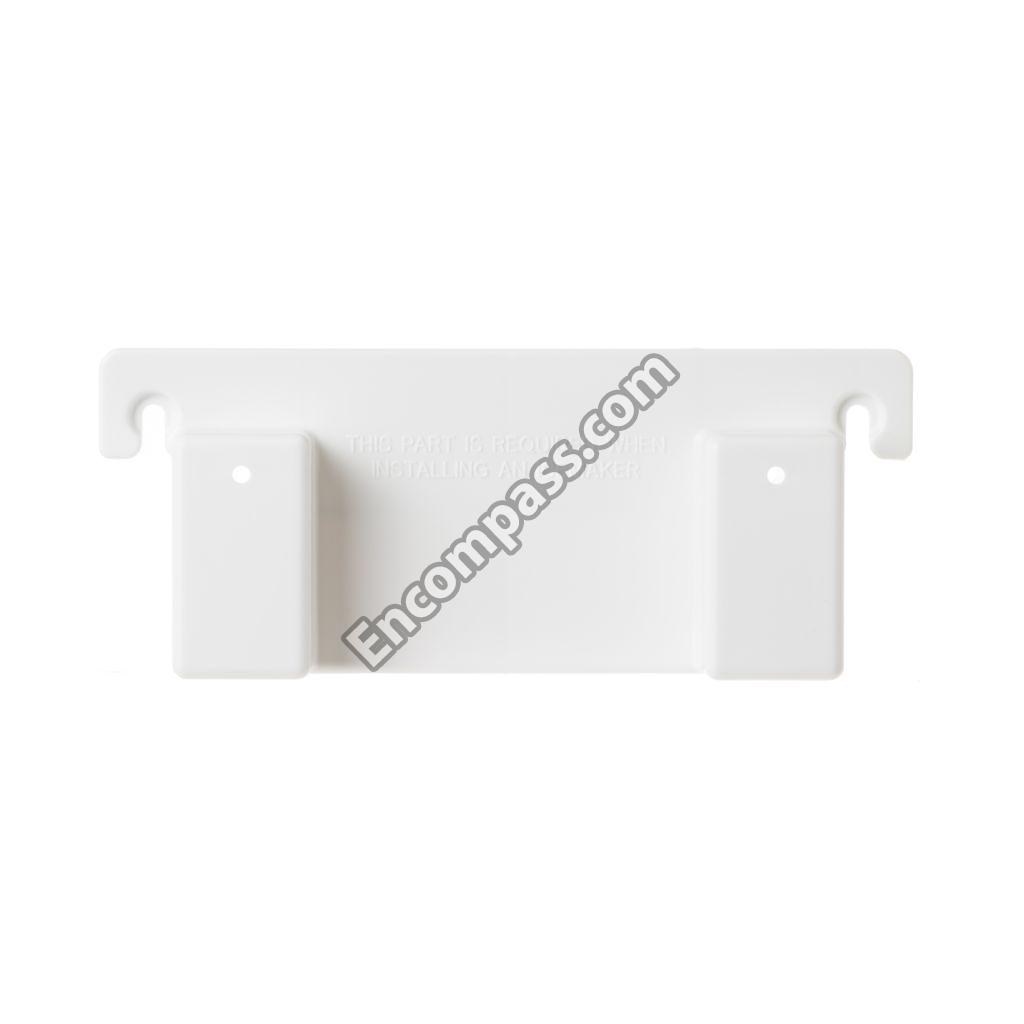

WR2M3604 WR2M3604 ICEMAKER MOUNTING BLOCK
WR02X11075 WR02X11075 LENS CONTROL HOUSING
WR02X11782 WR02X11782 LH SLIDE KIT
WR78X10562 WR78X10562 LINER DOOR
WR77X10064 WR77X10064 LINER DOOR FF PORTABI
WR17X11102 WR17X11102 LINER TOP (FZ)
WR78X10560 WR78X10560 LINER, DOOR
31-47016 31-47016 MINI MANUAL
WR02X12288 WR02X12288 MOBILITY ASM
WR02X11039 WR02X11039 MOBILITY FRT
WR60M133 WR60M133 MOTOR COND FAN
WR60X10300 WR60X10300 MOTOR EVAP FAN
WR04X10058 WR04X10058 NAMEPLATE (GE)
WR02X11074 WR02X11074 OVERLAY CONTROL HOUSING
WR08X10025 WR08X10025 OVERLOAD
WR02X11045 WR02X11045 PAD
WR32X10485 WR32X10485 PAN CRISPER ASSEMBLY
WR32X10084 WR32X10084 PAN DELI
WR17X12453 WR17X12453 PAN EVAPORATOR DRAIN
WR02X11059 WR02X11059 PIN MID HINGE
WR02X10311 WR02X10311 PLUG BUTTON BK CAB TOP
WR02X11077 WR02X11077 PLUG CONTROL HOUSING -LH
WR02X11076 WR02X11076 PLUG CONTROL HOUSING -RH
WR02X11083 WR02X11083 PLUG LINER
WR71X10363 WR71X10363 PORTA BIN (WHITE)
WR23X10300 WR23X10300 POWER CORD
WR30X10005 WR30X10005 RACK POP CAN
WR02X10216 WR02X10216 RAIL FRONT
WR02X10215 WR02X10215 RAIL REAR
WR07X10031 WR07X10031 RELAY
WR02X11048 WR02X11048 RETAINER STRIP
WR02X11049 WR02X11049 RETAINER STRIP
WR01X10102 WR01X10102 SCR 8-18 1/2
WR01X2068 WR01X2068 SCR-MTNG/TMR
WR1X5705 WR1X5705 SCREW
WR01X10271 WR01X10271 SCREW
WR01X10282 WR01X10282 SCREW
WR01X10281 WR01X10281 SCREW
WR01X10272 WR01X10272 SCREW
WR01X10077 WR01X10077 SCREW
WR01X10270 WR01X10270 SCREW
WR01X10267 WR01X10267 SCREW
WR01X10280 WR01X10280 SCREW
WZ4X241D WZ4X241D SCREW
WR01X10322 WR01X10322 SCREW
WE2M174 WE2M174 SCREW
WR01X2061 WR01X2061 SCREW (10-32 X 5/8)
WR01X10088 WR01X10088 SCREW (10-32 X 7/8)
WR01X10268 WR01X10268 SCREW (BLACK)
WR01X10279 WR01X10279 SCREW (HI/LO PAN PHIL)
WR01X2057 WR01X2057 SCREW (TOP)
WR01X10076 WR01X10076 SCREW (WHITE)
WD2X5166 WD2X5166 SCREW 10-16 AB HXW 1/2
WR01X10103 WR01X10103 SCREW 8-18 1 1/4
WR01X10273 WR01X10273 SCREW BRACKET
WR01X10637 WR01X10637 SCREW DOOR
WR01X10278 WR01X10278 SCREW GLIDE MTG
WR1M712 WR1M712 SCREW HANDLE SS
WR01X10277 WR01X10277 SCREW HINGE (12-24 TT)
WR1X2068 WR1X2068 SCREW MTG
WR1M723 WR1M723 SCREW SHOULDER
WZ04X0244 WZ04X0244 SCREW-FRONT
WZ4X244D WZ4X244D SCREW-PKG 12
WR17X11106 WR17X11106 SHELF FRT DOOR (FF)
WR71X10361 WR71X10361 SHELF SPILLPROOF FIXED
WR02X11069 WR02X11069 SHIELD FRONT LIGHT
WR02X11050 WR02X11050 SHIM
WR13X10227 WR13X10227 SHIM DOOR STOP
WR13X10221 WR13X10221 SHIM MID HINGE (BLACK)
WR17X11105 WR17X11105 SHROUD CONDENSER
WR02X11080 WR02X11080 SLEEVE
WR72X10018 WR72X10018 SLIDE
WR72X10023 WR72X10023 SLIDE - L H SMALL BASK
WR72X10019 WR72X10019 SLIDE - L.H.
WR72X10020 WR72X10020 SLIDE - R.H.
WR02X11042 WR02X11042 SLIDE ASM.
WR2M3540 WR2M3540 SLIDE BRACKET DRAWER
WR72X10017 WR72X10017 SLIDE CENTER
WR02X11079 WR02X11079 SLIDE CONTROL PANEL
WR02X11783 WR02X11783 SLIDE DRAWER L H BASKET
WR02X11061 WR02X11061 SLIDE, DRAWER R.H.BASKET
WR02X11051 WR02X11051 SNUGGER PORTA BIN
WR02X9391 WR02X9391 SOCKET & TERMINAL ASM
WR23X10241 WR23X10241 SOCKET LAMP
WR02X10200 WR02X10200 SOCKET LIGHT
WR2X9391 WR2X9391 SOCKET&TERM
WR51X10062 WR51X10062 STRAP HEATER
WR1X1779 WR1X1779 STUD MTGCOMP
WR02X11087 WR02X11087 SUPPORT COND
WR02X11041 WR02X11041 SUPPORT PAN COVER (FRONT
WR02X10214 WR02X10214 SUPPORT SLIDES
WR23X10089 WR23X10089 SWITCH LIGHT FF
WR23X10093 WR23X10093 SWITCH LIGHT FZ
WR02X11072 WR02X11072 THERMAL BREAK MULLION
WR50X133 WR50X133 THERMOST DEF
WR50X0133 WR50X0133 THERMOSTAT DEFROST
WR9X483 WR9X483 TIMER, DEFROST
WR02X11066 WR02X11066 TRACK CANTILEVER SHELF
WR38X10256 WR38X10256 TRIM MEAT PAN HANDLE
WR38X10257 WR38X10257 TRIM PAN COVER FRAME
49-60135 49-60135 USE & CARE MANUAL
WR01X10276 WR01X10276 WASHER
WR01X10269 WR01X10269 WASHER (BLACK)
WR02X11078 WR02X11078 WHEEL AIR CONTROL HOUSING
WR02X11081 WR02X11081 WHEEL TEMP CONTROL HOUSING
