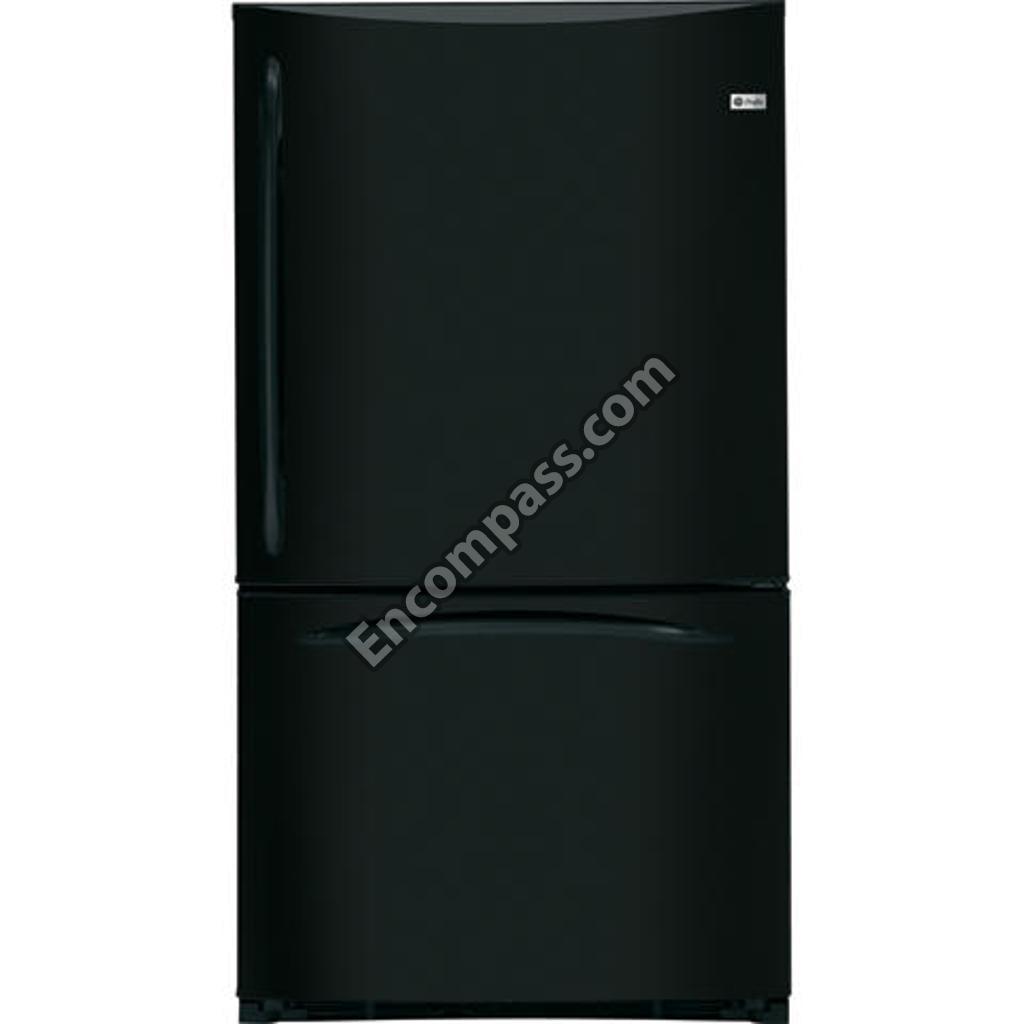

Manufacturer
GE
Model Number
PDSF5NBWBBB
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
40A15 2 PACK CLEAR BULBS |
|
|
BAFFLE COND AIR |
|
|
BAR REINFORCEMENT |
|
|
BASKET HOLDER |
|
|
BASKET HOLDER LH |
|
|
BASKET LOWER FZ |
|
|
BASKET MIDDLE FZ |
|
|
BASKET UPPER FZ |
|
|
BEAM SUPPORT |
|
|
BEVERAGE RACK |
|
|
BLADE CONF FAN ASSEMBLY |
|
|
BOARD ASSEMBLY TEMP CONTROL |
|
|
BRACKET |
|
|
BRACKET COND FAN (REAR) |
|
|
BRACKET CONDENSER BAR |
|
|
BRACKET EVAPORATOR FAN FRT |
|
|
BRACKET EVAPORATOR FAN REAR |
|
|
BRACKET HANDLE LOCK |
|
|
BRACKET LEG ASSEMBLY |
|
|
BUCKET ICE |
|
|
BUMPER |
|
|
CAM CLOSURE FZ LH |
|
|
CAM CLOSURE FZ RH |
|
|
CAM FF CLOSURE LH |
|
|
CAP CORNER OC BLACK |
|
|
CAP DUST |
|
|
CENTER FULL HINGE ASSEMBLY LH |
|
|
CLAMP CABLE |
|
|
CLIP DRAIN TUBE |
|
|
COMPARTMENT DAIRY |
|
|
COND ASSEMBLY FORMED |
|
|
CONNECTOR DOOR |
|
|
CONNECTOR DOOR |
|
|
CONTROL CUSTOMER ASSEMBLY |
|
|
COVER ACCESS |
|
|
COVER AIR TOWER FF |
|
|
COVER BOTTOM VEGETABLE PAN |
|
|
COVER EVAPORATOR |
|
|
COVER EVAPORATOR FAN |
|
|
COVER FLIP LID ASSEMBLY |
|
|
COVER HINGE TOP RH |
|
|
COVER MULLION SCREW |
|
|
COVER TOP |
|
|
COVER TOP VEGETABLE PAN |
|
|
DAMPER MEAT PAN |
|
|
DAMPER VP |
|
|
DAMPER VP |
|
|
DIVIDER GUIDE RAIL RH |
|
|
DIVIDER PAN |
|
|
DOOR DAIRY CLEAR |
|
|
DOOR FOAM ASSEMBLY FF BOWED |
|
|
DOOR FOAM ASSEMBLY FZ BOWED |
|
|
EPS AIR TOWER BACK |
|
|
EPS AIR TOWER FF |
|
|
EPS VENT DUCT VERTICAL |
|
|
EVAPORATOR FAN BLADE |
|
|
FASTENER HANDLE SS |
|
|
FASTENER HANDLE SS |
|
|
FILL CUP AND FEELER ARM FOR PBM IM READY MDL |
|
|
FOAM PAD COVER EVAPORATOR |
|
|
FOAM PAD COVER EVAPORATOR |
|
|
FOAM STRIP SE ADH |
|
|
FOAM STRIP SE ADH |
|
|
FOAM STRIP SE ADH |
|
|
FOAMPAD COVER LOWER EVAP |
|
|
FRAME PAN MEAT |
|
|
FZ LIGHT SHIELD |
|
|
GASKET |
|
|
GASKET |
|
|
GASKET FRAME MEAT SIDE |
|
|
GASKET FRAME MEAT SIDE |
|
|
GASKET FZ LIGHT |
|
|
GASKET INLET MEAT PAN |
|
|
GASKET PAN CVR FRONT |
|
|
GASKET PAN VEGETABLE FRAME |
|
|
GASKET PAN VEGETABLE FRAME |
|
|
GASKET TOWER FF |
|
|
GLIDE LH |
|
|
GRILLE BASE COVER |
|
|
GRILLE SENSOR |
|
|
GROMMET |
|
|
GROMMET EVAPORATOR FAN |
|
|
GROMMET EVAPORATOR FAN |
|
|
HANDLE BASKET FZ |
|
|
HANDLE BASKET FZ |
|
|
HANDLE FF ASSEMBLY |
|
|
HANDLE FZ ASSEMBLY |
|
|
HANDLE PAN MEAT |
|
|
HARNESS FZ LEFT |
|
|
HARNESS GROUND |
|
|
HEATER DEF ASSEMBLY |
|
|
HEATER FILL TUBE ASSEMBLY |
|
|
HINGE CLOSURE ASSEMBLY |
|
|
HOLDER FOAM PAD |
|
|
INSULATION COVER EVAPORATOR |
|
|
INVERTER ASSEMBLY COMP MOUNT |
|
|
KIT HINGE CHANGEABLE |
|
|
LENS NAME PLATE |
|
|
LEVER ARM FZ CLOSURE ASSEMBLY |
|
|
LEVER ARM FZ CLOSURE ASSEMBLY |
|
|
LEVER LOCK H AND LE |
|
|
LINKAGE BAR MEAT PAN 25 |
|
|
LOW SIDE ASSEMBLY |
|
|
MAIN BOARD ENCLOSURE ASSEMBLY |
|
|
METAL SLIDE ASSEMBLY |
|
|
METAL SLIDE ASSEMBLY |
|
|
MOBILITY FRONT ASSEMBLY |
|
|
MODULE SHELF FF ASSEMBLY |
|
|
MODULE SHELF FF ASSEMBLY |
|
|
MODULE SHELF FF FIXED |
|
|
NUT 8-32 |
|
|
PAN MEAT |
|
|
PAN VEGETABLE FRONT LH |
|
|
PAN VEGETABLE REAR LH |
|
|
PAN VEGETABLE REAR RH |
|
|
PLATE GROUNDING |
|
|
PLUG BUTTON |
|
|
PLUG BUTTON |
|
|
PLUG COVER AND GASKET ASSEMBLY |
|
|
R134 DRIER |
|
|
RAIL HOLDER LH |
|
|
RAIL HOLDER RH |
|
|
REFER DC EVAPORATOR FAN MOTOR |
|
|
REFLECTOR FF |
|
|
REFLECTOR LAMP FZ |
|
|
REFRIGERATOR AIR TOWER ASSEMBLY |
|
|
REFRIGERATOR CLIP |
|
|
REFRIGERATOR CONDENSER |
|
|
REFRIGERATOR CONDENSER CLIP |
|
|
REFRIGERATOR CONDENSER FAN MOTOR |
|
|
REFRIGERATOR FRESH FOOD CAM CLOSURE - RH |
|
|
REFRIGERATOR FRESH FOOD INLET GASKET |
|
|
REFRIGERATOR FRESH FOOD TOWER GASKET |
|
|
REFRIGERATOR FRONT VEGETABLE PAN - RH |
|
|
REFRIGERATOR LIGHT SWITCH |
|
|
REFRIGERATOR MAIN CONTROL BOARD |
|
|
REFRIGERATOR POWER CORD |
|
|
REFRIGERATOR TEMPERATURE SENSOR |
|
|
REFRIGERATOR UPPER SLIDE |
|
|
REFRIGERATOR UPPER SLIDE |
|
|
REFRIGERATOR VCC3 COMPRESSOR KIT |
|
|
REFRIGERATOR WATER LINE COVER |
|
|
REFRIGERATOR WIRE TIE/PLUG |
|
|
RING COMPRESSION |
|
|
SCR 1/4-10 PL HXW 3/4 S |
|
|
SCR 1/4-20 GX RT 3/4 S |
|
|
SCR 10-16 |
|
|
SCR 10-32 B IHXW 1/2 |
|
|
SCR 10-32. |
|
|
SCR 12-24 TT HX 7/8 S |
|
|
SCR 12-24 TT HXT20 .90 S |
|
|
SCR 8-10 PL PNP 1/2 S |
|
|
SCR 8-18 AB HW 1/2 S |
|
|
SCR 8-18 AB HXW 1/2 S |
|
|
SCR 8-18 AB HXW 5/4 S |
|
|
SCR 8-18 AB IHW |
|
|
SCR 8-18 AB IHXW 9/16 S |
|
|
SCR 8-18 AB PHR 1/2 S |
|
|
SCR 8-18 AB PNT20 7/16 S |
|
|
SCR 8-32 AB IHWS 3/8 S |
|
|
SCR 8-32 T HXW 3/8 S |
|
|
SCREW 10-32 TT HXW 5/16 S |
|
|
SCREW 8-18 AB IHW 5/8 S |
|
|
SCREW AND COVER BLACK |
|
|
SCREW HINGE COVER |
|
|
SCREW LEVELING |
|
|
SCREW MOBILITY. |
|
|
SCREW-PKG 12 |
|
|
SEPARATOR AIR HISIDE |
|
|
SHELF ASSEMBLY SLIDEOUT |
|
|
SHELF ASSEMBLY TUCKAWAY |
|
|
SHELF CANT GLASS |
|
|
SHELF ICE TRAY |
|
|
SHIELD LIGHT FF |
|
|
SHUNT SENSOR |
|
|
SLIDE ASSEMBLY LH |
|
|
SLIDE ASSEMBLY RH |
|
|
SLIDE CONTROL MEAT PAN |
|
|
SLIDE CONTROL VP LH |
|
|
SLIDE CONTROL VP RH |
|
|
SLIDE PAN ASSEMBLY |
|
|
SLIDE PAN ASSEMBLY |
|
|
SNUGGER MODULE |
|
|
SOCKET AND TERM |
|
|
SPACER |
|
|
SPRING CLOSU |
|
|
ST AND OFF |
|
|
STOP DOOR BM |
|
|
STUD MTGCOMP |
|
|
SUPPORT SHELF |
|
|
SUPPORT VEGETABLE PAN ASSEMBLY |
|
|
SWITCH LIGHT FZ |
|
|
THERMOSTAT DEF |
|
|
THIMBLE DOOR FF |
|
|
TRACK CENTER FF |
|
|
TRACK SIDE FF |
|
|
TRIM BOTTOM PAN MEAT |
|
|
TUBE DRAIN |
|
|
TUBE DRAIN TROUGH |
|
|
TUBE IM FILL |
|
|
VENT DUCT VERTICAL |
|
|
WHEEL MOBILITY |
