Model Image
Manufacturer

GE

Model Number

PDW8980N20SS

Description

Dishwasher

Interactive Exploded View

Parts List

Part Number Description
WD13X10045 WD13X10045 GE ACTUATOR H AND LE
WD21X10235 WD21X10235 GE ACTUATOR WAX ASM
WD12X10189 WD12X10189 GE ADAPTOR PUMP ASM
WD14X10046 WD14X10046 GE ARM HINGE LH ASM
WD14X10047 WD14X10047 GE ARM HINGE RH ASSEMBLY
WD22X10047 WD22X10047 GE ARM SPRAY LOW ASM
WD22X10048 WD22X10048 GE ARM SPRAY MID ASM
WD22X10049 WD22X10049 GE ARM SPRAY UPPER ASM
WD12X10183 WD12X10183 GE BASE FLOOD SWITCH
WD28X24469 WD28X24469 GE BASKET SILVERWARE END
WD28X22600 WD28X22600 GE BASKET SMALL ITEMS ASM
WD12X10025 WD12X10025 GE BEARING HINGE ARM
WD02X10169 WD02X10169 GE BEARING MID SPRAY ARM
WD01X10107 WD01X10107 GE BEARING SPRAY ARM LOW
WD01X10410 WD01X10410 GE BEARING SPRAY ARM UP
WD01X10284 WD01X10284 GE BLOCK FOAM
WD35X10065 WD35X10065 GE BOTTLE DETERGENT KIT
WD01X10207 WD01X10207 GE BRACKET DETERGENT DISPLAY
WD12X10124 WD12X10124 GE BRACKET J BOX
WD12X10405 WD12X10405 GE BRACKET SPRAY ARM MID
WD12X10143 WD12X10143 GE BRACKET WHEEL
WD12X10144 WD12X10144 GE BRACKET WHEEL
WD30X10020 WD30X10020 GE CAGE ROLLER BEARING ASM
WD12X10282 WD12X10282 GE CAP ASM
WD12X10184 WD12X10184 GE CAP END - RACK SLIDE
WD12X10122 WD12X10122 GE CAP RINSE ASM
WD01X10104 WD01X10104 GE CLAMP
WD01X10103 WD01X10103 GE CLAMP
WD01X10279 WD01X10279 GE CLAMP
WD1X1392 WD1X1392 GE CLAMP HOSE
WD01X10210 WD01X10210 GE CLAMP SUMP
WD28X10161 WD28X10161 GE COMB LOWER RACK ASM
WD28X10145 WD28X10145 GE COMB LOWER RACK ASM
WD28X10117 WD28X10117 GE COMB LOWER RACK ASM
WD28X10116 WD28X10116 GE COMB LOWER RACK ASM
WD12X10114 WD12X10114 GE CONDUIT CARRIER MID
WD12X10113 WD12X10113 GE CONDUIT MAIN
WD12X10057 WD12X10057 GE CONDUIT MAIN
WD12X10145 WD12X10145 GE CONDUIT MID SPRAY
WD18X10010 WD18X10010 GE CONNECTOR PUMP ASSEMBLY
WD12X448 WD12X448 GE COVER JUNCTION BOX
WD12X10127 WD12X10127 GE COVER VENT
WD12X10129 WD12X10129 GE COVER WATER INLET
WD01X10218 WD01X10218 GE CUP HINGE
WD01X10393 WD01X10393 GE DISHWASHER HINGE CABLE
WD12X10384 WD12X10384 GE DISPENSING DET ASSEMBLY
WD12X10119 WD12X10119 GE DOME FLOAT
WD31X10087 WD31X10087 GE DOOR INNER ASM
WD24X10045 WD24X10045 GE DRAIN TUBE ASSEMBLY
WD05X10010 WD05X10010 GE ELEMENT HEATING ASSEMBLY
WD34X11152 WD34X11152 GE ESCUTCHEON BOWED SS ASM
WD22X10038 WD22X10038 GE FILTER COARSE
WD12X10109 WD12X10109 GE FILTER FINE ASM
WD22X10077 WD22X10077 GE FILTER SUMP
WD12X10044 WD12X10044 GE FLAPPER VENT
WD12X10047 WD12X10047 GE FLOAT
WD12X21322 WD12X21322 GE FUNNEL AND GASKET ASM
WD49X25081 WD49X25081 GE FUNNEL AND GASKET ASM
WD08X10060 WD08X10060 GE GASKET FILL HOLE
WD08X10032 WD08X10032 GE GASKET TUB
WD08X10044 WD08X10044 GE GASKET WATER INLET
WD28X10175 WD28X10175 GE GRIPPER SUPPORT COMB
WD01X10269 WD01X10269 GE GROMMET
WD01X10094 WD01X10094 GE GROMMET HEATER
WD13X10033 WD13X10033 GE HANDLE COVER ASM
WD13X10007 WD13X10007 GE HANDLE LATCH BLACK
WD13X10032 WD13X10032 GE HANDLE REAR COVER
WD01X10282 WD01X10282 GE HANGER DRAIN PUMP
WD01X10211 WD01X10211 GE HANGER MECH ASSEMBLY
WD24X10036 WD24X10036 GE HOSE FILL ASM
WD21X10355 WD21X10355 GE HSNG SPECIAL-WATER VALVE
WD12X10353 WD12X10353 GE HUB SPRAY ARM MID
WD12X10214 WD12X10214 GE INDEXER FRONT ASM
WD12X10215 WD12X10215 GE INDEXER REAR
WD30X10021 WD30X10021 GE INNER RAIL UPPER RACK
WD01X10448 WD01X10448 GE INSULATION TUB BLANKET
WD13X10018 WD13X10018 GE KEEPER LATCH ASSEMBLY
WD19X10038 WD19X10038 GE KIT - IMPELLER ASM
WD35X10350 WD35X10350 GE KIT BOWED PANEL ASSEMBLY SS
WD2X320 WD2X320 GE LEVELING LEG
WD01X10228 WD01X10228 GE LEVER RACK ASSEMBLY LH
WD01X10227 WD01X10227 GE LEVER RACK ASSEMBLY RH
WD28X10114 WD28X10114 GE LID BASKET
WD28X10113 WD28X10113 GE LID BASKET
WD28X10112 WD28X10112 GE LID BASKET
WD14X10009 WD14X10009 GE LINK HINGE ARM
WD02X25438 WD02X25438 GE LOCK NUT ASSEMBLY
WD12X10135 WD12X10135 GE LOCKNUT
WD26X10029 WD26X10029 GE MECH ASM SERVICE
WD21X10260 WD21X10260 GE MODULE 3 DIGIT DISPLAY

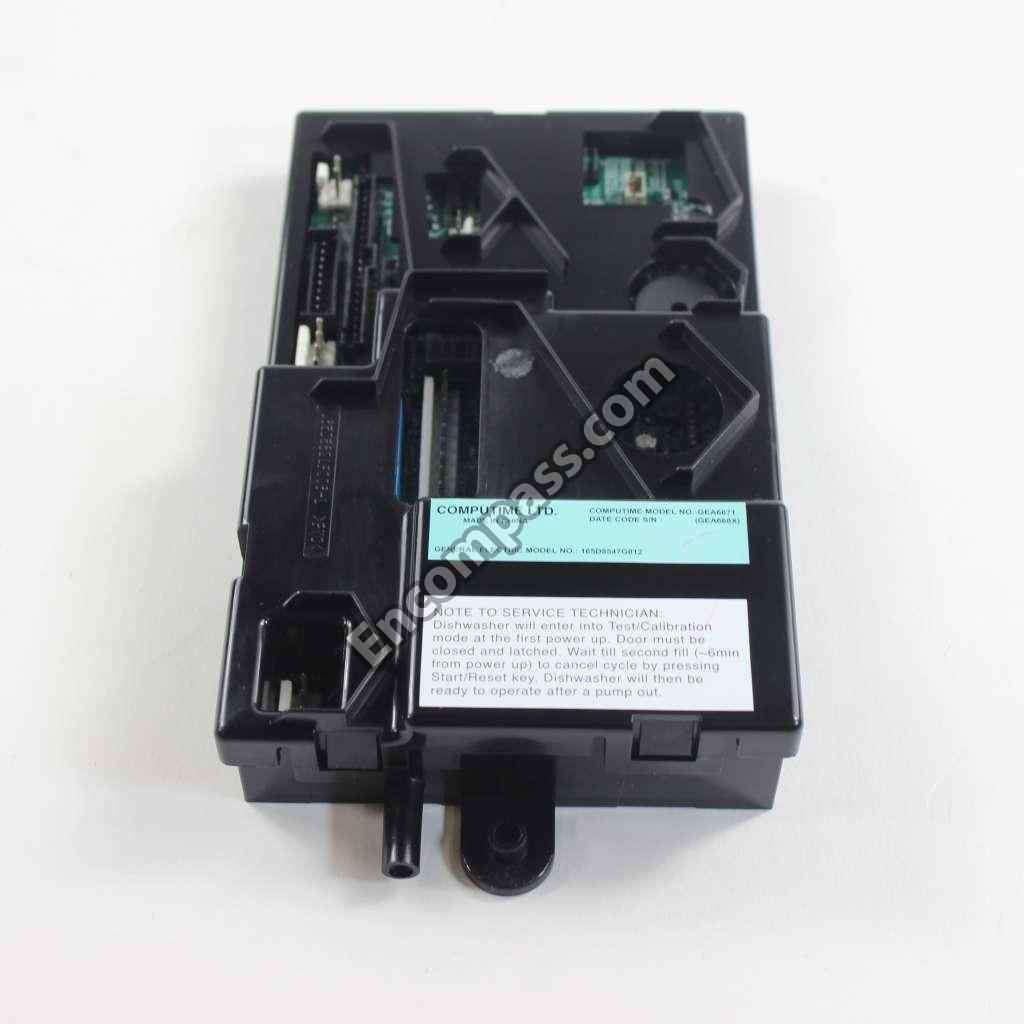

WD21X10367 WD21X10367 GE MODULE CONTROL ASSEMBLY
WD12X10163 WD12X10163 GE MODULE RINSE AND CAP ASM
WD12X10134 WD12X10134 GE NOZZLE SPRAY ASM
WD12X10061 WD12X10061 GE NUT HUB FINE FILTER
WD01X10214 WD01X10214 GE NUT TOWER HEATER ASM
WD01X10220 WD01X10220 GE NUT WATER INLET
WD01X10219 WD01X10219 GE PLATE SUMP
WD01X10223 WD01X10223 GE PLUG BUTTON
31-30233 31-30233 GE PM INSTRUCTION INSTALL
49-55036 49-55036 GE PM MANUAL USE & CARE
31-30483 31-30483 GE PM SHEET MINI MANUAL
WD01X10217 WD01X10217 GE PULLEY HINGE

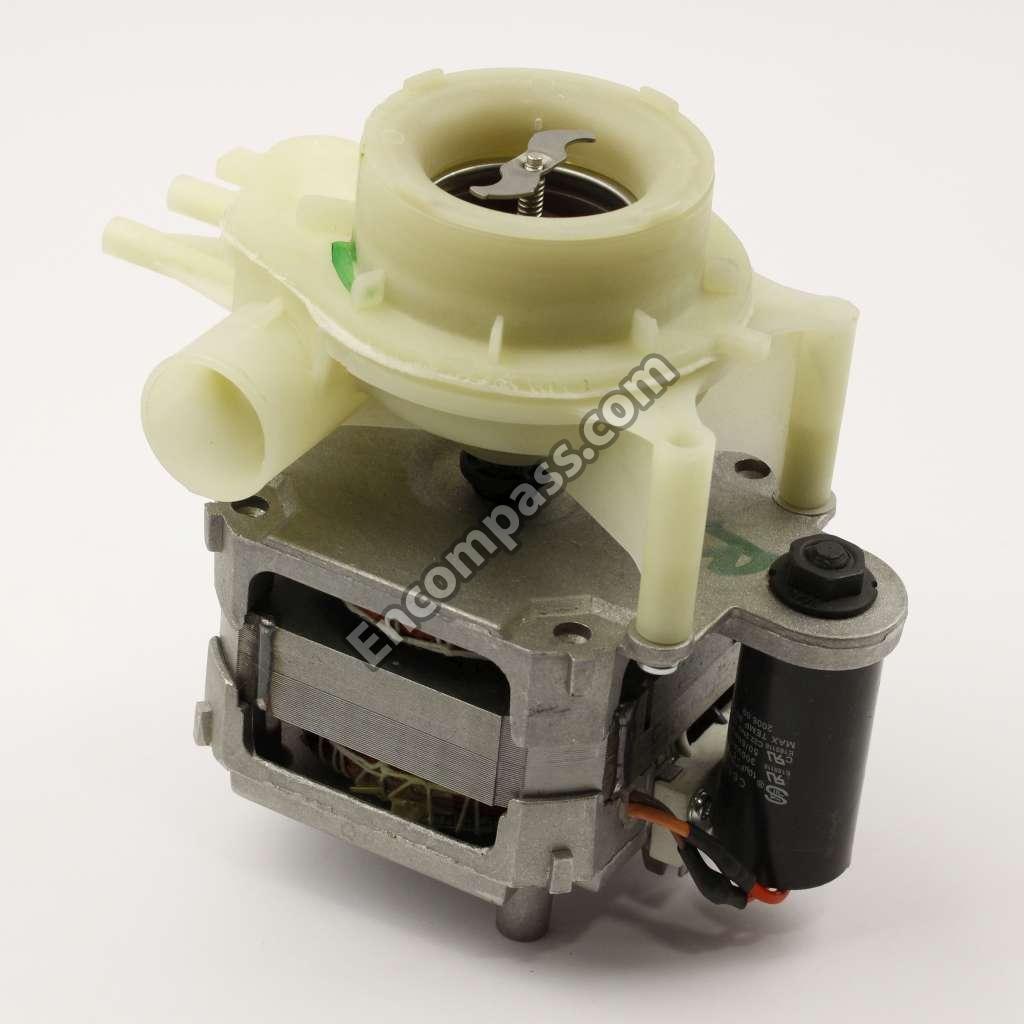

WD26X10039 WD26X10039 GE PUMP DRAIN ASSEMBLY
WD28X10387 WD28X10387 GE RACK LOW ROLL ASM
WD28X25960 WD28X25960 GE RACK LOW ROLL ASM
WD28X10410 WD28X10410 GE RACK UPPER ROLL KIT
WB17X5060 WB17X5060 GE RANGE CONNECTOR KIT
WD12X10117 WD12X10117 GE RETAINER COMB
WD12X10118 WD12X10118 GE RETAINER COMB
WD12X10116 WD12X10116 GE RETAINER COMB
WD13X10017 WD13X10017 GE RETAINER HANDLE
WD12X10060 WD12X10060 GE RING SUCTION
WD35X21041 WD35X21041 GE ROLLER LOWER RACK
WD35X21036 WD35X21036 GE ROLLER UPPER RACK
WD02X10112 WD02X10112 GE SCR 10-16 B RNP 18/25 SS
WD02X5166 WD02X5166 GE SCR 10-16X1/2 AB HEXW S
WD02X0248 WD02X0248 GE SCR 10-24X3/8 TT HEX
WD02X10150 WD02X10150 GE SCR 10-32 GX FLT25.615 S
WD02X10123 WD02X10123 GE SCR 10-32 GXTT FLP.595 S
WZ05X0222 WZ05X0222 GE SCR 10-32 T HEX 7/16 S
WB1K5210 WB1K5210 GE SCR 10-32 X 1.031
WD02X10131 WD02X10131 GE SCR 6-10 PHIL PAN 3/4 S
WD02X10104 WD02X10104 GE SCR 8-10 PL TRP 1/2 S
WD02X10106 WD02X10106 GE SCR 8-18 AB TR 7/8S
WH23X10028 WH23X10028 GE SCR 8-18 AB TR 7/8S
WD02X10111 WD02X10111 GE SCR 8-18 B POR 1/2 SS
WD02X10130 WD02X10130 GE SCR 8-18 B POR 1/4 SS
WD02X10109 WD02X10109 GE SCR 8-32 B HXW 1.13 SS
WZ05X0219 WZ05X0219 GE SCREW
WZ5X222 WZ5X222 GE SCREW
WD2X248 WD2X248 GE SCREW
WD2X5166 WD2X5166 GE SCREW
WR01X10065 WR01X10065 GE SCREW 10-32 GXTT FLP 595 S
WD02X10067 WD02X10067 GE SCREW 8-16 HXW 1/2 SS
WR01X10652 WR01X10652 GE SCREW 8-18 AB IHW 5/8 S
WD02X10085 WD02X10085 GE SCREW 8-18 B 1HW 1/2 S N
WD02X0320 WD02X0320 GE SCREW LEVEL
WZ5X219D WZ5X219D GE SCREW-PKG 12
WD01X10264 WD01X10264 GE SEAL FLOOD SWITCH
WD01X10176 WD01X10176 GE SEAT CHECK VALVE
WD21X10272 WD21X10272 GE SENSOR TURBIDITY
WD28X10146 WD28X10146 GE SHELF CUP FULL LENGTH
WD28X10149 WD28X10149 GE SHELF CUP HALF LENGTH
WD28X10148 WD28X10148 GE SHELF CUP HALF LENGTH
WD03X10022 WD03X10022 GE SPRING DOOR
WD03X10020 WD03X10020 GE SPRING GASKET
WD03X10026 WD03X10026 GE SPRING PLUNGER
WR02X10585 WR02X10585 GE SPRING RECESS DOOR
WD12X10048 WD12X10048 GE STEM FLOAT
WD01X10295 WD01X10295 GE STRIP HARDNESS TESTER
WD18X10026 WD18X10026 GE SUMP INLET
WD28X10174 WD28X10174 GE SUPPORT COMB UPPER RACK
WD28X10173 WD28X10173 GE SUPPORT COMB UPPER RACK
WD12X10151 WD12X10151 GE SWITCH FLOOD ASSEMBLY
WD21X10169 WD21X10169 GE SWITCH INTERLOCK ASM
WD27X10177 WD27X10177 GE TOEKICK ASM
WD28X10147 WD28X10147 GE TRAY KNIFE
WD08X10055 WD08X10055 GE TRIM GASKET
WD08X10054 WD08X10054 GE TRIM GASKET
WH1X2036 WH1X2036 GE UNIV CLAMP
WD01X10175 WD01X10175 GE VALVE FLAPPER
WD15X10014 WD15X10014 GE VALVE WATER INLET
WD12X10275 WD12X10275 GE VENT BRACKET ASSEMBLY BB
WD21X10172 WD21X10172 GE VENT DRIVER ASM
WD3X767 WD3X767 GE WASHER
WD03X0767 WD03X0767 GE WASHER ST STL
WD01X10105 WD01X10105 GE WORM GEAR CLAMP
