Manufacturer
GE
Model Number
PDWT100V00BB
Description

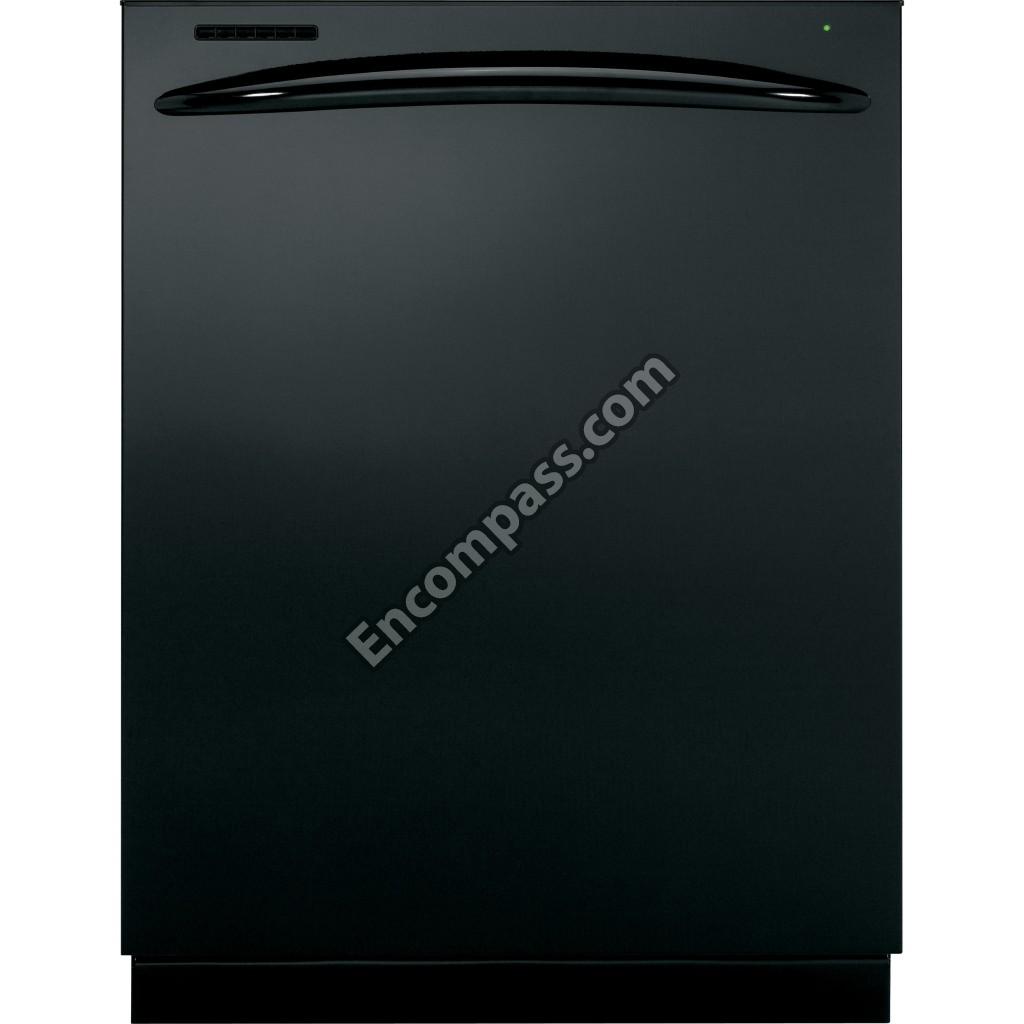

Dishwasher
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ARM HINGE LH ASM |
|
|
ARM HINGE RH ASM |
|
|
ARM SPRAY LOW ASM |
|
|
ARM SPRAY MID ASM |
|
|
ARM SPRAY UPPER ASM |
|
|
BAG AND BRACKET ASSEMBLY |
|
|
BASE FLOOD SWITCH |
|
|
BASKET ASSEMBLY |
|
|
BASKET ASSEMBLY SILVERWARE |
|
|
BASKET SILVERWARE ASM |
|
|
BASKET SILVERWARE LONG |
|
|
BEARING HINGE ARM |
|
|
BEARING SPRAY ARM LOW |
|
|
BEARING SPRAY ARM UP |
|
|
BLOCK FOAM DOOR |
|
|
BRACKET DETERGENT DISPLAY |
|
|
BRACKET J BOX |
|
|
BRACKET SPRAY ARM MID |
|
|
BRACKET SUPPORT LATCH |
|
|
BRACKET TCO |
|
|
BUTTON ASM SILICON PRO |
|
|
CABLE ASM |
|
|
CAMERA LENS ASM KIT BB |
|
|
CAP RINSE ASM |
|
|
CLAMP |
|
|
CLAMP |
|
|
CLAMP |
|
|
CLAMP SUMP |
|
|
CONDUIT CARRIER MID |
|
|
CONDUIT MAIN |
|
|
CONDUIT SPRAY ARM MID |
|
|
CONNECTOR PUMP ASSEMBLY |
|
|
CONSOLE ASM KIT BB |
|
|
CONSOLE ASSEMBLY BB |
|
|
CONTROL SHIELD |
|
|
CONTROL TACTILE ASM KIT |
|
|
COVER INLET |
|
|
COVER JUNCTION BOX |
|
|
COVER VENT |
|
|
COVER WATER INLET |
|
|
CUP HINGE |
|
|
DISHWASHER HOSE CLAMP |
|
|
DISHWASHER WATER INLET VALVE |
|
|
DOME FLOAT |
|
|
DOOR INNER GASKET |
|
|
DRAIN TUBE ASSEMBLY |
|
|
ELEMENT HEATING ASM |
|
|
FENDER FRONT ASSEMBLY |
|
|
FENDER REAR ASSEMBLY |
|
|
FILTER COARSE |
|
|
FILTER FINE ASM |
|
|
FILTER SUMP & COVER ASM |
|
|
FLOAT |
|
|
FLOAT |
|
|
FOAM VENT |
|
|
FUNNEL AND GASKET ASM |
|
|
GASKET TUB |
|
|
GASKET WATER INLET |
|
|
GRIPPER STEMWARE |
|
|
GROMMET |
|
|
GROMMET |
|
|
GROMMET HEATER |
|
|
HANDLE ASM PAINTED BB |
|
|
HANGER MECH ASSEMBLY |
|
|
HEAT SHIELD |
|
|
HINGE WELD SRVICE KIT SS |
|
|
HOSE FILL |
|
|
HSNG SPECIAL-WATER VALVE |
|
|
HUB SPRAY ARM |
|
|
HUB VENTURI ASM |
|
|
INNER RAIL UPR RACK |
|
|
INSULATION PANEL |
|
|
INSULATION TUB |
|
|
KIT - IMPELLER ASM |
|
|
LATCH |
|
|
LATCH ASM 1 SWITCH |
|
|
LATCH KEEPER ASSEMBLY |
|
|
LENS ASM KIT SS |
|
|
LEVELING LEG |
|
|
LID BASKET |
|
|
LINK HINGE ARM |
|
|
LOCKNUT |
|
|
LOUVER ASM KIT BB |
|
|
LOUVER ASM KIT WW |
|
|
LOWER RACK WHEEL |
|
|
MECHANISM ASM |
|
|
MODEL SELECTOR PLUG ASSEMBLY |
|
|
MODULE RINSE AND CAP ASM |
|
|
NUT HUB FINE FILTER |
|
|
NUT TOWER HEATER ASM |
|
|
NUT WATER INLET |
|
|
OUTER PANEL AND LENS ASM |
|
|
OUTER PANEL AND LENS ASM |
|
|
PLATE SUMP |
|
|
PLUG BUTTON |
|
|
PM INSTALL INSTRUCTIONS |
|
|
PM MANUAL USE & CARE |
|
|
PM MINI MANUAL |
|
|
PULLEY HINGE |
|
|
PUMP DRAIN ASM |
|
|
RACK FIXED ASM UPPER |
|
|
RACK ROLLER ASM LOWER |
|
|
SCR 10-16X1/2 AB HEXW S |
|
|
SCR 10-24 TAP RNP 1/2 |
|
|
SCR 10-24X3/8 TT HEX |
|
|
SCR 10-32 C HX 7/16 S |
|
|
SCR 10-32 GX FLT25.615 S |
|
|
SCR 10-32 TT HEX .575S |
|
|
SCR 10-32 TT HXW 7/16 S |
|
|
SCR 1024 UNC HXP 1S ZN |
|
|
SCR 8-10 PL TRP 1/2 S |
|
|
SCR 8-16X1/2 STN STL |
|
|
SCR 8-18 AB HW 1/2 SS |
|
|
SCR 8-18 AB OV .655 |
|
|
SCR 8-18 AB OV 1.405 |
|
|
SCR 8-18 B HXW .480 S |
|
|
SCR 8-18 VA TRT 7/16 S N |
|
|
SCR 8-32 B HXW 1.13 SS |
|
|
SCR B-16 HXW 1/2 SS |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW 10-32 GXTT FLP 595 S |
|
|
SCREW 8-16 HXW 1/2 SS |
|
|
SCREW 8-18 B 1HW 1/2 S N |
|
|
SCREW LEVEL |
|
|
SCREW MECH |
|
|
SCREW-PKG 12 |
|
|
SEAL FLOOD SWITCH |
|
|
SEAT CHECK VALVE |
|
|
SENSOR TURBIDITY |
|
|
SHELF MULTI PURPOSE |
|
|
SHIELD BOARD TOP |
|
|
SPRING DOOR |
|
|
SPRING GASKET |
|
|
STEM FLOAT |
|
|
SUMP CLAMP |
|
|
SUMP INLET |
|
|
SWITCH FLOOD ASSEMBLY |
|
|
TACTILE ASSEMBLY HOUSING |
|
|
TACTILE BOARD |
|
|
TCO ASSEMBLY |
|
|
THERMOSTAT - SAFETY |
|
|
TOEKICK ASM |
|
|
TOEKICK ASM |
|
|
TRIM GASKET |
|
|
TRIM GASKET |
|
|
VALVE FLAPPER DUAL PUMP |
|
|
VENT ASM |
|
|
WASHER HOSE CLAMP KIT |
