Model Image
Manufacturer

GE

Model Number

PEB1590DM2CC

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB26X10211 WB26X10211 AC FAN MOTOR
WB27X11172 WB27X11172 AC LINE FILTER
WB02X11324 WB02X11324 AIR GUIDE
WB56X10184 WB56X10184 BACK COVER
WB6X475 WB6X475 BLADE MTR CL
WB02X21787 WB02X21787 BOARD LATCH
WB06X10260 WB06X10260 BRACKET - DAMPER
WB21X10150 WB21X10150 BRACKET ASSEMBLY
WB03X10229 WB03X10229 BUTTON COOK
WB09X10002 WB09X10002 BUTTON SPRING
WB03X10228 WB03X10228 BUTTON START
WB06X10262 WB06X10262 CHAMBER
WB06X10263 WB06X10263 CHAMBER WALL
WB55X10385 WB55X10385 CHOKE COVER
WB01X10296 WB01X10296 CMO HARDWARE ASSEMBLY BAG
WB27X10798 WB27X10798 CONTROL BISQ PANEL
WB27X10961 WB27X10961 CONTROL PANEL DECOR
WB27X10793 WB27X10793 DIGITRON WINDOW
WB56X10759 WB56X10759 DOOR ASSEMBLY
WB55X10384 WB55X10384 DOOR FRAME ASSEMBLY
WB55X10897 WB55X10897 DOOR PANEL
WB06X0475 WB06X0475 FAN BLADE
WB55X10730 WB55X10730 GLASS
WB06X10261 WB06X10261 GUIDE - SUCTION
WB18X10250 WB18X10250 HARNESS
WB18X10455 WB18X10455 HARNESS
WB02X32605 WB02X32605 HOLDER - HEATER
WB06X10735 WB06X10735 INSULATOR
WB27X10792 WB27X10792 KEY PANEL
WB02X21791 WB02X21791 LEVER
WB26X32629 WB26X32629 MAGNETRON
WB06X10257 WB06X10257 MICROWAVE AIR DUCT
WB36X10131 WB36X10131 MICROWAVE BULB ASSEMBLY
WB06X10258 WB06X10258 MICROWAVE BULB COVER
WB03X10230 WB03X10230 MICROWAVE BUTTON - BISQUE
WB02X10611 WB02X10611 MICROWAVE CAP
WB27X11033 WB27X11033 MICROWAVE CAPACITOR
WB06X10214 WB06X10214 MICROWAVE CAPAICTOR BRACKET
WB27X10037 WB27X10037 MICROWAVE DIODE CABLE
WB06X10030 WB06X10030 MICROWAVE DOOR LATCH
WB26X32609 WB26X32609 MICROWAVE FAN MOTOR
WB49X10129 WB49X10129 MICROWAVE GLASS TRAY
WB03X10231 WB03X10231 MICROWAVE KNOB - WHITE
WB27X10928 WB27X10928 MICROWAVE LINE FUSE
WB06X10265 WB06X10265 MICROWAVE SHEATH HEATER
WB20X10048 WB20X10048 MICROWAVE THERMOSTAT
31-41035 31-41035 MINI MANUAL
WB26X10248 WB26X10248 MOTOR
WB26X10082 WB26X10082 MOTOR - TURN TABLE
WB26X10085 WB26X10085 MOTOR FAN
WB01X1520 WB01X1520 NUT COMMON
WB1X1520 WB1X1520 NUT HEXAGON
WB56X10185 WB56X10185 OUTER CASE - BISQUE
WB02X10730 WB02X10730 PAN HEAD TAPPING SCREW
49-40730 49-40730 PM QUICK REF CMO CONV

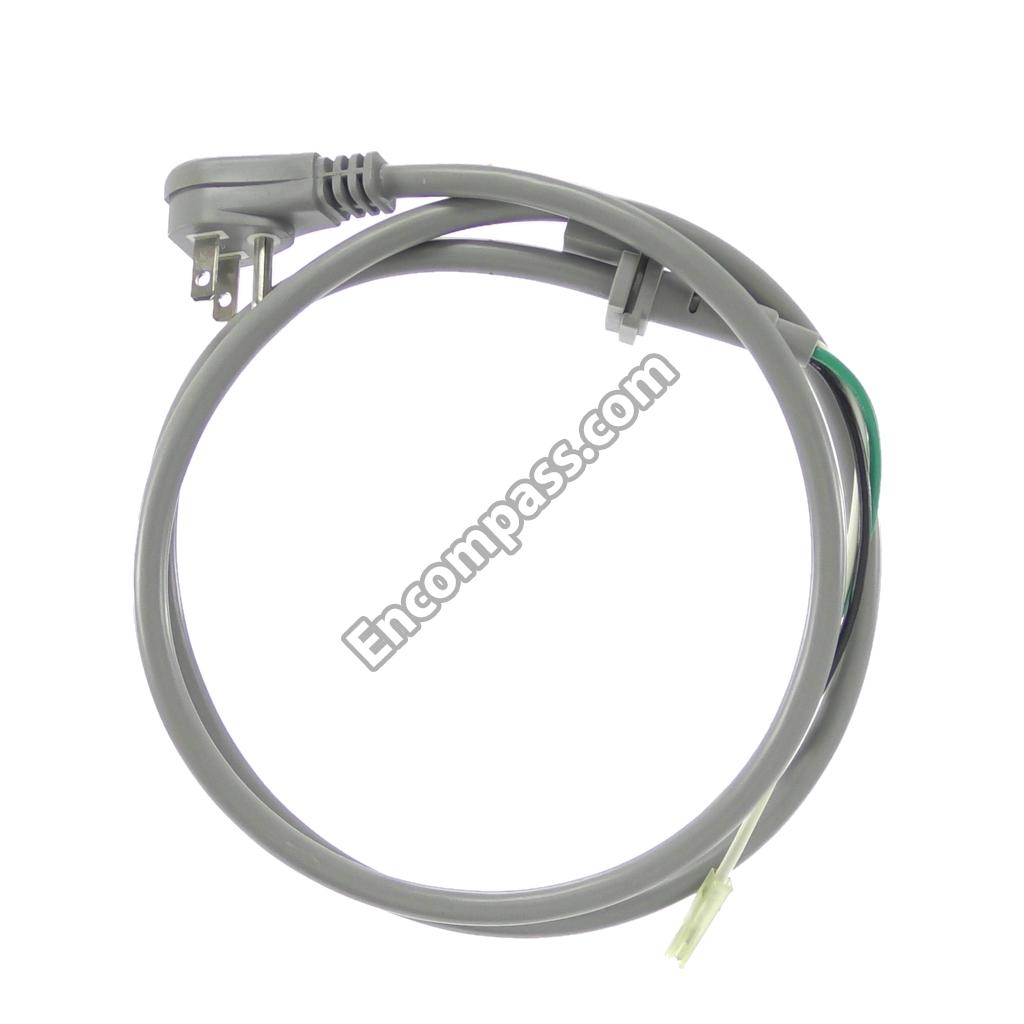

WB18X10388 WB18X10388 POWER CORD ASSEMBLY
WB38X10005 WB38X10005 RANGE BLOWER FAN
WB02X10718 WB02X10718 RANGE CHOKE CAP
WB02X10723 WB02X10723 RANGE HEATER CENTER BRACKET
WB02X10722 WB02X10722 RANGE HEATER LEFT BRACKET
WB02X10724 WB02X10724 RANGE HEATER LOWER BRACKET
WB02X10542 WB02X10542 RANGE MOTOR BRACKET
WB1X1518 WB1X1518 RING SHAFT
WB02X10728 WB02X10728 SCREW
WB02X10726 WB02X10726 SCREW
WB01X10121 WB01X10121 SCREW
WB1X1511 WB1X1511 SCREW
WB1X1514 WB1X1514 SCREW
WB1X1515 WB1X1515 SCREW
WB02X10745 WB02X10745 SCREW - BINDING HEAD
WB01X1504 WB01X1504 SCREW - HEATER SHEATH
WB02X10729 WB02X10729 SCREW -PCB
WB01X1509 WB01X1509 SCREW -SWITCH MICRO
WB1X1509 WB1X1509 SCREW PAN HD
WB01X1515 WB01X1515 SCREW TAPPING
WB01X1514 WB01X1514 SCREW TAPPING
WB1X1504 WB1X1504 SCREW TRUSS
WB02X10727 WB02X10727 SCREW.
WB24X10044 WB24X10044 SENSOR ASSEMBLY
WB48X10073 WB48X10073 SHELF
WB27X25300 WB27X25300 SMART BOARD
WB01X1518 WB01X1518 SPACER
WB09X10015 WB09X10015 SPRING
WB24X25397 WB24X25397 SWITCH MICRO
WB24X10047 WB24X10047 SWITCH MICRO
WB01X1511 WB01X1511 TAP HEAD SCREW
WB01X23440 WB01X23440 TAPPING SCREW - TRUSS HEAD
WB18X10126 WB18X10126 THERMISTOR
WB27X10957 WB27X10957 TRANSFORMER HV
WB02X10719 WB02X10719 TURN TABLE
WB06X10564 WB06X10564 TURN TABLE SHAFT
WB01X1522 WB01X1522 WASHER COMMON
WB1X1521 WB1X1521 WASHER PLAIN
WB1X1522 WB1X1522 WASHER SPLK
WB01X1521 WB01X1521 WASHER- PLAIN
WB06X10254 WB06X10254 WAVE GUIDE
