Manufacturer
GE
Model Number
PFCF1NFXAWW
Description

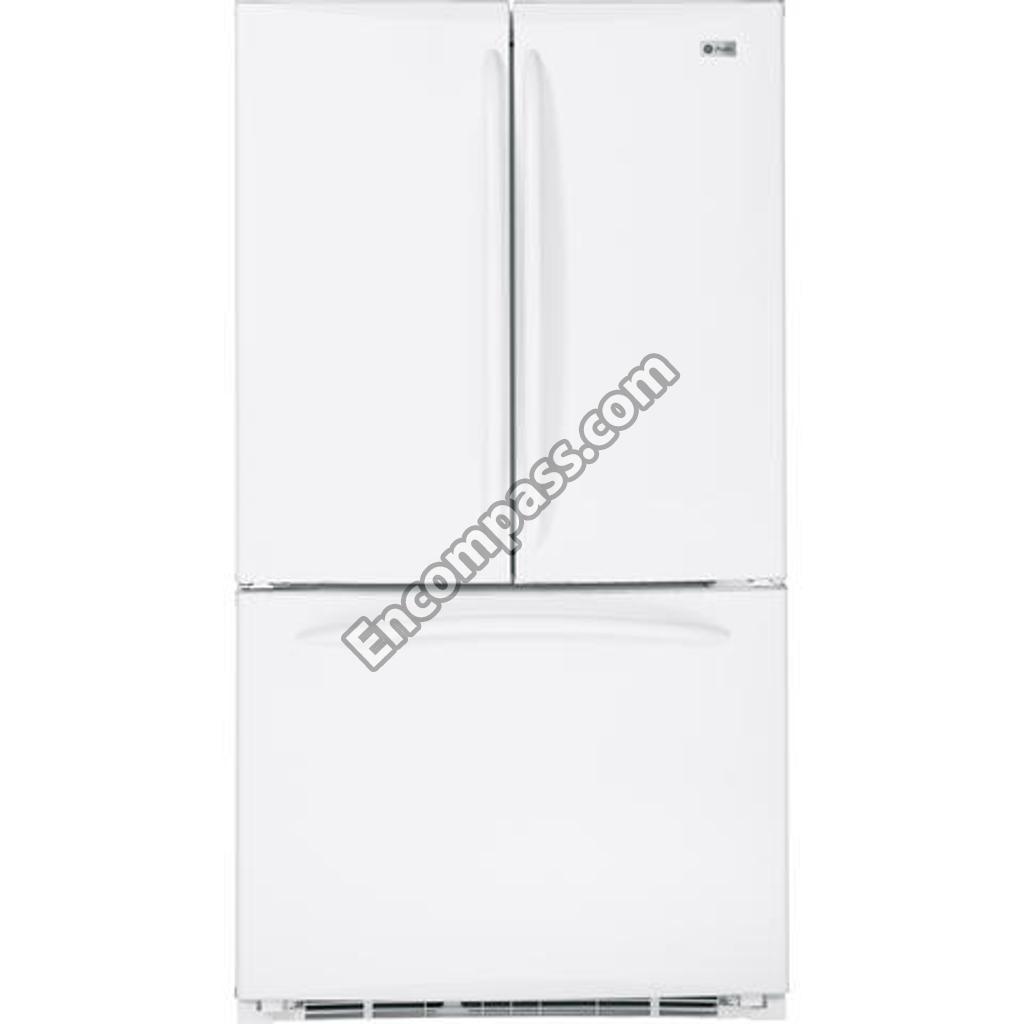

Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
40A15 2 PACK CLEAR BULBS |
|
|
ACCESS COVER |
|
|
AIR TOWER ASM |
|
|
ANTI TIP BASE BRACKET |
|
|
ARTICULATION MULLION ASSEMBLY |
|
|
BAFFLE COND AIR |
|
|
BAR REINFORCEMENT |
|
|
BASKET HOLDER |
|
|
BASKET HOLDER LH |
|
|
BASKET LOWER FZ |
|
|
BASKET MIDDLE FZ |
|
|
BASKET UPPER FZ |
|
|
BEAM SUPPORT |
|
|
BEVERAGE RACK |
|
|
BLADE CONF FAN ASSEMBLY |
|
|
BLADE EVAP FAN ASM |
|
|
BOARD ASM TEMP CONTROL |
|
|
BOARD ASSEMBLY MAIN CONTROL |
|
|
BRACKET COND FAN (MTG) |
|
|
BRACKET COND FAN (REAR) |
|
|
BRACKET CONDENSER BAR |
|
|
BRACKET EVAP FAN FRT |
|
|
BRACKET EVAP FAN REAR |
|
|
BRACKET LEG ASM |
|
|
BUCKET ICE |
|
|
BUMPER |
|
|
BUMPER FRENCH DOOR |
|
|
BUMPER FRENCH DOOR |
|
|
CAM CLOSURE FZ LH |
|
|
CAM CLOSURE FZ LH |
|
|
CAM CLOSURE FZ RH |
|
|
CAM CLOSURE FZ RH |
|
|
CAM FF CLOSURE LH |
|
|
CAM FF CLOSURE LH |
|
|
CAM FF CLOSURE RH |
|
|
CAM FF CLOSURE RH |
|
|
CAP CORNER OC BLACK |
|
|
CAP CORNER OC WHITE |
|
|
CAP DUST |
|
|
CAP FILTER BYPASS |
|
|
CENTER HINGE ASM ADJ LH |
|
|
CENTER HINGE ASM ADJ LH |
|
|
CENTER HINGE ASM RH |
|
|
CENTER HINGE ASM RH |
|
|
CLAMP CABLE |
|
|
CLIP COMPRESSOR MOUNT |
|
|
CLIP DRAIN TUBE |
|
|
COMPARTMENT DAIRY |
|
|
COND ASSEMBLY FORMED |
|
|
CONDENSER FAN SHROUD |
|
|
CONNECTOR DOOR |
|
|
CONNECTOR DOOR |
|
|
CONTROL CUSTOMER ASM |
|
|
CORD POWER ASM |
|
|
COVER AIR TOWER FF |
|
|
COVER BOTTOM VEG PAN |
|
|
COVER BUCKET ICE |
|
|
COVER EVAP |
|
|
COVER EVAP FAN |
|
|
COVER FILTER LOWER ASM |
|
|
COVER FILTER UP |
|
|
COVER FLIP LID ASSEMBLY |
|
|
COVER HINGE |
|
|
COVER HINGE |
|
|
COVER HINGE TOP LH |
|
|
COVER HINGE TOP LH |
|
|
COVER HINGE TOP RH |
|
|
COVER HINGE TOP RH |
|
|
COVER TOP |
|
|
COVER TOP STRIKER |
|
|
COVER TOP VEG PAN |
|
|
COVER WATER LINE |
|
|
CUP FILL IM |
|
|
DAMPER MEAT PAN |
|
|
DAMPER VP |
|
|
DAMPER VP |
|
|
DIVIDER GUIDE RAIL RH |
|
|
DIVIDER PAN |
|
|
DOOR DAIRY CLEAR |
|
|
DOOR FOAM ASM FR BW LH |
|
|
DOOR FOAM ASM FR BW LH |
|
|
DOOR FOAM ASM FR BW RH |
|
|
DOOR FOAM ASM FR BW RH |
|
|
DOOR FOAM ASM FZ BOWED |
|
|
DOOR FOAM ASM FZ BOWED |
|
|
EPS AIR TOWER BACK |
|
|
EPS AIR TOWER FF |
|
|
EPS VENT DUCT VERTICAL |
|
|
FASTENER HANDLE SS |
|
|
FASTENER HANDLE SS |
|
|
FILTER AND TUBE ASM |
|
|
FOAM PAD COVER EVAP |
|
|
FOAM PAD COVER EVAP |
|
|
FOAM STRIP SE ADH |
|
|
FOAM STRIP SE ADH |
|
|
FOAM STRIP SE ADH |
|
|
FOAM STRIP SE ADH |
|
|
FOAMPAD COVER LOWER EVAP |
|
|
FRAME PAN MEAT |
|
|
FZ LIGHT SHIELD |
|
|
GASKET |
|
|
GASKET FF INLET |
|
|
GASKET FRAME MEAT SIDE |
|
|
GASKET FRAME MEAT SIDE |
|
|
GASKET FRENCH WITH FLAP |
|
|
GASKET FRENCH WITH FLAP. |
|
|
GASKET FZ LIGHT |
|
|
GASKET INLET MEAT PAN |
|
|
GASKET PAN CVR FRONT |
|
|
GASKET PAN VEG FRAME |
|
|
GASKET PAN VEG FRAME |
|
|
GASKET TOWER FF |
|
|
GASKET TOWER FF |
|
|
GLIDE LH |
|
|
GRILLE BASE COVER |
|
|
GRILLE BASE COVER |
|
|
GRILLE SENSOR |
|
|
GROMMET |
|
|
GROMMET |
|
|
GROMMET EVAP FAN |
|
|
GROMMET EVAP FAN |
|
|
GROMMET WATER FILL |
|
|
HANDLE BASKET FZ |
|
|
HANDLE BASKET FZ |
|
|
HANDLE FF ASM |
|
|
HANDLE FF ASM |
|
|
HANDLE FZ ASM |
|
|
HANDLE PAN VEG LH GREY |
|
|
HARNESS FZ LT |
|
|
HARNESS GROUND |
|
|
HEATER DEF ASM |
|
|
HEATER FILL TUBE ASM |
|
|
HINGE CLOSURE |
|
|
HINGE CLOSURE ASM |
|
|
HINGE CLOSURE ASM |
|
|
HINGE CLOSURE ASM |
|
|
HOLDER FOAM PAD |
|
|
HOUSING HUMIDITY SENSOR |
|
|
ICEMAKER ASM |
|
|
ICEMAKER ASM |
|
|
ICEMAKER ASM |
|
|
INSULATION COVER EVAP |
|
|
INVERTER ASSEMBLY COMP MOUNT |
|
|
KIT ANTI TIP ASM |
|
|
LAMP |
|
|
LENS NAME PLATE |
|
|
LEVER ARM FZ CLOSURE ASM |
|
|
LEVER ARM FZ CLOSURE ASM |
|
|
LEVER ARM FZ CLOSURE ASM |
|
|
LEVER ARM FZ CLOSURE ASM |
|
|
LEVER LOCK HANDLE |
|
|
LINKAGE BAR MEAT PAN 21 |
|
|
LOW SIDE ASM |
|
|
MAIN BOARD ENCLOSURE ASM |
|
|
METAL SLIDE ASM |
|
|
METAL SLIDE ASM |
|
|
MOBILITY ASSEMBLY BACK-BIS |
|
|
MOBILITY FRONT ASM |
|
|
MODULE SHELF FF ASSEMBLY |
|
|
MODULE SHELF FF FIXED |
|
|
MOTOR EVAP DC |
|
|
NUT 8-32 |
|
|
P/S DRYER KIT R134A |
|
|
P/S DRYER KIT R134A |
|
|
PAN MEAT |
|
|
PAN VEG FRONT LH |
|
|
PAN VEG FRONT RH |
|
|
PAN VEG REAR LH |
|
|
PAN VEG REAR RH |
|
|
PIN HINGE ADJ BM |
|
|
PLATE GROUNDING |
|
|
PM GUIDE OWNERS |
|
|
PM MINI MANUAL WIRING |
|
|
RAIL HOLDER LH |
|
|
RAIL HOLDER RH |
|
|
REFLECTOR FF |
|
|
REFLECTOR LAMP FZ |
|
|
REFRIGERATOR CLIP |
|
|
REFRIGERATOR CONDENSER |
|
|
REFRIGERATOR CONDENSER CLIP |
|
|
REFRIGERATOR CONDENSER FAN MOTOR |
|
|
REFRIGERATOR LIGHT SWITCH |
|
|
REFRIGERATOR TEMPERATURE SENSOR |
|
|
REFRIGERATOR VCC3 COMPRESSOR KIT |
|
|
RING COMPRESSION |
|
|
SCR 1/4-10 PL HXW 3/4 S |
|
|
SCR 1/4-20 GX RT 3/4 S |
|
|
SCR 10-16 |
|
|
SCR 10-32 |
|
|
SCR 10-32 B IHXW 1/2 |
|
|
SCR 12-24 TT HX 7/8 S |
|
|
SCR 12-24 TT HXT20 .90 S |
|
|
SCR 12-24 TT HXT20 .90 S |
|
|
SCR 8-10 PL PNP 1/2 S |
|
|
SCR 8-18 AB HXW 1/2 S |
|
|
SCR 8-18 AB HXW 5/4 S |
|
|
SCR 8-18 AB IHW |
|
|
SCR 8-18 AB IHXW 9/16 S |
|
|
SCR 8-18 AB PHR 1/2 S |
|
|
SCR 8-18 AB PNT20 7/16 S |
|
|
SCR 8-32 AB IHWS 3/8 S |
|
|
SCR 8-32 T HXW 3/8 S |
|
|
SCR 8-32 T HXW 3/8 S |
|
|
SCR-8-18-AB-UFL |
|
|
SCREW |
|
|
SCREW 10-32 TT HXW 5/16 S |
|
|
SCREW 8-18 AB IHW 5/8 S |
|
|
SCREW 8-32 X 3/8 SPH |
|
|
SCREW HINGE COVER |
|
|
SCREW LEVELING |
|
|
SCREW MOBILITY |
|
|
SCREW MOBILITY. |
|
|
SCREW-PKG 12 |
|
|
SENSOR HUMIDITY |
|
|
SENSOR HUMIDITY ASM |
|
|
SEPARATOR AIR HISIDE |
|
|
SHELF ASM SLIDEOUT |
|
|
SHELF ASM TUCKAWAY |
|
|
SHELF CANT GLASS |
|
|
SHELF CHILLER 21 |
|
|
SHIELD LIGHT FF |
|
|
SHUNT SENSOR |
|
|
SLIDE & BRACKET ASM |
|
|
SLIDE & BRACKET ASM |
|
|
SLIDE ASM |
|
|
SLIDE ASM |
|
|
SLIDE ASM LH |
|
|
SLIDE ASM RH |
|
|
SLIDE CONTROL MEAT PAN |
|
|
SLIDE CONTROL VP LH |
|
|
SLIDE CONTROL VP RH |
|
|
SLIDE LINER |
|
|
SLIDE PAN ASM |
|
|
SLIDE PAN ASM |
|
|
SNUGGER MODULE |
|
|
SOCKET & TERMINAL ASM |
|
|
SOCKET AND TERM |
|
|
SPACER |
|
|
SPRING CLOSU |
|
|
SPRING CLOSURE |
|
|
STAND OFF |
|
|
STOP DOOR BM |
|
|
STOP DOOR BM |
|
|
STRIKER TOP MULLION |
|
|
STUD MTGCOMP |
|
|
SUPPORT CONDENSER |
|
|
SUPPORT CONDENSER |
|
|
SUPPORT SHELF |
|
|
SUPPORT VEGETABLE PAN ASSEMBLY |
|
|
SWITCH LIGHT FZ |
|
|
THERMOSTAT DEF |
|
|
THIMBLE DOOR FF |
|
|
THIMBLE DOOR FF |
|
|
TRACK CENTER FF |
|
|
TRACK SIDE FF |
|
|
TRIM BOTTOM PAN MEAT |
|
|
TUBE DRAIN |
|
|
TUBE DRAIN TROUGH |
|
|
TUBE IM FILL |
|
|
VALVE AND TUBE ASSEMBLY |
|
|
VENT DUCT VERTICAL |
|
|
WATER FILTER |
|
|
WATER FILTER SLIM LINE. |
|
|
WIRE TIE |
|
|
WR1X1749 |
