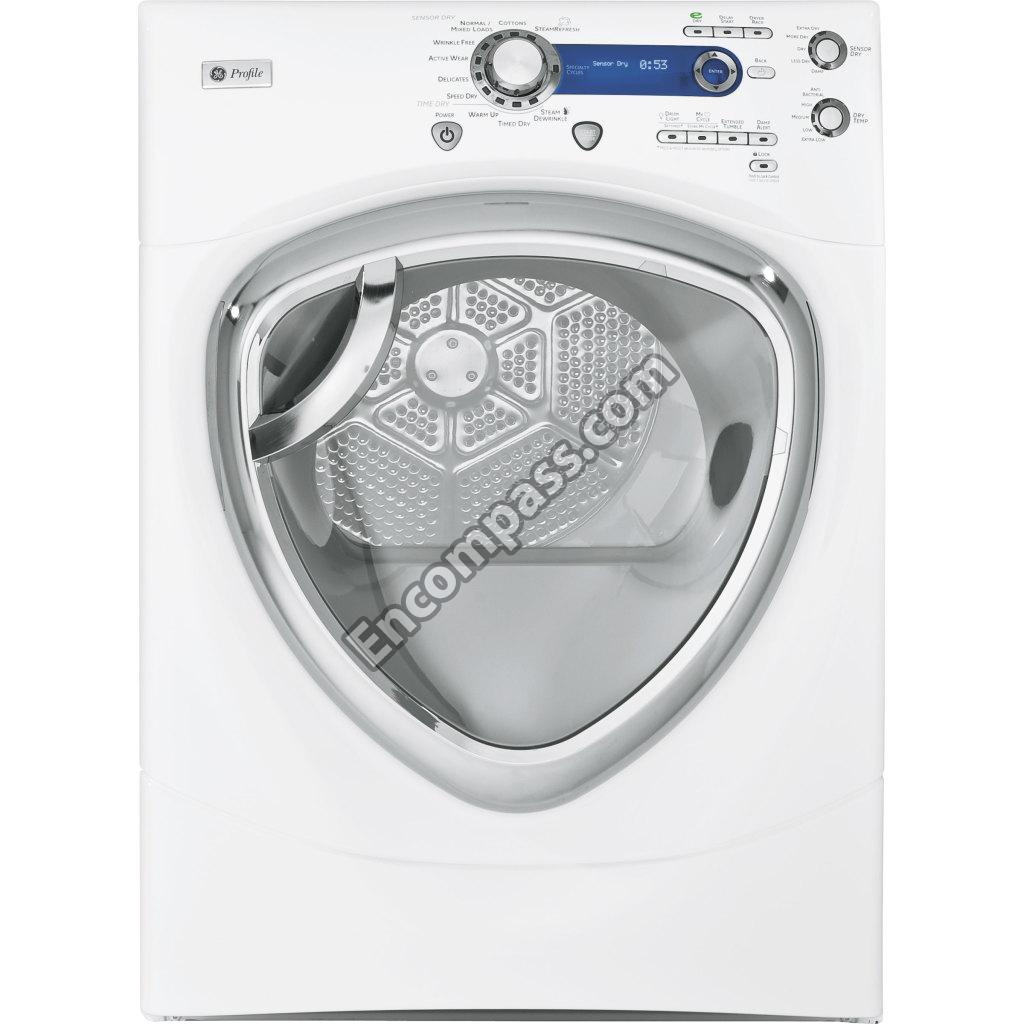

Model Image
Manufacturer

GE

Model Number

PFDS450EL2WW

Description

Washer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE1M733 WE1M733 ARM AND PIN LEFT ASSEMBLY
WE1M734 WE1M734 ARM AND PIN RIGHT ASSEMBLY
WE1M727 WE1M727 BADGE - GE PROFILE
WE14M130 WE14M130 BAFFLE AND SCREEN ASSEMBLY
WE14M128 WE14M128 BAFFLE DRUM
WE1M300 WE1M300 BEARING RETAINER
WE03X37320 WE03X37320 BEARING SLIDE
WE03X33648 WE03X33648 BELT DRIVE
WE14M125 WE14M125 BLOWER HOUSING
WE17M45 WE17M45 BLOWER MOTOR (W/CONTROL)
WE16M15 WE16M15 BLOWER WHEEL
WE4M419 WE4M419 BOARD DISPLAY VFD
WE1M468 WE1M468 BRACKET LVL SCREW REAR
WE1M952 WE1M952 BUTTON CLUSTER
WE1M971 WE1M971 BUTTON CLUSTER
WE5M51 WE5M51 CABLE COMUNICATE WSH-DRY
WE1M824 WE1M824 CHANNEL FOAM
WE4M517 WE4M517 CHASSIS BOARD ASSEMBLY
WE20M380 WE20M380 CHASSIS BOTTOM
WE1M983 WE1M983 CLAMP
WE1M984 WE1M984 CLAMP
WE01X20560 WE01X20560 CONNECTOR SERVICE
WE20M372 WE20M372 COVER TOP - WHITE
WE1M821 WE1M821 DAMPENING B AND - DRUM
WE1M817 WE1M817 DAMPENING PLATE TOP PNL
WE11X29438 WE11X29438 DIFFUSER
WE10M137 WE10M137 DOOR ASSEMBLY
WE1M957 WE1M957 DOOR CAP
WE1M960 WE1M960 DOOR CAP
WE09X22578 WE09X22578 DOOR GASKET W/ EXTN LIP
WE1M755 WE1M755 DOOR GUIDE
WE1M955 WE1M955 DOOR HANDLE COVER
WE1M751 WE1M751 DOOR HINGE ASSEMBLY
WE1M752 WE1M752 DOOR OUTER WINDOW
WE21M25 WE21M25 DRUM ASSEMBLY SS 7.5 IN
WE03X37319 WE03X37319 DRYER BEARING SLIDE
WE1M1011 WE1M1011 DRYER DOOR LATCH
WE2M213 WE2M213 DRYER DOOR NUT GUIDE STRIP
WE4M415 WE4M415 DRYER DOOR SWITCH
WE1M462 WE1M462 DRYER DRUM SLEEVE
WE1M1015 WE1M1015 DRYER GROUND STRAP
WE1M528 WE1M528 DRYER LEVELING LEG - REAR BRACKET
WE1M864 WE1M864 DRYER MAIN POWER BOARD MOUNTING BRACKET
WE1X921 WE1X921 DRYER MOTOR STRAP
WE20M381 WE20M381 DRYER REAR PANEL - 7.5 CF
WE1M575 WE1M575 DRYER SENSOR ROD
WE4M137 WE4M137 DRYER THERMOSTAT
WE4M503 WE4M503 DRYER WATER VALVE
WE1M933 WE1M933 DRYER WATER VALVE SHIELD
WE1M943 WE1M943 ELBOW AND NOZZLE ASSEMBLY
WE14X21035 WE14X21035 EXHAUST DUCT
WE9M31 WE9M31 FELT CLEANING
WE04X24814 WE04X24814 FELT TRAP DUCT
WE18X25098 WE18X25098 FILTER AND MESH ASSEMBLY
WE1M737 WE1M737 FM GASKET AIR DUCT LONG
WE1M738 WE1M738 FM GSKT TRP DUCT CVR-TOP
WE1M739 WE1M739 FOAM BLOCK SPACER
WE1M823 WE1M823 FOAM BLOWER MOTOR
WE1M728 WE1M728 FRNT OPENING PLUG WH
WE1M816 WE1M816 FRONT INSULATION
WE20M368 WE20M368 FRONT PANEL - WHITE
WE1M724 WE1M724 FRONT SHIELD
WE09X20569 WE09X20569 GASKET
WE1M956 WE1M956 HANDLE BOTTOM
WE1M958 WE1M958 HANDLE CAP
WE14M129 WE14M129 HANG DRY BAFFLE ASSEMBLY
WD21X10105 WD21X10105 HARNESS
WE5M54 WE5M54 HARNESS SENSORS
WE11M10002 WE11M10002 HEATER HOUSING
WE1M759 WE1M759 HINGE BRACKET LEFT
WE1M760 WE1M760 HINGE BRACKET RIGHT
WE1M961 WE1M961 HINGE CAP LEFT
WE1M959 WE1M959 HINGE CAP RIGHT
WE4M425 WE4M425 IDLER MICROSWITCH
WE2M237 WE2M237 IDLER PIVOT SCREW
WE4M398 WE4M398 INLET CONTROL THERMISTOR
WE1M847 WE1M847 INLET HOSE (LONG)
WE1M848 WE1M848 INLET HOSE(SHORT) W/M AND F ENDS- 12-INCH
WE1M761 WE1M761 INNER DOOR CAP LEFT
WE1M762 WE1M762 INNER DOOR CAP RIGHT
WE1M861 WE1M861 INSULATION FRNT TOP BRNG
WE1M859 WE1M859 INSULATION PAD HINGES
WE25M70 WE25M70 KIT REVERSIBLE ASSEMBLY
WE25M71 WE25M71 KIT SERVICE NOZZLE ASSEMBLY
WE01X24495 WE01X24495 KIT SHAFT BRACKET AND NU
WE1M953 WE1M953 KNOB ASSEMBLY
WE05X20431 WE05X20431 LAMP
WE1M642 WE1M642 LEVELLING SCREW GRAY
WE11M65 WE11M65 MICA HEATER AND HOUSING AS
WE11M39 WE11M39 MICA UNIT (5400W)
031-16647 031-16647 MINI MANUAL
WE1M1099 WE1M1099 MIST HOSE
WE17X20854 WE17X20854 MOTOR AND PULLEY
WE01X0921 WE01X0921 MOTOR BRACKET
WE13M10001 WE13M10001 MOTOR PLATE
WE13M43 WE13M43 MOTOR SUPPORT
WE2M234 WE2M234 NYLON WASHER
WE1M461 WE1M461 O RING
WE1M954 WE1M954 OUTER RING
WE4M300 WE4M300 OUTLET BKUP ORG T-STAT
WE4M448 WE4M448 OUTLET CONTROL THERMISTOR
WE20M462 WE20M462 PANEL FRONT ASSEMBLY WW-STEAM
WE1M741 WE1M741 PLASTIC SCREW PLUG
49-90396 49-90396 PM USE AND CARE
WE1M572 WE1M572 PRONGUED PLUG BUTTON
WE1M780 WE1M780 PROTECTION BRACKET
WE12X83 WE12X83 PULLEY IDLER
WE03X31620 WE03X31620 PULLEY IDLER
WE4M442 WE4M442 RACK DRY INTERLOCK RELAY
WE20M476 WE20M476 REAR PLATE
WE1M970 WE1M970 RING
WE2M206 WE2M206 RUBBER GROMMET
WE1M851 WE1M851 RUBBER WASHER FOR INTAKE HOSE
WE2M246 WE2M246 SCR 3/16''-FMLE HEX LOCK
WE2M282 WE2M282 SCR 6-18 B B1Q1 3/4 S ZN
WE1M850 WE1M850 SCREEN FOR WASHER HOSE
WE2M302 WE2M302 SCREW
WD2M101 WD2M101 SCREW
WE1M280 WE1M280 SCREW
WE2M173 WE2M173 SCREW
WE2M180 WE2M180 SCREW
WE2M202 WE2M202 SCREW
WE2M223 WE2M223 SCREW
WE02X28997 WE02X28997 SCREW
WE2M236 WE2M236 SCREW
WE2M98 WE2M98 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M196 WE2M196 SCREW #8
WE1M582 WE1M582 SCREW #8 X 5/8 SS DOOR H
WE1M583 WE1M583 SCREW #8-32 X 1/2 HINGE
WE2M262 WE2M262 SCREW - HINGE BASE
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WE2M264 WE2M264 SCREW CENTER KNOB AREA
WE2M211 WE2M211 SCREW FRONT
WE1M758 WE1M758 SCREW GROMMET
WE2M200 WE2M200 SCREW GROUND
WE2M240 WE2M240 SCREW WHEEL MOUNTING
WE2M225 WE2M225 SCREW WHITE #10-16 3/4
WZ5X158D WZ5X158D SCREW-PKG 12
WE2X263D WE2X263D SCREW-PKG 12
WZ4X241D WZ4X241D SCREW-PKG 12
WE00X181L WE00X181L SHAFT
WE3M33 WE3M33 SHAFT AND BRACKET ASSEMBLY
WE1M841 WE1M841 SHIELD-DRUM MOTOR
WE20M400 WE20M400 SIDE PANEL WH
WE5M53 WE5M53 SOCKET ASSEMBLY W WIRE HARNESS
WE1M735 WE1M735 SPRING IDLER
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET EL
WE1X1192 WE1X1192 STRIKE DOOR
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE
WE1M779 WE1M779 SUPPORT CHANNEL
WE4M325 WE4M325 TERM BLK AND GRND STRAP
WE1M1102 WE1M1102 TERM. BLOCK COVER
WE4M420 WE4M420 THERMOSTAT
WE4M160 WE4M160 THERMOSTAT SAFETY LEFT
WE14M196 WE14M196 TOP BEARING ASSEMBLY W/FELTS
WE14M187 WE14M187 TRAP DUCT ASSEMBLY
WE1M740 WE1M740 TRAP DUCT COVER
WE4M427 WE4M427 TRIAC ASSEMBLY W/HEAT SINK
WE1M940 WE1M940 TUBE WATER FRONT
WH2M283 WH2M283 WASHER
WE2M185 WE2M185 WASHER - DAMPENING B AND
WE2M96 WE2M96 WE2X329
WE1M757 WE1M757 WHEEL FRONT SHIELD
WE5M52 WE5M52 WIRING HARNESS
WE25X20060 WE25X20060 Y ADAPTOR
