Manufacturer
GE
Model Number
PFQ83HSHW0WW
Description

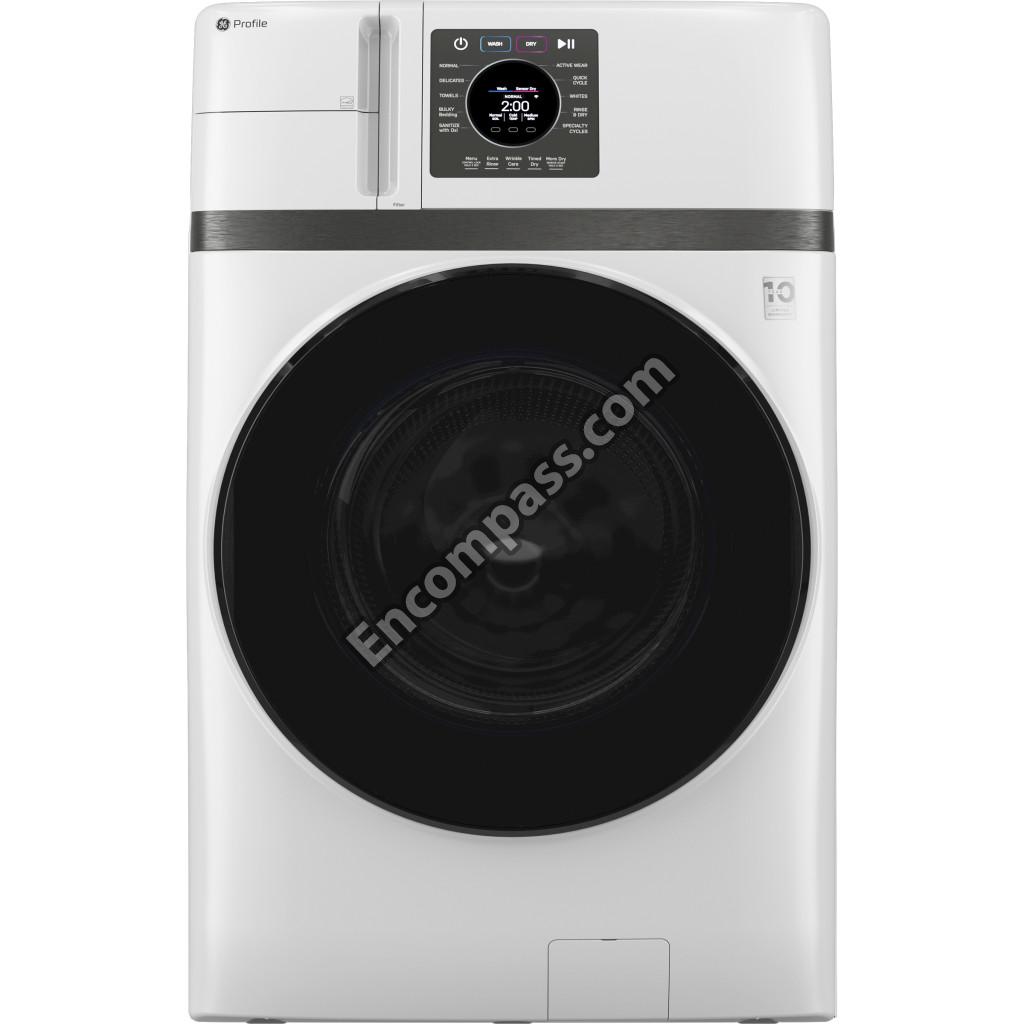

Washer/dryer Combo
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACCELEROMETER SENSOR |
|
|
ACCELEROMETER SENSOR |
|
|
AIR CHAMBER MODULE |
|
|
BAFFLE |
|
|
BASKET, BAFFLE & TRUNION ASSEMBLY |
|
|
BLOWER FAN |
|
|
BLOWER/COMPRESSOR INVERTER BOARD |
|
|
BLOWER/COMPRESSOR INVERTER BOX |
|
|
BLOWER/COMPRESSOR INVERTER FRONT COVER |
|
|
BLOWER/COMPRESSOR INVERTER REAR COVER |
|
|
CLAMP FAN TO GASKET |
|
|
CONDENSER WATER PIPE |
|
|
CONTROL PANEL COMBO WHITE |
|
|
COUNTERWEIGHT BOLT |
|
|
COUNTERWEIGHT FLANGE NUT |
|
|
DAMPER PIN |
|
|
DAMPER PIN ACCESS COVER |
|
|
DETERGENT DRAWER HANDLE WHITE SMARTDISPE |
|
|
DETERGENT SMART DISPENSER |
|
|
DISPENSER FILL HOSE NOZZLE |
|
|
DISPENSER HOSE (DISP TO GASKET) |
|
|
DISPENSER TANK ASSEMBLY |
|
|
DOOR ASSEMBLY COMBO CORE |
|
|
DOOR DOOR LATCH HARNESS HOLDER |
|
|
DOOR LATCH COVER WHITE |
|
|
DOOR LOCK |
|
|
DOOR STRIKE |
|
|
DRAIN HOSE |
|
|
DRAIN PUMP FUNNEL |
|
|
DRAIN PUMP HOUSING |
|
|
DRAIN PUMPS & FILTER |
|
|
DRIVE BELT |
|
|
DRIVE MOTOR INVERTER BOARD |
|
|
DRIVE MOTOR INVERTER BOX |
|
|
DRIVE MOTOR INVERTER BOX COVER |
|
|
DUCT BOOT (TUB TO HP) |
|
|
DUCT BOOT CLAMP |
|
|
EMI FILTER |
|
|
EXTERNAL DRAIN HOSE GUIDE |
|
|
EXTERNAL DRAIN HOSE INTERNAL SUPPORT |
|
|
EXTERNAL DRAIN HOSE SUPPORT |
|
|
EXTERNAL DRAIN HOSE SUPPORT |
|
|
FERRITE BEAD (EMI) |
|
|
FRONT BRACKET |
|
|
FRONT DAMPER BRACKET |
|
|
FRONT PANEL COMBO WHITE |
|
|
FRONT REINFORCING PLATE |
|
|
FRONT TUB |
|
|
GLASS CLEANING HOSE LOWER |
|
|
GLASS CLEANING HOSE UPPER |
|
|
GROUND HARNESS CLAMP |
|
|
HARNESS GUIDE |
|
|
HARNESS HEAT EXCHANGE TCO NTC 1/2/3 POWE |
|
|
HARNESS SUPPORT BOTTOM |
|
|
HEAT PUMP MODULE & SUPPORT ASSEMBLY |
|
|
HEATER |
|
|
HEATER BRACKET |
|
|
HEATER SHIELD |
|
|
HP SUPPORT |
|
|
INLET TEMPERATURE (NTC5) SENSOR |
|
|
INNER GASKET CLAMP |
|
|
INTERNAL DRAIN HOSE CLAMP |
|
|
LARGE WIRE TIE |
|
|
LED LIGHT |
|
|
LEFT SPRING SHEATH |
|
|
LEVELING LEG |
|
|
LEVELING LEG WRENCH FL WASHER & COMBO |
|
|
LINT FILTER ASSEMBLY |
|
|
LINT FILTER FOAM |
|
|
LINT FILTER HANDLE COMBO WHITE |
|
|
LINT FILTER HANDLE SEAL STRIP |
|
|
LINT FILTER SCAFFOLD |
|
|
LOWER DISPENSER FASCIA WHITE |
|
|
LOWER FRONT COUNTERWEIGHT |
|
|
LOWER TRANSITION DUCT CLAMP |
|
|
MAIN CONTROL/POWER BOARD |
|
|
MAIN CONTROL/POWER BOARD BRACKET |
|
|
MAIN CONTROL/POWER BOARD FRONT COVER |
|
|
MAIN CONTROL/POWER BOARD INSULATOR |
|
|
MAIN CONTROL/POWER BOARD REAR COVER |
|
|
MAIN HARNESS COMBO 83 |
|
|
MAIN HARNESS GUIDE LOWER RIGHT |
|
|
MAIN HARNESS GUIDE RIGHT |
|
|
MAIN HARNESS GUIDE UPPER RIGHT |
|
|
MICRO SWITCH (LINT FILTER) GASKET |
|
|
MOTOR |
|
|
MOTOR SHIELD |
|
|
ONE WAY VALVE |
|
|
OUT OF BALANCE MICRO SWITCH |
|
|
OUTLET TEMP (NTC4)/HUMIDITY SENSOR |
|
|
PM MINI MANUAL AND WIRING |
|
|
PM QUICK OWNERS MANUAL |
|
|
POWER CORD |
|
|
PRESSURE HOSE |
|
|
PRESSURE HOSE CLAMP |
|
|
PULLEY |
|
|
PUMP FILTER DOOR - WHITE |
|
|
PUMP FILTER WITH SEAL |
|
|
REAR COUNTERWEIGHT |
|
|
REAR COVER |
|
|
REAR DAMPER BRACKET |
|
|
REAR TUB ASSEMBLY |
|
|
RJ45 COVER |
|
|
SCREW 15.4*16 |
|
|
SCREW 3.9*15 |
|
|
SCREW M4*10 |
|
|
SCREW M4*10 |
|
|
SCREW M4*12 |
|
|
SCREW M4*16 |
|
|
SCREW M4*20 |
|
|
SCREW M4*5 |
|
|
SCREW M5*12 |
|
|
SCREW M8*35 |
|
|
SCREW ST3.5*12 |
|
|
SCREW ST4*10-B |
|
|
SCREW ST4*12 |
|
|
SCREW ST4*12 |
|
|
SCREW ST4*16 |
|
|
SCREW ST4.2*12 |
|
|
SCREW ST4.2*12 |
|
|
SCREW ST4.2*60 |
|
|
SCREW ST6.3*25 |
|
|
SCREW ST6.3*35 |
|
|
SHIPPING BOLT HOLE COVER |
|
|
SHIPPING BOLT LONG |
|
|
SHIPPING BOLT SHORT |
|
|
SHIPPING BRACKET |
|
|
SMART DISPENSER ASSEMBLY |
|
|
SUSPENSION ROD KIT DAMPER |
|
|
SUSPENSION ROD KIT SPRING |
|
|
TEMPERATURE SENSOR GASKET |
|
|
TOP COVER REAR SUPPORT |
|
|
TOP FOAM BLOCK |
|
|
TOP PANEL COMBO WHITE |
|
|
TOP PANEL PIN |
|
|
TRANSITION DUCT (FAN TO GASKET) |
|
|
TRANSITION DUCT MOUNTING BRACKET |
|
|
TUB FILL HOSE TO TUB CLAMP |
|
|
TUB GASKET (COMBO) |
|
|
TUB GASKET CLAMP |
|
|
TUB SEAL |
|
|
TUB TO INTERNAL DRAIN HOSE CLAMP |
|
|
TUB TO PUMP HOSE |
|
|
TUB VENT HOSE CLAMP |
|
|
TUBE CLAMP |
|
|
UI ASM COMBO CORE |
|
|
UPPER BRACKET |
|
|
UPPER FRONT COUNTERWEIGHT |
|
|
USER INTERFACE HEAT SHIELD |
|
|
WATER LEVEL SENSOR |
|
|
WATER VALVE ASSEMBLY |
|
|
WIFI BOARD |
|
|
WIRE TIE CHRISTMAS TREE HEAD |
