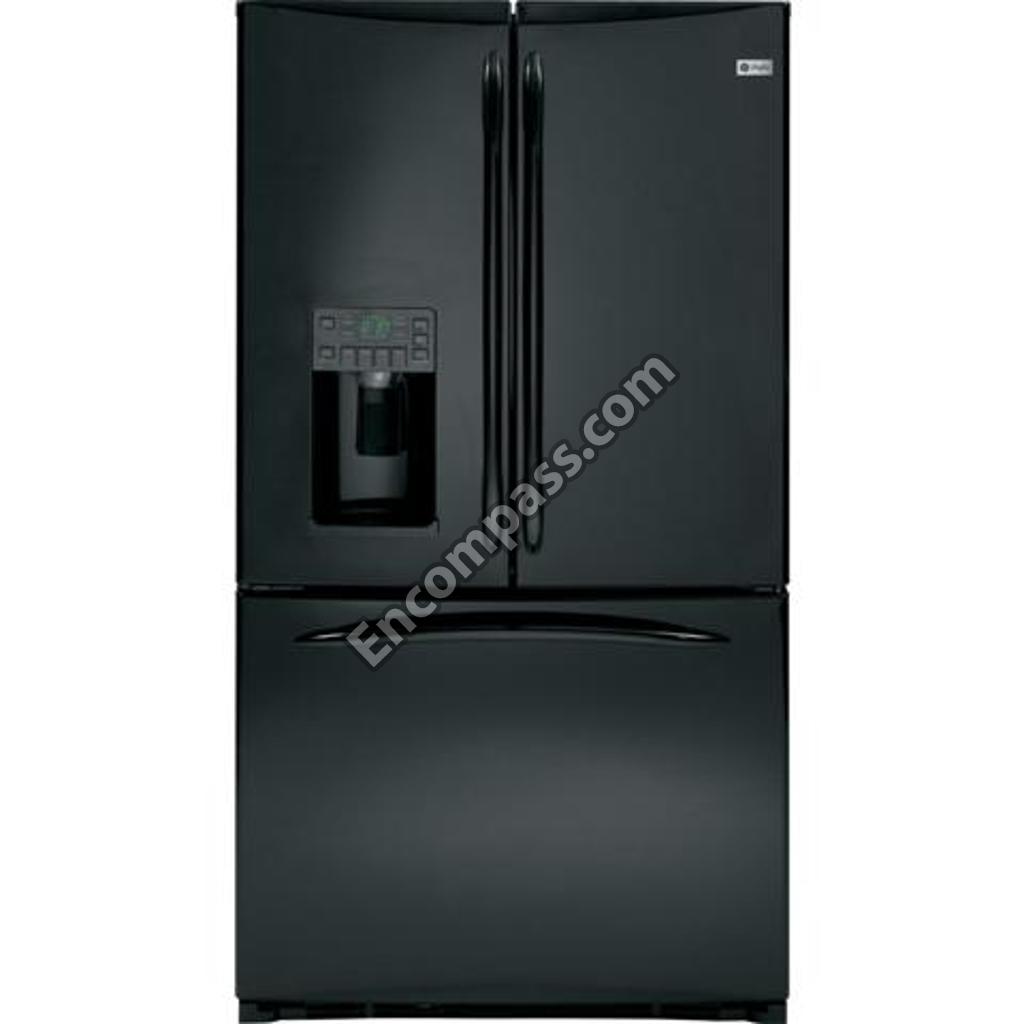

Model Image
Manufacturer

GE

Model Number

PFSF5RKZABB

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR02X13514 WR02X13514 GE 1/4 UNION CONNECTOR

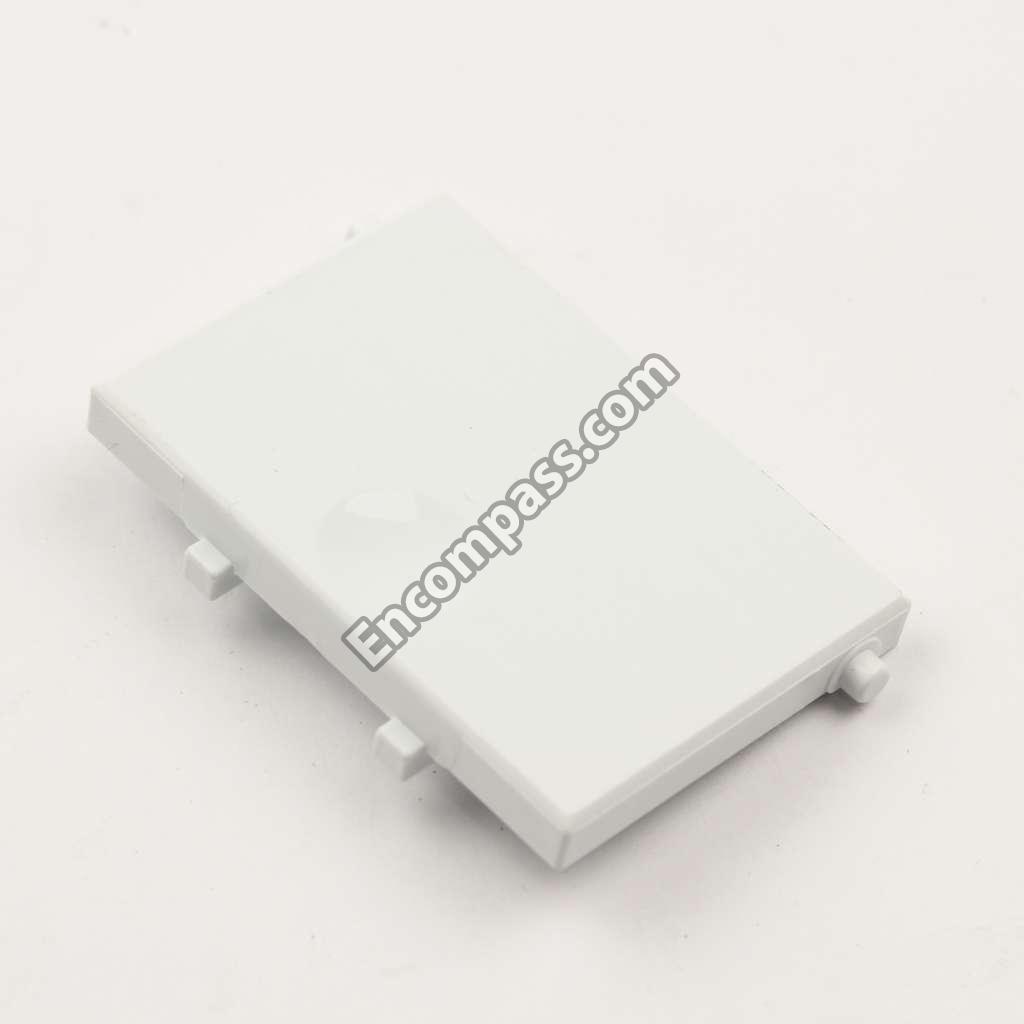

WR82X10103 WR82X10103 GE ACCESS COVER
WR17X12985 WR17X12985 GE AGITATOR ASM
WR17X12456 WR17X12456 GE AIR TOWER ASM

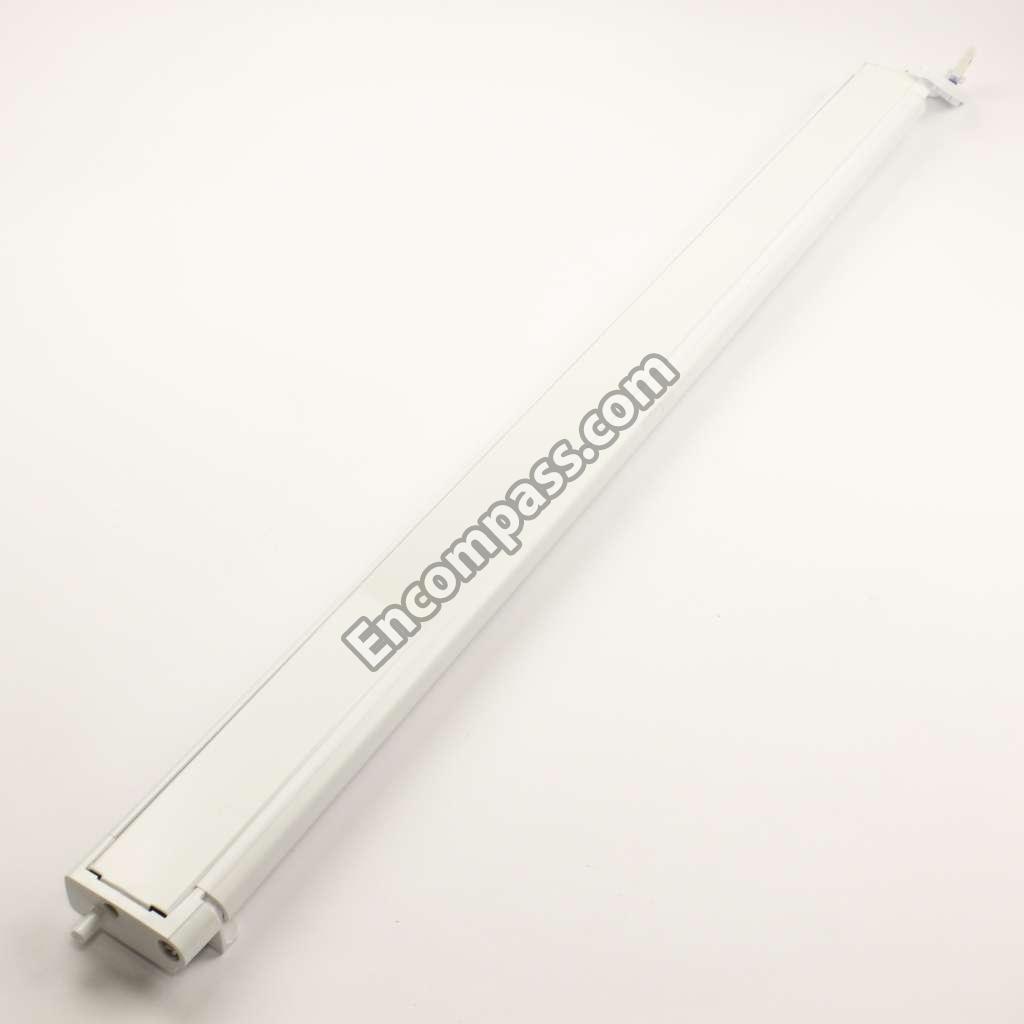

WR17X13006 WR17X13006 GE ARTICULATION MULLION ASM
WR17X12992 WR17X12992 GE AUGER MOTOR COVER
WR17X13158 WR17X13158 GE BAFFLE COND AIR
WR17X12243 WR17X12243 GE BAR REINFORCEMENT
WR21X10228 WR21X10228 GE BASKET LOWER SD
WR21X10241 WR21X10241 GE BASKET UPPER FZ 25
WR17X12271 WR17X12271 GE BEVERAGE RACK
WR60X24484 WR60X24484 GE BLADE CONF FAN ASSEMBLY
WR60X30922 WR60X30922 GE BLADE EVAP FAN ASM
WR17X12987 WR17X12987 GE BLADE STATIONARY

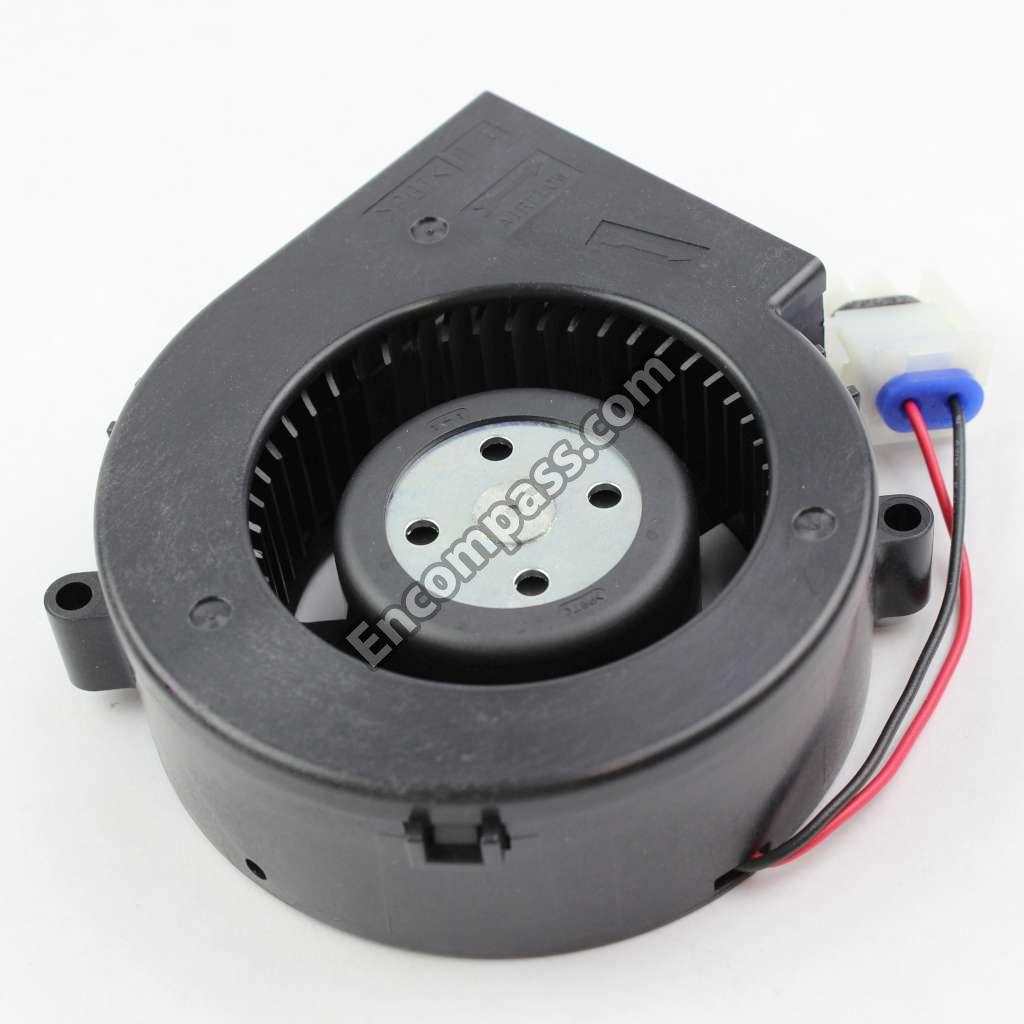

WR60X10330 WR60X10330 GE BLOWER FAN DUCT
WR55X10899 WR55X10899 GE BOARD ASM DISP LIGHTING
WR55X11098C WR55X11098C GE BOARD ASM MAIN CONTROL
WR55X11088 WR55X11088 GE BOARD LED LIGHT ASM
WR14X10358 WR14X10358 GE BOOT FZ DUCT
WR17X13001 WR17X13001 GE BRACKET BLOWER FRONT
WR17X12998 WR17X12998 GE BRACKET BLOWER REAR
WR02X11863 WR02X11863 GE BRACKET COND FAN (MTG)
WR02X10593 WR02X10593 GE BRACKET COND FAN (REAR)
WR17X10695 WR17X10695 GE BRACKET CONDENSER BAR
WR02X10764 WR02X10764 GE BRACKET EVAP FAN BTM
WR17X12507 WR17X12507 GE BRACKET FAN EVAP FRONT
WR02X10643 WR02X10643 GE BRACKET HANDLE LOCK
WR02X12378 WR02X12378 GE BRACKET LEG ASM
WR02X13401 WR02X13401 GE BRACKET SLIDE LWR LH 25
WR02X13400 WR02X13400 GE BRACKET SLIDE LWR RH 25

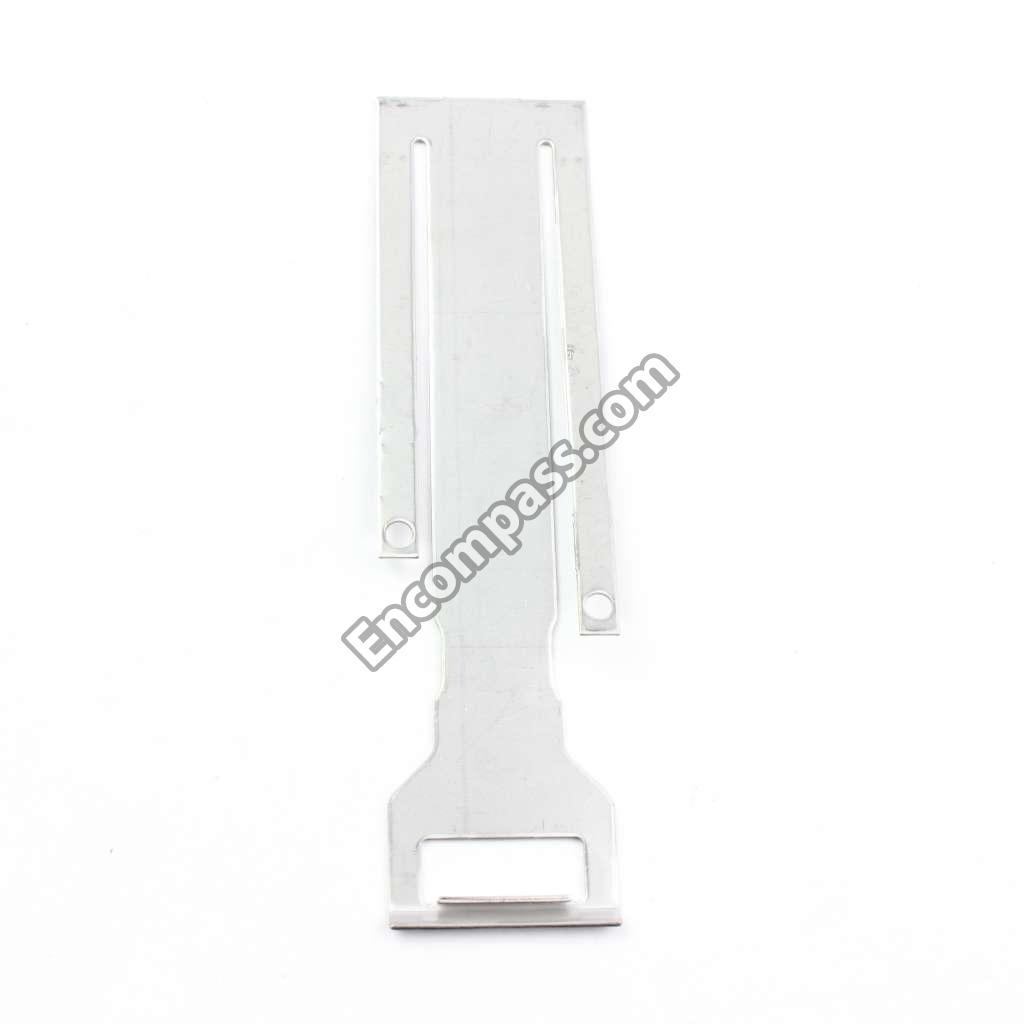

WR02X12870 WR02X12870 GE BRACKET SUPPORT
WR30X10156 WR30X10156 GE BUCKET ICE
WR30X10158 WR30X10158 GE BUCKET ICE 25
WR02X10540 WR02X10540 GE BUMPER
WR02X12469 WR02X12469 GE BUMPER FRENCH DOOR
WR02X12473 WR02X12473 GE BUMPER FRENCH DOOR
WR02X13350 WR02X13350 GE BUMPER LID
WR02X13510 WR02X13510 GE CAM FF CLOSURE LH
WR02X12359 WR02X12359 GE CAM FF CLOSURE RH
WR02X12412 WR02X12412 GE CAM FF CLOSURE RH
WR02X10781 WR02X10781 GE CAP CORNER OC BLACK
WR02X10640 WR02X10640 GE CAP CORNER OC WHITE
WR17X22070 WR17X22070 GE CAP FILTER BYPASS
WR72X10403 WR72X10403 GE CASSEROLE BRACKET
WR72X10402 WR72X10402 GE CASSEROLE BRACKET
WR71X11011 WR71X11011 GE CASSEROLE SHELF ASSEMBLY 25
WR71X11006 WR71X11006 GE CASSEROLE SHELF LOWER
WR71X11005 WR71X11005 GE CASSEROLE SHELF UPPER
WR13X10931 WR13X10931 GE CENTER HINGE ASM RH
WR13X10934 WR13X10934 GE CENTER HINGE ASM RH
WR01X10684 WR01X10684 GE CLAMP CABLE
WR02X10522 WR02X10522 GE CLAMP TUBE
WR1X5278 WR1X5278 GE CLAMP TUBE
WR02X8203 WR02X8203 GE CLIP COMPRESSOR MOUNT
WR02X12377 WR02X12377 GE CLIP DRAIN TUBE
WR02X13503 WR02X13503 GE CLIP LOCKING
WR02X13059 WR02X13059 GE CLIP LOCKING
WR02X13487 WR02X13487 GE CLIP MULLION HUNGE
WR71X10871 WR71X10871 GE COMPARTMENT DAIRY
WR84X10022 WR84X10022 GE COND ASSEMBLY FORMED
WR23X10300 WR23X10300 GE CORD POWER ASM
WR01X10981 WR01X10981 GE COUPLING BUCKET
WR17X12996 WR17X12996 GE COVER ACCESS
WR17X12260 WR17X12260 GE COVER AIR TOWER FF
WR32X10613 WR32X10613 GE COVER BOTTOM VEG PAN
WR17X12991 WR17X12991 GE COVER CRUSHER
WR17X12995 WR17X12995 GE COVER EVAP
WR17X12254 WR17X12254 GE COVER EVAP FAN
WR17X13025 WR17X13025 GE COVER FLIP LID ASSEMBLY
WR02X13511 WR02X13511 GE COVER HINGE

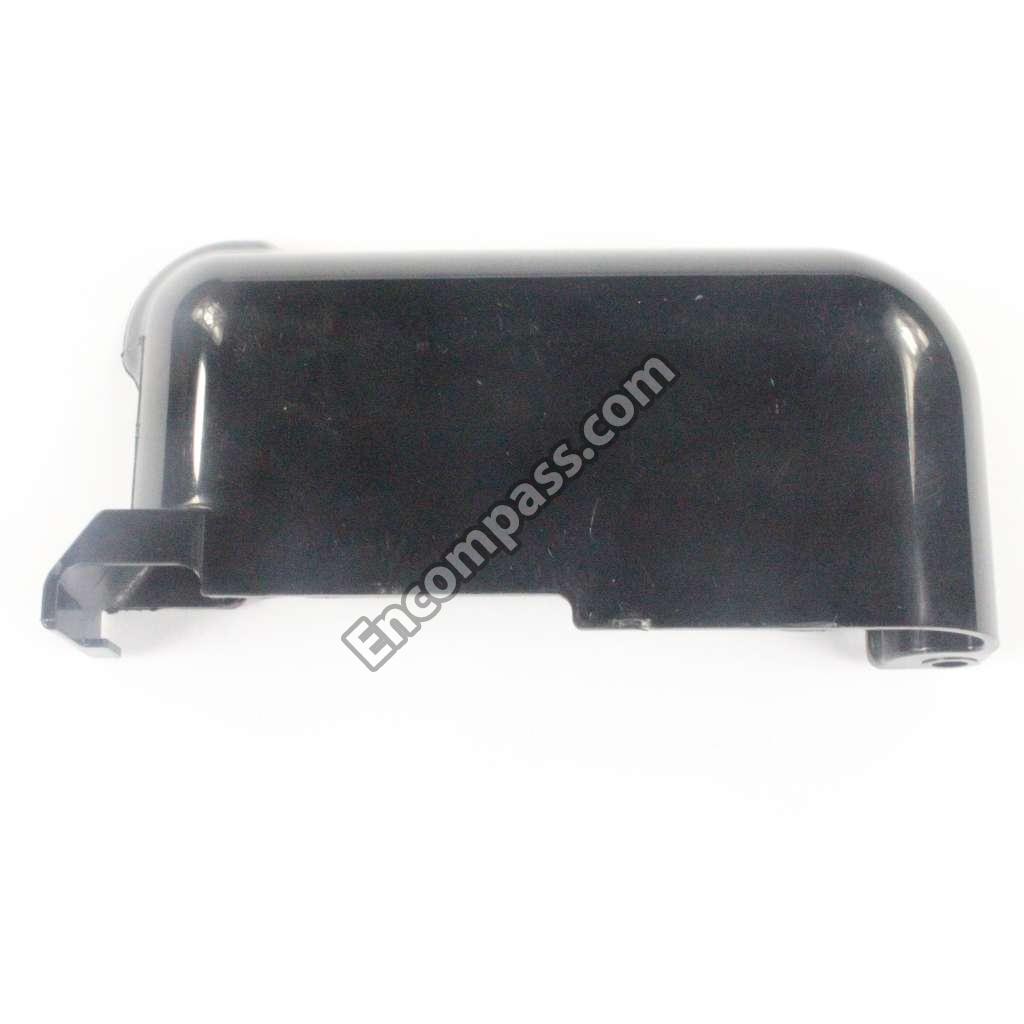

WR02X12388 WR02X12388 GE COVER HINGE TOP RH
WR02X12415 WR02X12415 GE COVER HINGE TOP RH

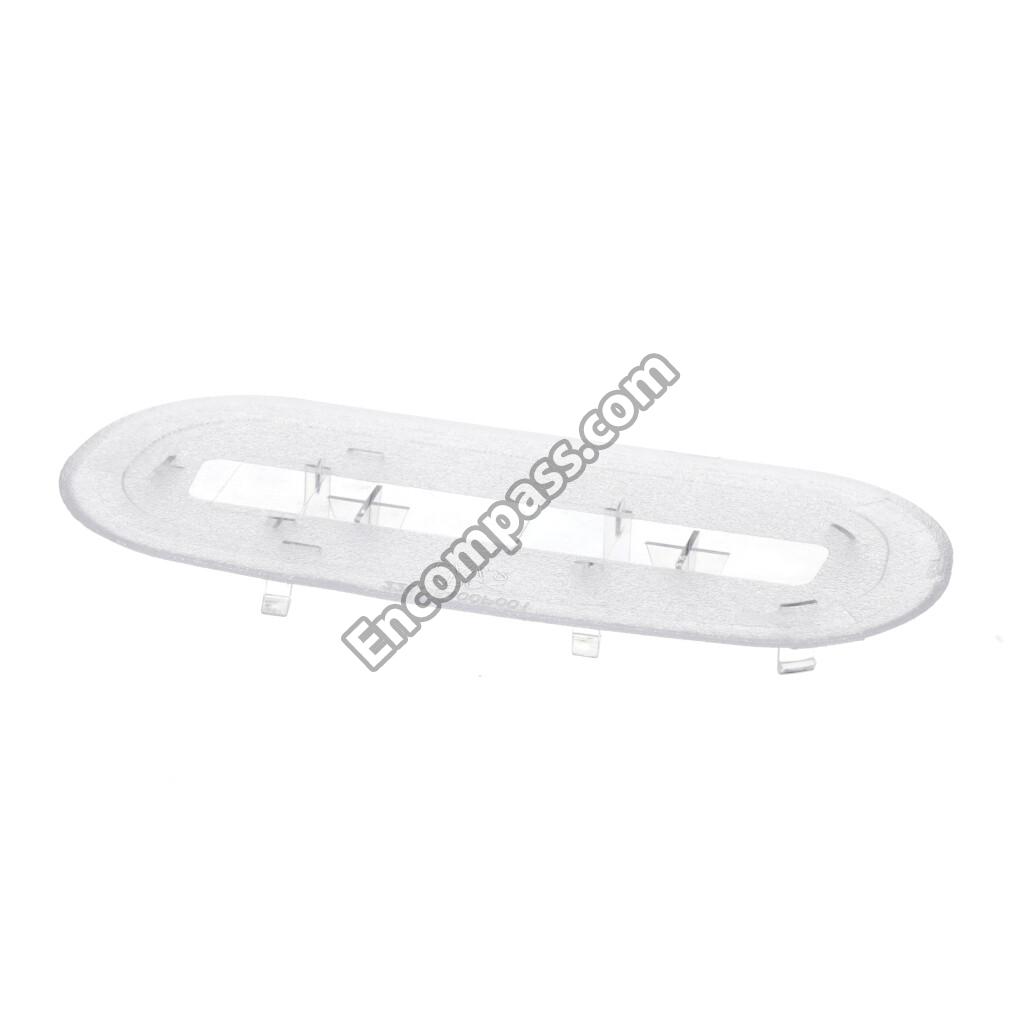

WR17X13003 WR17X13003 GE COVER LED ASSM
WR17X13002 WR17X13002 GE COVER LED MEAT PAN

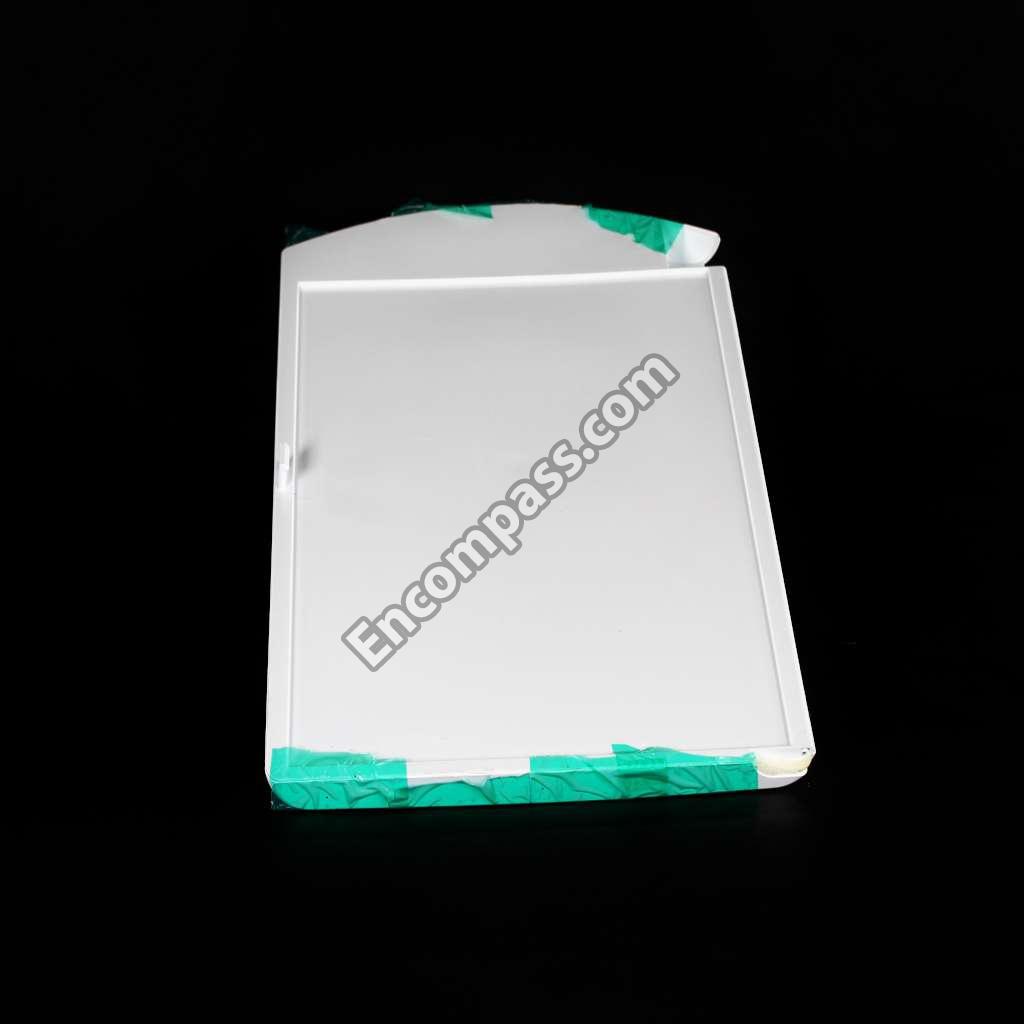

WR32X10614 WR32X10614 GE COVER TOP VEG PAN
WR17X28086 WR17X28086 GE COVER WATER FILTER
WR17X10796 WR17X10796 GE COVER WATER LINE
WR17X10706 WR17X10706 GE CRANK DOOR RECESS
WR02X13388 WR02X13388 GE CROSS BAR PINION
WR17X12999 WR17X12999 GE DAMPER BLOWER
WR17X12246 WR17X12246 GE DAMPER MEAT PAN
WR09X10156 WR09X10156 GE DAMPER VP
WR09X10157 WR09X10157 GE DAMPER VP
WR02X13402 WR02X13402 GE DIVIDER BASKET BOTTOM 25
WR02X12420 WR02X12420 GE DIVIDER PAN
WR02X12364 WR02X12364 GE DOOR DAIRY CLEAR
WR78X12739 WR78X12739 GE DOOR FOAM ASM FR BW RH
WR78X12741 WR78X12741 GE DOOR FOAM ASM FR BW RH

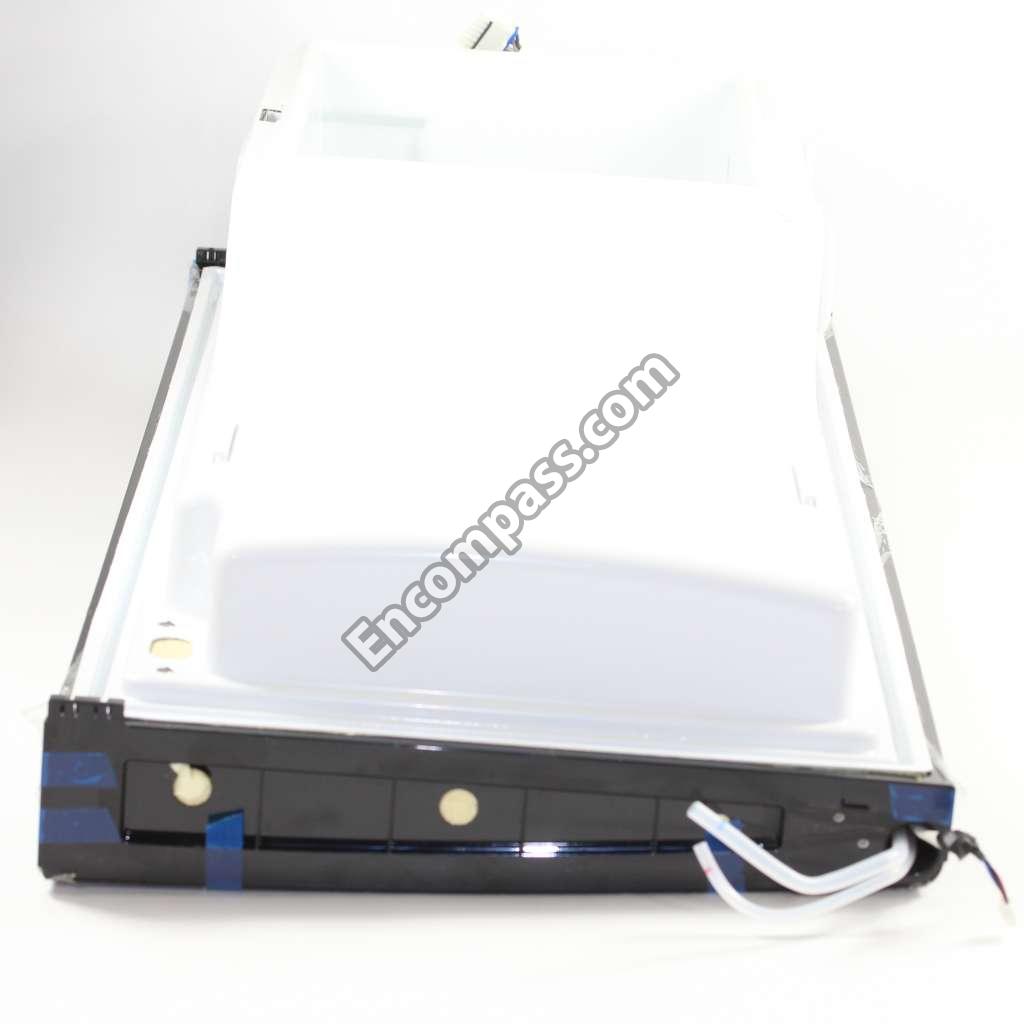

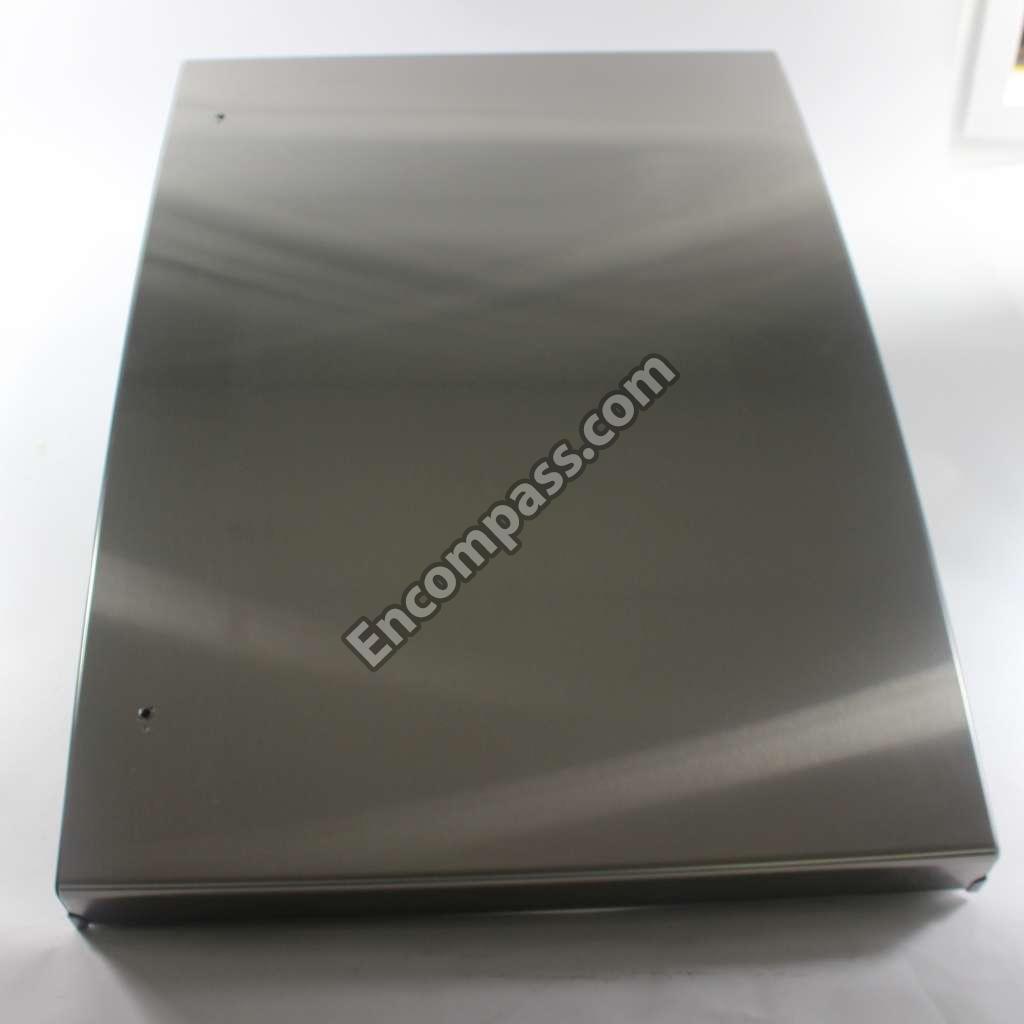

WR78X12654 WR78X12654 GE DOOR FOAM ASM FZ BOWED
WR78X12651 WR78X12651 GE DOOR FOAM ASM FZ BOWED

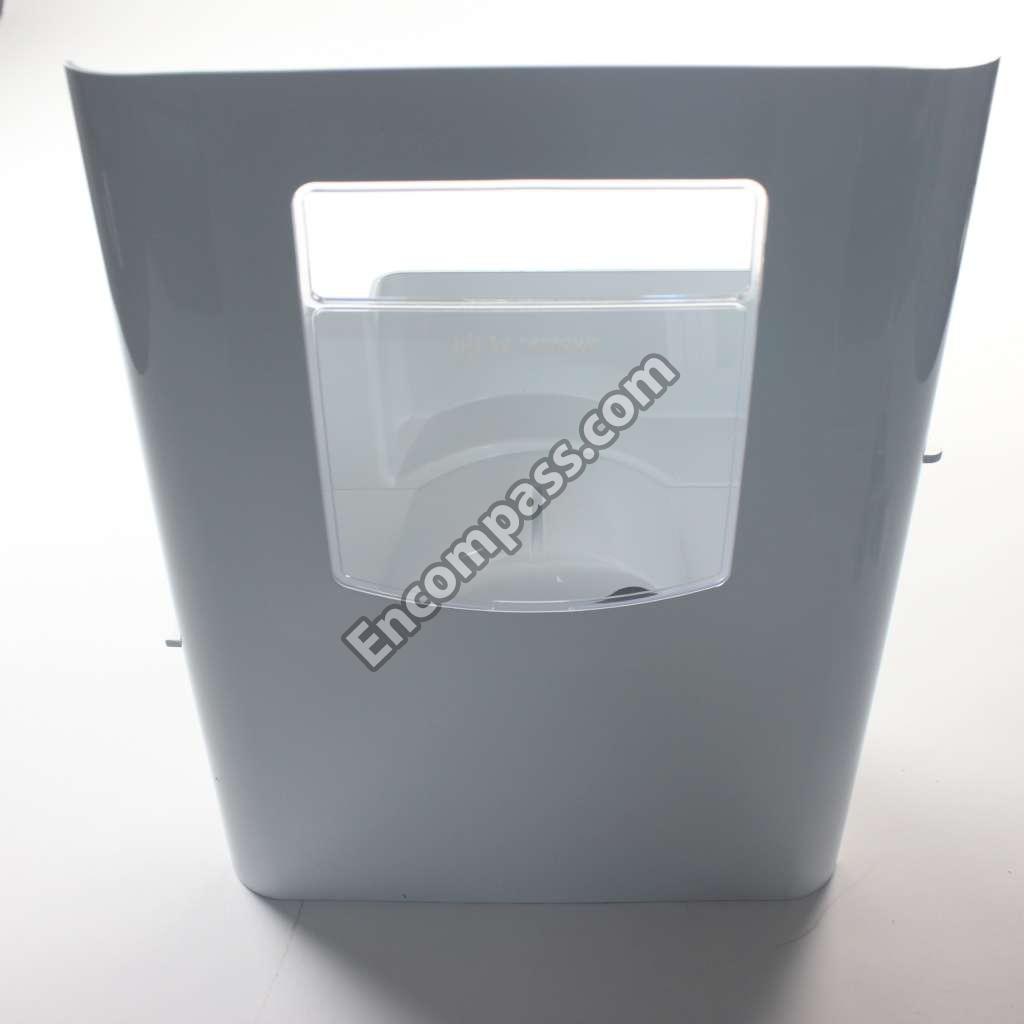

WR17X12984 WR17X12984 GE DOOR ICE BOX ASSEMBLY
WR13X10927 WR13X10927 GE DOOR ICEBOX HINGE BOTTOM
WR13X10926 WR13X10926 GE DOOR ICEBOX HINGE TOP
WR49X10261 WR49X10261 GE DOOR LATCH KIT BF IW

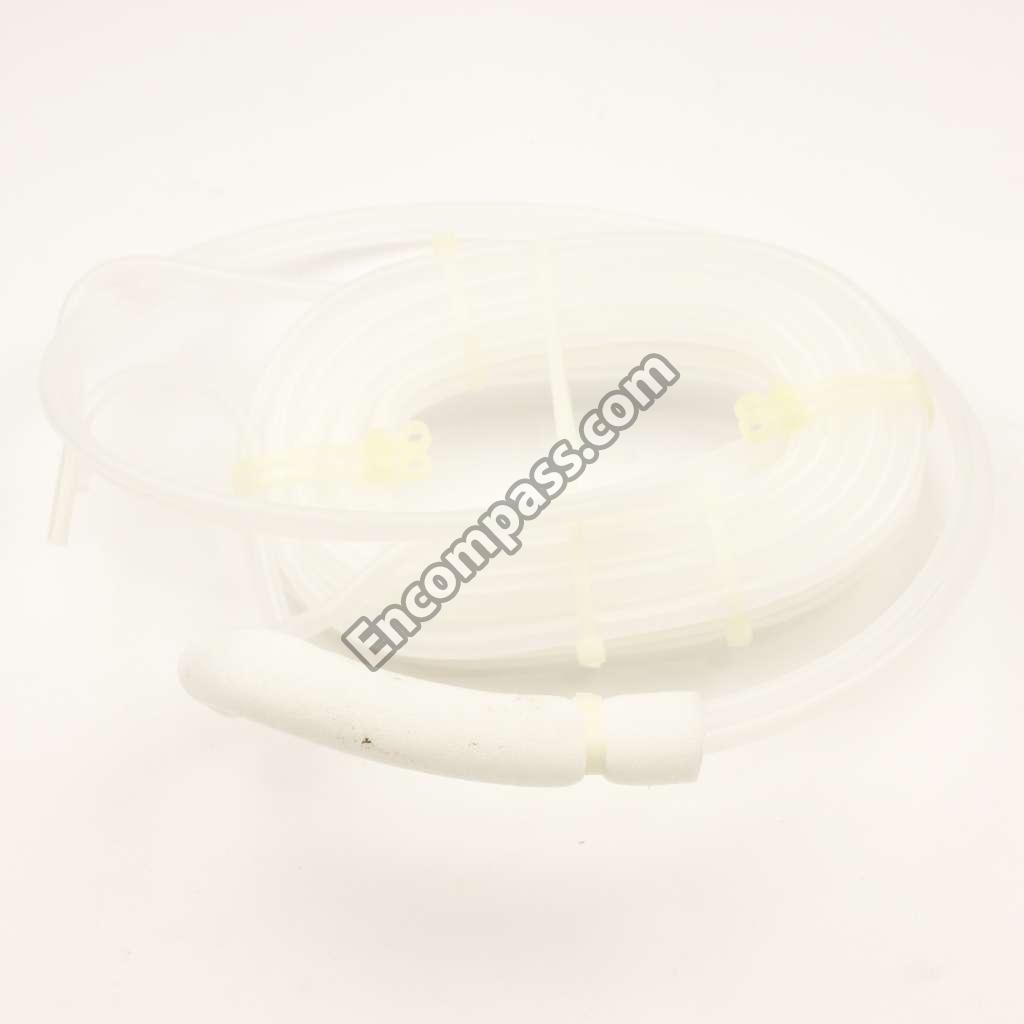

WR17X12997 WR17X12997 GE DOUBLE COIL WATER TANK
WR17X13004 WR17X13004 GE DUCT DOOR HEATER ASM
WR17X12262 WR17X12262 GE EPS AIR TOWER BACK
WR17X12261 WR17X12261 GE EPS AIR TOWER FF
WR17X12266 WR17X12266 GE EPS VENT DUCT VERTICAL
WR01X10680 WR01X10680 GE FASTENER HANDLE SS
WR01X10681 WR01X10681 GE FASTENER HANDLE SS
WR01X10947 WR01X10947 GE FASTNER PUSH
WR17X11894 WR17X11894 GE FILTER HEAD ASM AND TUBE

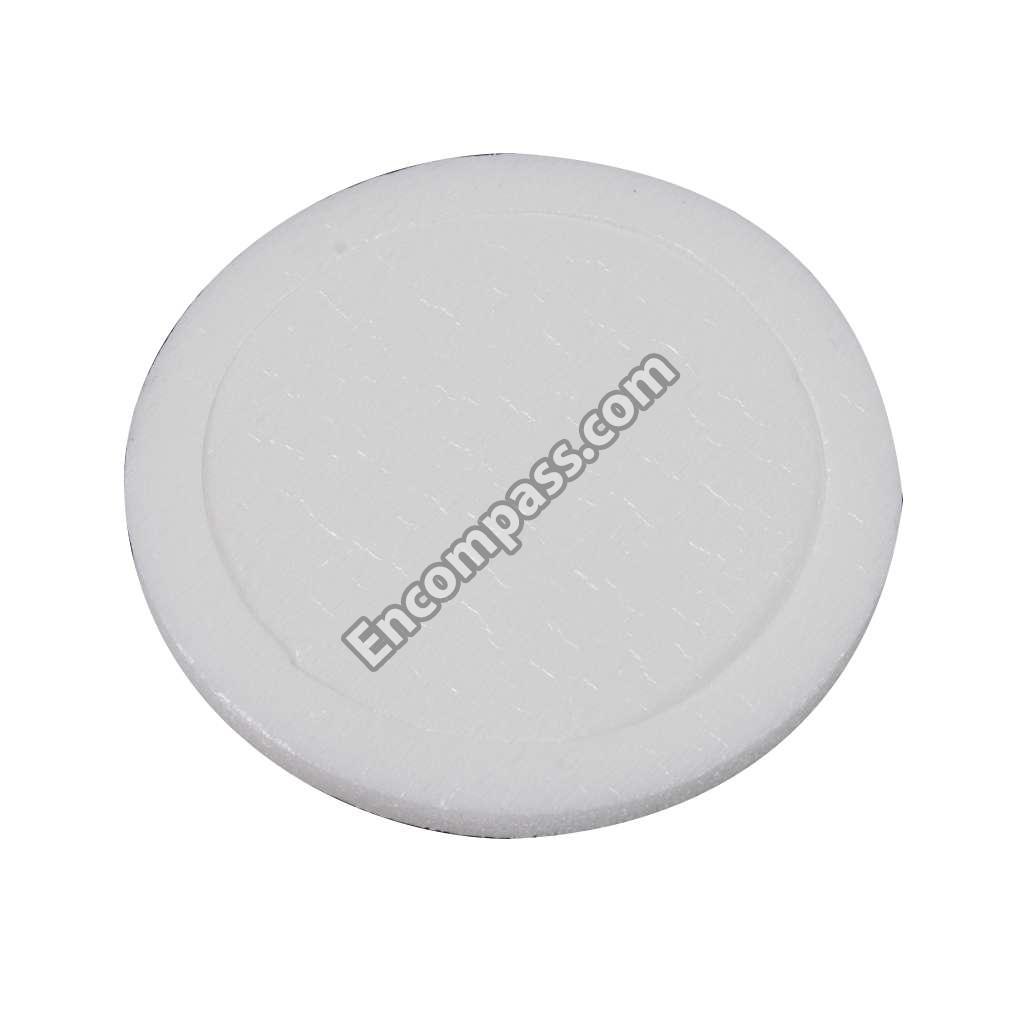

WR14X10333 WR14X10333 GE FOAM PAD COVER EVAP
WR14X10225 WR14X10225 GE FOAM PAD COVER EVAP
WR14X10221 WR14X10221 GE FOAM STRIP SE ADH
WR14X10222 WR14X10222 GE FOAM STRIP SE ADH
WR14X10223 WR14X10223 GE FOAM STRIP SE ADH
WR14X10053 WR14X10053 GE FOAM STRIP SE ADH
WR02X13506 WR02X13506 GE FOAM TAPE
WR02X13496 WR02X13496 GE FORK
WR72X10224 WR72X10224 GE FRAME PAN MEAT
WR02X13494 WR02X13494 GE FRONT COVER
WR17X12983 WR17X12983 GE FUNNEL ICE DISPENSER
WR14X10328 WR14X10328 GE GASKET
WR14X10330 WR14X10330 GE GASKET
WR14X10359 WR14X10359 GE GASKET FAN BRACKET
WR14X10227 WR14X10227 GE GASKET FF INLET
WR14X10217 WR14X10217 GE GASKET FRAME MEAT SIDE
WR14X10218 WR14X10218 GE GASKET FRAME MEAT SIDE
WR14X10237 WR14X10237 GE GASKET FRENCH WITH FLAP

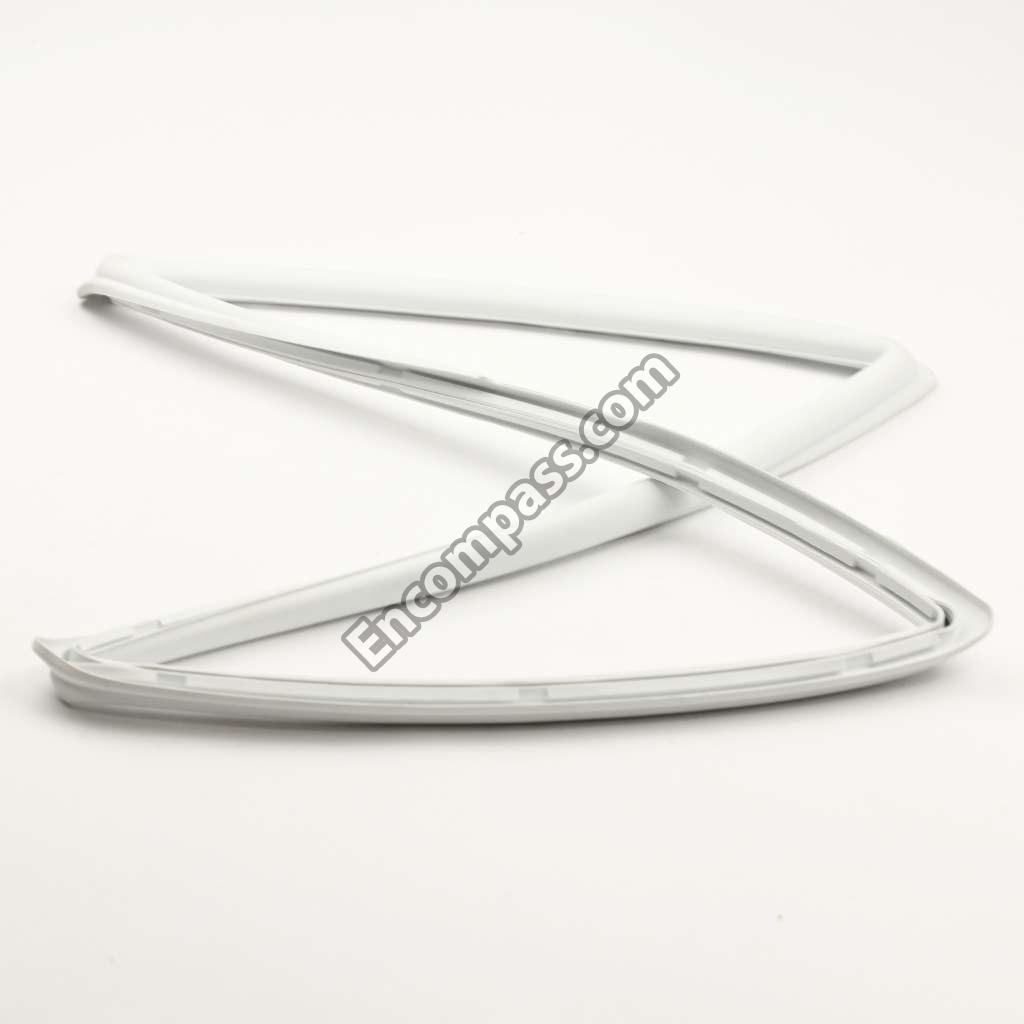

WR14X10355 WR14X10355 GE GASKET ICEBOX DOOR
WR14X10219 WR14X10219 GE GASKET INLET MEAT PAN
WR14X10214 WR14X10214 GE GASKET PAN CVR FRONT
WR14X10215 WR14X10215 GE GASKET PAN VEG FRAME
WR14X10234 WR14X10234 GE GASKET PAN VEG FRAME
WR14X10356 WR14X10356 GE GASKET RETAINER
WR14X10228 WR14X10228 GE GASKET TOWER FF
WR14X10378 WR14X10378 GE GASKET TOWER FF
WR02X13384 WR02X13384 GE GEAR PINION LH
WR02X13387 WR02X13387 GE GEAR PINION RH
WR17X13010 WR17X13010 GE GRILL RECESS
WR02X12414 WR02X12414 GE GRILLE BASE COVER
WR02X12380 WR02X12380 GE GRILLE BASE COVER

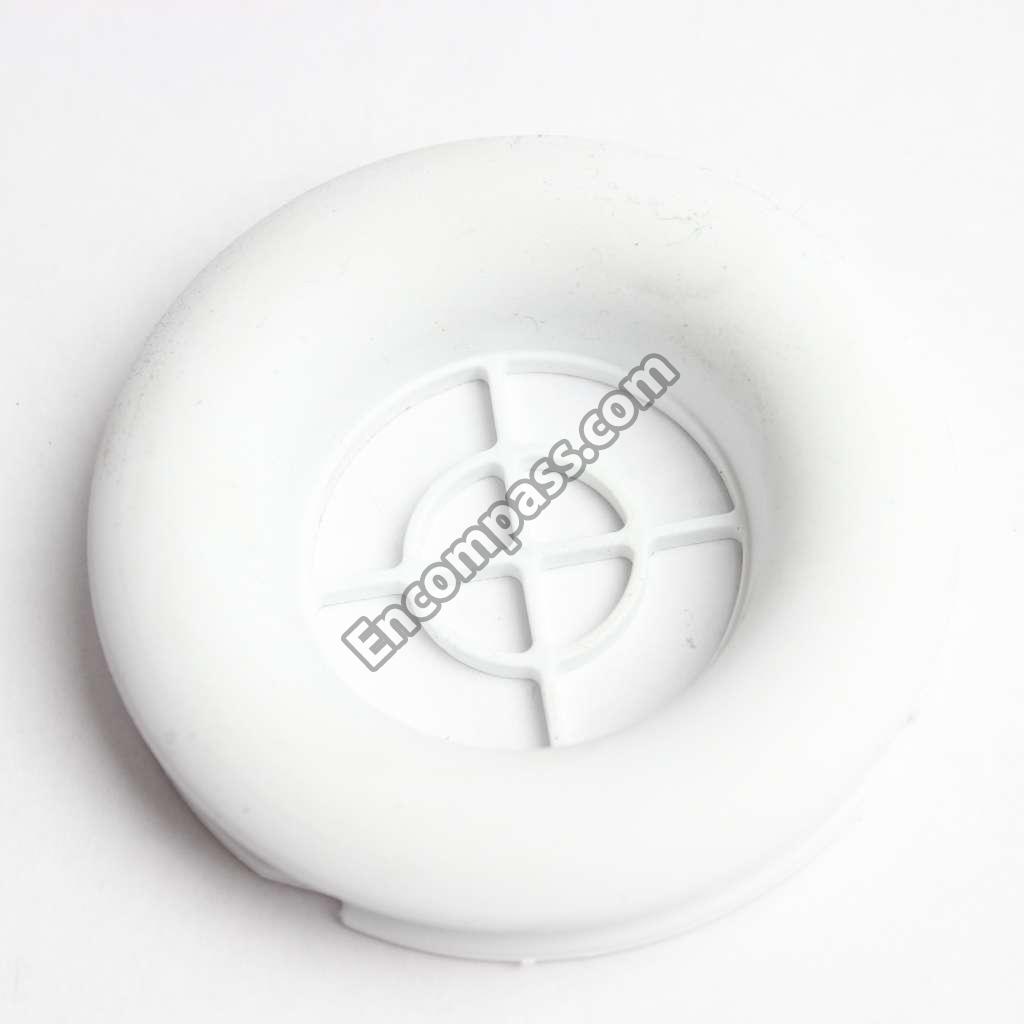

WR02X10647 WR02X10647 GE GRILLE SENSOR
WR02X13224 WR02X13224 GE GRILLE SENSOR
WR02X22869 WR02X22869 GE GROMMET
WR02X10678 WR02X10678 GE GROMMET
WR02X11331 WR02X11331 GE GROMMET EVAP FAN
WR12X10999 WR12X10999 GE HANDLE BASKET FZ
WR12X10847 WR12X10847 GE HANDLE FF ASM
WR12X10860 WR12X10860 GE HANDLE FF ASM
WR12X10859 WR12X10859 GE HANDLE FZ ASM
WR12X10846 WR12X10846 GE HANDLE FZ ASSEMBLY
WR17X12751 WR17X12751 GE HANDLE PAN VEG LH
WR17X12750 WR17X12750 GE HANDLE PAN VEG RH
WR23X10709 WR23X10709 GE HARNESS BOARD INDIV
WR14X10267 WR14X10267 GE HARNESS INSULATION
WR23X10708 WR23X10708 GE HARNESS MOTOR AND RELAY
WR23X10665 WR23X10665 GE HARNESS RECESS DISPENSOR
WR51X10094 WR51X10094 GE HEATER DEF ASM
WR13X10427 WR13X10427 GE HINGE CLOSURE
WR13X10434 WR13X10434 GE HINGE CLOSURE ASM
WR13X10936 WR13X10936 GE HINGE CLOSURE ASM
WR02X13513 WR02X13513 GE HINGE COVER LH
WR14X10226 WR14X10226 GE HOLDER FOAM PAD
WR02X13493 WR02X13493 GE HOLDER STATIONARY BLADE

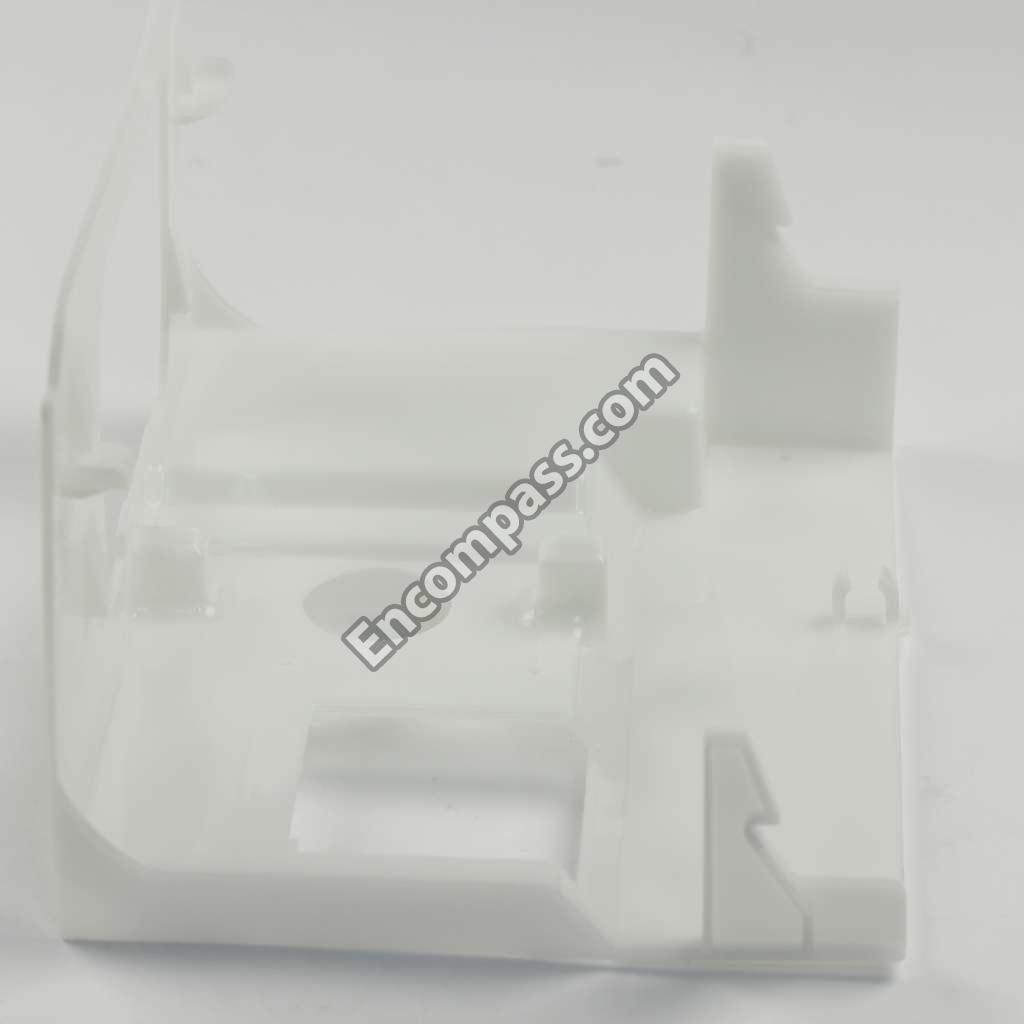

WR17X12986 WR17X12986 GE HOUSING CRUSHER

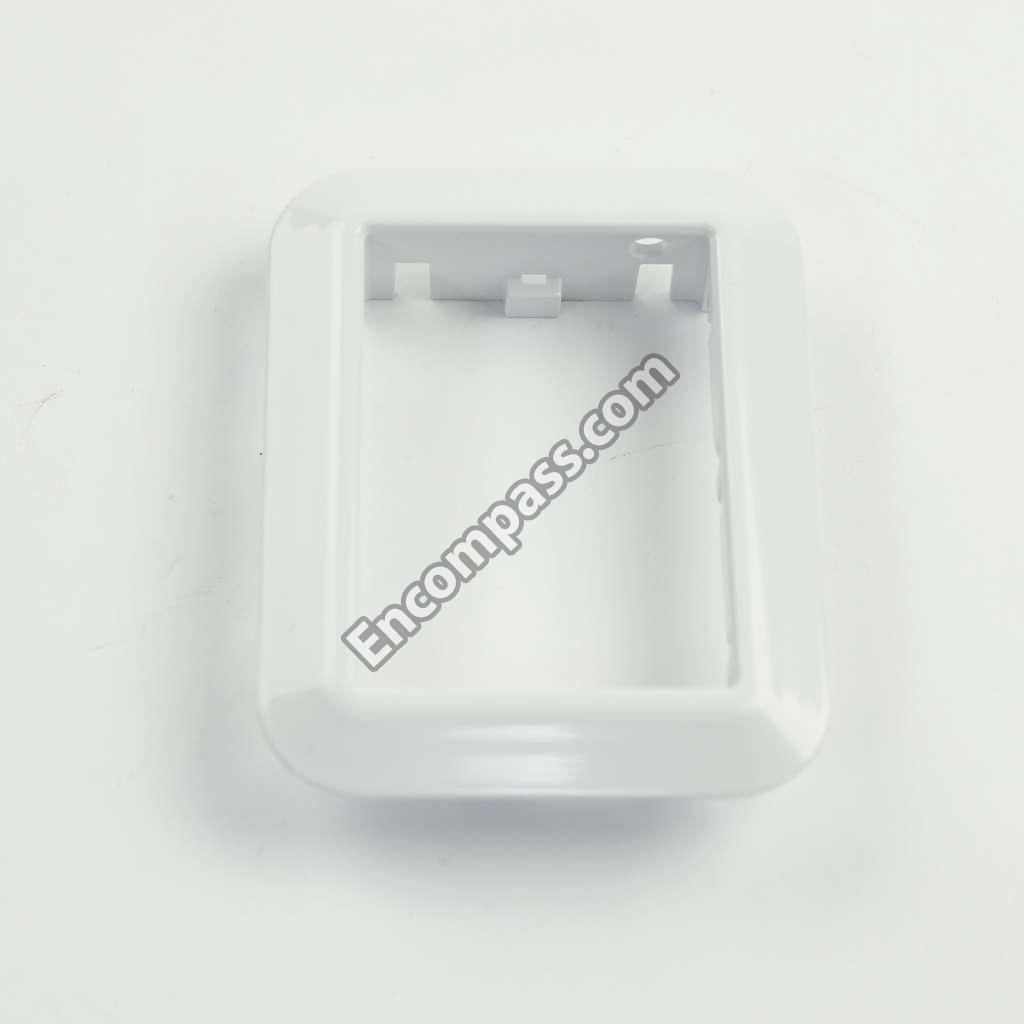

WR17X12443 WR17X12443 GE HOUSING HUMIDITY SENSOR
WR17X12119 WR17X12119 GE HOUSING SHIELD DISP
WR17X34266 WR17X34266 GE HOUSING SHIELD DISP
WR30X10157 WR30X10157 GE ICE BUCKET ASSEMBLY

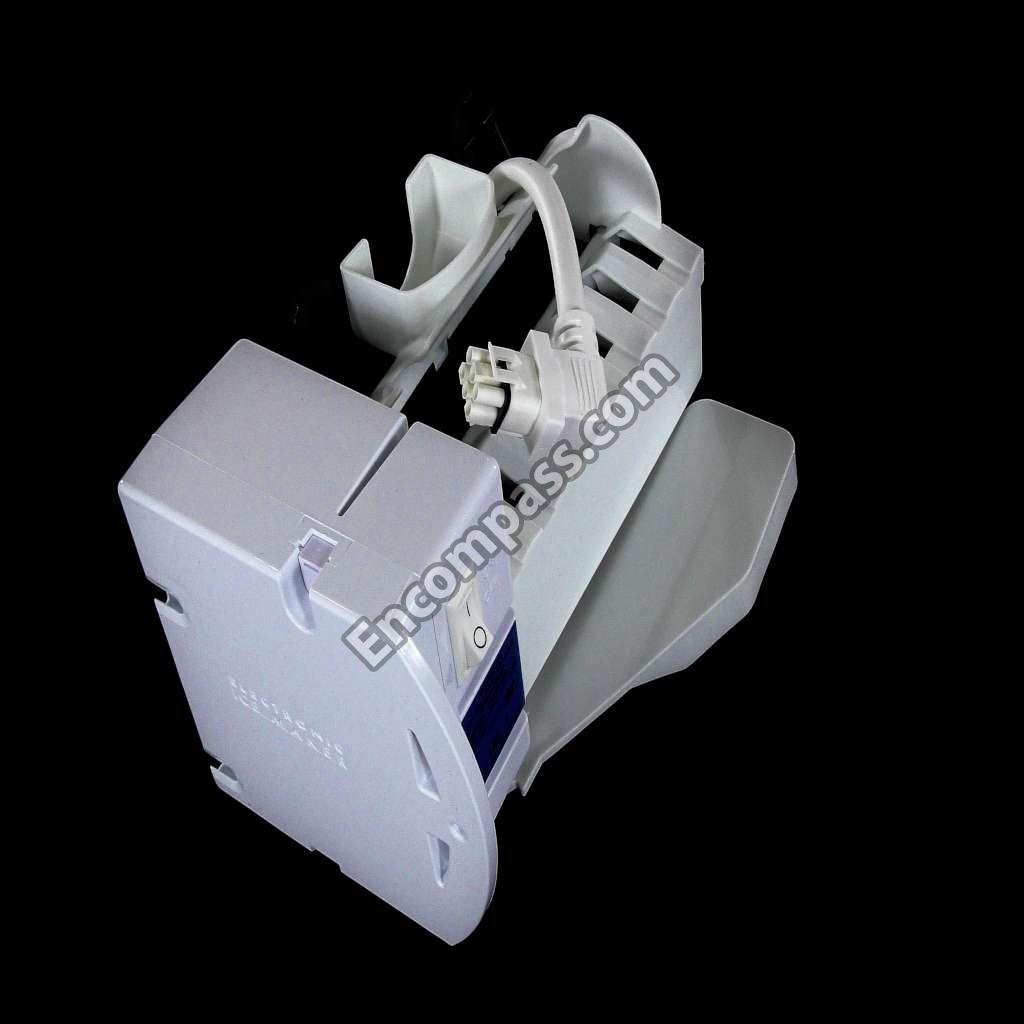

WR30X28693 WR30X28693 GE ICEMAKER - DOOR MOUNTED
WR17X12994 WR17X12994 GE INSERT MEAT PAN
WR17X12253 WR17X12253 GE INSULATION COVER EVAP

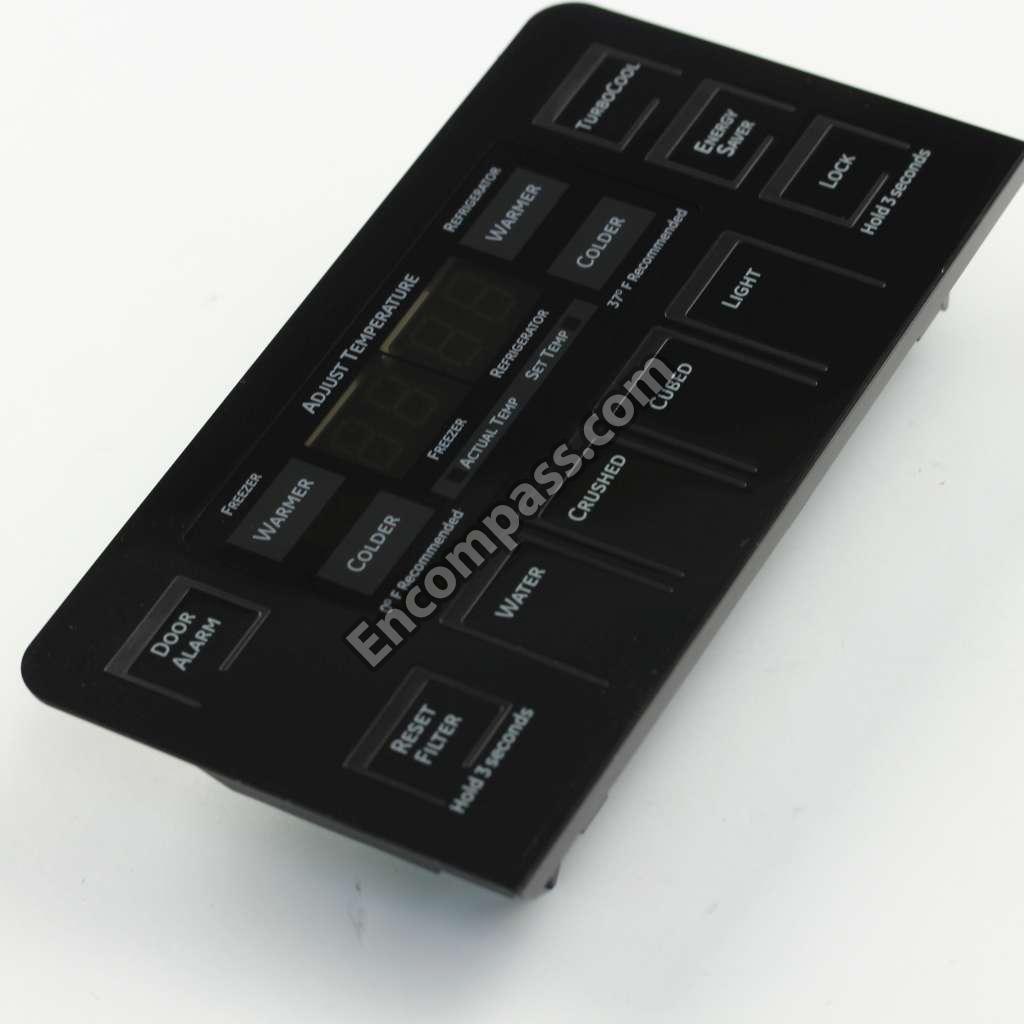

WR55X11094 WR55X11094 GE INTERFACE DISPENSER ASM
WR55X11096 WR55X11096 GE INTERFACE DISPENSER ASM
WR49X10283 WR49X10283 GE INVERTER ASSEMBLY
WR02X13490 WR02X13490 GE LATCH BUTTON
WR02X13491 WR02X13491 GE LATCH TRIM
WR04X10161 WR04X10161 GE LENS NAME PLATE
WR02X12022 WR02X12022 GE LEVER LOCK HANDLE
WR02X12419 WR02X12419 GE LINKAGE BAR MEAT PAN 25
WR01X10984 WR01X10984 GE LOCK NUT 5/1618 HEX SS
WR85X10087 WR85X10087 GE LOW SIDE ASM
WR02X12025 WR02X12025 GE MAIN BOARD ENCLOSURE ASM
WR72X10226 WR72X10226 GE METAL SLIDE ASM
WR72X10225 WR72X10225 GE METAL SLIDE ASM
WR02X12334 WR02X12334 GE MOBILITY FRONT ASM
WR71X10875 WR71X10875 GE MODULE SHELF ASM FF
WR17X12979 WR17X12979 GE MODULE SHELF ASM FF

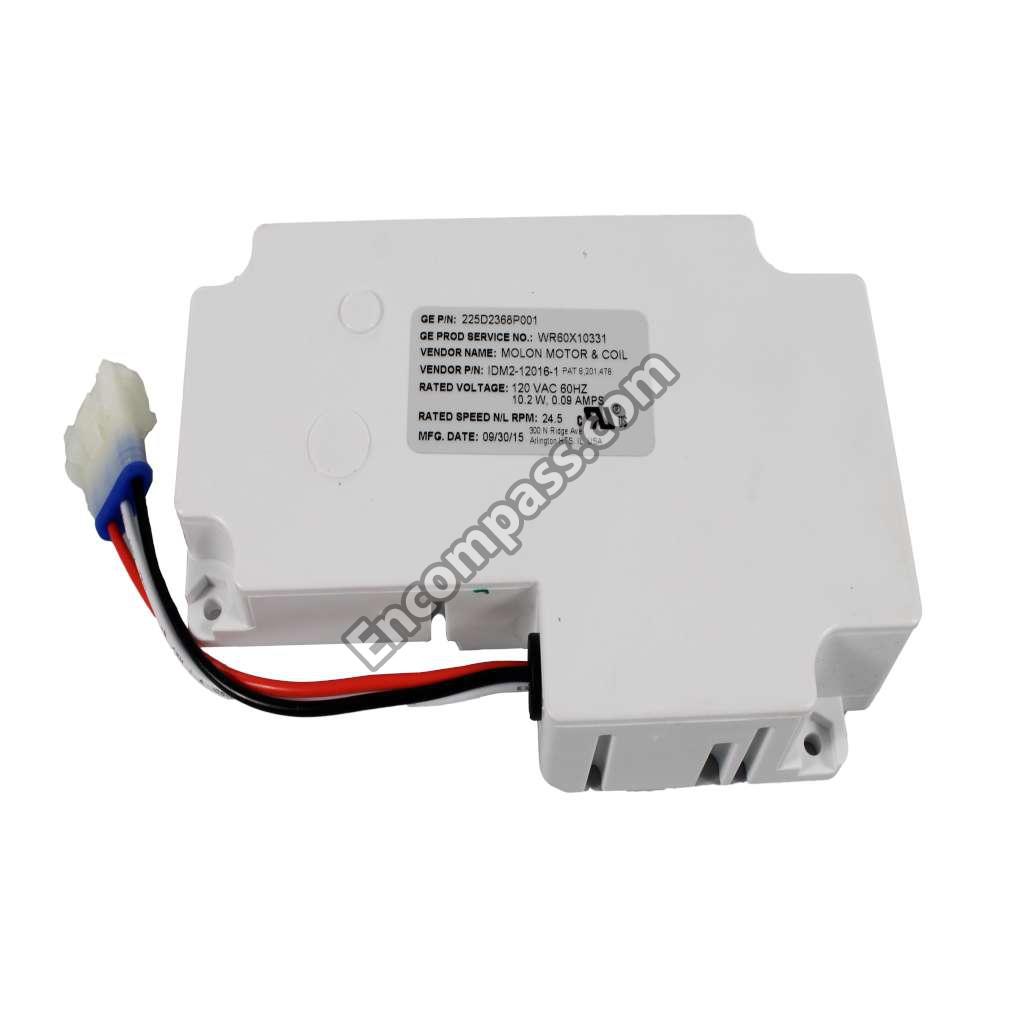

WR60X10331 WR60X10331 GE MOTOR AUGER DC
WR60X10277 WR60X10277 GE MOTOR DC EVAP FAN ASM
WR17X12989 WR17X12989 GE MOVING BLADE CRUSHER
WR17X12990 WR17X12990 GE MOVING BLADE CRUSHER
WR17X12988 WR17X12988 GE MOVING BLADE CRUSHER
WR01X10983 WR01X10983 GE NUT 3/824 HEX SS
WR01X10822 WR01X10822 GE NUT HEX SS
WR86X96 WR86X96 GE P/S DRYER KIT R134A
WR86X25269 WR86X25269 GE P/S DRYER KIT R134A
WR17X13008 WR17X13008 GE PADDLE ASM
WR17X13005 WR17X13005 GE PADDLE ASM
WR32X10845 WR32X10845 GE PAN MEAT
WR32X10609 WR32X10609 GE PAN VEG FRONT LH
WR32X10607 WR32X10607 GE PAN VEG FRONT RH
WR32X10746 WR32X10746 GE PAN VEG REAR LH
WR32X10745 WR32X10745 GE PAN VEG REAR RH
WR01X10793 WR01X10793 GE PIN HINGE ADJ BM
WR02X4141 WR02X4141 GE PIN SPIRAL
WR14X10357 WR14X10357 GE PORT GASKET
WR02X13399 WR02X13399 GE RAIL HOLDER FZ LWR LH 25
WR02X13398 WR02X13398 GE RAIL HOLDER FZ LWR RH 25
WR02X13495 WR02X13495 GE REAR COVER
WR2X8203 WR2X8203 GE REFRIGERATOR CLIP
WR2X9000 WR2X9000 GE REFRIGERATOR CONDENSER CLIP
WR60X10209 WR60X10209 GE REFRIGERATOR CONDENSER FAN MOTOR
WR23X10725 WR23X10725 GE REFRIGERATOR LIGHT SWITCH
WR55X10025 WR55X10025 GE REFRIGERATOR TEMPERATURE SENSOR
WR87X10111 WR87X10111 GE REFRIGERATOR VCC3 COMPRESSOR KIT
WR57X33326 WR57X33326 GE REFRIGERATOR WATER VALVE ASSEMBLY
WR2X8818 WR2X8818 GE RETAINER RECESS DOOR
WR02X12149 WR02X12149 GE RING COMPRESSION
WR02X13502 WR02X13502 GE RIVET CLINCH
WR2X4141 WR2X4141 GE ROLL PIN
WR01X10843 WR01X10843 GE SCR 1/4 - 20 UNC -2A
WR01X10885 WR01X10885 GE SCR 1/4-20 RT FLAT 3/4 S
WR01X10620 WR01X10620 GE SCR 10-32
WR01X10622 WR01X10622 GE SCR 10-32 B IHXW 1/2
WR01X10939 WR01X10939 GE SCR 1014 PL FLT20 3/4 S
WR01X10979 WR01X10979 GE SCR 1016 PL PNP 1/2 SS
WR01X10792 WR01X10792 GE SCR 12-24 TT HX 7/8 S
WR01X10683 WR01X10683 GE SCR 12-24 TT HXT20 .90 S
WR01X10690 WR01X10690 GE SCR 12-24 TT HXT20 .90 S
WR01X10918 WR01X10918 GE SCR 12-24 TT OVT 1.000 S
WR02X12257 WR02X12257 GE SCR 4-10 PL PNP 3/4 SS
WR01X10634 WR01X10634 GE SCR 8-18 AB 13/4 S HXW
WR01X10606 WR01X10606 GE SCR 8-18 AB HXW 1/2 S
WR01X10685 WR01X10685 GE SCR 8-18 AB IHW
WR01X10588 WR01X10588 GE SCR 8-18 AB IHXW 9/16 S
WR01X10858 WR01X10858 GE SCR 8-18 AB PNP 5/8 S
WR01X10789 WR01X10789 GE SCR 8-18A FL HD 5/8 SS
WR01X10602 WR01X10602 GE SCR 8-32 AB IHWS 3/8 S
WR01X10821 WR01X10821 GE SCR 8-32 M HX 1/2 S
WR1X1466 WR1X1466 GE SCR 8-32 T HXW 3/8 S
WZ5X158D WZ5X158D GE SCR 8-32 T HXW 3/8 S
WR01X10977 WR01X10977 GE SCR 818 HILO FLP 1/2 S
WR01X10065 WR01X10065 GE SCREW 10-32 GXTT FLP 595 S
WR01X10654 WR01X10654 GE SCREW 10-32 TT HXW 5/16 S
WR01X10652 WR01X10652 GE SCREW 8-18 AB IHW 5/8 S
WR01X10379 WR01X10379 GE SCREW HINGE COVER
WR01X10686 WR01X10686 GE SCREW LEVELING
WR02X12271 WR02X12271 GE SCREW MOBILITY
WR01X10210 WR01X10210 GE SCREW MOBILITY.
WR02X12711 WR02X12711 GE SENSOR HUMIDITY

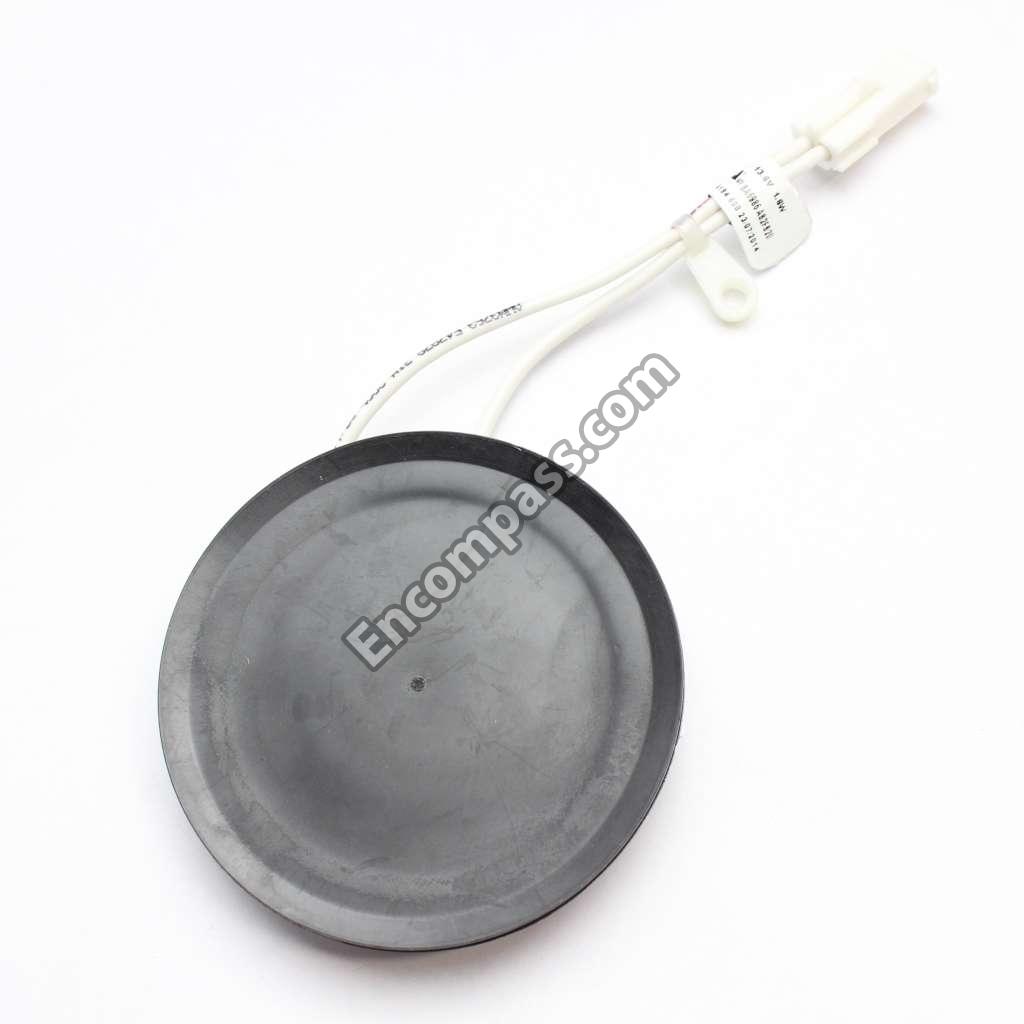

WR55X10748 WR55X10748 GE SENSOR HUMIDITY ASM
WR17X12424 WR17X12424 GE SEPARATOR AIR HISIDE
WR78X12821 WR78X12821 GE SERVICE KIT
WR71X10880 WR71X10880 GE SHELF ASM SLIDEOUT
WR32X10615 WR32X10615 GE SHELF CANT GLASS
WR17X12936 WR17X12936 GE SHIELD TROUGH ASM
WR17X12668 WR17X12668 GE SHROUD CONDENSER
WR02X10668 WR02X10668 GE SHUNT SENSOR
WR17X13185 WR17X13185 GE SINGLE COIL WATER TANK
WR72X10282 WR72X10282 GE SLIDE & BRACKET ASM
WR72X10281 WR72X10281 GE SLIDE & BRACKET ASM
WR72X10404 WR72X10404 GE SLIDE ASM
WR72X10405 WR72X10405 GE SLIDE ASM
WR17X12245 WR17X12245 GE SLIDE CONTROL MEAT PAN
WR17X12244 WR17X12244 GE SLIDE CONTROL VP LH
WR17X12241 WR17X12241 GE SLIDE CONTROL VP RH
WR72X10401 WR72X10401 GE SLIDE INNER
WR72X10219 WR72X10219 GE SLIDE LINER
WR49X20810 WR49X20810 GE SLIDE LOWER ASM 25
WR72X10400 WR72X10400 GE SLIDE OUTER LH
WR72X10399 WR72X10399 GE SLIDE OUTER RH
WR72X10222 WR72X10222 GE SLIDE PAN ASM
WR72X10223 WR72X10223 GE SLIDE PAN ASM
WR02X10582 WR02X10582 GE SNUGGER MODULE
WR62X10055 WR62X10055 GE SOLENOID ASM
WR02X13573 WR02X13573 GE SOUND DAMPER
WR02X13569 WR02X13569 GE SOUND DAMPER
WR2X4139 WR2X4139 GE SPACER
WR72X10260 WR72X10260 GE SPACER
WR2X4138 WR2X4138 GE SPACER
WR01X10978 WR01X10978 GE SPACER ACETAL
WR02X4139 WR02X4139 GE SPACER CRUSHER MIDDLE
WR02X4138 WR02X4138 GE SPACER CRUSHER STATIONAR
WR17X12757 WR17X12757 GE SPACER WATER FILTER
WR01X10827 WR01X10827 GE SPRING CLOSURE

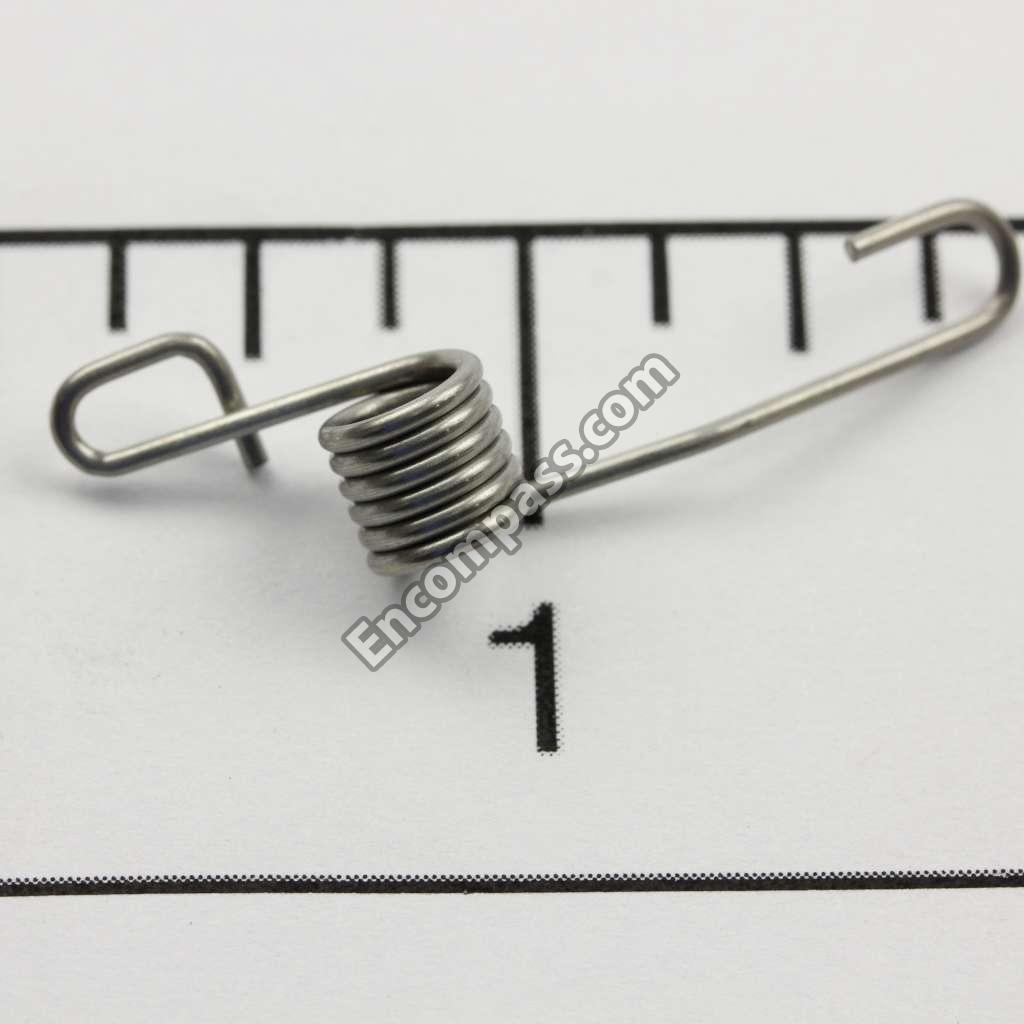

WR02X13485 WR02X13485 GE SPRING TORSION
WR02X13488 WR02X13488 GE SPRING WATER CONDUIT
WR02X13489 WR02X13489 GE SPRING WATER CONDUIT
WR02X10663 WR02X10663 GE STAND OFF
WR02X13383 WR02X13383 GE STIFFNER
WR02X12407 WR02X12407 GE STOP DOOR BM
WR02X12410 WR02X12410 GE STOP DOOR BM
WR02X13500 WR02X13500 GE STRIKER TOP MULLION
WR1X1779 WR1X1779 GE STUD MTGCOMP
WR02X10588 WR02X10588 GE SUPPORT CONDENSER
WR02X10587 WR02X10587 GE SUPPORT CONDENSER
WR02X12187 WR02X12187 GE SUPPORT SHELF
WR02X13504 WR02X13504 GE SUPPORT VEGETABLE PAN ASSEMBLY
WR02X13498 WR02X13498 GE SUPPORT WATER LINE
WR02X12587 WR02X12587 GE SUPPORT WATER LINE
WR23X10783 WR23X10783 GE SWITCH
WR01X10982 WR01X10982 GE TAB WASHER
WR50X10065 WR50X10065 GE THERMOSTAT DEF
WR02X13512 WR02X13512 GE THIMBLE DOOR FF
WR02X12411 WR02X12411 GE THIMBLE DOOR FF
WR02X12363 WR02X12363 GE THIMBLE DOOR FF
WR72X10235 WR72X10235 GE TRACK CENTER FF
WR72X10236 WR72X10236 GE TRACK SIDE FF
WR38X10399 WR38X10399 GE TRIM BOTTOM PAN MEAT
WR02X11426 WR02X11426 GE TUBE DRAIN
WR02X11330 WR02X11330 GE UNION CONNECTOR
WR17X12755 WR17X12755 GE VENT DUCT VERTICAL
WR01X10980 WR01X10980 GE WASHER COUPLING
WR01X10987 WR01X10987 GE WASHER HINGE
MWFP MWFP GE WATER FILTER
WR57X10032 WR57X10032 GE WATER VALVE ASSEMBLY W/O GUARD
WR02X10695 WR02X10695 GE WHEEL MOBILITY
WR01X10988 WR01X10988 GE WIRE
WR02X11607 WR02X11607 GE WIRE TIE
WR02X11027 WR02X11027 GE WIRE TIE
Main Menu x
