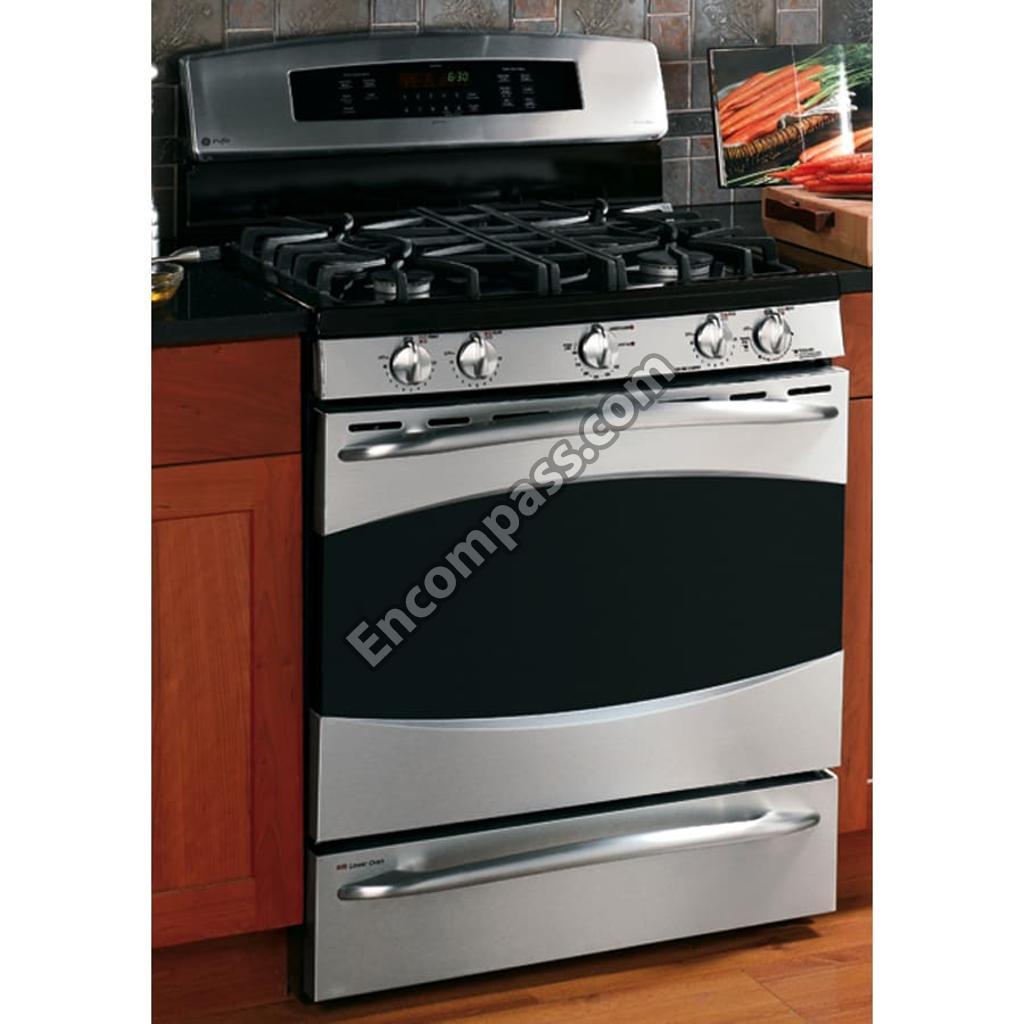

Model Image
Manufacturer

GE

Model Number

PGB928SEM2SS

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02K10069 WB02K10069 ALUMINUM WASHER
WB02K0012 WB02K0012 ARM ANTI TIP
WB2K12 WB2K12 ARM ANTI TIP
WB36K10998 WB36K10998 ASSEMBLY MANIFOLD PANEL
WB63K10167 WB63K10167 BACK DRAWER
WB02K0027 WB02K0027 BAIL
WB2K27 WB2K27 BAIL
WB16T10033 WB16T10033 BASE BURNER ASSEMBLY 12K
WB16T10030 WB16T10030 BASE BURNER MED
WB16T10032 WB16T10032 BASE BURNER RT FRT
WB02K10104 WB02K10104 BASE SPACER
WB02K10100 WB02K10100 BKT DOOR INNER
WB2X8351 WB2X8351 BLADE FAN
WB02K10112 WB02K10112 BLUE BUMPER
WB35X37973 WB35X37973 BOTTOM OVEN AND DEFLECTOR ASSEMBLY
WB02K0032 WB02K0032 BOTTOM OVEN BRACKT SUPPO
WB01K0005 WB01K0005 BOTTOM OVEN SCREW
WB63K10060 WB63K10060 BOTTOM RANGE
WB63K10143 WB63K10143 BOX BURNER SP
WB63K0015 WB63K0015 BRACE BOTTOM
WB63K0005 WB63K0005 BRACE BOTTOM
WB63K5 WB63K5 BRACE BOTTOM
WB38K0002 WB38K0002 BRACE VENT
WB02K0020 WB02K0020 BRACKET ASM ANTI-TIP
WB02K10151 WB02K10151 BRACKET DOOR
WB63K10062 WB63K10062 BRACKET DRAWER
WB39K0020 WB39K0020 BRACKET MOUNTING DRAWER
WB02K0041 WB02K0041 BRACKET OVEN CORNER
WB02K10178 WB02K10178 BUMPER
WB2K15 WB2K15 BUMPER BLACK
WB02K0015 WB02K0015 BUMPER, BLACK
WB13T10034 WB13T10034 BURN CAP RT FT CENT-SBK
WB16K10054 WB16K10054 BURNER BAKE
WB16T10031 WB16T10031 BURNER BASE SMALL
WB16K10004 WB16K10004 BURNER BROIL
WB13T10036 WB13T10036 BURNER CAP LEFT FRT -SBK
WB13T10035 WB13T10035 BURNER CAP LEFT FRT -SBK
WB13T10033 WB13T10033 BURNER CAP RT FRT -SBK
WB16K10033 WB16K10033 BURNER HEAD C MED
WB16K10034 WB16K10034 BURNER HEAD D LG
WB16K10036 WB16K10036 BURNER HEAD-SMALL
WB28K10142 WB28K10142 BURNER HOLDER BKT MED
WB28K10141 WB28K10141 BURNER HOLDER BKT SMALL
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02T10111 WB02T10111 CLEANER-SS
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02K0010 WB02K0010 CLIP CAPILLARY
WB02K10073 WB02K10073 CLIP CAPILLARY
WB02K0052 WB02K0052 CLIP RANGETOP
WB2K52 WB2K52 CLIP RNGETOP
WB02K0038 WB02K0038 CLIP WIRE
WB02X7066 WB02X7066 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER
WB27K10176 WB27K10176 CONTROL GLASS TOUCH
31-21404 31-21404 CONVERSION STEPS SHEET
WB28K10569 WB28K10569 CONVERTION KIT ASSEMBLY
WB02K10109 WB02K10109 COVER ACCESS SPRING
WB34K10116 WB34K10116 COVER BACK
WB34K10091 WB34K10091 COVER BACK LOWER
WB34K10115 WB34K10115 COVER BACK UPPER
WB63K10063 WB63K10063 COVER BURNER BOX
WB34K10071 WB34K10071 COVER HEATING ELEMENT
WB34K10065 WB34K10065 COVER MOTOR
WB63K10054 WB63K10054 COVER TERMINALS
WB37K10012 WB37K10012 COVER THERMOSTAT
WB02K0024 WB02K0024 COVER VALVE
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB56K10021 WB56K10021 CRYSTAL WINDOW
WB34K13 WB34K13 CVR B PNL SP
WB34K14 WB34K14 CVR IGNITOR
WB49K10003 WB49K10003 DEFLECTOR
WB49K10037 WB49K10037 DEFLECTOR OVEN
WB35K10048 WB35K10048 DEFLECTOR SIDE
WB38K10022 WB38K10022 DIFFUSER VENT
WB28K10308 WB28K10308 ELBOW HI BROIL
WB13K10012 WB13K10012 ELECTRODE TOP
WB07K10235 WB07K10235 END SUPPORT LF
WB07K10234 WB07K10234 END SUPPORT RT
WB02X8351 WB02X8351 FAN BLADE
WB34K10037 WB34K10037 FAN COVER FRONT
WB26K10003 WB26K10003 FAN MOTOR CONVECT-2SPEED
WB49K0044 WB49K0044 FLAME SPREADER
WB63K10175 WB63K10175 FRAME WELD ASM.
WB35X29668 WB35X29668 GASKET ASSEMBLY DOOR
WB32K0005 WB32K0005 GASKET OVEN LIGHT
WB32K10037 WB32K10037 GASKET OVEN SEAL
WB32K0001 WB32K0001 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB27K10257 WB27K10257 GLASS AND BOARD ASSEMBLY
WB64X0093 WB64X0093 GLASS CLEANER
WB57K10118 WB57K10118 GLASS DOOR ASSEMBLY
WB08K0005 WB08K0005 GLASS OVEN LAMP
WB31K10094 WB31K10094 GRATE GOG CONTROL (BLK MA
WB31K10095 WB31K10095 GRATE GOG LF (BLK MATTE)
WB31K10096 WB31K10096 GRATE GOG RG (BLK MATTE)
WB2K8 WB2K8 GROMMET
WB56K10037 WB56K10037 GUARD INSULATION DOOR
WB34K0031 WB34K0031 GUARD RADIATION LFT
WB34K0030 WB34K0030 GUARD RADIATION RT
WB15T10193 WB15T10193 HANDLE 30 ASSEMBLY (PRF-SS)
WB15T10190 WB15T10190 HANDLE 30 ASSEMBLY (PRF-SS)
WB18K10035 WB18K10035 HARNESS HV
WB18K10028 WB18K10028 HARNESS INTERFACE
WB18K10006 WB18K10006 HARNESS-MEAT PROBE
WB16T10029 WB16T10029 HEAD BURNER B
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB2X6195 WB2X6195 HINGE PIN
WB14K10003 WB14K10003 HINGE RANGE TOP
WB02K0011 WB02K0011 HOOK DOOR SPRING
WB2K11 WB2K11 HOOK DR SPRG
WB8K1 WB8K1 HOUS RECEPTL
WB08K0001 WB08K0001 HOUSING RECEPTACLE
WB34K0014 WB34K0014 IGNITER COVER
WB13X25261 WB13X25261 IGNITER GLOWBAR
WB35K25 WB35K25 INSUL BOT DR
WB35K10165 WB35K10165 INSULATION ASSEMBLY BACK
WB35K0025 WB35K0025 INSULATION BOTTOM DOOR
WB35K10026 WB35K10026 INSULATION BURNER BOX
WB35K10096 WB35K10096 INSULATION DOOR
WB35K10039 WB35K10039 INSULATION MOTOR
WB35K10168 WB35K10168 INSULATION OVEN BACK
WB35K10159 WB35K10159 INSULATION OVEN WRAP
WB35K10218 WB35K10218 INSULATION VENT
WB03K10303 WB03K10303 KNOB COVER ASM
WB03X43926 WB03X43926 KNOB COVER ASM
WB25K10009 WB25K10009 LENS
WB25K10010 WB25K10010 LIGHT INDICATOR PILOT
WB18K10055 WB18K10055 LINE CORD
WB55K10034 WB55K10034 LINER ASSEMBLY WELD DOOR
WB28K10379 WB28K10379 MANIFOLD PIPE
WB02K10063 WB02K10063 METALLIC RING
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K10143 WB28K10143 ORIFICE HOLDER BKT LARGE
WB28K10149 WB28K10149 ORIFICE HOLDER BKT X-LG
WB28K10152 WB28K10152 ORIFICE SPUD LP 0.74 MM
WB28K10150 WB28K10150 ORIFICE SPUD LP 0.90 MM
WB28K10151 WB28K10151 ORIFICE SPUD LP 1.02 MM
WB53K10025 WB53K10025 OVEN BACK
WB53K10036 WB53K10036 OVEN SIDE LEFT
WB53K10034 WB53K10034 OVEN SIDE RIGHT
WB53K10015 WB53K10015 OVEN TOP
WB02K0064 WB02K0064 PAD FELT (BK)
WB2K64 WB2K64 PAD FELT BK
WB48K10009 WB48K10009 PAN DRAWER
WB55K10033 WB55K10033 PANEL ASSEMBLY WELD
WB55K10039 WB55K10039 PANEL DRAWER
WB63K10061 WB63K10061 PANEL REAR BROIL
WB63K10119 WB63K10119 PANEL SIDE BK
WB63K10055 WB63K10055 PANEL SIDE BROIL
WB63K10056 WB63K10056 PANEL SIDE BROIL
WB55K10047 WB55K10047 PANEL VENT BACKER
WB02X6195 WB02X6195 PIN HINGE DOOR
WB14K10005 WB14K10005 PIN LOCATOR
WB14K10004 WB14K10004 PIN LOCATOR
WB24K10068 WB24K10068 PLUNGER SWITCH
31-21346 31-21346 PM MINI-MANUAL ELECT
49-85138 49-85138 PM USE & CARE MANUAL
WB2X8309 WB2X8309 PR0BE COVER
WB20T10024 WB20T10024 PROBE
WB02X8309 WB02X8309 PROBE COVER
WB20X5050 WB20X5050 PROBE THERMISTOR
WB48K10010 WB48K10010 RACK BAKING DRAWER
WB48T10095 WB48T10095 RACK OVEN
WB02K10108 WB02K10108 RANGE ACCESS SPRING COVER
WB2K20 WB2K20 RANGE ANTI-TIP BRACKET
WB63K10181 WB63K10181 RANGE BACK
WB34K10038 WB34K10038 RANGE BACK FAN COVER
WB63K10233 WB63K10233 RANGE BASE SUPPORT
WB49K10011 WB49K10011 RANGE BOTTOM DEFLECTOR
WB2K32 WB2K32 RANGE BRACKET SUPPORT
WB02K10035 WB02K10035 RANGE BURNER BOX BRACKET
WB02K10152 WB02K10152 RANGE CONTROL BRACKET
WB03K10302 WB03K10302 RANGE CONTROL KNOB (STAINLESS STEEL)
WB10K12 WB10K12 RANGE DOOR HINGE ASSEMBLY
WB02K10064 WB02K10064 RANGE DRAWER BRACKET
WB58K10010 WB58K10010 RANGE DRAWER FRAME AND SLIDE ASSEMBLY
WB04K10017 WB04K10017 RANGE DRAWER GASKET
WB55K10024 WB55K10024 RANGE DRAWER LINER
WB39K20 WB39K20 RANGE DRAWER MOUNTING BRACKET
WB35K10054 WB35K10054 RANGE DRAWER TOP INSULATION
WB01K10112 WB01K10112 RANGE ELECTRODE CLIP
WB02K10034 WB02K10034 RANGE FAN SUPPORT
WB35K10053 WB35K10053 RANGE FRONT DRAWER INSULATION
WB04K10021 WB04K10021 RANGE FRONT FRAME GASKET
WB04K10018 WB04K10018 RANGE GASKET - LOWER
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB24K10024 WB24K10024 RANGE IGNITER SWITCH
WB35K10038 WB35K10038 RANGE INSULATOR FAN
WB04K10011 WB04K10011 RANGE KNOB BEZEL - LARGE
WB02K10182 WB02K10182 RANGE LEVELING LEG
WB07K10245 WB07K10245 RANGE LOWER DRAWER TRIM
WB34K10086 WB34K10086 RANGE LOWER HEAT SHIELD
WB2K41 WB2K41 RANGE OVEN BRACKET
WB36X192 WB36X192 RANGE OVEN BULB COVER
WB32K5 WB32K5 RANGE OVEN GASKET
WB13K21 WB13K21 RANGE OVEN IGNITER
WB02K10110 WB02K10110 RANGE OVEN LATCH
WB02K10111 WB02K10111 RANGE OVEN STRIKE
WB34K31 WB34K31 RANGE RADIATION GUARD
WB34K30 WB34K30 RANGE RADIATION GUARD
WB20K10015 WB20K10015 RANGE TEMPERATURE SENSOR
WB20K10017 WB20K10017 RANGE THERMOSTAT
WB49K10012 WB49K10012 RANGE TOP DEFLECTOR
WB61K10016 WB61K10016 RANGE TOP SUB- ASSEMBLY
WB02K10137 WB02K10137 RANGE TWO SWITCH LATCH MOTOR
WB63K15 WB63K15 RANGE VENT BRACE
WB38K2 WB38K2 RANGE VENT BRACE
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB35K33 WB35K33 REFLECTOR
WB35K0022 WB35K0022 REFLECTOR 9.5 INCH
WB2X1082 WB2X1082 RETAINER
WB2X2030 WB2X2030 RETAINER
WB08K0004 WB08K0004 RETAINER INSULATION LAMP
WB02K0030 WB02K0030 RETAINER-INSULATION VENT
WB02X1082 WB02X1082 RING RETAINING
WB1K44 WB1K44 SCEW LATCH
WB01K10066 WB01K10066 SCR 8 HD 10-32
WB01K10042 WB01K10042 SCR 8-18 AB IHW 3/8 SN
WR01X10389 WR01X10389 SCR 8-18 AB PHR 1/2 S
WB01K0063 WB01K0063 SCREW
WB1X5754 WB1X5754 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5062 WB1K5062 SCREW
WB01K10091 WB01K10091 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB1K63 WB1K63 SCREW 10-16 X 0.95 TYPE B
WB01K10047 WB01K10047 SCREW 10-32 HXW 9/16 DWR
WB01K10009 WB01K10009 SCREW 10-32 MTG H AND LE
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01X5754 WB01X5754 SCREW 8-18 ABT 1/2 S
WB1K5 WB1K5 SCREW 8-18 X 1/2 -INCH
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB01K10002 WB01K10002 SCREW 8-32
WB01X23501 WB01X23501 SCREW 8-32 TT FLP .270
WB01K0044 WB01K0044 SCREW DOOR LATCH
WB01X1261 WB01X1261 SCREW GROUND
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K10021 WB01K10021 SCREW MTG BURNER BASE
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01X0558 WB01X0558 SCREW NAIL POINT
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB34K0010 WB34K0010 SHIELD BROIL
WB34K10 WB34K10 SHIELD BROIL
WB34K0013 WB34K0013 SHIELD HEAT INNER
WB34K12 WB34K12 SHIELD RADIA
WB34K0012 WB34K0012 SHIELD RADIATION
WB39K10025 WB39K10025 SLIDE AND BEARING ASSEMBLY
WB39K10026 WB39K10026 SLIDE AND BEARING ASSEMBLY
WB39K10027 WB39K10027 SLIDE INTERNAL
WB02K10154 WB02K10154 SPACER BASE
WB02K10153 WB02K10153 SPACER BASE
WB13K10029 WB13K10029 SPARK MODULE 4+0
WB01K0002 WB01K0002 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB01K10093 WB01K10093 SPEEDNUT
WB09K0005 WB09K0005 SPRING DOOR
WB9K5 WB9K5 SPRING DOOR
WB10K10009 WB10K10009 SUPPORT ASSEMBLY RIVET LF
WB10K10010 WB10K10010 SUPPORT ASSEMBLY RIVET RT
WB63K10232 WB63K10232 SUPPORT BASE
WB24K10023 WB24K10023 SW VALVE SERVICE 270 2WI
WB63K10058 WB63K10058 TOP DRAWER
WB36K10648 WB36K10648 TRIM CONTROL
WB07K10287 WB07K10287 TRIM LOWER SS
WB07K10457 WB07K10457 TRIM POST LF
WB07K10458 WB07K10458 TRIM POST RT
WB28K10137 WB28K10137 TUBE BURNER LEFT FRONT
WB28K10139 WB28K10139 TUBE BURNER LF REAR
WB28K10138 WB28K10138 TUBE BURNER RG FRONT
WB28K10140 WB28K10140 TUBE BURNER RG REAR
WB28K10168 WB28K10168 TUBE BURNER SUPPLY
WB28X24772 WB28X24772 TUBE MANIFOLD SUPPLY
WB28K10477 WB28K10477 TUBE MANIFOLD SUPPLY ASSEMBLY
WB21K10090 WB21K10090 VALVE BURNER 270
WB21K10088 WB21K10088 VALVE BURNER 270 5000
WB21K10045 WB21K10045 VALVE BURNER 270 9500 BT
WB21K10115 WB21K10115 VALVE BURNER 270 HI-CAP
WB19K10041 WB19K10041 VALVE CONTROL ASSEMBLY NOR. D
WB2K24 WB2K24 VALVE COVER
WB38K10008 WB38K10008 VENT ASSEMBLY
WB07K10239 WB07K10239 VENT TRIM SS
WB44K10015 WB44K10015 WARMING DRAWER LOWER ELEMENT
WB44K10014 WB44K10014 WARMING DRAWER UPPER ELEMENT
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB56K20 WB56K20 WIND PACK LG
WB34K10087 WB34K10087 WINDOW SPACER ASSEMBLY
Main Menu x
