Model Image
Manufacturer

GE

Model Number

PGB940DEF2BB

Description

Gas Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB16K10070 WB16K10070 GE 000 BTUS GAS RANGE BURNER BASE; 5
WB29K10024 WB29K10024 GE 000 BTUS GAS RANGE BURNER CAP-LARGE; 12
WB29K10022 WB29K10022 GE 000 BTUS GAS RANGE SMALL BURNER CAP; 5
WB16T10046 WB16T10046 GE 12 GAS COOKTOP LARGE BURNER 000 BTUS
WB16K10079 WB16K10079 GE 3R BURNER ASSEMBLY
WB29K10023 WB29K10023 GE 500 BTUS GAS RANGE MEDIUM BURNER CAP; 9
WB28K10023 WB28K10023 GE 89MM RANGE ORIFICE SPUD - NG TO LP
WB16K10055 WB16K10055 GE 9 RANGE SURFACE BURNER BASE-MEDIUM 500
WB2X8351 WB2X8351 GE BLADE FAN
WB63K10187 WB63K10187 GE BOTTOM INNER GUARD
WB35X37968 WB35X37968 GE BOTTOM OVEN ASM
WB02K0032 WB02K0032 GE BOTTOM OVEN BRACKT SUPPO
WB63K10041 WB63K10041 GE BOTTOM RANGE
WB63K0015 WB63K0015 GE BRACE BOTTOM
WB63K0005 WB63K0005 GE BRACE BOTTOM
WB63K5 WB63K5 GE BRACE BOTTOM
WB34X20456 WB34X20456 GE BRACE VENT
WB02K10254 WB02K10254 GE BRACKET ANTI-TIP ASSEMBLY
WB02X20522 WB02X20522 GE BRACKET H AND LE
WB39K0020 WB39K0020 GE BRACKET MOUNTING DRAWER
WB02K0041 WB02K0041 GE BRACKET OVEN CORNER
WB02K10178 WB02K10178 GE BUMPER
WB2K15 WB2K15 GE BUMPER BLACK
WB02K0015 WB02K0015 GE BUMPER, BLACK
WB16X20425 WB16X20425 GE BURNER BAKE
WB63X20464 WB63X20464 GE BURNER BOX SP
WB16X20418 WB16X20418 GE BURNER BROIL
WB29K10045 WB29K10045 GE BURNER CAP CENTRAL
WB29K10044 WB29K10044 GE BURNER CAP OUTER
WB02K10362 WB02K10362 GE CKT BRACKET MDM AND LGE
WB02K10361 WB02K10361 GE CKT BRACKET MDM AND LGE
WB02K10360 WB02K10360 GE CKT BRACKET SMALL
WB02K0036 WB02K0036 GE CLAMP CABLE
WB2K36 WB2K36 GE CLAMP CABLE
WB02K0031 WB02K0031 GE CLIP CABLE
WB02X21679 WB02X21679 GE CLIP CABLE
WB02K10380 WB02K10380 GE CLIP INSULATION
WB02K0052 WB02K0052 GE CLIP RANGETOP
WB2K52 WB2K52 GE CLIP RNGETOP
WB02X7066 WB02X7066 GE CLIP WIRE
WB02K10267 WB02K10267 GE CLIP WIRE
WB07X21510 WB07X21510 GE COMPLEMENT VENT TRIM

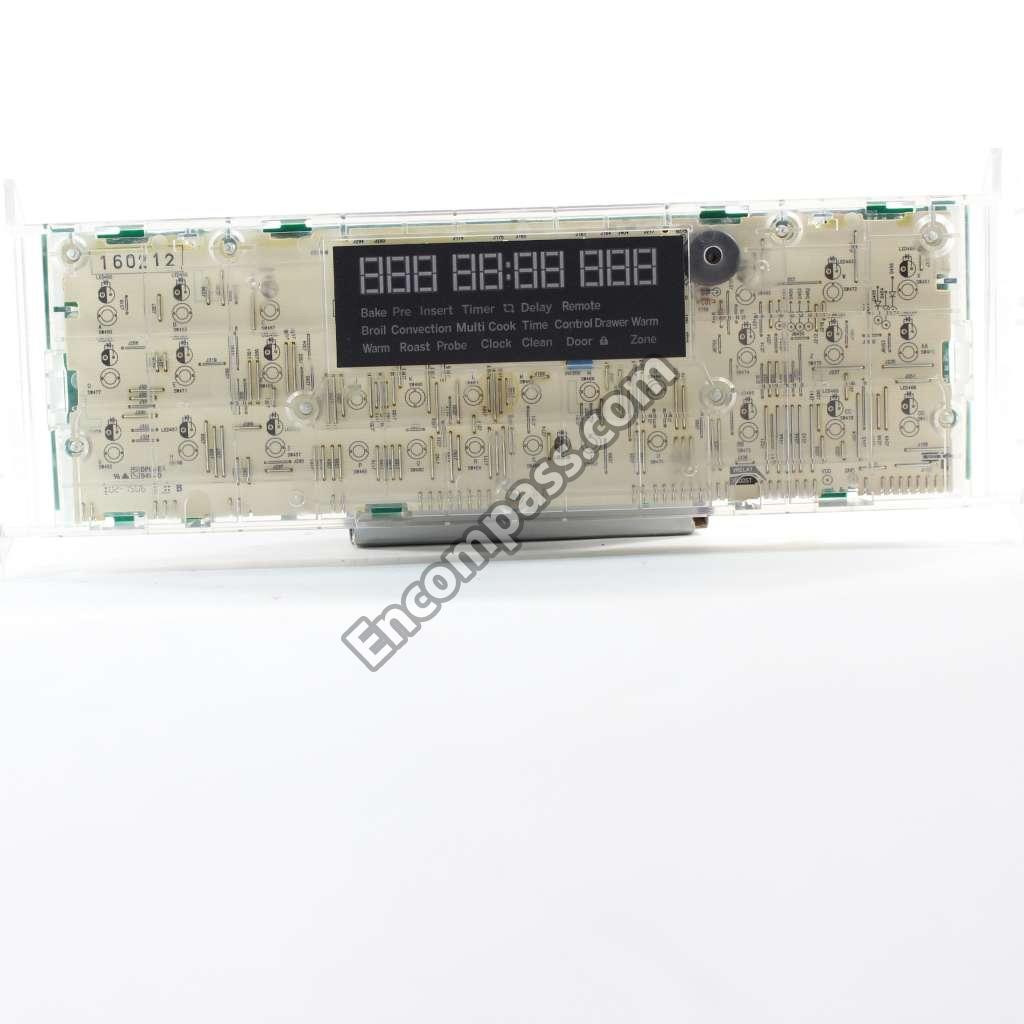

WB27X23340 WB27X23340 GE CONTROL BOARD T012 ELE
WB27X25340 WB27X25340 GE CONTROL BOARD T012 ELE
WB35X21685 WB35X21685 GE CORD FIBER GLASS
WB02K0004 WB02K0004 GE COVER ACCESS SPRING
WB34K0016 WB34K0016 GE COVER BACK
WB34K16 WB34K16 GE COVER BACK
WB34K10129 WB34K10129 GE COVER BACK LOWER
WB34X20525 WB34X20525 GE COVER BACK UPPER
WB63K10040 WB63K10040 GE COVER TERMINAL
WB02K0024 WB02K0024 GE COVER VALVE
WB57K10174 WB57K10174 GE CRYSTAL WINDOW
WB2K4 WB2K4 GE CVR ACC SPRG
WB34K14 WB34K14 GE CVR IGNITOR
WB49K10037 WB49K10037 GE DEFLECTOR OVEN
WB38K10022 WB38K10022 GE DIFFUSER VENT
WB34X21683 WB34X21683 GE DOOR GUARD
WB34X21570 WB34X21570 GE DOOR STIFFENER
WB39K10021 WB39K10021 GE DRAWER SLIDE ASSEMBLY LEFT
WB39K10020 WB39K10020 GE DRAWER SLIDE ASSEMBLY RIGHT
WB01K10037 WB01K10037 GE ECONOMIC NUT
WB28X20389 WB28X20389 GE ELBOW 90 ASSEMBLY
WB13T10080 WB13T10080 GE ELECTRODE TOP
WB07K10235 WB07K10235 GE END SUPPORT LF
WB07K10234 WB07K10234 GE END SUPPORT RT
WB02X8351 WB02X8351 GE FAN BLADE
WB26K10003 WB26K10003 GE FAN MOTOR CONVECT-2SPEED
WB49K0044 WB49K0044 GE FLAME SPREADER
WB01X1378 WB01X1378 GE FLAT WASHER-M4
WB02X28737 WB02X28737 GE FRAME FRONT BUMPER
WB63X21514 WB63X21514 GE FRAME WELD ASM
WB63X21665 WB63X21665 GE GASKET DRAWER ASSEMBLY
WB32K2 WB32K2 GE GASKET OVEN SEAL LG
WB35X20455 WB35X20455 GE GASKET VENT
WB02T10589X WB02T10589X GE GE BADGE GRAY
WB27X20508 WB27X20508 GE GLASS AND BOARD ASSEMBLY
WB56X21448 WB56X21448 GE GLASS DOOR ASSEMBLY
WB31K10250 WB31K10250 GE GRATE CAST
WB31K10251 WB31K10251 GE GRATE CAST
WB31K10248 WB31K10248 GE GRATE CAST MID
WB2K8 WB2K8 GE GROMMET
WB63K0016 WB63K0016 GE GUARD BOTTOM
WB56X21578 WB56X21578 GE GUARD RADIATION
WB15X21771 WB15X21771 GE HANDLE (BLACK)
WB18K10083 WB18K10083 GE HARNESS GROUND
WB18X20790 WB18X20790 GE HARNESS GROUND
WB18X20380 WB18X20380 GE HARNESS HV
WB18X20393 WB18X20393 GE HARNESS SWITCHES
WB18X20521 WB18X20521 GE HARNESS WIRE GLASS TOUCH
WB34X21572 WB34X21572 GE HEAT DEFLECTOR DOOR LEFT
WB34X21571 WB34X21571 GE HEAT DEFLECTOR DOOR RT
WB44K10011 WB44K10011 GE HEATING ELEMENT
WB10X20936 WB10X20936 GE HINGE DOOR
WB10X20937 WB10X20937 GE HINGE DOOR
WB14K10003 WB14K10003 GE HINGE RANGE TOP
WB27X20933 WB27X20933 GE HOUSING RJ45 ASSEMBLY
WB34K0014 WB34K0014 GE IGNITER COVER
WB13X25261 WB13X25261 GE IGNITER GLOWBAR
WB28K10784 WB28K10784 GE INJECT TOP BURNER ASSEMBLY
WB35X21565 WB35X21565 GE INNER DOOR DEFLECTOR
WB35X21567 WB35X21567 GE INSULATION DOOR
WB35X21566 WB35X21566 GE INSULATION DOOR
WB35X21568 WB35X21568 GE INSULATION DOOR
WB35X20436 WB35X20436 GE INSULATION OVEN BACK
WB35X20915 WB35X20915 GE INSULATION OVEN WRAP
WB35X21573 WB35X21573 GE INSULATION TRIM
WB35X20447 WB35X20447 GE INSULATION VENT
WB49X26562 WB49X26562 GE KIT DRAWER BODY ASSEMBLY
WB28X20691 WB28X20691 GE KIT HIGH ALTITUDE ASSEMBLY
WB49X20383 WB49X20383 GE KIT LP CONVERSION ASSEMBLY
WB03X20919 WB03X20919 GE KNOB LOCATOR
WB10X20842 WB10X20842 GE LATCH AUTOMATIC
WB55K10084 WB55K10084 GE LINER DOOR WELD ASSEMBLY
WB55K10055 WB55K10055 GE LINER DRAWER
31-10924 31-10924 GE LP CONVERSION INST
WB35K10211 WB35K10211 GE MANIFOLD EYEBROW
WB36X20548 WB36X20548 GE MANIFOLD PANEL
WB28X20975 WB28X20975 GE MANIFOLD PIPE
WB02T10017 WB02T10017 GE NUT
WB28X21513 WB28X21513 GE ORIFICE HOLDER ASSEMBLY
WB28X20607 WB28X20607 GE ORIFICE HOLDER LF
WB28X21953 WB28X21953 GE ORIFICE HOLDER LR
WB28X21954 WB28X21954 GE ORIFICE HOLDER RR
WB28K10834 WB28K10834 GE ORIFICE SPUD
WB28K10694 WB28K10694 GE ORIFICE SPUD
WB28K10693 WB28K10693 GE ORIFICE SPUD
WB28K10214 WB28K10214 GE ORIFICE SPUD LP 92L
WB16K10076 WB16K10076 GE OVAL BURNER ASSEMBLY
WB63X20423 WB63X20423 GE OVEN BACK
WB53K10053 WB53K10053 GE OVEN SIDE
WB53K10052 WB53K10052 GE OVEN SIDE
WB63X20437 WB63X20437 GE OVEN TOP
WB56X20980 WB56X20980 GE PANEL DRAWER
WB63K10120 WB63K10120 GE PANEL REAR BROIL
WB63K0003 WB63K0003 GE PANEL SIDE BROIL LFT
WB63K0002 WB63K0002 GE PANEL SIDE BROIL RT
WB14K10004 WB14K10004 GE PIN LOCATOR
WB14K10005 WB14K10005 GE PIN LOCATOR
WB24X20445 WB24X20445 GE PLUNGER SWITCH DUAL
31-10888 31-10888 GE PM INSTALL INSTRUCTIONS
49-85211 49-85211 GE PM OWNERS MANUAL
WB63K3 WB63K3 GE PNL SD BRO L
WB63K2 WB63K2 GE PNL SD BRO R
WB48X21543 WB48X21543 GE RACK OVEN SLIDE ASSEMBLY
WB48X21508 WB48X21508 GE RANGE (GAS) SELF-CLEAN OVEN RACK
WB63X23200 WB63X23200 GE RANGE BACK
WB34K10038 WB34K10038 GE RANGE BACK FAN COVER
WB07X20288 WB07X20288 GE RANGE BARRIER DOOR
WB2K32 WB2K32 GE RANGE BRACKET SUPPORT
WB28K10215 WB28K10215 GE RANGE BURNER ORIFICE
WB28X24773 WB28X24773 GE RANGE BURNER TUBE SUPPLY
WB02X20518 WB02X20518 GE RANGE CONTROL BRACKET - LEFT
WB02X20517 WB02X20517 GE RANGE CONTROL BRACKET - RIGHT
WB49K10025 WB49K10025 GE RANGE DEFLECTOR
WB39K20 WB39K20 GE RANGE DRAWER MOUNTING BRACKET
WB02X20979 WB02X20979 GE RANGE DRAWER PANEL SPACER
WB01K10112 WB01K10112 GE RANGE ELECTRODE CLIP
WB02K10023 WB02K10023 GE RANGE ELEMENT CLAMP
WB34K10142 WB34K10142 GE RANGE FAN COVER
WB02K10034 WB02K10034 GE RANGE FAN SUPPORT
WB35K10053 WB35K10053 GE RANGE FRONT DRAWER INSULATION
WB34K10128 WB34K10128 GE RANGE HEATING ELEMENT COVER
WB1X1293 WB1X1293 GE RANGE IGNITER MOUNTING SCREW
WB35K10038 WB35K10038 GE RANGE INSULATOR FAN
WB03X20552 WB03X20552 GE RANGE KNOB - BLACK
WB03X20556 WB03X20556 GE RANGE KNOB - BLACK
WB03X20558 WB03X20558 GE RANGE KNOB - BLACK
WB03X20973 WB03X20973 GE RANGE KNOB LOCATOR
WB02K10182 WB02K10182 GE RANGE LEVELING LEG
WB08K10018 WB08K10018 GE RANGE LIGHT COVER
WB02K10349 WB02K10349 GE RANGE LIGHT INSULATION
WB18K10081 WB18K10081 GE RANGE LINE CORD
WB34K10086 WB34K10086 GE RANGE LOWER HEAT SHIELD
WB34K10148 WB34K10148 GE RANGE MOTOR COVER
WB2K41 WB2K41 GE RANGE OVEN BRACKET
WB32K10052 WB32K10052 GE RANGE OVEN GASKET
WB34K10141 WB34K10141 GE RANGE OVEN GLASS METAL FRAME
WB13K21 WB13K21 GE RANGE OVEN IGNITER
WB08T10002 WB08T10002 GE RANGE OVEN LAMP ASSEMBLY
WB32K10044 WB32K10044 GE RANGE OVEN LIGHT GASKET
WB63K16 WB63K16 GE RANGE PANEL
WB56X22008 WB56X22008 GE RANGE SIDE PANEL
WB02X20849 WB02X20849 GE RANGE SIDE SPACER
WB13X26360 WB13X26360 GE RANGE SPARK MODULE 6+0
WB20K10027 WB20K10027 GE RANGE TEMPERATURE SENSOR
WB02X20735 WB02X20735 GE RANGE TOP REAR SUPPORT
WB19K10059 WB19K10059 GE RANGE VALVE LOCKOUT
WB63K15 WB63K15 GE RANGE VENT BRACE
WB62X20976 WB62X20976 GE RANGETOP BRKT ASM
WB10K10029 WB10K10029 GE RECEIVER HINGE
WB31X23201 WB31X23201 GE REVERSIBLE GRIDDLE
WB1K44 WB1K44 GE SCEW LATCH
WB01K10042 WB01K10042 GE SCR 8-18 AB IHW 3/8 SN
WB01K0001 WB01K0001 GE SCREW
WB01K10091 WB01K10091 GE SCREW
WB01K10106 WB01K10106 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB1X5716 WB1X5716 GE SCREW
WB1X536 WB1X536 GE SCREW
WB01K10057 WB01K10057 GE SCREW
WB1K5119 WB1K5119 GE SCREW
WB01X5716 WB01X5716 GE SCREW (BLK)
WB01X5364 WB01X5364 GE SCREW (CR)
WB01X0593 WB01X0593 GE SCREW - DOOR ASM (4 PER)
WB01K10116 WB01K10116 GE SCREW 10-16
WB01K0031 WB01K0031 GE SCREW 10-16 PL PNT 2.5 S
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01K10067 WB01K10067 GE SCREW 8 HD 1/4-20
WZ4X345D WZ4X345D GE SCREW 8-18X5/8 HXW
WB01K10002 WB01K10002 GE SCREW 8-32
WB01K0044 WB01K0044 GE SCREW DOOR LATCH
WB01X1261 WB01X1261 GE SCREW GROUND
WB1K53 WB1K53 GE SCREW HINGE
WB01X1189 WB01X1189 GE SCREW M4X8
WB1X5364 WB1X5364 GE SCREW MTG
WB01K0053 WB01K0053 GE SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 GE SCREW MTG IGNITER
WB01K10110 WB01K10110 GE SCREW TRILOBULAR
WB1X5731D WB1X5731D GE SCREW-PKG 12
WB34X20303 WB34X20303 GE SHIELD BROIL
WB16X20449 WB16X20449 GE SPACER BASE
WB16X20448 WB16X20448 GE SPACER BASE
WB01K0002 WB01K0002 GE SPEEDNUT
WB01K10093 WB01K10093 GE SPEEDNUT
WB1K2 WB1K2 GE SPEEDNUT
WB63X20216 WB63X20216 GE SUPPORT BASE
WB63X20215 WB63X20215 GE SUPPORT BASE
WB07X20327 WB07X20327 GE TRIM CONTROL
WB01K10072 WB01K10072 GE TRIM FRONT BOTTOM
WB28X20467 WB28X20467 GE TUBE MAIN DUAL VALVE
WB28K10428 WB28K10428 GE TUBE MANIFOLD SUPPLY
WB28X20466 WB28X20466 GE TUBE SIMMER DUAL VALVE
WB21X20471 WB21X20471 GE VALVE BURNER 270
WB21X20470 WB21X20470 GE VALVE BURNER 270
WB21X20469 WB21X20469 GE VALVE BURNER 270
WB21X20472 WB21X20472 GE VALVE BURNER 3R 310
WB19K10074 WB19K10074 GE VALVE CONTROL ASSEMBLY NOR. D
WB2K24 WB2K24 GE VALVE COVER
WB34X20294 WB34X20294 GE VENT ASSEMBLY
