Model Image
Manufacturer

GE

Model Number

PGB950DEF1WW

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB16K10070 WB16K10070 000 BTUS GAS RANGE BURNER BASE; 5
WB29K10024 WB29K10024 000 BTUS GAS RANGE BURNER CAP-LARGE; 12
WB29K10022 WB29K10022 000 BTUS GAS RANGE SMALL BURNER CAP; 5
WB16T10046 WB16T10046 12 GAS COOKTOP LARGE BURNER 000 BTUS
WB16K10079 WB16K10079 3R BURNER ASSEMBLY
WB29K10023 WB29K10023 500 BTUS GAS RANGE MEDIUM BURNER CAP; 9
WB28K10023 WB28K10023 89MM RANGE ORIFICE SPUD - NG TO LP
WB16K10055 WB16K10055 9 RANGE SURFACE BURNER BASE-MEDIUM 500
WB02K0003 WB02K0003 ANGLE SUPPORT
WB2K3 WB2K3 ANGLE SUPPRT
WB44K10034 WB44K10034 ASSEMBLY ELEMENT BROIL
WB56X20799 WB56X20799 BACKER
WB49K10036 WB49K10036 BAKE DEFLECTOR COMPLEMEN
WB49K10029 WB49K10029 BAKE DEFLECTOR UC
WB56X20457 WB56X20457 BARRIER BOTTOM FLOOR
WB2X8351 WB2X8351 BLADE FAN
WB27X20788 WB27X20788 BOARD DAUGHTER RELAY 6
WB27X20933 WB27X20933 BOARD RJ45 CONNECTOR
WB63X21725 WB63X21725 BOTTOM DUCT
WB34X21670 WB34X21670 BOTTOM OVEN
WB63X20441 WB63X20441 BOTTOM RANGE
WB02X20414 WB02X20414 BRACE
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASSEMBLY
WB02X20519 WB02X20519 BRACKET CAVITY
WB02X21694 WB02X21694 BRACKET CONNECTOR
WB02X20523 WB02X20523 BRACKET H AND LE
WB02K0041 WB02K0041 BRACKET OVEN CORNER
WB02X21734 WB02X21734 BRACKET PIPE
WB02K10179 WB02K10179 BUMPER
WB16K10074 WB16K10074 BURNER BAKE
WB16X20606 WB16X20606 BURNER BAKE
WB63X20464 WB63X20464 BURNER BOX SP
WB16X20461 WB16X20461 BURNER BROIL ASSEMBLY
WB16X20462 WB16X20462 BURNER BROIL ASSEMBLY
WB29K10045 WB29K10045 BURNER CAP CENTRAL
WB29K10044 WB29K10044 BURNER CAP OUTER
WB02K10361 WB02K10361 CKT BRACKET MDM AND LGE
WB02K10362 WB02K10362 CKT BRACKET MDM AND LGE
WB02K10360 WB02K10360 CKT BRACKET SMALL
WB01K10106 WB01K10106 CKT SCREW
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB01K10112 WB01K10112 CLIP ELECTRODE
WB02K0052 WB02K0052 CLIP RANGETOP
WB2K52 WB2K52 CLIP RNGETOP
WB02K10307 WB02K10307 CLIP WIRE
WB02K10267 WB02K10267 CLIP WIRE
WB34X21723 WB34X21723 COMPLEMENT OVEN BACK

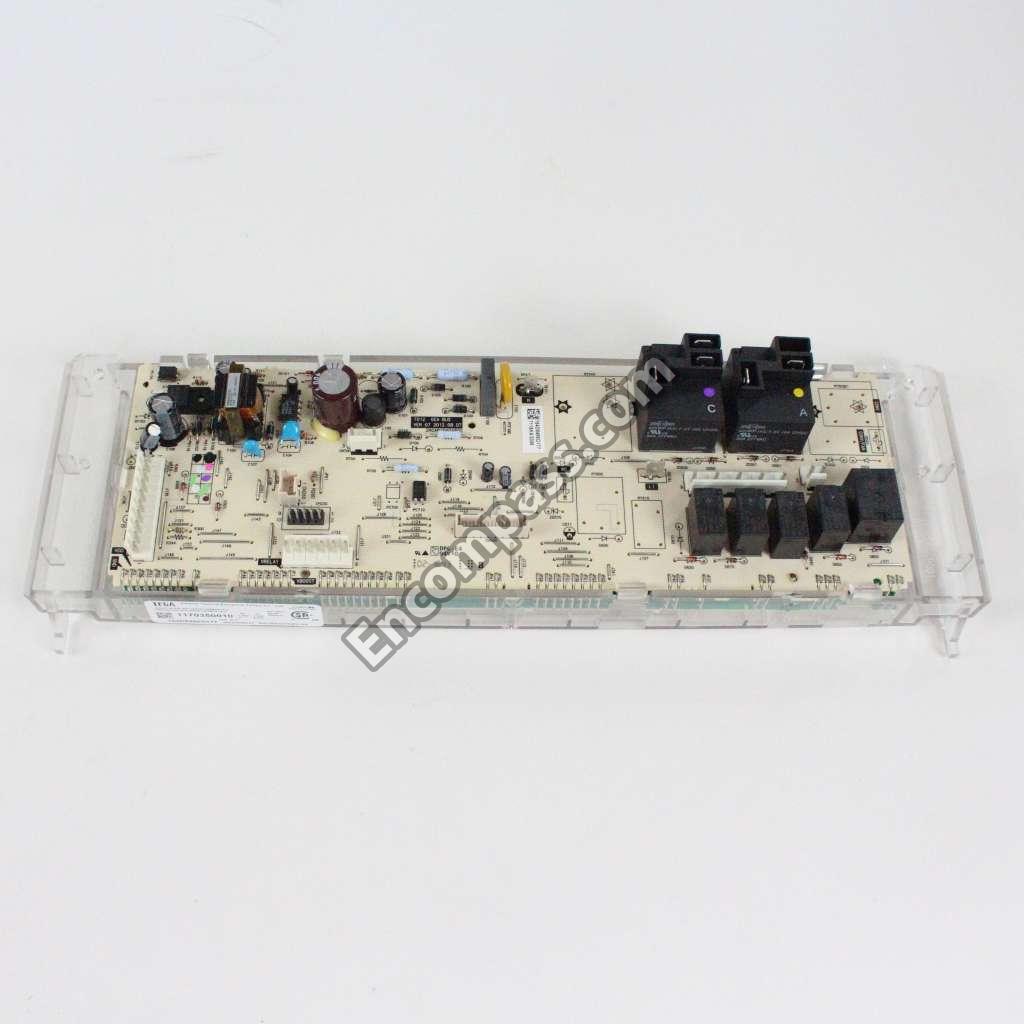

WB27X23365 WB27X23365 CONTROL BOARD T012 ELE
WB27X25337 WB27X25337 CONTROL BOARD T012 ELE
WB35X21685 WB35X21685 CORD FIBER GLASS
WB34X20525 WB34X20525 COVER BACK UPPER
WB02K10337 WB02K10337 COVER CAP
WB34X21619 WB34X21619 COVER LATCH
WB34X20526 WB34X20526 COVER SHUTTER
WB02K0024 WB02K0024 COVER VALVE
WB57K10155 WB57K10155 CRYSTAL WINDOW
WB57K10156 WB57K10156 CRYSTAL WINDOW
WB34K14 WB34K14 CVR IGNITOR
WB34X20524 WB34X20524 DEFLECTOR FLAME
WB16X20595 WB16X20595 DUAL BUERNER SUPPLY
WB01K10037 WB01K10037 ECONOMIC NUT
WB28X20451 WB28X20451 ELBOW 90 ASSEMBLY
WB28X20619 WB28X20619 ELBOW 90 ASSEMBLY
WB13T10080 WB13T10080 ELECTRODE TOP
WB02X8351 WB02X8351 FAN BLADE
WB34K10132 WB34K10132 FAN COVER
WB26K10003 WB26K10003 FAN MOTOR CONVECT-2SPEED
WB01X1378 WB01X1378 FLAT WASHER-M4
WB02X28737 WB02X28737 FRAME FRONT BUMPER
WB63X21535 WB63X21535 FRAME FRONT UC
WB63X20432 WB63X20432 FRAME WELD ASSEMBLY
WB34X28741 WB34X28741 FRAME WINDOW ASSEMBLY
WB34X28740 WB34X28740 FRAME WINDOW ASSY
WB63X21664 WB63X21664 GASKET DRAWER ASSEMBLY
WB32K10046 WB32K10046 GASKET OVEN
WB32K10047 WB32K10047 GASKET OVEN
WB32K0001 WB32K0001 GASKET VENT
WB35X26571 WB35X26571 GASKET VENT
WB35X20455 WB35X20455 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB02T10589X WB02T10589X GE BADGE GRAY

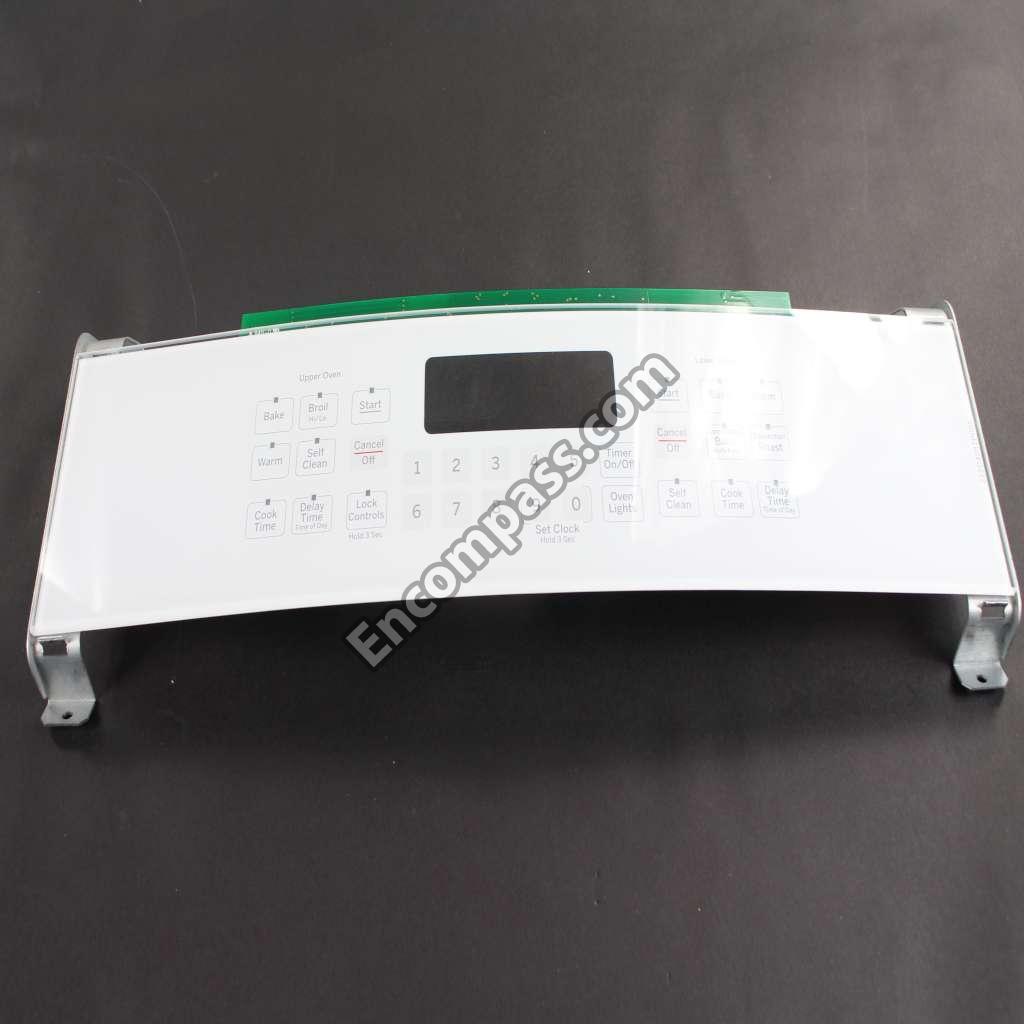

WB27X20515 WB27X20515 GLASS AND BOARD ASSEMBLY
WB56X20501 WB56X20501 GLASS AND PANEL DOOR ASSEMBLY
WB56X21454 WB56X21454 GLASS DOOR ASSEMBLY
WB31K10250 WB31K10250 GRATE CAST
WB31K10251 WB31K10251 GRATE CAST
WB31K10248 WB31K10248 GRATE CAST MID
WB2K8 WB2K8 GROMMET
WB35X21704 WB35X21704 GUARD INSULATION
WB56K10079 WB56K10079 GUARD INSULATION
WB53K10047 WB53K10047 GUARD TOP INSULATION
WB15X21772 WB15X21772 HANDLE OVEN DOOR (WHITE)
WB18K10083 WB18K10083 HARNESS GROUND
WB18X20790 WB18X20790 HARNESS GROUND
WB18X25233 WB18X25233 HARNESS H. V ELECTRODES
WB18X20380 WB18X20380 HARNESS HV
WB18X20390 WB18X20390 HARNESS SWITCHES
WB18X20521 WB18X20521 HARNESS WIRE GLASS TOUCH
WB10X21528 WB10X21528 HINGE ASSEMBLY
WB10X21529 WB10X21529 HINGE ASSEMBLY
WB10X20797 WB10X20797 HINGE DOOR
WB10X20798 WB10X20798 HINGE DOOR
WB14K10003 WB14K10003 HINGE RANGE TOP
WB10K10025 WB10K10025 HINGE RECEIVER
WB10K10026 WB10K10026 HINGE RECEIVER
WB34K0014 WB34K0014 IGNITER COVER
WB28X20446 WB28X20446 IGNITER GLOW BAR
WB28K10784 WB28K10784 INJECT TOP BURNER ASSEMBLY
WB35K10026 WB35K10026 INSULATION BURNER BOX
WB34X21729 WB34X21729 INSULATION DOOR
WB34X21730 WB34X21730 INSULATION DOOR
WB35X23840 WB35X23840 INSULATION DOOR
WB35X23841 WB35X23841 INSULATION DOOR
WB35X23839 WB35X23839 INSULATION DOOR
WB35X25740 WB35X25740 INSULATION OVEN BACK
WB35X25741 WB35X25741 INSULATION OVEN BACK
WB35X20434 WB35X20434 INSULATION OVEN WRAP
WB35X20435 WB35X20435 INSULATION OVEN WRAP
WB01T10086 WB01T10086 KEPS NUT 6-32
WB28X20696 WB28X20696 KIT HIGH ALTITUDE ASSEMBLY
WB49X20386 WB49X20386 KIT LP CONVERSION ASSEMBLY
WB03X20919 WB03X20919 KNOB LOCATOR
WB02K10326 WB02K10326 L SUPPORT
WB10X20551 WB10X20551 LATCH AUTOMATIC
WB10X20569 WB10X20569 LATCH AUTOMATIC
WB55K10081 WB55K10081 LINER DOOR ASSEMBLY
WB55K10080 WB55K10080 LINER DOOR WELD ASSEMBLY
WB01X26841 WB01X26841 LOCK WASHER
WB36X20549 WB36X20549 MANIFOLD PANEL
WB28X21046 WB28X21046 MANIFOLD PIPE
WB02X20520 WB02X20520 MICROWAVE HANDLE BRACKET
WB28X20796 WB28X20796 MULTITUBE SUPPLY
WB02T10017 WB02T10017 NUT
WB28X20617 WB28X20617 ORIFICE HOLDER ASSEMBLY
WB28X20607 WB28X20607 ORIFICE HOLDER LF
WB28X21953 WB28X21953 ORIFICE HOLDER LR
WB28X21954 WB28X21954 ORIFICE HOLDER RR
WB28K10693 WB28K10693 ORIFICE SPUD
WB28K10694 WB28K10694 ORIFICE SPUD
WB28K10834 WB28K10834 ORIFICE SPUD
WB28K10214 WB28K10214 ORIFICE SPUD LP 92L
WB16K10076 WB16K10076 OVAL BURNER ASSEMBLY
WB63X20428 WB63X20428 OVEN BACK
WB34X21717 WB34X21717 OVEN BACK UC
WB63X20786 WB63X20786 OVEN BOTTOM UC
WB34X20443 WB34X20443 OVEN DEFLECTOR
WB34X20444 WB34X20444 OVEN DEFLECTOR
WB53K10041 WB53K10041 OVEN SIDE
WB53K10042 WB53K10042 OVEN SIDE UC
WB63X20784 WB63X20784 OVEN SIDE UC
WB63X20729 WB63X20729 OVEN TOP
WB53K10039 WB53K10039 OVEN TOP
WB63K10122 WB63K10122 PANEL SIDE
WB56X22009 WB56X22009 PANEL SIDE
WB14K10004 WB14K10004 PIN LOCATOR
WB14K10005 WB14K10005 PIN LOCATOR
WB24X20445 WB24X20445 PLUNGER SWITCH DUAL
31-10887 31-10887 PM INSTALL INSTRUCTIONS
49-85213 49-85213 PM OWNERS MANUAL
WB34X21733 WB34X21733 POST SIDE
WB21X20795 WB21X20795 PRESSURE REGULATOR

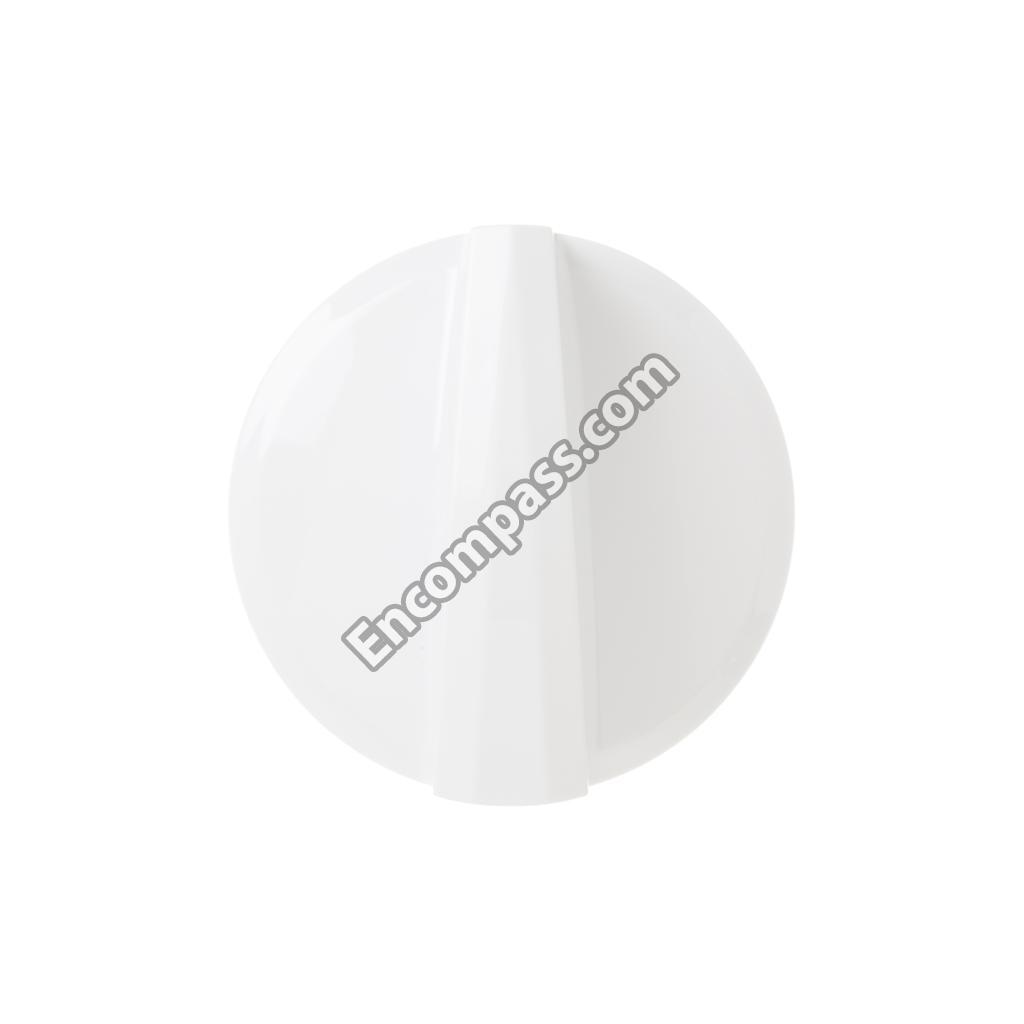

WB03X20557 WB03X20557 PROFILE RANGE KNOB - WHITE
WB48X21543 WB48X21543 RACK OVEN SLIDE ASSEMBLY
WB48X21508 WB48X21508 RANGE (GAS) SELF-CLEAN OVEN RACK
WB63X20794 WB63X20794 RANGE BACK
WB34K10038 WB34K10038 RANGE BACK FAN COVER
WB28K10215 WB28K10215 RANGE BURNER ORIFICE
WB02X20518 WB02X20518 RANGE CONTROL BRACKET - LEFT
WB02X20517 WB02X20517 RANGE CONTROL BRACKET - RIGHT
WB35X21691 WB35X21691 RANGE DOOR INSULATION
WB02K10023 WB02K10023 RANGE ELEMENT CLAMP

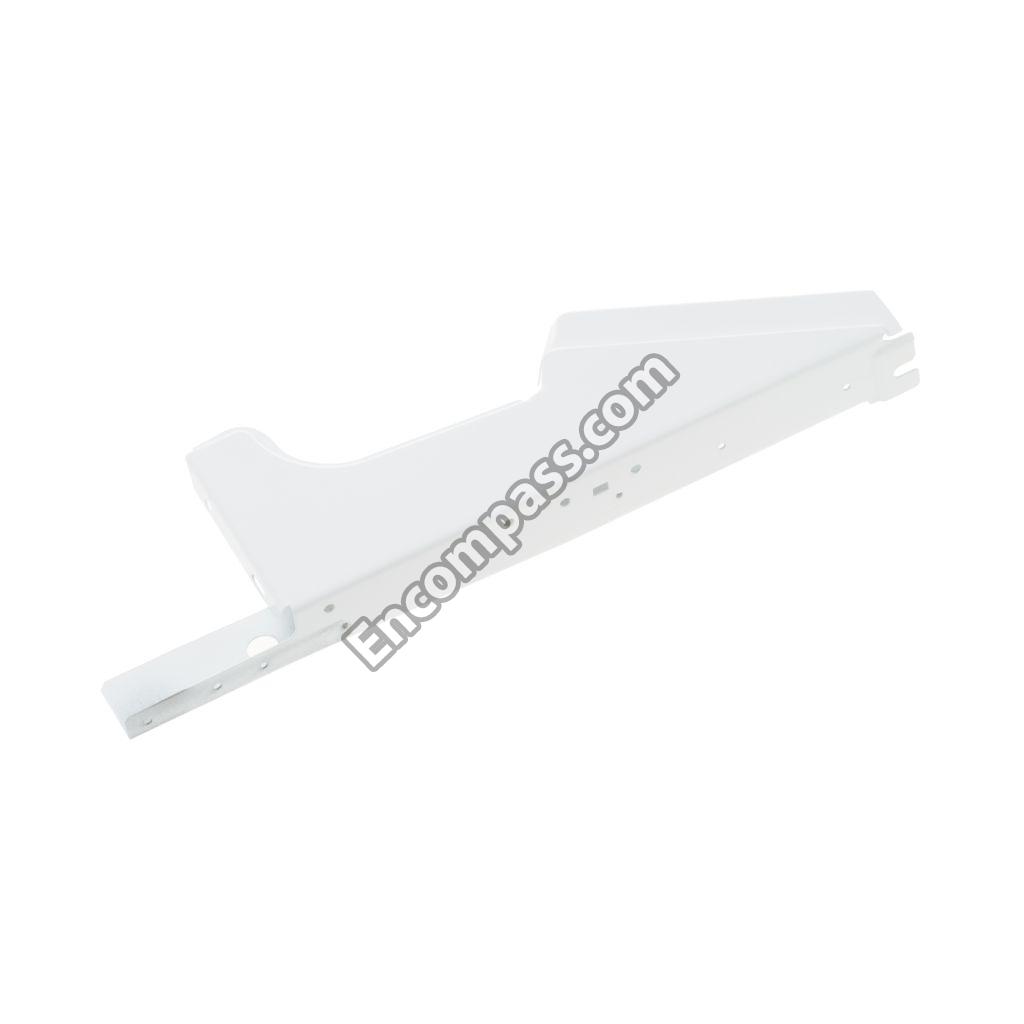

WB07X21042 WB07X21042 RANGE END SUPPORT - LEFT - WHITE

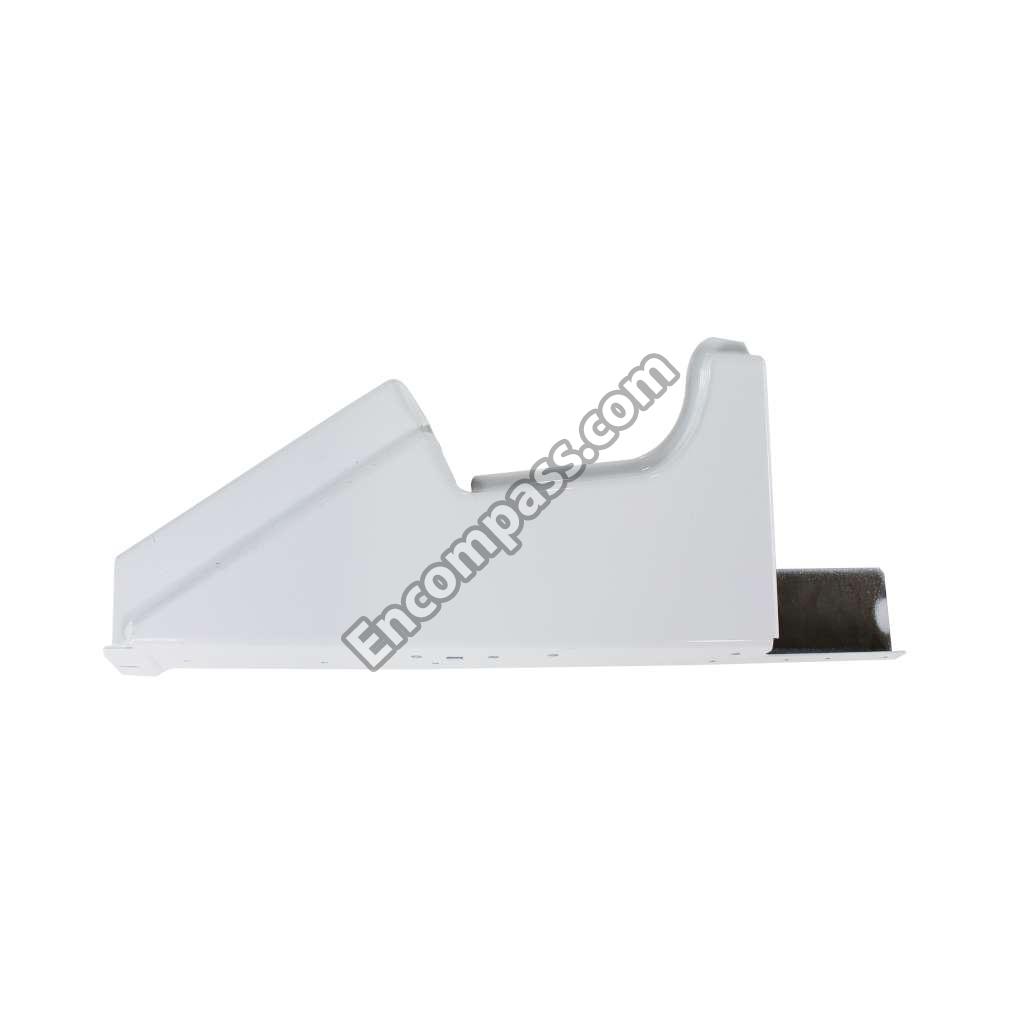

WB07X21041 WB07X21041 RANGE END SUPPORT - RIGHT - WHITE
WB02K10034 WB02K10034 RANGE FAN SUPPORT
WB13K10043 WB13K10043 RANGE IGNITER GLOW BAR
WB13X25262 WB13X25262 RANGE IGNITER GLOWBAR
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB34X24753 WB34X24753 RANGE IGNITOR COVER
WB35K10038 WB35K10038 RANGE INSULATOR FAN

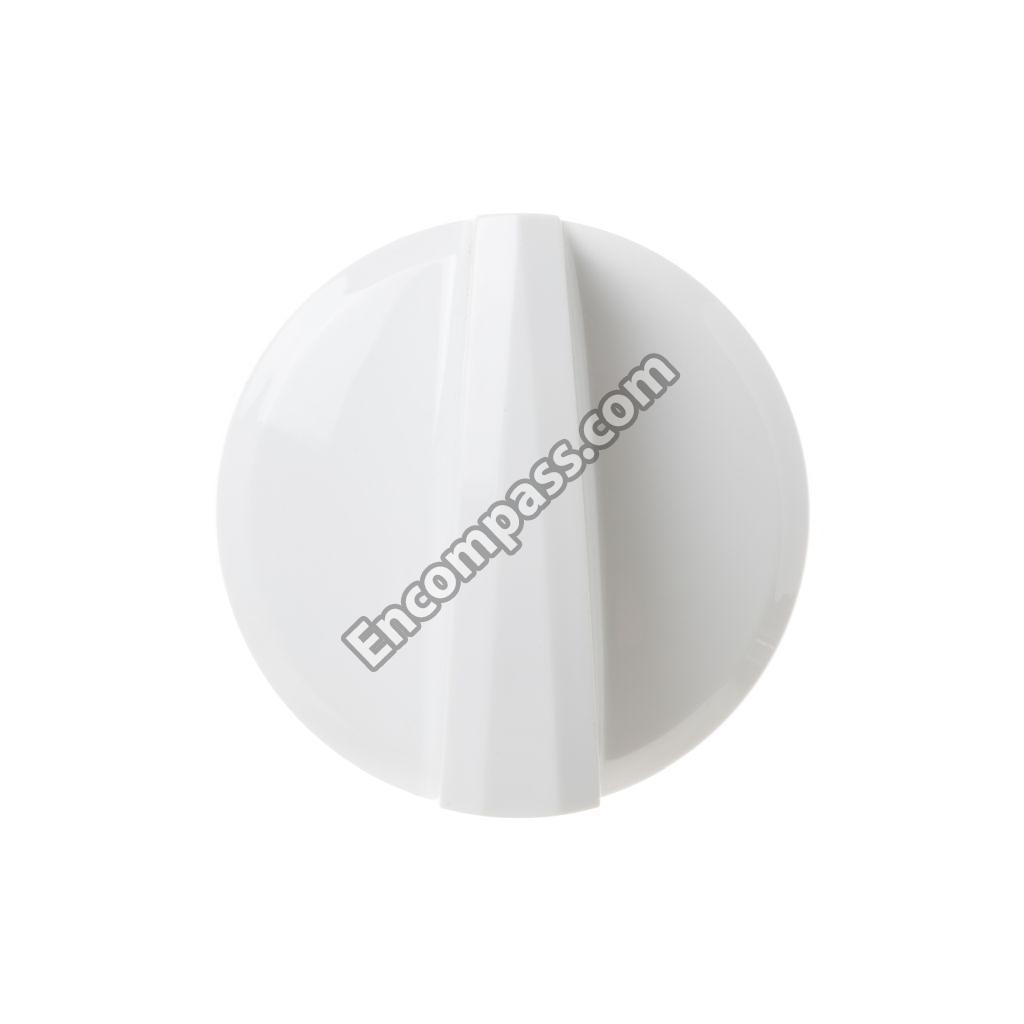

WB03X20554 WB03X20554 RANGE KNOB - WHITE
WB03X20559 WB03X20559 RANGE KNOB - WHITE
WB03X20973 WB03X20973 RANGE KNOB LOCATOR
WB02K10182 WB02K10182 RANGE LEVELING LEG
WB08K10018 WB08K10018 RANGE LIGHT COVER
WB02K10349 WB02K10349 RANGE LIGHT INSULATION
WB02X20722 WB02X20722 RANGE MANIFOLD PIPE
WB34K10148 WB34K10148 RANGE MOTOR COVER
WB2K41 WB2K41 RANGE OVEN BRACKET
WB08T10002 WB08T10002 RANGE OVEN LAMP ASSEMBLY
WB32K10044 WB32K10044 RANGE OVEN LIGHT GASKET
WB18K10070 WB18K10070 RANGE POWER CORD
WB02X21705 WB02X21705 RANGE REGULATOR SUPPORT
WB35K10100 WB35K10100 RANGE SIDE INSULATION
WB02X20849 WB02X20849 RANGE SIDE SPACER
WB13X26360 WB13X26360 RANGE SPARK MODULE 6+0
WB20K10027 WB20K10027 RANGE TEMPERATURE SENSOR

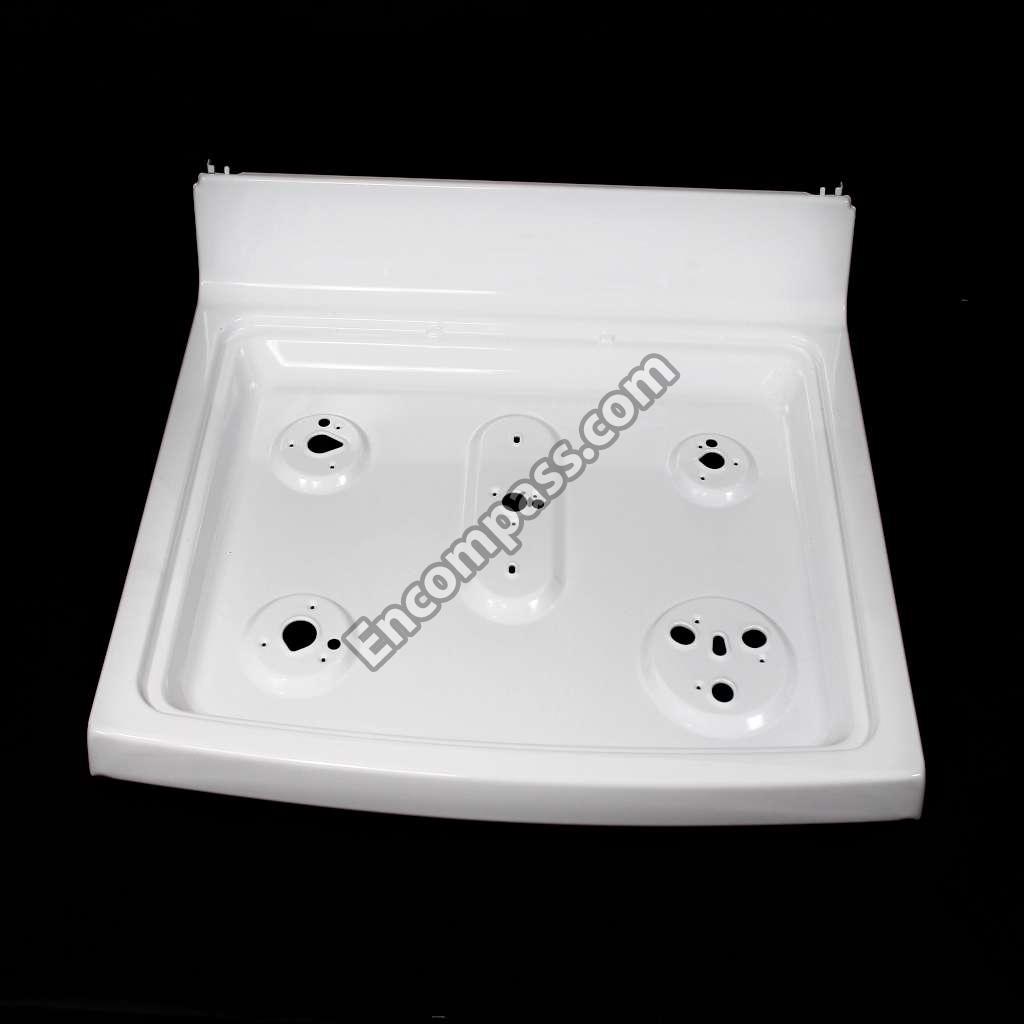

WB62X20977 WB62X20977 RANGETOP BRKT ASM
WB10X25127 WB10X25127 RECEIVER HINGE
WB2X2030 WB2X2030 RETAINER
WB02K0030 WB02K0030 RETAINER-INSULATION VENT
WB31X23201 WB31X23201 REVERSIBLE GRIDDLE
WB21X20474 WB21X20474 SAFETY VALVE DUAL
WB21X20475 WB21X20475 SAFETY VALVE SINGLE
WB02X32444 WB02X32444 SCR 10-16 PL PNT 2.5 S
WB01K10042 WB01K10042 SCR 8-18 AB IHW 3/8 SN
WZ5X158D WZ5X158D SCR 8-32 T HXW 3/8 S
WB01K0001 WB01K0001 SCREW
WB01K0084 WB01K0084 SCREW
WB01K10091 WB01K10091 SCREW
WB1X536 WB1X536 SCREW
WB1X5754 WB1X5754 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5062 WB1K5062 SCREW
WB01K10030 WB01K10030 SCREW
WB01X24460 WB01X24460 SCREW
WB01K10057 WB01K10057 SCREW
WB1K5119 WB1K5119 SCREW
WB1K84 WB1K84 SCREW & WASH
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB01K10116 WB01K10116 SCREW 10-16
WB01K0031 WB01K0031 SCREW 10-16 PL PNT 2.5 S
WB01T10009 WB01T10009 SCREW 10-16 SHLDR TYPE A
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB1K78 WB1K78 SCREW 12-14
WB01K0078 WB01K0078 SCREW 12-14, 5/8S
WB01K10067 WB01K10067 SCREW 8 HD 1/4-20
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01X5754 WB01X5754 SCREW 8-18 ABT 1/2 S
WZ4X345D WZ4X345D SCREW 8-18X5/8 HXW
WB01K10002 WB01K10002 SCREW 8-32
WB01X1261 WB01X1261 SCREW GROUND
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01K10110 WB01K10110 SCREW TRILOBULAR
WB1X5731D WB1X5731D SCREW-PKG 12
WB23X5340 WB23X5340 SENSOR-OVEN
WB63X20427 WB63X20427 SIDE OVEN
WB16X20448 WB16X20448 SPACER BASE
WB16X20449 WB16X20449 SPACER BASE
WB16X20450 WB16X20450 SPACER BASE
WB01K0002 WB01K0002 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB02T10093 WB02T10093 ST AND OFF PCB
WB63X20215 WB63X20215 SUPPORT BASE
WB63X20216 WB63X20216 SUPPORT BASE
WB63X25481 WB63X25481 SUPPORT BASE LEFT
WB63X25480 WB63X25480 SUPPORT BASE RT
WB02K10325 WB02K10325 SUPPORT VALVE SINGLE
WB07X20329 WB07X20329 TRIM CONTROL
WB28X20415 WB28X20415 TUBE ASSEMBLY RUNNER
WB28X20757 WB28X20757 TUBE LOWER BAKE SUPPLY
WB28X20467 WB28X20467 TUBE MAIN DUAL VALVE
WB28X25462 WB28X25462 TUBE MANIFOLD SUPPLY
WB28X24405 WB28X24405 TUBE REGULATOR
WB28X20466 WB28X20466 TUBE SIMMER DUAL VALVE
WB28X20758 WB28X20758 TUBE UPPER BAKE SUPPLY
WB21X20470 WB21X20470 VALVE BURNER 270
WB21X20471 WB21X20471 VALVE BURNER 270
WB21X20469 WB21X20469 VALVE BURNER 270
WB21X20472 WB21X20472 VALVE BURNER 3R 310
WB2K24 WB2K24 VALVE COVER
WB21X20465 WB21X20465 VALVE LOCKOUT
WB34X20439 WB34X20439 VENT LOWER ASSEMBLY
WB34X20597 WB34X20597 VENT UPPER ASSEMBLY
