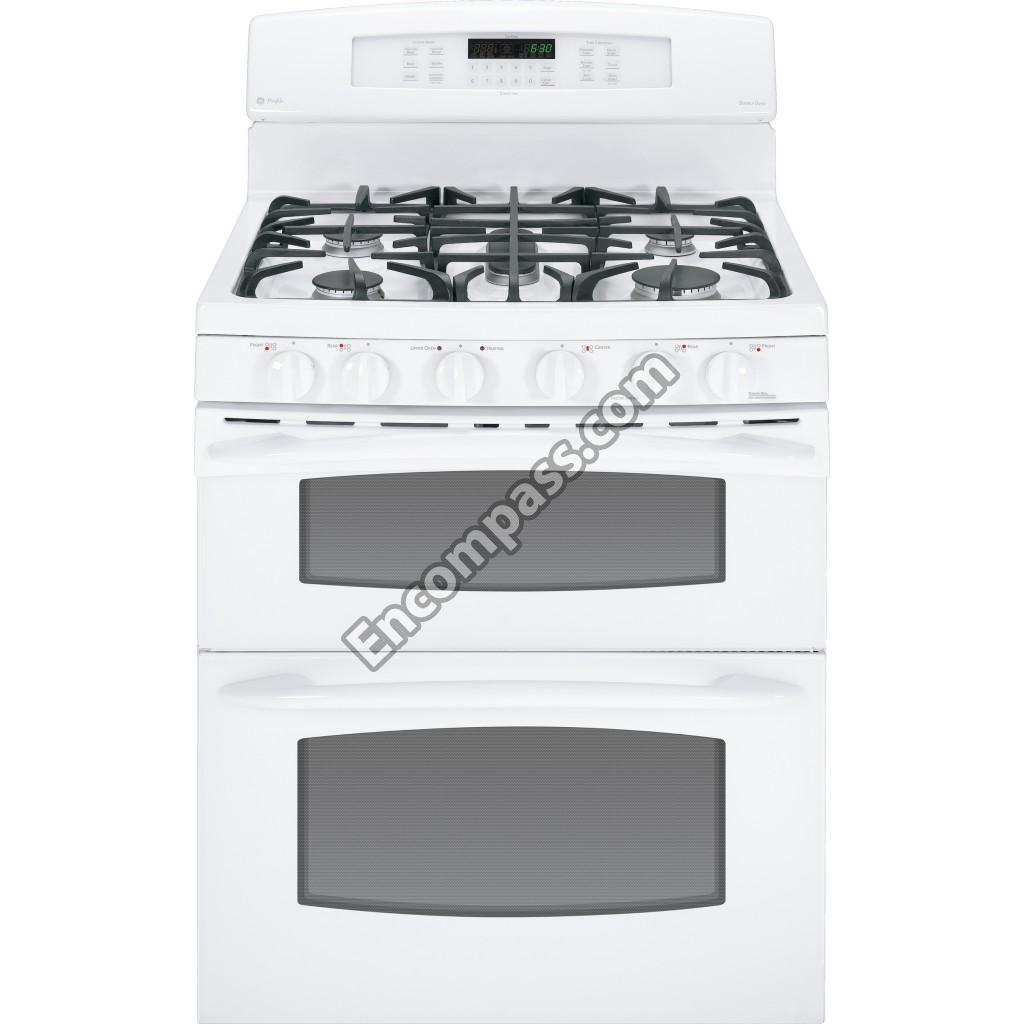

Model Image
Manufacturer

GE

Model Number

PGB995DET1WW

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB16K10070 WB16K10070 000 BTUS GAS RANGE BURNER BASE; 5
WB29K10024 WB29K10024 000 BTUS GAS RANGE BURNER CAP-LARGE; 12
WB29K10022 WB29K10022 000 BTUS GAS RANGE SMALL BURNER CAP; 5
WB16T10046 WB16T10046 12 GAS COOKTOP LARGE BURNER 000 BTUS
WB29K10023 WB29K10023 500 BTUS GAS RANGE MEDIUM BURNER CAP; 9
WB28K10023 WB28K10023 89MM RANGE ORIFICE SPUD - NG TO LP
WB16K10055 WB16K10055 9 RANGE SURFACE BURNER BASE-MEDIUM 500
WB02K0003 WB02K0003 ANGLE SUPPORT
WB44K10034 WB44K10034 ASSEMBLY ELEMENT BROIL
WB49K10036 WB49K10036 BAKE DEFLECTOR COMPLEMEN
WB49K10029 WB49K10029 BAKE DEFLECTOR UC
WB2X8351 WB2X8351 BLADE FAN
WB35X37967 WB35X37967 BOTTOM OVEN ASSEMBLY
WB63K10239 WB63K10239 BOTTOM RANGE
WB63K10269 WB63K10269 BOX BURNER SP
WB63K10208 WB63K10208 BRACE
WB02K10329 WB02K10329 BRACE OVEN TOP
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASSEMBLY
WB02K10313 WB02K10313 BRACKET CAVITY SUPPORT
WB02K10082 WB02K10082 BRACKET COOKTOP XL
WB02K10372 WB02K10372 BRACKET DOOR
WB02K10373 WB02K10373 BRACKET DOOR
WB02K10366 WB02K10366 BRACKET DUCT
WB02K10335 WB02K10335 BRACKET INNER DOOR
WB02K0041 WB02K0041 BRACKET OVEN CORNER
WB49K10028 WB49K10028 BROIL DEFLECTOR UC
WB02K10179 WB02K10179 BUMPER
WB16K10074 WB16K10074 BURNER BAKE
WB16K10077 WB16K10077 BURNER BROIL UPPER
WB02K10362 WB02K10362 CKT BRACKET MDM AND LGE
WB02K10361 WB02K10361 CKT BRACKET MEDIUM
WB02K10360 WB02K10360 CKT BRACKET SMALL
WB02K0036 WB02K0036 CLAMP CABLE
WB2K36 WB2K36 CLAMP CABLE
WB02K10367 WB02K10367 CLAMP HEAT ELEMENT
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02K0010 WB02K0010 CLIP CAPILLARY
WB02K10073 WB02K10073 CLIP CAPILLARY
WB02K0052 WB02K0052 CLIP RANGETOP
WB2K52 WB2K52 CLIP RNGETOP
WB02K0038 WB02K0038 CLIP WIRE
WB02X7066 WB02X7066 CLIP WIRE
WB02K10267 WB02K10267 CLIP WIRE
WB02K10068 WB02K10068 CLIP WIRE

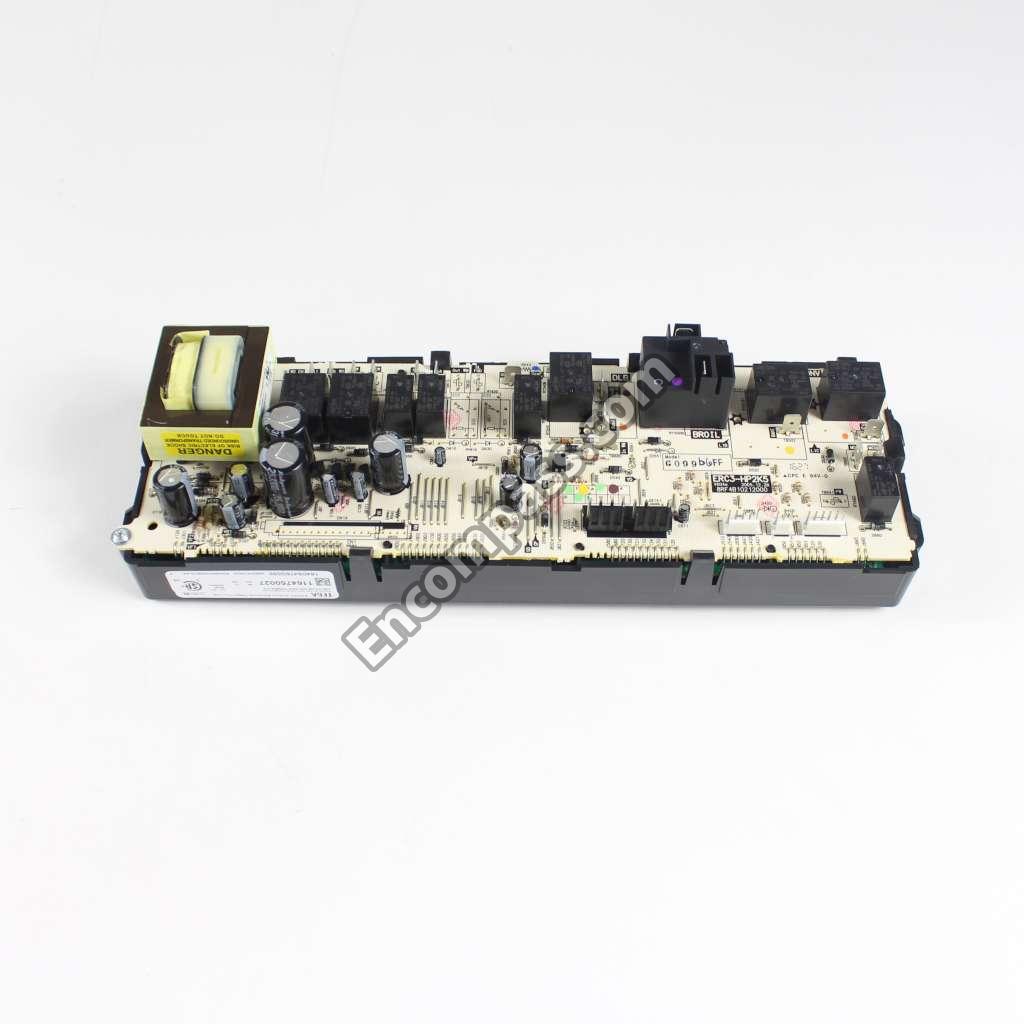

WB27K10433 WB27K10433 CONTROL OVN (ERC3HP)
WB34K10124 WB34K10124 COVER BACK LAMP
WB34K10115 WB34K10115 COVER BACK UPPER
WB63K10063 WB63K10063 COVER BURNER BOX
WB02K10337 WB02K10337 COVER CAP
WB57K10180 WB57K10180 COVER GLASS DOOR ASSEMBLY
WB02K10317 WB02K10317 COVER LATCH
WB34K10135 WB34K10135 COVER MOTOR
WB34K10133 WB34K10133 COVER SHUTER
WB37K10012 WB37K10012 COVER THERMOSTAT
WB37K10019 WB37K10019 COVER THERMOSTAT
WB02K0024 WB02K0024 COVER VALVE
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB57K10158 WB57K10158 CRYSTAL WINDOW
WB57K10156 WB57K10156 CRYSTAL WINDOW
WB57K10155 WB57K10155 CRYSTAL WINDOW
WB34K14 WB34K14 CVR IGNITOR
WB35X37972 WB35X37972 DEFLECTOR OVEN KIT
WB49K10037 WB49K10037 DEFLECTOR OVER
WB38K10022 WB38K10022 DIFFUSER VENT
WB01K10037 WB01K10037 ECONOMIC NUT
WB28K10708 WB28K10708 ELBOW BAKE LOWER
WB28K10706 WB28K10706 ELBOW BAKE UPPER
WB28K10738 WB28K10738 ELBOW DUAL CAVITY
WB02X8351 WB02X8351 FAN BLADE
WB34K10132 WB34K10132 FAN COVER
WB26K10003 WB26K10003 FAN MOTOR CONVECT-2SPEED
WB02K10182 WB02K10182 FOOT LEVELING
WB02X28737 WB02X28737 FRAME FRONT BUMPER
WB55K10082 WB55K10082 FRAME FRONT UC
WB63K10251 WB63K10251 FRAME WELD ASSEMBLY
WB34X28741 WB34X28741 FRAME WINDOW ASSEMBLY
WB34X28740 WB34X28740 FRAME WINDOW ASSY
WB39K10040 WB39K10040 FULL EXT RACK-NICKEL PLATED-FREE STN GAS
WB28K10222 WB28K10222 GAS RANGE BURNER CAP - XL V2
WB16K10062 WB16K10062 GAS RANGE XL BURNER
WB32K10047 WB32K10047 GASKET OVEN
WB32K10046 WB32K10046 GASKET OVEN
WB32K0001 WB32K0001 GASKET VENT
WB32K10045 WB32K10045 GASKET VENT
WB32K1 WB32K1 GASKET VENT
WB57K10171 WB57K10171 GLASS AND BOARD ASSEMBLY
WB57K10169 WB57K10169 GLASS AND TRIM ASSEMBLY
WB31K10250 WB31K10250 GRATE CAST
WB31K10251 WB31K10251 GRATE CAST
WB31K10248 WB31K10248 GRATE CAST MID
WB1K10 WB1K10 GROM HNDLE
WB2K8 WB2K8 GROMMET
WB01K0010 WB01K0010 GROMMET HANDLE
WB56K10081 WB56K10081 GUARD INSULATION
WB56K10079 WB56K10079 GUARD INSULATION
WB53K10047 WB53K10047 GUARD TOP INSULATION
WB15T10141 WB15T10141 HANDLE PRF DOOR (WHITE)
WB15T10138 WB15T10138 HANDLE PRF DRAWER (WHITE)
WB18K10083 WB18K10083 HARNESS GROUND
WB18K10056 WB18K10056 HARNESS GROUND
WB18K10075 WB18K10075 HARNESS SWITCH
WB18T10386 WB18T10386 HARNESS WIRE GLASS TOUCH.
WB10K10032 WB10K10032 HINGE ASSEMBLY
WB10K10033 WB10K10033 HINGE ASSEMBLY
WB10K10024 WB10K10024 HINGE DOOR
WB10K10023 WB10K10023 HINGE DOOR
WB14K10003 WB14K10003 HINGE RANGE TOP
WB10K10026 WB10K10026 HINGE RECEIVER
WB10K10025 WB10K10025 HINGE RECEIVER
WB28K10713 WB28K10713 HOOD SPUD ORIFICE
WB28K10712 WB28K10712 HOOD SPUD ORIFICE
WB34K0014 WB34K0014 IGNITER COVER
WB35K10040 WB35K10040 INSULATION CONTROL
WB02K10348 WB02K10348 INSULATION COVER LAMP
WB35K10201 WB35K10201 INSULATION OVEN BACK
WB35K10202 WB35K10202 INSULATION OVEN WRAP
WB35K10207 WB35K10207 INSULATION OVEN WRAP
WB02K10347 WB02K10347 INSULATION THERMOSTAT
WB01T10086 WB01T10086 KEPS NUT 6-32
WB28K10802 WB28K10802 KIT CONVERSION LP
WB03K10325 WB03K10325 KNOB COVER ASSEMBLY
WB02K10326 WB02K10326 L SUPPORT
WB02K10334 WB02K10334 LATCH AUTOMATIC
WB25K10009 WB25K10009 LENS
WB25K10010 WB25K10010 LIGHT INDICATOR PILOT
WB18K10073 WB18K10073 LINE CORD
WB55K10081 WB55K10081 LINER DOOR ASSEMBLY
WB55K10080 WB55K10080 LINER DOOR WELD ASSEMBLY
31-10772 31-10772 LP INSTALL INSTRUCTIONS
WB35K10211 WB35K10211 MANIFOLD EYEBROW
WB36K10930 WB36K10930 MANIFOLD PANEL
WB02T10017 WB02T10017 NUT
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB28K10743 WB28K10743 ORIFICE HOLDER ASSEMBLY
WB28K10736 WB28K10736 ORIFICE HOLDER LF
WB28K10389 WB28K10389 ORIFICE HOLDER LR
WB28K10735 WB28K10735 ORIFICE HOLDER RF
WB28K10737 WB28K10737 ORIFICE HOLDER RR
WB28K10834 WB28K10834 ORIFICE SPUD
WB28K10842 WB28K10842 ORIFICE SPUD LP
WB28K10835 WB28K10835 ORIFICE SPUD LP
WB28K10214 WB28K10214 ORIFICE SPUD LP 92L
WB16K10076 WB16K10076 OVAL BURNER ASSEMBLY
WB53K10051 WB53K10051 OVEN BACK
WB63K10238 WB63K10238 OVEN BACK UC
WB35K10200 WB35K10200 OVEN BOTTOM UC
WB49K10031 WB49K10031 OVEN DEFLECTOR
WB49K10030 WB49K10030 OVEN DEFLECTOR
WB48X20783 WB48X20783 OVEN RACK
WB53K10041 WB53K10041 OVEN SIDE
WB53K10040 WB53K10040 OVEN SIDE
WB53K10043 WB53K10043 OVEN SIDE UC
WB53K10042 WB53K10042 OVEN SIDE UC
WB53K10044 WB53K10044 OVEN TOP
WB53K10039 WB53K10039 OVEN TOP
WB63K10122 WB63K10122 PANEL SIDE
WB63K10119 WB63K10119 PANEL SIDE BK
WB07K10400 WB07K10400 PERIMETRAL TRIM
WB14K10004 WB14K10004 PIN LOCATOR
WB14K10005 WB14K10005 PIN LOCATOR
WB24K10068 WB24K10068 PLUNGER SWITCH
WB06K10007 WB06K10007 PM HELPFUL HINT
31-14976-2 31-14976-2 PM MINI MANUAL
49-85181 49-85181 PM OWNERS AND INSTALL
WB2X8309 WB2X8309 PR0BE COVER
WB19K10077 WB19K10077 PRESSURE REGULATOR
WB20T10024 WB20T10024 PROBE
WB02X8309 WB02X8309 PROBE COVER
WB63K10220 WB63K10220 RANGE BACK
WB34K10038 WB34K10038 RANGE BACK FAN COVER
WB30X28763 WB30X28763 RANGE BAKE BURNER
WB28K10215 WB28K10215 RANGE BURNER ORIFICE
WB02K10152 WB02K10152 RANGE CONTROL BRACKET
WB21K10161 WB21K10161 RANGE CONTROL VALVE
WB01K10112 WB01K10112 RANGE ELECTRODE CLIP
WB02K10023 WB02K10023 RANGE ELEMENT CLAMP
WB07K10257 WB07K10257 RANGE END SUPPORT - LEFT - WHITE
WB07K10256 WB07K10256 RANGE END SUPPORT - RIGHT - WHITE
WB02K10034 WB02K10034 RANGE FAN SUPPORT
WB02K10350 WB02K10350 RANGE GLASS BRACKET
WB01K10023 WB01K10023 RANGE HANDLE GROMMET
WB02K10312 WB02K10312 RANGE HANDLE SUPPORT
WB13K10043 WB13K10043 RANGE IGNITER GLOW BAR
WB13X25263 WB13X25263 RANGE IGNITER GLOWBAR
WB13X25262 WB13X25262 RANGE IGNITER GLOWBAR
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB02K10324 WB02K10324 RANGE INLET SUPPLY
WB35K10038 WB35K10038 RANGE INSULATOR FAN
WB03K10326 WB03K10326 RANGE KNOB - WHITE
WB03K10328 WB03K10328 RANGE KNOB - WHITE
WB02K10318 WB02K10318 RANGE LATCH ASSEMBLY - LOWER
WB08K10018 WB08K10018 RANGE LIGHT COVER
WB02K10349 WB02K10349 RANGE LIGHT INSULATION
WB03K10320 WB03K10320 RANGE LOCATOR KNOB
WB2K41 WB2K41 RANGE OVEN BRACKET
WB08T10002 WB08T10002 RANGE OVEN LAMP ASSEMBLY
WB32K10044 WB32K10044 RANGE OVEN LIGHT GASKET
WB35K10100 WB35K10100 RANGE SIDE INSULATION
WB02K10270 WB02K10270 RANGE SPACER BASE
WB13X26360 WB13X26360 RANGE SPARK MODULE 6+0
WB13K10014 WB13K10014 RANGE SURFACE BURNER SPARK IGNITER
WB20K10027 WB20K10027 RANGE TEMPERATURE SENSOR
WB03K10350 WB03K10350 RANGE THERMOSTAT KNOB - WHITE
WB01K10080 WB01K10080 RANGE THERMOSTAT SCREW
WB20K10036 WB20K10036 RANGE THERMOSTAT.
WB02K10297 WB02K10297 RANGE VALVE BRACKET
WB18K10037 WB18K10037 RANGE WIRE HARNESS
WB62K10128 WB62K10128 RANGETOP AND BRACKET ASSEMBLY
WB10K10029 WB10K10029 RECEIVER HINGE
WB08K10017 WB08K10017 RECEPTABLE ASSEMBLY
WB13K10050 WB13K10050 RELAY
WB2X2030 WB2X2030 RETAINER
WB02K0030 WB02K0030 RETAINER-INSULATION VENT
WB31X23201 WB31X23201 REVERSIBLE GRIDDLE
WB28K10714 WB28K10714 ROUND MANIFOLD PIPE
WB01K0063 WB01K0063 SCREW
WB01K0001 WB01K0001 SCREW
WB01K0084 WB01K0084 SCREW
WB01K10091 WB01K10091 SCREW
WB01K10106 WB01K10106 SCREW
WB1K5062 WB1K5062 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WB1K5119 WB1K5119 SCREW
WB1K84 WB1K84 SCREW & WASH
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB1K63 WB1K63 SCREW 10-16 X 0.95 TYPE B
WB01K10047 WB01K10047 SCREW 10-32 HXW 9/16 DWR
WB01T10008 WB01T10008 SCREW 10-32 TR T
WZ4X345D WZ4X345D SCREW 8-18X5/8 HXW
WB01K10002 WB01K10002 SCREW 8-32
WB01X1261 WB01X1261 SCREW GROUND
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB01X5874 WB01X5874 SCREW WH
WB01K10004 WB01K10004 SCREW-MTG END CAP (WHITE )
WB34K10136 WB34K10136 SHIELD BROIL
WB02K10345 WB02K10345 SPACER BASE
WB02K10320 WB02K10320 SPACER BASE
WB1X5743D WB1X5743D SPDNUT-PKQ12
WB01X5743 WB01X5743 SPEEDNUT
WB01K0002 WB01K0002 SPEEDNUT
WB01K10093 WB01K10093 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB63K10268 WB63K10268 SUPPORT BASE
WB63K10267 WB63K10267 SUPPORT BASE
WB02K10325 WB02K10325 SUPPORT VALVE SINGLE
WB24K10091 WB24K10091 SWITCH LIMIT BIMETAL
WB24K10090 WB24K10090 SWITCH THERMOSTAT
WB36K10929 WB36K10929 TRIM CONTROL
WB07K10406 WB07K10406 TRIM POST COLOR
WB07K10407 WB07K10407 TRIM POST COLOR
WB07K10255 WB07K10255 TRIM VENT
WB28K10700 WB28K10700 TUBE BURNER SUPPLY BAKE
WB28K10795 WB28K10795 TUBE BURNER SUPPLY BROIL
WB28K10716 WB28K10716 TUBE MANIFOLD SUPPLY
WB28K10715 WB28K10715 TUBE MANIFOLD SUPPLY
WB28K10701 WB28K10701 TUBE VALVE SAFETY
WB28K10796 WB28K10796 TUBE VALVE SUPPLY
WB28K10703 WB28K10703 TUBE VALVE SUPPLY
WB21K10113 WB21K10113 VALVE BURNER 270
WB21K10114 WB21K10114 VALVE BURNER 270
WB21K10122 WB21K10122 VALVE BURNER 270
WB21K10117 WB21K10117 VALVE BURNER 270 HI-CAP
WB21K10160 WB21K10160 VALVE CONTROL ASSEMBLY
WB2K24 WB2K24 VALVE COVER
WB19K10072 WB19K10072 VALVE LOCKOUT
WB38K10038 WB38K10038 VENT ASSEMBLY
WB38K10029 WB38K10029 VENT BACKER
WB16K10046 WB16K10046 VENTURI 15K LP
WB56K20 WB56K20 WIND PACK LG
