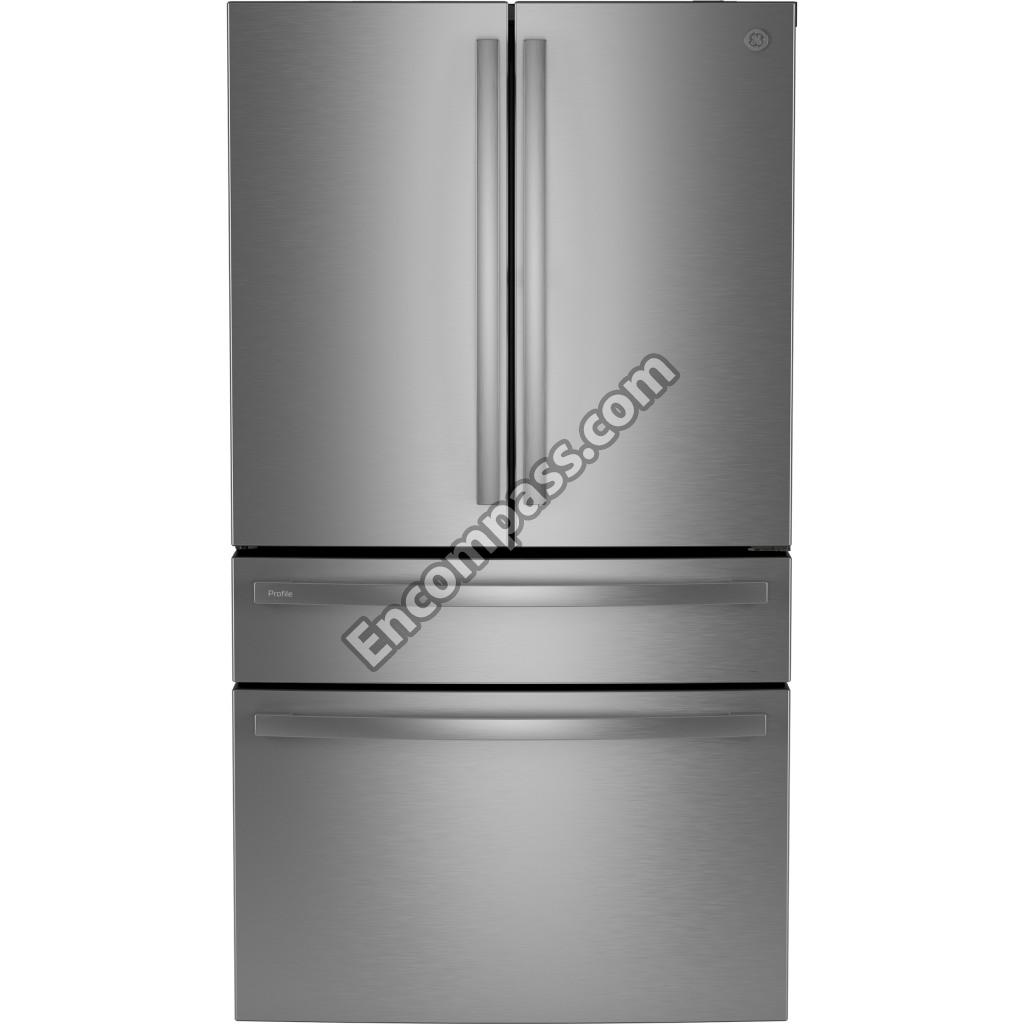

Manufacturer
GE
Model Number
PGE29BYTDFS
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
".295"" - 1/4"" BRASS REDUC" |
|
|
1/4 WATER LINE |
|
|
3 WAY VALVE W/ BRACKET |
|
|
3.5MM X 3.5MM LOKRING |
|
|
3MM X 1.8MM LOKRING |
|
|
3MM X 2MM LOKRING |
|
|
4 MODE CONVERTIBLE DRAWER CONTROL |
|
|
5MM X 4MM LOKRING |
|
|
6MM X 4MM LOKRING |
|
|
6MM X 6MM LOKRING |
|
|
7MM X 5MM LOKRING |
|
|
8MM X 6MM LOKRING |
|
|
8MM X 8MM LOKRING AL |
|
|
AUTOFILL PITCHER - PROFILE |
|
|
AUTOFILL PITCHER HOUSING - WHITE |
|
|
AUTOFILL PITCHER TRAY - WHITE |
|
|
BASKET BUMPER GRAY |
|
|
BOTTOM DOOR BIN - LEFT |
|
|
BYPASS FILTER PLUG |
|
|
CASE VENT COVER |
|
|
CEILING LED |
|
|
CHAIN HARNESS W/ REED SWITCH |
|
|
CHROME GE BADGE |
|
|
CLEAR CENTER RIGHT DOOR BIN |
|
|
CLEAR CONVERTIBLE DRAWER BIN |
|
|
CLEAR DAIRY BIN |
|
|
CLEAR LOWER RIGHT DOOR BIN |
|
|
CLEAR VEGETABLE PAN |
|
|
CLEAR VEGETABLE PAN FRAME GLASS |
|
|
COMPRESSOR JIAXIPERA PRODUCTION |
|
|
COMPRESSOR MOUNTING HARDWARE |
|
|
CONDENSER |
|
|
CONDENSER FAN W/ FOAM |
|
|
CONVERTIBLE / FREEZER DRAWER LED W/ COVE |
|
|
CONVERTIBLE DRAWER BRACKET LEFT |
|
|
CONVERTIBLE DRAWER BRACKET RIGHT |
|
|
CONVERTIBLE DRAWER BRACKET SCREW |
|
|
CONVERTIBLE DRAWER DAMPER |
|
|
CONVERTIBLE DRAWER DAMPER FOAM |
|
|
CONVERTIBLE DRAWER DAMPER FOAM |
|
|
CONVERTIBLE DRAWER GASKET |
|
|
CONVERTIBLE DRAWER LEFT SLIDE AND BRACKE |
|
|
CONVERTIBLE DRAWER RIGHT SLIDE AND BRACK |
|
|
CONVERTIBLE THERMISTOR |
|
|
COUPLER STRAIGHT 1/4 |
|
|
CROSSBAR |
|
|
CROSSBAR LEFT PINION GEAR |
|
|
CROSSBAR PINION GEAR CLIP |
|
|
CROSSBAR RIGHT PINION GEAR |
|
|
DAIRY BIN BUMPER |
|
|
DAMPER COVER |
|
|
DEFROST THERMISTOR |
|
|
DOOR BOARD |
|
|
DOOR BOARD COVER W/ INSULATION |
|
|
DOOR CLOSURE LH |
|
|
DOOR WATER LINE GROMMET |
|
|
DOOR WATER LINE SPRING |
|
|
DRAIN TUBE |
|
|
EVAPORATOR FAN BRACKET |
|
|
FASTENER DOOR HANDLE |
|
|
FEELER ARM |
|
|
FILL TUBE & HEATER ASSEMBLY |
|
|
FILL TUBE COVER |
|
|
FILL TUBE GROMMET |
|
|
FILTER DOOR - WHITE |
|
|
FILTER DRIER |
|
|
FLOW RESTRICTOR |
|
|
FOAM SEAL CONDENSER FAN |
|
|
FREEZER DEFROST HEATER |
|
|
FREEZER DRAIN TROUGH |
|
|
FREEZER DRAWER BRACKET LEFT |
|
|
FREEZER DRAWER BRACKET RIGHT |
|
|
FREEZER DRAWER FRONT - STAINLESS STEEL |
|
|
FREEZER DRAWER GASKET |
|
|
FREEZER DRAWER HANDLE - STAINLESS STEEL |
|
|
FREEZER EVAPORATOR COVER W/ THERMISTOR |
|
|
FREEZER EVAPORATOR FAN W/ FOAM |
|
|
FREEZER EVAPORATOR W/ FOAM BLOCKS |
|
|
FREEZER REED SWITCH W/ WHITE COVER |
|
|
FRESH VIEW AIR TOWER W/ FAN AND LED |
|
|
GEA2 WIFI/BLE BOARD W/INSTRUCTIONS |
|
|
GEA2 WIFI/BLE BOARD W/INSTRUCTIONS |
|
|
ICE BUCKET & COVER - PROFILE |
|
|
INVERTER |
|
|
ISOLATION WATER VALVE |
|
|
LEAK COLLECTOR |
|
|
LEVELING LEG |
|
|
LOWER BASKET DIVDER - WHITE |
|
|
LOWER HINGE SCREW |
|
|
LOWER HINGE SCREW |
|
|
MAIN CONTROL BOARD |
|
|
MAIN CONTROL BOARD |
|
|
MAIN CONTROL BOARD COVER |
|
|
MIDDLE DOOR BIN - LEFT |
|
|
MIDDLE HINGE - LEFT |
|
|
MIDDLE HINGE - RIGHT |
|
|
PERSONALITY HARNESS |
|
|
PEX WATER LINE |
|
|
PM MINI MANUAL AND WIRING |
|
|
PM QUICK OWNERS MANUAL |
|
|
POWER CORD |
|
|
QUICK CLIP CONN 5/16 |
|
|
QUICK CLIP CONNECTOR 1/4 |
|
|
R600A CHARGE CAN 35 GRAMS |
|
|
REAR ACCESS COVER |
|
|
REED SWITCH |
|
|
REFRIGERATOR DEFROST HEATER |
|
|
REFRIGERATOR DOOR - LEFT HAND - STAINLES |
|
|
REFRIGERATOR DOOR - RIGHT HAND NON DND - |
|
|
REFRIGERATOR DOOR CLOSURE MECHANISM RIGH |
|
|
REFRIGERATOR DOOR GASKET |
|
|
REFRIGERATOR DOOR LEFT UPPER HINGE |
|
|
REFRIGERATOR DOOR RIGHT UPPER HINGE |
|
|
REFRIGERATOR DOOR STOP LEFT |
|
|
REFRIGERATOR DOOR STOP RIGHT |
|
|
REFRIGERATOR DRAIN TROUGH |
|
|
REFRIGERATOR DRAIN TUBE |
|
|
REFRIGERATOR EVAPORATOR FAN |
|
|
REFRIGERATOR EVAPORATOR W/ FOAM BLOCKS |
|
|
REFRIGERATOR POWER SUPPLY BOARD |
|
|
RFID BOARD |
|
|
RFID BOARD HOUSING |
|
|
ROLLER |
|
|
ROLLER ASM |
|
|
SCR 8-18 HI/LO HWX 3/4 |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW M6-1.0 T IHXWP 16 S |
|
|
SCREW ST3.5 X 25 |
|
|
SCREW ST3.9 X 16 |
|
|
SCREW ST3.9-1.4 AB FLT20 16 S |
|
|
SERRATED FLANGE HEX M6X16 |
|
|
SET SCREW |
|
|
SMALL CUBE ICEMAKER |
|
|
STAINLESS CONVERTIBLE DRAWER |
|
|
STAINLESS DRAWER HANDLE W/ PROFILE BADGE |
|
|
STAINLESS REFRIGERATOR HANDLE |
|
|
STAINLESS REFRIGERATOR HANDLE |
|
|
SUCTION JUMPER TUBE |
|
|
THERMISTOR COVER |
|
|
TOP INTERFACE & HOUSING |
|
|
TOP INTERFACE HARNESS |
|
|
TOP LEFT HINGE COVER |
|
|
TOP RIGHT HINGE COVER |
|
|
UPPER DOOR BIN - LEFT |
|
|
UPPER FREEZER BASKET - PROFILE |
|
|
UPPER GASKET |
|
|
VALVE & FILTER COVER - WHITE |
|
|
VALVE DUAL WATER W FM |
|
|
WATER FILTER MANIFOLD |
|
|
WATER FILTER MANIFOLD BRACKET |
|
|
WATER FILTER MANIFOLD HOLDER |
|
|
WATER LINE CLIP |
|
|
WATER LINE CLIP |
|
|
WATER LINE COVER |
|
|
WHEEL FRONT ASM |
|
|
WHITE ARTICULATING MULLION W/ HINGES AND |
|
|
WHITE CENTER CANTILEVER TRACK |
|
|
WHITE CENTER CANTILEVER TRACK TRIM |
|
|
WHITE CHAIN HARNESS COVER |
|
|
WHITE CLIMATE ZONE CENTER SUPPORT W/ SOF |
|
|
WHITE CLIMATE ZONE LEFT SUPPORT |
|
|
WHITE CLIMATE ZONE RIGHT SUPPORT |
|
|
WHITE CONVERTIBLE DRAWER BASKET |
|
|
WHITE FREEZER LOWER BASKET DIVIDER BRACK |
|
|
WHITE FREEZER LOWER BASKET SLIDE AND BRA |
|
|
WHITE FREEZER LOWER BASKET SLIDE AND BRA |
|
|
WHITE FREEZER LOWER BASKET W/ DIVIDER |
|
|
WHITE FREEZER TILTOUT BIN |
|
|
WHITE FREEZER UPPER BASKET GLIDE LEFT |
|
|
WHITE FREEZER UPPER BASKET GLIDE RIGHT |
|
|
WHITE FREEZER UPPER BASKET ROLLER |
|
|
WHITE HUMIDITY CONTROL SLIDE |
|
|
WHITE LED SHIELD |
|
|
WHITE LEFT SLIDE HOLDER |
|
|
WHITE REFRIGERATOR SHELF |
|
|
WHITE REFRIGERATOR TUCKAWAY SHELF |
|
|
WHITE RIGHT SLIDE HOLDER |
|
|
WHITE SIDE CANTILEVER TRACK |
|
|
WHITE VEGETABLE PAN FRAME |
|
|
WHITE VEGETABLE PAN LED |
|
|
XWFE RETAIL FILTER |
