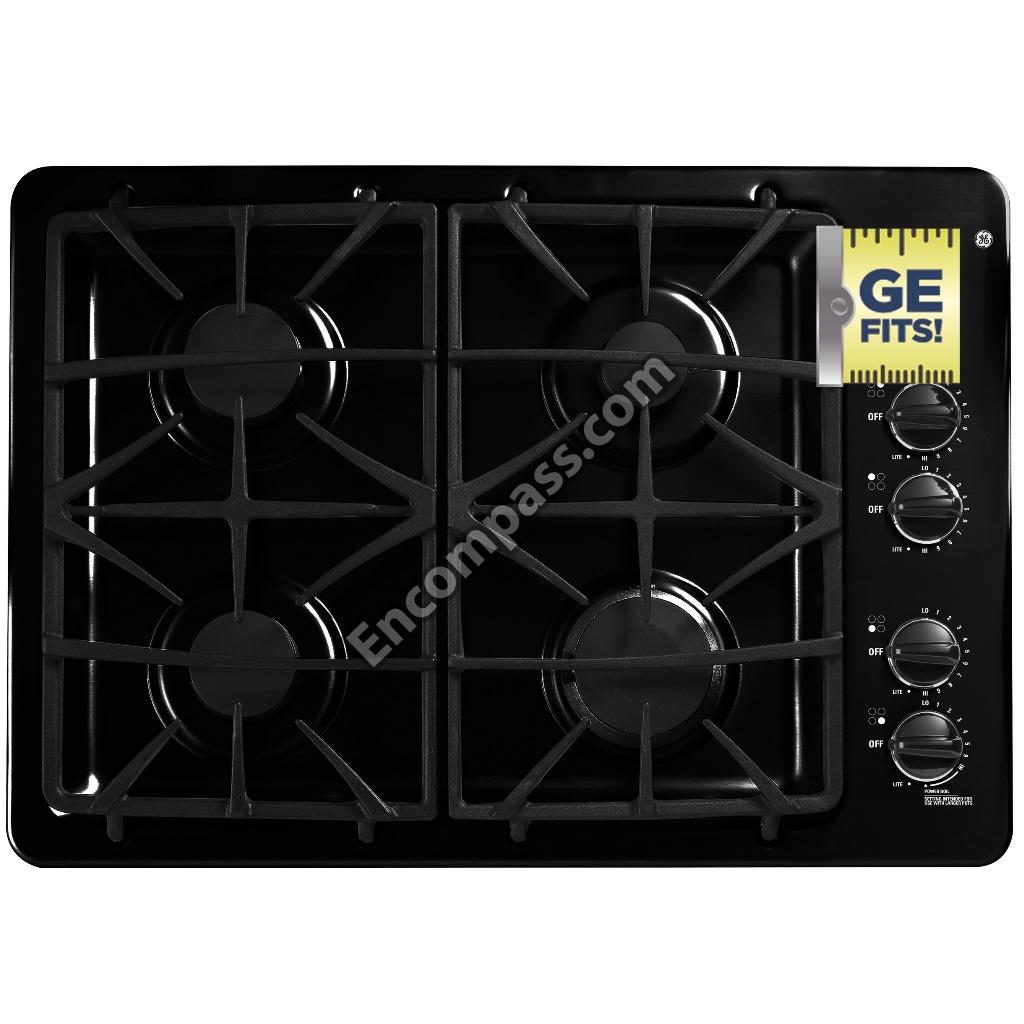

Model Image
Manufacturer

GE

Model Number

PGP943SET1SS

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WB16K10070 WB16K10070 000 BTUS GAS RANGE BURNER BASE; 5
WB29K10024 WB29K10024 000 BTUS GAS RANGE BURNER CAP-LARGE; 12
WB29K10022 WB29K10022 000 BTUS GAS RANGE SMALL BURNER CAP; 5
WB16T10046 WB16T10046 12 GAS COOKTOP LARGE BURNER 000 BTUS
WB29K10023 WB29K10023 500 BTUS GAS RANGE MEDIUM BURNER CAP; 9
WB16K10055 WB16K10055 9 RANGE SURFACE BURNER BASE-MEDIUM 500
WB16T10040 WB16T10040 BASE BURNER 18K-SIMMER
WB64T10071 WB64T10071 BOTTOM BURN BOX
WB2K5328 WB2K5328 BRKT HOLD DN
WB13T10067 WB13T10067 CAP BURNER
WB02K10362 WB02K10362 CKT BRACKET MDM AND LGE
WB02K10361 WB02K10361 CKT BRACKET MEDIUM
WB02K10360 WB02K10360 CKT BRACKET SMALL
WB02T10111 WB02T10111 CLEANER-SS
WB08T10015 WB08T10015 COOKTOP POWER CORD
WB01K10037 WB01K10037 ECONOMIC NUT
WB31T10087 WB31T10087 GRATE ASSEMBLY
WB18T10533 WB18T10533 HARNESS SWITCH ASSEMBLY
WB18T10407 WB18T10407 HARNESS WIRE BURNER
WB16T10038 WB16T10038 HEAD BURNER MAIN
WB28T10147 WB28T10147 HIGH ALT ORIFICE LP MAIN
WB02K5328 WB02K5328 HOLD DOWN BRACKET
WB13X27058 WB13X27058 IGNITER
WB28T10114 WB28T10114 INJET BURNER 18K
31-10714 31-10714 INSTRUCTION INSTALL
31-10613 31-10613 INSTRUCTIONS INSTALL
31-10600 31-10600 INSTRUCTIONS LP
WB35T10051 WB35T10051 INSULATION SDE
WB35T10159 WB35T10159 INSULATION SIDE
WB62X25917 WB62X25917 MAINTOP ASM PRFSS
31-14253 31-14253 MANUAL MINI & WD ASM
49-80587 49-80587 MANUAL USE & CARE
WB13T10046 WB13T10046 MODULE SPARK (4+0)
WB28T10281 WB28T10281 OPTIONAL KIT BUTANE ASM
WB28K10433 WB28K10433 ORIFICE SPUD (NG MAIN)
WB28K10107 WB28K10107 ORIFICE SPUD LP 84MM
WB28K10214 WB28K10214 ORIFICE SPUD LP 92L
WB28T10116 WB28T10116 ORIFICE SPUD NG SIMMER
WB28T10033 WB28T10033 ORIFICE SPUD RT FRT -LP
WB28T10280 WB28T10280 PIPE MANIFOLD 30
WB01T10123 WB01T10123 RANGE BUMPER
WB28K10215 WB28K10215 RANGE BURNER ORIFICE
WB02T10261 WB02T10261 RANGE CLAMP
WB13T10065 WB13T10065 RANGE ELECTRODE
WB01K10112 WB01K10112 RANGE ELECTRODE CLIP
WB06T10009 WB06T10009 RANGE FOAM TAPE GASKET
WB02T10461 WB02T10461 RANGE GRATE FOOT
WB28T10283 WB28T10283 RANGE HIGH ALT AND BUTANE CONVERSION KIT
WB04T10019 WB04T10019 RANGE MANIFOLD SEAL

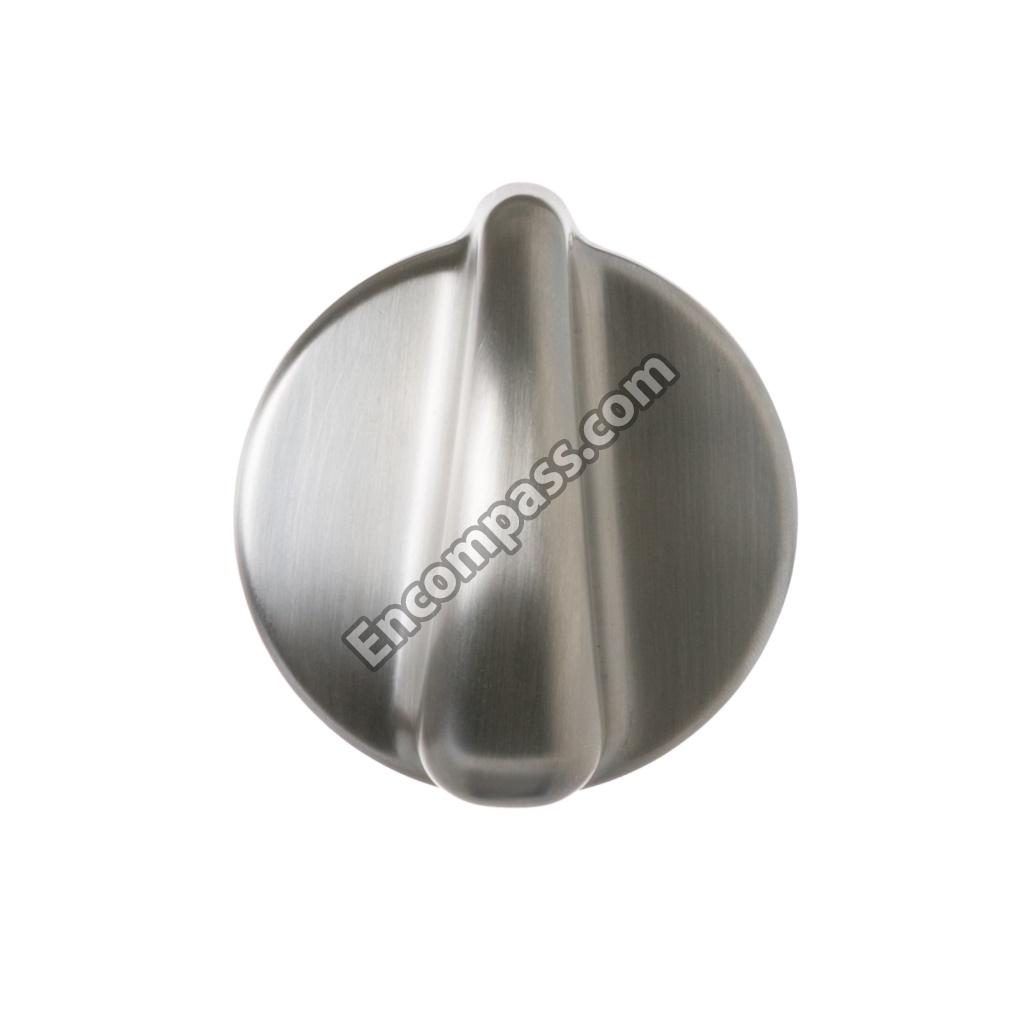

WB03T10267 WB03T10267 RANGE OVEN KNOB - CHROME
WB13K10014 WB13K10014 RANGE SURFACE BURNER SPARK IGNITER
WB28T10227 WB28T10227 RANGE SURFACE BURNER VALVE - LEFT FRONT
WB28T10110 WB28T10110 RANGE SURFACE BURNER VALVE - LEFT REAR
WB19T10078 WB19T10078 REGULATOR CONVERT PRESS
WB28K10031 WB28K10031 RIGHT REAR - NG TO L RANGE ORIFICE SPUD
WB01T10106 WB01T10106 SCR 6-32 CA OVT-15 5/8
WB01T10116 WB01T10116 SCR 8-32 CA PNT15 1/2 S
WB01X1137 WB01X1137 SCREW
WB01K5028 WB01K5028 SCREW
WB01T10091 WB01T10091 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 SCREW-10AB
WB04T10042 WB04T10042 SEAL CONTROL (BLK)
WB34T10102 WB34T10102 SHIELD BURN BOX BTM
WB09T10011 WB09T10011 SPRING IGNITER
WB2K5275 WB2K5275 STRAIN RELEF
WB02K5275 WB02K5275 STRAIN RELIEF-RT ANGLE
WB28T10108 WB28T10108 TUBE ASSEMBLY RT
WB28T10112 WB28T10112 TUBE BURNER (MAIN)
WB28T10113 WB28T10113 TUBE BURNER (SIMMER)
WB19T10094 WB19T10094 VALVE GAS RF
WB21X22080 WB21X22080 VALVE KIT
WB21X22079 WB21X22079 VALVE KIT
WB21X22078 WB21X22078 VALVE KIT
WB02T10323 WB02T10323 WASHER IGNITER
