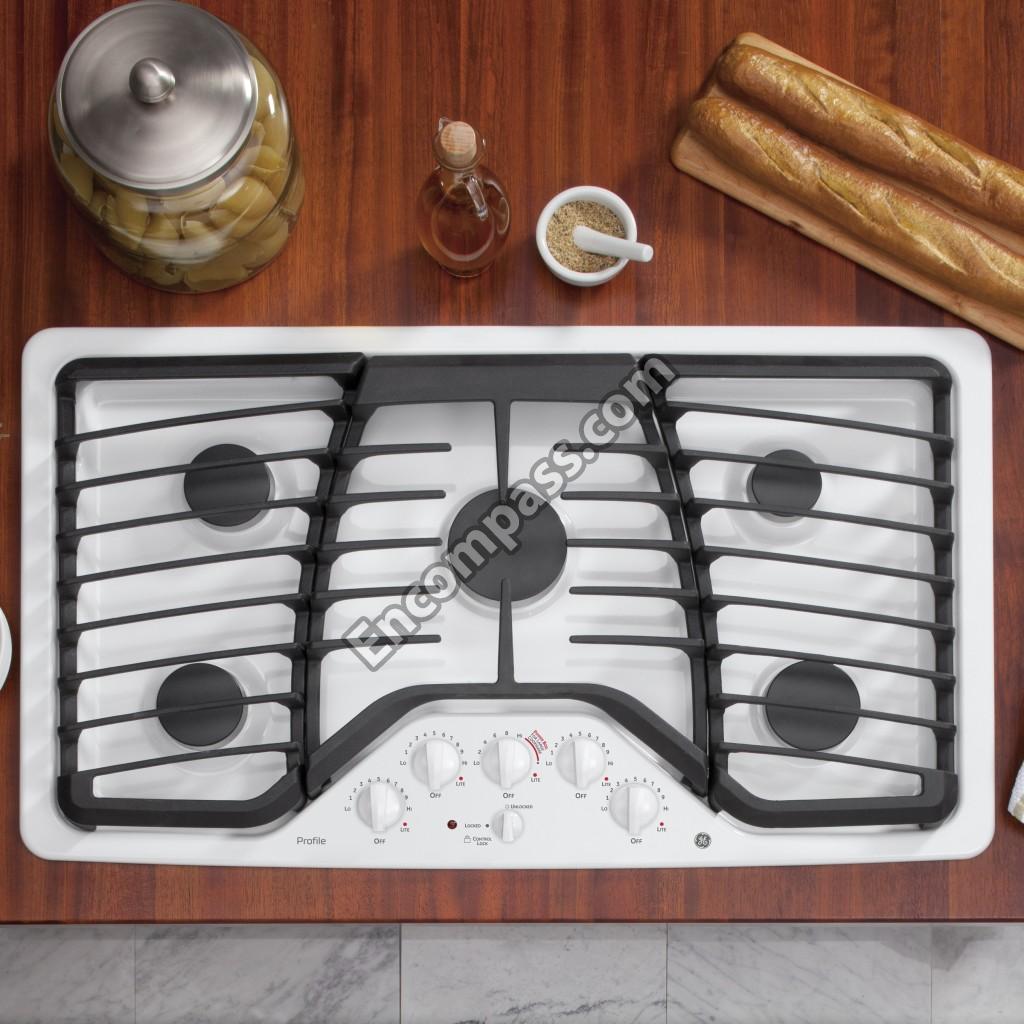

Model Image
Manufacturer

GE

Model Number

PGP976DET4WW

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB16K10070 WB16K10070 000 BTUS GAS RANGE BURNER BASE; 5
WB29K10024 WB29K10024 000 BTUS GAS RANGE BURNER CAP-LARGE; 12
WB29K10022 WB29K10022 000 BTUS GAS RANGE SMALL BURNER CAP; 5
WB16T10046 WB16T10046 12 GAS COOKTOP LARGE BURNER 000 BTUS
WB29K10023 WB29K10023 500 BTUS GAS RANGE MEDIUM BURNER CAP; 9
WB16K10055 WB16K10055 9 RANGE SURFACE BURNER BASE-MEDIUM 500
WB17T10026 WB17T10026 BOARD LED ASSEMBLY
WB2K5328 WB2K5328 BRKT HOLD DN
WB28X29275 WB28X29275 BURNER TUBE ASSEMBLY
WB02K10361 WB02K10361 CKT BRACKET MDM AND LGE
WB02K10362 WB02K10362 CKT BRACKET MDM AND LGE
WB02K10360 WB02K10360 CKT BRACKET SMALL
WB01K10114 WB01K10114 CLIP ELECTRODE
WB02K10363 WB02K10363 COOKTOP BURNER BRACKET - EXTRA LARGE
WB04T10082 WB04T10082 COOKTOP INLET SUPPLY
WB04T10084 WB04T10084 COOKTOP MANIFOLD SEAL
WB08T10015 WB08T10015 COOKTOP POWER CORD
WB02X22821 WB02X22821 COOKTOP SWITCH COVER
WB01K10037 WB01K10037 ECONOMIC NUT
WB02X22840 WB02X22840 FOAM TAPE/SEAL
WB28K10222 WB28K10222 GAS RANGE BURNER CAP - XL V2
WB16K10062 WB16K10062 GAS RANGE XL BURNER
WB31T10142 WB31T10142 GRATE CTR 36 (PRF)
WB31T10144 WB31T10144 GRATE LEFT 36 (PRF)
WB31T10143 WB31T10143 GRATE RT 36 (PRF)

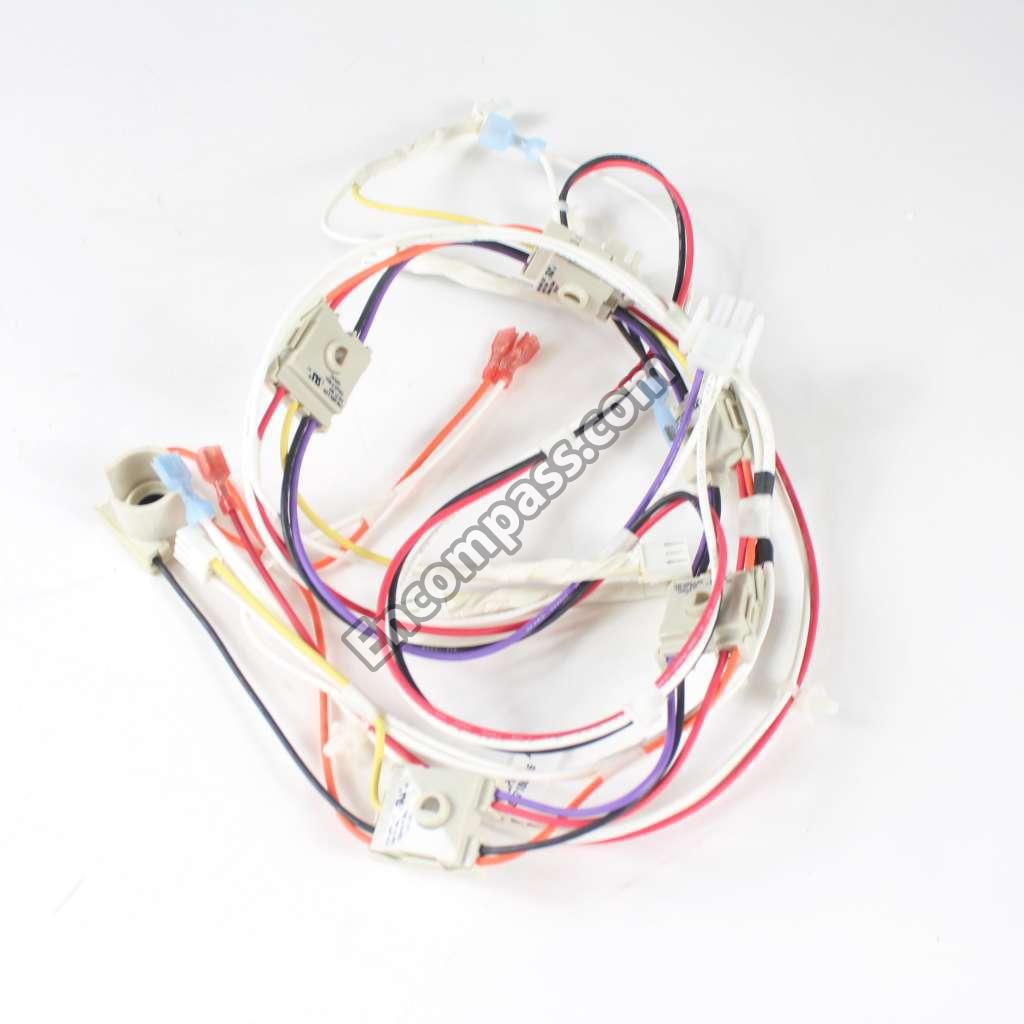

WB18X25793 WB18X25793 HARNESS WIRE BURNER
WB18X25794 WB18X25794 HARNESS WIRE BURNER
WB28T10279 WB28T10279 HIGH ALT NG CONVERSION KIT
WB02K5328 WB02K5328 HOLD DOWN BRACKET
31-10826 31-10826 INSTALLATION INSTRUCTIONS
31-10823 31-10823 INSTALLATION INSTRUCTIONS
WB35T10246 WB35T10246 INSULATION MAINTOP
WB28T10250 WB28T10250 KIT BUTANE ASSEMBLY
WB28T10263 WB28T10263 LARGE BURNER LP KIT ASSEMBLY
WB27T10626 WB27T10626 LIGHT INDICATOR PILOT
WB62X25942 WB62X25942 MAINTOP ASSEMBLY (PRF-WH)
WB62X25808 WB62X25808 MAINTOP GAS ASM 36 (WH)
WB28T10247 WB28T10247 ORIFICE SPUD LP 12K
WB28T10264 WB28T10264 ORIFICE SPUD LP 17K
WB28T10245 WB28T10245 ORIFICE SPUD LP 5K
WB28T10246 WB28T10246 ORIFICE SPUD LP 9.1K
49-80661 49-80661 OWNERS MANUAL
WB02T10207 WB02T10207 PCB ST AND OFF
31-10955 31-10955 PM INSTALL INSTRUCTIONS
31-10847 31-10847 PM INSTRUCTIONS INSTALL
31-17010 31-17010 PM MANUAL MINI & WD ASM
WB28T10278 WB28T10278 RANGE BLACK BUMPER
WB02T10567 WB02T10567 RANGE BRACKET
WB08T10039 WB08T10039 RANGE BUZZER
WB03T10318 WB03T10318 RANGE KNOB - WHITE
WB03X25803 WB03X25803 RANGE KNOB - WHITE
WB27T11382 WB27T11382 RANGE LED SURGE BOARD
WB28T10249 WB28T10249 RANGE MANIFOLD BRACKET ASSEMBLY
WB28T10251 WB28T10251 RANGE MANIFOLD TUBE

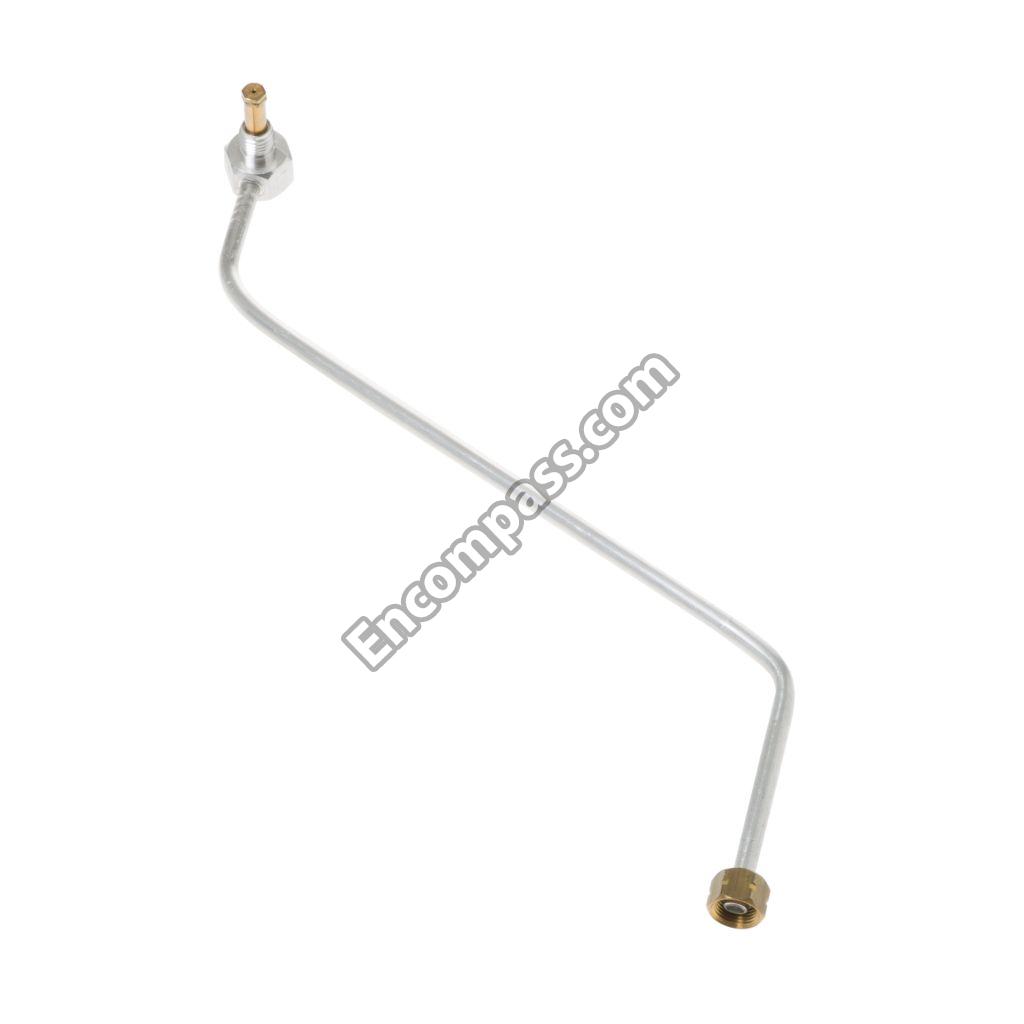

WB28T10252 WB28T10252 RANGE ORIFICE AND TUBE - NG

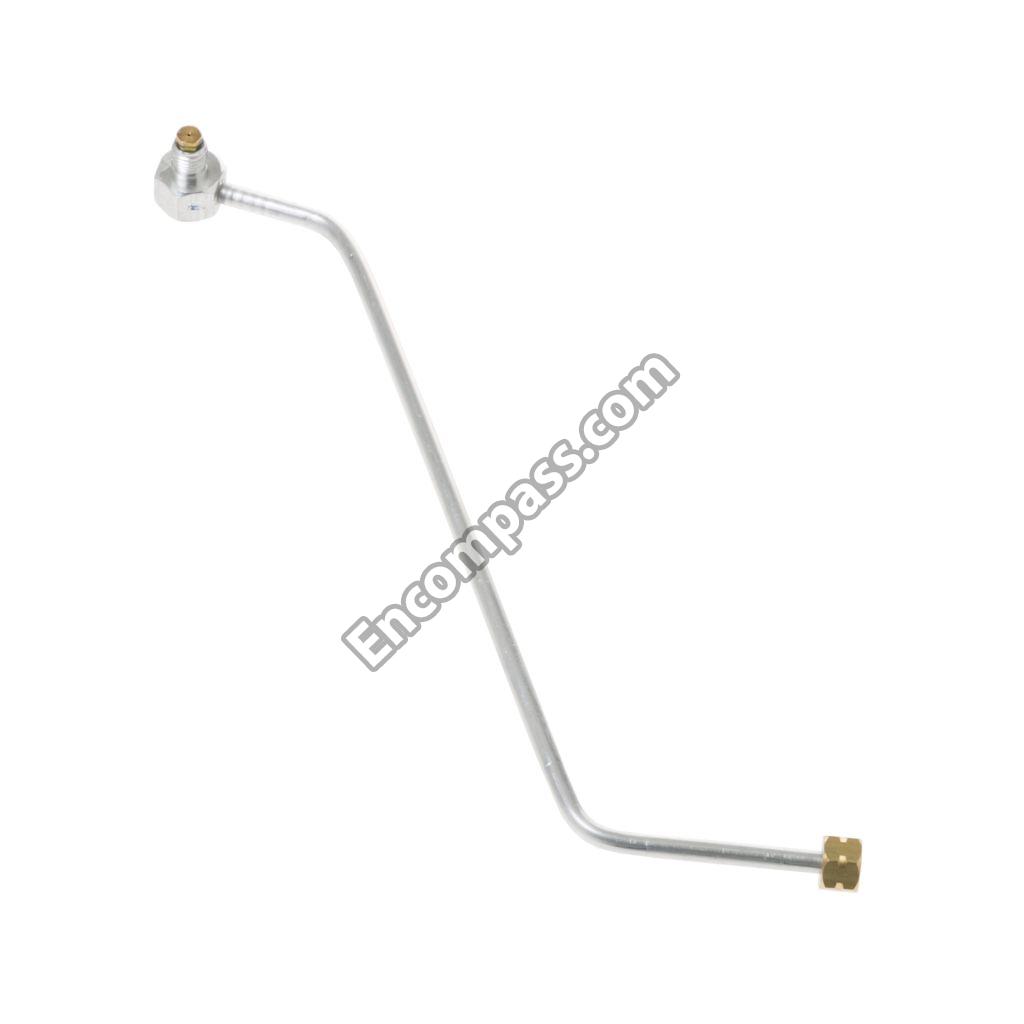

WB28T10253 WB28T10253 RANGE ORIFICE AND TUBE - NG
WB64T10069 WB64T10069 RANGE OVEN BURNER BOX BOTTOM
WB25T10041 WB25T10041 RANGE RED LENS/JEWEL
WB13X32509 WB13X32509 RANGE SPARK IGNITER GENERATOR MODULE
WB13K10014 WB13K10014 RANGE SURFACE BURNER SPARK IGNITER
WB18X25574 WB18X25574 RANGE SWITCH HARNESS
WB28T10256 WB28T10256 RANGE TUBE SUPPLY
WB19T10039 WB19T10039 RANGE VALVE LOCKOUT
WB02T10569 WB02T10569 RANGE VALVE STEM PLUG
WB19T10089 WB19T10089 REGULATOR CONVERT PRESS
WB01T10106 WB01T10106 SCR 6-32 CA OVT-15 5/8
WB01T10110 WB01T10110 SCR 8-18X.450 AB FLT20 S
WB01X1137 WB01X1137 SCREW
WB01K5028 WB01K5028 SCREW
WH2X930 WH2X930 SCREW
WB1X536 WB1X536 SCREW
WB1X1261 WB1X1261 SCREW
WB01K10067 WB01K10067 SCREW 8 HD 1/4-20
WB01X1261 WB01X1261 SCREW GROUND
WB1X1137 WB1X1137 SCREW-10AB
WB2K5275 WB2K5275 STRAIN RELEF
WB02K5275 WB02K5275 STRAIN RELIEF-RT ANGLE
WB28T10260 WB28T10260 TUBE BURNER ASSEMBLY
WB28X22841 WB28X22841 TUBE BURNER RF
WB19T10084 WB19T10084 VALVE GAS
WB19T10085 WB19T10085 VALVE GAS
WB19T10086 WB19T10086 VALVE GAS
WB19T10090 WB19T10090 VALVE GAS
WB19T10091 WB19T10091 VALVE GAS
