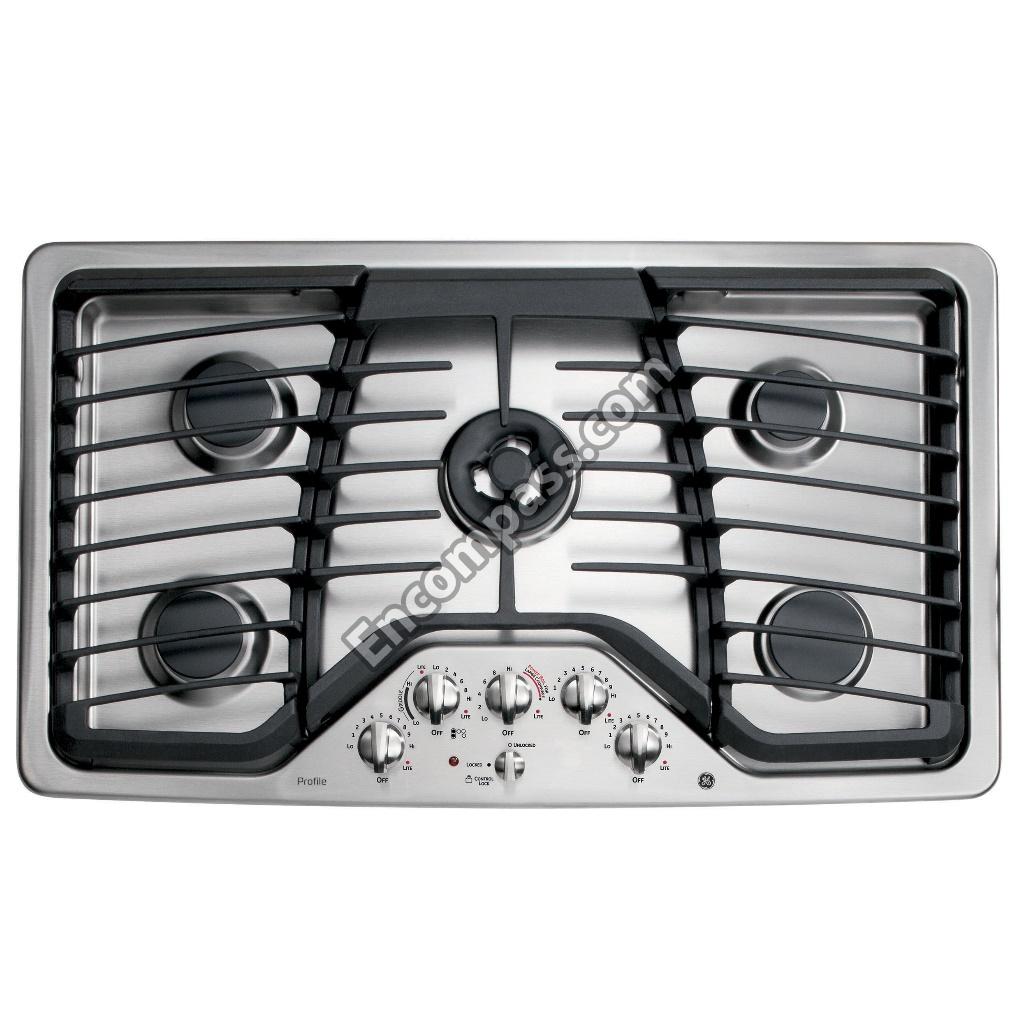

Model Image
Manufacturer

GE

Model Number

PGP986SET1SS

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB16K10070 WB16K10070 000 BTUS GAS RANGE BURNER BASE; 5
WB29K10024 WB29K10024 000 BTUS GAS RANGE BURNER CAP-LARGE; 12
WB29K10022 WB29K10022 000 BTUS GAS RANGE SMALL BURNER CAP; 5
WB16T10046 WB16T10046 12 GAS COOKTOP LARGE BURNER 000 BTUS
WB16K10079 WB16K10079 3R BURNER ASSEMBLY
WB29K10023 WB29K10023 500 BTUS GAS RANGE MEDIUM BURNER CAP; 9
WB16K10055 WB16K10055 9 RANGE SURFACE BURNER BASE-MEDIUM 500
WB01T10122 WB01T10122 ADJUSTABLE SCREW
WB17T10026 WB17T10026 BOARD LED ASSEMBLY
WB2K5328 WB2K5328 BRKT HOLD DN
WB29K10045 WB29K10045 BURNER CAP CENTRAL
WB02K10362 WB02K10362 CKT BRACKET MDM AND LGE
WB02K10361 WB02K10361 CKT BRACKET MEDIUM
WB02K10360 WB02K10360 CKT BRACKET SMALL
WB02T10111 WB02T10111 CLEANER-SS
WB06T10017 WB06T10017 COOKTOP FOAM TAPE
WB04T10082 WB04T10082 COOKTOP INLET SUPPLY
WB04T10084 WB04T10084 COOKTOP MANIFOLD SEAL
WB08T10015 WB08T10015 COOKTOP POWER CORD
WB01K10037 WB01K10037 ECONOMIC NUT
WB13T10080 WB13T10080 ELECTRODE TOP
WB03X25796 WB03X25796 GAS COOKTOP KNOB - STAINLESS STEEL
WB31T10142 WB31T10142 GRATE CTR 36 (PRF)
WB31T10144 WB31T10144 GRATE LEFT 36 (PRF)
WB31T10143 WB31T10143 GRATE RT 36 (PRF)
WB48T10080 WB48T10080 GRIDDLE
WB28X29276 WB28X29276 GRIDDLE TUBE ASSEMBLY
WB18T10511 WB18T10511 HARNESS WIRE BURNER
WB18T10510 WB18T10510 HARNESS WIRE BURNER
WB02K5328 WB02K5328 HOLD DOWN BRACKET
WB35T10246 WB35T10246 INSULATION MAINTOP
WB28T10250 WB28T10250 KIT BUTANE ASSEMBLY
WB03T10316 WB03T10316 KNOB SELECTOR (STAINLESS STEEL)
WB27T10626 WB27T10626 LIGHT INDICATOR PILOT
31-10782 31-10782 LP CONV INSTRUCTIONS
WB62X25943 WB62X25943 MAINTOP ASM (PRF-SS)
WB62T10812 WB62T10812 MAINTOP GAS ASM 36
WB28T10243 WB28T10243 ORIFICE SPUD LP
WB28T10247 WB28T10247 ORIFICE SPUD LP 12K
WB28T10245 WB28T10245 ORIFICE SPUD LP 5K
WB28T10246 WB28T10246 ORIFICE SPUD LP 9.1K
WB28T10248 WB28T10248 ORIFICE SPUD SIMMER LP
WB02T10207 WB02T10207 PCB ST AND OFF
31-10808 31-10808 PM INSTALL INSTRUCTIONS
31-15010 31-15010 PM MANUAL MINI &WD ASM
49-80636 49-80636 PM MANUAL USE & CARE
WB28T10278 WB28T10278 RANGE BLACK BUMPER
WB02T10567 WB02T10567 RANGE BRACKET
WB28T10266 WB28T10266 RANGE BURNER TUBE ASSEMBLY
WB08T10039 WB08T10039 RANGE BUZZER
WB01K10112 WB01K10112 RANGE ELECTRODE CLIP
WB27T11382 WB27T11382 RANGE LED SURGE BOARD
WB28T10249 WB28T10249 RANGE MANIFOLD BRACKET ASSEMBLY
WB28T10251 WB28T10251 RANGE MANIFOLD TUBE
WB28T10253 WB28T10253 RANGE ORIFICE AND TUBE - NG
WB28T10252 WB28T10252 RANGE ORIFICE AND TUBE - NG
WB28T10242 WB28T10242 RANGE ORIFICE NG
WB28T10244 WB28T10244 RANGE ORIFICE SPUD NG - SIMMER
WB64T10069 WB64T10069 RANGE OVEN BURNER BOX BOTTOM
WB25T10041 WB25T10041 RANGE RED LENS/JEWEL
WB13X32509 WB13X32509 RANGE SPARK IGNITER GENERATOR MODULE
WB13K10014 WB13K10014 RANGE SURFACE BURNER SPARK IGNITER
WB18X25575 WB18X25575 RANGE SWITCH HARNESS
WB28T10259 WB28T10259 RANGE TOP BURNER ASSEMBLY
WB28T10256 WB28T10256 RANGE TUBE SUPPLY
WB19T10039 WB19T10039 RANGE VALVE LOCKOUT
WB02T10569 WB02T10569 RANGE VALVE STEM PLUG
WB19T10089 WB19T10089 REGULATOR CONVERT PRESS
WB01T10106 WB01T10106 SCR 6-32 CA OVT-15 5/8
WB01T10110 WB01T10110 SCR 8-18X.450 AB FLT20 S
WB01X1121 WB01X1121 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5028 WB01K5028 SCREW
WB01K0001 WB01K0001 SCREW
WB1K5119 WB1K5119 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X1261 WB01X1261 SCREW GROUND
WB01K10110 WB01K10110 SCREW TRILOBULAR
WB1X1137 WB1X1137 SCREW-10AB
WB1X1121 WB1X1121 SCREW-VLVE
WB2K5275 WB2K5275 STRAIN RELEF
WB02K5275 WB02K5275 STRAIN RELIEF-RT ANGLE
WB28T10258 WB28T10258 TUBE BURNER RF
WB28T10271 WB28T10271 TUBE TRI RING OUTER
WB19T10088 WB19T10088 VALVE DUAL
WB19T10087 WB19T10087 VALVE DUAL
WB19T10086 WB19T10086 VALVE GAS
WB19T10085 WB19T10085 VALVE GAS
WB19T10084 WB19T10084 VALVE GAS
