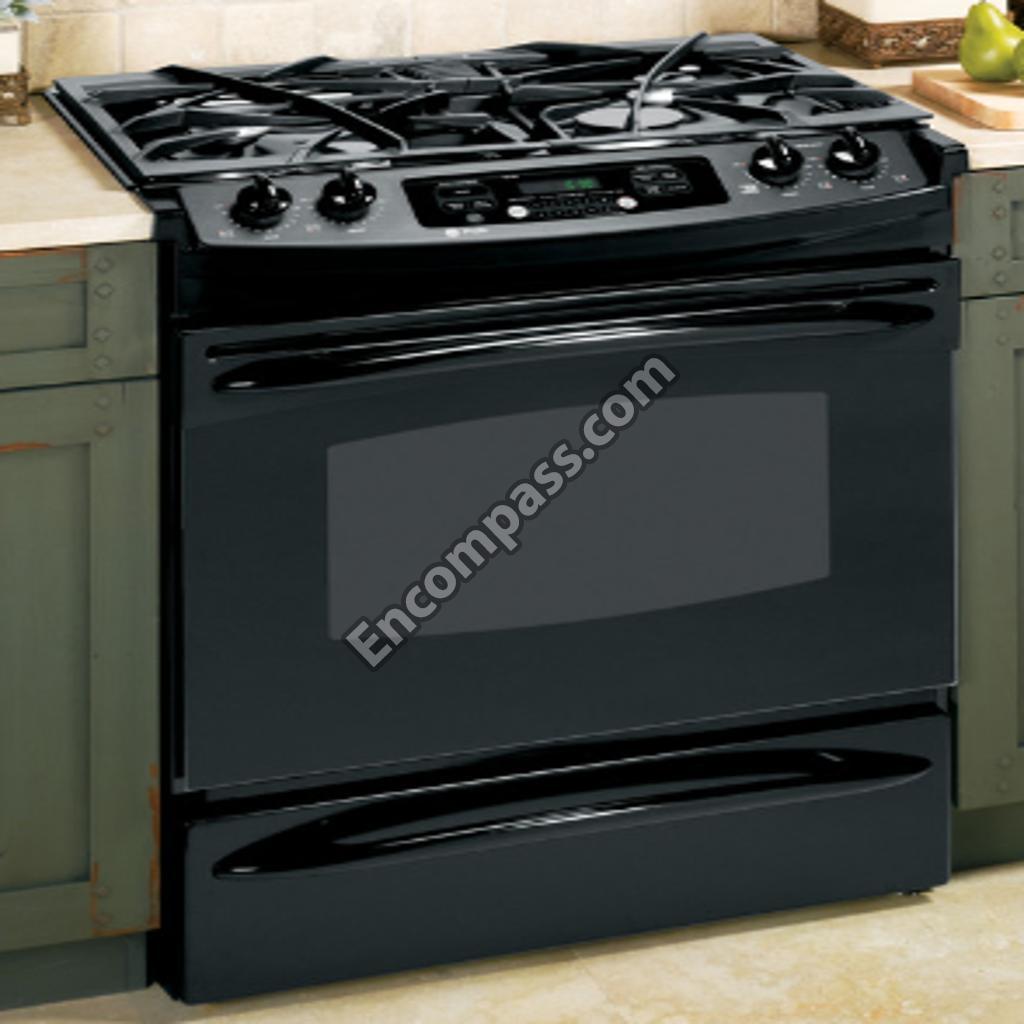

Model Image
Manufacturer

GE

Model Number

PGS908BEM2BB

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB16T10046 WB16T10046 12 GAS COOKTOP LARGE BURNER 000 BTUS
WB1K5200 WB1K5200 340531
WB49X29679 WB49X29679 50W RANGE HALOGEN BULB
WB16K10055 WB16K10055 9 RANGE SURFACE BURNER BASE-MEDIUM 500
WB02X9014 WB02X9014 AIR SHUTTER
WB2X9014 WB2X9014 AIR SHUTTER
WB01X1124 WB01X1124 AIR SHUTTER SCREW
WB36T10725 WB36T10725 BACKSPLASH ASSEMBLY (BLK)
WB36K10239 WB36K10239 BACKSPLASH FILLER-BLACK
WB34T10078 WB34T10078 BAFFLE BRO BURN-UPPER
WB34T10077 WB34T10077 BAFFLE BURNER
WB39T10012 WB39T10012 BASE RIVET ASSEMBLY
WB29K10006 WB29K10006 BLACK RANGE BURNER CAP - LARGE
WB26T10041 WB26T10041 BLOWER TANGENTIAL 60MM
WB64T10066 WB64T10066 BOTTOM BURN BOX
WB63T10101 WB63T10101 BOTTOM FALSE
WB53T10006 WB53T10006 BOX OVN BURN
WB02T10137 WB02T10137 BRACKET ASSEMBLY ANTI TIP
WB02T10341 WB02T10341 BRACKET BLOWER
WB02K10082 WB02K10082 BRACKET COOKTOP XL
WB02T10348 WB02T10348 BRACKET MAINTOP
WB02T10190 WB02T10190 BRACKET REGULATOR
WB13T10023 WB13T10023 BURNER CAP BLACK B MED
WB16T10022 WB16T10022 BURNER OVN BAKE ASSEMBLY
WB16T10021 WB16T10021 BURNER OVN BROIL ASSEMBLY
WB16K10070 WB16K10070 BURNER-SMALL
WB28K10213 WB28K10213 CAP BURNER ASSEMBLY (15K)
WB02K10362 WB02K10362 CKT BRACKET MDM AND LGE
WB02K10361 WB02K10361 CKT BRACKET MEDIUM
WB02K10360 WB02K10360 CKT BRACKET SMALL
WB6X93 WB6X93 CLAMP
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB27T10833 WB27T10833 CONTROL OVEN (ERC3B)
WB04T10055 WB04T10055 COOKTOP VENT GASKET
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB02T10347 WB02T10347 COVER DUCT
WB31T10133 WB31T10133 COVER VENT
WB01T10022 WB01T10022 DOOR BUMPER
WB02X9037 WB02X9037 DOOR HANDLE SPACER-BLACK
WB57T10277 WB57T10277 DOOR OTR ASSEMBLY 30 (BLACK)
WB55T10178 WB55T10178 DRAWER BODY ASSEMBLY MECH
WB01K10037 WB01K10037 ECONOMIC NUT
WB28T10091 WB28T10091 ELBOW
WB07T10535 WB07T10535 EXTENSION REAR
WB07T10537 WB07T10537 EXTENSION SIDE
WB07T10536 WB07T10536 EXTENSION SIDE
WB27T10925 WB27T10925 FACEPLATE (SCR)
WB27T10927 WB27T10927 FACEPLATE (SCR)
WB63T10083 WB63T10083 FRAME FRT LOWER
WB21T10014 WB21T10014 GAS RANGE CONTROL VALVE
WB29K10009 WB29K10009 GAS RANGE SMALL BURNER CAP (BLACK)
WB29K10001 WB29K10001 GAS RANGE SURFACE BURNER CAP (BLACK)
WB16K10062 WB16K10062 GAS RANGE XL BURNER
WB02T10320 WB02T10320 GASKET MAINTOP LH
WB02T10319 WB02T10319 GASKET MAINTOP RH
WB31T10135 WB31T10135 GRATE CAST ASSEMBLY LEFT
WB31T10134 WB31T10134 GRATE CAST ASSEMBLY RIGHT
WB02T10489 WB02T10489 GROMMET
WB15T10136 WB15T10136 HANDLE PRF DRAWER BK
WB18T10392 WB18T10392 HARNESS SWITCH
WB18T10393 WB18T10393 HARNESS WIRE BURNER
WB10T10075 WB10T10075 HINGE DOOR LEFT
WB10T10074 WB10T10074 HINGE DOOR RT
WB10T10097 WB10T10097 HINGE MAINTOP LEFT
WB10T10096 WB10T10096 HINGE MAINTOP RT
WB08T10006 WB08T10006 HOUSING RECEPTACLE
49-80454 49-80454 INSERT PAN & GRID (GAS)
WB36T10669 WB36T10669 INSERT PNL CONTROL
31-10482 31-10482 INSTRUCTION INSTALL
31-10643 31-10643 INSTRUCTION LP
31-10651 31-10651 INSTRUCTIONS INSTALL
31-10642 31-10642 INSTRUCTIONS INSTALL
WB35T10162 WB35T10162 INSULATION BACK
WB35T10090 WB35T10090 INSULATION BACK AND BTM
WB35T10091 WB35T10091 INSULATION COMP SHLD
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10088 WB35T10088 INSULATION TOP AND SDS INR
WB35T10089 WB35T10089 INSULATION TOP AND SDS OTR
WB35T10164 WB35T10164 INSULATION VNT TBE
WB27T10760 WB27T10760 KEYPANEL SUPT ASSEMBLY (BLACK)
WB49T10014 WB49T10014 KIT CONVERSION ASSEMBLY
WB03T10195 WB03T10195 KNOB GAS VLV (PRF)
WB25T10096 WB25T10096 LAMP HALOGEN ASSEMBLY
WB14T10018 WB14T10018 LATCH OVN
WB25T10027 WB25T10027 LENS OVEN LAMP
WB1M18 WB1M18 LEVEL SCREW
WB01M0018 WB01M0018 LEVELING SCREW
WB55T10148 WB55T10148 LINER OVEN DR ASSEMBLY
WB01K5046 WB01K5046 LOCKWASHER
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER
WB61T10163 WB61T10163 MAINTOP (BLACK)
WB61T10156 WB61T10156 MAINTOP BK
WB28T10084 WB28T10084 MANIFOLD PIPE
31-14514 31-14514 MANUAL MINI & WD ASM
49-80527 49-80527 MANUAL USE & CARE
WB13T10046 WB13T10046 MODULE SPARK (4+0)
WB28T10206 WB28T10206 ORIFICE SPUD
WB28T10196 WB28T10196 ORIFICE SPUD 130 NG
WB28T10197 WB28T10197 ORIFICE SPUD 145 NG
WB28T10199 WB28T10199 ORIFICE SPUD 86 LP
WB28T10200 WB28T10200 ORIFICE SPUD 90 LP
WB28T10195 WB28T10195 ORIFICE SPUD 99 NG
WB28T10198 WB28T10198 ORIFICE SPUD LP
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB02T10234 WB02T10234 PANEL ACCESS WIRE
WB36T11009 WB36T11009 PANEL CONTROL ASSEMBLY (BLACK)
WB56T10173 WB56T10173 PANEL DRAWER
WB48T10021 WB48T10021 RACK OVEN LWR
WB26T10042 WB26T10042 RANGE BLOWER WHEEL 60MM
WB02T10189 WB02T10189 RANGE BRASS ORIFICE FITTING
WB02T10345 WB02T10345 RANGE BURNER BAFFLE
WB02X10742 WB02X10742 RANGE CONTROL PANEL GASKET
WB08K5039 WB08K5039 RANGE CORD
WB8K5039 WB8K5039 RANGE CORD
WB02T10065 WB02T10065 RANGE DOOR HANDLE SPACER
WB48T10013 WB48T10013 RANGE DRAWER SUPPORT - FRONT
WB01K10112 WB01K10112 RANGE ELECTRODE CLIP
WB02X10744 WB02X10744 RANGE FACEPLATE GASKET
WB02T10184 WB02T10184 RANGE GLASS RETAINER
WB02T10461 WB02T10461 RANGE GRATE FOOT
WB24T10160 WB24T10160 RANGE HIGH AMP SWITCH
WB02T10371 WB02T10371 RANGE INSULATION RETAINER
WB02X10521 WB02X10521 RANGE LEVELING LEG
WB28T10207 WB28T10207 RANGE ORIFICE LP - RIGHT FRONT
WB02T10188 WB02T10188 RANGE ORIFICE SHIELD
WB04T10050 WB04T10050 RANGE OVEN GASKET
WB13T10045 WB13T10045 RANGE OVEN IGNITER
WB02T10034 WB02T10034 RANGE PANEL SIDE SUPORT
WB02X33180 WB02X33180 RANGE REAR DRAWER SUPPORT
WB02T10147 WB02T10147 RANGE REINFORCEMENT PLATE
WB13K10014 WB13K10014 RANGE SURFACE BURNER SPARK IGNITER
WB02T10270 WB02T10270 RANGE SWITCH BRACKET
WB10T10083 WB10T10083 RECEIVER HINGE
WB19T10074 WB19T10074 REGULATOR CONVERT PRESS
WB02T10342 WB02T10342 RETAINER INSLN BACK
WB02T10247 WB02T10247 RETAINER INSLN BTM
WB02T10344 WB02T10344 RETAINER INSLN TOP
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI.
WB01T10106 WB01T10106 SCR 6-32 CA OVT-15 5/8
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01T10110 WB01T10110 SCR 8-18X.450 AB FLT20 S
WB01X1178 WB01X1178 SCREW
WB01K5029 WB01K5029 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1428 WB01X1428 SCREW
WB01X1141 WB01X1141 SCREW
WB01K5028 WB01K5028 SCREW
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WB1K5029 WB1K5029 SCREW
WB1X1178 WB1X1178 SCREW
WB1X1293 WB1X1293 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10048 WB01T10048 SCREW 10-16 SHLDR TYPE A
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB1X1124 WB1X1124 SCREW-ADJUST
WB1K5157 WB1K5157 SCREW-BLK
WB01X1118 WB01X1118 SCREW-NICKEL
WH2X941D WH2X941D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB2K5306 WB2K5306 SD INSUL RET
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB34T10080 WB34T10080 SHIELD COMPRT
WB2X9037 WB2X9037 SPACER-HNDL
WB02T10192 WB02T10192 SUPPORT FALSE BTM
WB26T10015 WB26T10015 SUPPORT OVEN CAVITY
WB2K5238 WB2K5238 SW BRACKET
WB02K5238 WB02K5238 SWITCH BRACKET
WB24T10140 WB24T10140 SWITCH LIMIT (L1)
WB24T10141 WB24T10141 SWITCH LIMIT BIMETAL
WB07T10500 WB07T10500 TRIM ASSEMBLY
WB07T10516 WB07T10516 TRIM FRT FRM (BLACK)
WB07T10392 WB07T10392 TRIM VERT SDE LEFT
WB07T10391 WB07T10391 TRIM VERT SDE RT
WB28T10205 WB28T10205 TUBE (7/16)
WB28T10095 WB28T10095 TUBE 3/8
WB28T10094 WB28T10094 TUBE 3/8
WB28T10093 WB28T10093 TUBE 3/8
WB28T10204 WB28T10204 TUBE BURNER ASSEMBLY
WB28T10190 WB28T10190 TUBE BURNER ASSEMBLY
WB28T10189 WB28T10189 TUBE BURNER ASSEMBLY
WB28T10188 WB28T10188 TUBE BURNER ASSEMBLY
WB28T10203 WB28T10203 TUBE OVEN VENT
WB06X0093 WB06X0093 VALVE CLAMP
WB21X22079 WB21X22079 VALVE KIT
WB21X22072 WB21X22072 VALVE KIT
WB21X22071 WB21X22071 VALVE KIT
WB38T10023 WB38T10023 VENT CAP
WB1K5046 WB1K5046 WASHER
WB48T10068 WB48T10068 WEDGE DRAWER
WB63T10102 WB63T10102 WRAPPER OVN CAV ASM
