Model Image
Manufacturer

GE

Model Number

PGS960YP1FS

Description

Gas Range Or Dual Fuel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB29K10023 WB29K10023 500 BTUS GAS RANGE MEDIUM BURNER CAP; 9
WB02X28653 WB02X28653 AIR DEVIATOR
WB02X28652 WB02X28652 AIR DEVIATOR
WB02K0003 WB02K0003 ANGLE SUPPORT
WB02X29479 WB02X29479 BADGE ASSEMBLY
WB34X28907 WB34X28907 BAKE DEFLECTOR UC
WB56X20457 WB56X20457 BARRIER BOTTOM FLOOR
WB16X28656 WB16X28656 BASE BURNER
WB63X31653 WB63X31653 BLACK RANGE BACK
WB2X8351 WB2X8351 BLADE FAN

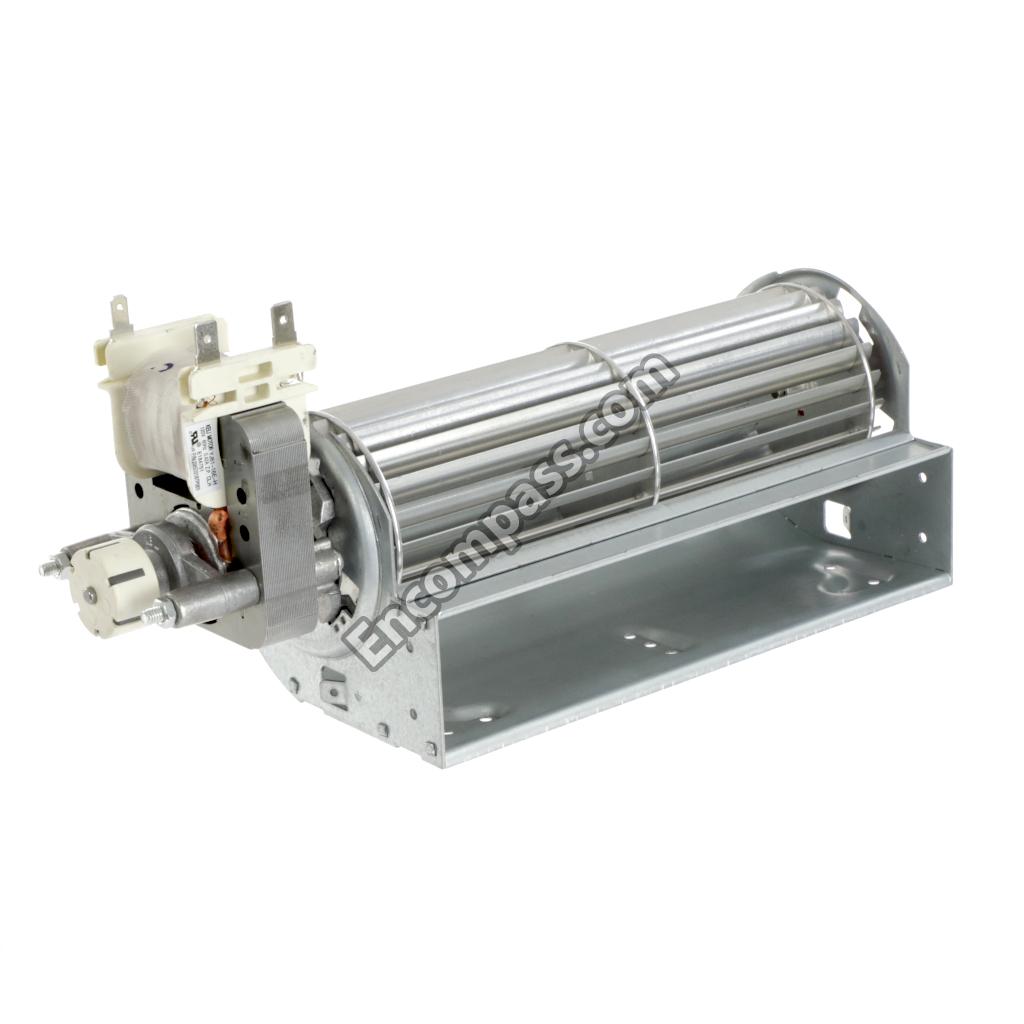

WB26X35086 WB26X35086 BLOWER TANGENTIAL
WB27X28659 WB27X28659 BOARD SENSOR
WB27X33353 WB27X33353 BOARD WIFI CAT MODULE
WB63X21725 WB63X21725 BOTTOM DUCT
WB34X24912 WB34X24912 BOTTOM OVEN
WB63X20441 WB63X20441 BOTTOM RANGE
WB34X28237 WB34X28237 BRACKET
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASSEMBLY
WB34X36828 WB34X36828 BRACKET SPARK MODULE
WB34X28910 WB34X28910 BRACKET SWITCH
WB44X47938 WB44X47938 BROIL ELEMENT
WB02X24790 WB02X24790 BUMPER
WB16X28965 WB16X28965 BURNER AND END CAP DUAL OVAL ASSEMBLY
WB29X24971 WB29X24971 BURNER CAP CENTER ASSEMBLY
WB16X28252 WB16X28252 CAP INNER
WB29X28253 WB29X28253 CAP OUTER
WB31X28255 WB31X28255 CENTRAL GRATE
WB01X24735 WB01X24735 CKT SCREW
WB02X21679 WB02X21679 CLIP WIRE
WB44X10051 WB44X10051 CONVECTION ELEMENT
WB34X28992 WB34X28992 COVER BACK
WB02K10337 WB02K10337 COVER CAP
WB34X21710 WB34X21710 COVER LATCH
WB34X21619 WB34X21619 COVER LATCH
WB34X25587 WB34X25587 COVER MOTOR
WB02X28680 WB02X28680 COVER VALVE
WB34X28684 WB34X28684 COVER VENT TRIM
WB57K10156 WB57K10156 CRYSTAL WINDOW
WB57K10155 WB57K10155 CRYSTAL WINDOW
WB18X28691 WB18X28691 DC HARNESS
WB34X29028 WB34X29028 DEFLECTOR
WB01K10037 WB01K10037 ECONOMIC NUT
WB28X28696 WB28X28696 ELBOW 90 ASSEMBLY
WB28X28695 WB28X28695 ELBOW 90 ASSEMBLY
WB28X20451 WB28X20451 ELBOW 90 ASSEMBLY
WB18X33923 WB18X33923 ELECTRODES AND HARNESS H. V.
WB34X28701 WB34X28701 FAN COVER
WB35K10013 WB35K10013 FAN INSULATION
WB26X28953 WB26X28953 FAN MOTOR CONVECT
WB34X28735 WB34X28735 FAN SUPPORT
WB01X0560 WB01X0560 FIBER WASHER
WB02X28737 WB02X28737 FRAME FRONT BUMPER
WB02X28738 WB02X28738 FRAME FRONT BUMPER
WB34X28741 WB34X28741 FRAME WINDOW ASSEMBLY
WB34X28740 WB34X28740 FRAME WINDOW ASSEMBLY
WB34X28749 WB34X28749 FRONT SUPPORT LH
WB34X28747 WB34X28747 FRONT SUPPORT RH
WB16X28670 WB16X28670 GAS RANGE BAKE BURNER
WB16X28249 WB16X28249 GAS RANGE BAKE BURNER
WB28K10222 WB28K10222 GAS RANGE BURNER CAP - XL V2
WB31X24998 WB31X24998 GAS RANGE REVERSIBLE GRILL/GRIDDLE
WB35X20734 WB35X20734 GASKET FRAME FRONT
WB35X29666 WB35X29666 GASKET OVEN
WB32X29538 WB32X29538 GASKET OVEN ASSEMBLY
WB56X40371 WB56X40371 GLASS AND PANEL DOOR
WB56X40369 WB56X40369 GLASS AND PANEL DOOR
WB27X40370 WB27X40370 GLASS AND TOUCH BOARD
WB56X28193 WB56X28193 GLASS DOOR BACKER
WB31X28755 WB31X28755 GRATE ASSEMBLY
WB2K8 WB2K8 GROMMET
WB56K10081 WB56K10081 GUARD INSULATION
WB56K10079 WB56K10079 GUARD INSULATION
WB18X31604 WB18X31604 HARNESS BLOWER
WB18X27594 WB18X27594 HARNESS GROUND
WB18X25597 WB18X25597 HARNESS GROUND
WB18X28905 WB18X28905 HARNESS INTERFACE
WB18X31621 WB18X31621 HARNESS LATCH
WB18X28897 WB18X28897 HARNESS MAIN
WB18X46771 WB18X46771 HARNESS SWITCHES
WB16X28764 WB16X28764 HEAD BURNER
WB10X28783 WB10X28783 HINGE ASSEMBLY LH

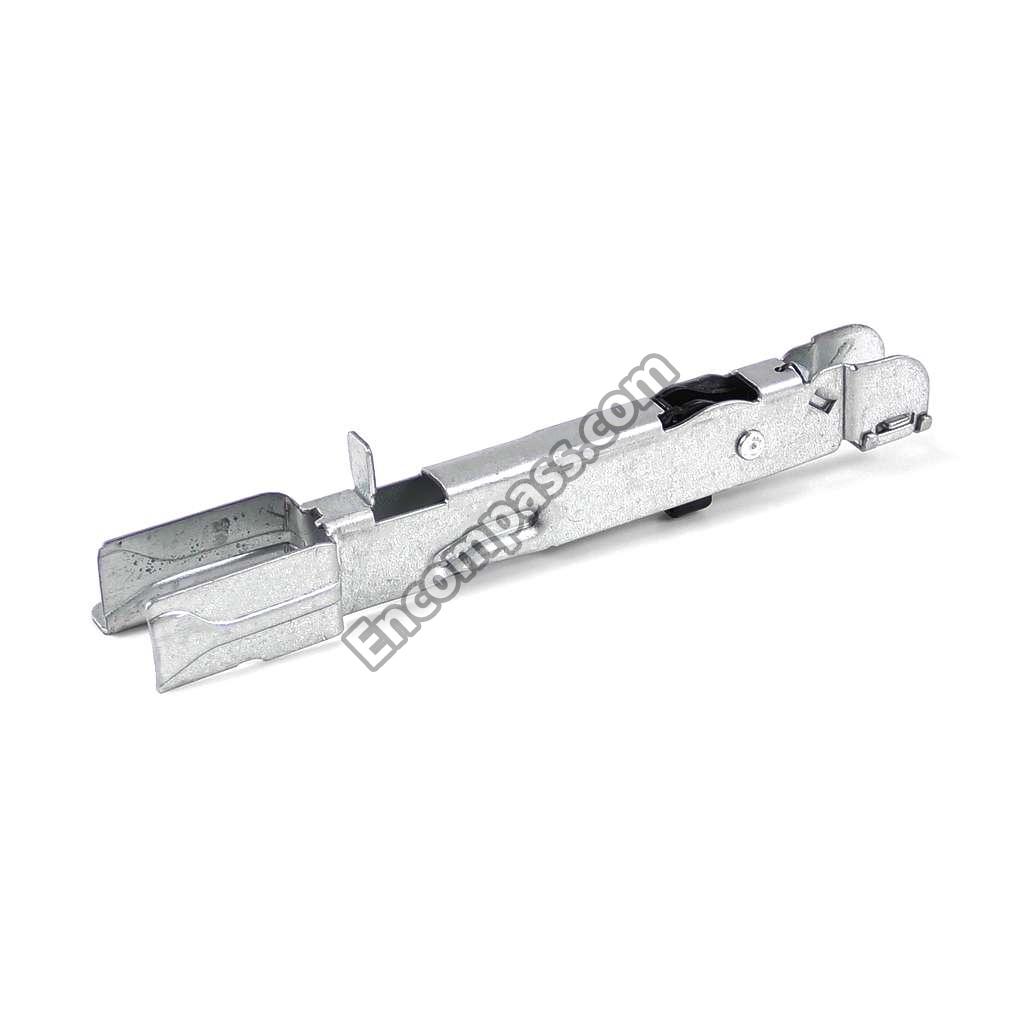

WB10X26766 WB10X26766 HINGE DOOR
WB10X25637 WB10X25637 HINGE DOOR RT

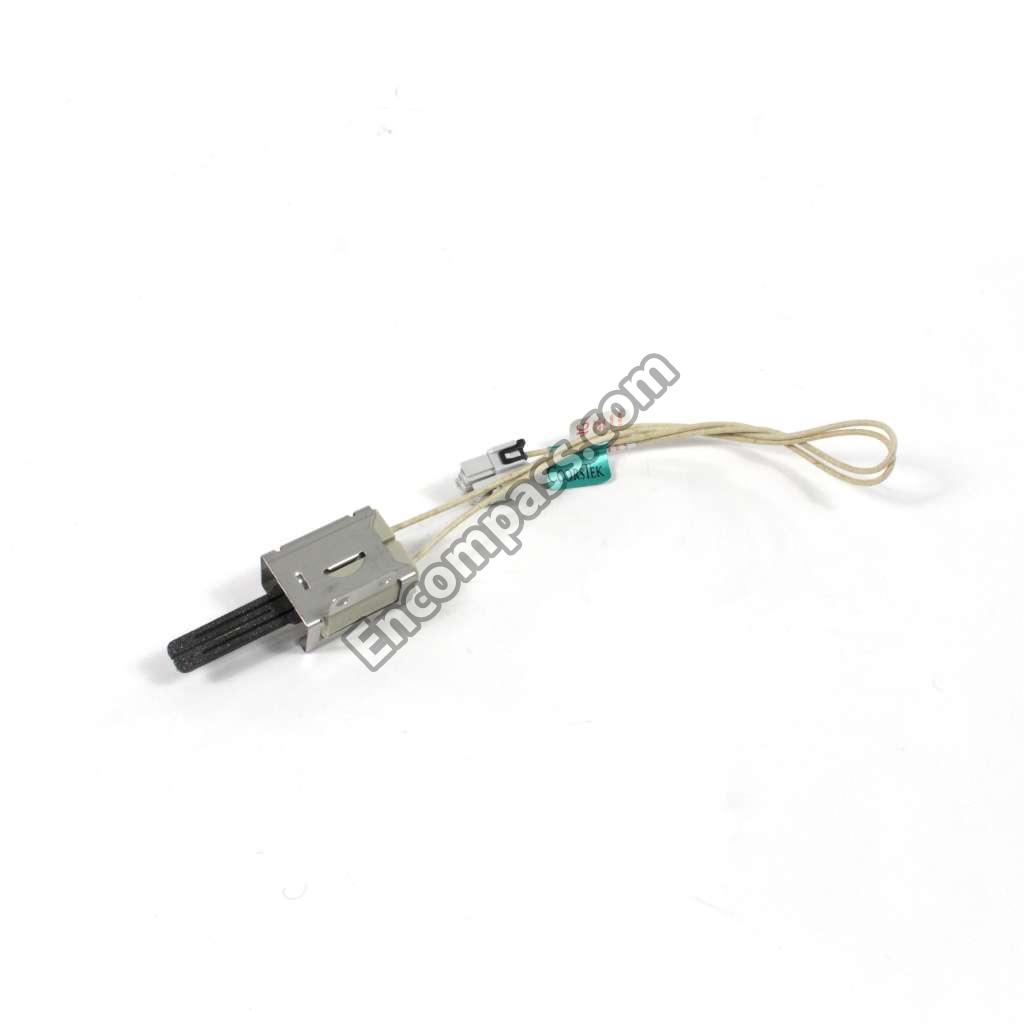

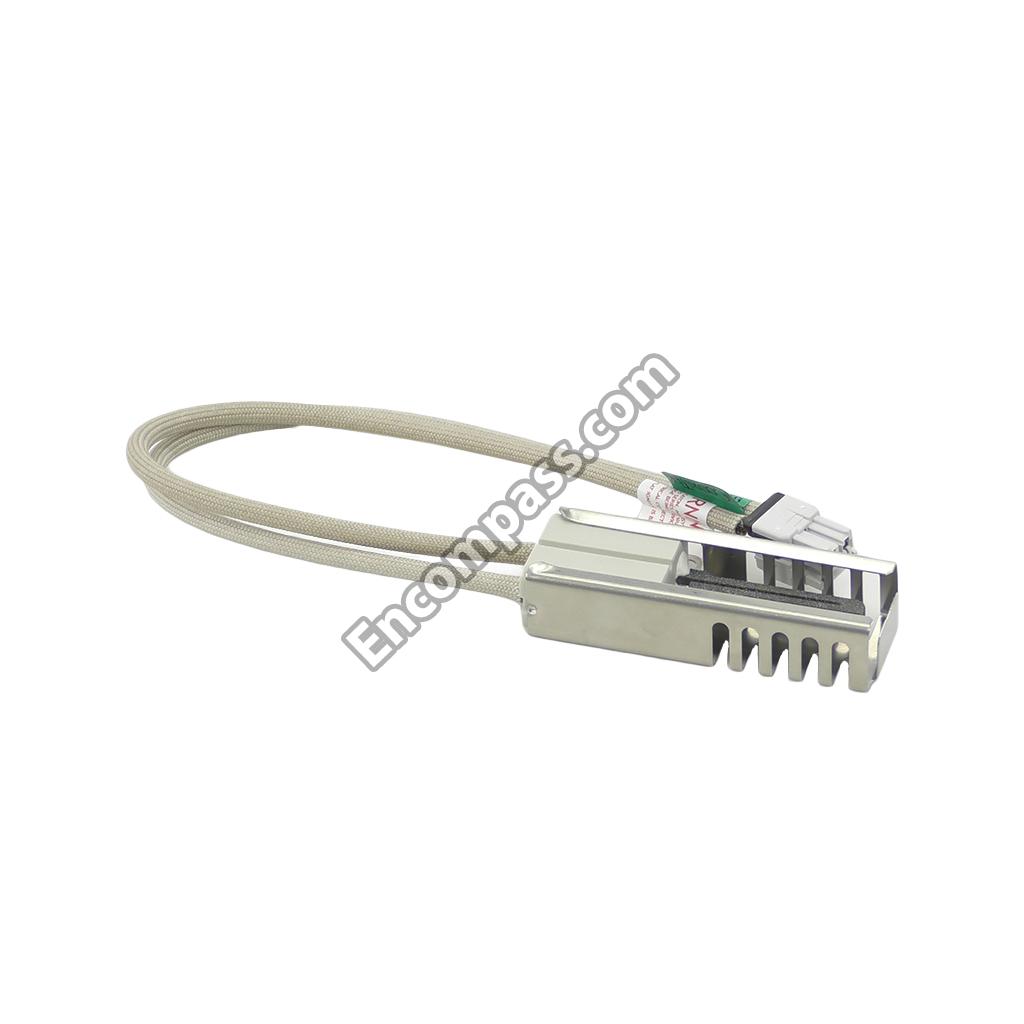

WB28X28781 WB28X28781 IGNITER GLOWBAR
WB28X28780 WB28X28780 IGNITER GLOWBAR
WB13X25633 WB13X25633 IGNITER GLOWBAR
WB13X24741 WB13X24741 IGNITION MODULE
WB16X28867 WB16X28867 INJECT BURNER MRHOB ASSEMBLY
WB16X28864 WB16X28864 INJECT DUAL OVAL BURNER ASSEMBLY
WB34X21730 WB34X21730 INSULATION DOOR
WB34X21729 WB34X21729 INSULATION DOOR
WB34X21728 WB34X21728 INSULATION DOOR
WB34X21727 WB34X21727 INSULATION DOOR
WB34X21726 WB34X21726 INSULATION DOOR
WB35X30900 WB35X30900 INSULATION FRONT DOOR
WB35X28986 WB35X28986 INSULATION LATCH
WB35X28790 WB35X28790 INSULATION OVEN BACK
WB35X28789 WB35X28789 INSULATION OVEN BACK
WB35X28788 WB35X28788 INSULATION OVEN BACK
WB28X39126 WB28X39126 KIT LP CONVERSION ASSEMBLY
WB03X28963 WB03X28963 KNOB ASSEMBLY
WB03X28962 WB03X28962 KNOB ASSEMBLY
WB03X28961 WB03X28961 KNOB ASSEMBLY
WB03X28956 WB03X28956 KNOB ASSEMBLY
295D2744P004 295D2744P004 LABEL WIRE DIAGRAM

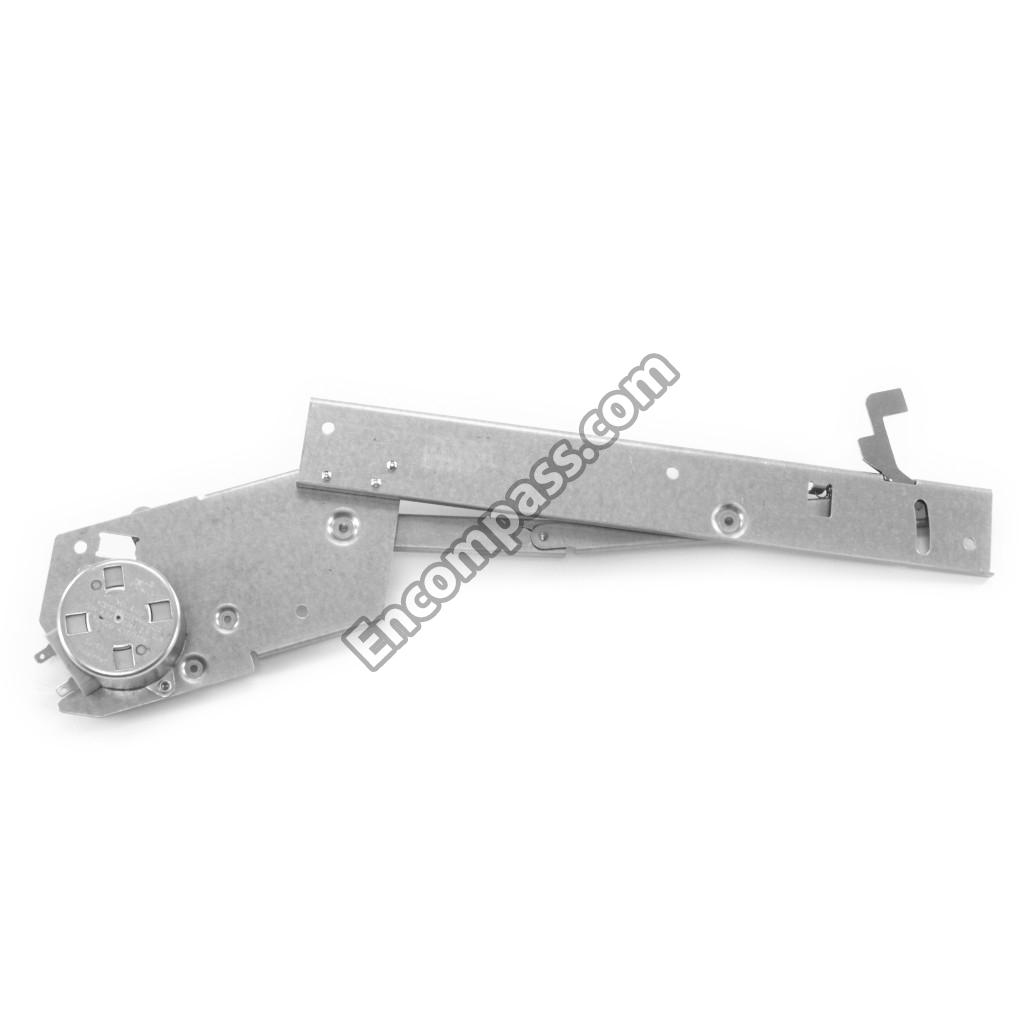

WB10X28795 WB10X28795 LATCH AUTOMATIC
WB10X28794 WB10X28794 LATCH AUTOMATIC
WB18X28855 WB18X28855 LINE CORD
WB34X28839 WB34X28839 LINER DOOR ASSEMBLY
WB56X24931 WB56X24931 LINER DOOR WELD ASSEMBLY
WB28X28143 WB28X28143 LR ORIFICE HOLDER
WB27X41026 WB27X41026 MACHINE CONTROL AND RELAY WITH FRAME
WB28X28201 WB28X28201 MANIFOLD PIPE ASSEMBLY
WB28X28199 WB28X28199 MANIFOLD PIPE ASSEMBLY
WB16X24724 WB16X24724 MEDIUM V2 BURNER
WB35X20728 WB35X20728 MESH FRAME
WB02X20520 WB02X20520 MICROWAVE HANDLE BRACKET
WB02T10017 WB02T10017 NUT
WB28X25650 WB28X25650 ORIFICE SPUD
WB28X29600 WB28X29600 ORIFICE SPUD
WB28X28845 WB28X28845 ORIFICE SPUD NG
WB28X28843 WB28X28843 ORIFICE SPUD NG
WB63X24934 WB63X24934 OVEN BOTTOM UC

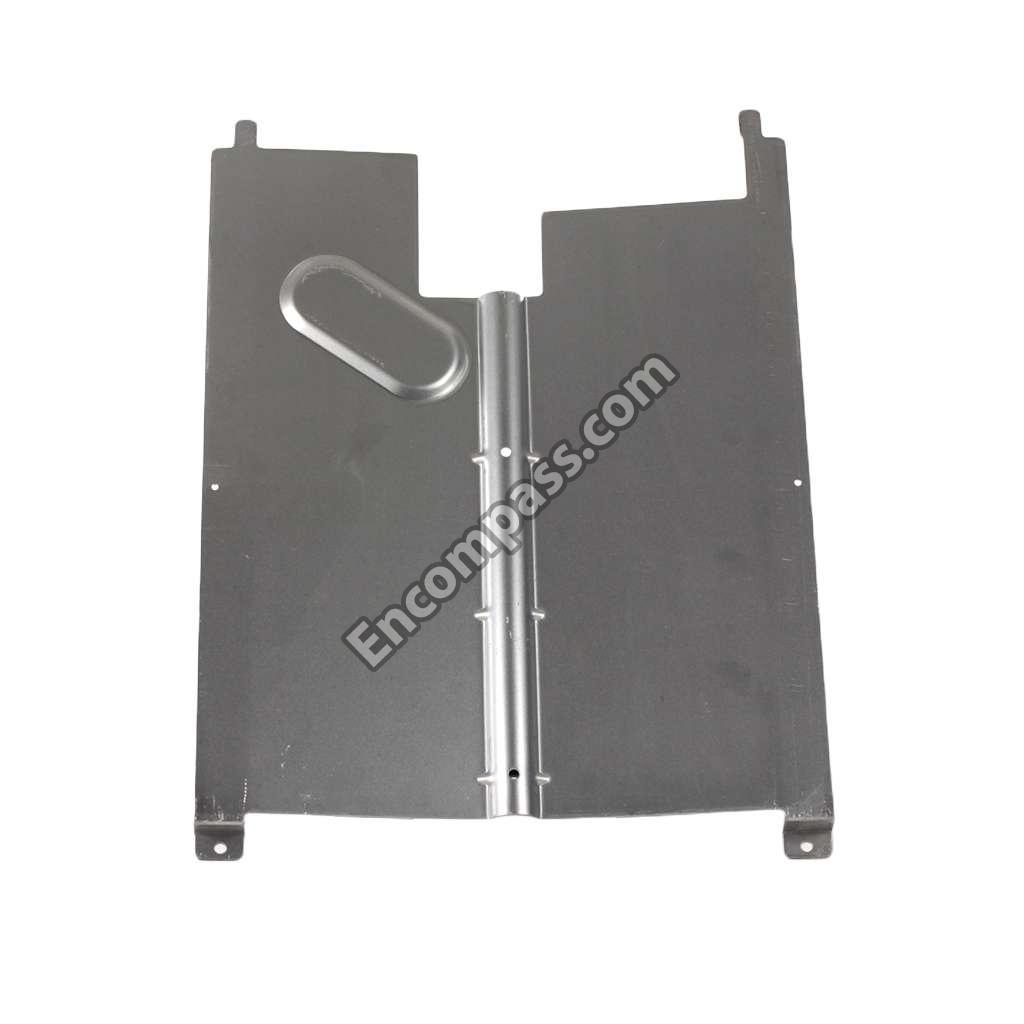

WB34X20444 WB34X20444 OVEN DEFLECTOR
WB34X20443 WB34X20443 OVEN DEFLECTOR
WB24X27550 WB24X27550 PLUNGER SWITCH
31-2000758 31-2000758 PM INSTALL INSTRUCTIONS
31-2000745 31-2000745 PM INSTALL INSTRUCTIONS
31-17273 31-17273 PM MANUAL MINI & WD ASM
49-2000836 49-2000836 PM OWNERS MANUAL
49-2000737 49-2000737 PM QUICK OWNERS MANUAL
31-11013 31-11013 PM WI FI INSTRUCTIONS
WB19K10077 WB19K10077 PRESSURE REGULATOR
WB20T10024 WB20T10024 PROBE
WB48X21508 WB48X21508 RANGE (GAS) SELF-CLEAN OVEN RACK
WB16X28251 WB16X28251 RANGE BROIL BURNER
WB16X28654 WB16X28654 RANGE BURNER CAP - SMALL - V2
WB21X28821 WB21X28821 RANGE BURNER VALVE 3R 310
WB02K10034 WB02K10034 RANGE FAN SUPPORT
WB02X24914 WB02X24914 RANGE HANDLE BRACKET
WB02X24913 WB02X24913 RANGE HANDLE BRACKET
WB02X24976 WB02X24976 RANGE IGNITER CLIP V2
WB1X1293 WB1X1293 RANGE IGNITER MOUNTING SCREW
WB02X24727 WB02X24727 RANGE INJET MEDIUM
WB02X24728 WB02X24728 RANGE INJET SMALL
WB02X24725 WB02X24725 RANGE INJET XL V2
WB02K10182 WB02K10182 RANGE LEVELING LEG
WB08K10018 WB08K10018 RANGE LIGHT COVER
WB02K10349 WB02K10349 RANGE LIGHT INSULATION
WB28X29255 WB28X29255 RANGE LP HIGH ALTITUDE KIT
WB28X29254 WB28X29254 RANGE NG HIGH ALTITUDE KIT
WB08T10002 WB08T10002 RANGE OVEN LAMP ASSEMBLY
WB32K10044 WB32K10044 RANGE OVEN LIGHT GASKET
WB56X28847 WB56X28847 RANGE SIDE PANEL
WB62X28231 WB62X28231 RANGE TOP
WB02X20735 WB02X20735 RANGE TOP REAR SUPPORT
WB10X28563 WB10X28563 RECEIVER HINGE
WB10X29636 WB10X29636 RECEIVER HINGE LH
WB10X29635 WB10X29635 RECEIVER HINGE RH
WB34K10134 WB34K10134 RECEPTABLE ASSEMBLY
WB28X28145 WB28X28145 RF ORIFICE HOLDER
WB24X28859 WB24X28859 ROTARY SWITCH
WB28X28149 WB28X28149 RR ORIFICE HOLDER
WB21X28835 WB21X28835 SAFETY VALVE DUAL
WB21X28836 WB21X28836 SAFETY VALVE SINGLE
WB02X32443 WB02X32443 SCR 8-18 B HXW 1/4S UH

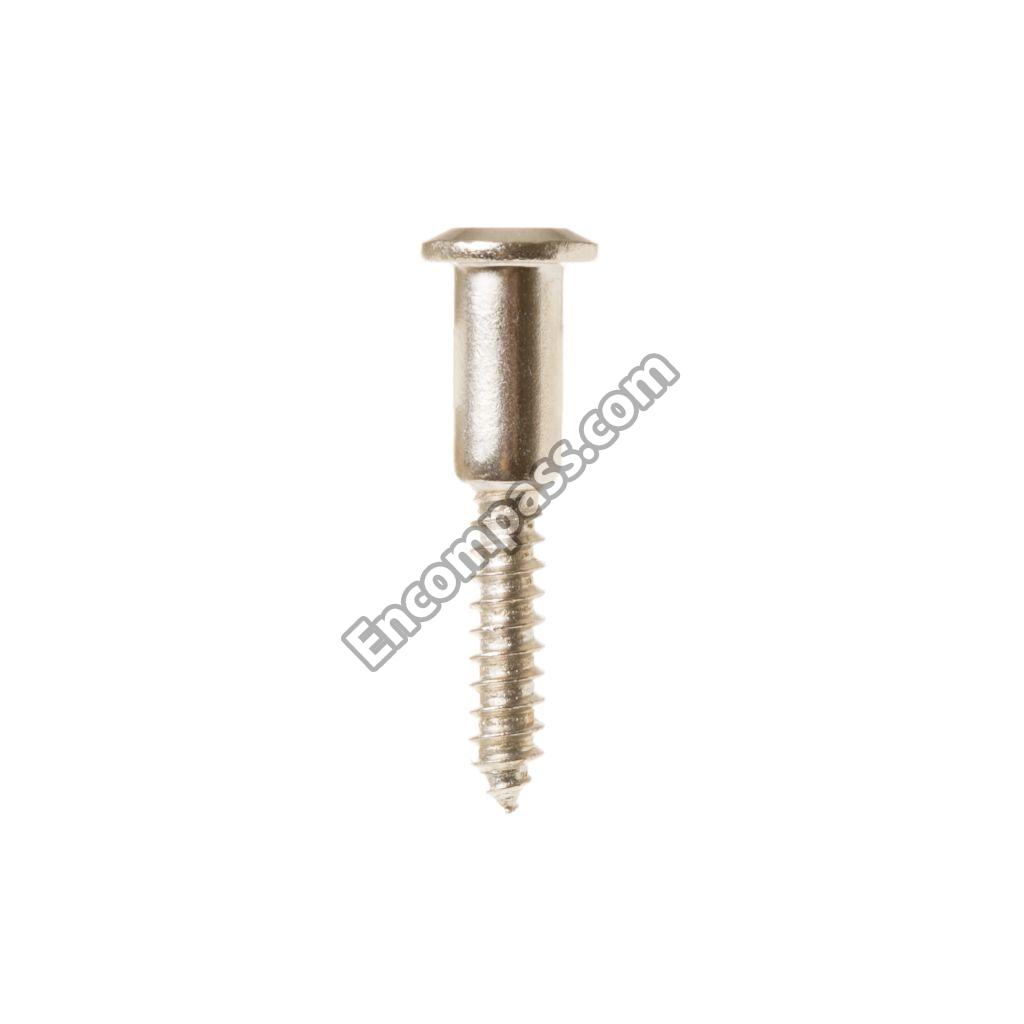

WB01K0021 WB01K0021 SCREW
WB1K5062 WB1K5062 SCREW
WB1X1261 WB1X1261 SCREW
WB1X5754 WB1X5754 SCREW
WB01K10091 WB01K10091 SCREW
WB01X31119 WB01X31119 SCREW #8-18
WB01K0042 WB01K0042 SCREW (BLK)
WB01X32512 WB01X32512 SCREW 10-24
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01K0078 WB01K0078 SCREW 12-14, 5/8S
WB01K10067 WB01K10067 SCREW 8 HD 1/4-20
WB01K10086 WB01K10086 SCREW 8-18 AB TRPO 3/8 SS
WB01X21893 WB01X21893 SCREW 8-18 AB X 5/8 S
WB01X5754 WB01X5754 SCREW 8-18 ABT 1/2 S
WZ4X345D WZ4X345D SCREW 8-18X5/8 HXW
WB01X1261 WB01X1261 SCREW GROUND
WB01K0050 WB01K0050 SCREW MTG IGNITER
WB00X6858 WB00X6858 SENSOR
WB24X25557 WB24X25557 SENSOR ASSEMBLY
WB23X5340 WB23X5340 SENSOR-OVEN
WB03X28167 WB03X28167 SKIRT
WB16X24721 WB16X24721 SMALL V2 BURNER
WB16X20449 WB16X20449 SPACER BASE
WB16X20448 WB16X20448 SPACER BASE
WB01K0002 WB01K0002 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB15X35050 WB15X35050 STAINLESS STEEL H AND LE
WB15X35049 WB15X35049 STAINLESS STEEL H AND LE
WB56X35450 WB56X35450 STAINLESS STEEL PANEL MANIFOLD
WB63X25481 WB63X25481 SUPPORT BASE LEFT
WB63X25480 WB63X25480 SUPPORT BASE RT
WB02K10325 WB02K10325 SUPPORT VALVE SINGLE
WB56X29146 WB56X29146 TOP COVER ASSEMBLY. DD
WB07X28824 WB07X28824 TRIM KIT
WB28X28150 WB28X28150 TUBE BURNER BOX SUPPLY
WB28X28152 WB28X28152 TUBE LOWER BAKE SUPPLY
WB28X28154 WB28X28154 TUBE MAIN DUAL VALVE
WB28X28153 WB28X28153 TUBE MAIN DUAL VALVE
WB28X28156 WB28X28156 TUBE MANIFOLD SUPPLY
WB28X28159 WB28X28159 TUBE OVEN SUPPLY
WB28X28162 WB28X28162 TUBE SIMMER DUAL VALVE
WB28X28160 WB28X28160 TUBE SIMMER DUAL VALVE
WB28X28163 WB28X28163 TUBE UPPER BAKE SUPPLY
WB28X28164 WB28X28164 TUBE VALVE SAFETY
WB21X25002 WB21X25002 VALVE BURNER 270
WB21X25979 WB21X25979 VALVE BURNER 270
WB21X20612 WB21X20612 VALVE BURNER 270
WB21X20470 WB21X20470 VALVE BURNER 270

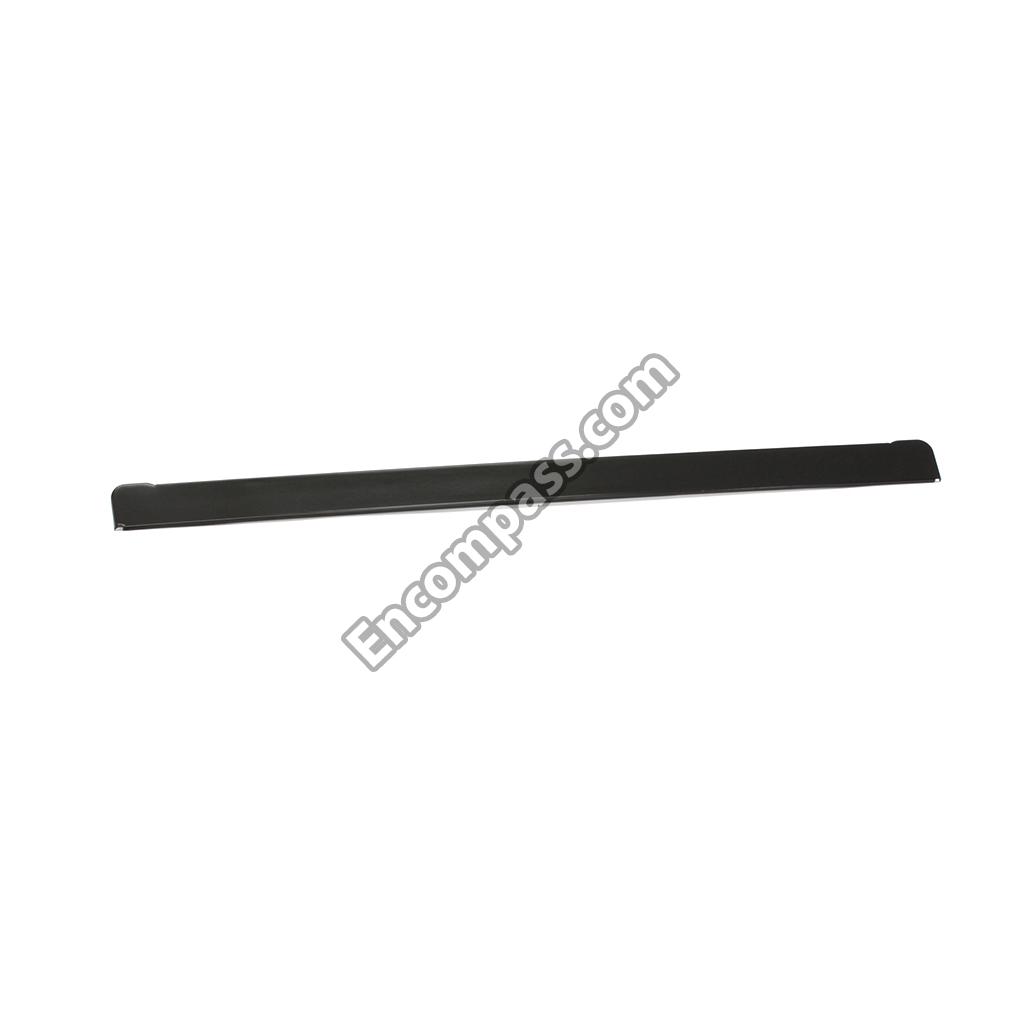

WB07X28819 WB07X28819 VENT TRIM
WB16X24722 WB16X24722 XL V2 BURNER
