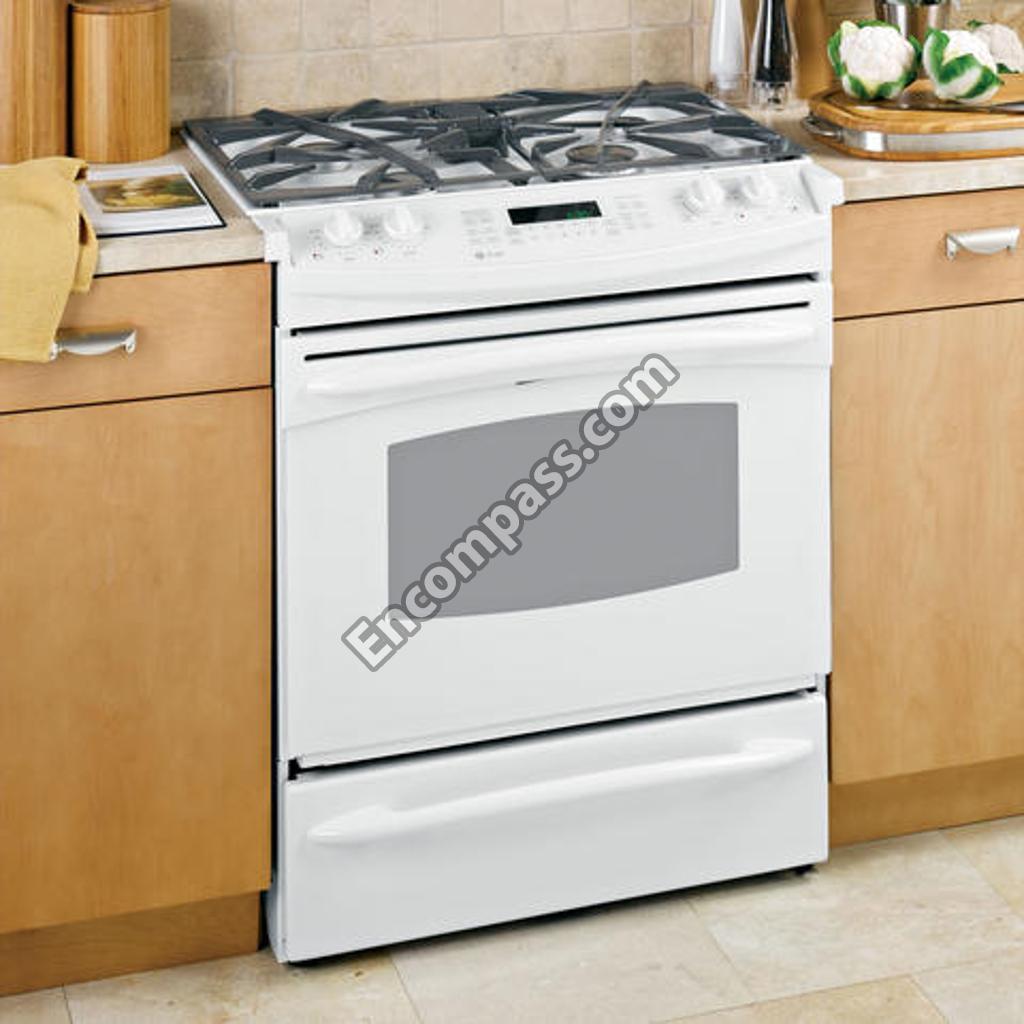

Model Image
Manufacturer

GE

Model Number

PGS975WEM4WW

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
WB16T10046 WB16T10046 GE 12 GAS COOKTOP LARGE BURNER 000 BTUS
WB1K5200 WB1K5200 GE 340531
WB49X29679 WB49X29679 GE 50W RANGE HALOGEN BULB
WB16K10055 WB16K10055 GE 9 RANGE SURFACE BURNER BASE-MEDIUM 500
WB02X9014 WB02X9014 GE AIR SHUTTER
WB2X9014 WB2X9014 GE AIR SHUTTER
WB01X1124 WB01X1124 GE AIR SHUTTER SCREW
WB34T10078 WB34T10078 GE BAFFLE BRO BURN-UPPER
WB34T10077 WB34T10077 GE BAFFLE BURNER
WB39T10012 WB39T10012 GE BASE RIVET ASSEMBLY
WB26T10041 WB26T10041 GE BLOWER TANGENTIAL 60MM
WB64T10068 WB64T10068 GE BOTTOM BURN BOX
WB63T10101 WB63T10101 GE BOTTOM FALSE
WB53T10006 WB53T10006 GE BOX OVN BURN
WB02T10341 WB02T10341 GE BRACKET BLOWER
WB02T10348 WB02T10348 GE BRACKET MAINTOP
WB02T10190 WB02T10190 GE BRACKET REGULATOR
WB13T10026 WB13T10026 GE BURNER CAP-GRAY- LR
WB16T10022 WB16T10022 GE BURNER OVN BAKE ASSEMBLY
WB16T10021 WB16T10021 GE BURNER OVN BROIL ASSEMBLY
WB16K10070 WB16K10070 GE BURNER-SMALL
WB13T10068 WB13T10068 GE CAP BURNER
WB02K10362 WB02K10362 GE CKT BRACKET MDM AND LGE
WB02K10361 WB02K10361 GE CKT BRACKET MEDIUM
WB02K10360 WB02K10360 GE CKT BRACKET SMALL
WB6X93 WB6X93 GE CLAMP
WB01K5209 WB01K5209 GE CLIP
WB1K5209 WB1K5209 GE CLIP

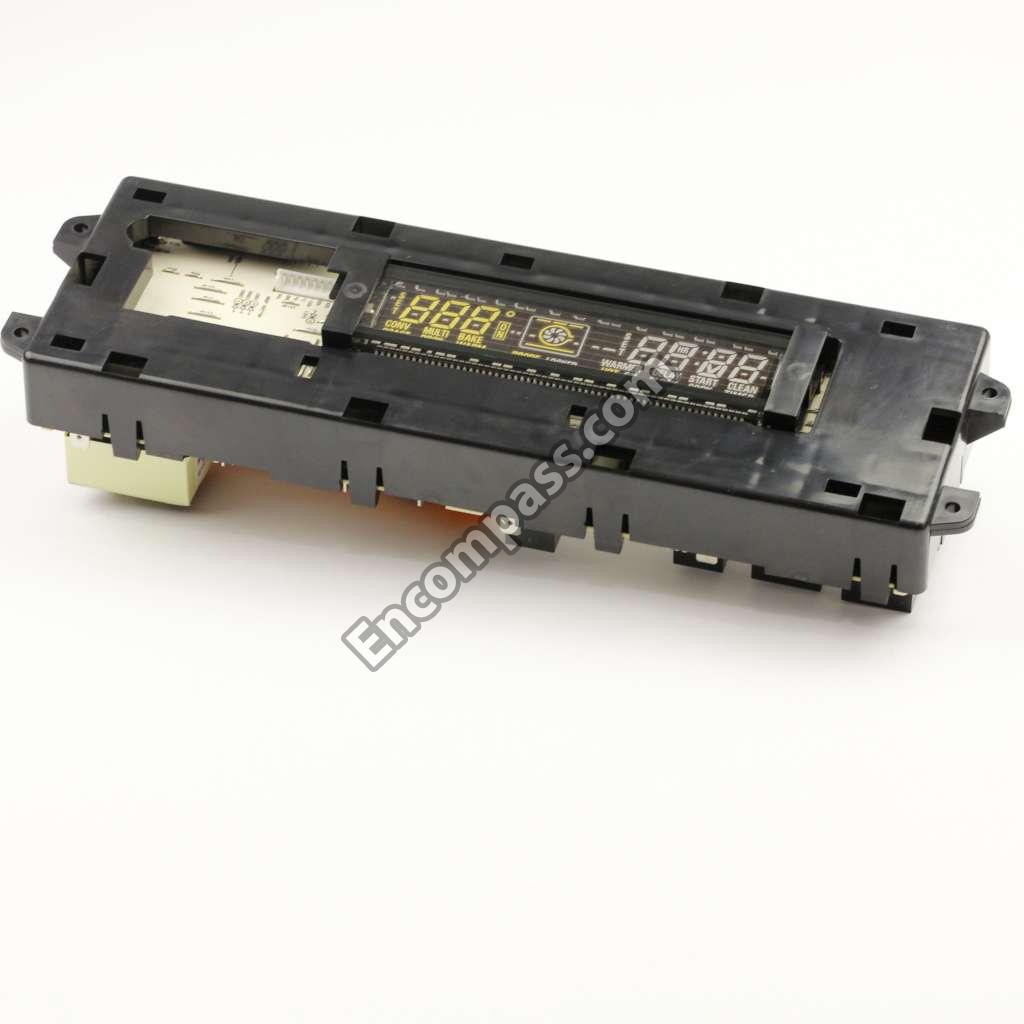

WB27T10813 WB27T10813 GE CONTROL OVN ERC
WB04T10055 WB04T10055 GE COOKTOP VENT GASKET
WB02X9152 WB02X9152 GE COVER
WB2X9152 WB2X9152 GE COVER
WB02T10347 WB02T10347 GE COVER DUCT
WB02T10410 WB02T10410 GE COVER FAN (CONVX)
WB31T10140 WB31T10140 GE COVER VENT
WB01T10022 WB01T10022 GE DOOR BUMPER
WB02X9037 WB02X9037 GE DOOR HANDLE SPACER-BLACK
WB57T10350 WB57T10350 GE DOOR OTR ASSEMBLY 30 (WHITE)
WB01T10026 WB01T10026 GE DOOR PAD
WB55T10180 WB55T10180 GE DRAWER BODY ASSEMBLY MECH
WB01K10037 WB01K10037 GE ECONOMIC NUT
WB28T10091 WB28T10091 GE ELBOW
WB07T10535 WB07T10535 GE EXTENSION REAR
WB07T10537 WB07T10537 GE EXTENSION SIDE
WB07T10536 WB07T10536 GE EXTENSION SIDE
WB07K10157 WB07K10157 GE FILLER BACKSPLASH (WHITE)
WB63T10083 WB63T10083 GE FRAME FRT LOWER
WB29K10004 WB29K10004 GE GAS RANGE BURNER CAP - MEDIUM
WB21T10014 WB21T10014 GE GAS RANGE CONTROL VALVE
WB02T10320 WB02T10320 GE GASKET MAINTOP LH
WB02T10319 WB02T10319 GE GASKET MAINTOP RH
WB27T11113 WB27T11113 GE GLASS TOUCH ASSEMBLY (WHITE)
WB31T10139 WB31T10139 GE GRATE CAST ASSEMBLY LEFT
WB31T10138 WB31T10138 GE GRATE CAST ASSEMBLY RIGHT
WB29K10007 WB29K10007 GE GRAY RANGE BURNER CAP - LARGE
WB29K10002 WB29K10002 GE GRAY RANGE BURNER CAP - SMALL
WB02T10489 WB02T10489 GE GROMMET
WB15T10138 WB15T10138 GE HANDLE PRF DRAWER (WHITE)
WB18T10393 WB18T10393 GE HARNESS WIRE BURNER
WB18T10386 WB18T10386 GE HARNESS WIRE GLASS TOUCH.
WB18T10390 WB18T10390 GE HARNESS WIRE PROBE
WB18T10439 WB18T10439 GE HARNESS WIRE SPK MODULE
WB16T10038 WB16T10038 GE HEAD BURNER MAIN
WB10X30494 WB10X30494 GE HINGE DOOR LEFT
WB10X24381 WB10X24381 GE HINGE DOOR LT
WB10X20965 WB10X20965 GE HINGE DOOR RT
WB10T10097 WB10T10097 GE HINGE MAINTOP LEFT
WB10T10096 WB10T10096 GE HINGE MAINTOP RT
WB02T10289 WB02T10289 GE HUB BLADE ASSEMBLY
WB28T10114 WB28T10114 GE INJET BURNER 18K
49-80454 49-80454 GE INSERT PAN & GRID (GAS)
WB36T10661 WB36T10661 GE INSERT PNL CONTROL
31-10737 31-10737 GE INSTRUC INSTALL FRENCH
31-10738 31-10738 GE INSTRUC INSTALL SPANISH
31-10675 31-10675 GE INSTRUCTION INSTALL
31-10643 31-10643 GE INSTRUCTION LP
WB35T10090 WB35T10090 GE INSULATION BACK AND BTM
WB35T10091 WB35T10091 GE INSULATION COMP SHLD
WB35K10025 WB35K10025 GE INSULATION OVEN DR SDE
WB35X30052 WB35X30052 GE INSULATION OVN DR TOP
WB35T10187 WB35T10187 GE INSULATION TOP
WB35T10089 WB35T10089 GE INSULATION TOP AND SDS OTR
WB35T10164 WB35T10164 GE INSULATION VNT TBE
WB35K5112 WB35K5112 GE INSULATOR MODULE
WB25T10096 WB25T10096 GE LAMP HALOGEN ASSEMBLY
WB14T10069 WB14T10069 GE LATCH OVN
WB25T10027 WB25T10027 GE LENS OVEN LAMP
WB55T10179 WB55T10179 GE LINING OVN DR ASSEMBLY
WB01K5046 WB01K5046 GE LOCKWASHER
WB61T10160 WB61T10160 GE MAINTOP
WB61T10170 WB61T10170 GE MAINTOP (WHITE)
WB28T10201 WB28T10201 GE MANIFOLD PIPE
31-14512 31-14512 GE MANUAL MINI & WD ASM
49-80527 49-80527 GE MANUAL USE & CARE
WB20T10024 WB20T10024 GE MEAT PROBE
WB57T10241 WB57T10241 GE MOTOR FAN
WB1X5572 WB1X5572 GE NUT
WB02T10017 WB02T10017 GE NUT
WB01X5572 WB01X5572 GE NUT MEAT PROBE
WB28T10202 WB28T10202 GE ORIFICE SPUD (NG MAIN)
WB28T10196 WB28T10196 GE ORIFICE SPUD 130 NG
WB28T10197 WB28T10197 GE ORIFICE SPUD 145 NG
WB28T10199 WB28T10199 GE ORIFICE SPUD 86 LP
WB28T10200 WB28T10200 GE ORIFICE SPUD 90 LP
WB28T10195 WB28T10195 GE ORIFICE SPUD 99 NG
WB28T10198 WB28T10198 GE ORIFICE SPUD LP
WB28T10117 WB28T10117 GE ORIFICE SPUD LP MAIN
WB28T10116 WB28T10116 GE ORIFICE SPUD NG SIMMER
WB57K5230 WB57K5230 GE OVEN DOOR GLASS-INNER
WB56T10373 WB56T10373 GE OVEN DOOR RETAINER KIT
WB56X22160 WB56X22160 GE PACK WINDOW ASSEMBLY
WB02T10234 WB02T10234 GE PANEL ACCESS WIRE
WB36T11011 WB36T11011 GE PANEL CONTROL ASSEMBLY (WHITE)
WB56T10174 WB56T10174 GE PANEL DRAWER
WB2X8309 WB2X8309 GE PR0BE COVER
WB02X8309 WB02X8309 GE PROBE COVER
WB48T10092 WB48T10092 GE RACK OVEN (SC)
WB28T10241 WB28T10241 GE RACK OVEN (SC)
WB02T10415 WB02T10415 GE RANGE ANTI-TIP BRACKET
WB26T10042 WB26T10042 GE RANGE BLOWER WHEEL 60MM
WB02T10189 WB02T10189 GE RANGE BRASS ORIFICE FITTING
WB02T10345 WB02T10345 GE RANGE BURNER BAFFLE
WB16T10047 WB16T10047 GE RANGE BURNER BASE
WB02T10261 WB02T10261 GE RANGE CLAMP
WB02X10742 WB02X10742 GE RANGE CONTROL PANEL GASKET
WB08K5039 WB08K5039 GE RANGE CORD
WB8K5039 WB8K5039 GE RANGE CORD
WB02T10065 WB02T10065 GE RANGE DOOR HANDLE SPACER
WB48T10013 WB48T10013 GE RANGE DRAWER SUPPORT - FRONT
WB13T10065 WB13T10065 GE RANGE ELECTRODE
WB01K10112 WB01K10112 GE RANGE ELECTRODE CLIP
WB02X10744 WB02X10744 GE RANGE FACEPLATE GASKET
WB02T10461 WB02T10461 GE RANGE GRATE FOOT
WB18T10389 WB18T10389 GE RANGE HARNESS SWITCH
WB24T10160 WB24T10160 GE RANGE HIGH AMP SWITCH
WB02T10371 WB02T10371 GE RANGE INSULATION RETAINER
WB03T10198 WB03T10198 GE RANGE KNOB - WHITE
WB02X10521 WB02X10521 GE RANGE LEVELING LEG
WB02T10188 WB02T10188 GE RANGE ORIFICE SHIELD
WB04T10050 WB04T10050 GE RANGE OVEN GASKET
WB13T10045 WB13T10045 GE RANGE OVEN IGNITER
WB02T10034 WB02T10034 GE RANGE PANEL SIDE SUPORT
WB02X33180 WB02X33180 GE RANGE REAR DRAWER SUPPORT
WB02T10346 WB02T10346 GE RANGE RETAINING RING
WB07T10636 WB07T10636 GE RANGE SIDE TRIM - LEFT - WHITE
WB13T10046 WB13T10046 GE RANGE SPARK MODULE
WB13K10014 WB13K10014 GE RANGE SURFACE BURNER SPARK IGNITER
WB02T10270 WB02T10270 GE RANGE SWITCH BRACKET
WB10T10083 WB10T10083 GE RECEIVER HINGE
WB19T10074 WB19T10074 GE REGULATOR CONVERT PRESS
WB02T10183 WB02T10183 GE RETAINER GLASS (WHT)
WB02T10342 WB02T10342 GE RETAINER INSLN BACK
WB02T10454 WB02T10454 GE RETAINER INSLN BTM
WB02T10284 WB02T10284 GE RETAINER INSLN SDE
WB02T10344 WB02T10344 GE RETAINER INSLN TOP
WB02T10324 WB02T10324 GE SCR 6-20 GXB IHXW 3/8 NI.
WB01T10106 WB01T10106 GE SCR 6-32 CA OVT-15 5/8
WH02X0941 WH02X0941 GE SCR 8-15 A HXW 7/8 S
WB01X0500 WB01X0500 GE SCR 8-18 B HXW 1/4 S
WB01T10110 WB01T10110 GE SCR 8-18X.450 AB FLT20 S
WB01X1178 WB01X1178 GE SCREW
WB01K5200 WB01K5200 GE SCREW
WB01X1428 WB01X1428 GE SCREW
WB01X1141 WB01X1141 GE SCREW
WB01K5028 WB01K5028 GE SCREW
WB01X1137 WB01X1137 GE SCREW
WB01M0001 WB01M0001 GE SCREW
WB1X1293 WB1X1293 GE SCREW
WB1X1178 WB1X1178 GE SCREW
WB01T10091 WB01T10091 GE SCREW
WB1M1 WB1M1 GE SCREW
WB1X536 WB1X536 GE SCREW
WH2X930 WH2X930 GE SCREW
WB01X5364 WB01X5364 GE SCREW (CR)
WB01T10058 WB01T10058 GE SCREW 10-16 AB HXW 750 S N
WB01T10048 WB01T10048 GE SCREW 10-16 SHLDR TYPE A
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01T10017 WB01T10017 GE SCREW 8-18 AB IHW 3/8 S NS
WB1X5364 WB1X5364 GE SCREW MTG
WB01T10092 WB01T10092 GE SCREW SIMMER MAIN HD
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB01X1293 WB01X1293 GE SCREW TC10-32X.250HEXNI
WB1X1137 WB1X1137 GE SCREW-10AB
WB1X1118 WB1X1118 GE SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 GE SCREW-8-32
WB1X1124 WB1X1124 GE SCREW-ADJUST
WB1K5157 WB1K5157 GE SCREW-BLK
WB01X1118 WB01X1118 GE SCREW-NICKEL
WH2X941D WH2X941D GE SCREW-PKG 12
WB1X500D WB1X500D GE SCREW-PKG 12
WB01K5185 WB01K5185 GE SCREW-WHITE
WB1K5185 WB1K5185 GE SCREW-WHITE
WB21X22134 WB21X22134 GE SENSOR ASSEMBLY
WB34T10080 WB34T10080 GE SHIELD COMPRT
WB02T10452 WB02T10452 GE SPACER REINFORCEMENT
WB2X9037 WB2X9037 GE SPACER-HNDL
WB09T10011 WB09T10011 GE SPRING IGNITER
WB02T10453 WB02T10453 GE STUD COMPOSITE
WB02T10192 WB02T10192 GE SUPPORT FALSE BTM
WB26T10015 WB26T10015 GE SUPPORT OVEN CAVITY
WB2K5238 WB2K5238 GE SW BRACKET
WB02K5238 WB02K5238 GE SWITCH BRACKET
WB24T10140 WB24T10140 GE SWITCH LIMIT (L1)
WB24T10141 WB24T10141 GE SWITCH LIMIT BIMETAL
WB07T10500 WB07T10500 GE TRIM ASSEMBLY
WB07T10516 WB07T10516 GE TRIM FRT FRM (BLACK)
WB07T10523 WB07T10523 GE TRIM VERT SDE LEFT (WHITE)
WB07T10522 WB07T10522 GE TRIM VERT SDE RT (WHITE)
WB07T10635 WB07T10635 GE TRIM VERT SIDE RT (WHITE)
WB28T10192 WB28T10192 GE TUBE
WB28T10191 WB28T10191 GE TUBE
WB28T10095 WB28T10095 GE TUBE 3/8
WB28T10094 WB28T10094 GE TUBE 3/8
WB28T10093 WB28T10093 GE TUBE 3/8
WB28T10190 WB28T10190 GE TUBE BURNER ASSEMBLY
WB28T10189 WB28T10189 GE TUBE BURNER ASSEMBLY
WB28T10188 WB28T10188 GE TUBE BURNER ASSEMBLY
WB28T10193 WB28T10193 GE TUBE BURNER MAIN
WB28T10194 WB28T10194 GE TUBE BURNER SIMMER
WB28T10203 WB28T10203 GE TUBE OVEN VENT
WB06X0093 WB06X0093 GE VALVE CLAMP
WB19T10070 WB19T10070 GE VALVE GAS
WB21X22079 WB21X22079 GE VALVE KIT
WB21X22071 WB21X22071 GE VALVE KIT
WB19T10068 WB19T10068 GE VALVE LOCKOUT MOTORIZED
WB38T10023 WB38T10023 GE VENT CAP
WB01X5573 WB01X5573 GE WASHER
WB1K5046 WB1K5046 GE WASHER
WB1X5573 WB1X5573 GE WASHER
WB02T10323 WB02T10323 GE WASHER IGNITER
WB48T10068 WB48T10068 GE WEDGE DRAWER
WB63T10100 WB63T10100 GE WRAPPER OVN CAV ASM
