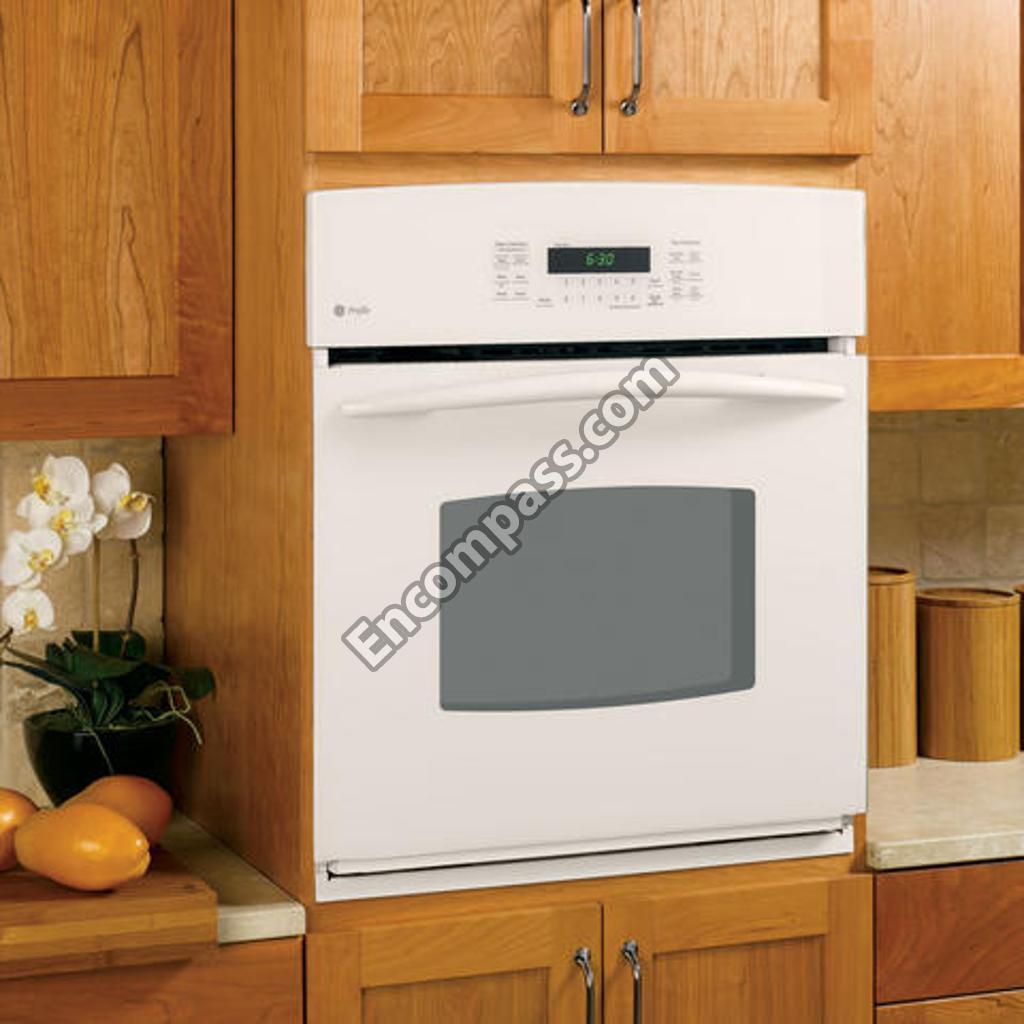

Model Image
Manufacturer

GE

Model Number

PK916DR3CC

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 GE 340531
WB26T10060 WB26T10060 GE BLOWER TANGENTIAL ASSEMBLY.
WB38T10019 WB38T10019 GE BOX VENT ASSEMBLY
WB27T10662 WB27T10662 GE CAPACITOR MOTOR
WB2K5126 WB2K5126 GE COND CLAMP
WB02K5126 WB02K5126 GE CONDUIT CLAMP
WB18T10221 WB18T10221 GE CONDUIT WIRE ASSEMBLY
WB18T10447 WB18T10447 GE CONDUIT WIRE ASSEMBLY
WB27T11292 WB27T11292 GE CONTROL OVN (ERC3HP)
WB02X9152 WB02X9152 GE COVER
WB2X9152 WB2X9152 GE COVER
WB02T10363 WB02T10363 GE COVER ELECTRICAL TOP
WB34X20082 WB34X20082 GE COVER FAN CONV
WB2X8309 WB2X8309 GE COVER PROBE
WB02T10364 WB02T10364 GE COVER WIRE LWR
WB02T10365 WB02T10365 GE COVER WIRE SIDE
WB34T10057 WB34T10057 GE COVER WIRE TOP
WB02T10357 WB02T10357 GE COVER WIRE UPR RR
WB01T10022 WB01T10022 GE DOOR BUMPER
WB57T10361 WB57T10361 GE DOOR OTR ASSEMBLY 27 (BQ)
WB02T10360 WB02T10360 GE DUCT BOTTOM
WB44T10109 WB44T10109 GE ELEMENT BAKE ASSEMBLY (2100W)
WB44T10099 WB44T10099 GE ELEMENT BROIL ASSEMBLY
WB44T10086 WB44T10086 GE ELEMENT CONVX ASM
WB44X31764 WB44X31764 GE ELEMENT CONVX ASSEMBLY
WB63T10151 WB63T10151 GE FRAME FRONT
WB32T10013 WB32T10013 GE GASKET OVN DR
WB01X1260 WB01X1260 GE GROUND WASHER
WB1X1260 WB1X1260 GE GRUND WASHER
WB15T10175 WB15T10175 GE HANDLE OVN DR 27 (PF-BQ)
WB18T10386 WB18T10386 GE HARNESS WIRE GLASS TOUCH.
WB18T10397 WB18T10397 GE HARNESS WIRE PROBE
WB10T10111 WB10T10111 GE HINGE DOOR LEFT
WB10T10110 WB10T10110 GE HINGE DOOR RT
WB02T10362 WB02T10362 GE HOUSING FAN
WB02T10289 WB02T10289 GE HUB BLADE ASSEMBLY
31-10730 31-10730 GE INSTRUCTION INSTALL
WB35T10176 WB35T10176 GE INSULATION BACK
WB35T10175 WB35T10175 GE INSULATION TOP AND SIDES
WB35T10174 WB35T10174 GE INSULATION TOP BCK AND BTM
WB25T10096 WB25T10096 GE LAMP HALOGEN ASSEMBLY
WB49X29679 WB49X29679 GE LAMP HALOGEN G9
WB14T10082 WB14T10082 GE LATCH AND TAPE ASSEMBLY
WB25T10027 WB25T10027 GE LENS OVEN LAMP
WB55T10182 WB55T10182 GE LINER OVN DR ASSEMBLY
WB01K5046 WB01K5046 GE LOCKWASHER
WB02T10303 WB02T10303 GE LUBRICANT CLEANER
31-14800 31-14800 GE MANUAL MINI & WD ASM
WB20T10024 WB20T10024 GE MEAT PROBE
WB02T10152 WB02T10152 GE MICROWAVE CAPACITOR MOTOR BRACKET
WB26T10043 WB26T10043 GE MOTOR PSC CONV
WB1X5572 WB1X5572 GE NUT
WB02T10017 WB02T10017 GE NUT
WB01X5572 WB01X5572 GE NUT MEAT PROBE
WB35T10061 WB35T10061 GE OVEN DOOR INSULATION SDE
WB35T10062 WB35T10062 GE OVEN DOOR INSULATION TOP
WB49T10016 WB49T10016 GE PAN REFLECTOR
WB49T10017 WB49T10017 GE PAN REFLECTOR SIDE
WB36T11311 WB36T11311 GE PANEL CONTROL AND TAPE ASSEMBLY
WB02T10386 WB02T10386 GE PLATE ERC
31-10662 31-10662 GE PM INSTALL INSTRUCTIONS
49-80610 49-80610 GE PM OWNERS MANUAL
WB02X8309 WB02X8309 GE PROBE COVER
WB48T10060 WB48T10060 GE RACK OVEN (GY)
WB48T10087 WB48T10087 GE RACK OVN SLIDE ASSEMBLY 27 WO
WB01T10079 WB01T10079 GE RANGE GASKET
WB24T10060 WB24T10060 GE RANGE THERMAL FUSE
WB10T10083 WB10T10083 GE RECEIVER HINGE
WB34T10097 WB34T10097 GE REFLECTOR HEAT
WB63T10124 WB63T10124 GE RETAINER INSLN BACK
WB63T10082 WB63T10082 GE RETAINER INSLN BTM
WB56T10133 WB56T10133 GE RETAINER INSLN OVN DR
WB63T10125 WB63T10125 GE RETAINER INSLN SDE
WB02T10356 WB02T10356 GE RETAINER INSLN TOP
WB02T10324 WB02T10324 GE SCR 6-20 GXB IHXW 3/8 NI.
WR01X10791 WR01X10791 GE SCR 8-18 B PNP 3/8 S ZN
WB01T10110 WB01T10110 GE SCR 8-18X.450 AB FLT20 S
WB01K5162 WB01K5162 GE SCREW
WB01K5028 WB01K5028 GE SCREW
WB01X1178 WB01X1178 GE SCREW
WB01K5200 WB01K5200 GE SCREW
WB1X1178 WB1X1178 GE SCREW
WB1M1 WB1M1 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB1X536 WB1X536 GE SCREW
WH2X930 WH2X930 GE SCREW
WB01T10066 WB01T10066 GE SCREW 10-16 X 1.000 HWH
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01T10017 WB01T10017 GE SCREW 8-18 AB IHW 3/8 S NS
WB01X1261 WB01X1261 GE SCREW GROUND
WB01T10033 WB01T10033 GE SCREW ST 8-18 (BISQUE)
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB1K5162 WB1K5162 GE SCREW-BLACK
WB1K5157 WB1K5157 GE SCREW-BLK
WZ4X245D WZ4X245D GE SCREW-PKG 12
WB1X500D WB1X500D GE SCREW-PKG 12
WB21X22134 WB21X22134 GE SENSOR ASSEMBLY
WB02T10524 WB02T10524 GE SPACER DOOR HDL
WB26T10046 WB26T10046 GE SUPPORT OVEN
WB24T10081 WB24T10081 GE SWITCH HIGH LMT OV BACK
WB24T10144 WB24T10144 GE SWITCH LIMIT
WB07T10544 WB07T10544 GE TRIM BTM CAB 27 (BQ)
WB07T10539 WB07T10539 GE TRIM VENT
WB07T10546 WB07T10546 GE TRIM VERT SDE ASSEMBLY 27 LEFT
WB07T10545 WB07T10545 GE TRIM VERT SDE ASSEMBLY 27 RT
WB28T10213 WB28T10213 GE TUBE VNT ASSEMBLY
WB28T10212 WB28T10212 GE VENT INLET DUCT
WB01X5573 WB01X5573 GE WASHER
WB01K5174 WB01K5174 GE WASHER
WB1K5174 WB1K5174 GE WASHER
WB1K5046 WB1K5046 GE WASHER
WB1X5573 WB1X5573 GE WASHER
WB55T10086 WB55T10086 GE WINDOW PACK ASSEMBLY
WB63T10158 WB63T10158 GE WRAPPER OVN CAV ASM
WZ4X416 WZ4X416 GE WZ04X0408
