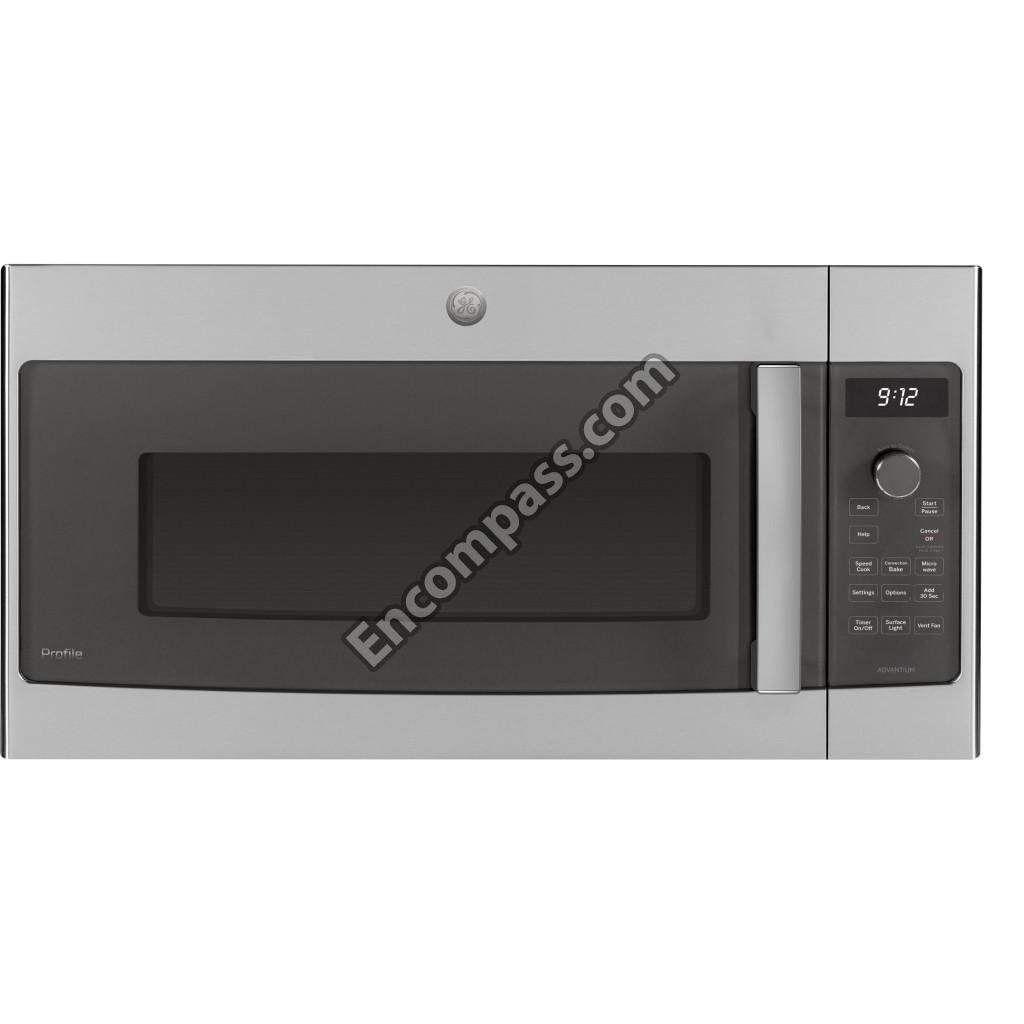

Model Image
Manufacturer

GE

Model Number

PSA9120SF3SS

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description

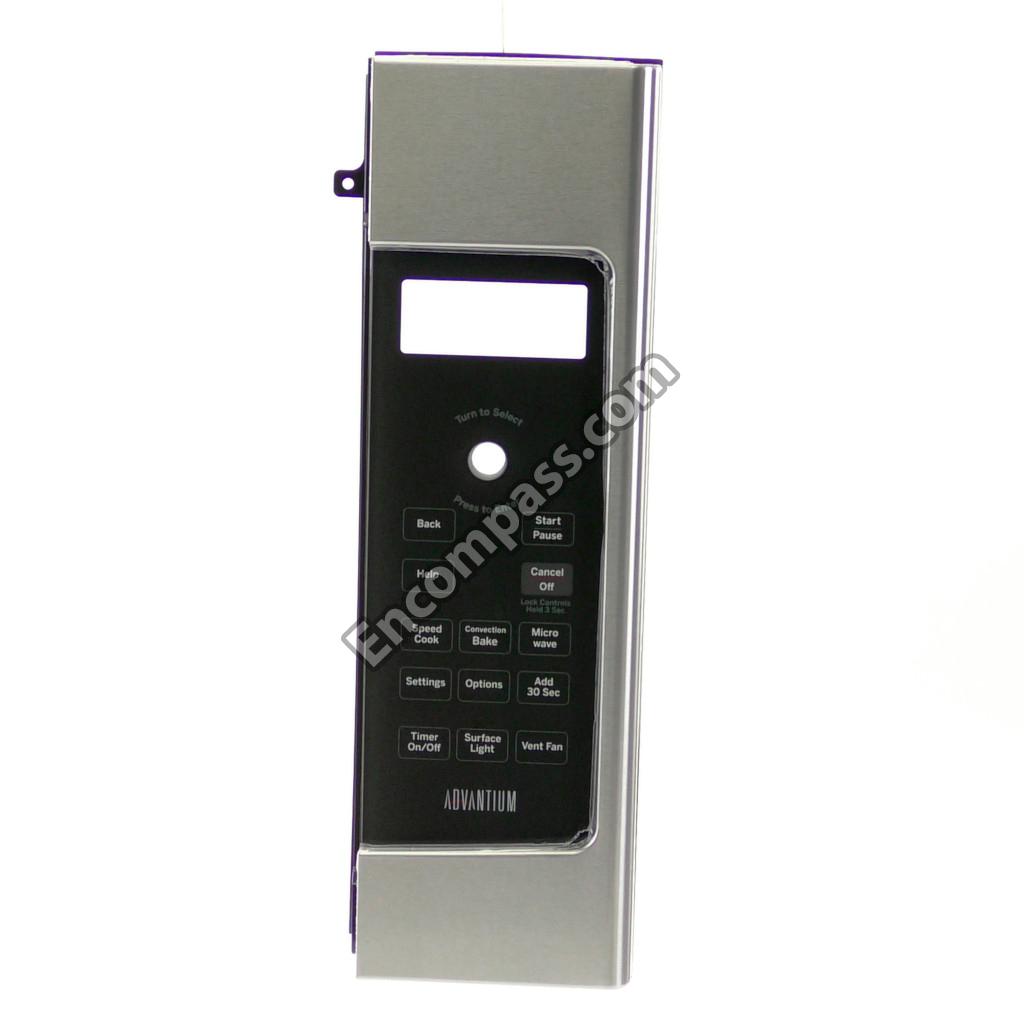

WB56X34970 WB56X34970 "CONTROL PANEL, SS"
WB07X34971 WB07X34971 "GRILLE, SS"
WB25X10019 WB25X10019 120V MICROWAVE HALOGEN BULB; 20W
WB49X10240 WB49X10240 13-INCH DIA ADVANTIUM METAL TRAY
WB26X10247 WB26X10247 AC FAN MOTOR
WB26X10248 WB26X10248 AC SYNCHRONOUS MOTOR
WB27X50146 WB27X50146 ADVANTIUM VF DISPLAY
WB63X32754 WB63X32754 BASE PLATE
WB02X32720 WB02X32720 BOARD - LATCH
WB02X32593 WB02X32593 BRACKET CAPACITOR
WB02X32765 WB02X32765 BRACKET HEATER
WB02X32716 WB02X32716 BRACKET LAMP
WB27X10808 WB27X10808 CAPACITOR
WB27X11031 WB27X11031 CAPACITOR H.V.
WB02X32726 WB02X32726 CHAMBER
WB07X32748 WB07X32748 CHOKE COVER
WB56X32728 WB56X32728 COVER ASSEMBLY BACK
WB02X32747 WB02X32747 COVER HEATER
WB34X35371 WB34X35371 DAMPER BRACKET
WB41X10001 WB41X10001 DISPLAY COVER
WB56X34972 WB56X34972 DOOR ASSEMBLY STAINLESS STEEL

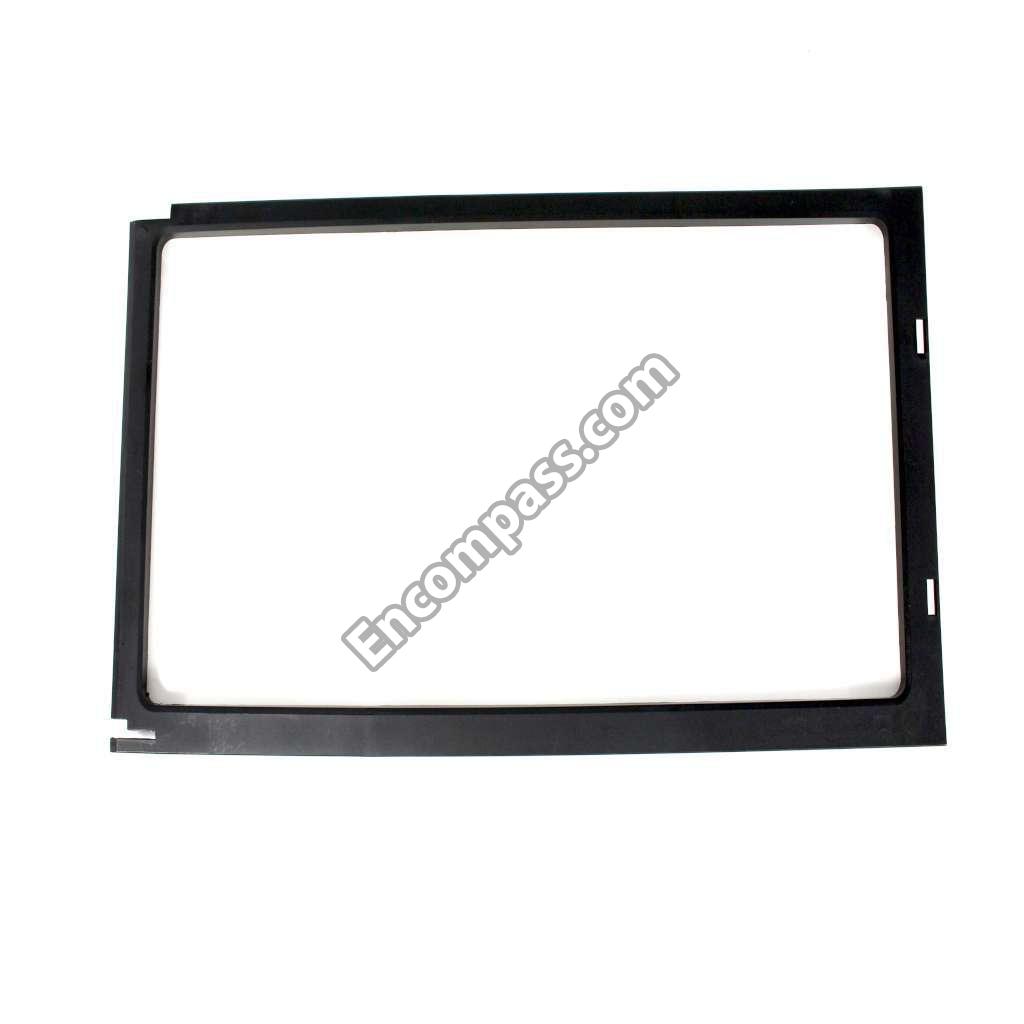

WB56X21533 WB56X21533 DOOR FRAME ASSEMBLY
WB02X32764 WB02X32764 DOOR LATCH
WB56X32762 WB56X32762 DOOR PANEL ASM
WB27X32632 WB27X32632 ENCODER BOARD
WB02X32715 WB02X32715 EXHAUST ADAPTER
WB02X32727 WB02X32727 FAN
WB02X32731 WB02X32731 FAN STIRRER ASSEMBLY
WB02X35396 WB02X35396 FILTER
WB01X10413 WB01X10413 GASKET
WB36X10345 WB36X10345 GLASS
WB34X32729 WB34X32729 GUIDE AIR
WB38X10096 WB38X10096 GUIDE AIR
WB20X10047 WB20X10047 H.V TRANSFORMER
WB02X35488 WB02X35488 HALOGEN BULB 130V/50W

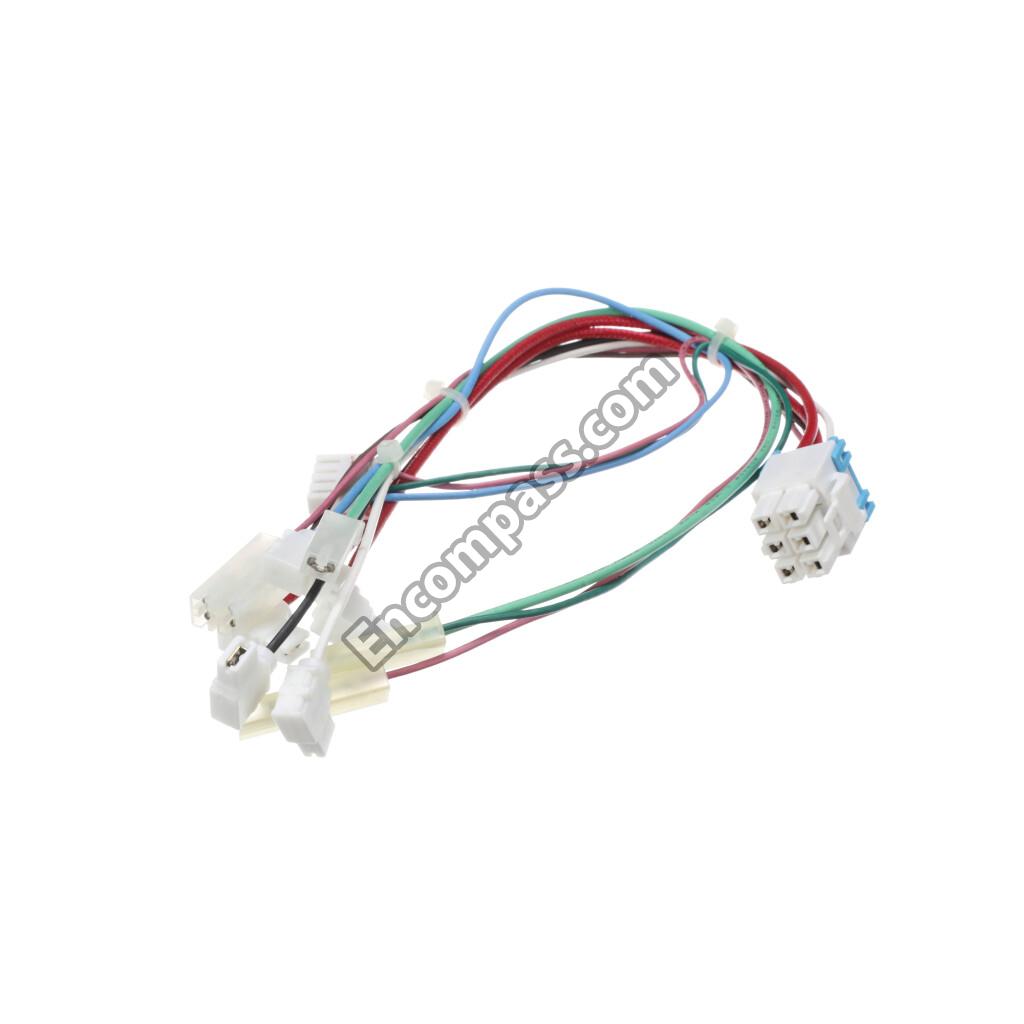

WB18X33768 WB18X33768 HARNESS
WB18X32769 WB18X32769 HARNESS SINGLE
WB18X32751 WB18X32751 HARNESS SINGLE
WB18X32730 WB18X32730 HARNESS SINGLE
WB18X32749 WB18X32749 HARNESS SINGLE
WB18X32763 WB18X32763 HARNESS SINGLE
WB21X28572 WB21X28572 HEATER HALOGEN
WB44X41527 WB44X41527 HEATER MIRACLON
WB44X41528 WB44X41528 HEATER MIRACLON
WB44X10046 WB44X10046 HEATER SHEATH
WB06X10554 WB06X10554 HOLDER ASSEMBLY
WB02X11233 WB02X11233 HOLDER WIRE
WB02X10532 WB02X10532 HOLDER WIRE
WB01X10414 WB01X10414 HOUSING SUPPORTER
WB35X10018 WB35X10018 INSULATOR
WB03X21244 WB03X21244 KNOB
WB10X21107 WB10X21107 LATCH DOOR SPRING
WB27X32766 WB27X32766 MAGNETRON
WB27X44106 WB27X44106 MAGNETRON
WB27X35345 WB27X35345 MAIN BOARD
WB06X10570 WB06X10570 MICROWAVE BRACKET
WB02X11235 WB02X11235 MICROWAVE DAMPER BRACKET
WB27X10037 WB27X10037 MICROWAVE DIODE CABLE
WB06X10565 WB06X10565 MICROWAVE EXHAUST DAMPER
WB02X32719 WB02X32719 MICROWAVE FAN COVER
WB49X10176 WB49X10176 MICROWAVE GLASS TRAY
WB06X10664 WB06X10664 MICROWAVE GLASS WOOL
WB06X10359 WB06X10359 MICROWAVE GREASE FILTER

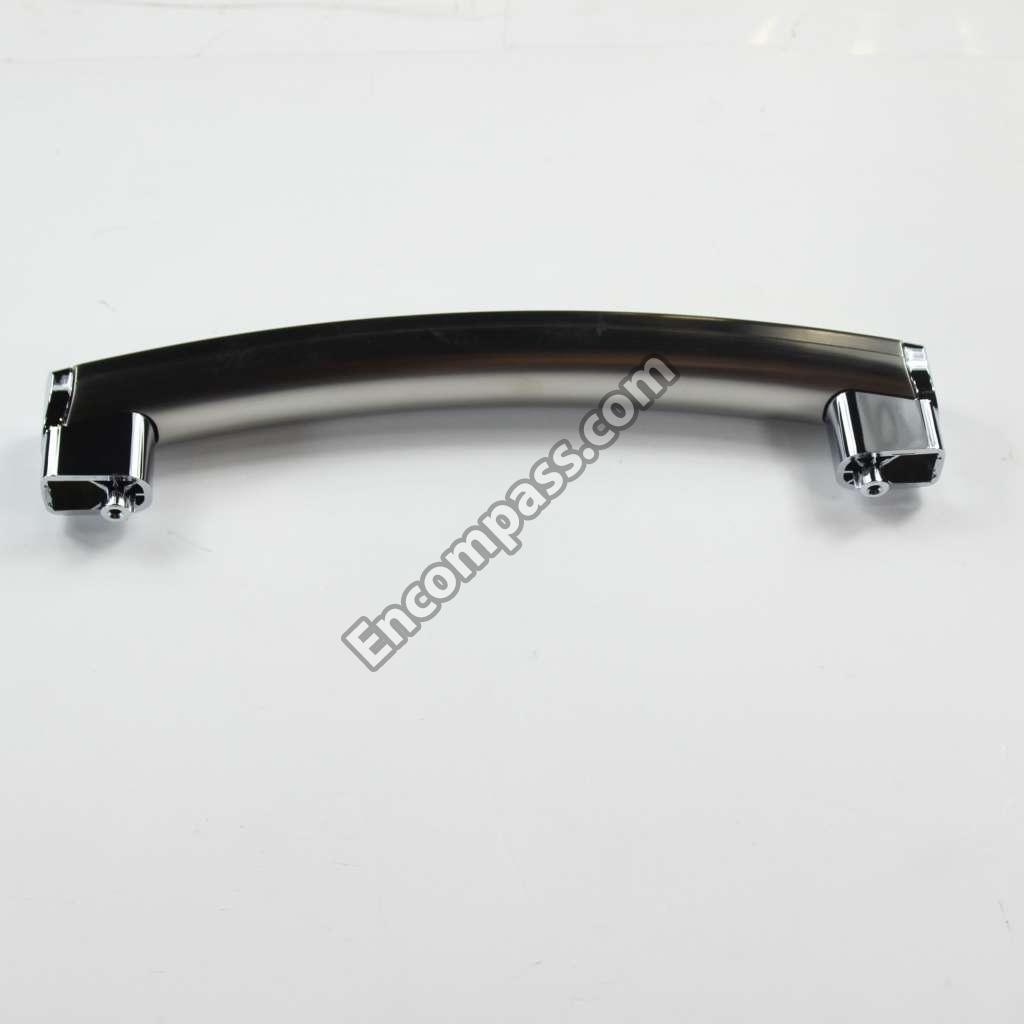

WB15X21101 WB15X21101 MICROWAVE HANDLE - STAINLESS STEEL
WB01X22142 WB01X22142 MICROWAVE INSTALLATION HARDWARE
WB02X32722 WB02X32722 MICROWAVE INSTALLATION HARDWARE
WB06X10559 WB06X10559 MICROWAVE LEVER
WB02X11291 WB02X11291 MICROWAVE LIGHT COVER
WB27X10928 WB27X10928 MICROWAVE LINE FUSE
WB06X10308 WB06X10308 MICROWAVE POWER CORD COVER
WB06X10776 WB06X10776 MICROWAVE RACK HOLDER
WB26X36106 WB26X36106 MICROWAVE VENTILATION MOTOR
WB26X10193 WB26X10193 MOTOR TURNTABLE
WB26X10270 WB26X10270 MOTOR(CIRC) CIRCULATION
WB26X10185 WB26X10185 MOTOR(CIRC) SYNCHRONOUS
WB02X32725 WB02X32725 MOUNT VENT MOTOR COVER
WB56X35363 WB56X35363 MOUNTING PLATE ASSEMBLY
WB01X10124 WB01X10124 NUT ASSEMBLY
WB01X1520 WB01X1520 NUT COMMON
WB02X32755 WB02X32755 NUT HEXAGON
WB1X1520 WB1X1520 NUT HEXAGON
WB56X21105 WB56X21105 OUTER CASE
WB02X10730 WB02X10730 PAN HEAD TAPPING SCREW
WB27X32756 WB27X32756 PCB ASSEMBLY
WB02X40028 WB02X40028 PCB TO DIAL PCB HARNESS
WB56X32723 WB56X32723 PLATE SIDE HEATER
49-40679 49-40679 PM INSTALL INSTRUCTIONS
31-30656 31-30656 PM MINI MANUAL
49-40677 49-40677 PM OWNERS MANUAL
49-40622-1 49-40622-1 PM TEMPLATE
WB27X43189 WB27X43189 POWER CORD ASSEMBLY
WB38X10005 WB38X10005 RANGE BLOWER FAN
WB39X32800 WB39X32800 RANGE SUCTION GUIDE
WB02X32752 WB02X32752 REFLECTOR
WB06X10842 WB06X10842 REFLECTOR
WB06X10834 WB06X10834 RING ASSEMBLY
WB02X10728 WB02X10728 SCREW
WB02X10726 WB02X10726 SCREW
WB02X10720 WB02X10720 SCREW
WB01X10121 WB01X10121 SCREW
WB01X10107 WB01X10107 SCREW
WB1X1514 WB1X1514 SCREW
WB1X1515 WB1X1515 SCREW
WB02X10745 WB02X10745 SCREW - BINDING HEAD
WB02X10729 WB02X10729 SCREW -PCB
WB01X1509 WB01X1509 SCREW -SWITCH MICRO
WB1X1509 WB1X1509 SCREW PAN HD
WB01X1515 WB01X1515 SCREW TAPPING
WB01X1514 WB01X1514 SCREW TAPPING
WB01X10134 WB01X10134 SCREW TAPPING PAN HEAD
WB27X10857 WB27X10857 SENSOR ASSEMBLY
WB48X10064 WB48X10064 SHELF
WB18X21102 WB18X21102 SINGLE HARNESS
WB27X32767 WB27X32767 SMART BOARD
WB02X32750 WB02X32750 SUPPORTER
WB24X25397 WB24X25397 SWITCH MICRO
WB24X10047 WB24X10047 SWITCH MICRO
WB01X23440 WB01X23440 TAPPING SCREW - TRUSS HEAD
49-40177 49-40177 TEMPLATE(REAR)
WB18X10287 WB18X10287 THERMISTOR NTC
WB20X10048 WB20X10048 THERMOSTAT
WB27X11034 WB27X11034 THERMOSTAT(PLATE)
WB39X10029 WB39X10029 TRANSFORMER BASE
WB02X11503 WB02X11503 TURNTABLE SHAFT
WB27X44086 WB27X44086 VF DISPLAY
WB01X1522 WB01X1522 WASHER COMMON
WB1X1522 WB1X1522 WASHER SPLK
WB02X32758 WB02X32758 WIRE HOLDER
