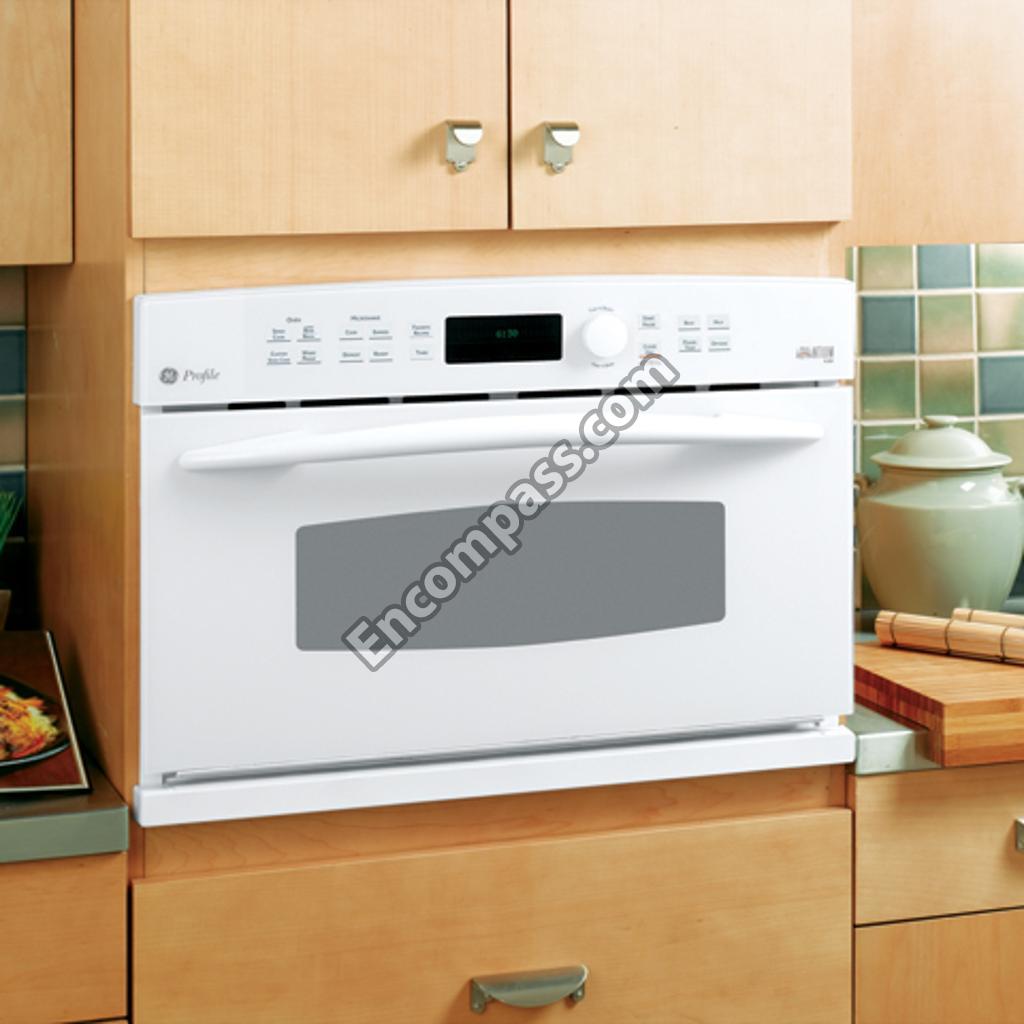

Model Image
Manufacturer

GE

Model Number

PSB1000NWW01

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB25X10019 WB25X10019 120V MICROWAVE HALOGEN BULB; 20W
WB49X10187 WB49X10187 ADVANTIUM METAL COOKING TRAY
WB34X32602 WB34X32602 AIR TUNNEL
WB02X11232 WB02X11232 AIR TUNNEL
WB6X475 WB6X475 BLADE MTR CL
WB02X32634 WB02X32634 BOARD SUPPORTER
WB02X32932 WB02X32932 BRACKET
WB02X32593 WB02X32593 BRACKET CAPACITOR
WB02X40028 WB02X40028 BRACKET DAMPER
WB02X11218 WB02X11218 BRACKET HEATER
WB02X11219 WB02X11219 BRACKET HEATER
WB02X11223 WB02X11223 BRACKET HEATER
WB06X10638 WB06X10638 CANOPY MICA
WB06X10642 WB06X10642 CHAMBER
WB55X10784 WB55X10784 CHOKE COVER
WB27X10858 WB27X10858 CONTROL BOARD
WB56X32580 WB56X32580 COVER BACK
WB56X10637 WB56X10637 COVER BACK
WB06X32848 WB06X32848 COVER HEATER
WB27X10856 WB27X10856 DIGITRON
WB55X10890 WB55X10890 DOOR ASSEMBLY WH
WB56X35245 WB56X35245 DOOR FRAME ASSEMBLY
WB34X32584 WB34X32584 DOOR SWITCH ACCESS COVER
WB06X0475 WB06X0475 FAN BLADE
WB27X10519 WB27X10519 FILTER ASSEMBLY NOISE
WB56X10868 WB56X10868 FLAT CASE
WB36X10340 WB36X10340 GLASS ASSEMBLY
WB06X10650 WB06X10650 GLASS WOOL
WB15X10185 WB15X10185 HANDLE ASSEMBLY WH
WB18X10290 WB18X10290 HARNESS
WB18X10439 WB18X10439 HARNESS MAIN
WB18X32595 WB18X32595 HARNESS WIRE
WB18X32597 WB18X32597 HARNESS WIRE
WB02X32681 WB02X32681 HEATER BRACKET
WB02X32680 WB02X32680 HEATER BRACKET
WB02X32679 WB02X32679 HEATER BRACKET
WB34X32589 WB34X32589 HEATER COVER
WB21X28572 WB21X28572 HEATER HALOGEN
WB44X41528 WB44X41528 HEATER MIRACLON
WB44X32042 WB44X32042 HEATER MIRACLON
WB44X10050 WB44X10050 HEATER SHEATH
WB17X10030 WB17X10030 HIGH VOLTAGE TRANSFORMER
WB01X10205 WB01X10205 HILO SCREW 8/5-INCH
WB06X10637 WB06X10637 HINGE PIN
WB06X10264 WB06X10264 HOLDER - HEATER
WB02X32855 WB02X32855 HOLDER DISPLAY
WB02X11233 WB02X11233 HOLDER WIRE
WB27X11059 WB27X11059 INDICATOR
WB01X32574 WB01X32574 INSTALLATION HARDWARE
49-40607 49-40607 INSTALLATION INSTRUCTION
WB64X10012 WB64X10012 KIT ASM BT
WB64X10009 WB64X10009 KIT ASM BT
WB02X11212 WB02X11212 LATCH LEFT
WB18X10127 WB18X10127 LEAD WIRE ASSEMBLY
WB34X32583 WB34X32583 LIGHT COVER
WB26X32629 WB26X32629 MAGNETRON
WB49X10228 WB49X10228 METAL BB TRAY
WB02X11322 WB02X11322 MICROWAVE BOARD SUPPORTER
WB06X10641 WB06X10641 MICROWAVE BOTTOM PANEL
WB02X11222 WB02X11222 MICROWAVE BRACKET
WB02X11224 WB02X11224 MICROWAVE BRACKET
WB02X11225 WB02X11225 MICROWAVE BRACKET
WB06X10570 WB06X10570 MICROWAVE BRACKET
WB27X11033 WB27X11033 MICROWAVE CAPACITOR
WB27X10861 WB27X10861 MICROWAVE CONTROL BOARD
WB02X11320 WB02X11320 MICROWAVE CONTROL PANEL BRACKET
WB02X11217 WB02X11217 MICROWAVE DAMPER BRACKET
WB27X10037 WB27X10037 MICROWAVE DIODE CABLE
WB02X11227 WB02X11227 MICROWAVE DISPLAY HOLDER
WB01X10318 WB01X10318 MICROWAVE DOOR REMOVAL TOOL
WB34X32594 WB34X32594 MICROWAVE DUCT ASSEMBLY
WB02X11231 WB02X11231 MICROWAVE DUCT ASSEMBLY
WB26X32609 WB26X32609 MICROWAVE FAN MOTOR
WB02X32572 WB02X32572 MICROWAVE HEAT SHIELD
WB02X11220 WB02X11220 MICROWAVE HEATER BRACKET
WB06X10643 WB06X10643 MICROWAVE HEATER COVER
WB06X10644 WB06X10644 MICROWAVE HEATER COVER
WB06X10646 WB06X10646 MICROWAVE HOLDER ASSEMBLY
WB01X10304 WB01X10304 MICROWAVE INSTALLATION HARDWARE
WB03X10129 WB03X10129 MICROWAVE KNOB - WHITE
WB02X11213 WB02X11213 MICROWAVE LATCH - RIGHT
WB10X32573 WB10X32573 MICROWAVE LATCH BODY - LEFT
WB10X32577 WB10X32577 MICROWAVE LATCH BODY - RT
WB02X32588 WB02X32588 MICROWAVE LEVER
WB02X11211 WB02X11211 MICROWAVE LIGHT COVER
WB27X10928 WB27X10928 MICROWAVE LINE FUSE
WB34X32592 WB34X32592 MICROWAVE PROTECTOR
WB06X10645 WB06X10645 MICROWAVE PROTECTOR
WB21X10148 WB21X10148 MICROWAVE THERMOSTAT
WB07X10922 WB07X10922 MICROWAVE TRIM - LEFT - WHITE

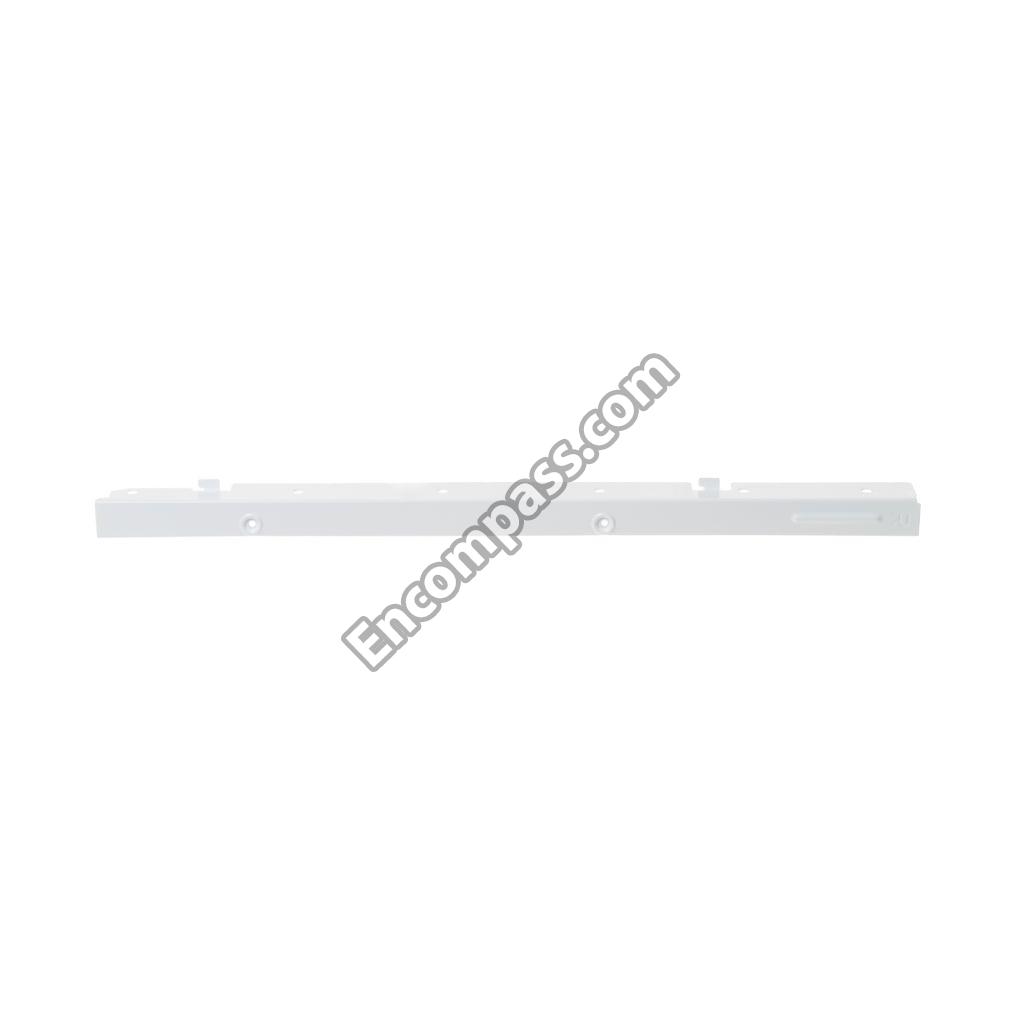

WB07X10921 WB07X10921 MICROWAVE TRIM - RIGHT - WHITE
31-41019 31-41019 MINI-MANUAL
WB26X10248 WB26X10248 MOTOR
WB26X10084 WB26X10084 MOTOR - CIRCULATION
WB26X10193 WB26X10193 MOTOR TURNTABLE
WB26X10182 WB26X10182 MOTOR(CIRC) CIRCULATION
WB34X32596 WB34X32596 MOUNT
WB06X10652 WB06X10652 MOUNT
WB02X32599 WB02X32599 MOUNT
WB06X10649 WB06X10649 MOUNT
WB01X1520 WB01X1520 NUT COMMON
WB1X1520 WB1X1520 NUT HEXAGON
WB18X26911 WB18X26911 POWER CORD ASSEMBLY
WB49X10213 WB49X10213 RACK
WB02X10684 WB02X10684 RANGE DOOR SWITCH ACCESS COVER
WB02X10542 WB02X10542 RANGE MOTOR BRACKET
WB27X10860 WB27X10860 RANGE SELECTOR BOARD
WB02X11318 WB02X11318 REFLECTOR
WB27X32849 WB27X32849 RELAY BOARD
WB1X1518 WB1X1518 RING SHAFT
WB02X32600 WB02X32600 ROTATING RING ASSEMBLY
WB1X1514 WB1X1514 SCREW
WB01X10121 WB01X10121 SCREW
WB02X10726 WB02X10726 SCREW
WB01X1504 WB01X1504 SCREW - HEATER SHEATH
WB01X1509 WB01X1509 SCREW -SWITCH MICRO
WB1X1509 WB1X1509 SCREW PAN HD
WB01X1514 WB01X1514 SCREW TAPPING
WB1X1504 WB1X1504 SCREW TRUSS
WB02X32576 WB02X32576 SEAL TAPE
WB27X10857 WB27X10857 SENSOR ASSEMBLY
WB06X10693 WB06X10693 SHAFT ASSEMBLY
WB18X10387 WB18X10387 SINGLE HARNESS
WB01X1518 WB01X1518 SPACER
WB09X10028 WB09X10028 SPRING
WB02X32606 WB02X32606 SUPPORT
WB24X0815 WB24X0815 SWITCH MICRO
WB24X0817 WB24X0817 SWITCH MICRO
WB24X10047 WB24X10047 SWITCH MICRO
WB24X25397 WB24X25397 SWITCH MONITOR INTERLOCK
WB18X10287 WB18X10287 THERMISTOR NTC
WB21X10149 WB21X10149 THERMOSTAT
WB17X10021 WB17X10021 TRANSFORMER POWER
WB27X43590 WB27X43590 TRAY GLASS
WB07X32640 WB07X32640 TRIM LT WH
WB07X32642 WB07X32642 TRIM RT WH
49-40606 49-40606 USE & CARE MANUAL
WB01X1522 WB01X1522 WASHER COMMON
WB1X1521 WB1X1521 WASHER PLAIN
WB1X1522 WB1X1522 WASHER SPLK
WB01X1521 WB01X1521 WASHER- PLAIN
WB07X11263 WB07X11263 WW CONTROLLER ASSEMBLY
