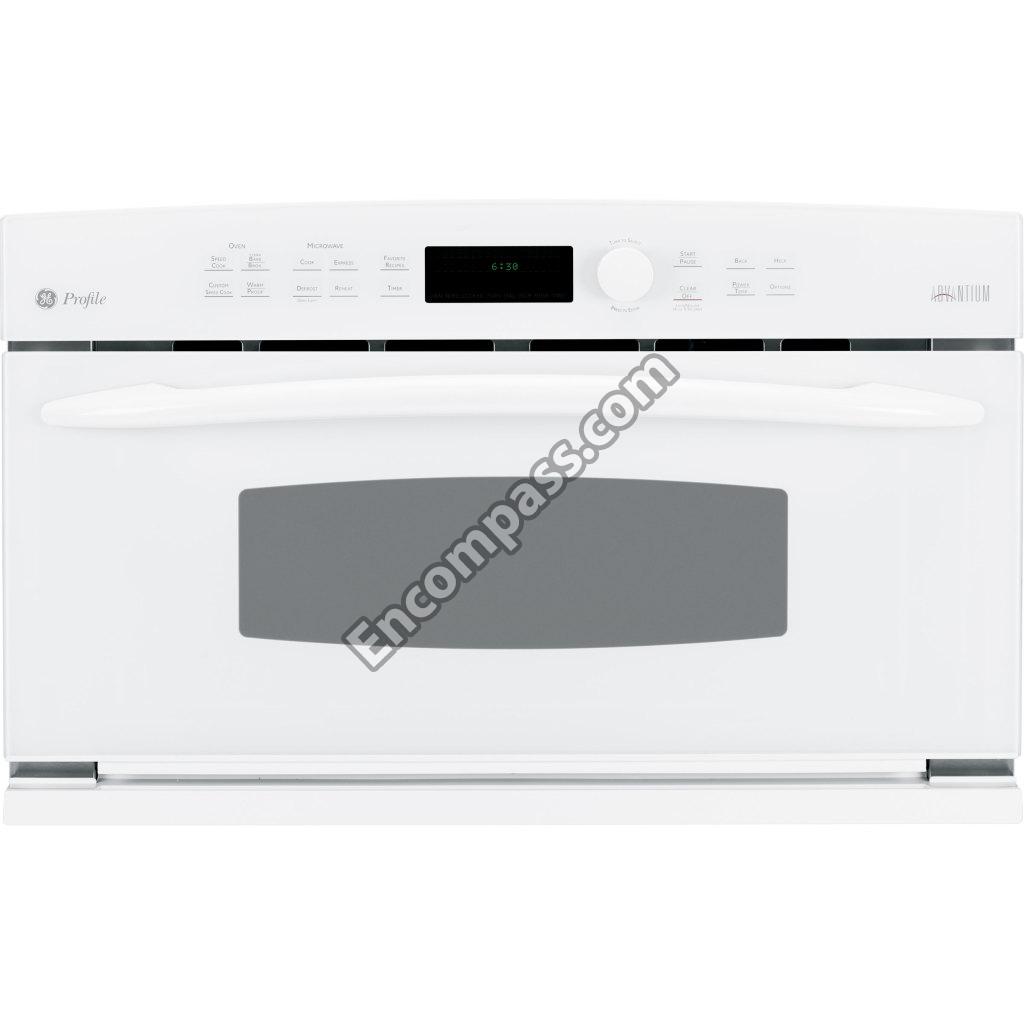

Model Image
Manufacturer

GE

Model Number

PSB2200NWW01

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB27X33045 WB27X33045 "BOARD, RELAY"
WB07X33003 WB07X33003 "TRIM, RIGHT"
WB01X10239 WB01X10239 12V MICROWAVE HALOGEN BULB - 20W
WB26X10211 WB26X10211 AC FAN MOTOR
WB27X11015 WB27X11015 ADVANTIUM LOW VOLTAGE TRANSFORMER
WB6X475 WB6X475 BLADE MTR CL
WB02X32634 WB02X32634 BOARD SUPPORTER
WB07X11173 WB07X11173 BOTTOM TRIM
WB02X32932 WB02X32932 BRACKET
WB02X32593 WB02X32593 BRACKET CAPACITOR
WB18X32990 WB18X32990 CERAMIC HEATER ASSEMBLY
WB06X10642 WB06X10642 CHAMBER
WB19X42246 WB19X42246 DAMPER ASSEMBLY
WB27X41746 WB27X41746 DISPLAY BOARD
WB56X10843 WB56X10843 DOOR ASSEMBLY W/4 DR TOOL
WB01X34910 WB01X34910 DOOR REMOVAL TOOL
WB34X32584 WB34X32584 DOOR SWITCH ACCESS COVER
WB27X32632 WB27X32632 ENCODER BOARD
WB06X0475 WB06X0475 FAN BLADE
WB27X10519 WB27X10519 FILTER ASSEMBLY NOISE
WB56X10840 WB56X10840 FLAT CASE
WB06X10650 WB06X10650 GLASS WOOL
WB18X32993 WB18X32993 HALOGEN HEATER ASSEMBLY
WB44X10050 WB44X10050 HEATER SHEATH
WB17X10030 WB17X10030 HIGH VOLTAGE TRANSFORMER
WB06X10726 WB06X10726 HOLDER ASSEMBLY
WB02X32855 WB02X32855 HOLDER DISPLAY
WB02X11233 WB02X11233 HOLDER WIRE
WB01X32574 WB01X32574 INSTALLATION HARDWARE
WB35X32998 WB35X32998 INSULATION FORM KIT
WB27X11020 WB27X11020 LED BOARD
WB26X32629 WB26X32629 MAGNETRON
WB18X10408 WB18X10408 MAIN HARNESS
WB06X10828 WB06X10828 MICA COVER
WB24X10172 WB24X10172 MICRO SWITCH
WB06X10641 WB06X10641 MICROWAVE BOTTOM PANEL
WB06X10570 WB06X10570 MICROWAVE BRACKET
WB02X11225 WB02X11225 MICROWAVE BRACKET
WB02X32591 WB02X32591 MICROWAVE BRACKET
WB27X11033 WB27X11033 MICROWAVE CAPACITOR
WB02X11320 WB02X11320 MICROWAVE CONTROL PANEL BRACKET
WB27X10037 WB27X10037 MICROWAVE DIODE CABLE
WB06X10773 WB06X10773 MICROWAVE DOOR GLASS
WB26X32609 WB26X32609 MICROWAVE FAN MOTOR
WB03X10129 WB03X10129 MICROWAVE KNOB - WHITE
WB10X32573 WB10X32573 MICROWAVE LATCH BODY - LEFT
WB10X32577 WB10X32577 MICROWAVE LATCH BODY - RT
WB02X32588 WB02X32588 MICROWAVE LEVER
WB02X11319 WB02X11319 MICROWAVE LIGHT COVER
WB06X10786 WB06X10786 MICROWAVE LIGHT SOCKET HOLDER
WB27X10928 WB27X10928 MICROWAVE LINE FUSE
WB06X10776 WB06X10776 MICROWAVE RACK HOLDER
WB07X11156 WB07X11156 MICROWAVE SURGE BOARD
WB21X10148 WB21X10148 MICROWAVE THERMOSTAT
WB20X10048 WB20X10048 MICROWAVE THERMOSTAT
WB07X33009 WB07X33009 MICROWAVE TRIM - LEFT - STAINLESS STEEL
31-41006-2 31-41006-2 MINI-MANUAL
WB26X10182 WB26X10182 MOTOR(CIRC) CIRCULATION
WB34X32596 WB34X32596 MOUNT
WB49X10243 WB49X10243 NONSTIC TRAY-METAL GRILL
WB49X10242 WB49X10242 NONSTICK TRAY-METAL FLAT
WB27X11018 WB27X11018 POWER BOARD
WB18X10417 WB18X10417 POWER CORD ASSEMBLY
WB49X10202 WB49X10202 RACK
WB02X10542 WB02X10542 RANGE MOTOR BRACKET
WB06X10775 WB06X10775 RING ASSEMBLY
WB1X1518 WB1X1518 RING SHAFT
WB01X1504 WB01X1504 SCREW - HEATER SHEATH
WB1X1504 WB1X1504 SCREW TRUSS
WB27X10857 WB27X10857 SENSOR ASSEMBLY
WB27X11019 WB27X11019 SMART BOARD
WB01X1518 WB01X1518 SPACER
WB24X25397 WB24X25397 SWITCH MICRO
WB24X10047 WB24X10047 SWITCH MICRO
WB18X10287 WB18X10287 THERMISTOR NTC
WB20X10021 WB20X10021 TRANSFORMER POWER
WB27X43590 WB27X43590 TRAY GLASS
WB26X32994 WB26X32994 TT MOTOR W/ GASKET
WB02X11360 WB02X11360 TURNTABLE SHAFT
WB36X10129 WB36X10129 UPPER GLASS COVER
49-40577 49-40577 USE & CARE MANUAL
WB27X11017 WB27X11017 VENTILATION FAN MOTOR
WB01X1522 WB01X1522 WASHER COMMON
WB1X1521 WB1X1521 WASHER PLAIN
WB1X1522 WB1X1522 WASHER SPLK
WB01X1521 WB01X1521 WASHER- PLAIN
WB07X11257 WB07X11257 WW (WHITE) CONTROLLER ASSEMBLY
